Gunsmithing Rem 700 extractor install and ejector modification (.223 bolt face)

flyfisherman246

Private
Full Member
Minuteman
May 26, 2017
563
195

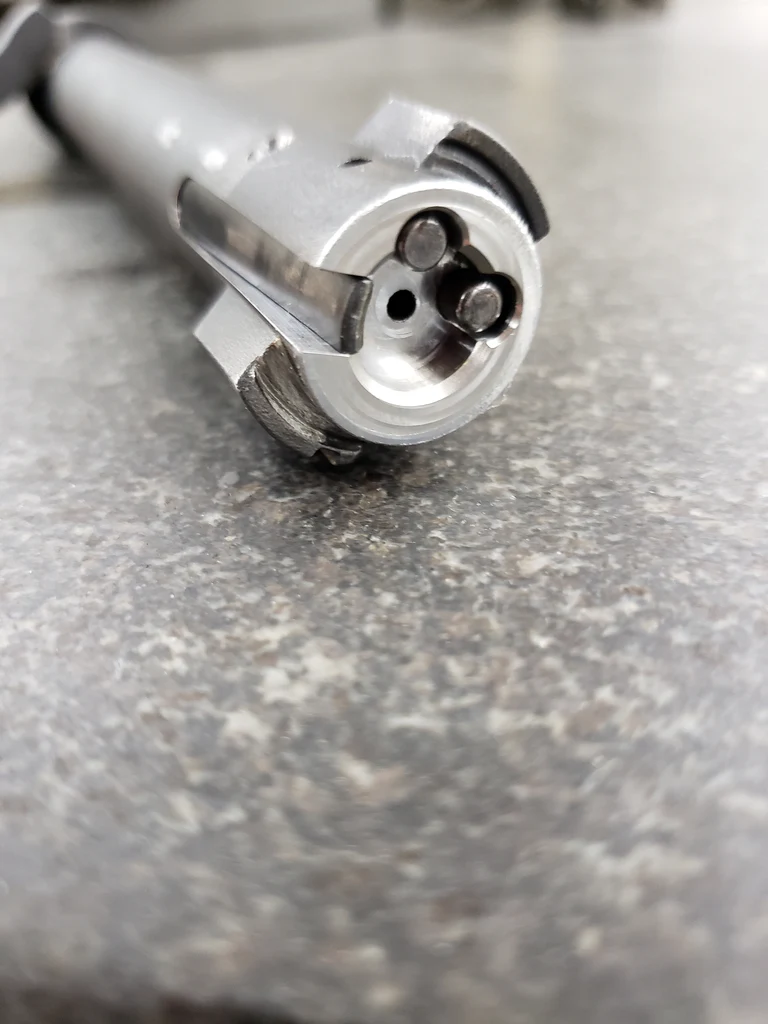

Ive done M16 extractor installs before on 700's with standard and magnum bolt faces. The process goes: take a standard bolt face factory 700 bolt, open it up, solder a nose ring, face the new nose, bore the bolt to a .223 bolt face, then cut the extractor groove. This has worked just fine with standard and magnum bolt faces, but when you bring it down to a .223 bolt face, the new nose covers up part of the ejector hole. How do you go about locating and clearancing for the ejector?
