$89 shipped complete ready to use.

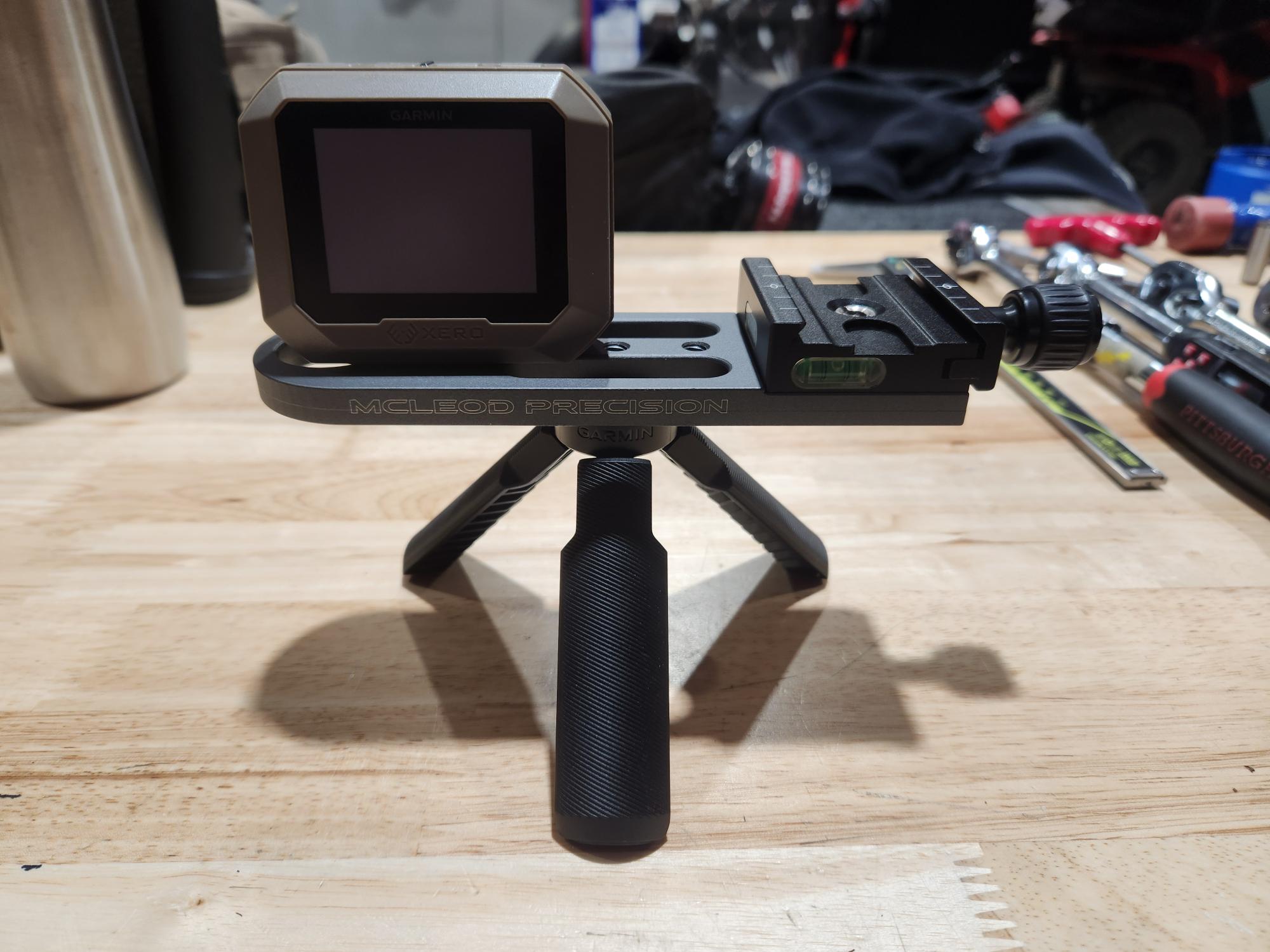

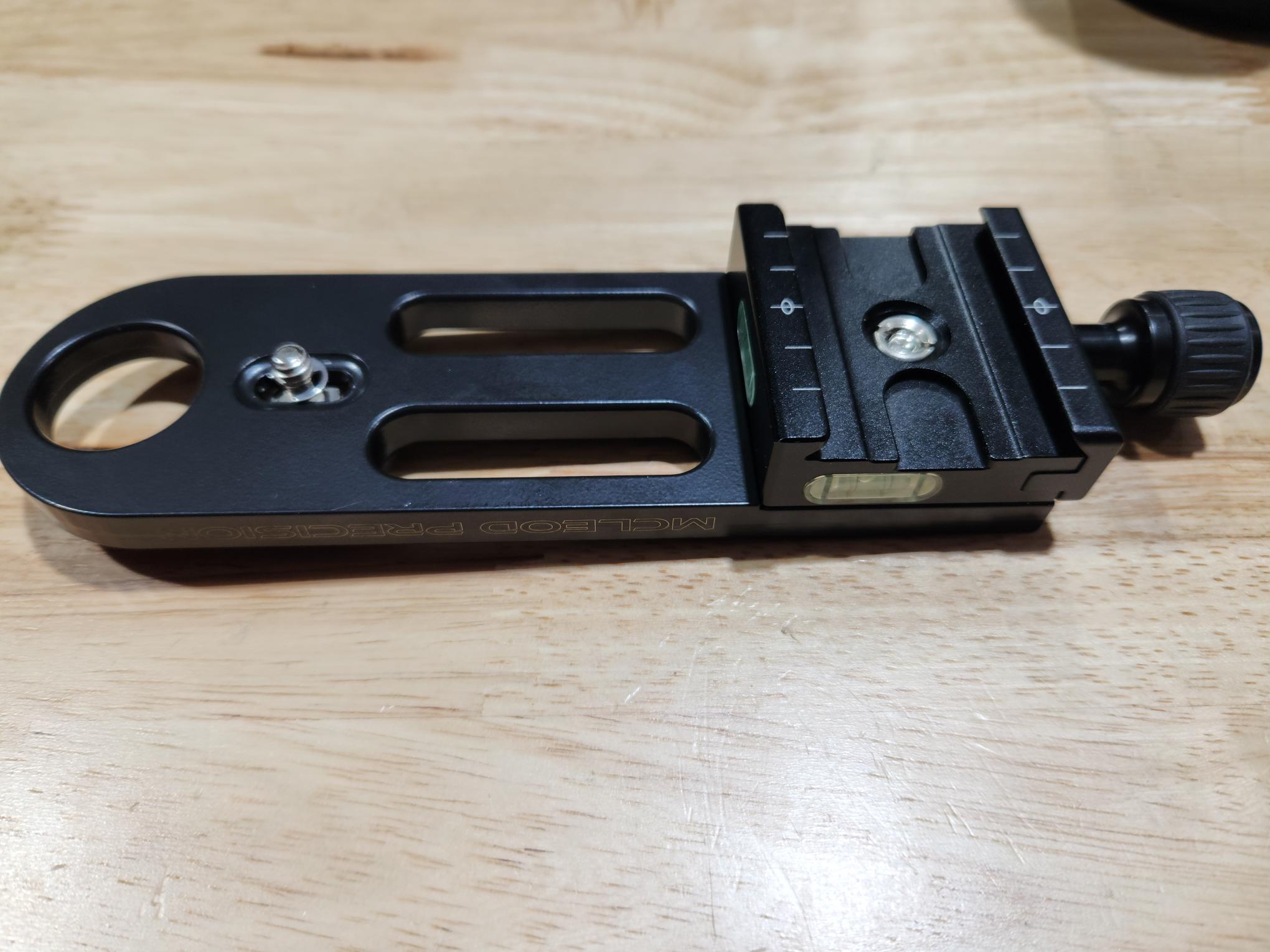

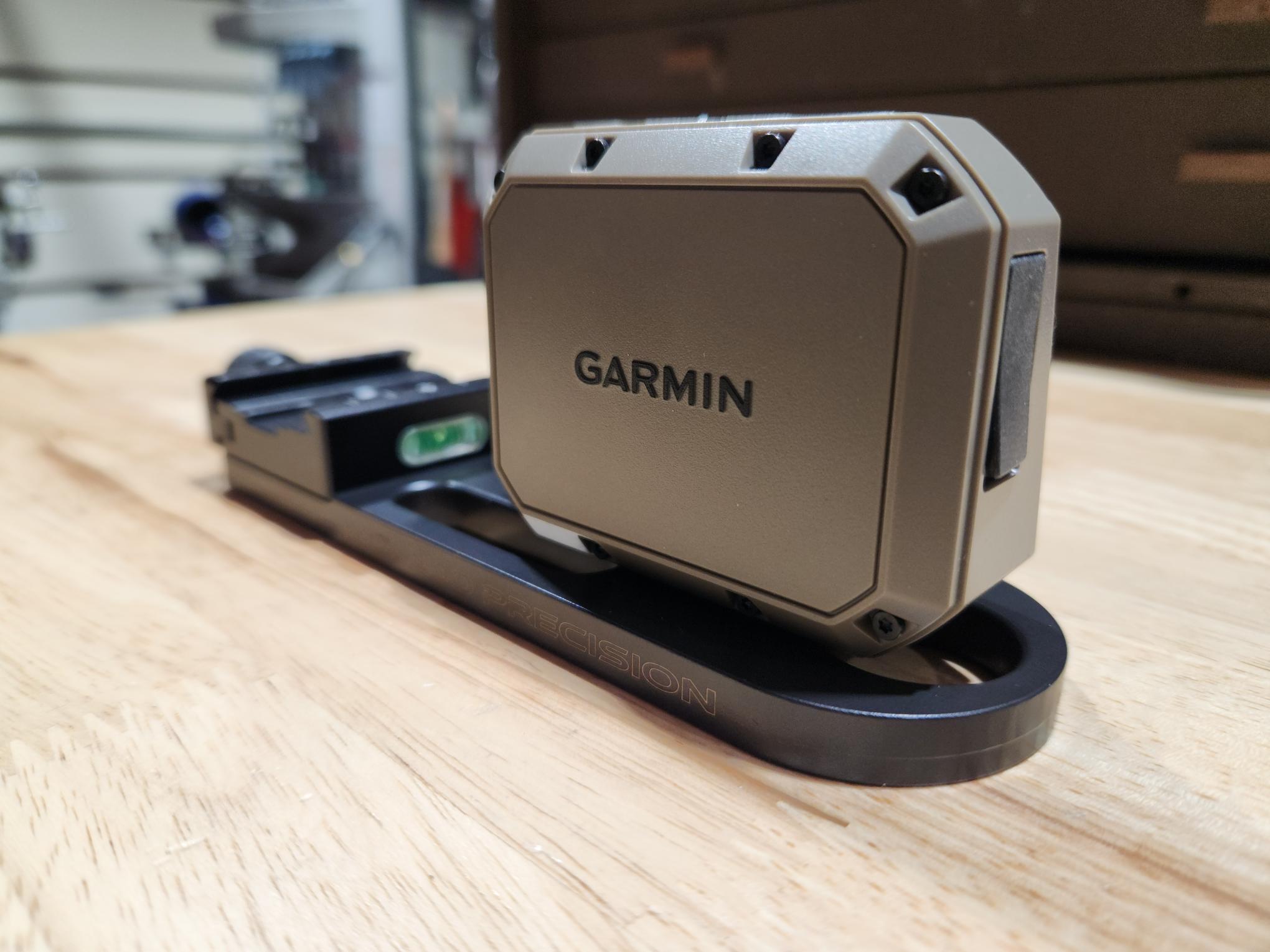

Machined from 6061-T6 completely in my shop here in Northern Arizona. Comes complete ready to use including the ARCA clamp. Graphite Black Cerakote applied for finish. 8oz weight without the Xero installed. .350" thick and very stout. The ARCA clamp is inset to prevent shifting. The Xero can be rotated slightly on the mount if needed.

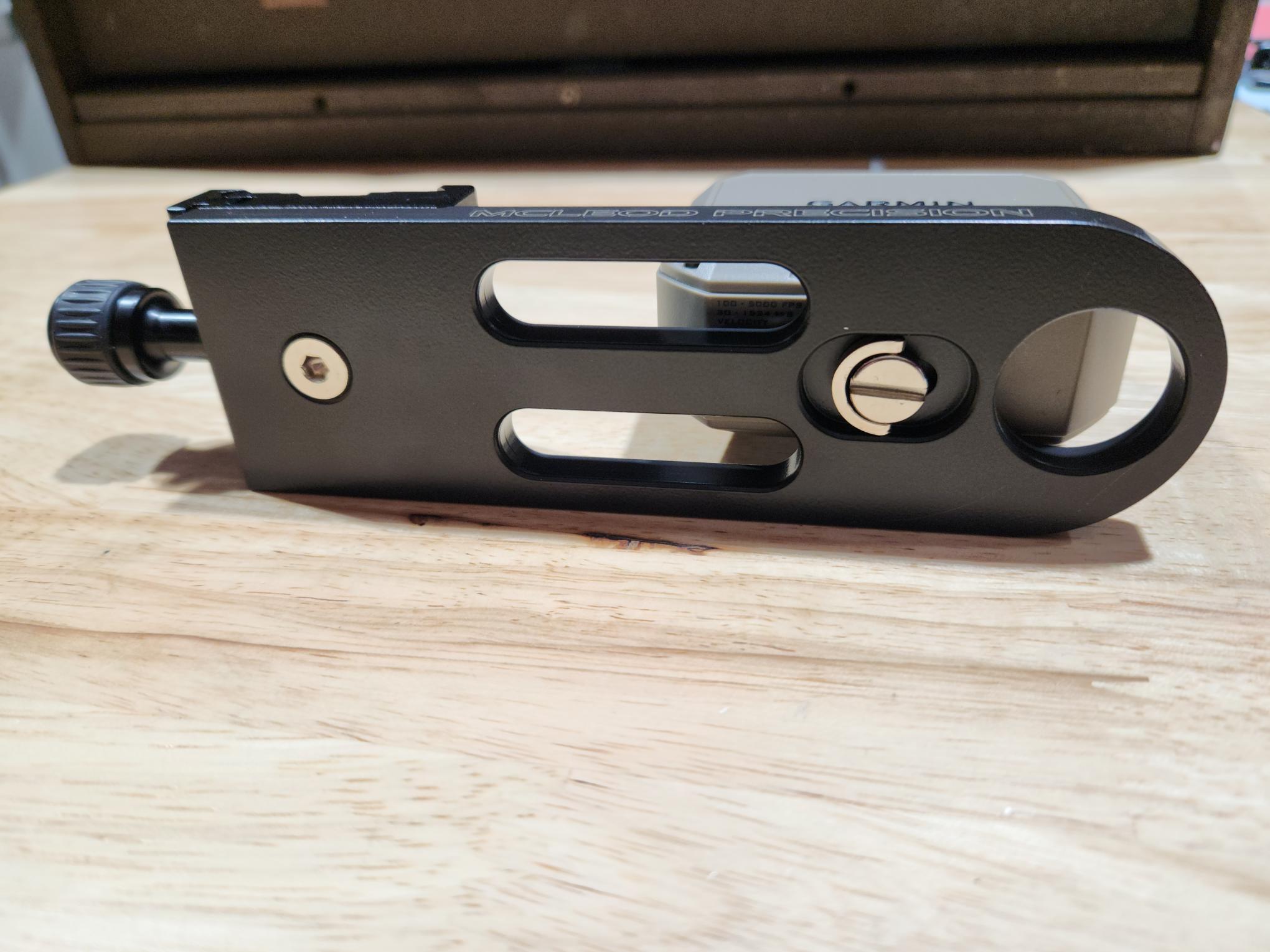

Mounting holes are provided if you decide to remove my clamp and install your own. Maybe you have a dual PIC/ARCA clamp like the RRS BTC PRO. You can verify your clamps fits by measuring the center to center hole spacing is 1.1" (ARMS-17 pattern) and the width of the clamp (center line of holes to edge opposite the lever or knob is no more than 1.280" which is an exact measurement no fudge factor). This fits a pretty large clamp. The holes are tapped 10-32. Please reach out with any questions.

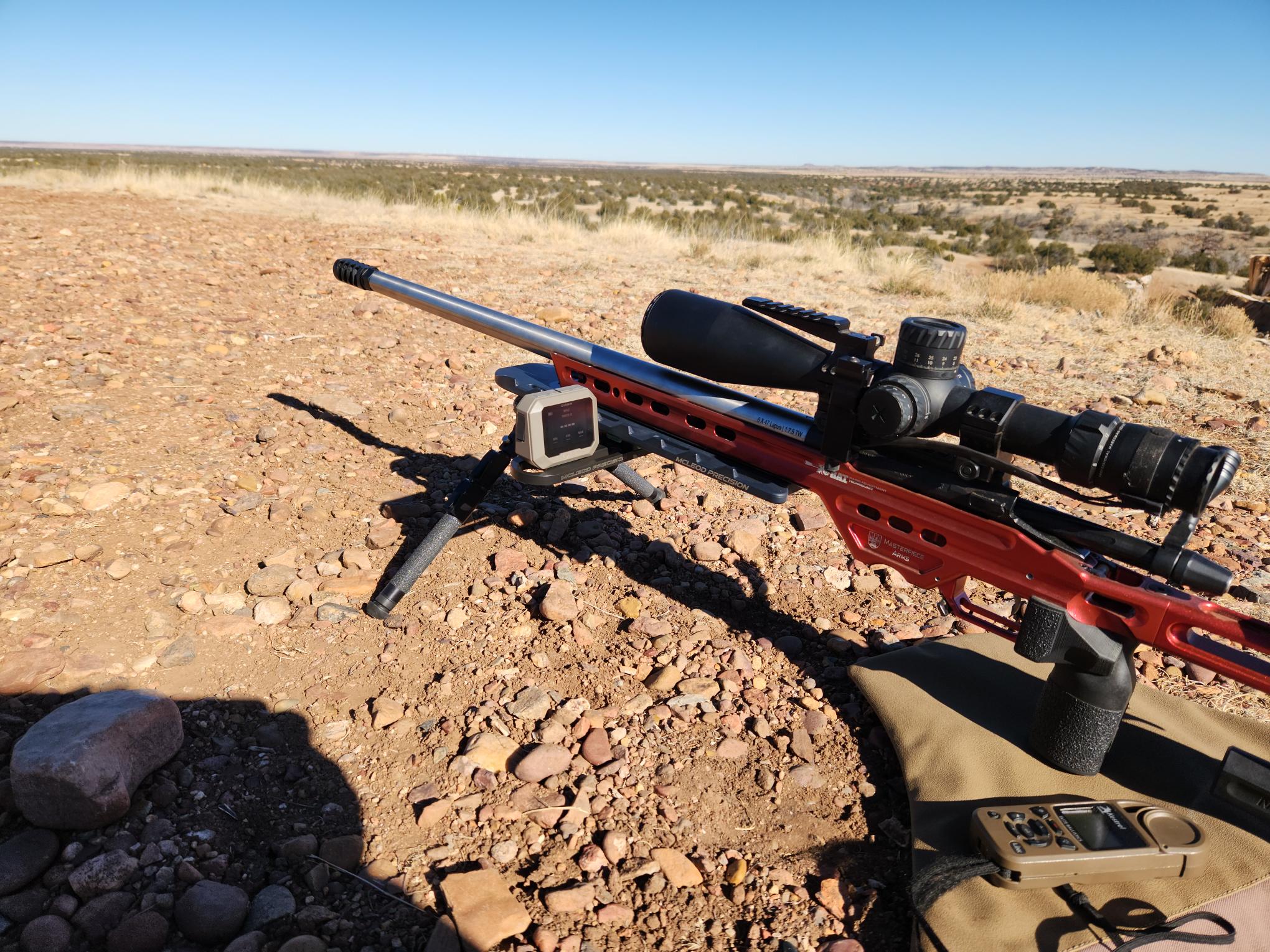

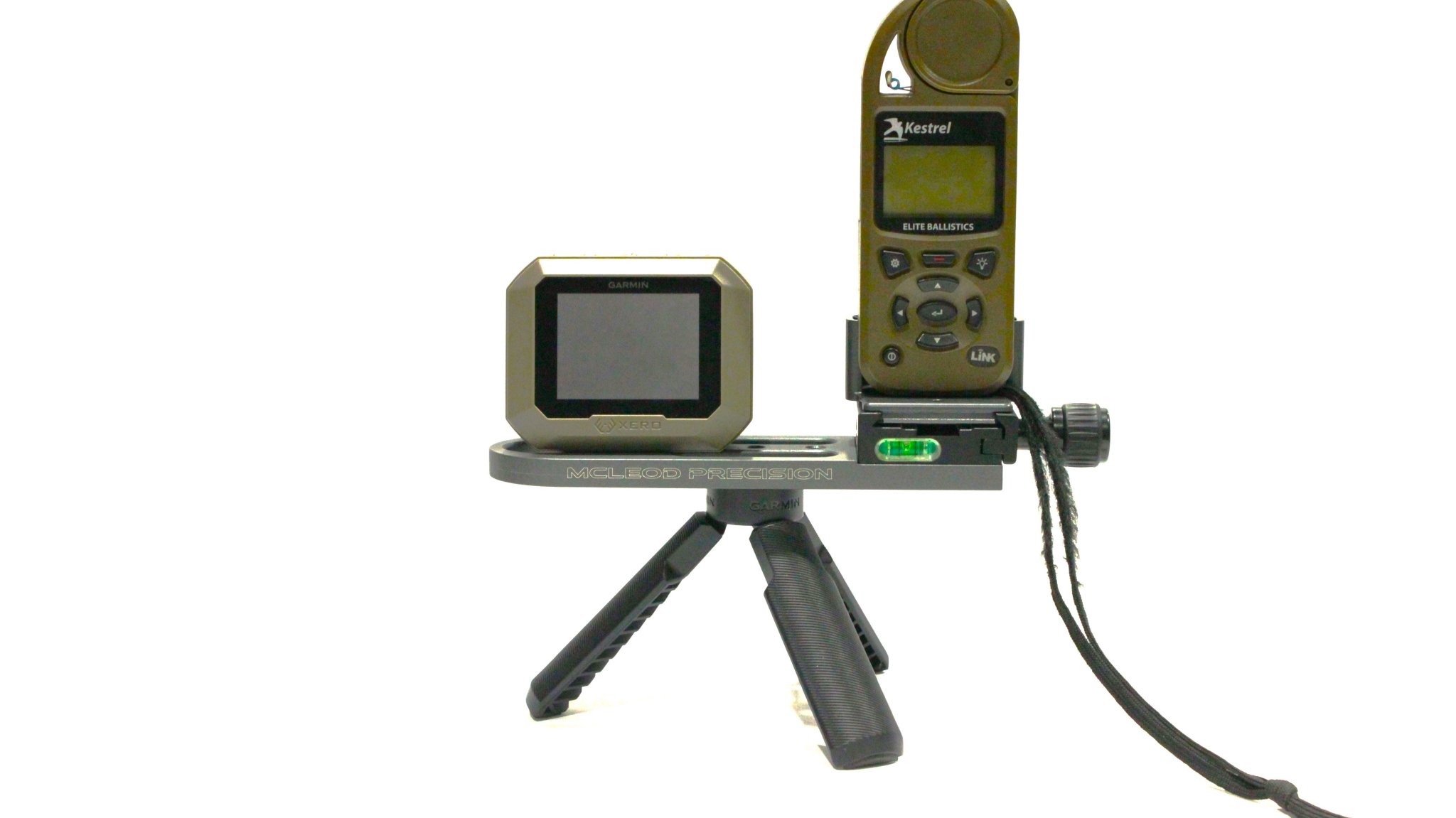

V2 update - added in 3 center holes tapped 1/4"-20 so you can thread in your mini Xero Tripod or anything else interesting. Also check out the Kestrel Mount which clamps into the existing clamp on the Xero Sled and now you have a great benchrest setup or for your other non ARCA setup rifles.
Please check out our other products as well! https://mcleodprecision.com/ Thanks for supporting our small business!
Kevin
