I have a RWS Diana I bought probably 30 yrs ago. The plastic trigger snapped right where the screw goes in. Looking to buy a replacement trigger assembly. Is there a website that sells these? My Google fu keeps coming up with places that just sell the entire rifle. Thanks!
-
Having trouble using the site?
Contact support
RWS trigger?
- Thread starter Belvedere
- Start date
You don't state which model of RWS Diana you have?
This link might help you identify the part required

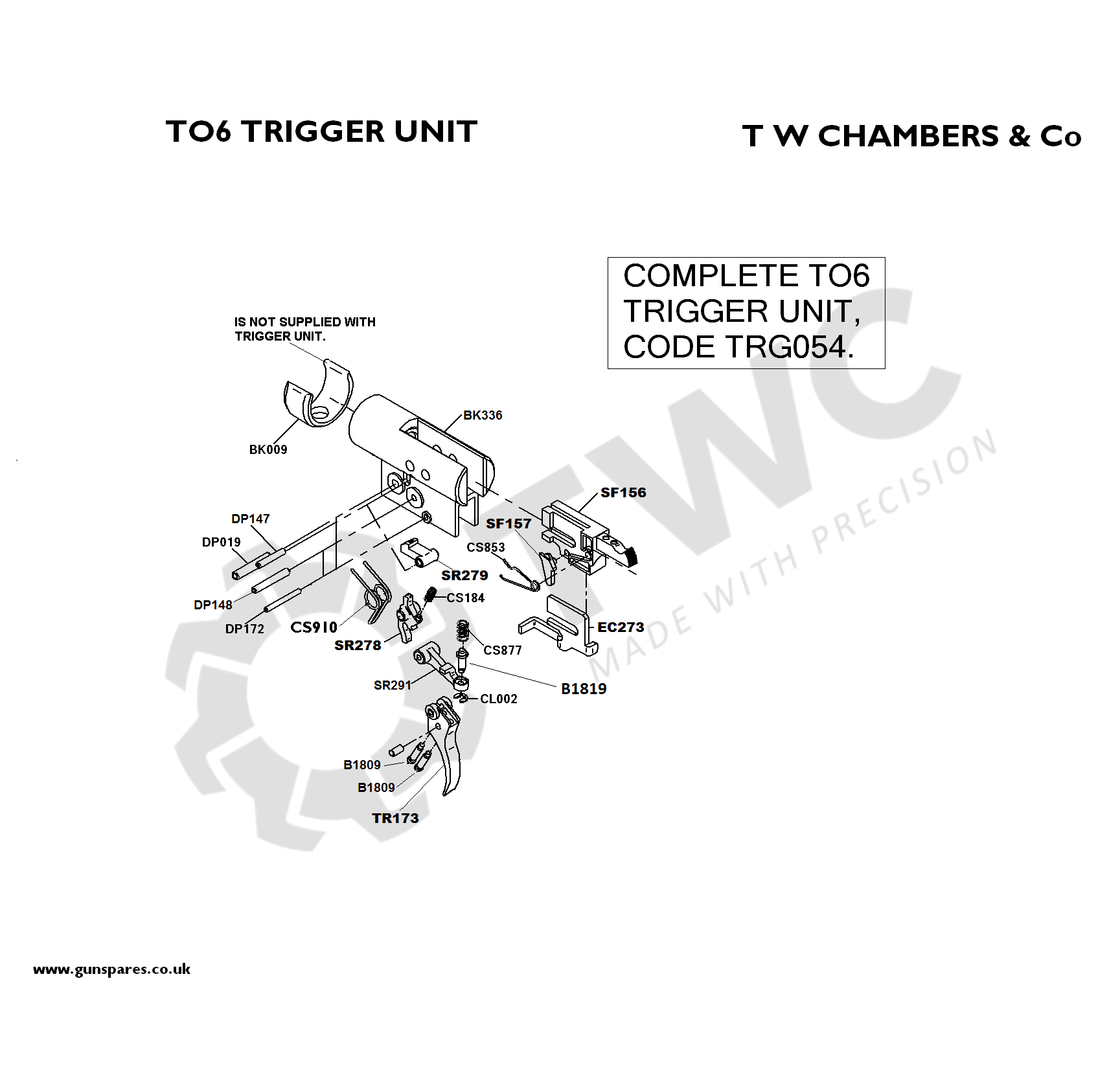

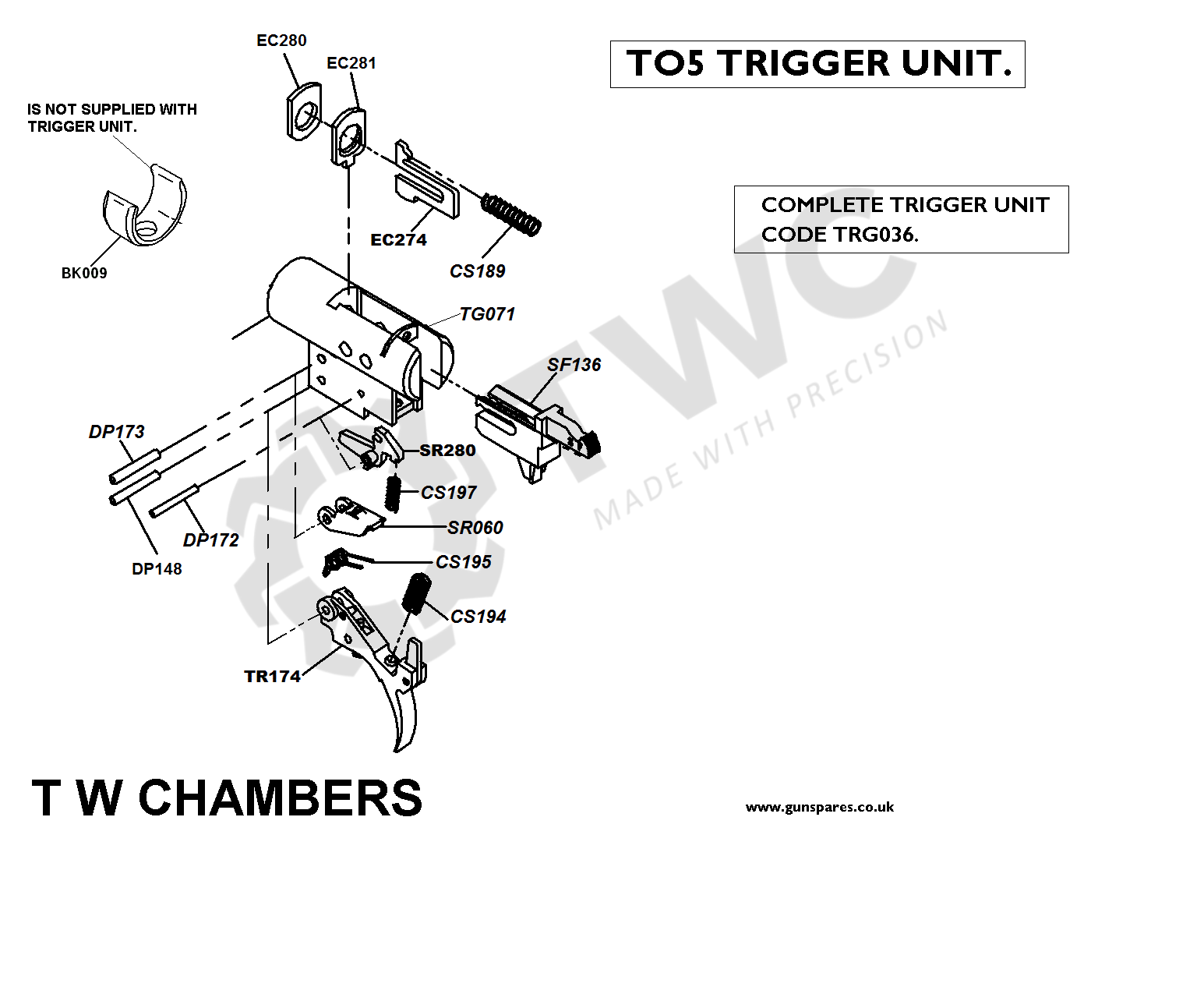

Without knowing the model, it could be any number of triggers T01, T02, T03, T04, T05, T06. Does it look like one of the below?
This link might help you identify the part required
Without knowing the model, it could be any number of triggers T01, T02, T03, T04, T05, T06. Does it look like one of the below?
Last edited:
This post states Ruger Airguns use a T05 clone, so that may help you find the required part Stateside.
www.airgunforum.ca
Diana T05 trigger (and clones) re-assembly with pictures
This is a re-assembly tutorial for the Diana T05 trigger and its clones (Ruger Blackhawk, etc). As far as I can tell, all these triggers are configured exactly
www.airgunforum.ca
They are available ex UK (are you allowed to import them?).
https://twchambers.co.uk/airgun-spares/diana-original/t05-trigger-unit/
My understanding is that a TO6 trigger unit will also fit but needs the corresponding piston too (more $$). But might be worthwhile if a TO5 is not readily available in US.
https://twchambers.co.uk/airgun-spares/diana-original/t05-trigger-unit/
My understanding is that a TO6 trigger unit will also fit but needs the corresponding piston too (more $$). But might be worthwhile if a TO5 is not readily available in US.
