SAC sizer die setup?

B

bbowles

Sergeant
Full Member
Minuteman
Supporter
Oct 13, 2013
406
32
Missouri
#1
Have a question on my new sac sizing die. Got it setup like the sac sizing die setup video says. Got the decapping expander mandrel in it with a .288 bushing for my 6.5 Creedmoor. The bushing edge (facing the decapping end) is lined up about even with the top end of the expander section (closest to top of die). It sizes with extremely good neck runout (0.0005 to 0.001). However, the shoulder bump seems inconsistent (ranging from 0.000 to 0.002 bump.
Other question I have is it drags pretty hard as the brass is coming back thru the mandrel. It is not smooth. It is jerky and almost squeaks. I use plenty of Imperial Die wax inside and outside neck and on body.
Got suggestions for me?

#3
Once fired brass.
Fired headspace 1.499 with Sinclair comparator. Sized 1.497 but some are still 1.499.
Fired neck 2.951. Sized back to .2894 odd with expander mandrel in sac die. When take expander out od is .2883. Try not too overwork brass. Like have done with Forster honed die for years.
Body just below shoulder. Fired .4632. Sized .4628.
Body at. 200 line... Fired .4702. sized .4698
All measurements with micrometer.
Lube...I have been putting more than ever have done with this die. I can try more but didn't want to cave in brass either. But will do.

  • Like
Reactions: spife7980
#4
Once fired brass.
Fired headspace 1.499 with Sinclair comparator. Sized 1.497 but some are still 1.499.
Fired neck 2.951. Sized back to .2894 odd with expander mandrel in sac die. When take expander out od is .2883. Try not too overwork brass. Like have done with Forster honed die for years.
Body just below shoulder. Fired .4632. Sized .4628.
Body at. 200 line... Fired .4702. sized .4698

Lube...I have been putting more than ever have done with this die. I can try more but didn't want to cave in brass either. But will do

#5
Heck, that all looks great. One of the few times that’s ever happened, someone having an issue and having taken actual measurements.
Shoulder diameters a bit tight back in the chamber but smaller so doubtful that’s it.

Annealing schedule? What’s this brasses prior life to this die like?

#6
bbowles said:
However, the shoulder bump seems inconsistent (ranging from 0.000 to 0.002 bump.
Click to expand...
Annealing or no? Might try a small amount of dwell time while the casing sits in the die to see if that moves the needle at all there.
If it's jerky on the upstroke, I suppose it's possible that might pull on the shoulder but I'm not sure how much that would affect bump.

And lube, like spife mentions.

#9
ST1TCH said:
Definitely wouldn’t recommend full length sizing virgin brass, neck mandrel only IMO before first firing.

But I don’t think that was your issue here.
Click to expand...
Have always ran my virgin brass thru a FL sizing die. Since Virgin brass is not formed it only gets the neck sized anyway. Just curious why that would ever be a problem?

  • Like
Reactions: JSW2000, Simonsza1 and memilanuk
#10
Really like to hear from people as to how they set up the die. I simply ran ran up til contact shellholder and lock down due. I put 3 .025 shims on top which put the bushing even with the top part of expander (the top being the part towards the top of die). I sized with this die when was Virgin brass and was jerky going thru the die but assumed that was due to clean, new neck walls which is common. Expected this to change after brass was fired and had some carbon inside neck. I tumble with rice.
I also added the .001 shims between the bushing and taper adapter to get some bump. I also used a +.002 Area 419 shellholder to get bump. This is same shellholder I use with Forster die.

#11
bbowles said:
Have always ran my virgin brass thru a FL sizing die. Since Virgin brass is not formed it only gets the neck sized anyway. Just curious why that would ever be a problem?
Click to expand...
Just generally no need to FL size virgin cases, you want the case to fully fire form to your chamber which it’ll do regardless of FL sizing or not, just less working of the brass that way.

That’s the explanation I’ve gotten before, anyway. You aren’t going to ruin them, and certainly shouldn’t cause these issues.

#14
Had the same issue with my setup. About half are perfect other half couple thou off. I think its the mandrel pulling back through. Try a larger bushing if you have it, should have less pull coming back through. I went to a 2k smaller bushing than fired and it helped.

Last edited:
#15
Just my experience - I am running 2 SAC dies a Creedmoor with a .288" bushing and .2630" decapping mandrel and a GT with a .266" bushing and .2410" mandrel. I've probably put 5000 cases through the Creedmoor die and only recently got the GT version for my new prs build.

I use a light spray of Hornady one shot case lube pointed at the neck and shoulder. I have gotten very consistent .0002-3 bump when I have measured, but honestly I generally don't bother. I do not use any shims, but do have a slight cam over from how I finally set it up. With that lube process I have never experienced noise from the mandrel or inconsistent/excessive force, but you can feel it pass through the die on the way out. Before sizing, I decap, ultrasonic clean/dry, zap them with the AMP and then lube for sizing.

Your experience would sound to me like a lube issue, but you seem to already be on top of that. Do you have the correct length mandrel? If you mistakenly had a too short one it could possibly be in conflict with the bushing I suppose.

#16
bbowles said:
. The bushing edge (facing the decapping end) is lined up about even with the top end of the expander section (closest to top of die).
Click to expand...

What is being described above..............I'm seeing in my mind, the conflict / problem.

I wouldn't want my necks to be engaging the mandrel until after the case mouth has existed the bushing..........preferably right at the moment the case mouth exists the bushing.

I may be picturing it wrong ,by the description......... If so........I got nothing ,but needs more imperial wax . If it squeaks ,do some polishing / add more lube.........I never cared for a " dry hole".............

#17
I have a few thoughts given my experience with the SAC product.
First, call SAC and see what they say.

I’ve never had as much trouble setting up a sizing die as I do with the SAC sizing/decapping/mandrelling die. It’s a pain in the ass unrivaled by any other die I’ve used.

I finally gave up on trying to make the shims do anything consistent. I don’t use any now. Either the .025 or the .001.
How tightly you screw on the top cap seems to affect my sizing more than the shims do anyways. I highly recommend marking that cap and the die body and screwing it to the exact same tension/place every time. Set up exactly like you would any other die. By screwing it in or out of the press to adjust depth. Or you can use your shell holders if that works for you.

I can change my shoulder bump by a few thousands, either direction by changing the amount I lube the cases. All these recommendations for more lube miss the mark in my opinion. A small amount of lube in the right places (neck inside and out and the base or bottom 1/3rd of the case), applied consistently from case to case will be critical in getting a consistent result. ESPECIALLY WITH A LUBE AS THICK AS IMPERIAL DIE WAX. It’s a great lube but a little goes a LONG way.

I suspect you have some interference between the bushing and the mandrel. First, take out all the bushings and see what happens. Make sure you have the correct length mandrel. You can adjust the mandrel depth with the e-clip at the die top, you could try that. Move it down so the expander part is deeper in the case when the neck is engaged in the bushing. Clean the die well.

Other opinions:
You don’t need to worry about overworking your brass since you’re annealing every time.
I too am of the opinion that you do more harm than good by full sizing brand new brass assuming you’re not buying trash brass. One pass over the expander mandrel or nothing at all is all that’s needed for Lapua.
The amp can leave an inconsistent patina on the case neck interior. Consider moving your annealing step to a different place in your process so that your brass has a chance to go through some kind of cleaner or tumbling before you apply lube and put it through the sizing die. I used to anneal immediately before sizing. I have recently switched to annealing first and then tumbling followed by resizing. I get more consistent bullet seating pressures by doing it that way.

  • Like
Reactions: ZY100 and simonp
#19
bbowles said:
Really like to hear from people as to how they set up the die. I simply ran ran up til contact shellholder and lock down due. I put 3 .025 shims on top which put the bushing even with the top part of expander (the top being the part towards the top of die). I sized with this die when was Virgin brass and was jerky going thru the die but assumed that was due to clean, new neck walls which is common. Expected this to change after brass was fired and had some carbon inside neck. I tumble with rice.
I also added the .001 shims between the bushing and taper adapter to get some bump. I also used a +.002 Area 419 shellholder to get bump. This is same shellholder I use with Forster die.
Click to expand...
What press are you using?

#22
JSW2000 said:
How much did you turn the die down once it contacted the shellholder?
Click to expand...
Screwed die down until touched shellholder with ram at top. Then I typically leave the die lock ring a little loose and run brass up into die and then lock it down. Usually helps with runout.
Runout is actually about .0005. If I don't run brass into die and lock down it can be a little over. 001 to .0015. Runout is not the issue.
The harsh sizing to the point of brass almost getting stuck in die and squeaking is an issue for me.
The shoulder setback tends to be within a .001 to .002 which I would like to see .001 or less consistently.

  • Like
Reactions: JSW2000
#23
bbowles said:
Screwed die down until touched shellholder with ram at top. Then I typically leave the die lock ring a little loose and run brass up into die and then lock it down. Usually helps with runout.
Runout is actually about .0005. If I don't run brass into die and lock down it can be a little over. 001 to .0015. Runout is not the issue.
The harsh sizing to the point of brass almost getting stuck in die and squeaking is an issue for me.
The shoulder setback tends to be within a .001 to .002 which I would like to see .001 or less consistently.
Click to expand...
On the Zero press you need to screw the die in another 1/4 turn atleast once it has contacted the shellholder. If you have it just touching and then fasten it down there will definitely be a gap between the two when you're sizing. That's probably where the inconsistency is coming from. I don't know about the rough sizing though! I switched to a homemade Isopropyl Alcohol and Liquid lanolin oil sizing lube and it is the smoothest I have ever used. I am curious about the .001" of shoulder bump? That's a tight standard to try and hold.

#24
I have used the SAC die on GT and 223 for thousands of cases.

The top of the sizing portion of the mandrel has to be low enough so the brass isn't binding inside the bushing, but high enough that the mandrel engages the ID before the OD of the neck exits the bushing. Contrary to what others have said, this is intentional and should be set up that way to reduce runout in theory.

Possible options from most likely to least likely in my opinion:
1. The mandrel is set too high, binding the brass between the bushing and the carbide mandrel. If you can't go low enough, you may have the wrong length mandrel.
2. You're not getting as much lube on the ID as you think
3. The mandrel and/or bushing is the wrong size. Check mandrel size with a caliper and check brass thickness to determine bushing size
4. The ID of the die body isn't smooth

As for inconsistent headspace, this can come from inconsistent lube (probably not the case in your situation) or the die not having enough preload. They should be screwed in enough to where the die maintains contact with the shell plate through sizing.

  • Like
Reactions: Vivacious Stallion and JSW2000
#25
Will try all this tonight and tomorrow. Never had so much trouble getting a sizing die to work like I want. I do think it's capable but sure hard to beat the smooth sizing of my Forster honed die.

#26
JSW2000 said:
On the Zero press you need to screw the die in another 1/4 turn atleast once it has contacted the shellholder. If you have it just touching and then fasten it down there will definitely be a gap between the two when you're sizing. That's probably where the inconsistency is coming from. I don't know about the rough sizing though! I switched to a homemade Isopropyl Alcohol and Liquid lanolin oil sizing lube and it is the smoothest I have ever used. I am curious about the .001" of shoulder bump? That's a tight standard to try and hold.
Click to expand...
My Forster honed die produces one after another sized within. 001 of each other on my Area 419 or my Redding press. Measured with Sinclair comparator and Mitutoya calipers

  • Like
Reactions: JSW2000
#27
JSW2000 said:
On the Zero press you need to screw the die in another 1/4 turn atleast once it has contacted the shellholder. If you have it just touching and then fasten it down there will definitely be a gap between the two when you're sizing. That's probably where the inconsistency is coming from. I don't know about the rough sizing though! I switched to a homemade Isopropyl Alcohol and Liquid lanolin oil sizing lube and it is the smoothest I have ever used. I am curious about the .001" of shoulder bump? That's a tight standard to try and hold.
Click to expand...
It's odd they say I'm their video you can adjust headspace thru shims, shellholder or adjusting die in or out of press. I usually setup my sizers as you said. This thing is just a different animal.
Made we want to try a micron or a cortina sizer. Lol. Maybe they are about same.

  • Like
Reactions: JSW2000
#28
DairyDictator said:
I have used the SAC die on GT and 223 for thousands of cases.

The top of the sizing portion of the mandrel has to be low enough so the brass isn't binding inside the bushing, but high enough that the mandrel engages the ID before the OD of the neck exits the bushing. Contrary to what others have said, this is intentional and should be set up that way to reduce runout in theory.

Possible options from most likely to least likely in my opinion:
1. The mandrel is set too high, binding the brass between the bushing and the carbide mandrel. If you can't go low enough, you may have the wrong length mandrel.
2. You're not getting as much lube on the ID as you think
3. The mandrel and/or bushing is the wrong size. Check mandrel size with a caliper and check brass thickness to determine bushing size
4. The ID of the die body isn't smooth

As for inconsistent headspace, this can come from inconsistent lube (probably not the case in your situation) or the die not having enough preload. They should be screwed in enough to where the die maintains contact with the shell plate through sizing.
Click to expand...
Can u send me a pic of where it needs to be?

#29
bbowles said:
It's odd they say I'm their video you can adjust headspace thru shims, shellholder or adjusting die in or out of press. I usually setup my sizers as you said. This thing is just a different animal.
Made we want to try a micron or a cortina sizer. Lol. Maybe they are about same.
Click to expand...
If you want the ultimate in headspace adjustabilitity get a Area 419 M-Series die. Expensive but the consistency and ease of use is incredible.

#30
bbowles said:
Can u send me a pic of where it needs to be?
Click to expand...
I'm running 419 dies now and just sold my SAC dies.

When you pull the cap and collet assembly and stack them up outside the die, you should be able to look in the bushing and see a .125" ish gap between the neck-shoulder junction part of the bushing and the top of the sizing part of the mandrel. Please forgive the crude drawing but this is what you're looking for where the black ink is the bushing and red is the mandrel.


  • Like
Reactions: JSW2000
#31
I did the opposite. I ran Forster honed dies for years. Tried Area 419 die few months ago. Yes it is nice but I hated that it sized excessively the neck down only to expand it back up. Just hated that. Worked well though.

  • Like
Reactions: JSW2000
#32
bbowles said:
I did the opposite. I ran Forster honed dies for years. Tried Area 419 die few months ago. Yes it is nice but I hated that it sized excessively the neck down only to expand it back up. Just hated that. Worked well though.
Click to expand...
Fair enough! If you anneal every firing the little bit of overworking shouldn't effect it that much though.

#33
I do anneal every firing on an Amp. Just was a mindset that I hated. Anyone have any experience with cortina or micron dies? I have a Micron seater and it's very nice. However, I think I like the SAC Infinity better. But their both nice.

#34
bbowles said:
I did the opposite. I ran Forster honed dies for years. Tried Area 419 die few months ago. Yes it is nice but I hated that it sized excessively the neck down only to expand it back up. Just hated that. Worked well though.
Click to expand...
The SAC does the same thing the Forster dies do, but the bushing replaces honing the neck and the mandrel replaces your expander ball.

#35
I get that. It's just not working even close to as nice yet. Hopefully, I have the patience to make it work. Otherwise, may try a simpler system like Cortina or Micron. Really like the thought of the bushings with shoulder built in though

#36
DairyDictator said:
I'm running 419 dies now and just sold my SAC dies.

When you pull the cap and collet assembly and stack them up outside the die, you should be able to look in the bushing and see a .125" ish gap between the neck-shoulder junction part of the bushing and the top of the sizing part of the mandrel. Please forgive the crude drawing but this is what you're looking for where the black ink is the bushing and red is the mandrel.

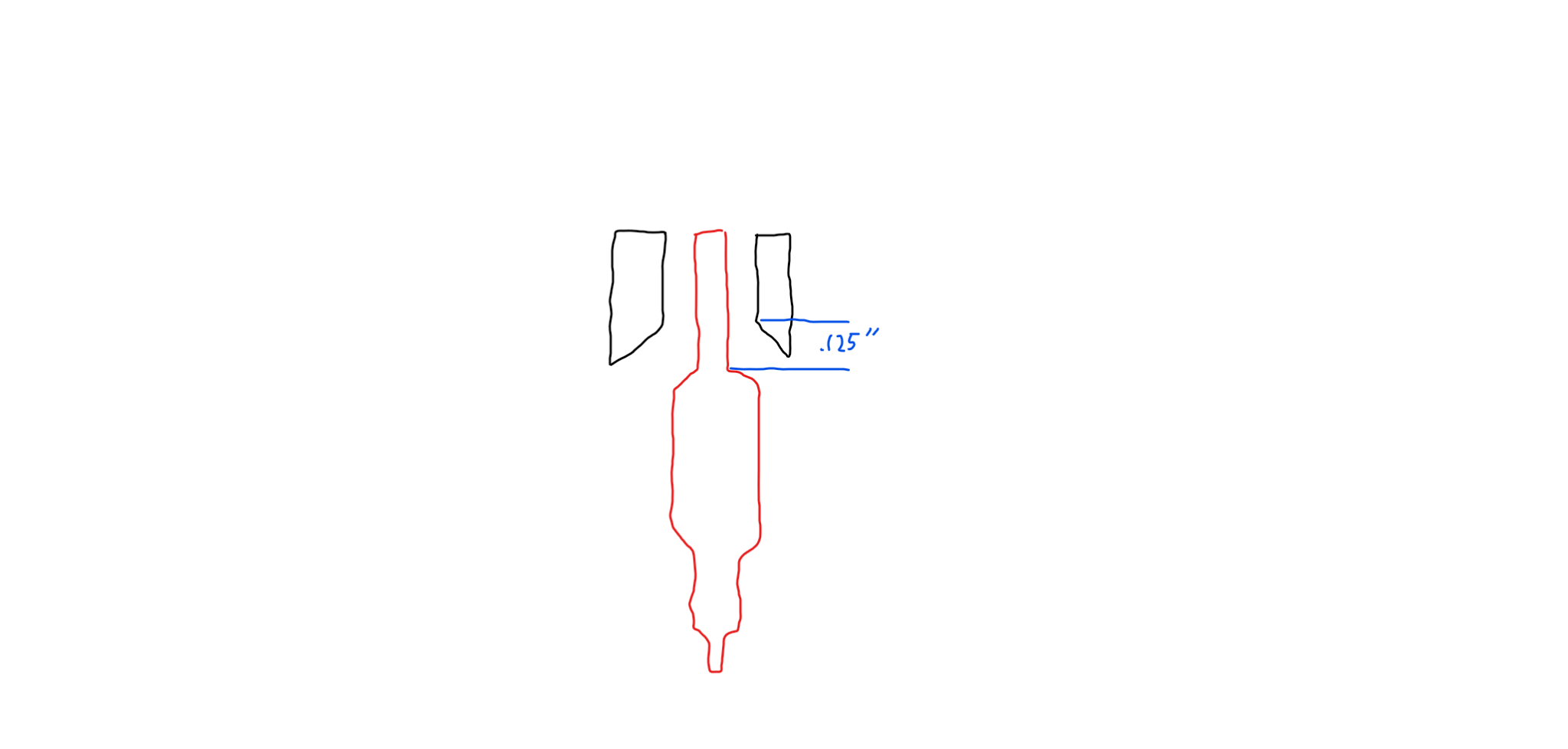

View attachment 8573295
Click to expand...
Outer edge of my bushing is .080 from start of mandrel. The shoulder/neck junction of bushing is .114 to outer edge of bushing. Therefore, it is .194 from where neck starts in bushing to mandrel. This is without any shims at all. I tried 0,1,2 and 3 .025 shims. No luck with any setup. Rough sizing no matter what.

#37
DairyDictator said:
I'm running 419 dies now and just sold my SAC dies.

When you pull the cap and collet assembly and stack them up outside the die, you should be able to look in the bushing and see a .125" ish gap between the neck-shoulder junction part of the bushing and the top of the sizing part of the mandrel. Please forgive the crude drawing but this is what you're looking for where the black ink is the bushing and red is the mandrel.

View attachment 8573295
Click to expand...
Ok.
DairyDictator said:
I have used the SAC die on GT and 223 for thousands of cases.

The top of the sizing portion of the mandrel has to be low enough so the brass isn't binding inside the bushing, but high enough that the mandrel engages the ID before the OD of the neck exits the bushing. Contrary to what others have said, this is intentional and should be set up that way to reduce runout in theory.

Possible options from most likely to least likely in my opinion:
1. The mandrel is set too high, binding the brass between the bushing and the carbide mandrel. If you can't go low enough, you may have the wrong length mandrel.
2. You're not getting as much lube on the ID as you think
3. The mandrel and/or bushing is the wrong size. Check mandrel size with a caliper and check brass thickness to determine bushing size
4. The ID of the die body isn't smooth

As for inconsistent headspace, this can come from inconsistent lube (probably not the case in your situation) or the die not having enough preload. They should be screwed in enough to where the die maintains contact with the shell plate through sizing.
Click to expand...
Ok. So I went back to no shims at all. Have been there before. However, your suggestion of running die 1/4 in past first contact with shellholder worked. It actually made the sizing process MUCH smoother. It is very touchy as to exactly how much past touching to set headspace but think I am there. .002 under fired. Seems pretty consistent also with .0005 to .001 neck runout average.
Think this will work. I have 50 pieces of once fired Lapua brass that has been sized every which way but loose. Lol. I bet it will still shoot awesome. My Moon Roberts rifles seem to shoot anything but a backwards seated bullet well. Lol.
Can't say I am ecstatic about this die but maybe will like it more as I experiment.
REALLY APPRECIATE you guys leading me to a fix! Merry Christmas to you all!

  • Like
Reactions: JSW2000 and DairyDictator
#38
bbowles said:
Ok.

Ok. So I went back to no shims at all. Have been there before. However, your suggestion of running die 1/4 in past first contact with shellholder worked. It actually made the sizing process MUCH smoother. It is very touchy as to exactly how much past touching to set headspace but think I am there. .002 under fired. Seems pretty consistent also with .0005 to .001 neck runout average.
Think this will work. I have 50 pieces of once fired Lapua brass that has been sized every which way but loose. Lol. I bet it will still shoot awesome. My Moon Roberts rifles seem to shoot anything but a backwards seated bullet well. Lol.
Can't say I am ecstatic about this die but maybe will like it more as I experiment.
REALLY APPRECIATE you guys leading me to a fix! Merry Christmas to you all!
Click to expand...
The die should be threaded in until it sizes consistently, then adjust the headspace from there using the 419 shell holder inserts and .001 shims on top of the die bushing as necessary.

  • Like
Reactions: JSW2000
#42
As I said, by setting up the die to touch shellholder when my zero press ram is at the top seemed to fix both my problems. It now sizes brass much smoother and getting consistent headspace.
Using. 288 bushing and. 2625 mandrel.
Thanks for the help.

#43
Once I setup my sac sizing die to touch shellholder on my Zero press and then turn 1/8 to 1/4 past touch this die worked great! Now I experimented with different .025 shims on top cap and found what I should have been understanding. Most probably figured this out but thought I would describe what I learned if there is anyone who hasn't seen this.
After I set die up properly about 1/8 to 1/4 past touch, I found consistency in shoulder setback and about .001 neck runout. So i decided to try adding some .025 shims from having no shims in it. Added 1 and no difference. Added 2 and same thing. However, I got to 3 shims and magically runout was cut in half. About .0005 every time and consistent headspace! It occurred to me what I think some were saying on here that if you get the case neck to still be supported in the bushing while the lower part of neck (by shoulder) starts to go over the mandrel you will get more concentric necks in relation to the body! My necks were leaving the bushing entirely before it started over the mandrel. For my 6.5 Creedmoor the setup is three. 025 shims on top. This puts the bottom edge of the bushing even with the beginning of the mandrel as the case is pulled back out.
SAC told me that is approx where it needs to be located, however, I was doing it with the die not past touching shellholder. Now it works awesome.
Thanks for all who helped and to SAC for their products and service!

  • Like
Reactions: Cafard
