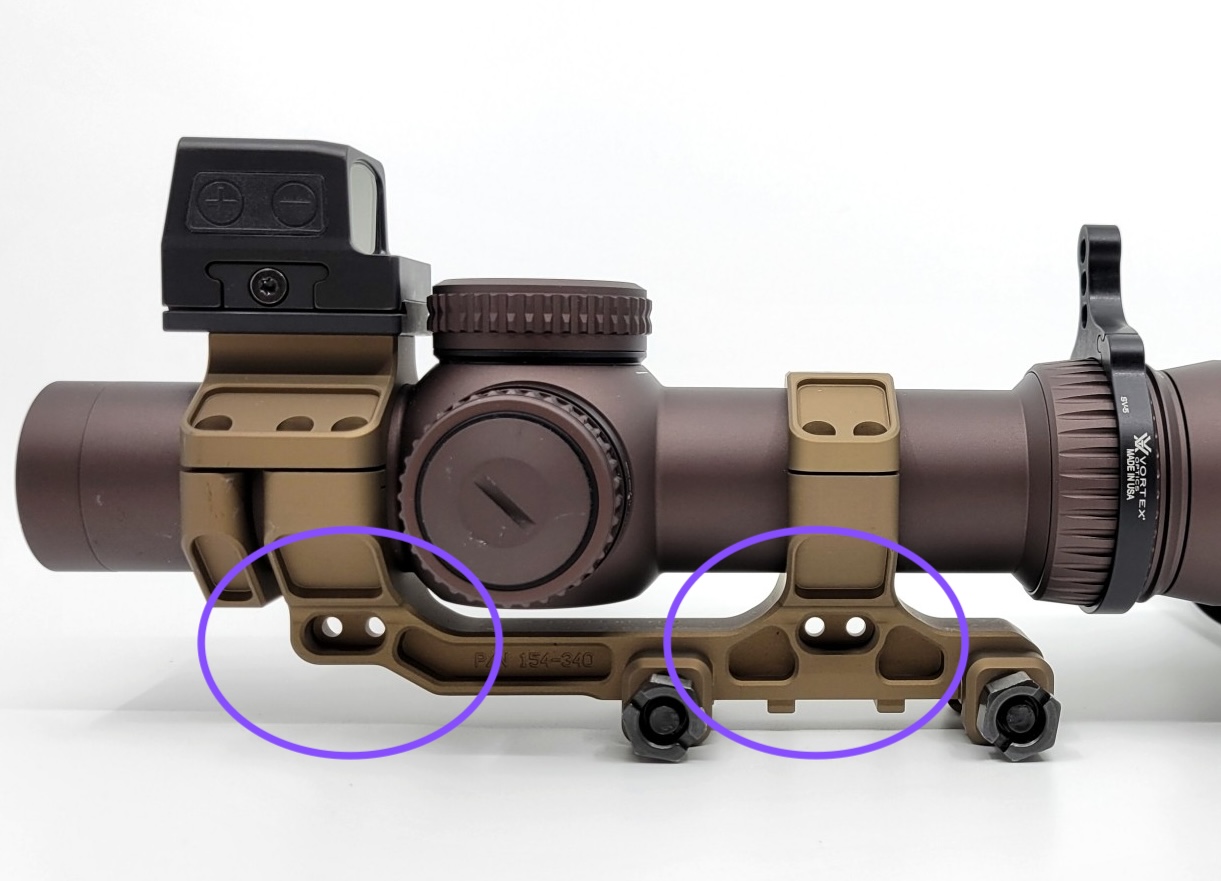

Has anyone made a Send It level 90 deg bracket (like the Spuhr version) for Badger C1 mounts yet?

Maybe @Tyler Kemp could make one?


Attachments

  • cfg-01-012-portside-509T-RAZOR-1920x1280-opt80.jpg
    185.1 KB · Views: 167
Has anyone made a Send It level 90 deg bracket (like the Spuhr version) for Badger C1 mounts yet?

Maybe @Tyler Kemp could make one?
just need one and we can knock it out! preferably a send it (cant believe I don't have one, actually) to go along with it.

We could likely do a polymer and metal printed version at two different price points.

just need one and we can knock it out! preferably a send it (cant believe I don't have one, actually) to go along with it.

We could likely do a polymer and metal printed version at two different price points.
Tyler are you still able to make one of these? I can send you a level.

Got a little impatient so I took some rough measurements for making a 3D printed adapter.

It’s a bit flimsy, so I’ll likely add some gussets. It’s printed out of PLA so it’s going to be a temporary part.

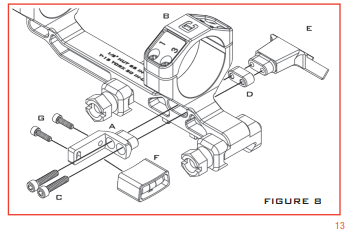

I have a bubble level on the way for the C1 max. Those are a two piece assembly - one part to mount to the scope then the level bolts into that piece. Picture below. Might be able to make a simple part to work with the badger bubble level mount that is machined.

I contacted badger about the actual send it adapter and they said “very soon”




Last edited:

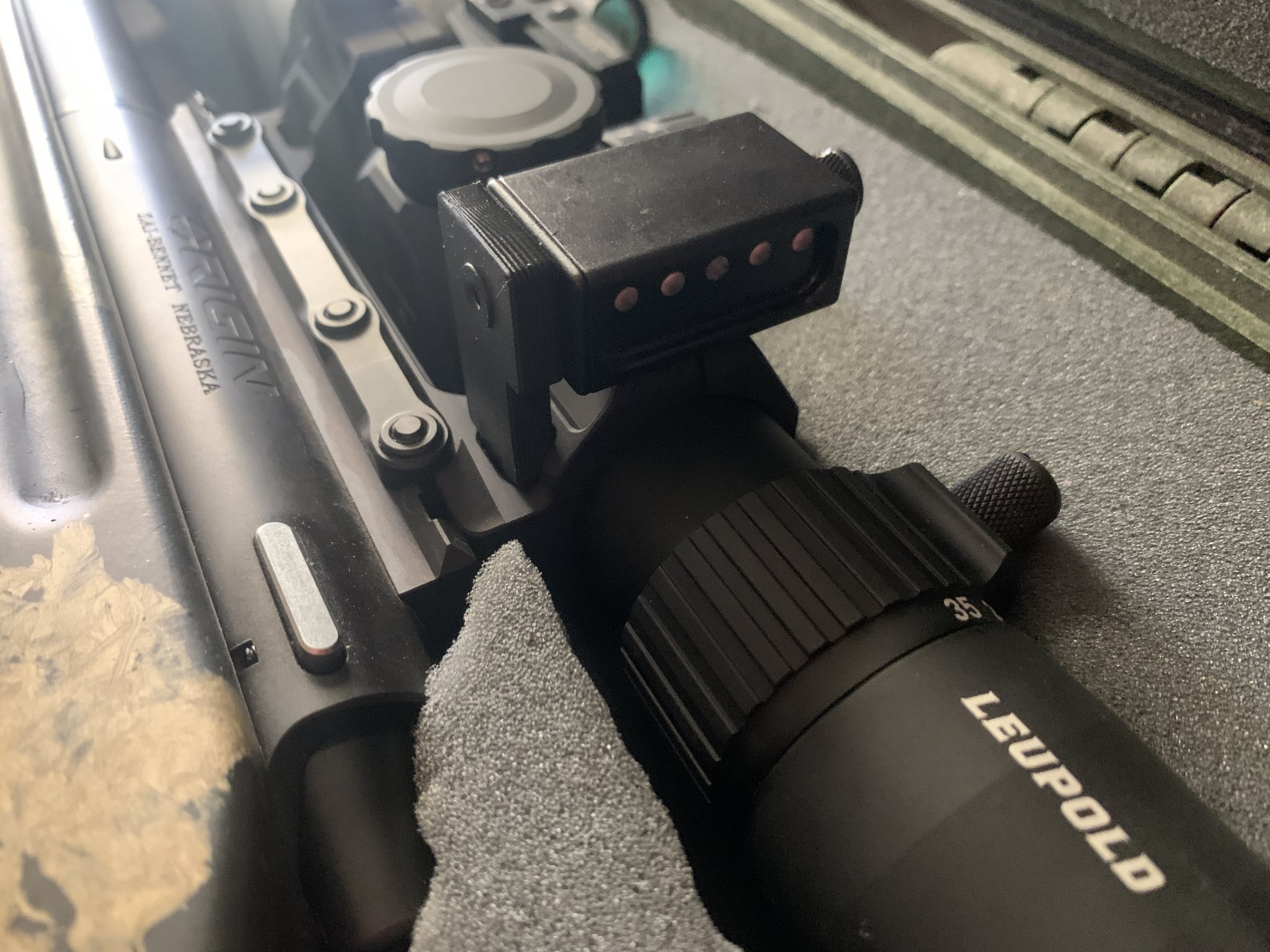

Got my bubble level in - using the bracket from badger for the time being.
For reference, I used part A and D with screws C and G from the figure above.

Much better than the all printed version. If I have some time, I'll machine up a replacement for the printed part.


  • Like
Reactions: Magsz18
MiLiTaRy OrDeRs. Badger supply chain has always been shit.

It’s designed. They haven’t produced or plated/coated them en masse.
Unfortunately this is probably spot on. Their in stock rates always suck and since they showed the part a long time ago it's probably been designed awhile ago and just never made it to production.

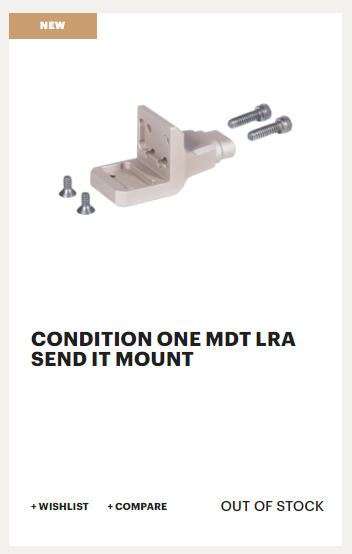

On badger website - OOS so I'm assuming they just haven't released it for sale yet.

Assuming for both C1 and C1 max. Their data card holder is dual compatibility, so assuming this will be a one size fits both.
