Shotmarker or similar for 22lr

[FimRire RongLifle]

Anyone have experience using a system like this with 22lr? between 50-200yard? wondering if there is anything that works for 22lr.



[ballisticdaddy]

For the ShotMarker to recognize a round it needs to be going supersonic so not sure that is the best option with .22LR



[accurate obsession]

I have participated in RF matches where they used shot markers for the longer range targets. They will work but not with 100% trust in their function. My feelings (opinion) is that the intermittent function is because the MD tried to use existing steel targets on the range that are for center fire. These are too thick and heavy and the RF bullet doesn't have enough energy to reliably activate the marker when hits are at the extreme end of the steel from the sensor. At other matches that used thin targets, (only usable for rimfire) they will ring and move even at 400 yds with no marker needed. But if you have the budget and couple a thin target with a marker it should be foolproof.



[memilanuk]

I have participated in RF matches where they used shot markers for the longer range targets. They will work but not with 100% trust in their function. My feelings (opinion) is that the intermittent function is because the MD tried to use existing steel targets on the range that are for center fire. These are too thick and heavy and the RF bullet doesn't have enough energy to reliably activate the marker when hits are at the extreme end of the steel from the sensor. At other matches that used thin targets, (only usable for rimfire) they will ring and move even at 400 yds with no marker needed. But if you have the budget and couple a thin target with a marker it should be foolproof.

I don't think you understand what a ShotMarker system is or how it actually works...



[accurate obsession]

I don't think you understand what a ShotMarker system is or how it actually works...

Well, enlighten me.



[ballisticdaddy]

I have participated in RF matches where they used shot markers for the longer range targets. They will work but not with 100% trust in their function. My feelings (opinion) is that the intermittent function is because the MD tried to use existing steel targets on the range that are for center fire. These are too thick and heavy and the RF bullet doesn't have enough energy to reliably activate the marker when hits are at the extreme end of the steel from the sensor. At other matches that used thin targets, (only usable for rimfire) they will ring and move even at 400 yds with no marker needed. But if you have the budget and couple a thin target with a marker it should be foolproof.

Screenshot taken from the Shotmarker website, most rimfire ammo is less than 900 FPS at 100 yards let alone "longer ranges"



[accurate obsession]

Nevermind, OP is asking about scoring system and i'm talking about led hit sensor.



[FimRire RongLifle]

Thanks for the input on both the lights and the scoring systems. I often share 400 500 yards with center-fire so yes that can be an issue but a light can be helpful there.



[ballisticdaddy]

Well, enlighten me.

ShotMarker

The electronic target for everyone. by Adam MacDonald Order Now ShotMarker changes the way we shoot at long range. Attach the sensors to your frame and receive instant feedback on your mobile device, at any range, as long as the bullet is supersonic at the target. Using 8 high precision MEMS...

autotrickler.com



[ballisticdaddy]

Nevermind, OP is asking about scoring system and i'm talking about led hit sensor.

Shotmarker

ShotMarker

The electronic target for everyone. by Adam MacDonald Order Now ShotMarker changes the way we shoot at long range. Attach the sensors to your frame and receive instant feedback on your mobile device, at any range, as long as the bullet is supersonic at the target. Using 8 high precision MEMS...

autotrickler.com

Hit indicator

MagnetoSpeed T1000 Gen 2 Target Hit Indicator

The T1000 is a rugged target hit indicator with

magnetospeed.com



[Mr.BR]

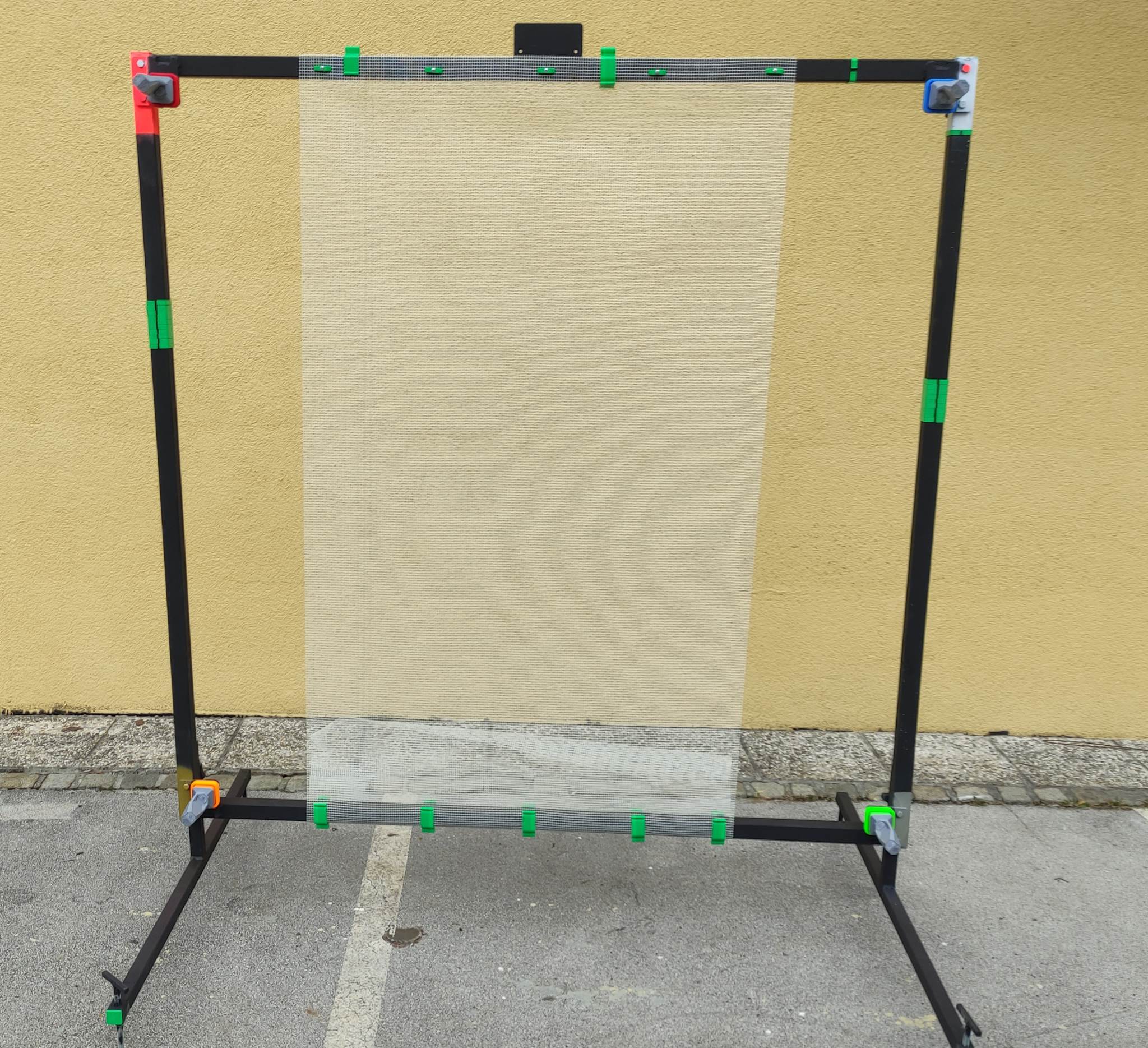

First one i made was wooden but was a pain in the ass to move around without a van, this one packs up , but the next one will be aluminum, not too keen on transporting more weight than necessary.

40x40 steel sections, hardox 500x munting points and protector for the transmitter,3d printed cable guides and mesh holder, mesh is kind of what is used to reinforce drywall or foamed concrete just so you can attach ither a dot or an actual target to it.
