So I adapted an MPA Spigot to my KRG Bravo today

[RFutch]

Wasn’t too excited about paying $130 for a spigot mount so I made my own.

Here’s how:

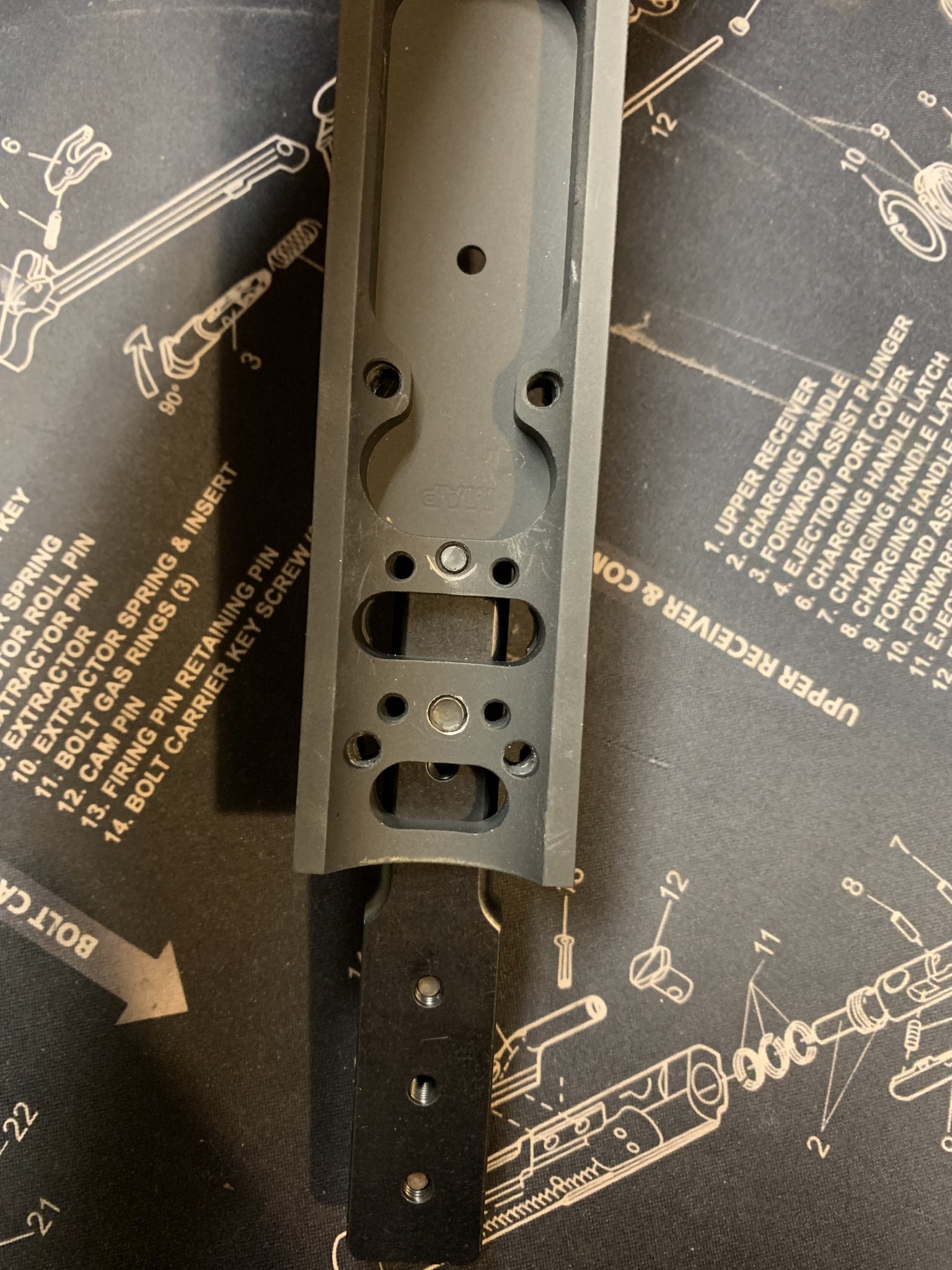

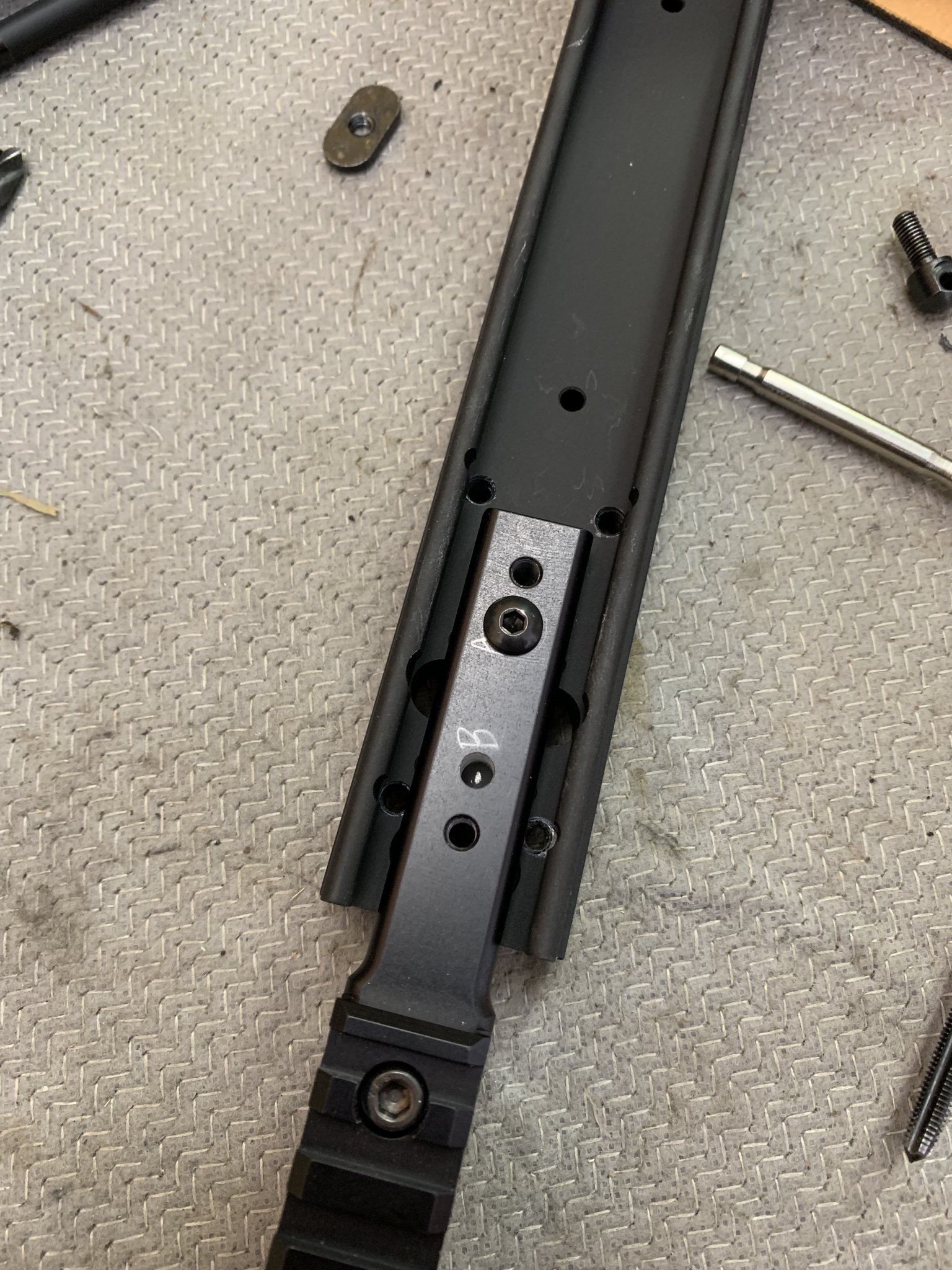

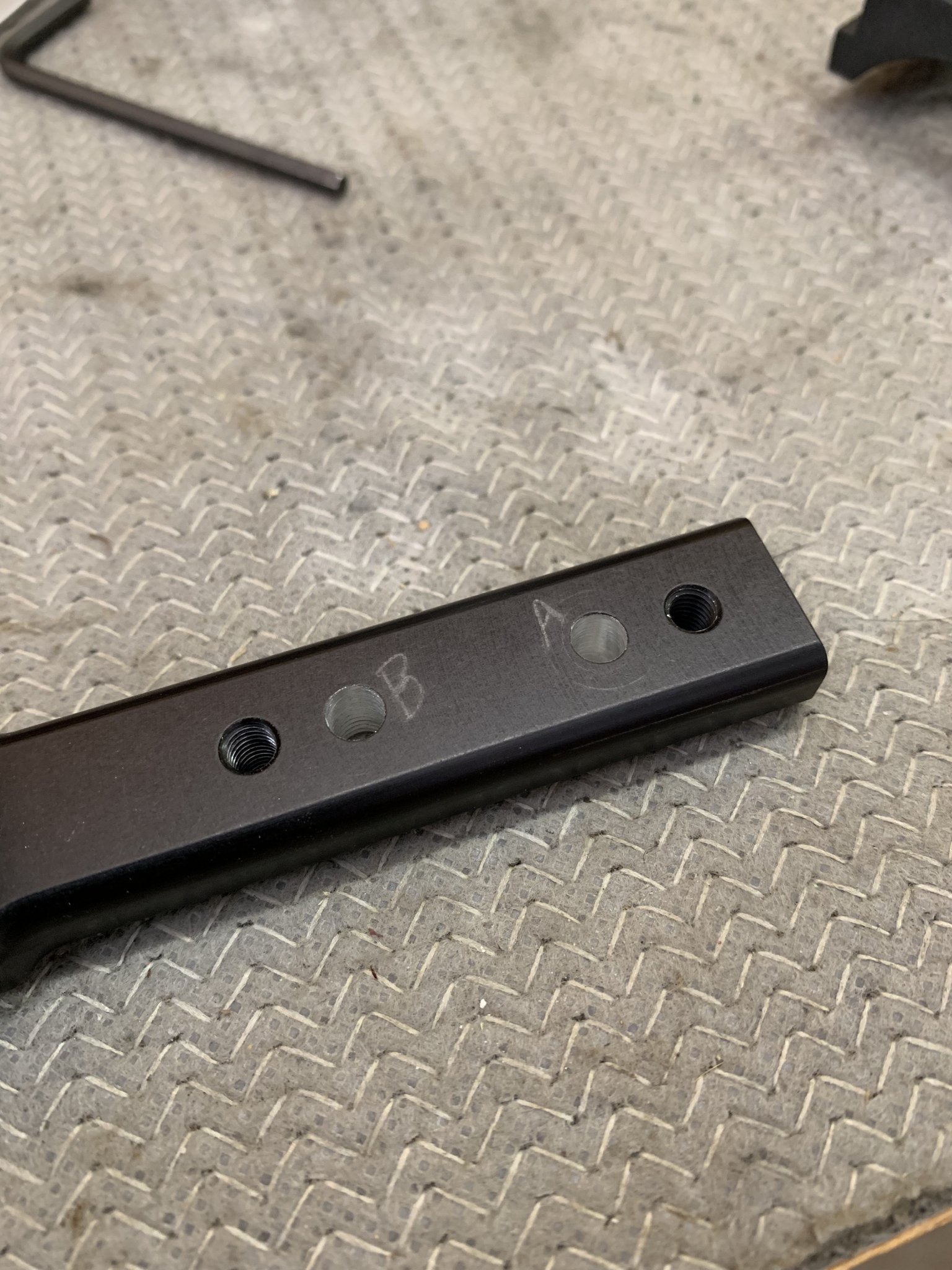

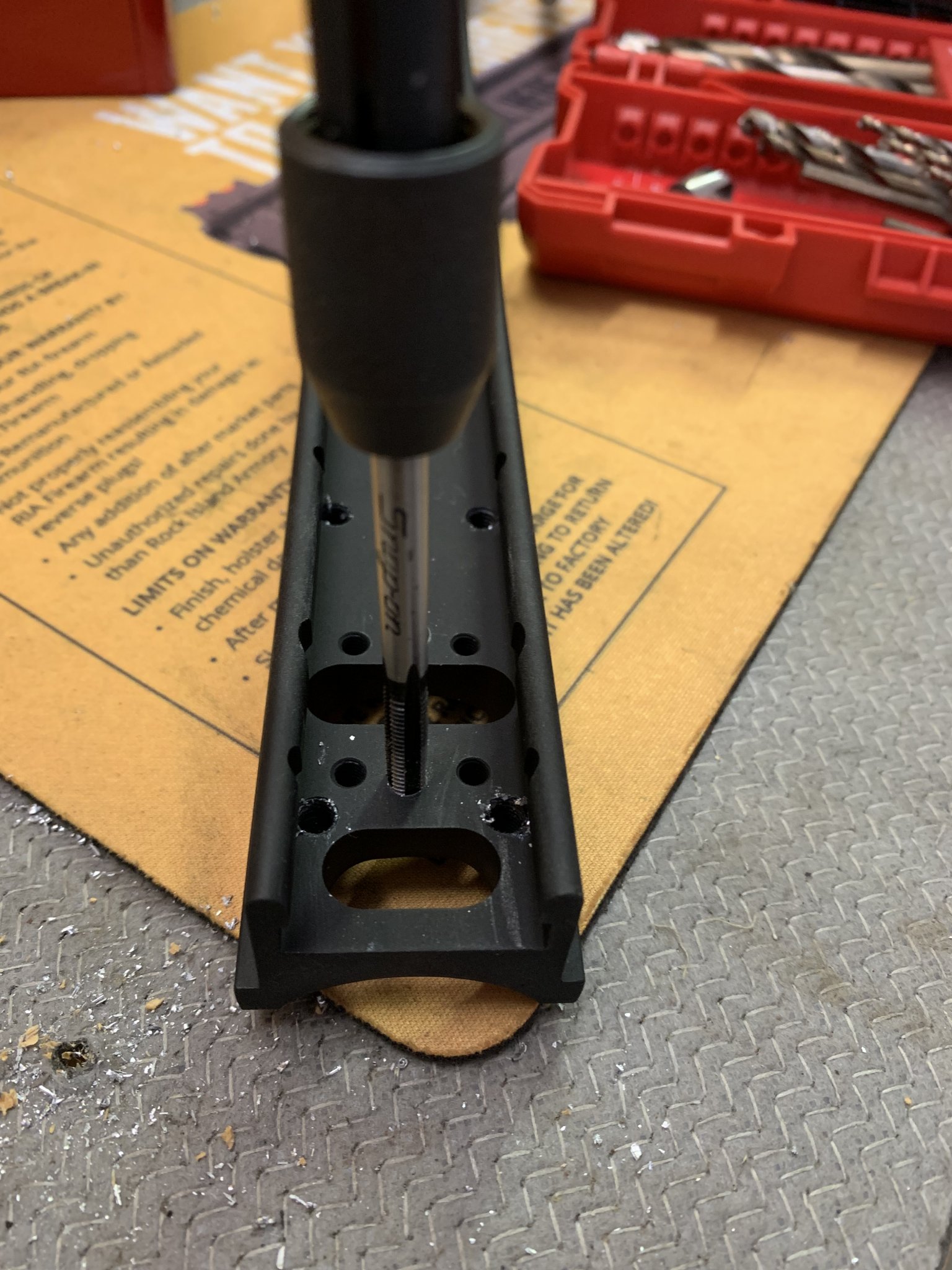

I found a used MPA Spigot for $30. I used the existing hole in the chassis marked A and drilled/tapped a new hole in location B.

Cleaned out the threads on the Spigot mount.

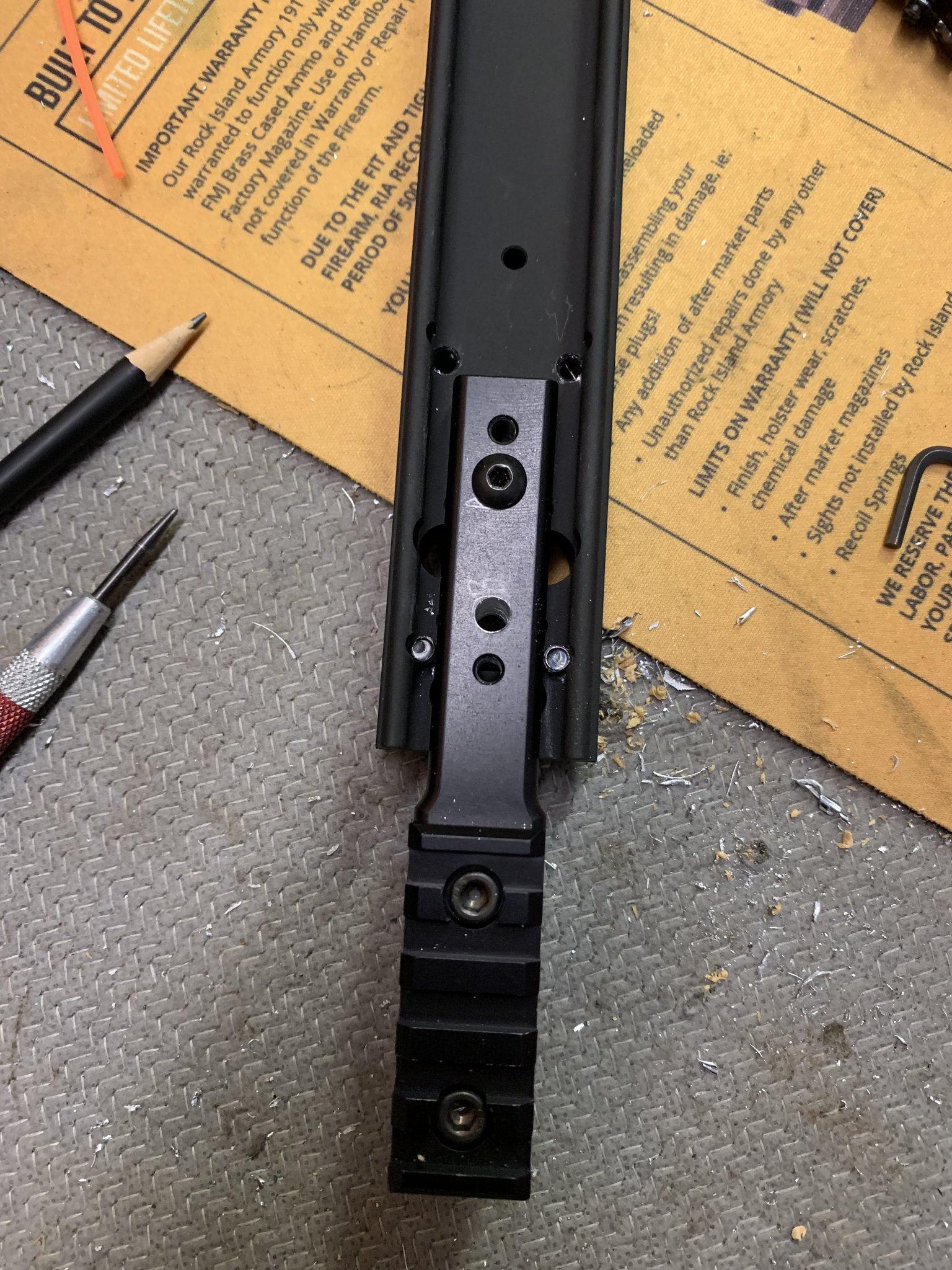

The drilled walked on me a tad while drilling the hole so I had to make it bigger than location A to fix it.

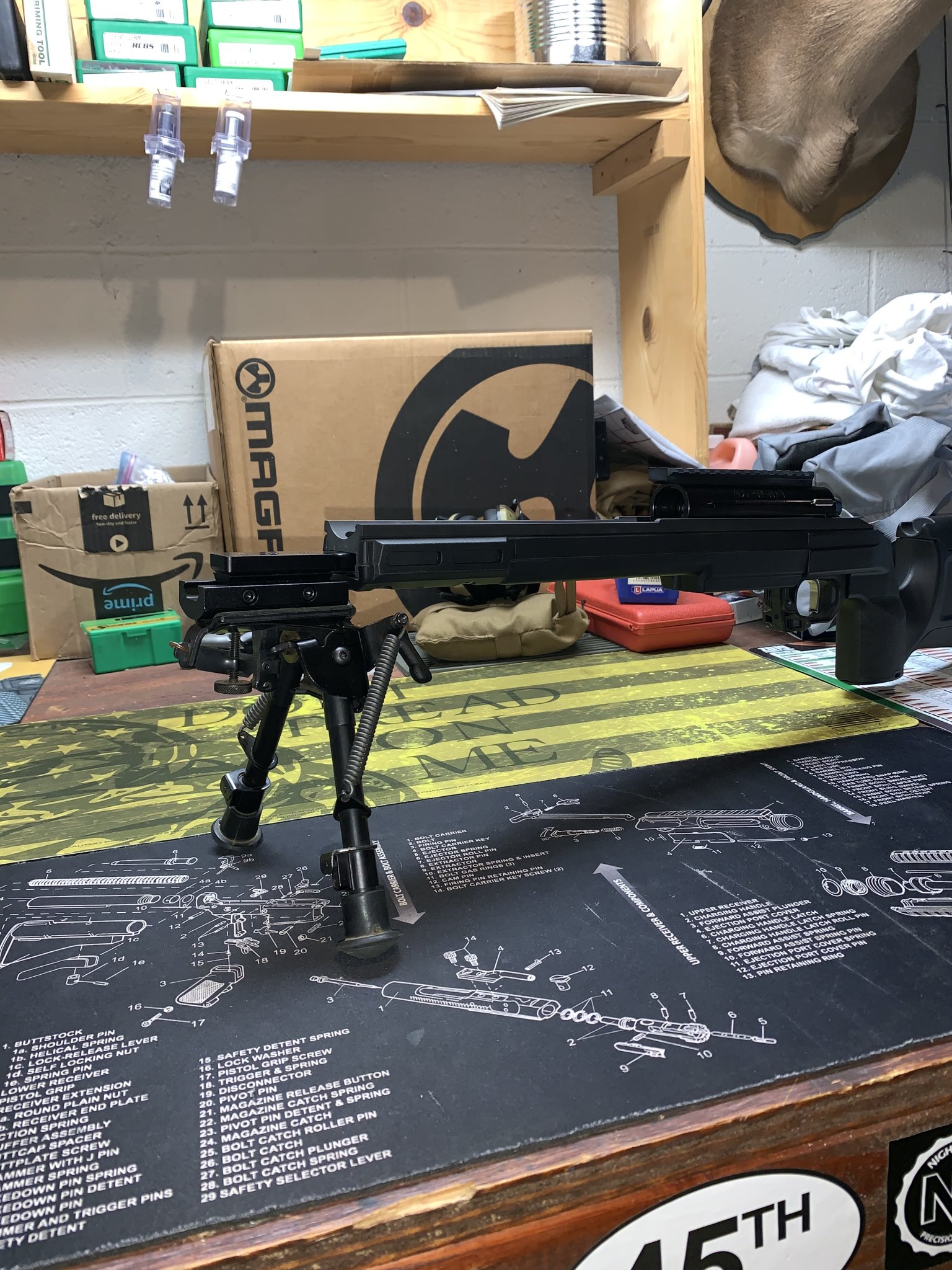

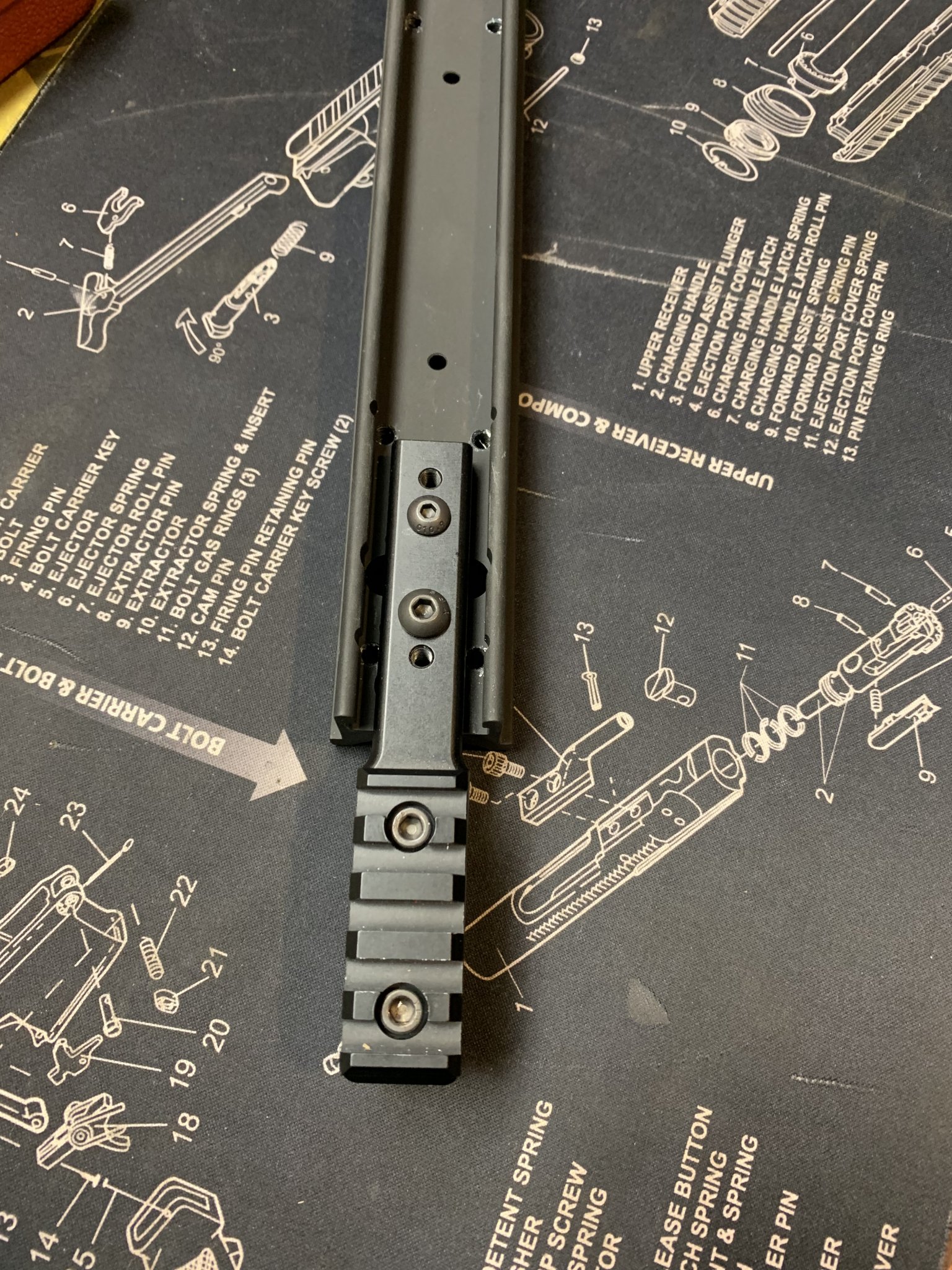

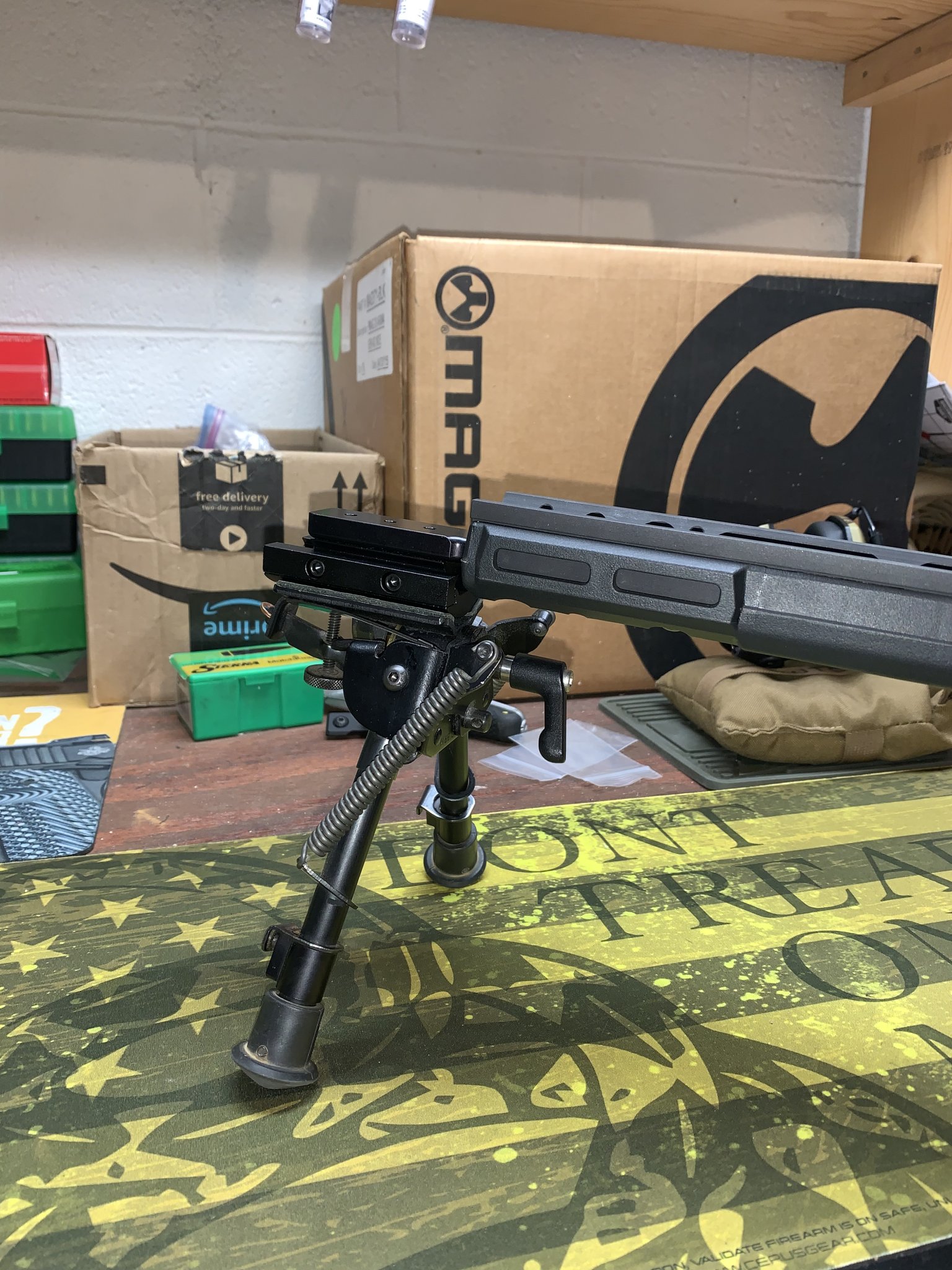

Some new 1/2” long screws from the hardware store and viola!



[acudaowner]

07 for the diy spirit that lives in you .



[Steel head]



[Bluewater132]

Nice work!



[PatMiles]

Nicely done!
I'm toying with the idea of making my own spigot for my Bravo which will be a two piece design for the sake of simplicity.



[Massoud]

Nice work. A simplified Bravo spigot is something that's been requested and is in the queue to look at doing, we've just been busy. Thank you for your business!
Justin



[Bcamos]

I just finished mine last night. My Bravo's backbone is finished a little differently, it doesn't have that much meat up front. So I drilled the holes in the Bravo and used the threaded holes in the Spigot. Still perfectly capable of adding the KRG spigot if I wanted to though.



[jdodd]

I just finished mine last night. My Bravo's backbone is finished a little differently, it doesn't have that much meat up front. So I drilled the holes in the Bravo and used the threaded holes in the Spigot. Still perfectly capable of adding the KRG spigot if I wanted to though.

Any pictures?



[IowaGeologist]

Can you share the model number or verion of the MPA spigot you used? I'm only finding this version 4 one, which looks different.

https://masterpiecearms.com/shop/mpa-spigot-mount/



[RFutch]

That is the newest version with ARCA rail on the other side. Mine is an older version without it but both should work the same.



[Bcamos]

Any pictures?

For mine, my Bravo’s backbone appears to be more “skeletonized” than the OPs, along with also missing the treaded hole that he marked as “A”. So instead of tapping into the thin aluminum of the Bravo, I just drilled two holes in the Bravo and used two 10-32 x 1/2 button head screws. That’s the size that fits my version of the MPA spigot. Newer models may be different.

I appear to have the same version of the MPA Spigot as the OP.

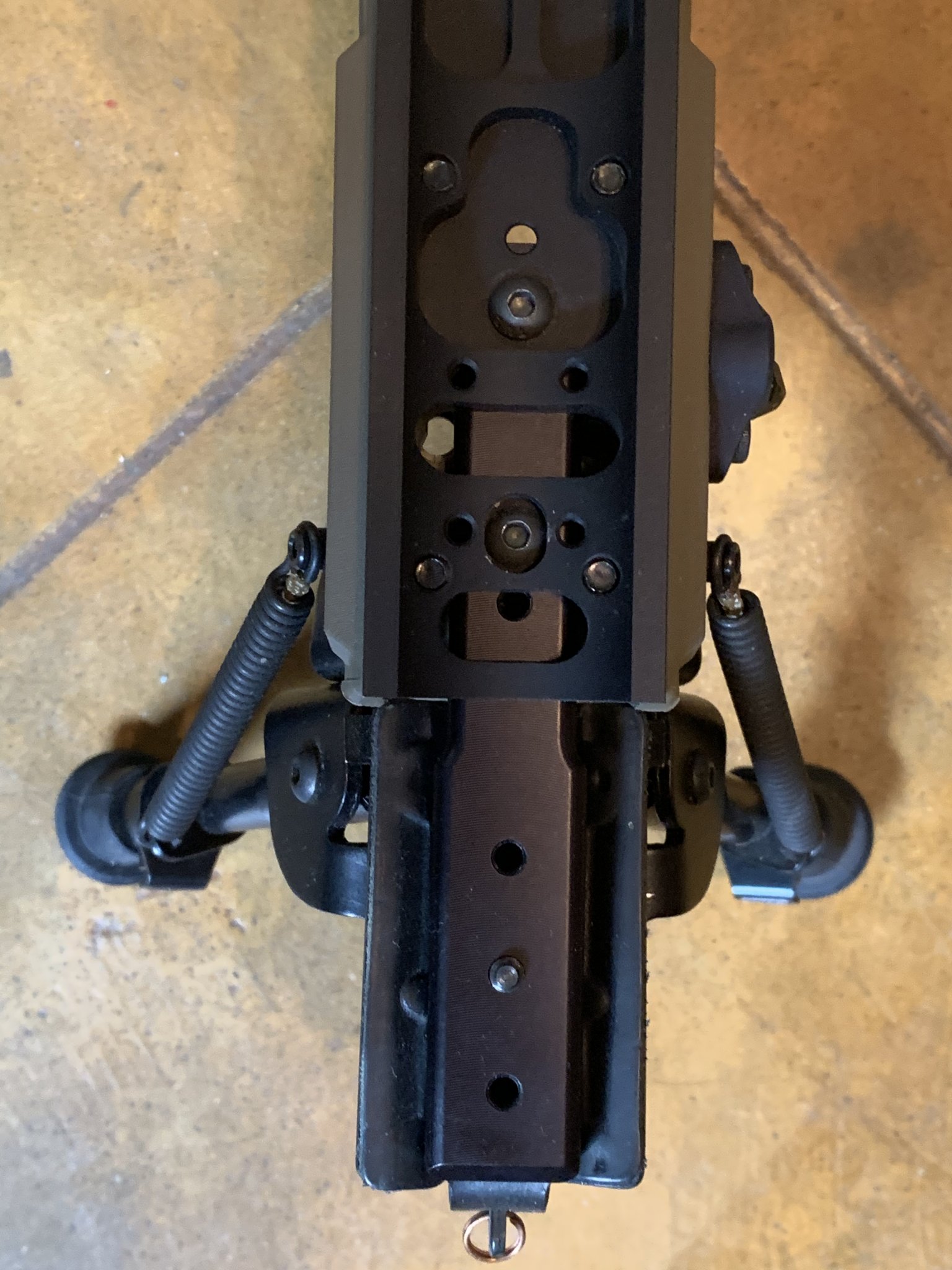

The hole marked with green already existed in the Bravo. The screws marked with red, I had to drill a hole through the Bravo for them to go through. The screw marked with a red “x”, I had to chuck the screw into my drill an remove some material to reduce the head’s diameter so it would fit in this odd pocket. My hole is drilled at the bottom of the existing pocket.

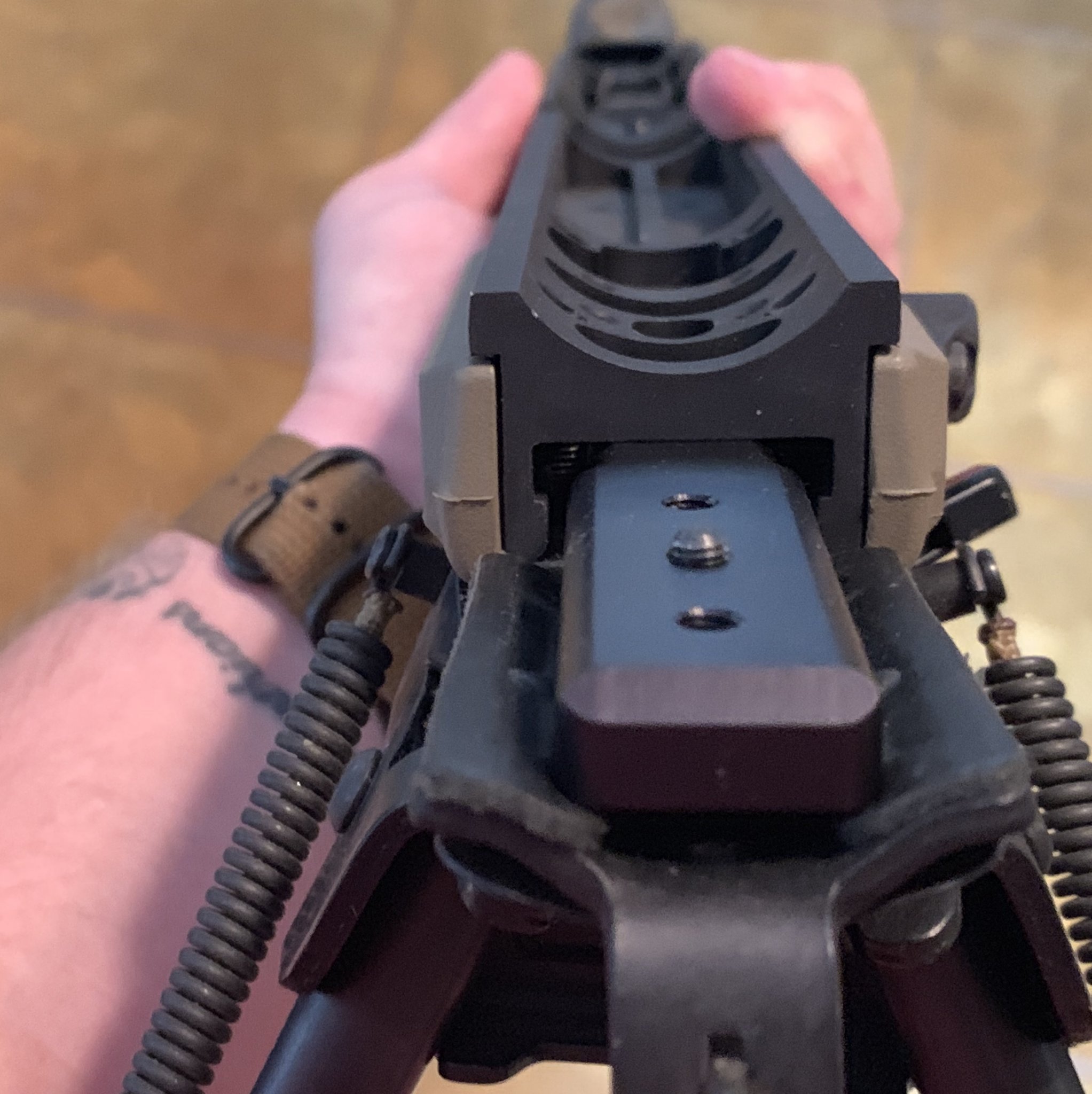

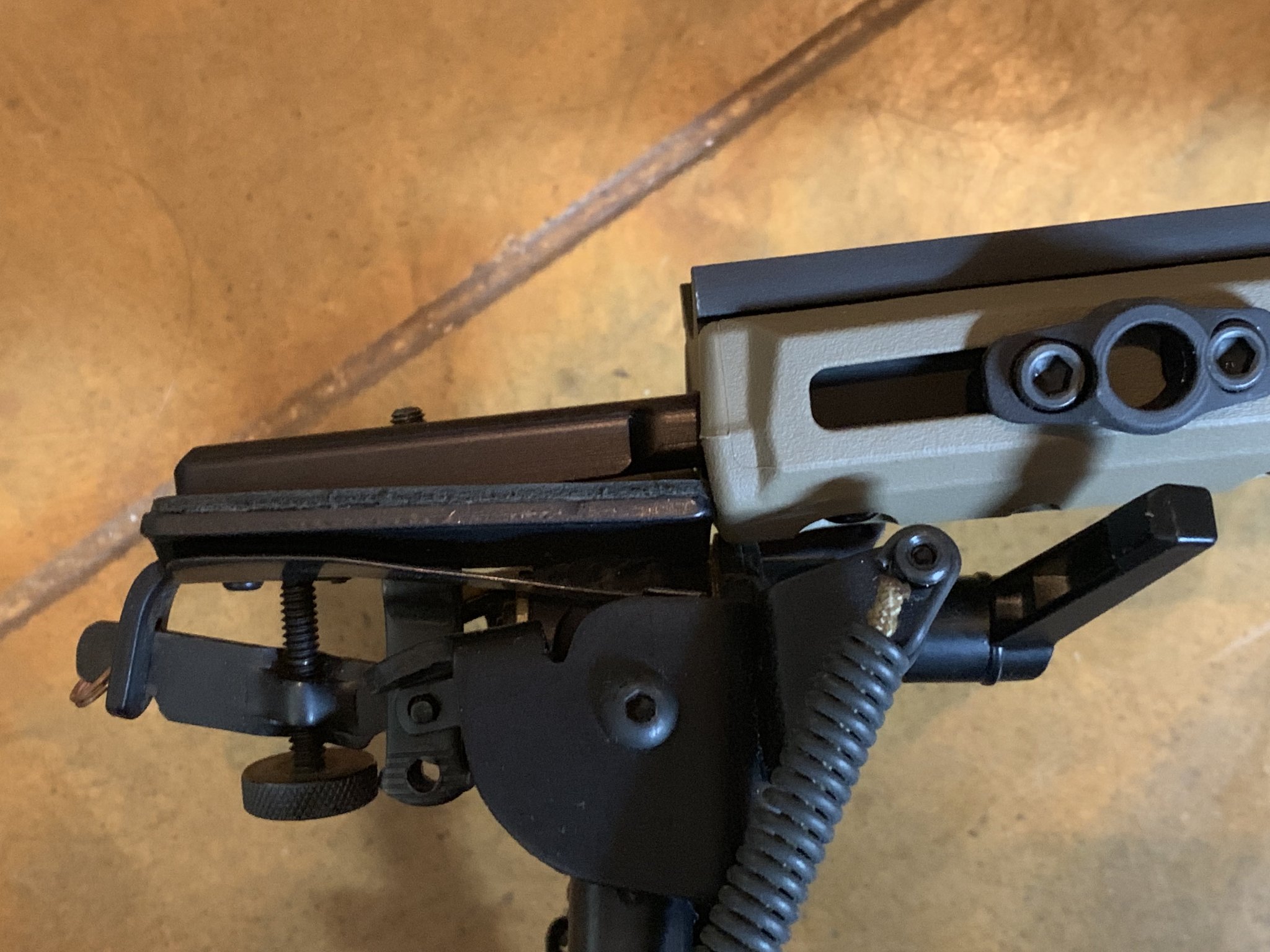

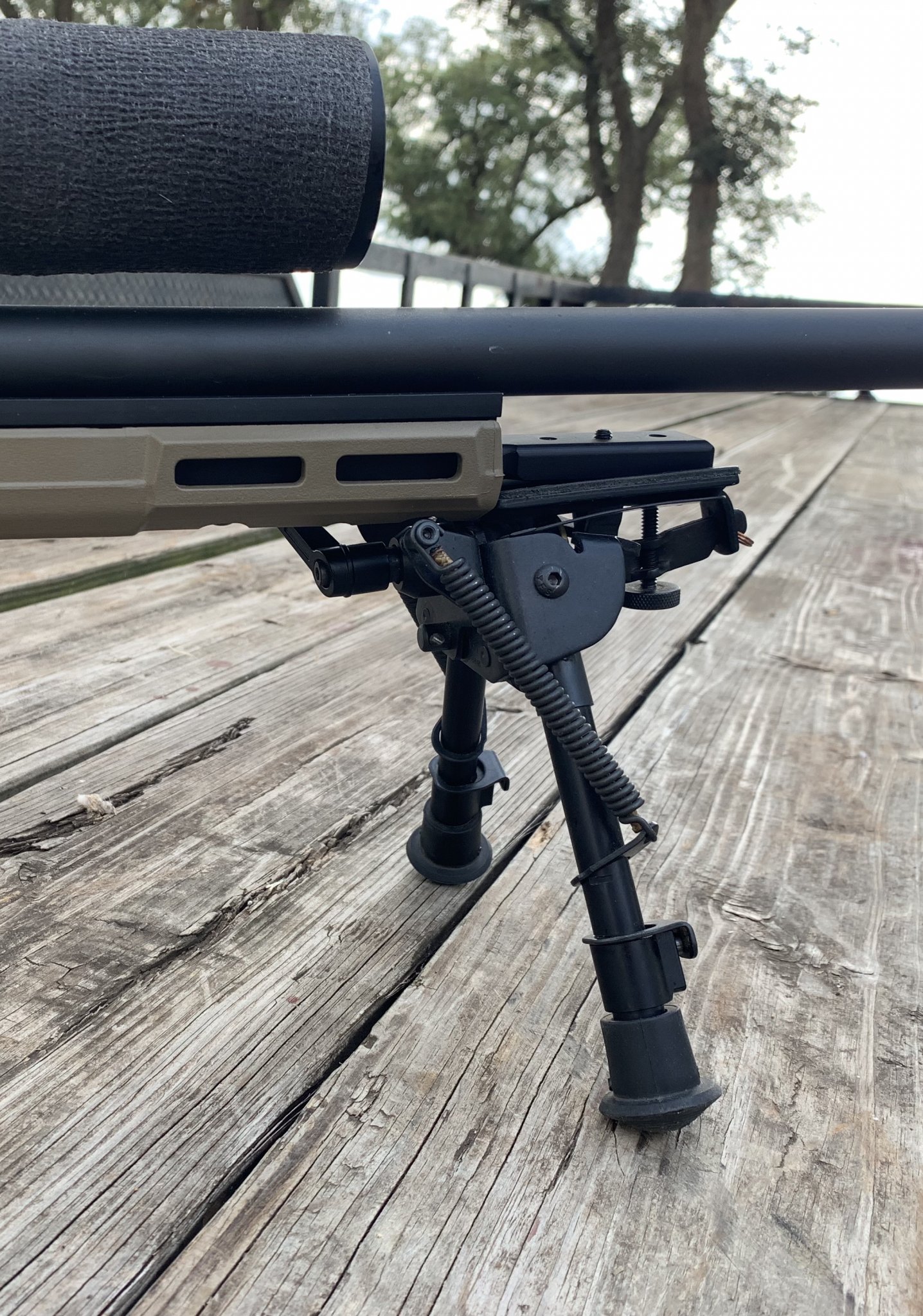

I removed the pic rail from the spigot an found that the sling stud that came with the Bravo just to happened to be the same thread pitch. This allowed me to mount my Harris directly to the spigot without having to purchase a pic adapter. It is very slightly pitched up, but it’s not enough to actually make a difference. Surprisingly, the bipod is still able to cant as well, even though it looks like it would contact the polymer of the Bravo. In fact, the bipod never touches the Bravo during any range of motion, though it does come close.

From my measurements, the spacing on the spigot should work out for the in-line Harris adapter than KRG makes. I’ll eventually order one and just mount this directly to the spigot rather than the sling stud.



[jdodd]

For mine, my Bravo’s backbone appears to be more “skeletonized” than the OPs, along with also missing the treaded hole that he marked as “A”. So instead of tapping into the thin aluminum of the Bravo, I just drilled two holes in the Bravo and used two 10-32 x 1/2 button head screws. That’s the size that fits my version of the MPA spigot. Newer models may be different.

I appear to have the same version of the MPA Spigot as the OP.

The hole marked with green already existed in the Bravo. The screws marked with red, I had to drill a hole through the Bravo for them to go through. The screw marked with a red “x”, I had to chuck the screw into my drill an remove some material to reduce the head’s diameter so it would fit in this odd pocket. My hole is drilled at the bottom of the existing pocket.

View attachment 7125132

View attachment 7125136

I removed the pic rail from the spigot an found that the sling stud that came with the Bravo just to happened to be the same thread pitch. This allowed me to mount my Harris directly to the spigot without having to purchase a pic adapter. It is very slightly pitched up, but it’s not enough to actually make a difference. Surprisingly, the bipod is still able to cant as well, even though it looks like it would contact the polymer of the Bravo. In fact, the bipod never touches the Bravo during any range of motion, though it does come close.

From my measurements, the spacing on the spigot should work out for the in-line Harris adapter than KRG makes. I’ll eventually order one and just mount this directly to the spigot rather than the sling stud.

View attachment 7125133

View attachment 7125134

View attachment 7125135

Awesome, thanks! How old is your bravo? Mine appears to be like the ops, but I'll confirm later, so I wonder if it was a rolling change?



[Bcamos]

Awesome, thanks! How old is your bravo? Mine appears to be like the ops, but I'll confirm later, so I wonder if it was a rolling change?

I got mine in Spring 2018, direct from KRG.



[Bcamos]

Awesome, thanks! How old is your bravo? Mine appears to be like the ops, but I'll confirm later, so I wonder if it was a rolling change?

If yours is like the OP's, then threading the Bravo and drilling the Spigot is probably the best bet. I'm not sure what the factory thread pitch is on the Bravo, but for about $9 you can get a 6MM-1.00 drill bit and tap set along with two M6-1.00 x 12 screws from Lowes.

I wanted to use the M6 screws because they're a bit beefier than the 10-32 screws that fit in the spigot. But I figured I wouldn't let Murphy's Law have a chance and just using the existing threads was my best option.



[jdodd]

I got mine in Spring 2018, direct from KRG.

Mine was fall of 18 from krg so they must have left out cutouts later on. Huh.



[tinman52]

That's a nice set up. very innovative too



[rjz5400]

OP : thanks for writing this up for everybody!

It seems they discontinued the two part spigot from MPA. Anyone have a source for the bolt on rail version?

If I'm going through the hassle id like the option of getting a direct mount bipod up Reeeerrraaal close.



[chevy_man]

OP : thanks for writing this up for everybody!

It seems they discontinued the two part spigot from MPA. Anyone have a source for the bolt on rail version?

If I'm going through the hassle id like the option of getting a direct mount bipod up Reeeerrraaal close.

Just get the minimalist spigot from krg.



[rjz5400]

Well sure, that's an option. But at 70$ + shipping.... I'm considering other ideas, hence why I'm in this thread.

It's good to know if I give up on adapting there is a KRG option without the NV and other stuff I wouldn't use.



[RFutch]

I bought mine used from Swaneys comp gear. They may have more.



[rjz5400]

Swapneys is currently oos. I found a couple of places, I had to send an email for clarification, now we wait.



[kwelhand]

Nice man.... $120? damn....



[rjz5400]

I finally tracked one down, it was last in house NOS of the old version. No pic rail just the threaded spigot.

I actually had to round file it a tiny bit to fit between the front most action screws (no pics of that)

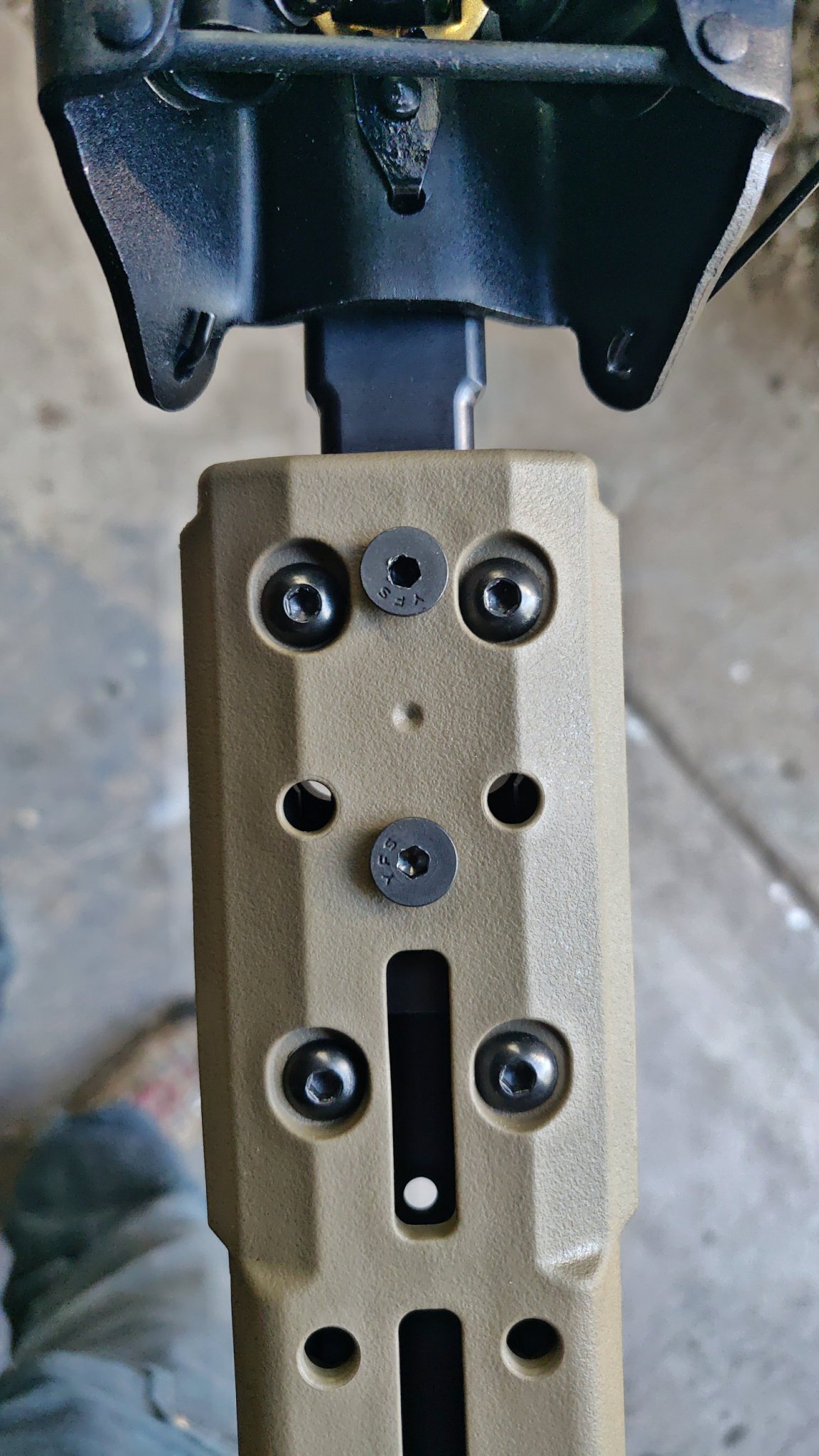

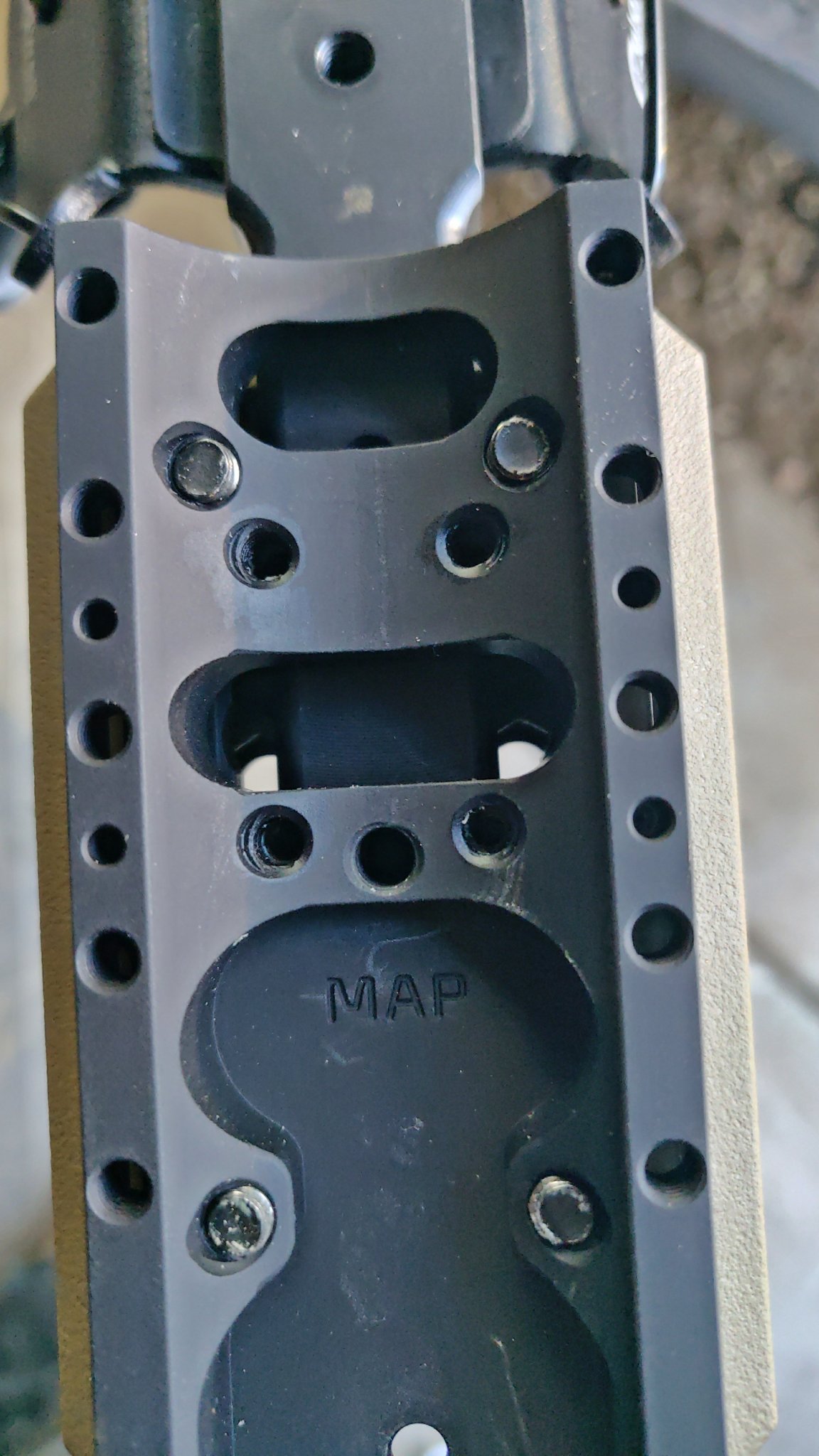

I wanted to use the nice looking threads on the spigot itself and turns out the forend holes line up pretty well with the spigot tapped holes, I used the hardware that came with it but it seems a little short, does anyone know offhand what thread those are? I have some thread is like more engagement.

If I have to take it apart again I'll probably go down through the backbone like most did, but I don't have a barrel or action so not sure how much room I'll have up there!

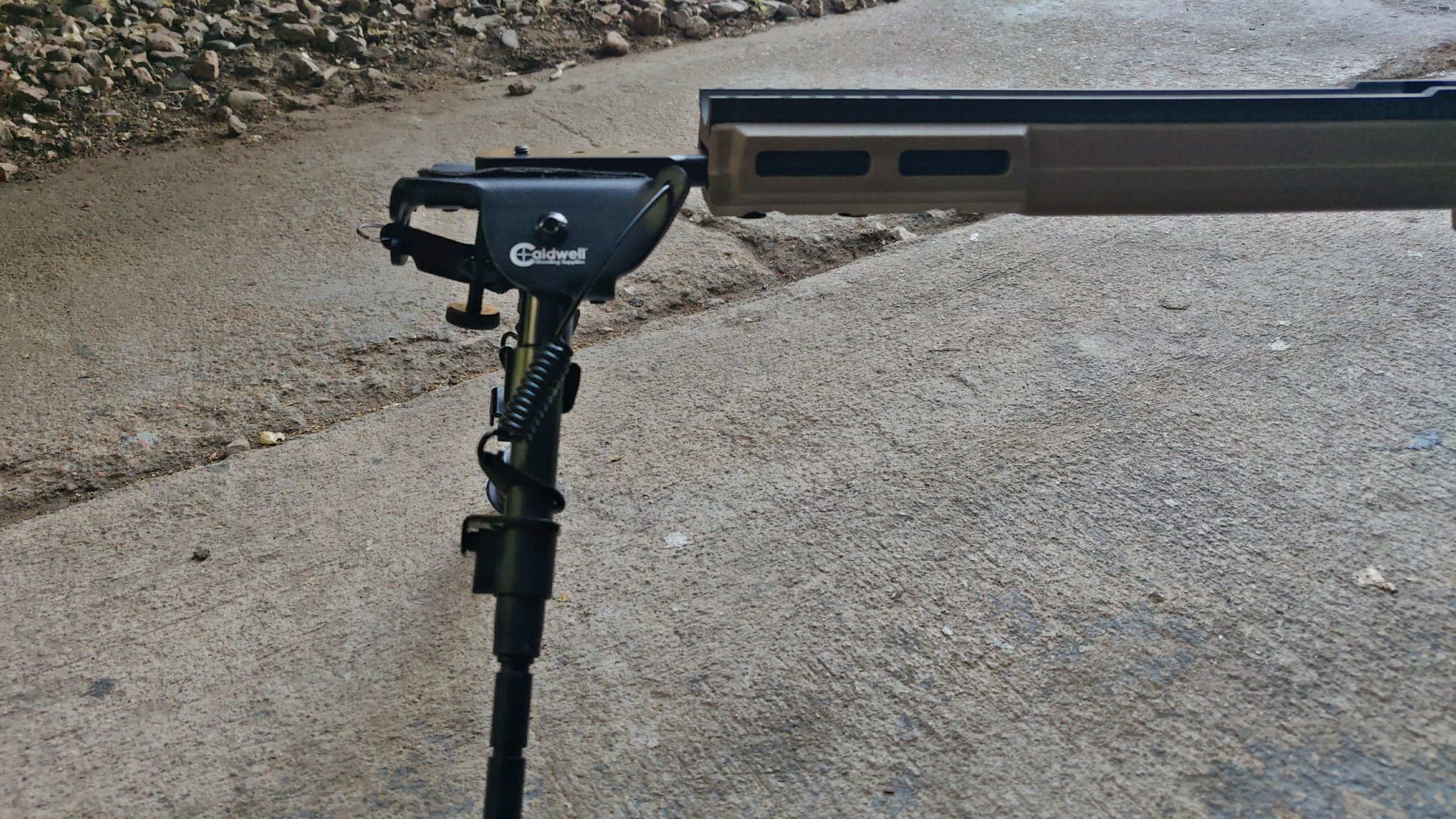

Anyway pics.

(Hopefully, I'm new here ). Caldwell is just a placeholder. I'm gathering parts for an action I hope to get sometime in July! Or earlier



[rjz5400]

Accessories - 2 mpa spigots-sold please delete

2 spigots with pic rails $30 a piece shipped Conus Pp ff

www.snipershide.com



[rjz5400]

just to update i ended up replacing the MPA screws with some stainless from Home Depot. again I bolted into the existing spigot threaded holes with lined up with my polymer for-end preexisting holes. the thread is 10-32 and i went with 3/4" length which seems PERFECT. max thread engagement and no protrusion influencing the chassis above.
