Stupid Question: Does the AT mag have a removable bottom plate?

[Aggrofish]

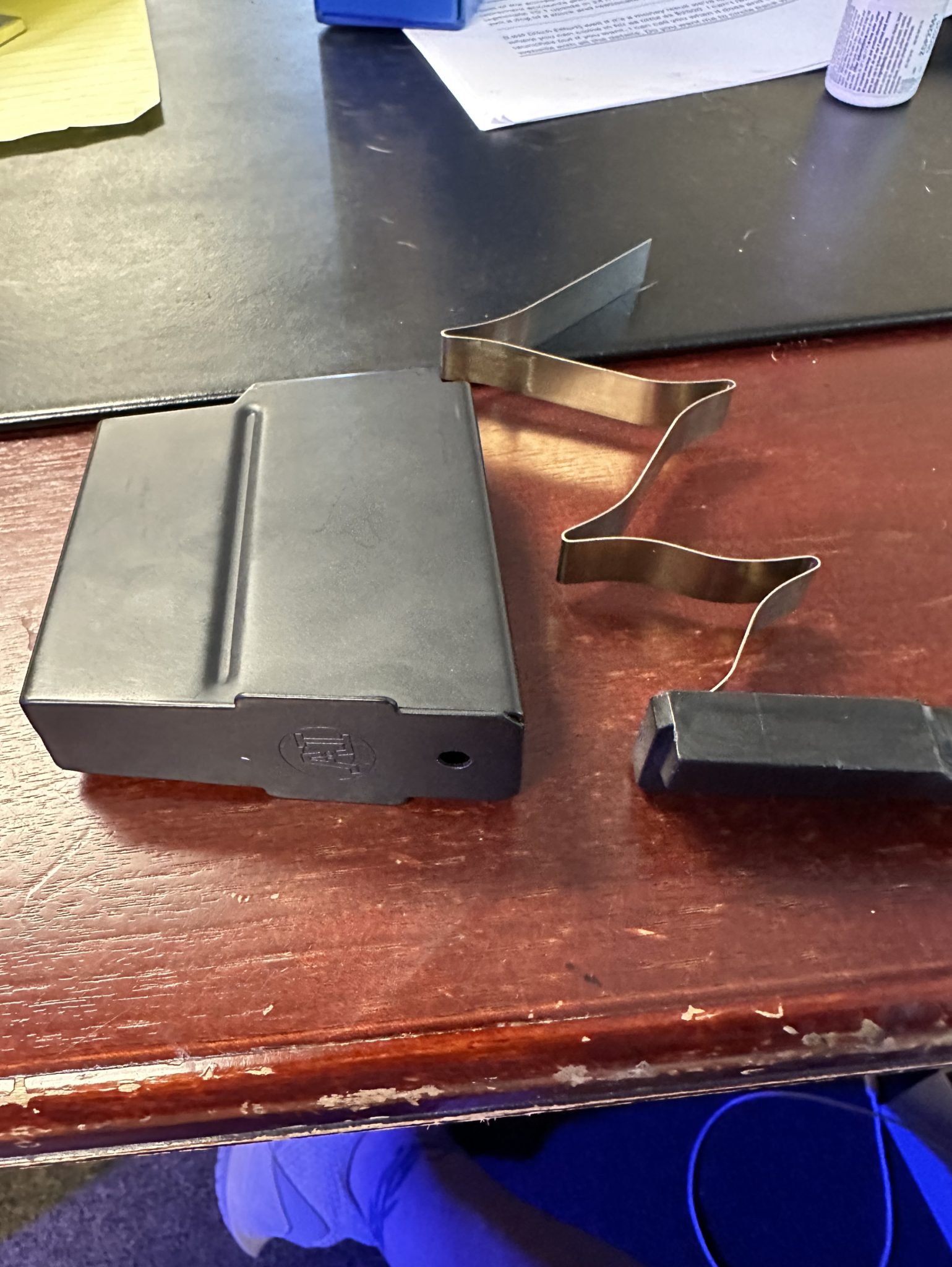

I was messing with the mag cause it won't feed worth a $hit and apparently I disassembled it. Looks like the bottom is one piece - is it or is the bottom plate removable? Cause I cant seem to put this back together...



[TheOE800]

She's welded, chief.



[Aggrofish]

She's welded, chief.

looks like one piece so everything goes in from the top...thanks. Just seems like it's got to bend a lot to go bad, but fixed.



[Huskydriver]

I was messing with the mag cause it won't feed worth a $hit and apparently I disassembled it. Looks like the bottom is one piece - is it or is the bottom plate removable? Cause I cant seem to put this back together...View attachment 8472870

Yep it's welded it's a little dance to get it in there but it will go



[Nik H]

I was messing with the mag cause it won't feed worth a $hit and apparently I disassembled it. Looks like the bottom is one piece - is it or is the bottom plate removable? Cause I cant seem to put this back together...View attachment 8472870

It is one piece and not removable.

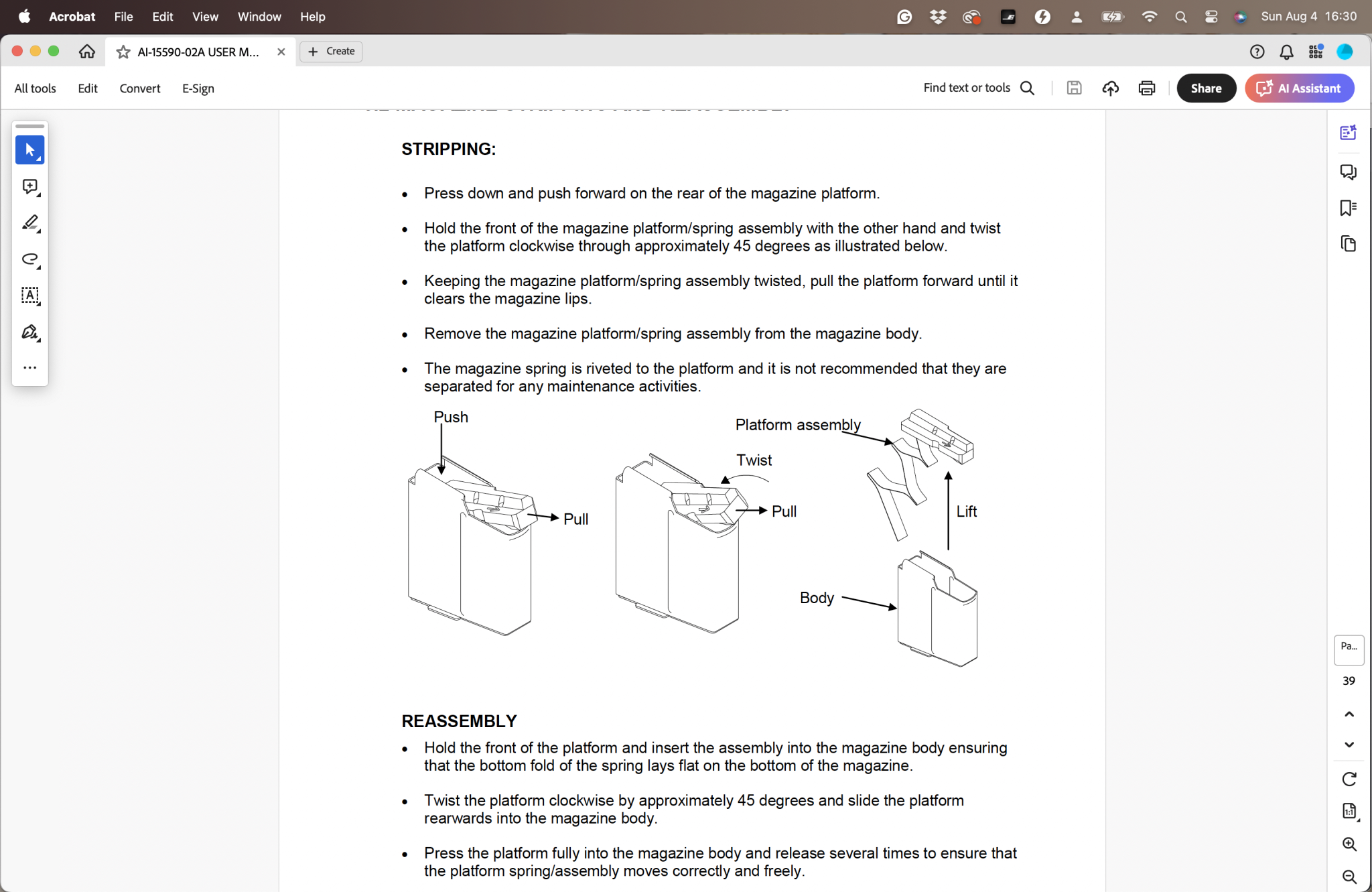

Here is a photo of the process to reassemble from the AT manual in case you don't have one



[Aggrofish]

It is one piece and not removable.

Here is a photo of the process to reassemble from the AT manual in case you don't have one

View attachment 8472878

Nice. I didnt get that just the mag in a box from creedmor sports. The twist...that must be the key thanks. So easy to load I think I need to widen the feed lips to get the rounds a little higher



[Nik H]

Nice. I didnt get that just the mag in a box from creedmor sports. The twist...that must be the key thanks. So easy to load I think I need to widen the feed lips to get the rounds a little higher

I just PM'd you the complete manual



[Aggrofish]

Thanks. I just have the mag though. Ive got a terminus action that the AT should work with



[stanley_white]

Thanks. I just have the mag though. Ive got a terminus action that the AT should work with

Due to the Terminus not having a six o’clock lug on the bolt you will likely need to play with magazine height to find what works with an AW magazine.

-Stan
