Suppressor Side Bump

[rwferrante]

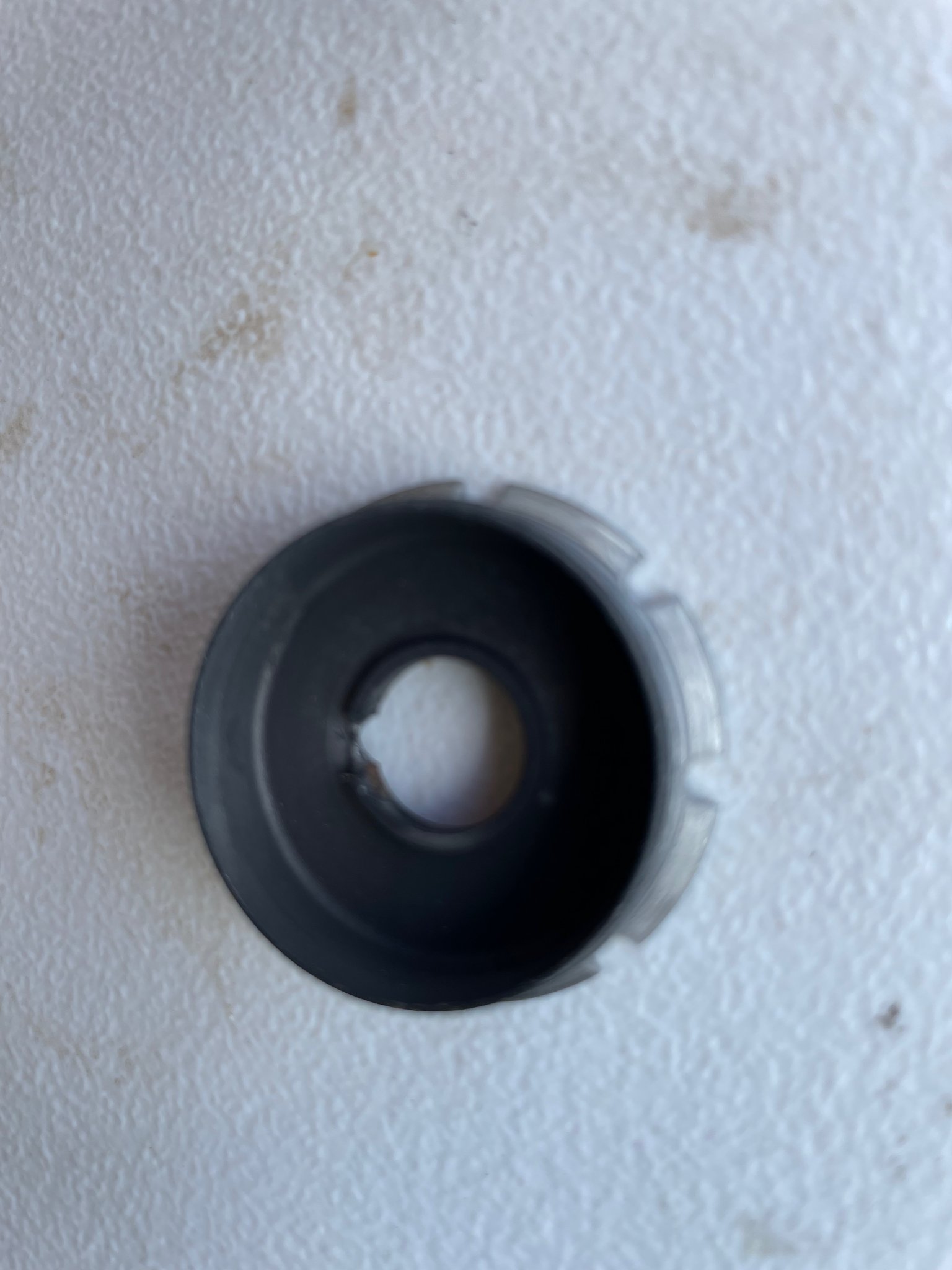

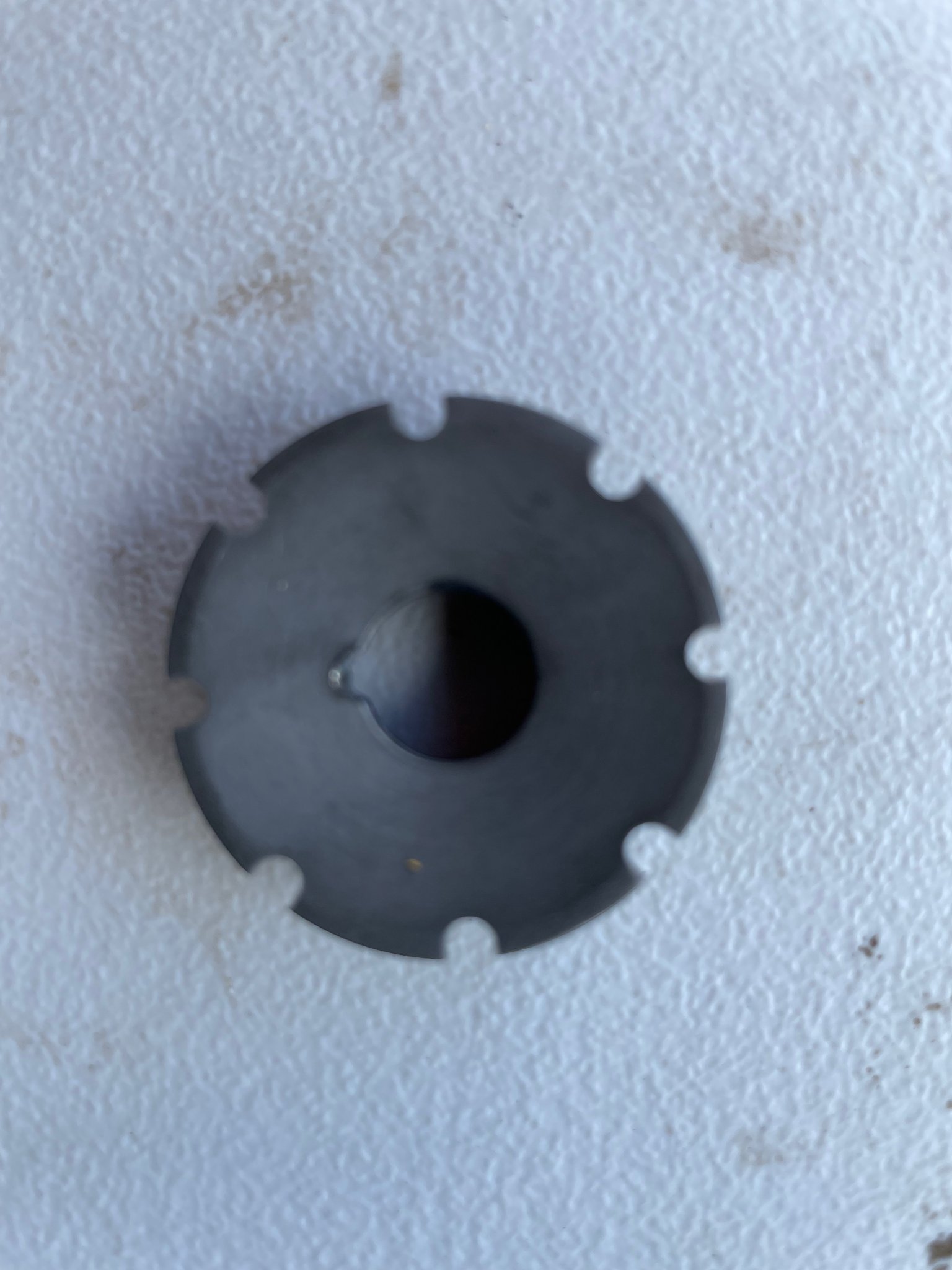

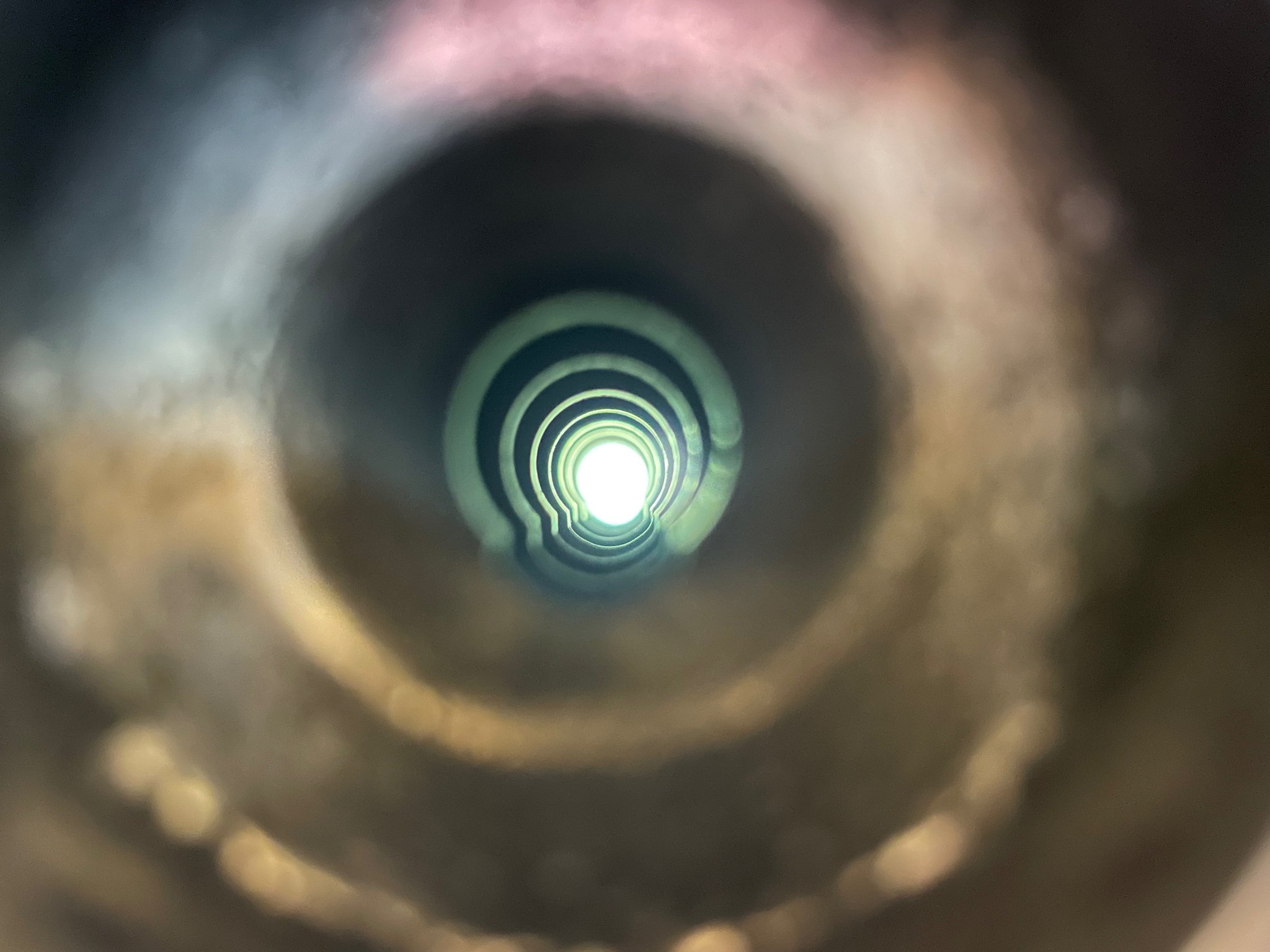

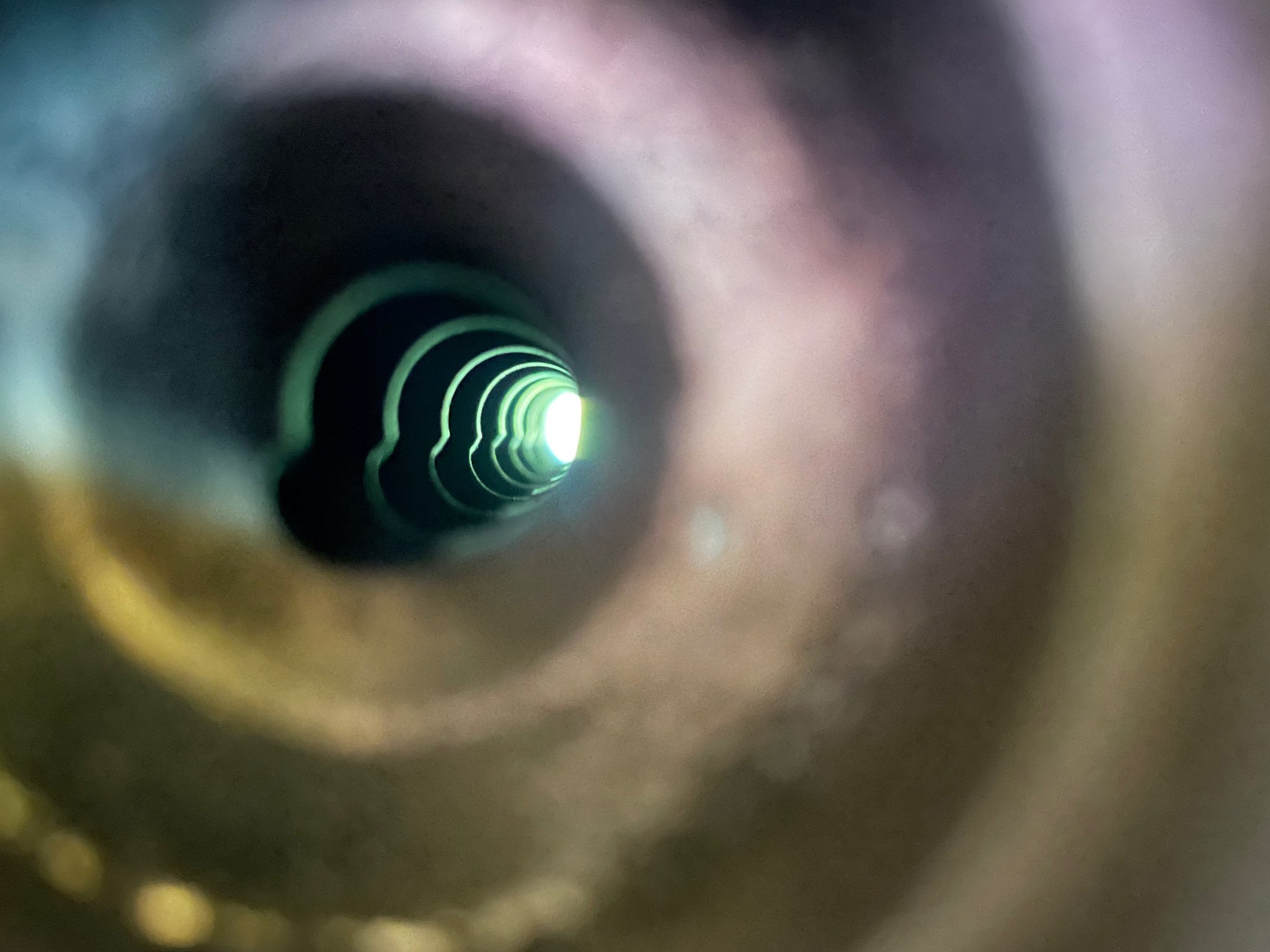

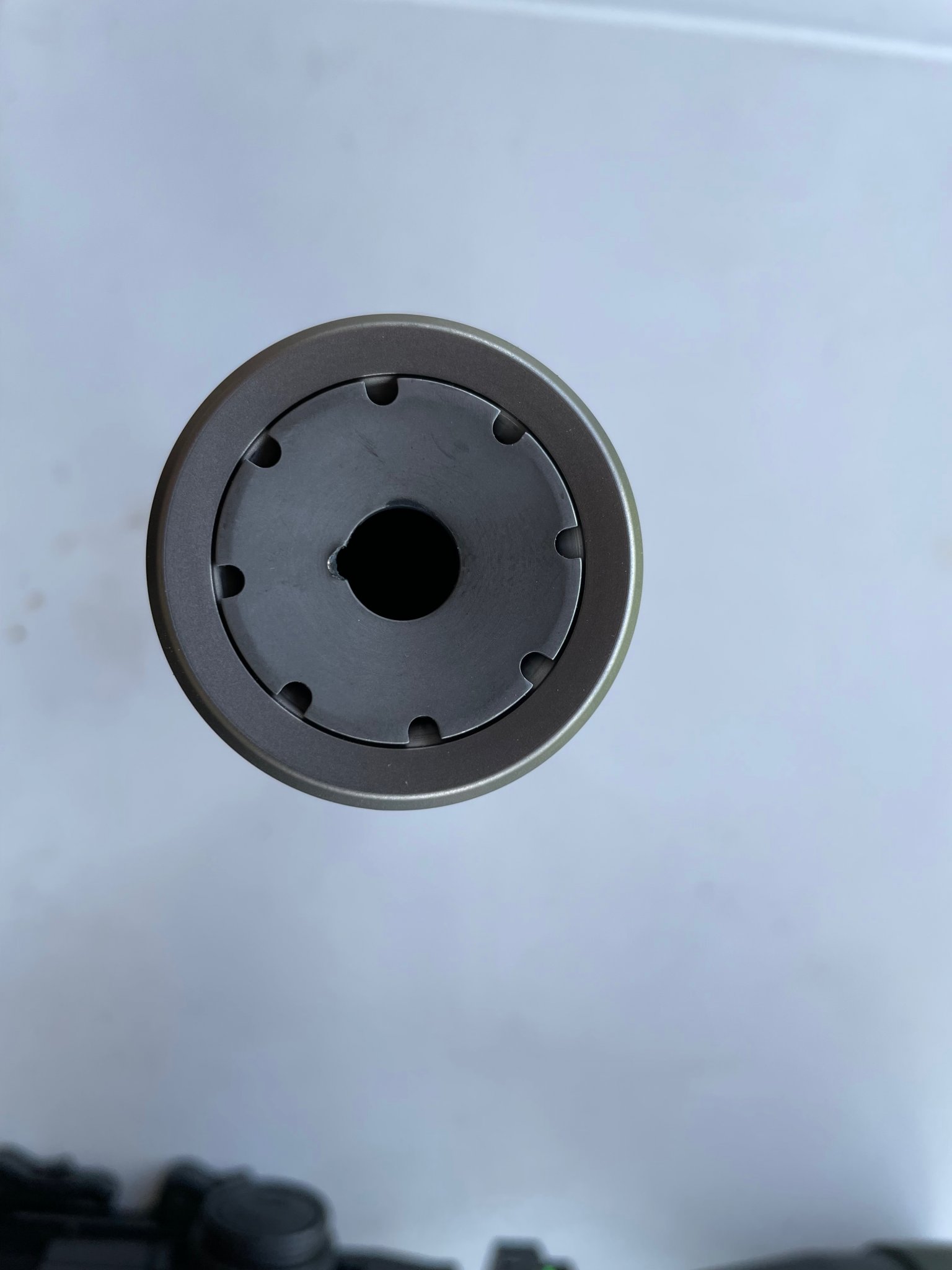

I put a new Dead Air NOMAD-LT 7.62 on a Browning 6.5 PRC and then, the next day on a Fierce .300 PRC, both direct thread although the 300 needed a thread adapter. After some strange shots on target, I notice a chip in the front plate and removed it to find a keyhole cut thought the interior. Any idea how that could have happened?

added edit: So, I’ve talked with the folks at Deadair and purchased alignment rods. The keyhole is manufactured that way. The end cap strike however, is caused by a misalignment on the Fierce .300 PRC, the rod shows it clearly. So I’ve ordered a new thread cap for the rifle so I can use it without a thread adapter and a new end cap. If this doesn’t fix the problem, I’ll have to send the can back to Deadair.

Thanks to all that gave me insight.



[Lowlight]

threads on one of them was not good and you didn't check LOL



[Huskydriver]

So the keyhole you're seeing is part of the baffle design but you def got a end cap strike probably from using a thread adapter and you didn't check alignment before shooting with a rod



[264win]

The end cap strike is a problem, the channel cut in all the baffles is from the factory.
Yes, check your can/barrel alignment first.
Also was the ammo factory or hand loads ?



[rwferrante]

Thank you. I thought I checked both pretty well. They screwed on cleanly and went to full seat. I wondered if anyone would recognize the keyhole. I wasn't sure if it was a result or a design. Thank you. So basically, I just need to get a new end cap and use a different mounting method?



[rwferrante]

The end cap strike is a problem, the channel cut in all the baffles is from the factory.
Yes, check your can/barrel alignment first.
Also was the ammo factory or hand loads ?

Factory ammo. Hornady 6.5 PRC and .300 PRC. I wish I knew for sure which one caused the bump. As I mentioned I did hear a ricochet from the 6.5.



[rwferrante]

So the keyhole you're seeing is part of the baffle design but you def got a end cap strike probably from using a thread adapter and you didn't check alignment before shooting

Thank you. I thought I checked both pretty well. They screwed on cleanly and went to full seat. I wondered if anyone would recognize the keyhole. I wasn't sure if it was a result or a design. Thank you. So basically, I just need to get a new end cap and use a different mounting method?



[264win]

Almost certainly a cap strike from misalignment then. More likely the 300 with the adapter, but check both carefully



[rwferrante]

Almost certainly a cap strike from misalignment then. More likely the 300 with the adapter, but check both carefully

Thank you. I've never experienced this problem with any previous suppressors. What is your recommendation for how to check the alignment?



[rwferrante]

Thank you. I've never experienced this problem with any previous suppressors. What is your recommendation for how to check the alignment?

Just found the alignment rods for sale. Thanks!



[ballisticdaddy]

Bore Alignment Rods | SureFire Suppressor Alignment Tools | SureFire

SureFire Bore Rods are valuable tools that will ensure proper concentricity along the bullet flight path when firing suppressed on a new platform. The rod most closely represents the bullet flight path and will show any misalignment, if present.

www.surefire.com



[KeithStone]

Shoot DA an email and they will take care of you. Same thing happened to mine a couple weeks ago and they were really helpful and good folks to visit with.



[rwferrante]

Shoot DA an email and they will take care of you. Same thing happened to mine a couple weeks ago and they were really helpful and good folks to visit with.

Thank you. I have and I ordered some alignment rods for all my suppressors.



[lowbid]

Thank you. I have and I ordered some alignment rods for all my suppressors.

They will take care of it...I have a sandman L 30 cal. and it was out of alignment on a 6.5 creed. and they took it back and fixed it. You do have to have alignment rods I have a set.
