Tikka T3 300 win mag Magazine length?

[Prebanpaul]

I am wanting to make a hunting rifle, in 300 wm. I am looking at the Carbon six pre fit 300 win mag. I am wanting to know the length of the Magainze. I am hoping to be able to load 190-210 grain bullets in it. I am trying to see what the MAX OAL that i can load in the magazine is.



[knuckleballz]

If you go with mount tactical bottom metal you can get 3.60 max oal. If you want to load 300 win mag long to get the most out of the cartridge I would recommend a true long action and a remington 700 footprint for more options with stocks, mags, bottom metal, etc. I also wanted to make 300 winmag work in my tikka action but went 7mm rem mag with a carbon 6 tikka prefit. 3000 fps with 180 berger hybrids is as good or better than a slow 300win mag with a bullet pushed back in the case.



[knuckleballz]

I ended up with oal of about 3.5 with the 7mmrem Mag chamber that carbon 6 reamed in the barrel. That is with the berger 180 close to .010 inch from the lands.



[knuckleballz]

Looks like my oal with the 180 berger touching the lands in the carbon 6 was 3.467 inch if that helps.



[M77]

Had one in a manners t4a with CDI bottom metal , max I could use was 3.550" due to action restriction .

Netherless it shot well with 190/208/210s loaded "short " I would personally have something like a 300 wsm in a tikka



[M77]

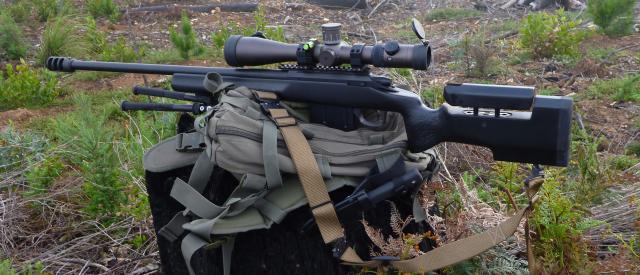

Pic for attention



[LeftyJason]

Page 110 of the tikka thread had some good info for longer oals. V notching to get over some of the action restrictions.



[XTREM HTR16]

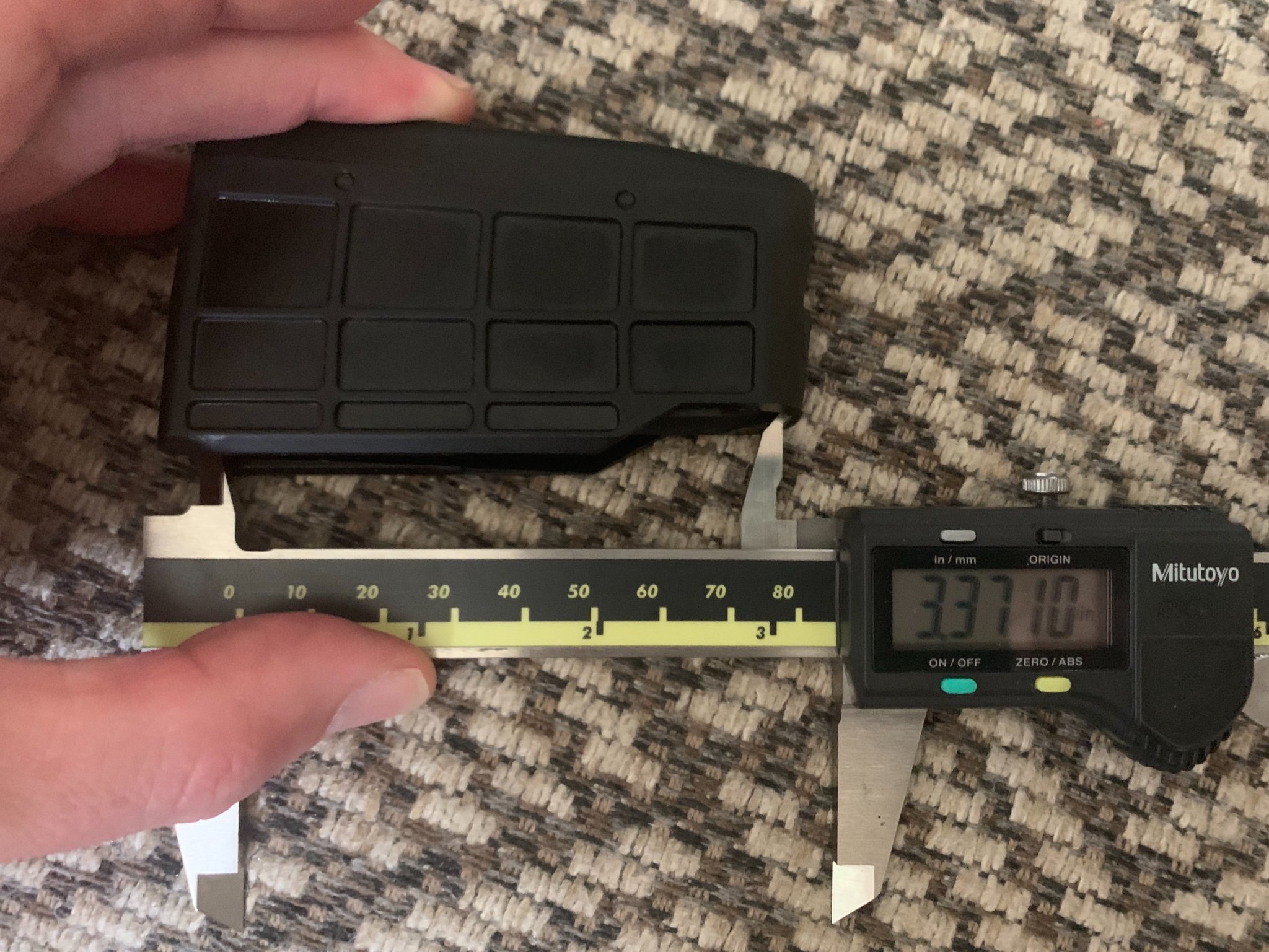

The factory mag on my T3X 300 Win mag allows a max OAL of 3.371”



[Prebanpaul]

It kills me how short this is. Most new bullets are 3.5-3.6 OAL. Companies stay so far behind the curve. Remington is still making 223 and 22-250 with 1-12 twist barrels.



[XTREM HTR16]

Yeah I think I’m going to rebarrel mine to 7SAUM with a proof sendero Light 8.4 twist and run the new Hells Canyon SAUM billet mags.



[XTREM HTR16]

Tikka T3X/T3 Billet Magazines | Hells Canyon Armory

www.hellscanyonarmory.com



[conksarmy]

I had the same issues and concerns. I pulled the little metal tab out in the the front of the mag and gained 20-30 thousandths. I then took a triangle file and took out as much as I dared take and leave it strong, I think I got to 3.450... ran it like that for years, no problem. Wound up selling it this last spring to fund a custom build.



[Prebanpaul]

Well I wanted to complete a tikka build and I just don’t think it’s going to work. I think I am going 700 long action of some type. With the mdt bottom medal and magazine. It has an OAL of 3.750 which give me the room I need to run 208-210 30 caliber projectiles.
