Troy Industries BUIS Windage Sighting Question

KM1

Sergeant of the Hide
Full Member
Minuteman
Jul 7, 2020
107
13
I was sighting in my Optics, BUIS, and Laser sights on my new AR (yet to be fired...and properly range zeroed) to be used with my LaserHIT targeting system. The distance I was using was about the full length of my house, wall to wall, which is 50ft long (taking into account table, chair etc.). Just wanted to see how this system might work with my AR vs my general use of the system with my handguns.

I know at 25 yds, an adjusted 100yd zero would be about 1.5" POI lower than POA....and since I am a solid 25ft less than that, it would be approximately 1.75" to maybe 2+" lower than that. However, windage shouldn't really change (I don't think).

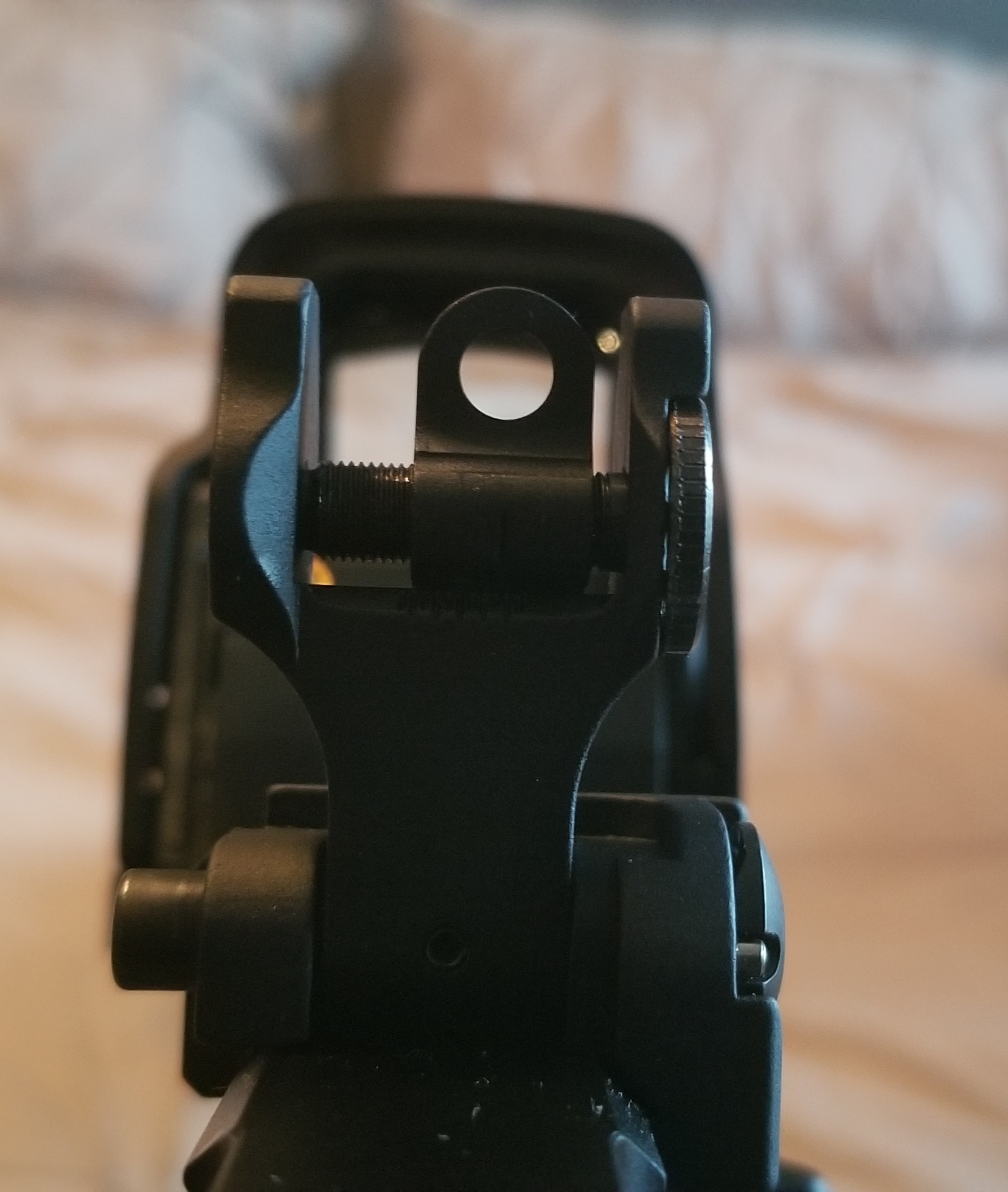

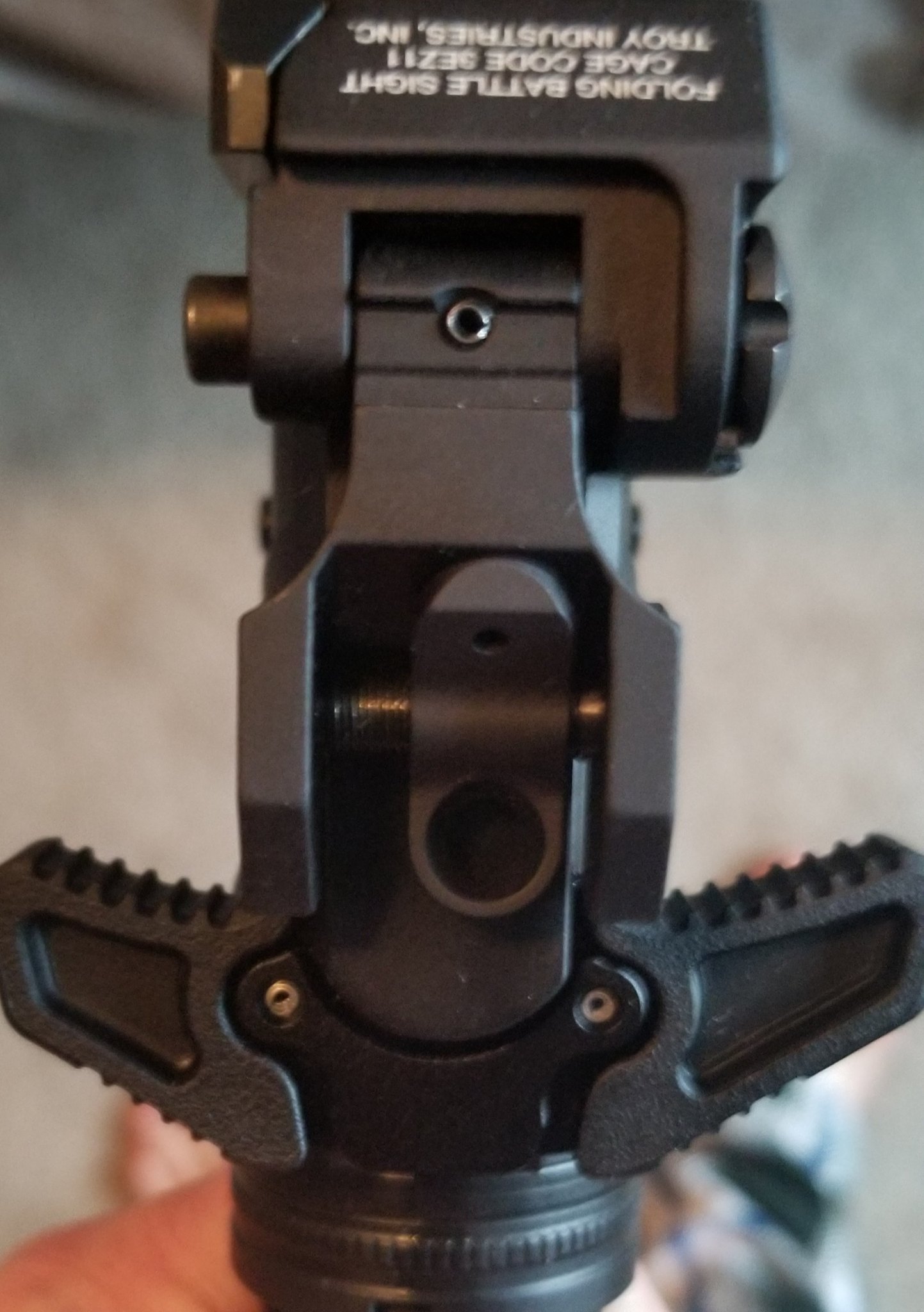

So I find, when setting up my Troy Industries Round Rear Folding Sight, to zero it for use I have to move it FAR to the right...I am shooting left handed, sighting left eye. Is this normal or typical (images below)? I mean...I'm not sure how much more right I could even move it....there is not much room left as you can see.

I should note that I sighted in my Eotech EXPS2, as well as my laser, and the Eotech 1moa dot (dimmed very low so you can just see it), sits centered RIGHT ON TOP of the front M4 Iron sight when co-witnessing it with the Rear, small aperture. AND the laser lines up as well with all, exactly the distance below expected as it is mounted below the barrel.

I just found this strange, that the rear sight would need to be moved so far to one side to zero......and I really wouldn't know if this is common as this is my first AR, first rifle.

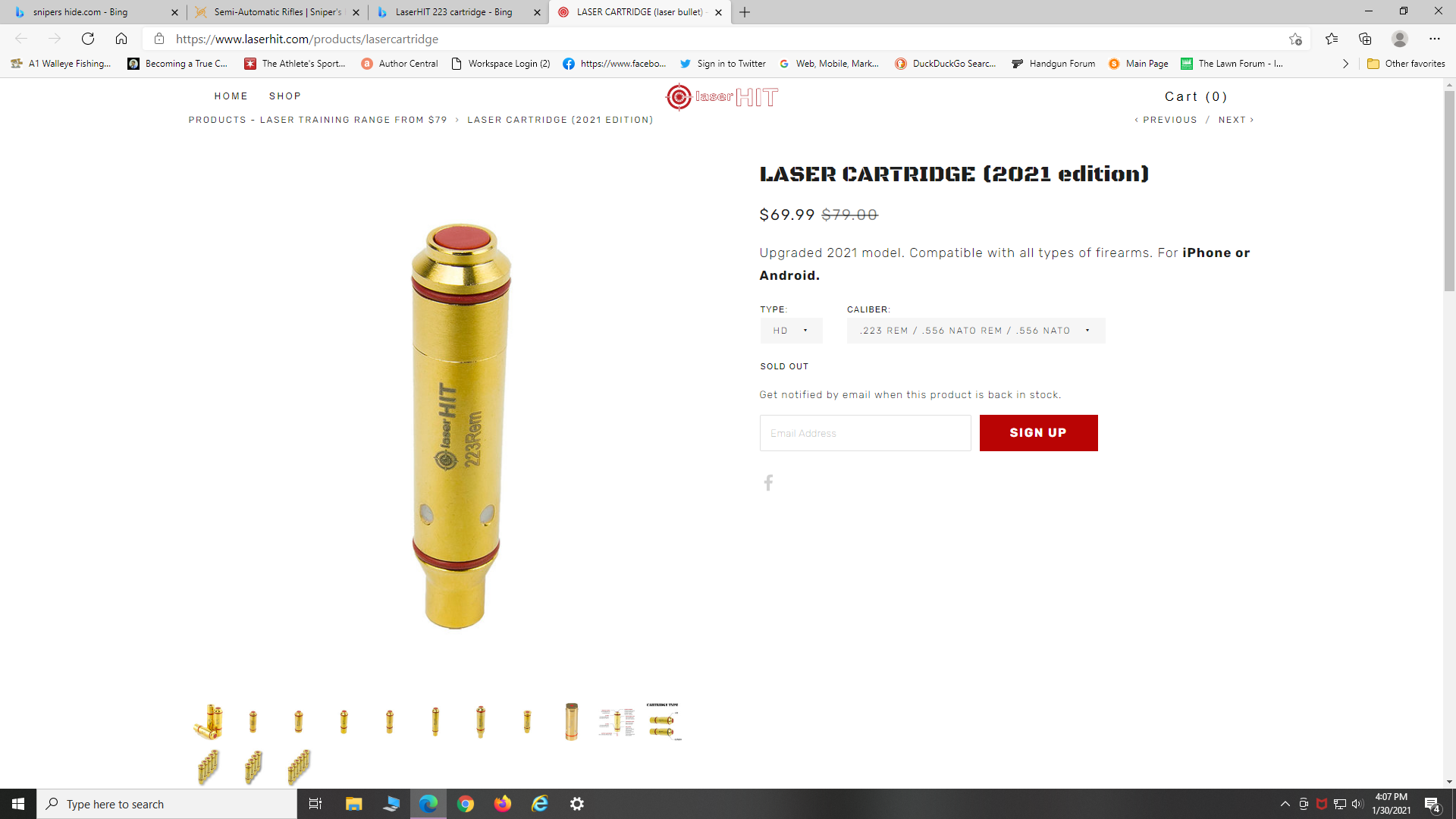

Now I know the typical, "always on," laser cartridge's are notoriously inaccurate as they tend to move around slightly in the chamber, never showing the same POI....however, the training laser cartridges are much better as they have "O" rings at the front and back of the cartridge to keep them solidly centered in the bore. I have an image of the one I am using below as well. I also tested it, before zeroing, to see if POI changed every time I rechambered to set the rifle up for another shot and POI's were pretty constant.

Have others found this as well...that windage adjustments tend to be farther off to one side more than the other when zeroing? Does it even matter if your able to actually zero out the rifle with POI & POA being the same at the zero one selects???

Oh....and I understand that I will have to ACTUALLY zero the rifle at the range with live ammo as that is the only true way to zero a rifle. Just wanted to see how the rifle worked with the LaserHIT training equipment I have been using for indoor, dry fire, pistol work.


Attachments

  • 223 Laser HIT Cartridge.png
    223 Laser HIT Cartridge.png
    332.5 KB · Views: 89
  • 20210130_144331.jpg
    1.3 MB · Views: 77
  • 20210130_144402.jpg
    316.5 KB · Views: 89
Last edited:
I can't say if this is your issue, but your rear sight is very similar to one I was struggling with recently. The issue turned out to be a slightly canted front sight.

  • Like
Reactions: KM1
I can't say if this is your issue, but your rear sight is very similar to one I was struggling with recently. The issue turned out to be a slightly canted front sight.
I put these on. They are backup, flip up sights from troy industries. There not cheap. When I visually inspect the front sight it looks perfectly vertical. How would one check this for exactness?

I find it interesting that both my EOTECH and laser sights line up with the iron sights. If it was canted....how is that possible????

Last edited:
No, you're right. I was just struck by the similarity of that rear sight. I had one cranked all the way over and was stumped until I noticed the slight lean on the front sight. No, your issue is different.

  • Like
Reactions: KM1
I would check to see if your handguard is slightly off center. A small degree of cant would cause your rear sight to have to be moved quit a bit. the EoTech and irons lining up with the laser is correct even if the front sight is canted. Zeroed is zeroed. The rear sight being so far off of mechanical zero, just means that your front sight post is off. What hand guard are you using? A picture of the entire set up would help us help you.

  • Like
Reactions: KM1
I would check to see if your handguard is slightly off center. A small degree of cant would cause your rear sight to have to be moved quit a bit. the EoTech and irons lining up with the laser is correct even if the front sight is canted. Zeroed is zeroed. The rear sight being so far off of mechanical zero, just means that your front sight post is off. What hand guard are you using? A picture of the entire set up would help us help you.

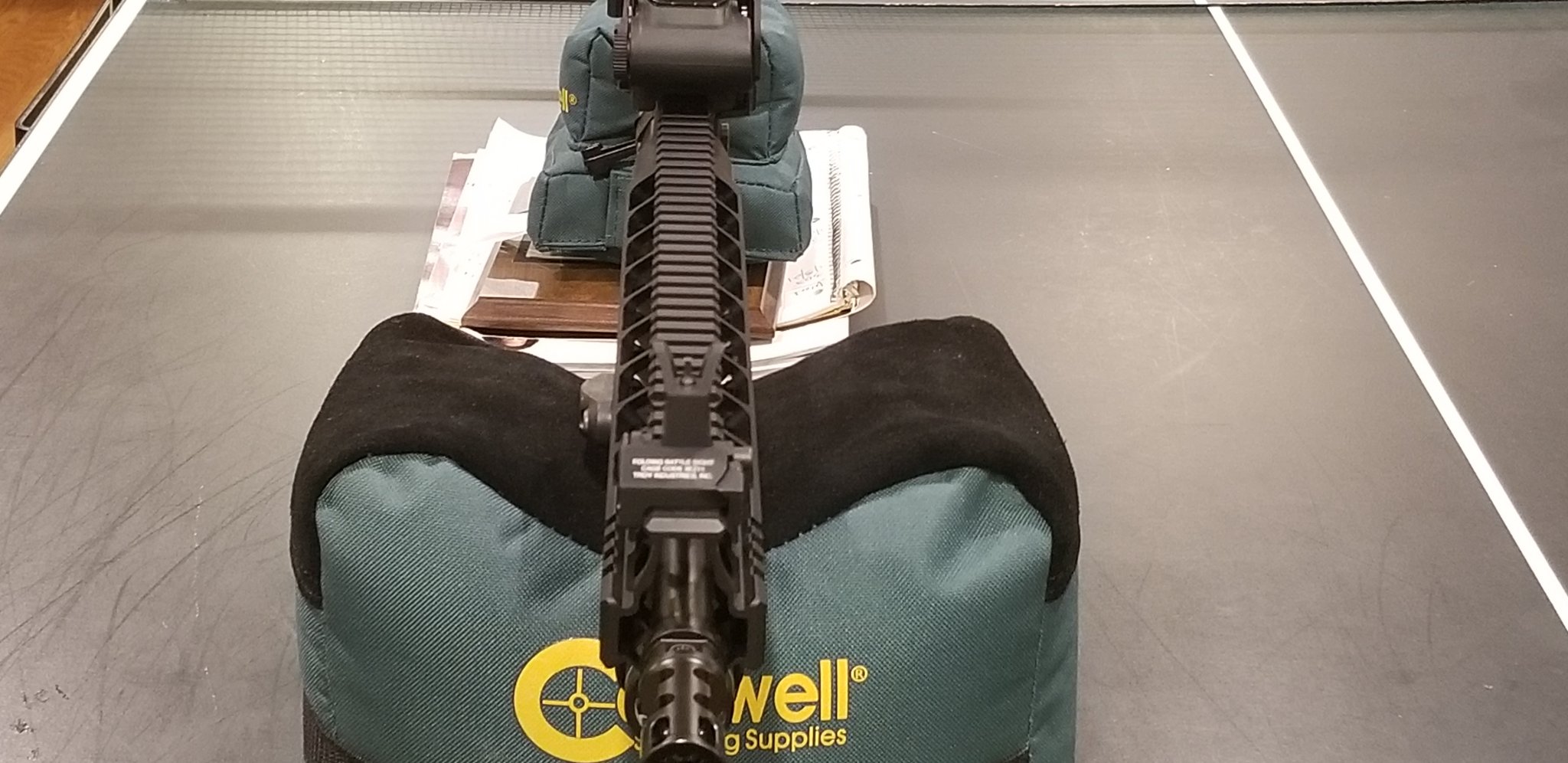

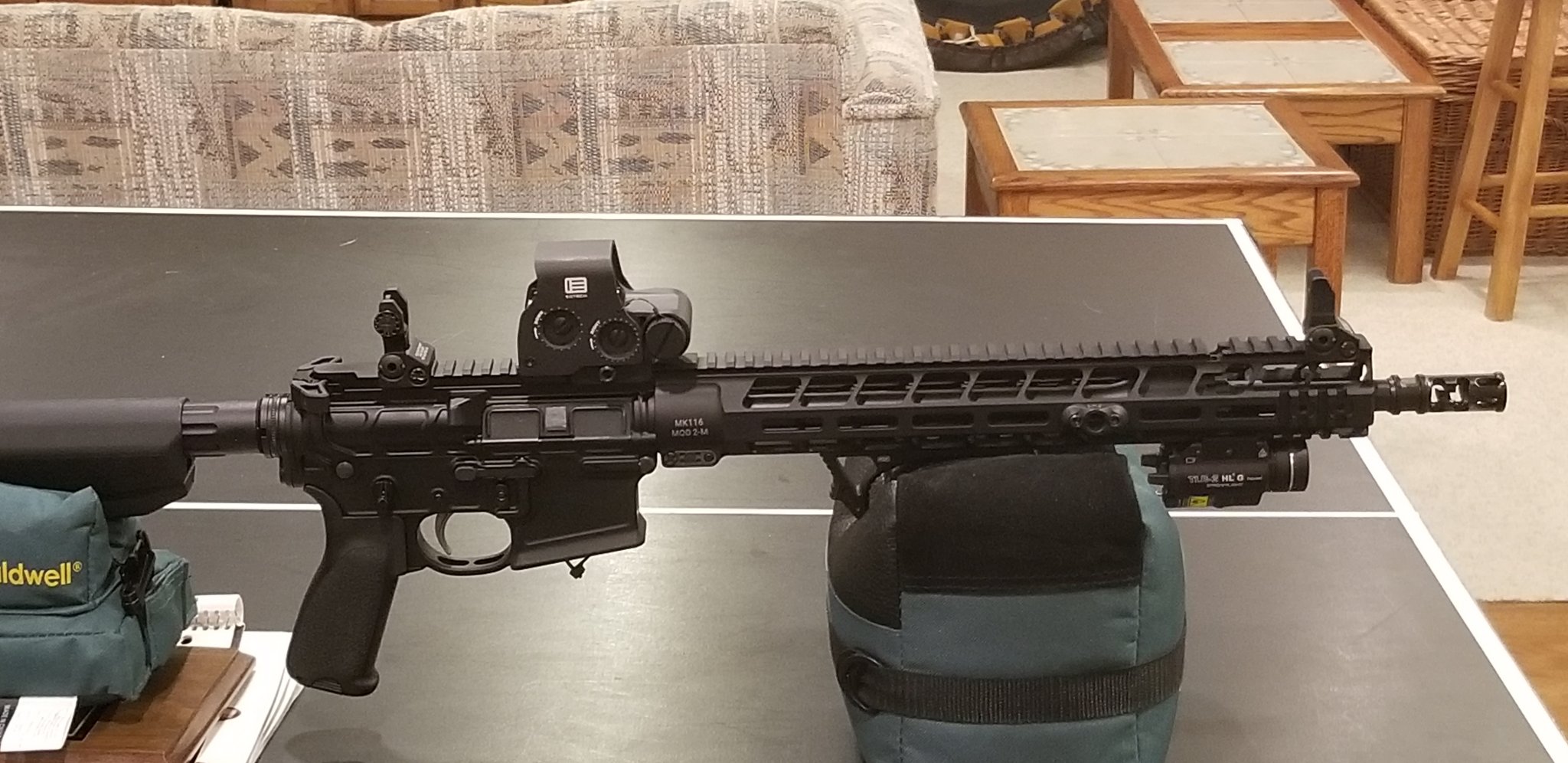

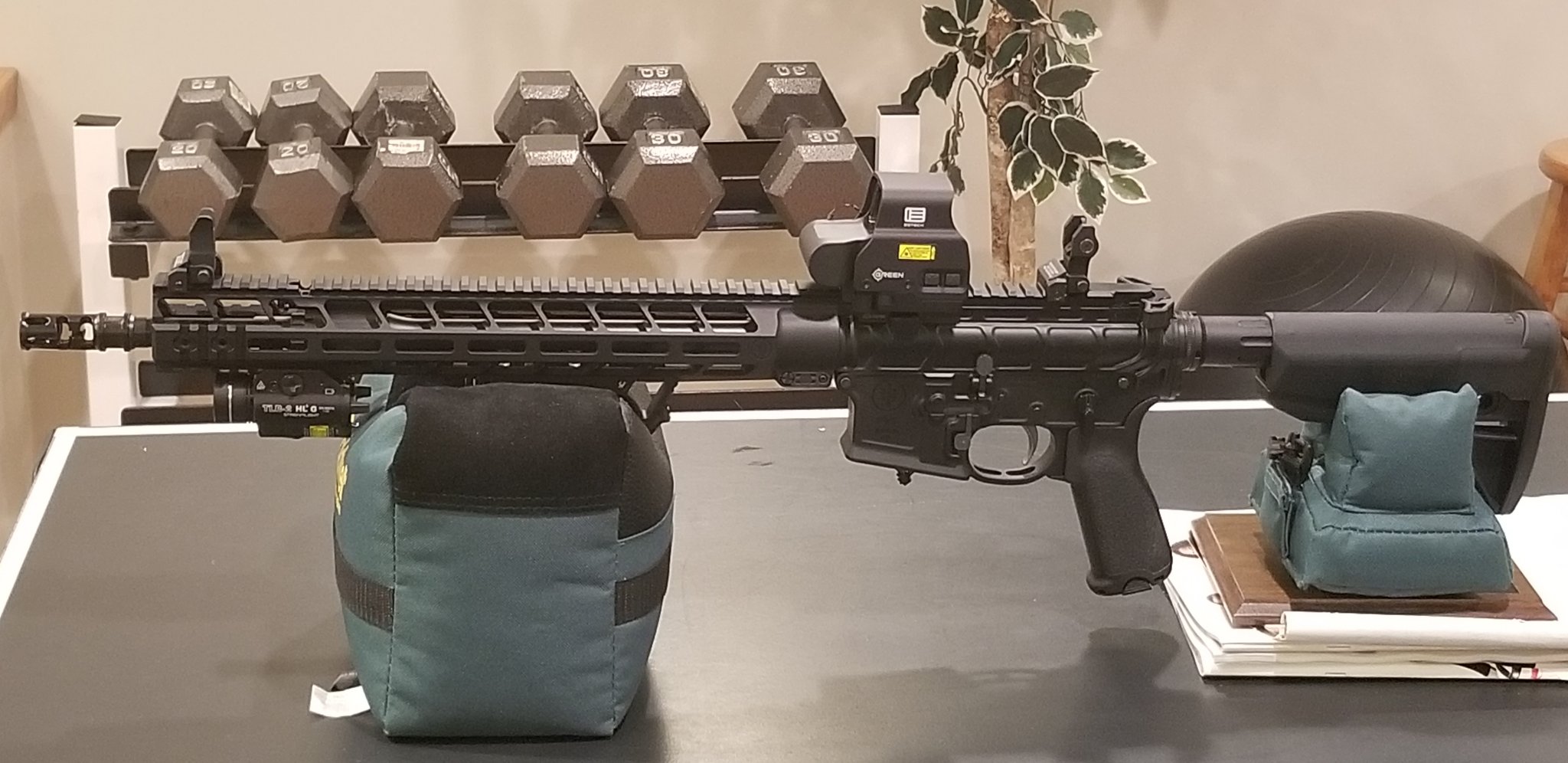

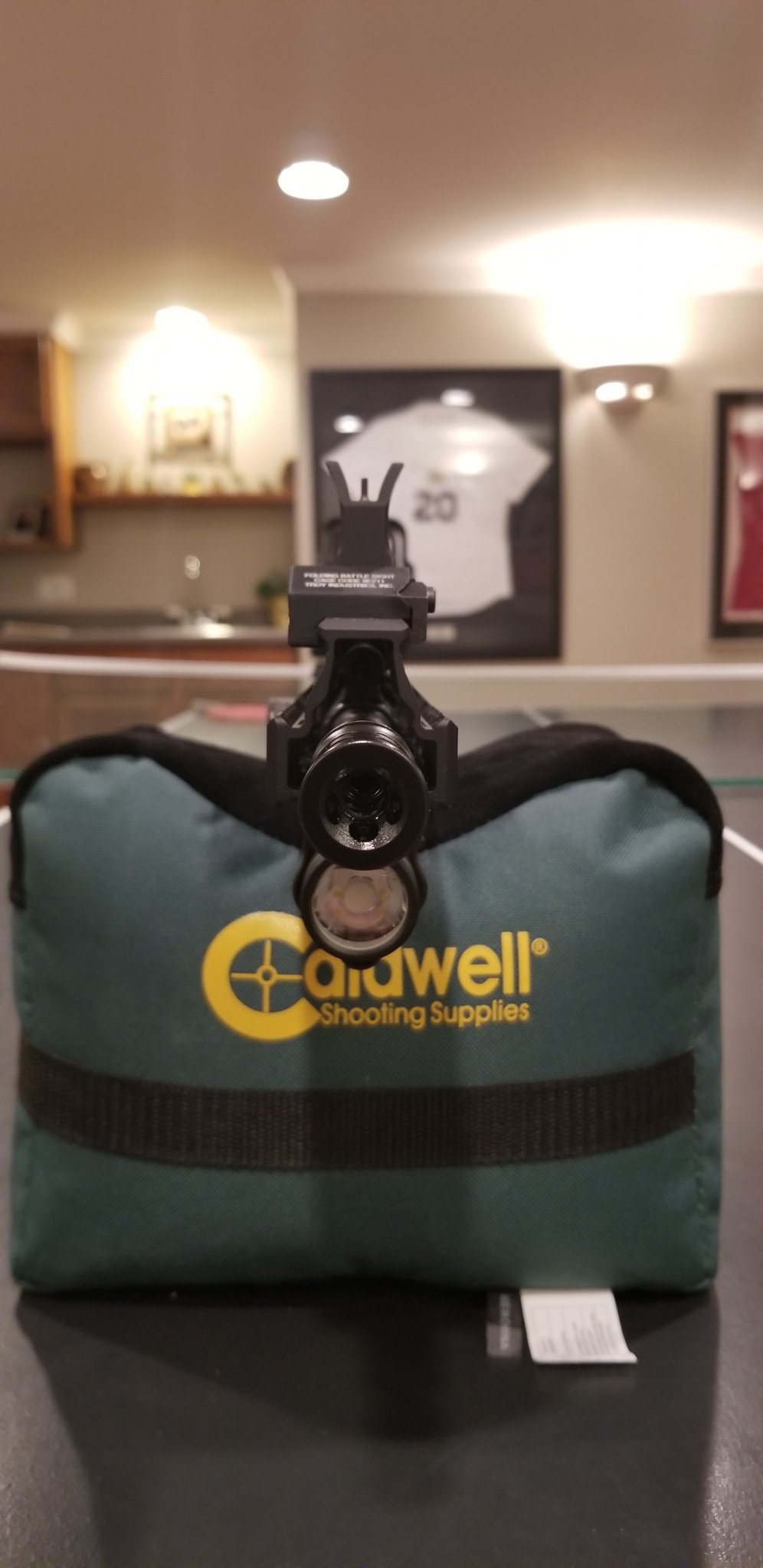

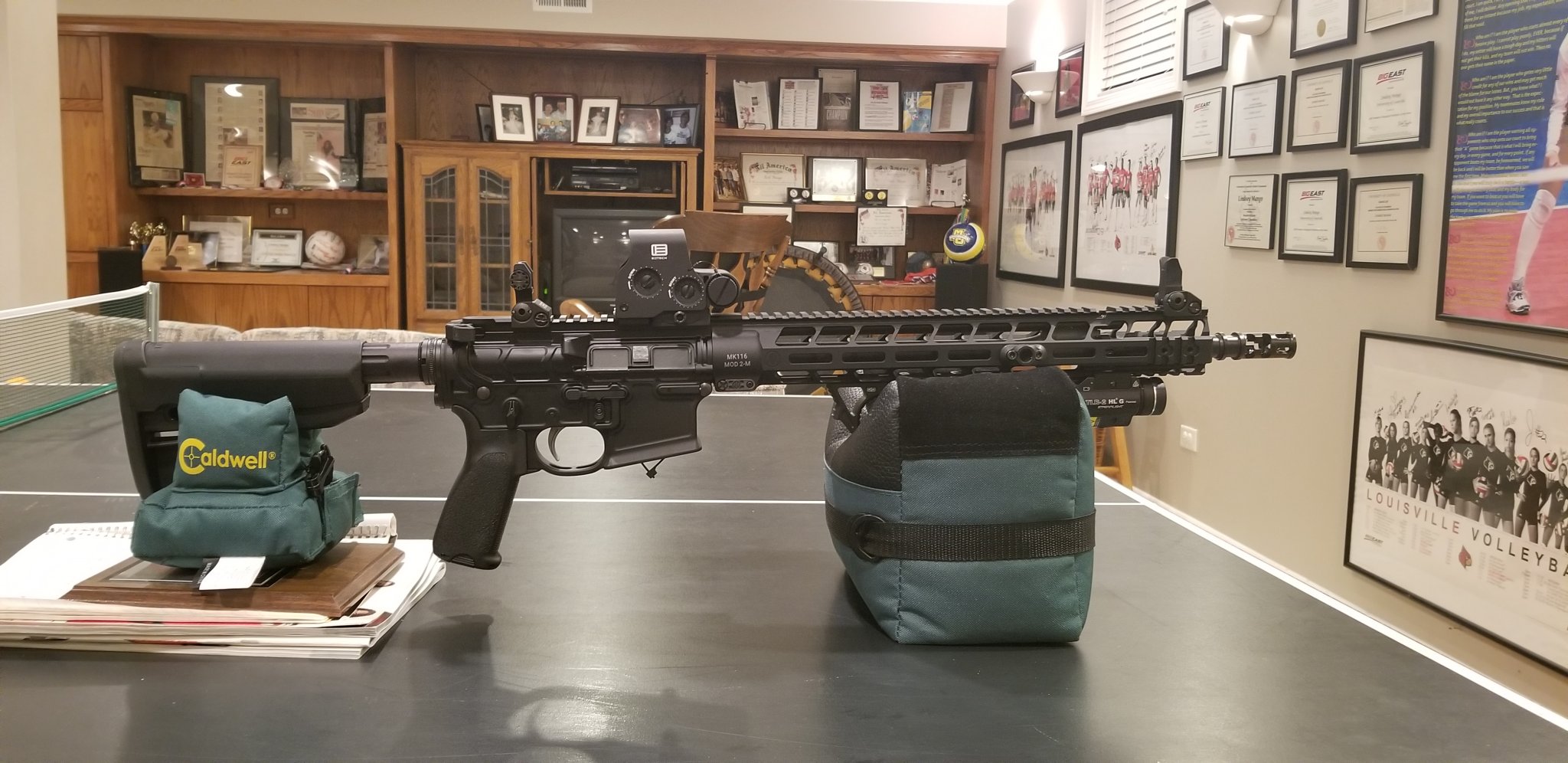

Ok...I don't know if it is sitting perfectly square on the sandbags but here are several images.
