USSOCOM ELR-SR

ReturnFire

Sergeant of the Hide
Full Member
Minuteman
  • Sep 23, 2019
    260
    103
    Tyndall AFB
    Sounds like SOCOM is looking at a rifle to extend their effective range to 2500 yds. Interesting set of requirements. Makes sense why Barrett just announced the new 416 MRAD.

    The ELR-SR shall be a modular, magazine-fed, multi-caliber capable system which will include barrel configurations with required bolts and barrels of each caliber, required magazines of each caliber, stock, receiver, sound suppressor, ballistic computer, operator manual, cleaning kit, tool kit, bipod, and Transportation Safety Administration (TSA) approved locking hard carrying case.

    The primary caliber of the system shall be sub-sonic and supersonic capable. If the primary system caliber is not a current DOD-approved munition, system it shall be capable of transitioning to a current .300 Norma Magnum DOD-approved munition with a quick- change kit (T). The quick-change kit shall be able to switch calibers within 5 minutes.

    The ELR-SR shall have an overall length of no more than 56 inches, no more than 50 inches, less suppressor and the length of pull set to 14.5 inches.

    The ELR-SR shall weigh no more than 22 lbs. with barrel, empty magazine, no more than 18 lbs.

    Shall have continuous timed and biased MIL-STD-1913 rails, with numbered slots, at the 12 o’clock position with a minimum length of 24 inches and a 10 (+/- 1) MIL forward-sloping cant from back to front.

    Shall provide M-LOK® attachment points at the 3, 6 and 9 o’clock positions with ARCA lock rail with attachment at the 6 o’clock position.

    The ELR-SR shall be manual (bolt action gun) in operation.

    The ELR-SR, with muzzle device attached, will have a peak free recoil impulse of no more than 25 ft-lbs. The objective is to minimize the effects of recoil on a shooter as much as possible.

    The ELR-SR barrel shall be capable of removal and replacement at the operator level Modular changes, including barrel changes, shall be accomplished within 5 minutes and with common tools, in such a way as to meet headspace requirements for each caliber.

    The ELR-SR system shall have a single, precision fire, high decibel reduction sound suppressor that will reduce audible signatures for all calibers to no more than 140dB. The sound suppressor should add no more than 8.5 inches in length to the system and should have recoil reducing capabilities. Sound suppressor shall be removable without specialty tools.

    The wishlist is going to be hard to balance. I mean it's possible but an elr rifle with max weight of 18lbs sans can/mags, be compatable with 300nm kit, have less than 25lbs FR and still have a gun that is durable, reliable and shootable is going to be hard.

    Recoil is a function of cartridge and weight. Once you get into the 338+ barrels you are looking at a 1.3+ tennon and with something like a 33xc will need atleast 5 inches of no taper. In order to keep OAL down you are looking at maybe a 26" barrel which means you need more ass and recoil to push those bullets to 2500 SS. The barrel alone is going to weigh almost 10lbs. And you will be replacing them very often.

    This reeks of people writing an RFI who don't actually shoot.

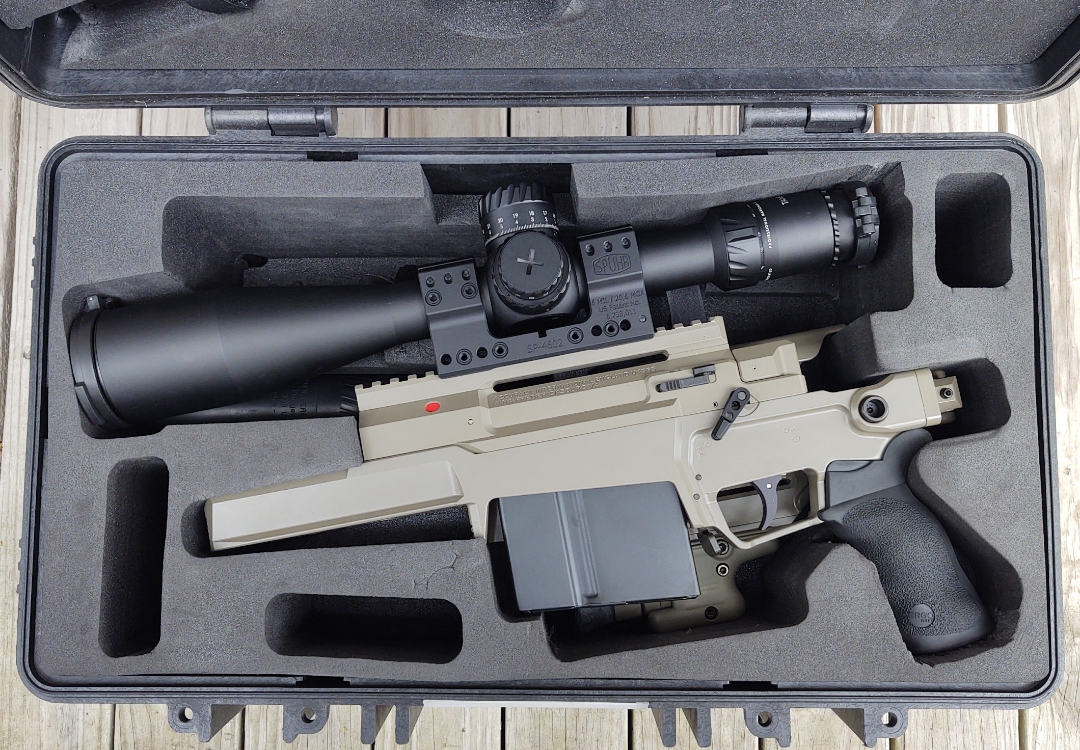

    Voere X3 could likely fit into that set of requirements with minimal mods. As its a Cheytac sized action that converts down to .308win and is close to required weight specs.

    Otherwise DT HTI with some mods and bolts for 300NM is most likely to fit the bill.

    But you know Desert Tech seems to be out of favor for defense contracts due to whole polygamous mormon sect funding thing ,sect that plead guilty to 1.1billion fraud scheme.


    Last edited:
    "high decibel reduction sound suppressor that will reduce audible signatures for all calibers to no more than 140dB. The sound suppressor should add no more than 8.5 inches in length to the system and should have recoil reducing capabilities."

    ...on a 50, 416, cheytac, etc....this made me laugh.


    That, combined with a 14.5” LOP and suppressor will add no more than 6”. WTF? Even a reflex can is going to be hard to get this.

    Most likely, Sig has developed a Cross that fits this spec and they’re gonna slide in and be the sole submission. Seems their whores are better than Reed Knights whores these days…

    I think its going to be Barretts to Lose. Makes too much sense since they already run the Mk22.


    Bassically change out the caliber and put a shorter/thinner barrel on it. Something like a 33 or 37 XC to keep recoil down. They share the same bolt head with the 300nm, which is going to be a requirement anyway.

    • Like
    Reactions: LastShot300
    Language in that solicitation sounds like the subsonic and 300NM only kick in if not in a DOD standard cartridge so it's like either a 50bmg or it has to be a multicaliber rifle that works in non military standardised X caliber and 300NM .

    If 50bmg , DT HTI is the closest fit but DT has issues with whole funded by , fraudulent Polygamous Mormon Sect

    Last edited:
    Maybe I’m way off here but how far fetched would a 37XC be? It’s the same bolt face as the 300NM so it could be as simple as a barrel change. MRAD, AXSR, and other multi-cal submissions from the last solicitation could easily fit the bill.

    Other than the fact that you couldn’t mag feed
    This has all likely been written around .375 Enabelr given how SOCOM has been behind it all this time

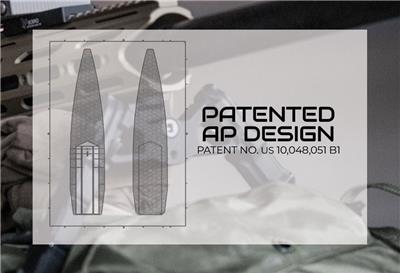

    Cutting Edge seems proud of their patent, with some dubious claims, which even claims that it is an advantage: "When the projectile strikes armor plate, the projectile body, starting at the tip of the front end, hits the plate and begins to disintegrate creating heat. The projectile body material completely disintegrates which softens the plate surface slightly and makes it easier for the hardened internal core to penetrate the plate."

    Regardless of what is written in the preliminary part of the patent, what is relevant in a patent is only the "claims", and in the case of US 10,048,051 the only patented part is the linear grooves inside the cavity devoted to allow air to exit when inserting the core.

    Otherwise, they'd just tried to patent the 8 mm AP bullet a century after it's invention.

    This goes contrary to most AP designs where lenght of the penetrator is in direct correlation to penetration performance, lets just say i have some doubt in disintegrating jacket anealing thel armor plate let alone ceramics or composites

    • Like
    Reactions: Huskydriver
    Can someone explain to me the OAL and barrel length. The weight doesn't seem crazy, just 1lb lighter than the Barret ELR. But that rifle has 36in bbl, and seems to be 12 inches too long. How do you get the OAL down, just cut the barrel fold the stock? Or is there something more to it?

    Can someone explain to me the OAL and barrel length. The weight doesn't seem crazy, just 1lb lighter than the Barret ELR. But that rifle has 36in bbl, and seems to be 12 inches too long. How do you get the OAL down, just cut the barrel fold the stock? Or is there something more to it?
    Reasonable to assume shortening the barrel is where they lose the weight and most of the length.

    • Like
    Reactions: PappyM3
    accuracy be damned.. ;)
    I didn't see anything about accuracy requirements. so
    chop the barrel down to 5 inches, reduce the load to minimum standards - so it makes it past the 'suppressor'.
    After you get the contract, you can then talk ballistics, etc..

    Effective range of 2500 yards and accuracy needs sometimes don’t fall hand in hand.

    2500 yards is nothing to sneeze at, and not as easy as some may imply. I think it’s a tough/challenging request given the shorthand system component list.

    As someone with 8 years of 416 experience …. The caliber has evolved significantly, but remains one of the more fickle cartridges in the distance game.

    This isn’t like you can lay down and walk in rounds ….. you miss and you may potentially get mortar’d. This is a seriously challenging request by SOCOM. Possibly the most challenging request that I’ve read or seen.

    It can be accomplished but there are add on requirements….. I don’t see these as a manufacturing line item produced by the dozens each day. These may lean more towards a custom order including the ammo portion included. Box ammo off a Camdex prolly isn’t going to fulfill the needs.

    Cheers
    Chris Schmidt
    Tennessee

    Last edited:
    • Like
    Reactions: LastShot300
    This isn’t like you can lay down and walk in rounds ….. you miss and you may potentially get mortar’d. This is a seriously challenging request by SOCOM. Possibly the most challenging request that I’ve read or seen.
    It seems like this idea pops up every decade. "We can infill a split team relatively close to a sensitive target and engage with .50BMG."

    In the 90s on the SOTIC side the argument against was mostly difficulty of infil/exfil with lots of gear and "probably more reliable to just hit with CAS." That latter part has become more and more of a reality, especially with precision long range arty/MLRS, and especially now with drones. But back then it was a great excuse to dust off those weirdo .50BMG bolt-actions and shoot really far.

    granted, Most on this board don't have the insight on what's being developed..
    not expecting this to be answered; but
    How far is Darpa on this? (rhetorical, cause if you knew, you couldn't' say ;) )
    I expect, in the near future, most 'projectiles' will be self-propelled with a miniature GPS, of some sort.​
    Not an expert, don't know how much propellent it would take to move a projectile 'self-propelled' 2500 yards.​
    But, it would reduce recoil and sound.​
    I believe, I have read they were developing something for the 30mm and working on 50 cal stuff.​
    Just tossing this out here... Not looking to redirect the post. (think, tom selleck in 'Runaway' )​


    As to the post.
    Making weight on a rifle, I'm too curious. Making 'weight' requires weight reducers.
    Maybe a rifle made from Titanium or some other strong but light metal; but then as mentioned above, recoil.
    Trade offs. Interesting post, thanks OP

    Last edited:
    • Like
    Reactions: clcustom1911
    You could probably get away with an MRAD as a single shot 37xc pushing a 390 Atip at 2900fps, It has enough ass to get out there but does not meet the 5 round mag requirement. But it would be as simple as a barrel swap with the current sniper system.
    (m)(mil)(mil)(ft/s)(ft•lbs)(s)
    RangeDropWindageVelocityEnergyTime
    2500-29.93.21163.81172.74.593

    You could probably get away with an MRAD as a single shot 37xc pushing a 390 Atip at 2900fps, It has enough ass to get out there but does not meet the 5 round mag requirement. But it would be as simple as a barrel swap with the current sniper system.
    RangeDropWindageVelocityEnergyTime
    (m)(mil)(mil)(ft/s)(ft•lbs)(s)
    2500-29.93.21163.81172.74.593
    DT could easily bag this , if it weren't for the whole polygamous Mormon sect funding while being found guilty in a billion dollar fraud

    HTI is close to weight limits , can change calibers up to 50BMG , and use longer barrels than the rest .

    I have never shied away from criticizing DT (b/c they, like so many, deserve it for legitimate reasons, e.g., quality control), but this whole thread is riddled with inuendo about the Kingston FLDS polygamist clan somehow having something to do with the business operations and/or govt contract eligibility of DT the company

    Show me direct evidence that this had something to do with Nick Young and DT, rather than some removed member of his family, and thus "guilt by association"

    I have never shied away from criticizing DT (b/c they, like so many, deserve it for legitimate reasons, e.g., quality control), but this whole thread is riddled with inuendo about the Kingston FLDS polygamist clan somehow having something to do with the business operations and/or govt contract eligibility of DT the company

    Show me direct evidence that this had something to do with Nick Young and DT, rather than some removed member of his family, and thus "guilt by association"
    Someone has mentioned that repetitively in this thread.🤨

    Why criticize the military for requesting capabilities beyond what is CURRENTLY possible? Won't this make arms makers innovate and come up with something that satisfies this requirement? Won't that be great for the rest of us where we might also get to benefit from it?
    Serious question.

    Why criticize the military for requesting capabilities beyond what is CURRENTLY possible? Won't this make arms makers innovate and come up with something that satisfies this requirement? Won't that be great for the rest of us where we might also get to benefit from it?
    Serious question.

    IMO, no. This is such a niche ask I doubt it’ll ever even get tested, almost no chance it gets fielded.

    It seems like this idea pops up every decade. "We can infill a split team relatively close to a sensitive target and engage with .50BMG."

    In the 90s on the SOTIC side the argument against was mostly difficulty of infil/exfil with lots of gear and "probably more reliable to just hit with CAS." That latter part has become more and more of a reality, especially with precision long range arty/MLRS, and especially now with drones. But back then it was a great excuse to dust off those weirdo .50BMG bolt-actions and shoot really far.

    The problem with CAS/ISR today is the EW capabilities and micro drones. We were getting jammed (even with anti-jamming devices) like crazy and after sometime, the drift in navigational data made coordination a nightmare which means targeting equipment are off by miles.

    The AFSOC and ARSOC are building up their ground capabilities to go into areas where CAS/ISR are denied. Which now has made a case for precision extreme long range engagements. The domain of warfare has been rapidly changing.

    Can someone explain to me the OAL and barrel length. The weight doesn't seem crazy, just 1lb lighter than the Barret ELR. But that rifle has 36in bbl, and seems to be 12 inches too long. How do you get the OAL down, just cut the barrel fold the stock? Or is there something more to it?
    I know the barrel length will be around 30" to 32". Might see some around just under those numbers. Again it's going to depend on the platform each maker submits.

    Going to be hard to push a cheytac sized projectile at any reasonable velocity out of a 22lb weapon system with a max 25lb recoil.
    IIRC with a .375 its feasible to get something like ±42lb of recoil, and in theory maybe you get it -60% to 25lb by using a hybrid brake/can (based on TBAC estimates for the RR series). I have no idea what the .mil spec allows for this kind of setup, tho it requires a can. Regardless, the 416 seems to simply be too much.

    • Like
    Reactions: kthomas
    IIRC with a .375 it like 42lb of recoil, and in theory maybe you get it to 25lb by 60% reduction from a hybrid brake/can (based on TBAC estimates). I have no idea what the .mil spec for the submission allows you to do this way LOL. Regardless, the 416 seems to simply be too much.
    Yeah, I wasnt accounting for that large of a reduction (60%). If they can get that it will be possible with a 400gr bullet. Just.
