Visual ballistics calculator?

[evanilily37]

I’m new to all this and I’m having a hell of a time figuring some of it out.
Is there a visual calculator where I can see my ballistics and where it intersects my sight plain?
My goal is to sight in my deer rifle at an efficient enough distance to hit anything that walks within 500 yards. I know some think that’s not an ethical distance, and I doubt I would take that shot, but this is my >500yrd gun and my intro into longer distance.
Do it sight in for a zero at 275? 100? There’s a lot of questions and most of them I don’t even know how/what to ask.
I have a Tikka T3x stainless sitting under a Vortex Viper HS LR 4-16-50. I’m using Federal Fusion 165gr .308
Any help is greatly appreciated. Thank you! https://9apps.ooo/



[Lowlight]

Most calculators have graphs and charts included,

But this is an entire ballistic calculator on one page



[Baron23]

I’m new to all this and I’m having a hell of a time figuring some of it out.
Is there a visual calculator where I can see my ballistics and where it intersects my sight plain?
My goal is to sight in my deer rifle at an efficient enough distance to hit anything that walks within 500 yards. I know some think that’s not an ethical distance, and I doubt I would take that shot, but this is my >500yrd gun and my intro into longer distance.
Do it sight in for a zero at 275? 100? There’s a lot of questions and most of them I don’t even know how/what to ask.
I have a Tikka T3x stainless sitting under a Vortex Viper HS LR 4-16-50. I’m using Federal Fusion 165gr .308
Any help is greatly appreciated. Thank you!

And to try to understand how to use those charts, might want to begin here

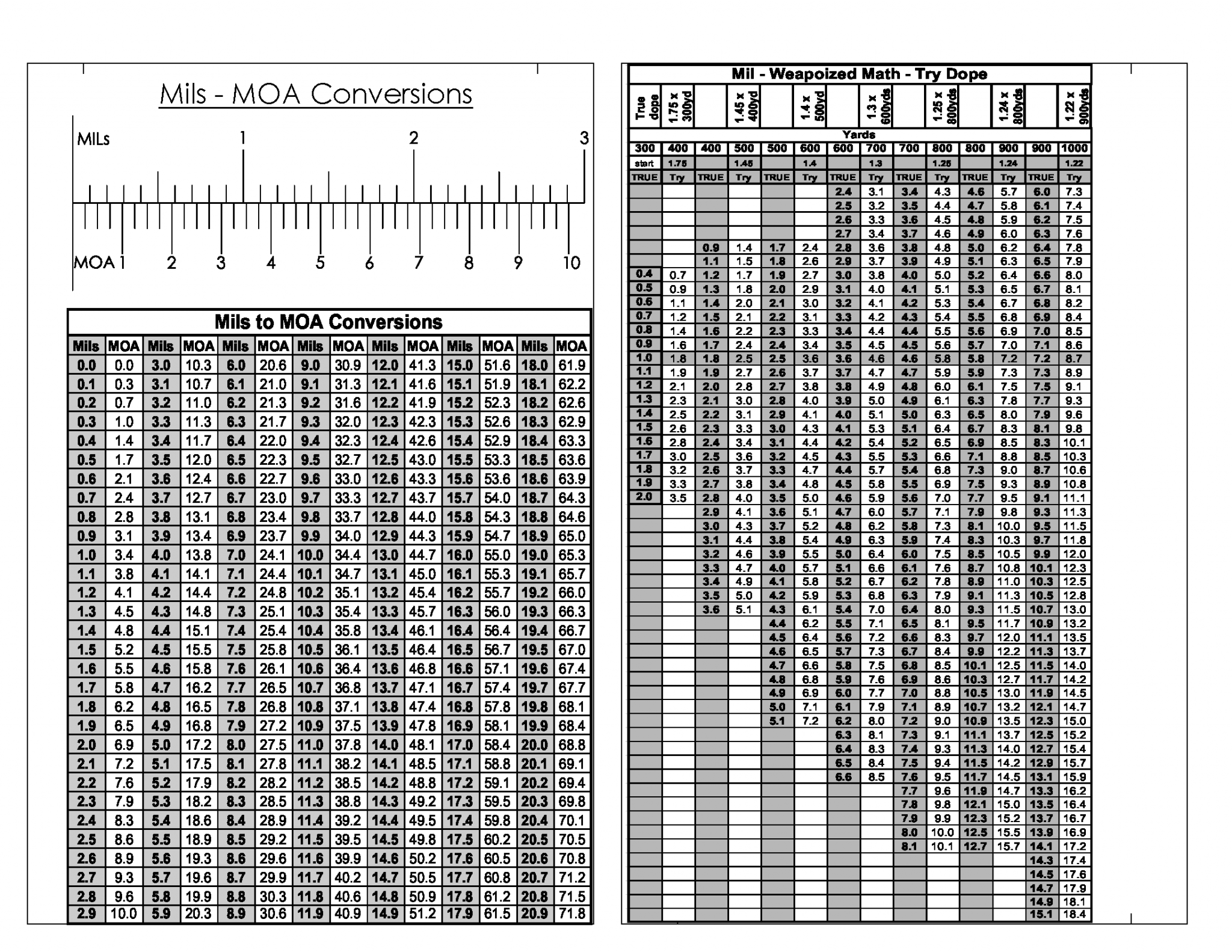

Predictable Weaponized Math and “X-Factor” Voodoo

Follow Sniper's Hide and pick up the latest information on all things precision rifle related. Sniper's Hide Training is for the serious tactical marksman.

www.snipershide.com

Alternate Range Weaponized Math

Weaponized Math developed by Marc Taylor has changed the way we gather data for our rifles. Doping your rifle has never been so easy.

www.snipershide.com



[_Windrider_]

I’m new to all this and I’m having a hell of a time figuring some of it out.
Is there a visual calculator where I can see my ballistics and where it intersects my sight plain?
My goal is to sight in my deer rifle at an efficient enough distance to hit anything that walks within 500 yards. I know some think that’s not an ethical distance, and I doubt I would take that shot, but this is my >500yrd gun and my intro into longer distance.
Do it sight in for a zero at 275? 100? There’s a lot of questions and most of them I don’t even know how/what to ask.
I have a Tikka T3x stainless sitting under a Vortex Viper HS LR 4-16-50. I’m using Federal Fusion 165gr .308
Any help is greatly appreciated. Thank you!

Always zero at 100. Gather your dope and just dial the distance you need.



[Baron23]

Always zero at 100. Gather your dope and just dial the distance you need.

Yeah, and I can't see any sort of zero or other body English that would allow him to shoot point blank over a 500 yd range.

I zero'd my deer rifle at 200 and figure I'm good for anything shorter and I'd be about 4" low at 250 so either dial up .4 mils or just hold over. At 300, I'm down 9" or so and that's outside of minute of deer. I do understand some of the arguments for 100 yd zero, but for whitetail where I can hunt, the 200 yds zero seems to work.

This dope is from 4DOF and MV from my Labradar. I validated it at 200 and 300 yds but haven't had a chance to validate the dope any further....but for me, 300 yds is about as far as I'm shooting at a deer, I believe.

I don't see anyway the OP can achieve his objective of killing an animal over a 0-500 yard range with just his zero and no hold over or dial up.

ELD-X, 178 gr
Range	V	Traj	ComeUp
(Yds)	(FPS)	(In)	(MILS)
0	2500	-1.90	0.0
50	2424	0.89	0.5
100	2348	2.21	0.6
150	2274	1.94	0.4
200	2201	0.00	0.0
250	2129	-3.74	-0.4
300	2058	-9.39	-0.9
350	1988	-17.09	-1.4
400	1920	-26.99	-1.9
450	1853	-39.25	-2.4
500	1786	-54.04	-3.0



[Lowlight]

trying to play PBR is silly

just dope it, dial it and or hold it, and don't swag it

building a proper range card, adding it to your rifle and determining the proper range is gonna yield better results than trying to eyeball it

distance gives you time and opportunity, take the time and opportunity afforded to do it right
