Rifle Scopes Vortex Razor HD Gen 2 56mm zero question

[Zatoichi66]

Hi all,

when zeroing this scope—do you use the turrets to zero, then “slip the scales” to reset zero?

or, do you pop the turrets & use an Allen wrench?

I’ve seen both online, and the owners manual says to use the Allen wrench when bore sighting. It’s on a 6.5CM, Ruger, but I would like max elevation/windage.

I know it’s a basic question; I appreciate any help.

Thank you!

Zato



[smoothy8500]

or, do you pop the turrets & use an Allen wrench?

If you want the zero-stop set properly, follow the manual.



[TheDalmore]

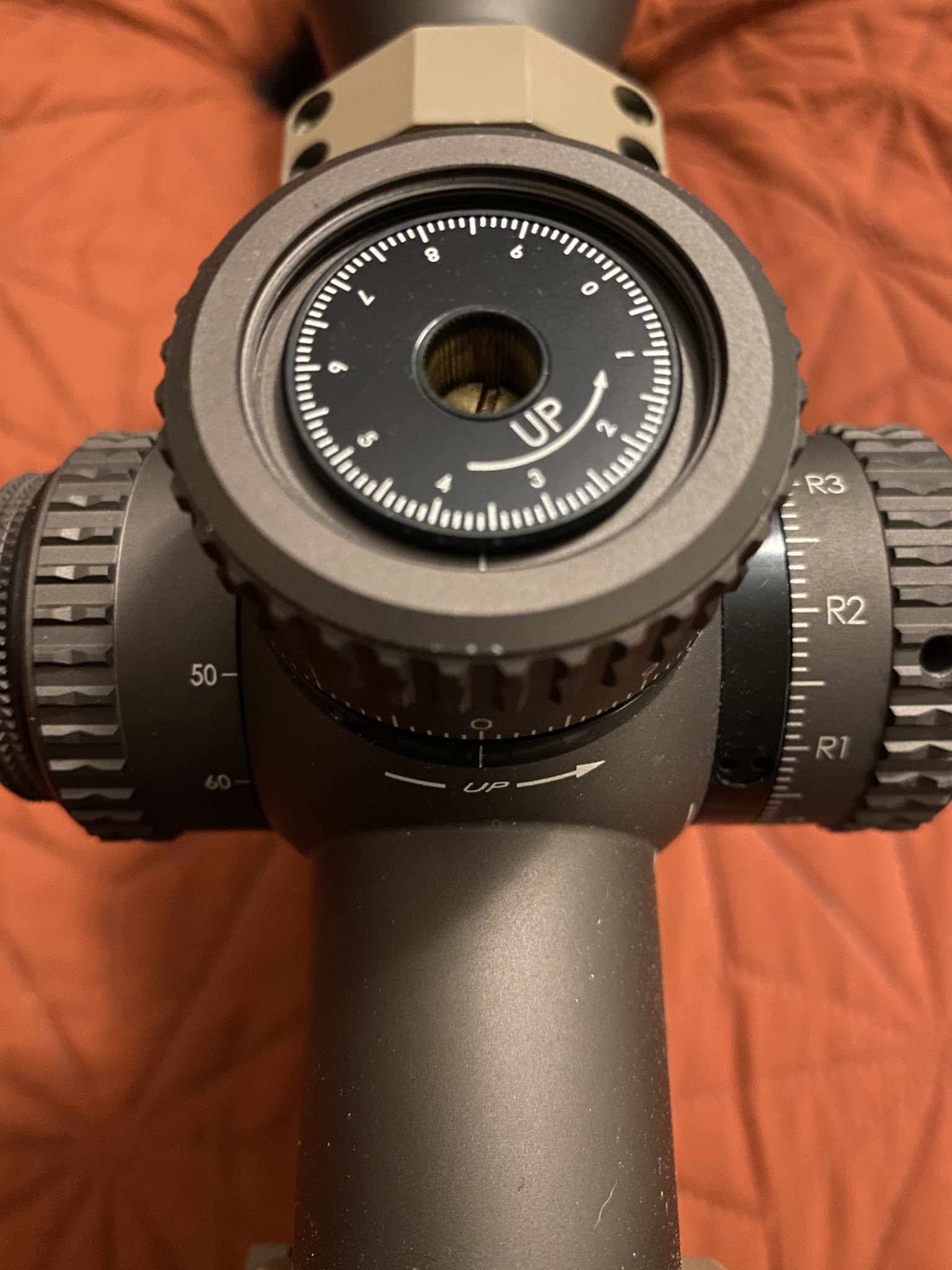

The way I did it was loosen the Allen heads with the turrets set to zero then adjust the dial inside



[NiteQwill]

The way I did it was loosen the Allen heads with the turrets set to zero then adjust the dial inside

That is exactly what the manual says to do.

OP, read the manual.



[Zatoichi66]

I read the owner’s manual. Then I listened to the interwebnet....

I’m annoyed at myself for not following the OM.

Thanks. Wasted range trip, sort of—always fun to shoot, just was my most productive day...



[GrumpyOleFart]

@Zatoichi66 , please read and follow manual precisely.
That's too nice a scope, to bung.
There are some Vortex You Tube demonstrations as well.

Of course, when it comes to IKEA furniture.......



[NiteQwill]

I read the owner’s manual. Then I listened to the interwebnet....

I’m annoyed at myself for not following the OM.

Thanks. Wasted range trip, sort of—always fun to shoot, just was my most productive day...

Lessons learned. We all make mistakes.

You have a great scope. Make full use of it. Good luck!



[Zatoichi66]

I will, even if it takes another trip.

or, 2...



[Rob01]

Here is a video but you now get an all in one tool to do the adjustments. It’s very simple to do. When done snug the allens down tight.



[wpeach1912]

It took me too long to figure out how to do it the first time haha. Just follow the instructions above or in the owners manual and you'll be fine. I have noticed that spinning that inner dial with the flat head does not always yield accurate adjustments, so just something to keep an eye out for.



[TheDalmore]

It took me too long to figure out how to do it the first time haha. Just follow the instructions above or in the owners manual and you'll be fine. I have noticed that spinning that inner dial with the flat head does not always yield accurate adjustments, so just something to keep an eye out for.

One lesson I learned about those scopes was to retighten after each shot because recoil would move it slightly



[wpeach1912]

One lesson I learned about those scopes was to retighten after each shot because recoil would move it slightly

Good idea. I'll try that next time



[Rob01]

One lesson I learned about those scopes was to retighten after each shot because recoil would move it slightly

It’s not a bad idea to just snug one up. You don’t have to tighten all three after a small adjustment. I usually don’t tighten one but some do.

And to the internal adjustments not being correct, I have heard that but every one of my scopes is right on.
