Vudoo 360 failure to feed

[DrA1]

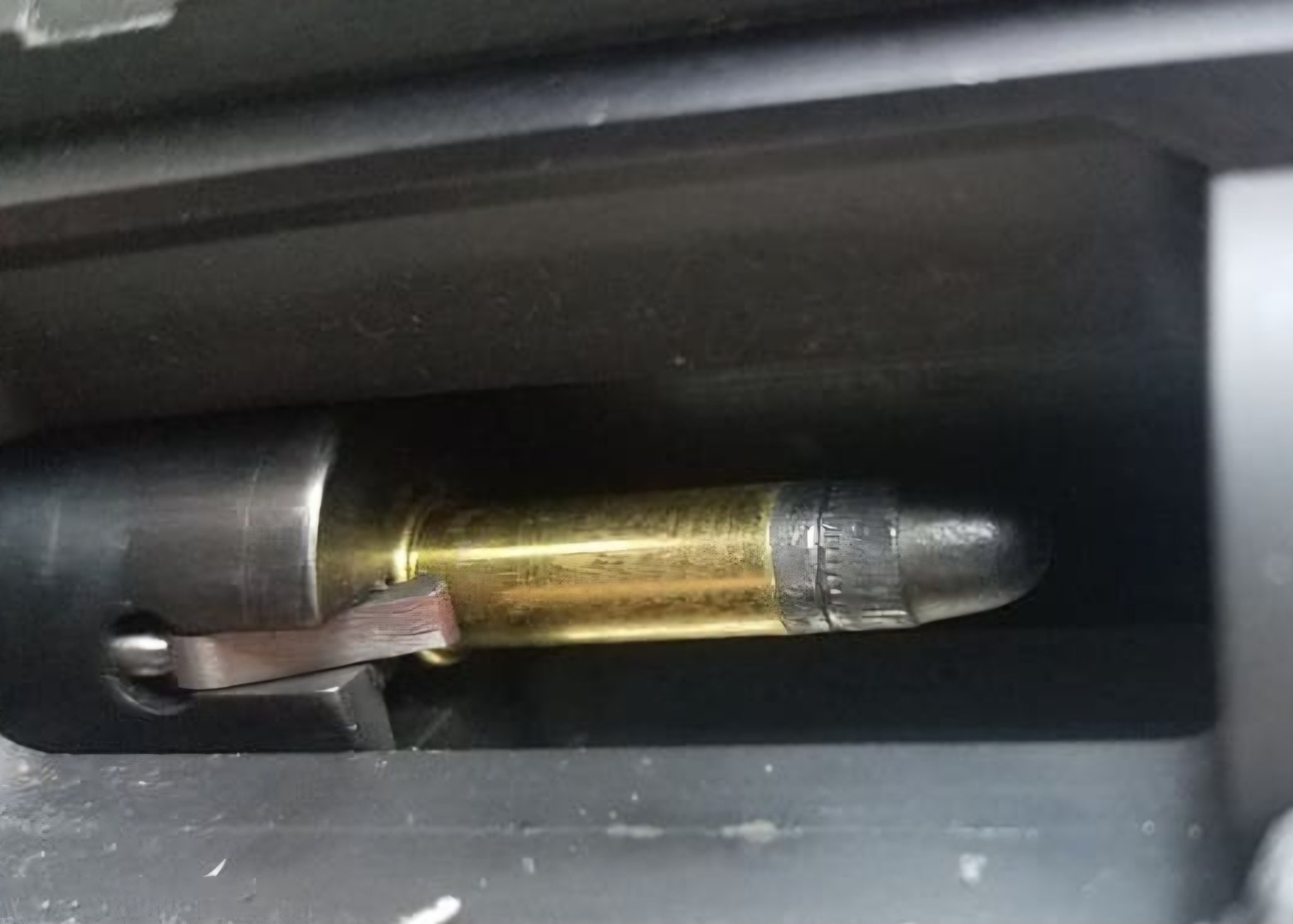

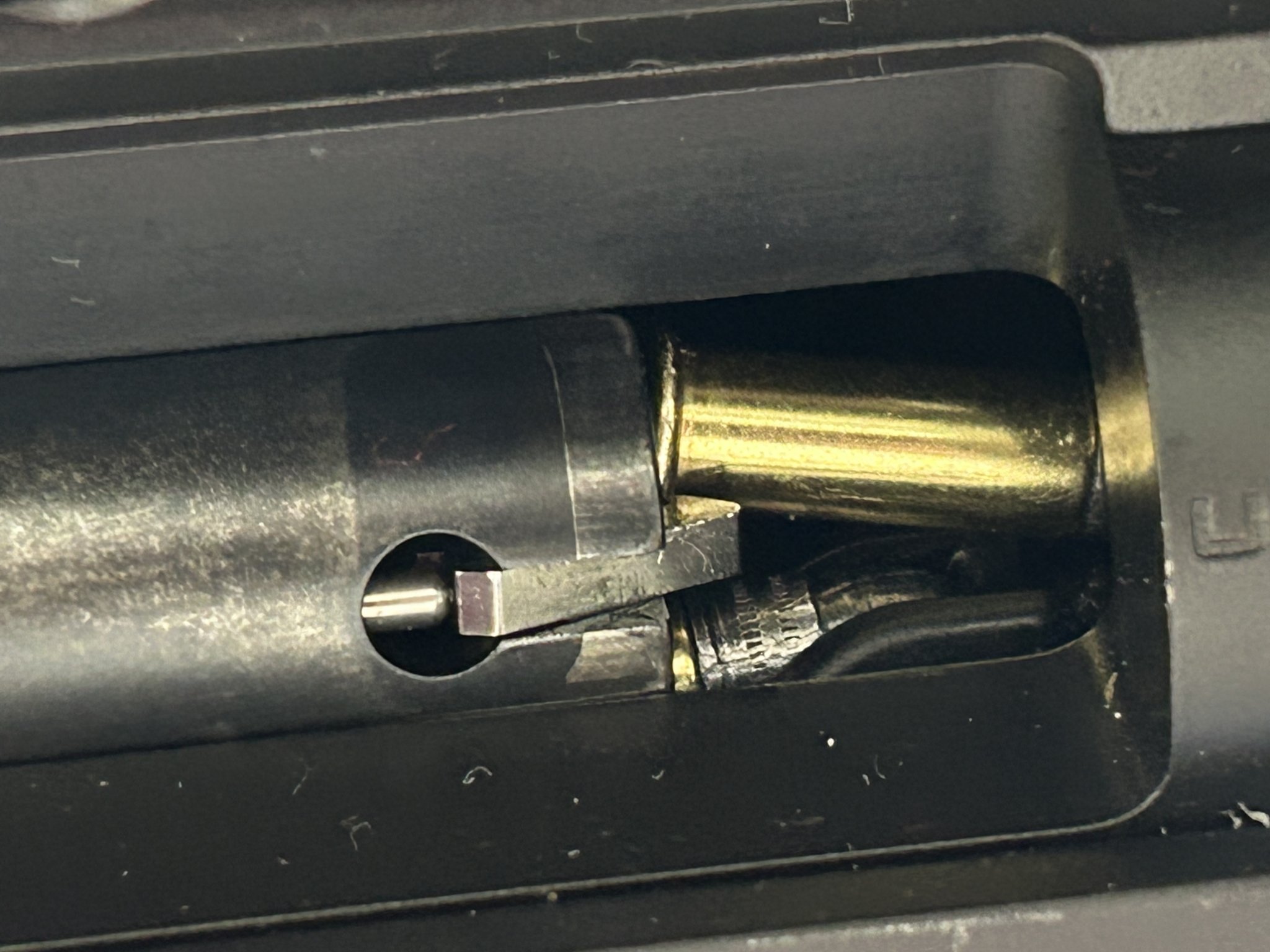

These magazines are well tuned (no forward or rearward travel and the height is appropriate) — but occasionally (more than I’d like) I have an issue where the round gets above the tensioner/ extractor and gets jammed. It is not “rim lock”.

I can’t consistently reproduce the issue. I have 5 different mags including an L3i and it can happen with any of them in the mag well. This is happening on the bench using a bipod and rear bag, so zero pressure on the mag. I can push the bolt forward briskly and it can happen or I can push it forward gently (which I don’t really ever do) and it can happen.

I shot an email to VGW and am waiting on a reply (but it’s the holiday weekend) so I’m trying to troubleshoot the issue here while waiting.

Shooting 100% SK match and std plus

thanks



[David Lott]

These magazines are well tuned (no forward or rearward travel and the height is appropriate) — but occasionally (more than I’d like) I have an issue where the round gets above the tensioner/ extractor and gets jammed. It is not “rim lock”.

I can’t consistently reproduce the issue. I have 5 different mags including an L3i and it can happen with any of them in the mag well. This is happening on the bench using a bipod and rear bag, so zero pressure on the mag. I can push the bolt forward briskly and it can happen or I can push it forward gently (which I don’t really ever do) and it can happen.

I shot an email to VGW and am waiting on a reply (but it’s the holiday weekend) so I’m trying to troubleshoot the issue here while waiting.

Shooting 100% SK match and std plus

thanks

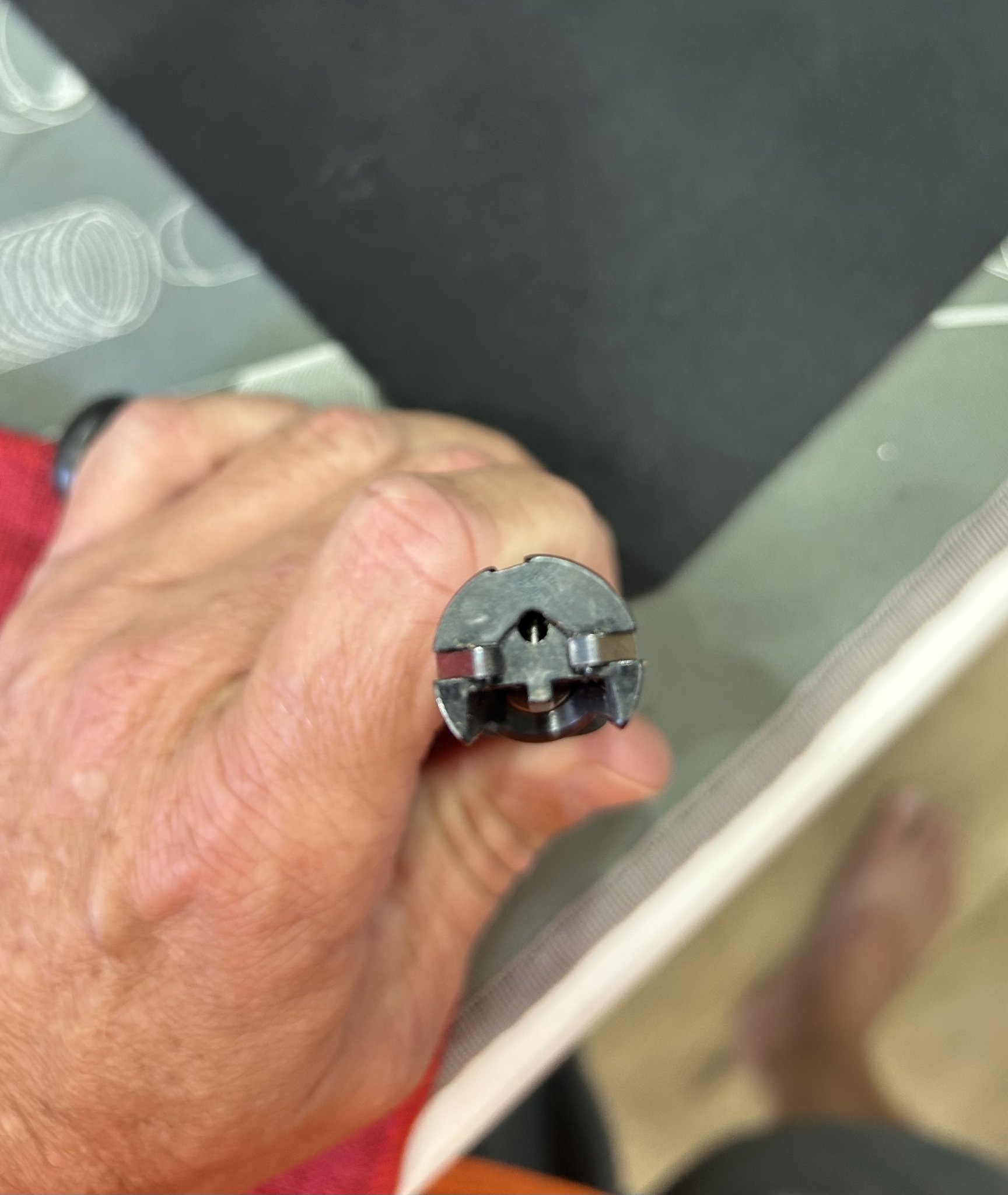

Can you post a pic of the bolt face?
factory vudoo barreled action ?



[DrA1]

Factory Vudoo BA



[David Lott]

Factory Vudoo BA

If you stick a round into the bolt face, how much space is there between the rim and ejector?



[DrA1]

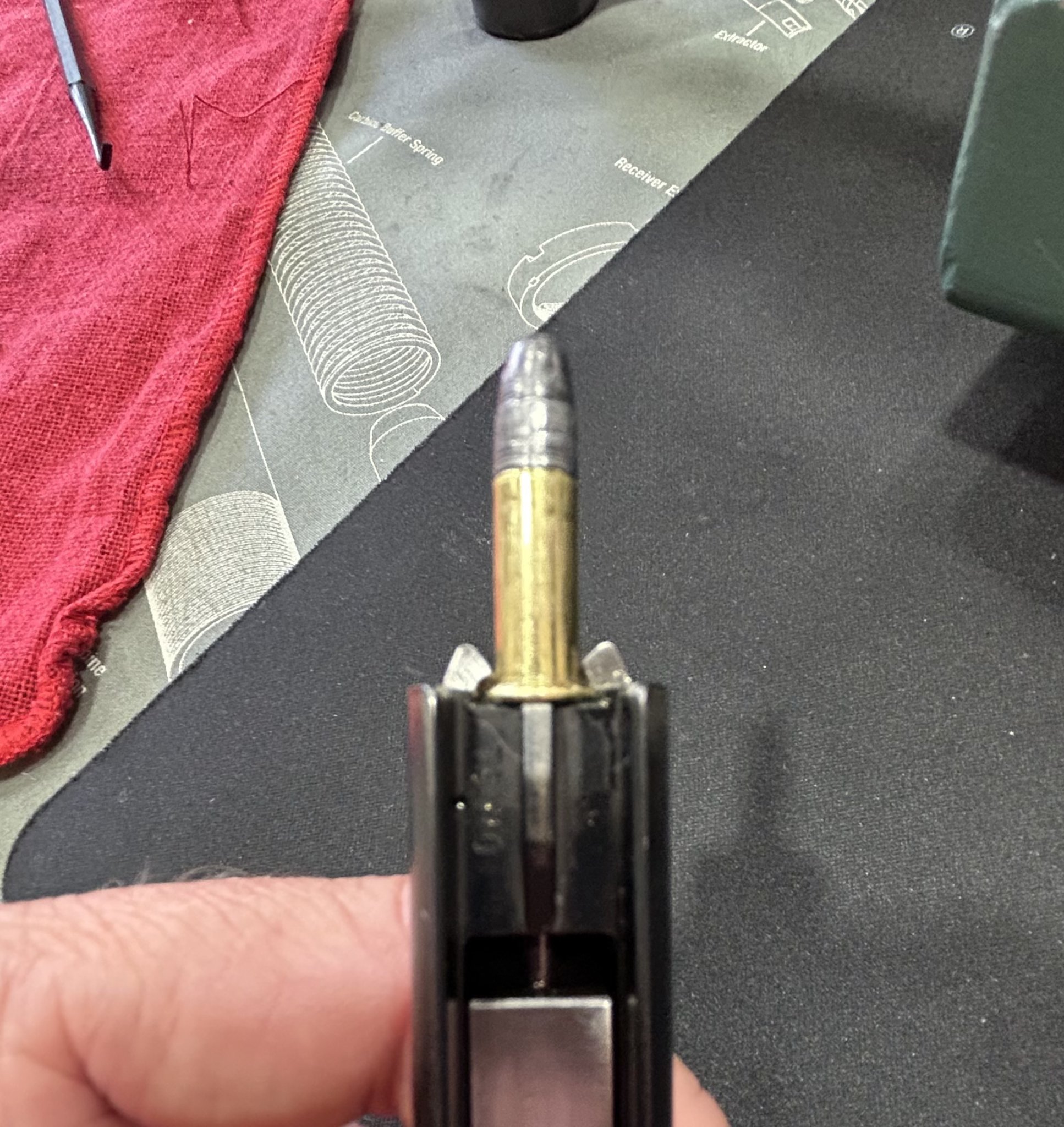

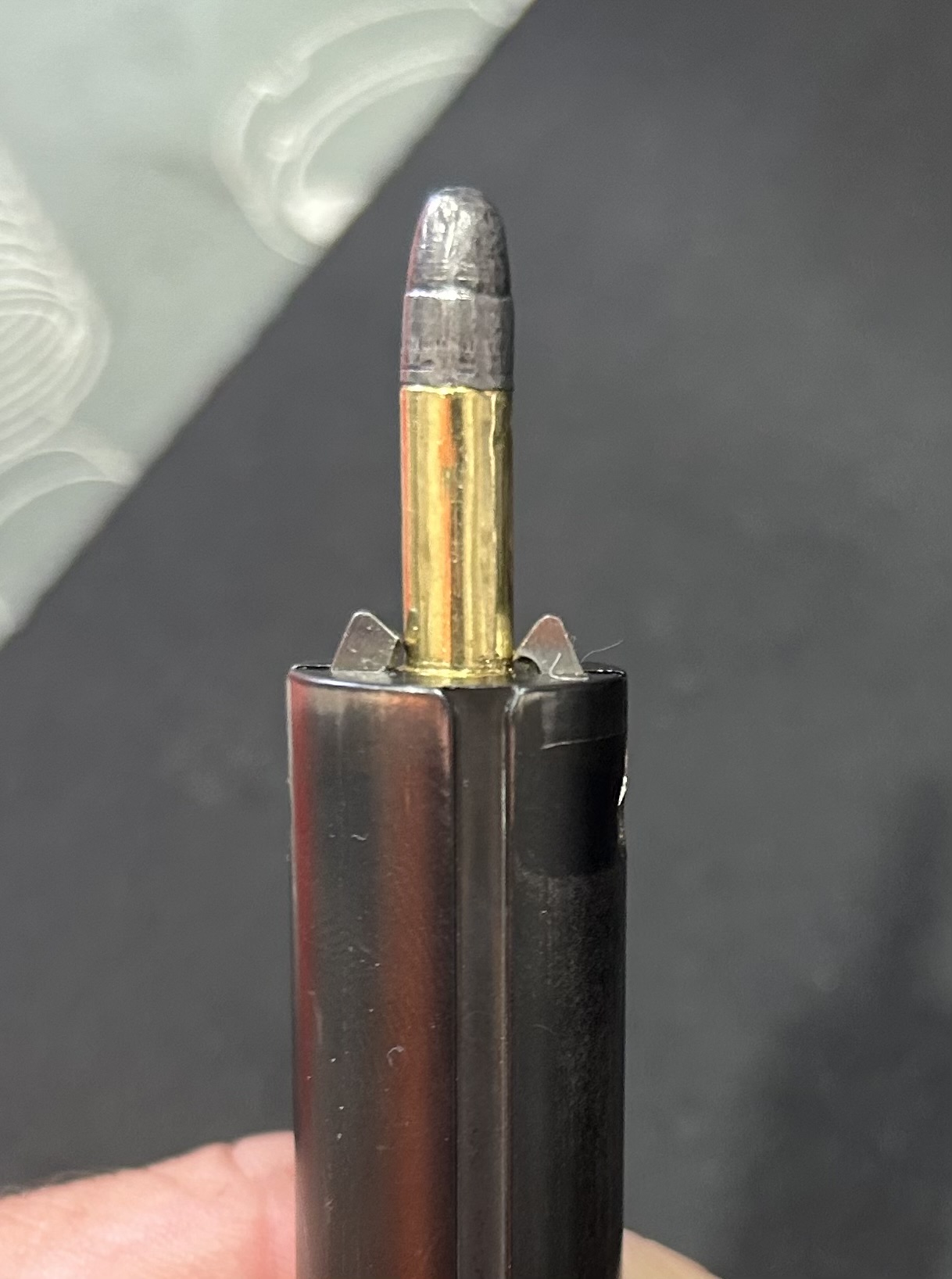

I’ve attached a few more pics



[DrA1]

disregard the way that round looks
Those are some junk I had laying around and grabbed it for the pics — but it is SK



[Rob01]

Post a pic of the whole rifle.



[David Lott]

disregard the way that round looks
Those are some junk I had laying around and grabbed it for the pics — but it is SK

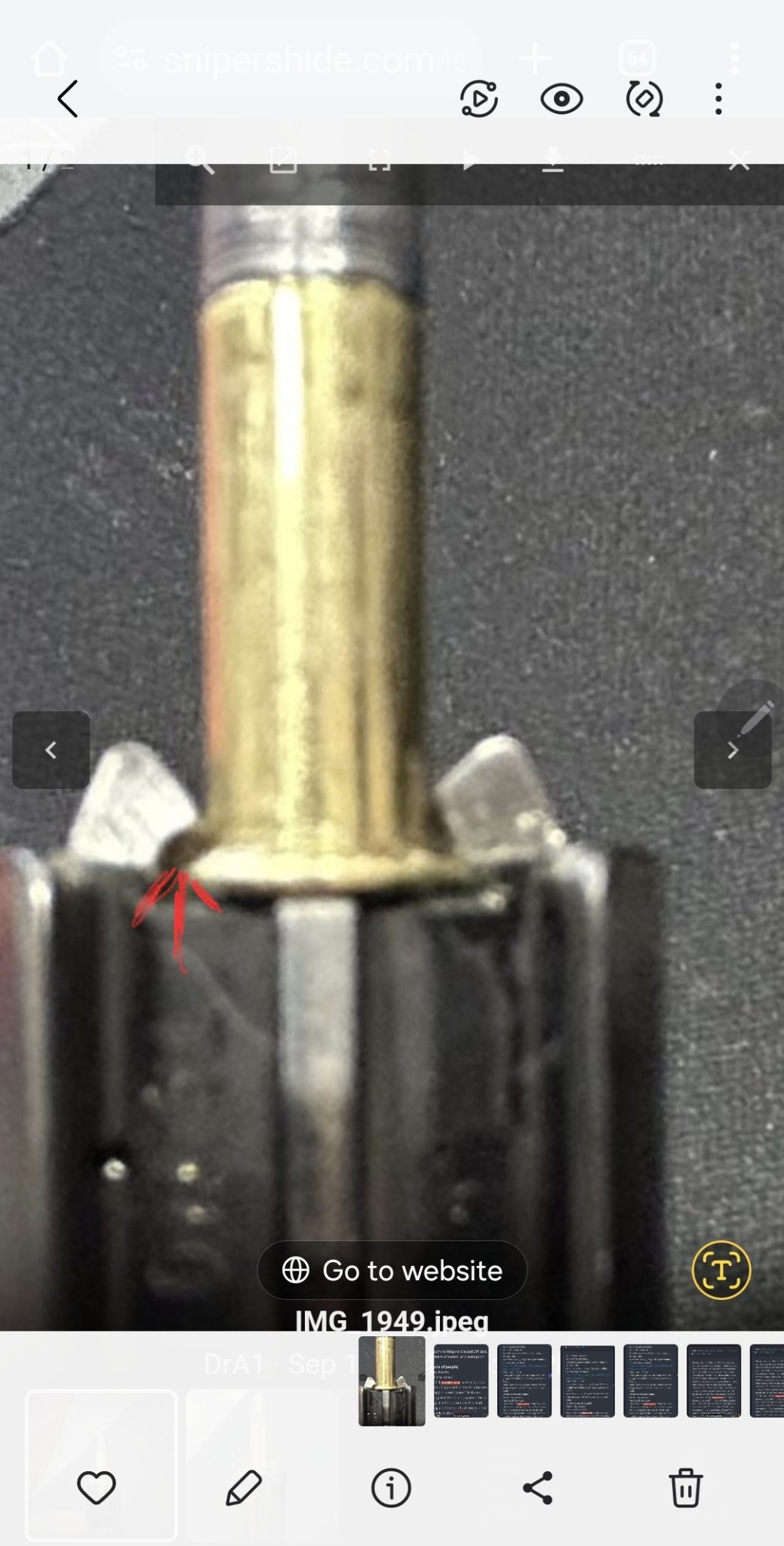

There seems to be to much clearance at the red arrow. Can you easily lift it ?



[DrA1]

Yes - I can easily remove it

If I hold it in its normal orientation and move a little, it’ll drop the round.



[David Lott]

Yes - I can easily remove it

If I hold it in its normal orientation and move a little, it’ll drop the round.

Bolt nose is out of spec, it should tightly hold the round,



[DrA1]

Thanks for helping me out.

I figured it was something along those lines or an issue with the tensioner/ extractor directly, but I knew it wasn’t right.

I appreciate your time.

I’ll get with VGW when they get back i to the shop.



[DrA1]

Post a pic of the whole rifle.

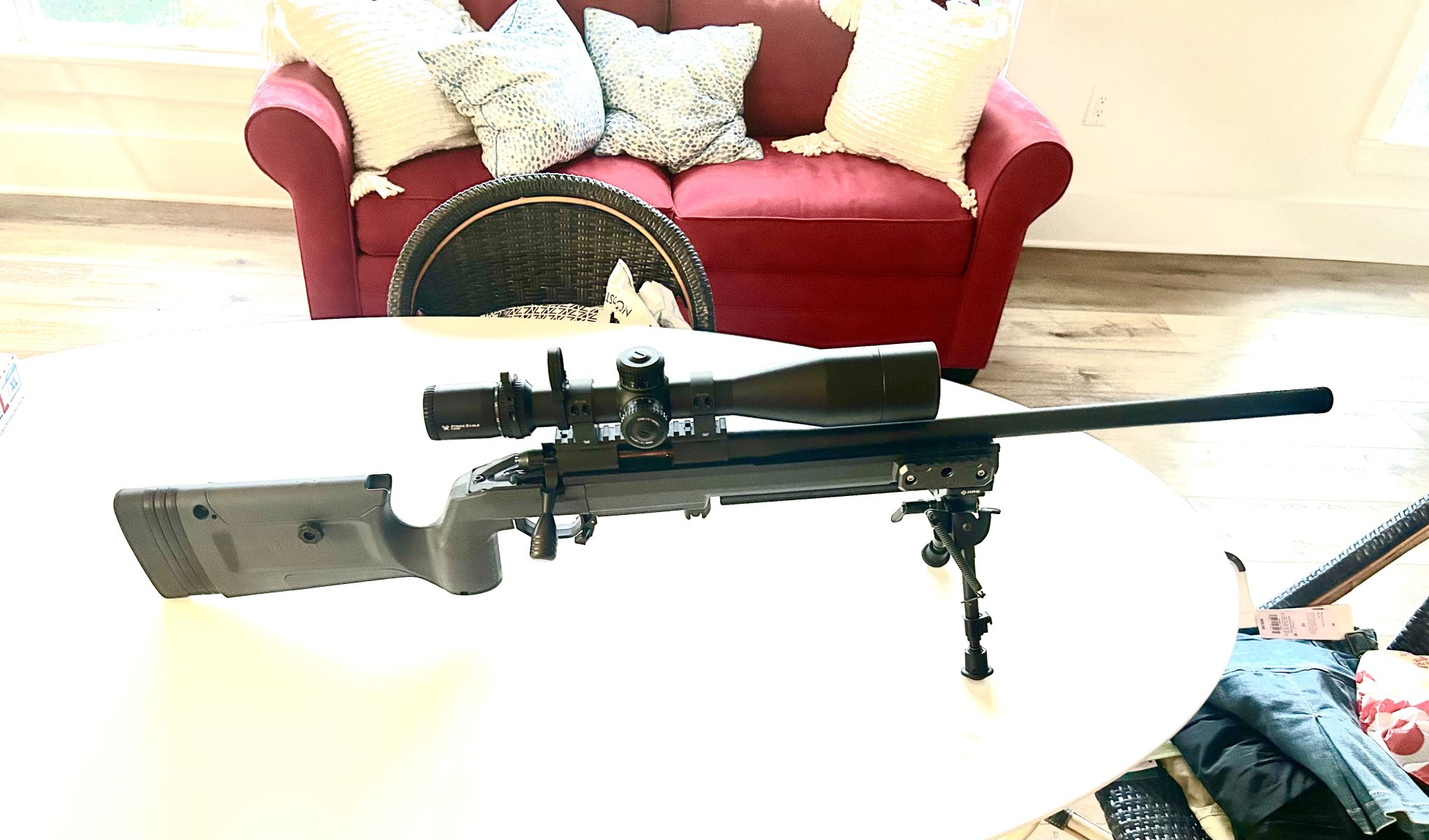

360 in KRG Bravo



[Rob01]

360 in KRG Bravo

Seeing what Dave posted I’d definitely get with Vudoo this week as that should be an easy fix. May just be your extractor which is an easy at home change.



[DrA1]

I heard from VGW today and they are recommending a spring change for the extractor and tensioner as the initial fix.

Once I get that changed, I’ll report back in.

Thanks for the help.
