What Adjustable Gas Block fits under a Daniel Defense Slim Rail (DDM4V11)?

[SMTGWKD]

Looking for anyone who has installed any adjustable gas block under a Daniel Defense Slim rail.

Which ones fit!

I installed an SLR Sentry 7 clamp on and it hits the screws on the clamp. Now I'm wondering if either the superlative arms, SLR, Seekins set screw versions will fit from personal experience?

Thanks for your help!



[Kwilm]

Look st the adjustable block from ergo. It fits in my Midwest Industries and it's around 1.3" ID. It's about the lowest profile I have found.



[SMTGWKD]

Look st the adjustable block from ergo. It fits in my Midwest Industries and it's around 1.3" ID. It's about the lowest profile I have found.

Thanks so much for the input! I hadn't heard anything back so I ordered a superlative arms based on the online description. The problem measurement is actually the area around the gas port/tube. The screw on the SLR makes it too wide, the hump on the Odin Works does the same. For the same reason I think the Ergo set screw will be in the way as well.

I'll report back on if/how the superlative arms fits.



[flyfisherman246]

How did it work? I'm in the same boat right now.



[ranger0787]

Superlative Arms doesn't work; even after butchering the inside of the handguard with a Dremel. I'll the Sentry next.



[bigjake83]

https://www.brownells.com/gun-parts...stem-parts/icarus-click-adjustable-gas-block/



[ranger0787]

https://www.brownells.com/gun-parts...stem-parts/icarus-click-adjustable-gas-block/

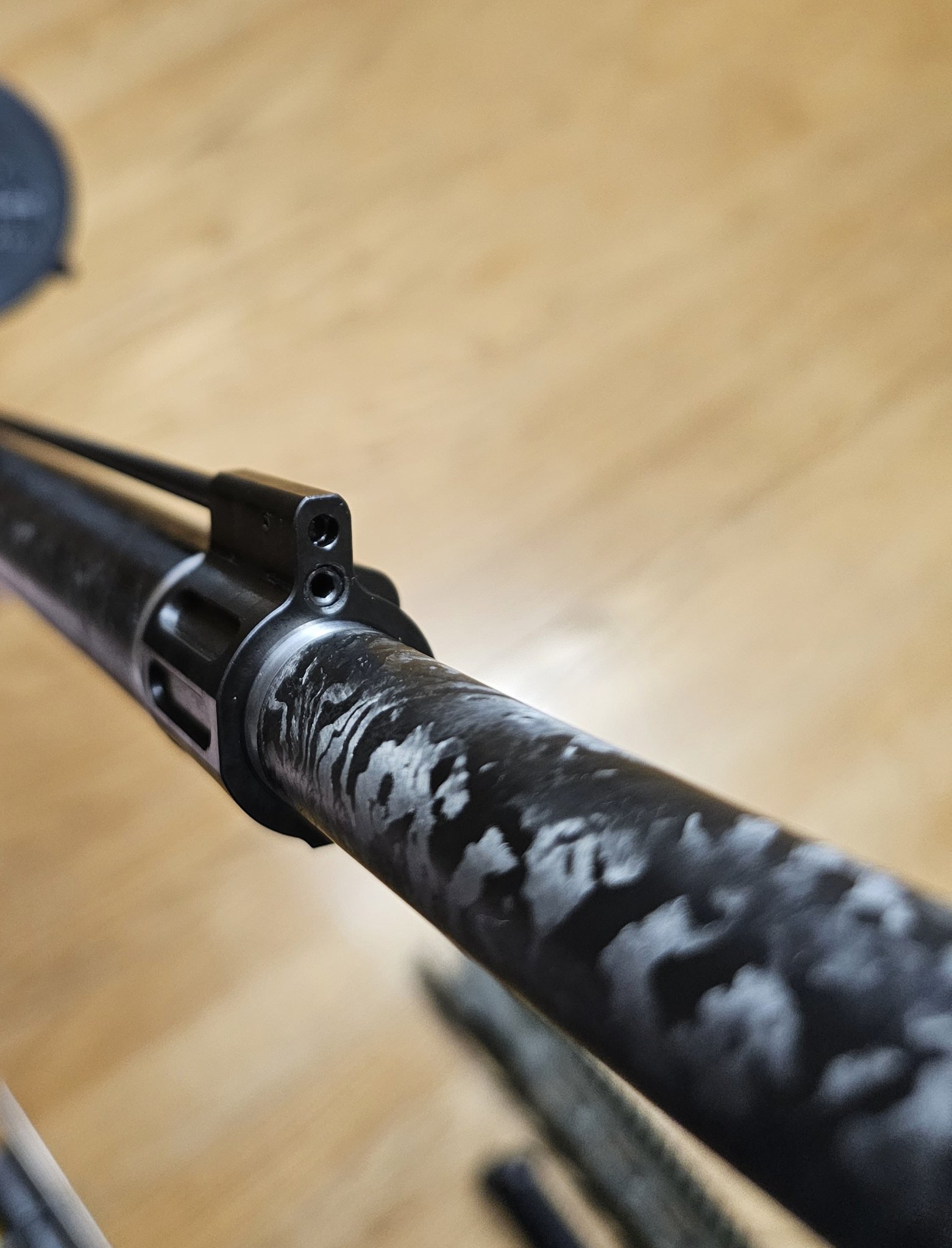

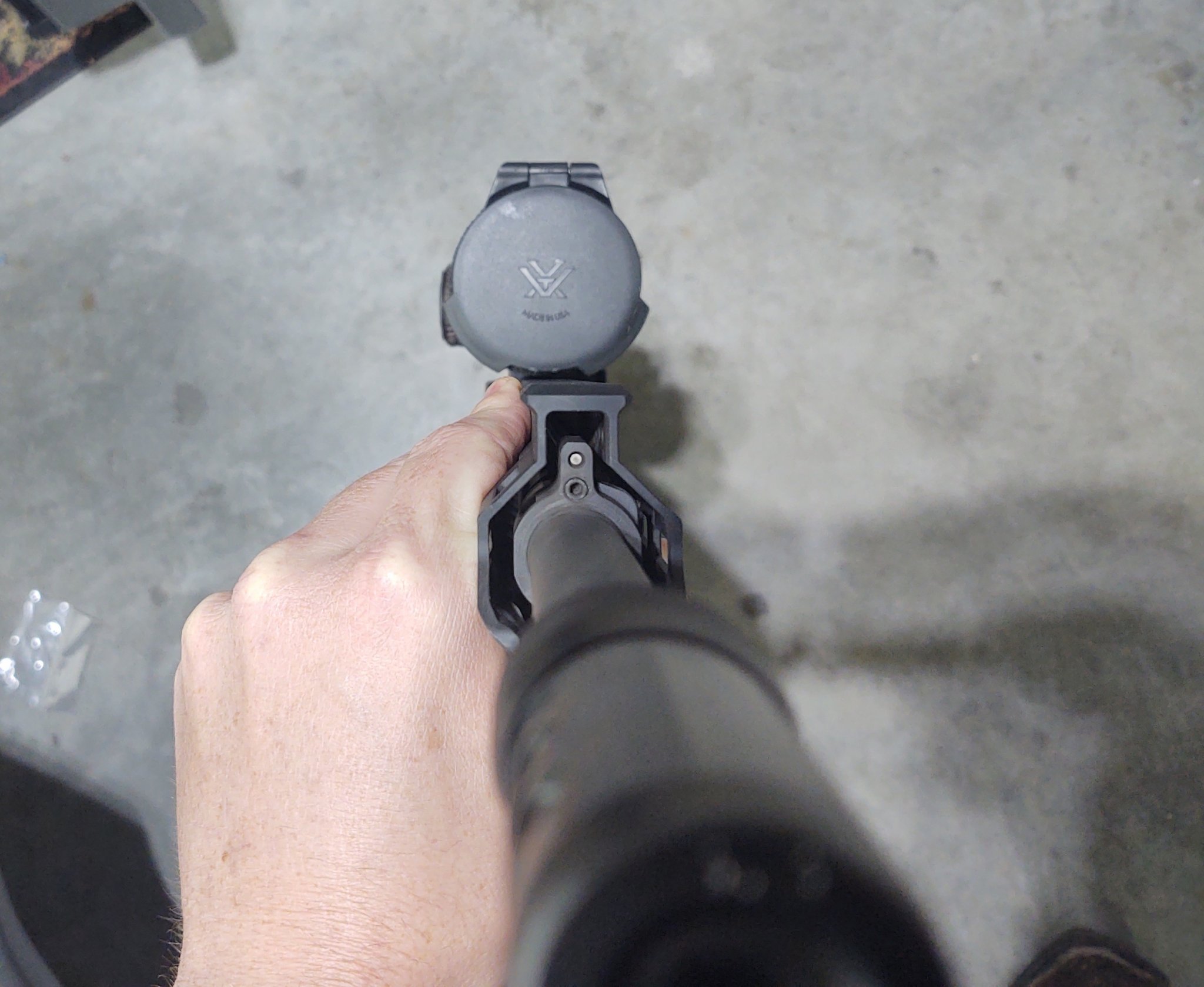

View attachment 8256786
View attachment 8256787

Is that a Daniel Defense Slim Rail or their MFR MLok rail?



[bigjake83]

Is that a Daniel Defense Slim Rail or their MFR MLok rail?

It's a DD5 Handguard, but it's the slimmest AGB that I've found to date.



[supercorndogs]

Same one as above I think.

FM Products Premium Click Adjustable AR 5.56 Gas Block FM-ADJ-GB Color: Black, Coating: Deep Penetration Melonite, $4.00 Off w/ Free S&H

Shop FM Products Premium Click Adjustable AR 5.56 Gas Block | $4.00 Off 4 Star Rating on 1 Review for FM Products Premium Click Adjustable AR 5.56 Gas Block + Free Shipping...

www.opticsplanet.com

The Aero one is pretty low profile too. My brothers ar wouldn't run with the Aero adjustable block. He ordered a nonadjustable block and it ran fine after that.



[MontanaMan]

This will work. Cheap but holds up OK. Unless you want to set it & forget it, put a drop of high temp never seize on the adjustment screw thread & move it in & out occasionally. Fits under a Geiselle MK14 which is about as slim as it gets.
MM

Wojtek Weaponry .750 Adjustable Clamp Gas Block-750block

www.wojtekweaponry.com



[Merle]

I'm betting the Aero Precision adjustable gas block would fit. It's no bigger than a regular micro gas block. I have one with a Geissele handguard. Works just like an SLR block but costs less.



[DeathBeforeDismount]

They all suck, but the superlative arms is probably the least sucky. Or you could go old school and do a noveskee switch block, which is less failure prone but wont fit under most rails.



[TonyTheTiger]

This will work. Cheap but holds up OK. Unless you want to set it & forget it, put a drop of high temp never seize on the adjustment screw thread & move it in & out occasionally. Fits under a Geiselle MK14 which is about as slim as it gets.
MM

Wojtek Weaponry .750 Adjustable Clamp Gas Block-750block

www.wojtekweaponry.com

I've got a small fleet of those. I was skeptical based on the price, but they're all I ask for in an AGB regardless of cost.



[MontanaMan]

I installed an SLR Sentry 7 clamp on and it hits the screws on the clamp. Now I'm wondering if either the superlative arms, SLR, Seekins set screw versions will fit from personal experience?

Thanks for your help!

Should have also said in my previous post that the SLR set screw version will work.

Their clamp on version's screw heads do stick out a bit. The set screw version is noticeably sleeker.

MM



[ranger0787]

The problem with most of the adjustable gas blocks is the side projection(s) on the blocks. The SLIM rail has "scalloping" inside the handguard at 1-4-7-11-O'Clock. I just pulled the trigger on one of Daniel Defense's 15" MFR MLok rails. It looks to be the same, if not very similar to BigJake83's post. In the picture, there is no intrusion into the barrel channel inside the handguard. And I purchased 3-4 different blocks to see which fits best. It's for a JP Enterprises upper in 6 ARC mated to a DDm4V7 lower. I initially wanted to use the spare DD Slim rail I had, but now don't GAS. I just want the gun to shoot suppressed & unsuppressed. Everything arrives today.



[MontanaMan]

Just curious why you would prefer that particular rail over an SLR Ion Lite or a Geiselle MK-14, for example, as they are both very slim, & have no real problems with most popular AGB's, & both have very good attachment systems.

MM



[ranger0787]

Daniel Defense MFR rail works PERFECT!
