Firearms WTS - Wells Custom R700 package in 260

NukeMMC

Chlanna Nan Con Thigibh A’ So ‘S Gheibh Sibh Feòil
Supporter
Full Member
Minuteman
  • Mar 3, 2009
    1,704
    1,034
    Harrisburg, PA

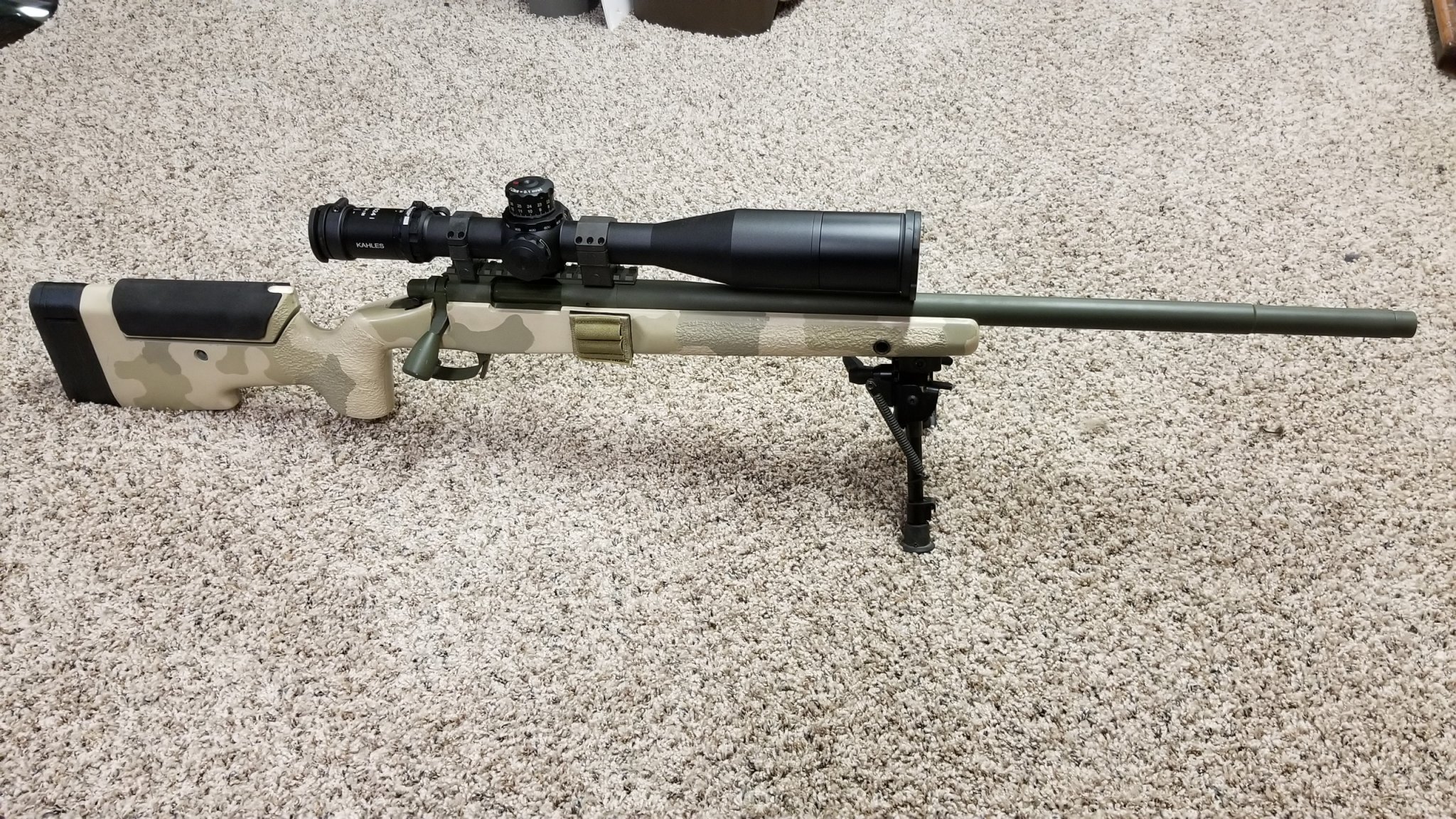

    I bought a Tac Ops, and have a 260 barrel for my AIAX, so this beauty is on the block. I bought it as an SPS-V in 308 back in 2008 and had it completely redone by Dave Wells at Wells Custom in Nicholson, PA in 2015.
    <750rds on this barrel, <2000 on the action.

    Specs:

    Remington 700 SPS Varmint Short Action # G6748690:

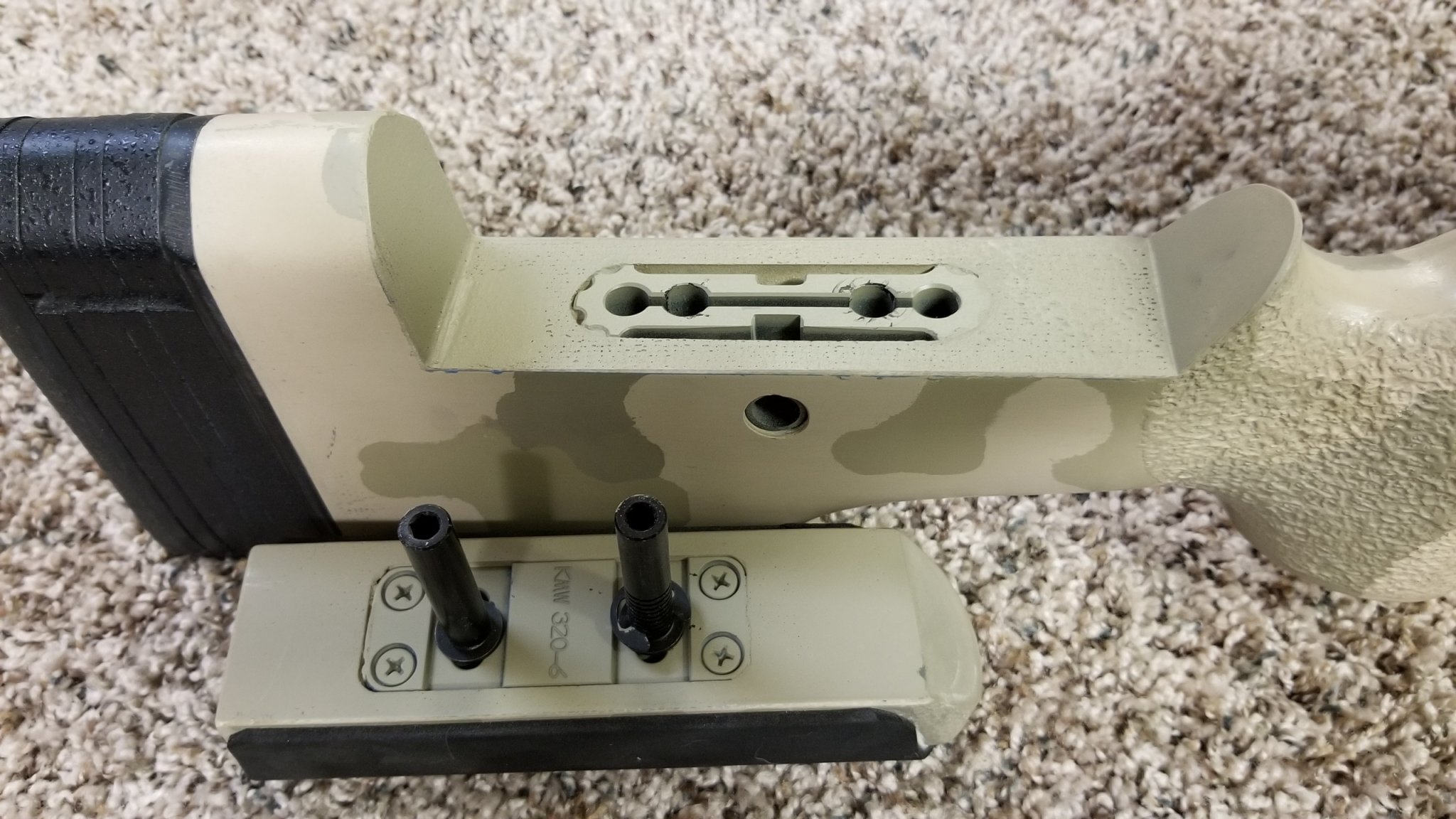

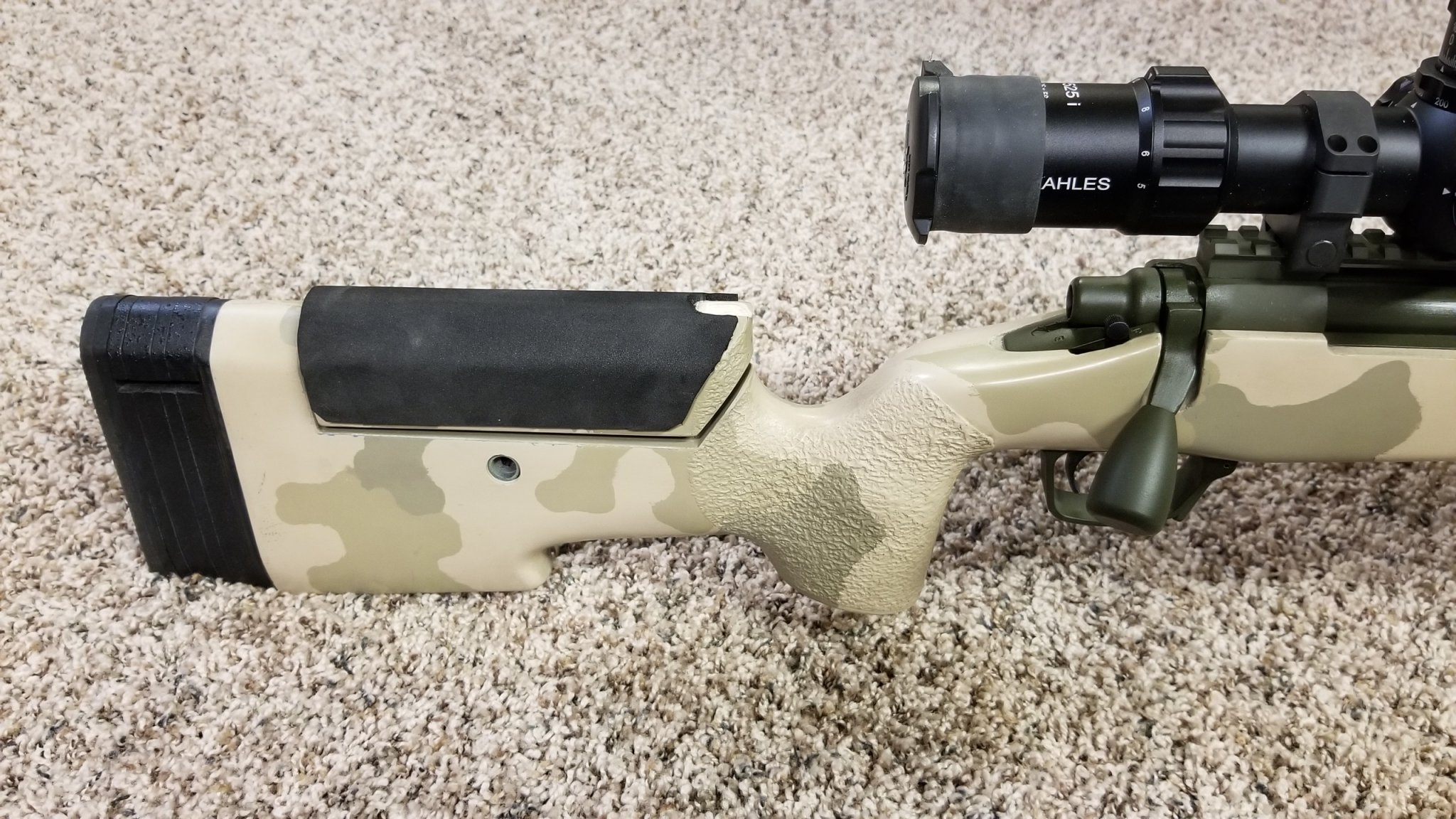

    - McMillan A5 Desert camo with Joe Ducos-installed KMW Loggerhead cheekpiece & McMillan LOP spacers. Bedding by Alex Sitman at Master Class Stocks.
    - Anschutz forend rail with Accu-Shot BT28 AFAR Picatinny rail adapter. QD sling points on both sides of forend, bottom & left side of buttstock
    - CDI Precision DBM with action feedramp inlet for long bullets
    - Action trued, PTG recoil lug.
    - Remington 40x trigger
    - Bolt handle removed from bolt, re-timed for cam engagement and tig welded to bolt body.
    - Badger Ordnance bolt knob
    - Bartlein Heavy Palma barrel. Profile muzzle for Ops Inc 3rd Model suppressor, finish length 25” with thread protector (not contoured to barrel)
    - Chamber 260 Remington Match. 139 Scenars Base-to-Ogive measures 2.293” in this chamber with OAL at 2.845”. Jump them 0.030” and COAL is 2.815”.
    - Ceracoat all metal (barreled action, scope rail, DBM, Anschutz rail and fasteners) OD Green
    - 11/16-24 to 5/8-24 Hughes Precision adapter
    - Badger Ordnance 306-06 20moa base

    SOLD shipped & insured to your FFL (accepts from individual) in the lower 48.
    7107252


    7107253


    7107254

    Last edited:

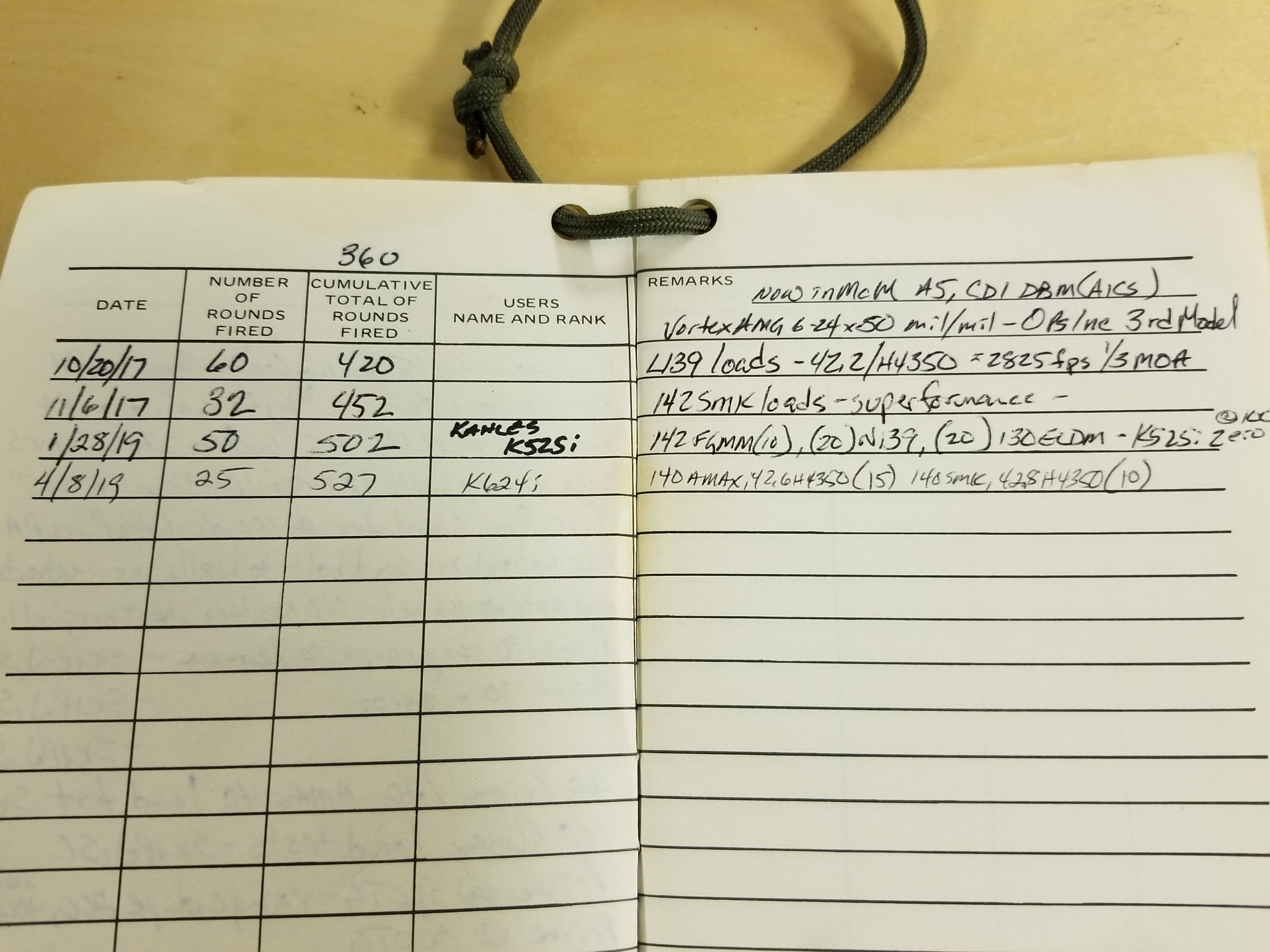

    527 on current barrel. There were <1000 on the prior barrel (original 308 Dave set back & rechambered into a <800yd hammer - wanted 1000+ so went 260). NSWC Crane Weapon Record Book goes with the rifle, of course.
    7107759

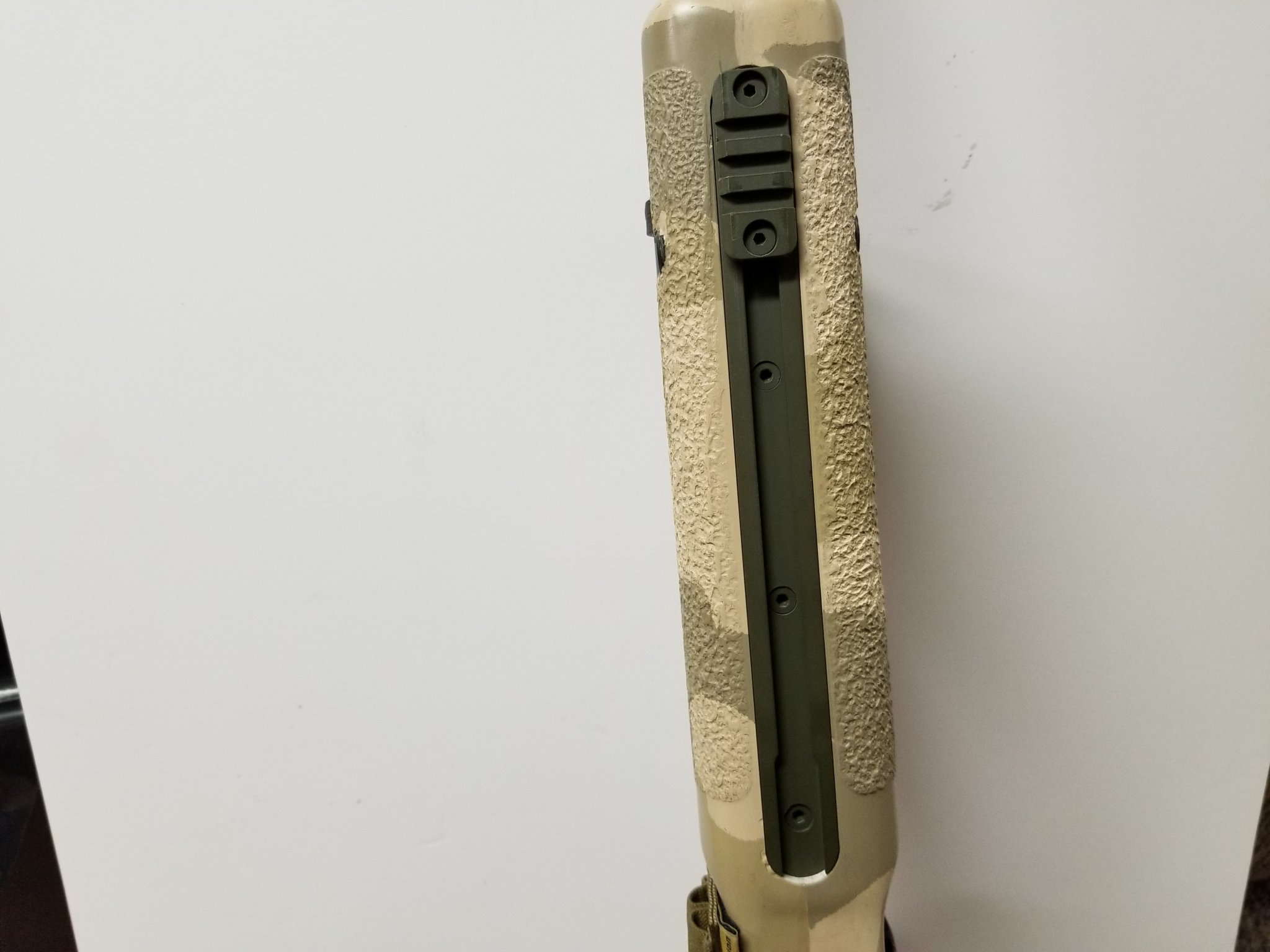

    Anschutz rail and AFAR for the bipod.
    7107761

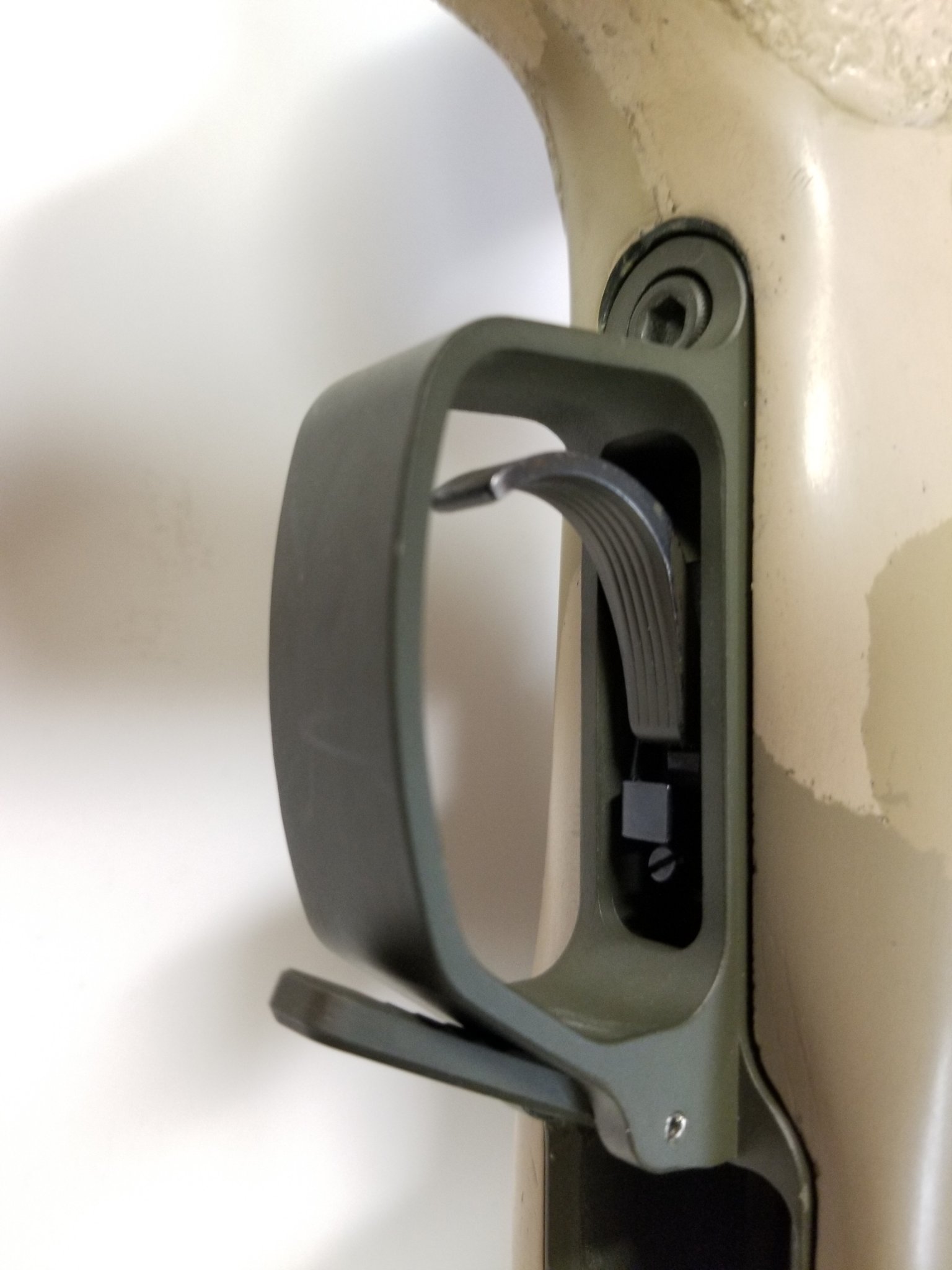

    Yep, 40x trigger:
    7107762

    Last edited:

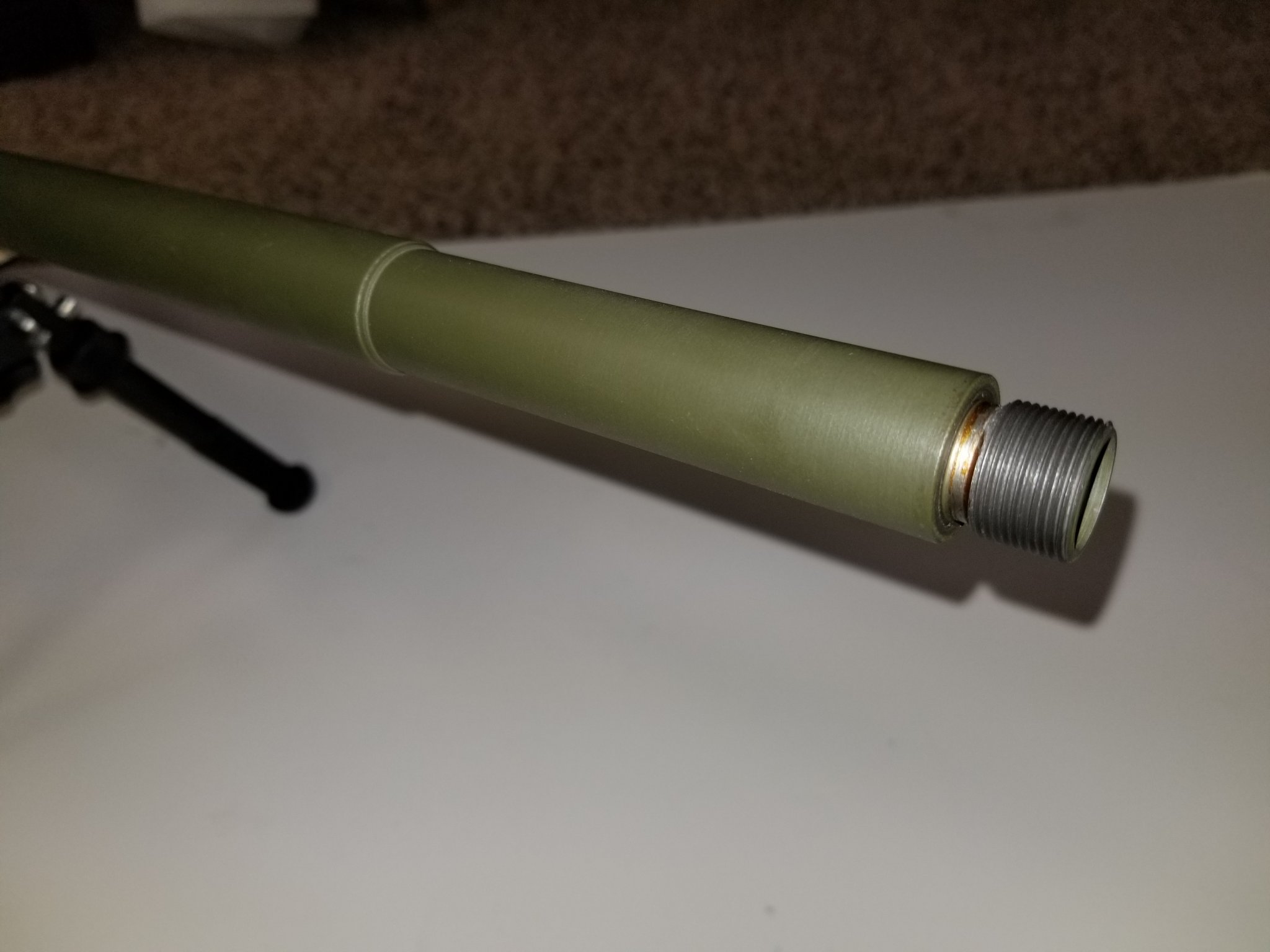

    11/16-24 threads on the Ops Inc 3rd Model profile (note the 20deg bevel):
    7107763

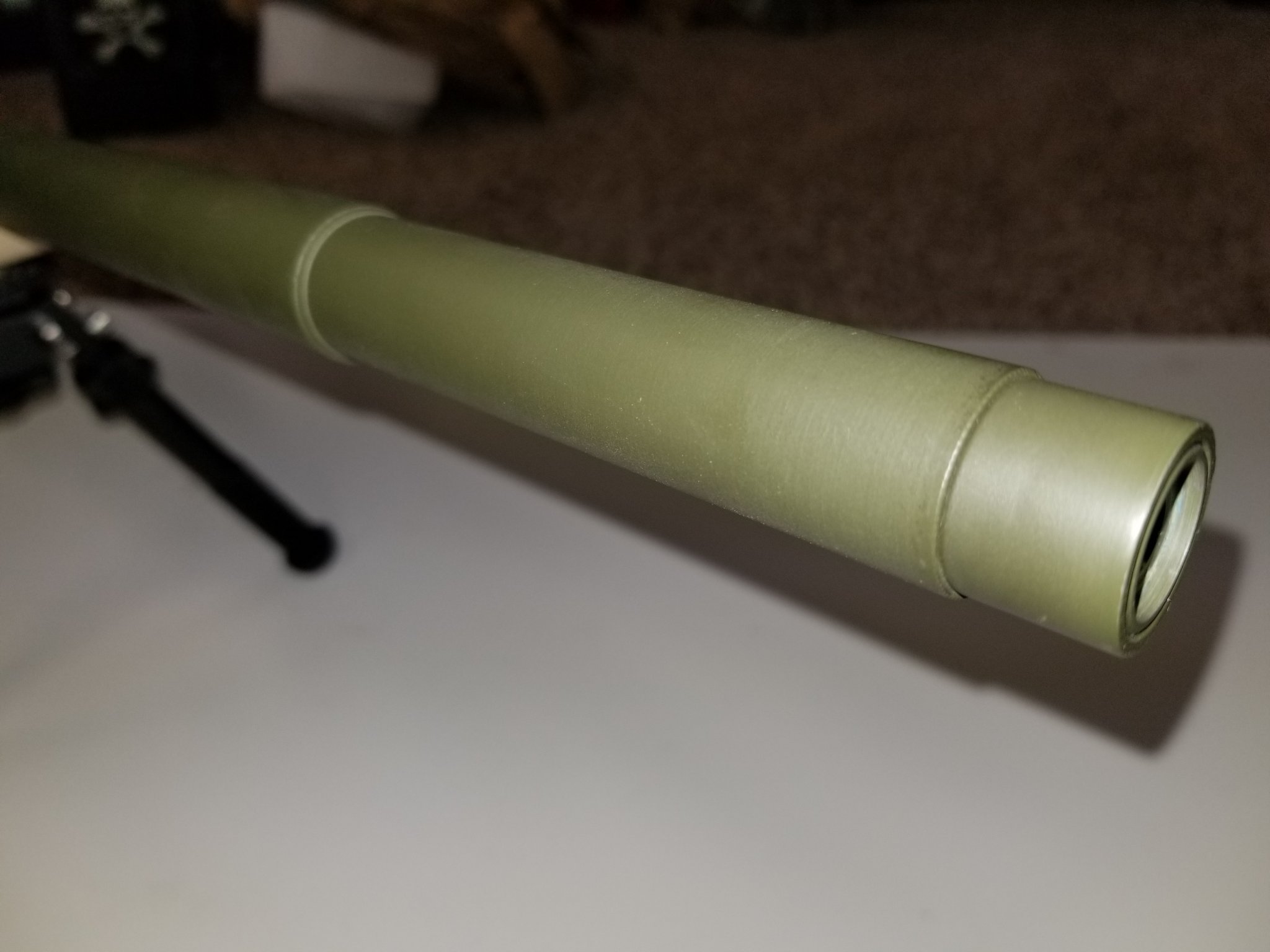

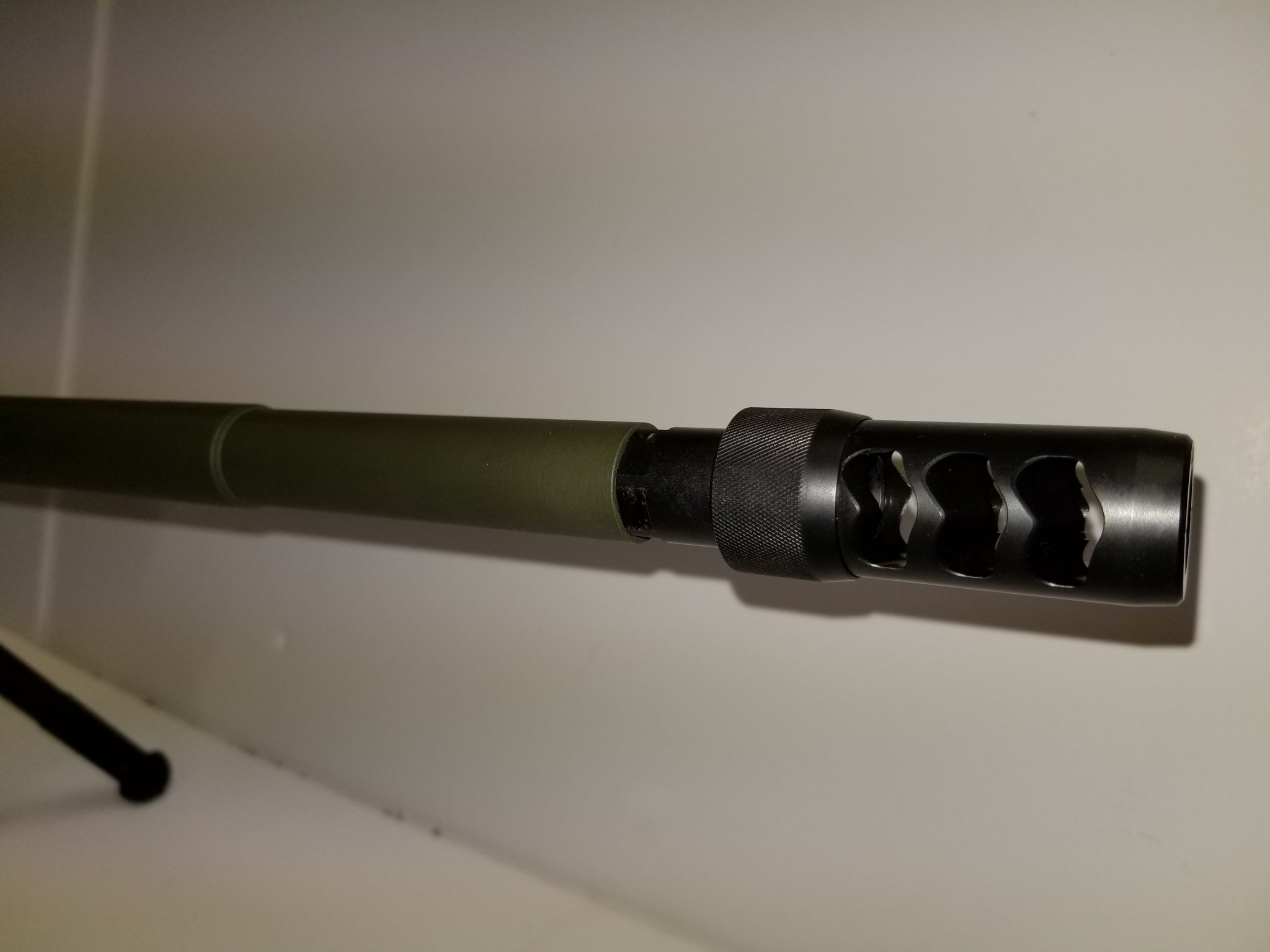

    As stated, the thread protector doesn't profile with the barrel, but I normally have the can or brake on it anyway:
    7107764

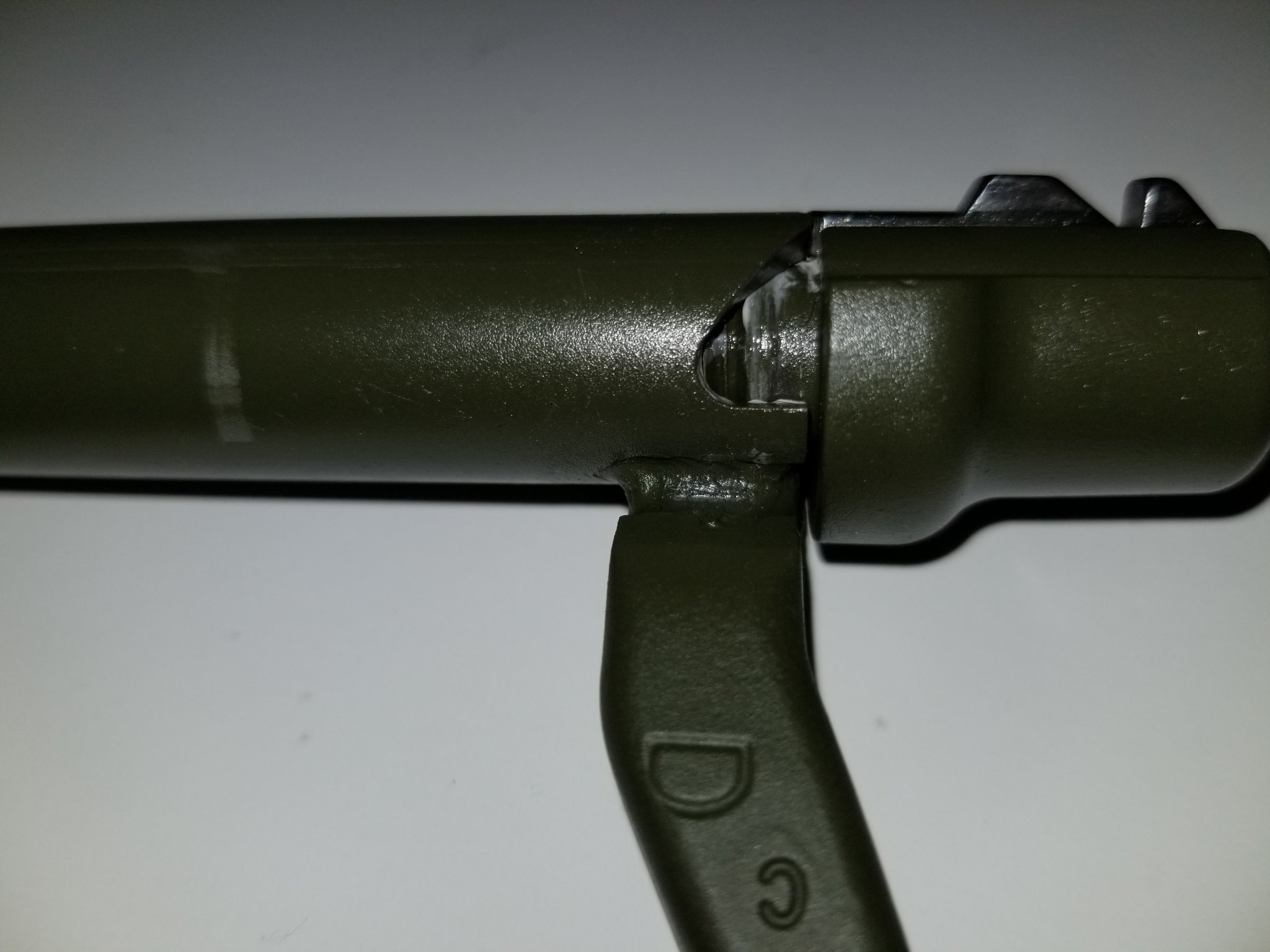

    Dave does an awesome job timing the bolt/handle and welding the handle:
    7107765

    Last edited:
    • Like
    Reactions: acudaowner
    Free bump for a nice stick.

    Dave has built me a half dozen precision rifles, everyone of them shoots bugholes.
    Thank you. This rifle is certainly no exception. The work he did setting back and rechambering the original 308 barrel made it an amazing shooter also.

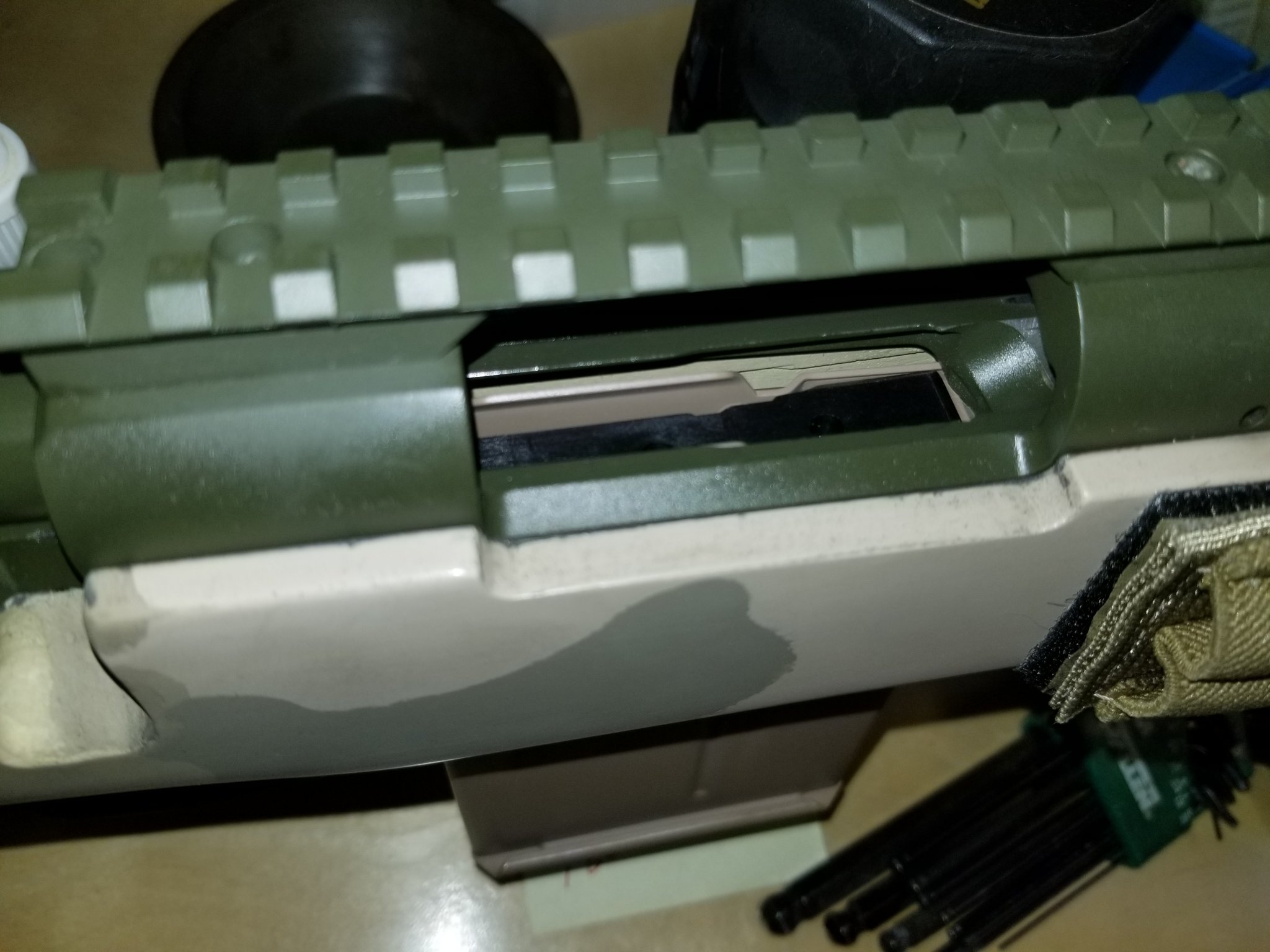

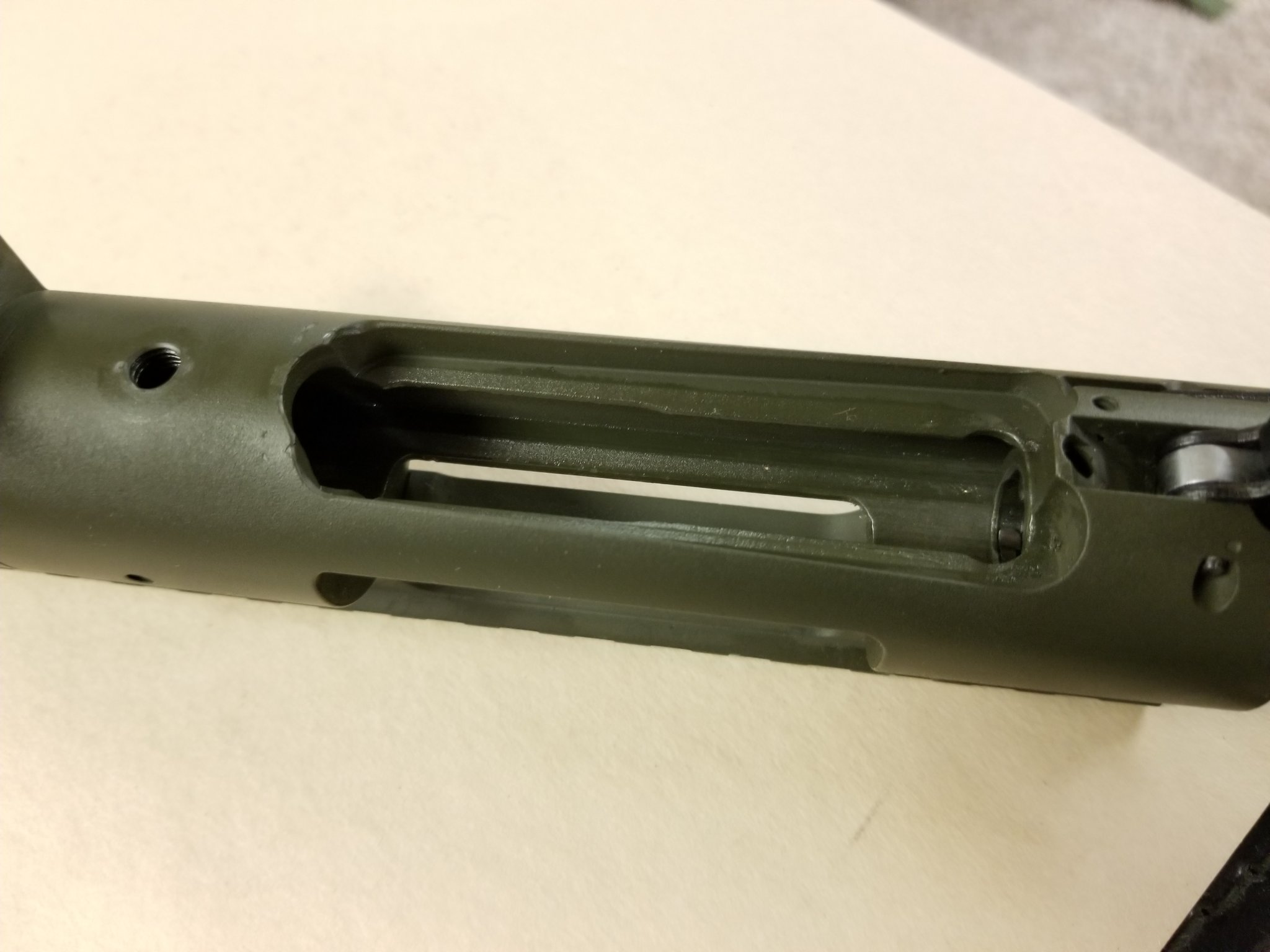

    In response to a couple questions, here are pics of the feedramp inlet. This allows use of the full length of the magazines (AICS= 2.865", Alpha= 2.945") when you start chasing the lands:
    7107786


    7107788

    Last edited:
    What’s the distance from the muzzle thread to the taper for the can?

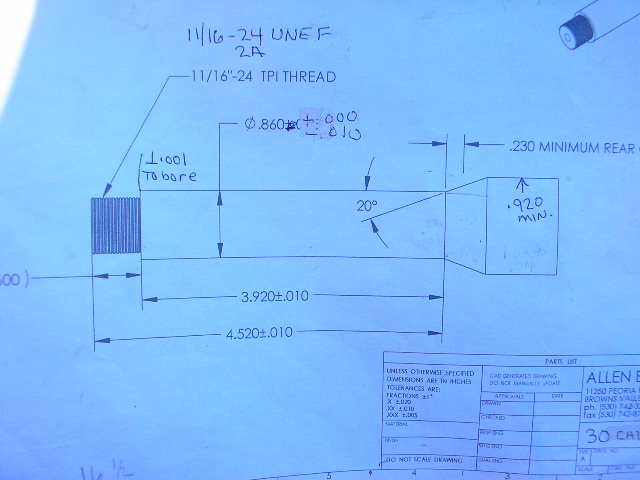

    Here is Ron Allen's drawing for the muzzle threads for the Ops Inc 3rd Model. This rifle follows this drawing to a "T". Since it's a heavy Palma profile, the barrel mic's out to 0.940" at the back end of the taper.
    7121669

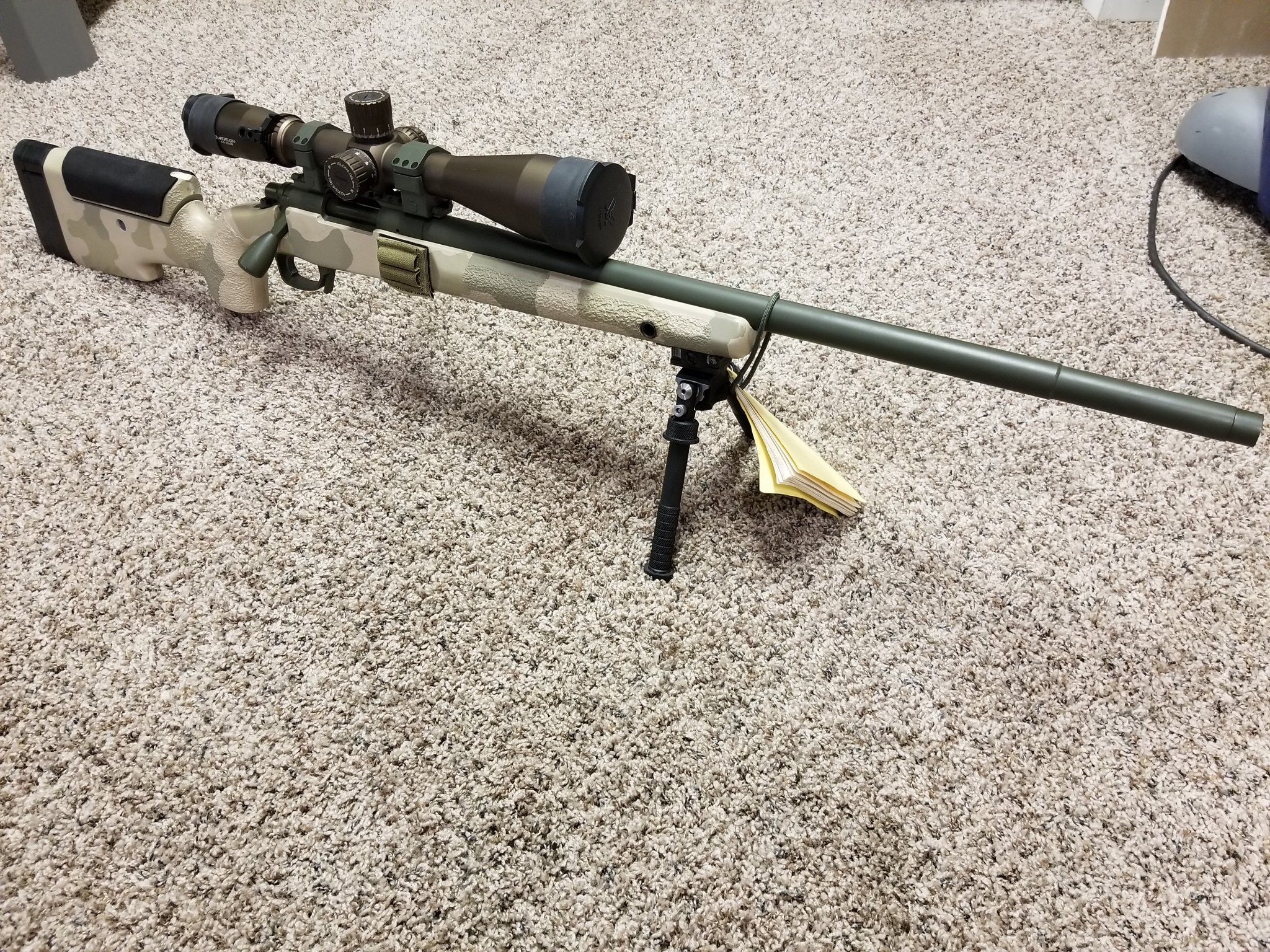

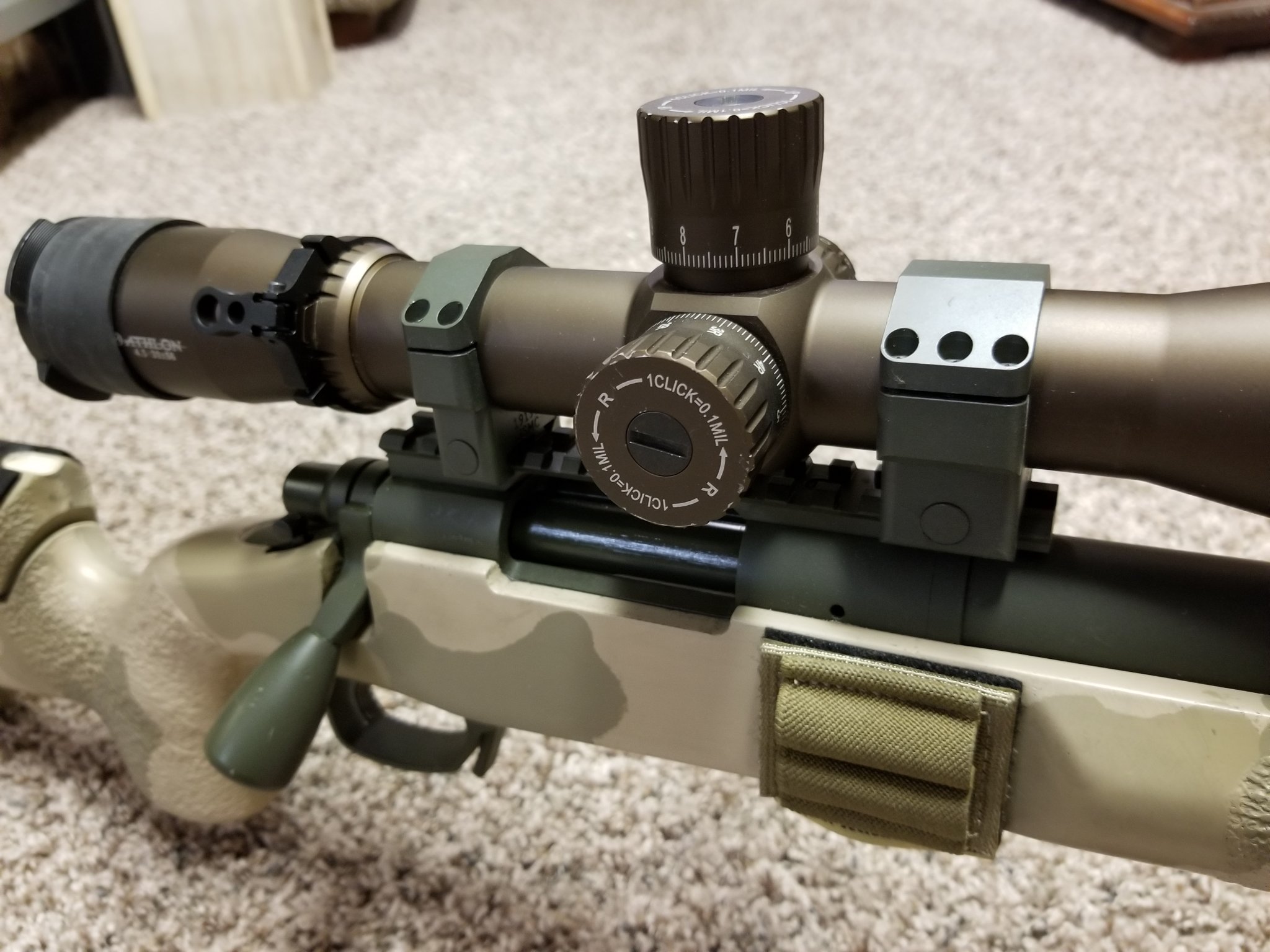

    As it sits now it is 15.25 lbs. If you want the scope (Ares ETR) and rings (Badger USMC 306-75 KG Gunkote OD Green), add $1200 (includes Switchview and Vortex Defender caps). $125 more gets the bipod (Atlas BT10-LW17). Scope/rings and bipod not separately for sale, only with the rifle.



    Last edited:
    Bump:
    $1600 for the bare rifle, no bipod or scope/rings
    +$1100 for the Athlon Ares ETR with Badger 306-75 USMC rings (KG Gunkote OD Green)
    +$125 for the Atlas BT10 LW17

    I am not selling the scope or bipod apart from the rifle.
