14.5 pinned and welded 308 AR...Any reason not to? And what barrel would you guys suggest?

KCode

Sergeant of the Hide
Full Member
Minuteman
Mar 25, 2019
275
159
Well I'm looking at getting into a 308 AR and want it as short as possible while being a rifle. So that lands us around 14.5" pinned and welded. I don't know crap about ARs in 308 other than there are two versions which are greatly different and parts for one don't work on the other. I do plan to run a suppressor on it, either a Sandman or Nomad.

But I guess where I'm stumped is what would be the best barrel for it around the $350 or less range? I don't plan to ever shoot it past 300 yards.

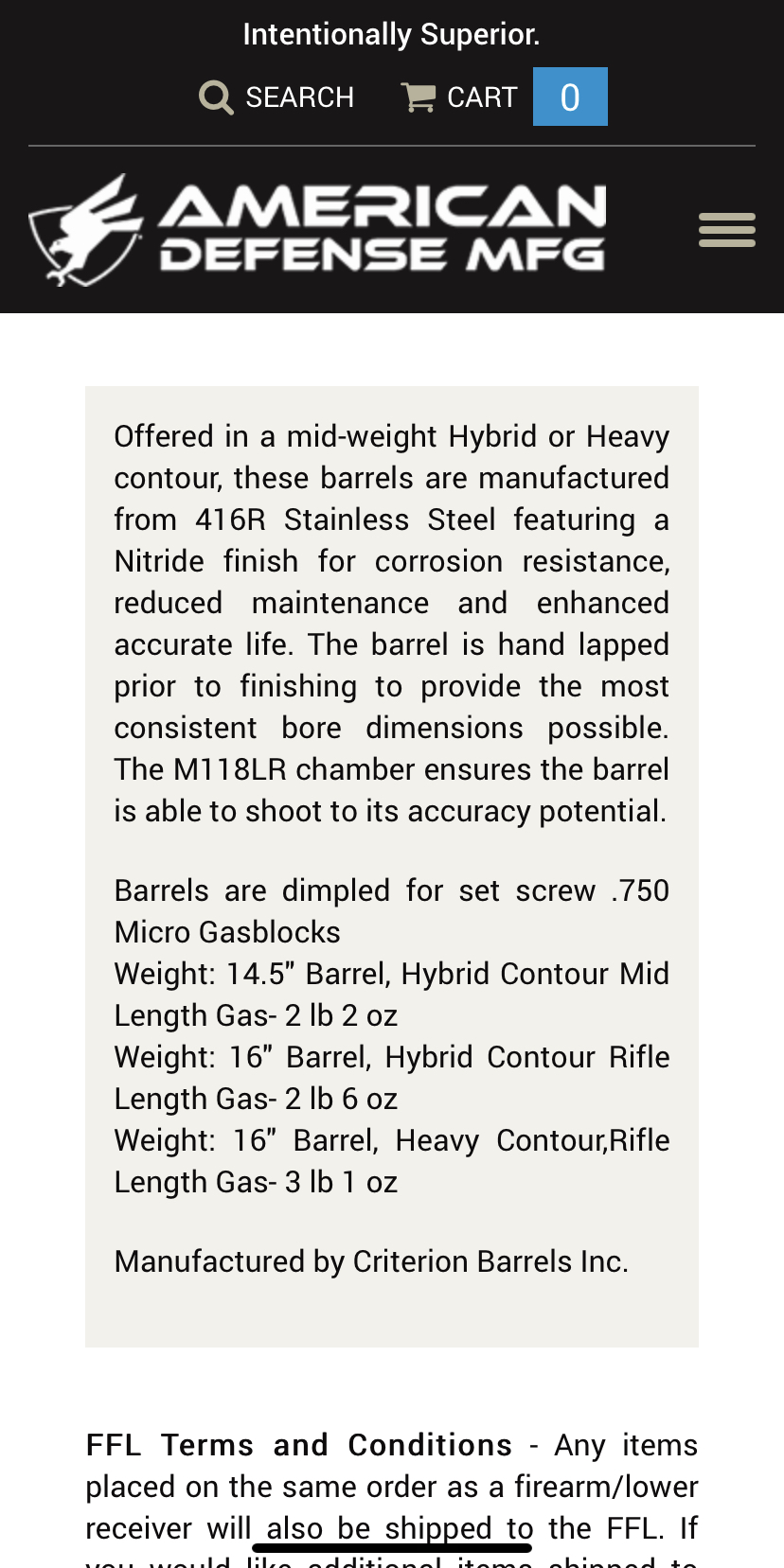

The only looking into it so far that I've done is Criterion barrels, not sure how you guys feel about them. But they offer some 308 options in 16 and 18 inch, so I would have to cut it down. The guy at Criterion did tell me to NOT go with chrome lined or nitride barrel if I plan to cut it down because it could ruin it, stick with Stainless he said.

I'm open to all suggestions!!!!!

X-Caliber, McGowen, and others will custom make a barrel around that price range. Criterion is great, but I would not bother cutting an existing barrel down...

How good is X-Caliber vs McGowen? I've never entertained a custom barrel but if it's around my price point it seems to make the most sense.

How good is X-Caliber vs McGowen? I've never entertained a custom barrel but if it's around my price point it seems to make the most sense.
I would consider them equals to each other. I have several X-Cal bolt action barrels and every one of them shoot 1/2" or better. They are not Bartleins, but they don't have the price tag either. They are both button rifled and hand lapped, but McGowen does offer cut rifling for more $$$. Looking at McGowen's site they do offer quite a few options for custom length and gas port size, but are more limited on profiles.

I've got two X-Calibers and three McGowens currently. The McGowens on average shoot slightly tighter, but I'm neither a BR level handloader nor a dedicated group shooter. X-Cal has more off the shelf contour options but McGowen will do anything you draw up at no charge. X-Cal will not do custom anything beyond what's in their drop down menus, McGowen is happy to do custom gas lengths and such.
Mos-Tek is another custom barrel company I've used that is happy to do the most bizarre stuff you can come up with.

You should invest in good hearing protection and some fireproof gloves.
Unless you want a pistol then stick with a 16" barrel and a minimum of midlength gas

Was just gonna say this. Double up your ear pro and invest in a suppressor ASAP. That shit is going to rattle your brain.

.358 Win is well suited for shorter barrels, especially if your max range is 300 yds. Other than the the barrel/MD, it's the same build as a .308. Fewer suppressor options and factory ammo can be expensive if you don't reload.

Guys I really appreciate all of the suggestions. 308 will be the caliber though, don't want to go crazy into a wild cat for this. Want to keep it apple pie.

Also I already have the receivers for the build. Will be probably running the PRI Delta handguard.

  • Like
Reactions: Jsp556 and msgriff
A quick google search shows V7, Spikes Tactical, Ballistic Advantage, X-caliber, and a couple others. I didn’t check prices. Armalite shows a 14” option if you wanted to use an armalite bcg & gas tube.

ETA: Again, check with ADM

  • Like
Reactions: rpoL98
Guys I really appreciate all of the suggestions. 308 will be the caliber though, don't want to go crazy into a wild cat for this. Want to keep it apple pie.

Also I already have the receivers for the build. Will be probably running the PRI Delta handguard.
Not suggesting changing calibers but a cartridge the size of a 308 needs barrel length to burn the powder. The shorter the barrel the less efficient it is. A 16" 308 has a lot of recoil and you don't get much velocity for it.

14" intermediate pinned solgw 5/8x24 nox with a sandman k would be fun. Still super loud but fun.

I love pin and welds.
I have a rifle length 16" but would like a intermediate 14" too.

  • Like
Reactions: TonyTheTiger
Not suggesting changing calibers but a cartridge the size of a 308 needs barrel length to burn the powder. The shorter the barrel the less efficient it is. A 16" 308 has a lot of recoil and you don't get much velocity for it.

It really all depends, while its true a longer barrel is more efficient, from a practical standpoint, Barrel lengths have been trending down for quite some time. 13.5 inch 308's have been used down range in various applications for at least the last decade so i think an argument can be made that they have carved out a roll.

I think the newer bullet designs are really good and allow some interesting rifles to be put together. I shoot a 24 inch 300WM, as well as inch 20 6.5CM gas gun, as well as a 308 gas guns in 13.5 and 16 inches and they are all great for their own reasons.

I think short 308's are great in the 400 to 600 yard window.

  • Like
Reactions: CaptArab
Would like to see this short boi when you finish it! I could see this rifle being used with 135 grain Sierra Varmitres to hunt small bodied deer in tight terrain. Would make a great suppressor host to keep the OAL shorter than a jousting lance. Good luck with the build!

It really all depends, while its true a longer barrel is more efficient, from a practical standpoint, Barrel lengths have been trending down for quite some time. 13.5 inch 308's have been used down range in various applications for at least the last decade so i think an argument can be made that they have carved out a roll.

I think the newer bullet designs are really good and allow some interesting rifles to be put together. I shoot a 24 inch 300WM, as well as inch 20 6.5CM gas gun, as well as a 308 gas guns in 13.5 and 16 inches and they are all great for their own reasons.

I think short 308's are great in the 400 to 600 yard window.
agree

So, what kind of velocities are you getting with these really short 308 ARs?

Wilson combat claims 2520 from a 125 gr Seirra boat tail for their 300 Ham’r, and 2290 fps from the 150 gr Hornady sst- from a 16.25” barrel. Those numbers are better than the supersonic 300 BO and 7.62x39.

How does that fire breathing 308 compare? I think a pretty salient argument can be made for the smaller cartridge in a much smaller package makes for a “better” all around gun, but I’m open to counter argument.

That said, if Ruger’s SFAR gains traction, a small frame 308 is really interesting. I’d really like to see them put out a 16” rifle gas SFAR…

So, what kind of velocities are you getting with these really short 308 ARs?

Wilson combat claims 2520 from a 125 gr Seirra boat tail for their 300 Ham’r, and 2290 fps from the 150 gr Hornady sst- from a 16.25” barrel. Those numbers are better than the supersonic 300 BO and 7.62x39.

How does that fire breathing 308 compare? I think a pretty salient argument can be made for the smaller cartridge in a much smaller package makes for a “better” all around gun, but I’m open to counter argument.

That said, if Ruger’s SFAR gains traction, a small frame 308 is really interesting. I’d really like to see them put out a 16” rifle gas SFAR…

I think I've seen around 2400 for 175's out of a 13.5 inch 308 and around 2500 from 140gr 6.5's out of a 14.5 6.5CM.

very rough generic data
180 ELD-M@2350 is going about 1100fps at 1000 yards. @500 yards has around 1000lbs of energy left
125 SMK @2300 is going about 750fps at 1000 yards @ 500 yards has around 325lbs of energy left

I think 300blk has its place, especially if you are only taking shots out to a couple hundred yards. There is really no need for the weight take the extra weight of the 308 if not needed.

The small frame 308's are interesting but I really wonder how shootable they are, as its not hard to shoot a 9lb AR all day.

  • Like
Reactions: Jsp556 and PBWalsh
So, what kind of velocities are you getting with these really short 308 ARs?

Wilson combat claims 2520 from a 125 gr Seirra boat tail for their 300 Ham’r, and 2290 fps from the 150 gr Hornady sst- from a 16.25” barrel. Those numbers are better than the supersonic 300 BO and 7.62x39.

How does that fire breathing 308 compare? I think a pretty salient argument can be made for the smaller cartridge in a much smaller package makes for a “better” all around gun, but I’m open to counter argument.

That said, if Ruger’s SFAR gains traction, a small frame 308 is really interesting. I’d really like to see them put out a 16” rifle gas SFAR…
Factory 130gr MK319 ammo runs 2750 out of a 16" barrel (my 5R barrels). My 30 Herrett (6.8 wildcat) pushes the same 130gr bullet to 2600 out of a 16", some are getting close to 2800 out of an 18" barrel so more velocity than a 308 from a cartridge that use 30% less powder. A 16" 6.8 shoots a Factory Hornady 120gr at 2550(again 5R barrel).
I just see a 14.5 or 16" 308 as a CQB-300yd rifle, if I plan of shooting 600 I'm not going to chop the barrel off. Out of the 3-16"308s I had I kept one to be a barrier defeating rifle, the other 2 will get 20" barrels.

Last edited:
I think I've seen around 2400 for 175's out of a 13.5 inch 308 and around 2500 from 140gr 6.5's out of a 14.5 6.5CM.

very rough generic data
180 ELD-M@2350 is going about 1100fps at 1000 yards. @500 yards has around 1000lbs of energy left
125 SMK @2300 is going about 750fps at 1000 yards @ 500 yards has around 325lbs of energy left

I think 300blk has its place, especially if you are only taking shots out to a couple hundred yards. There is really no need for the weight take the extra weight of the 308 if not needed.

The small frame 308's are interesting but I really wonder how shootable they are, as its not hard to shoot a 9lb AR all day.
I already have a 14 lb and 24" LR308 that is both pleasant and easy to shoot- but I hate carrying the pig further than from the truck to the bench. A small frame 308 that comes in at sub 7 lbs (naked) with a meaningful increase in velocity over a small frame cartridge (150 fps faster than the above mentioned 30 herret) is very interesting for a 'walk around' gun. I dove into the 6.5 grendel because it "mimics the ballistics of a 308 in a small frame package." And, it is stupid easy to shoot. And, and, Hornady Black in this cartridge is as close to match quality as I have come across without hand loading (at least since Hornady discontinued their Match line of 6.5 Grendel). But, there is no denying that "there is no replacement for displacement." A 7 lb 308 with a LPVO would make a dandy hunting rifle- even with a can hanging off the end.

I can get ~2000 fps with a 125 gr bullet from my 8.5" 300 BO, but the primers are pretty flat. 1800-1900 is more comfortable. Where it really shines is putting a can on the end and still being more compact than a 16" AR.

30 Herett in an AR? I don't think I'd want to form that much brass. lol
Trim it .050" and one stroke through the press. I run it through a dillon and there's no difference in procedure other than the trimming. ETA late- I'm not suggesting anyone use or try a 30 Herrett I'm just saying a 14.5" 308 barrel isn't very efficient.

Last edited:
  • Like
Reactions: Steve_In_29
What’s your intended use OP? Might help people here give suggestions.

Just a fun rifle I can shoot steel one day, paper @ 300 yards the next, HD if I choose, or end of the world type gun.

Just a fun gun at the end that would be more accurate than me @ 300 yards. I don't have a range anywhere that is longer than that.

  • Like
Reactions: rpoL98
I see. More silly naming for no good reason that just muddies that water. lmao
Firearms folks have a history of doing that and I don't recall it EVER helping the success of a cartridge, only confusing people and hurting it.
Well, I said 30 Herrett and you didn't know what I was talking about. It's a 30 Herret with a rimless case.

I already have a 14 lb and 24" LR308 that is both pleasant and easy to shoot- but I hate carrying the pig further than from the truck to the bench. A small frame 308 that comes in at sub 7 lbs (naked) with a meaningful increase in velocity over a small frame cartridge (150 fps faster than the above mentioned 30 herret) is very interesting for a 'walk around' gun. I dove into the 6.5 grendel because it "mimics the ballistics of a 308 in a small frame package." And, it is stupid easy to shoot. And, and, Hornady Black in this cartridge is as close to match quality as I have come across without hand loading (at least since Hornady discontinued their Match line of 6.5 Grendel). But, there is no denying that "there is no replacement for displacement." A 7 lb 308 with a LPVO would make a dandy hunting rifle- even with a can hanging off the end.

I can get ~2000 fps with a 125 gr bullet from my 8.5" 300 BO, but the primers are pretty flat. 1800-1900 is more comfortable. Where it really shines is putting a can on the end and still being more compact than a 16" AR.

Nice,

I think that alot of this stuff really depends on what you want to do with a particular rifle and thinking about what makes sense. I have an 8lb SR25 set up with just an EoTech and honestly, it handles pretty nice, I could see swapping the Eotech for a TA33 and calling it done for a walk-about rifle on the east cost. a 7lb SF 308 with a lpvo could be pretty neat for a similar role.

When you get around to reloading I would suggest trying powders that are on the faster end of the burn rate if you want to get as much velocity as possible out of a short barrel.

I've heard that before but never really found it to be true, when reloading for my mk214 the best velocities were using the RL15/Varget and 2000MR powders. If I were to get another 308 AR I'd probably load on the lighter side with 150-155 bullets and a powder like H335 for economical reasons.

  • Like
Reactions: Tenebres
So I'm a bit stumped, maybe someone can clear this up. I will admit that I don't fully grasp the differences in the AR10 platform.

I spoke with Windham Weaponry on the phone and asked them what type their receivers were. This is what I was told:

DPMS barrel nut and Armalite height receiver. ??? Does that sound right? From looking at the receivers it just looks like the more common DPMS style but the "Armalite height receiver" has me stumped.

Edit: Searching shows that it would be a DPMS High rail that I need?
