147gr ELD and Reloader 26 Test

I haven’t been able to find a burn rate chart that has RL26 listed with other common powders. I use Retumbo and H1000 in my 338LM rounds so it would be great to also know if those two burn rates are similar to RL26.

I haven’t been able to find a burn rate chart that has RL26 listed with other common powders. I use Retumbo and H1000 in my 338LM rounds so it would be great to also know if those two burn rates are similar to RL26.


According to the Alliant tech, it’s a tick slower than RL25. Some data suggests it’s actually a bit faster than 25, but Alliant says it’s the formulation. In short, use rl25 starting data, and work up as normal when no better data exists.


This might help some.

https://press.hornady.com/assets/site/hornady/files/load-data/6.5-prc-v2.pdf

  • Like
Reactions: Juggerxxx
I picked up 16lbs of rl26 so I could use the same powder for 6.5, .308, 30-06 and 300wm/nm.

Has anyone tried rl26 with Norma or Lapua 6.5cm. what kind of capacity we're you running?


I’m using Lapua brass with 147’s. 46.5 is all I can fit with a drop tube, and my everyday load is 46 gr. 2830 fps out of a 23.5” Broughton.

If anyone is looking for another option, it’s not the full speed of rl26, but my barrel just finished speeding up in a 24” bergara hmr I’m getting 2750 out of 41.5 of rl16 under a 147.

Still want to try the 26 though

  • Like
Reactions: Juggerxxx
I haven’t been able to find a burn rate chart that has RL26 listed with other common powders. I use Retumbo and H1000 in my 338LM rounds so it would be great to also know if those two burn rates are similar to RL26.
Today, with lack of complete burn rate charts, using Quickload's burn rate properties is about the only option. I've said for 3 yrs we will never see a complete burn rate chart again.
Then, we need to understand specific burn rates change per case size too. We are doing things today with powders that 15 yrs ago we would have been laughed off a range if we divulged the load. Like sticking powders made for magnum cases into a case like the 6.5 creed and it is working.

I am getting very similar results with the 147 ELD and R26 out of my .260 (26" bartlein barrel).

6.5x284 speeds are still a bit more: 3,050 - 3,100 for a 140 AMAX or 142 SMK however this bullet powder combination for the 6.5 creed or .260 is hard to beat.

Anyone try 150g sierra matchkings?
I am interested in the 150’s as well

Nice pictures, thanks. 147gr at 2929fps? Dang, that's impressive. The big takeaway for me is that now I want a 28" barrel.

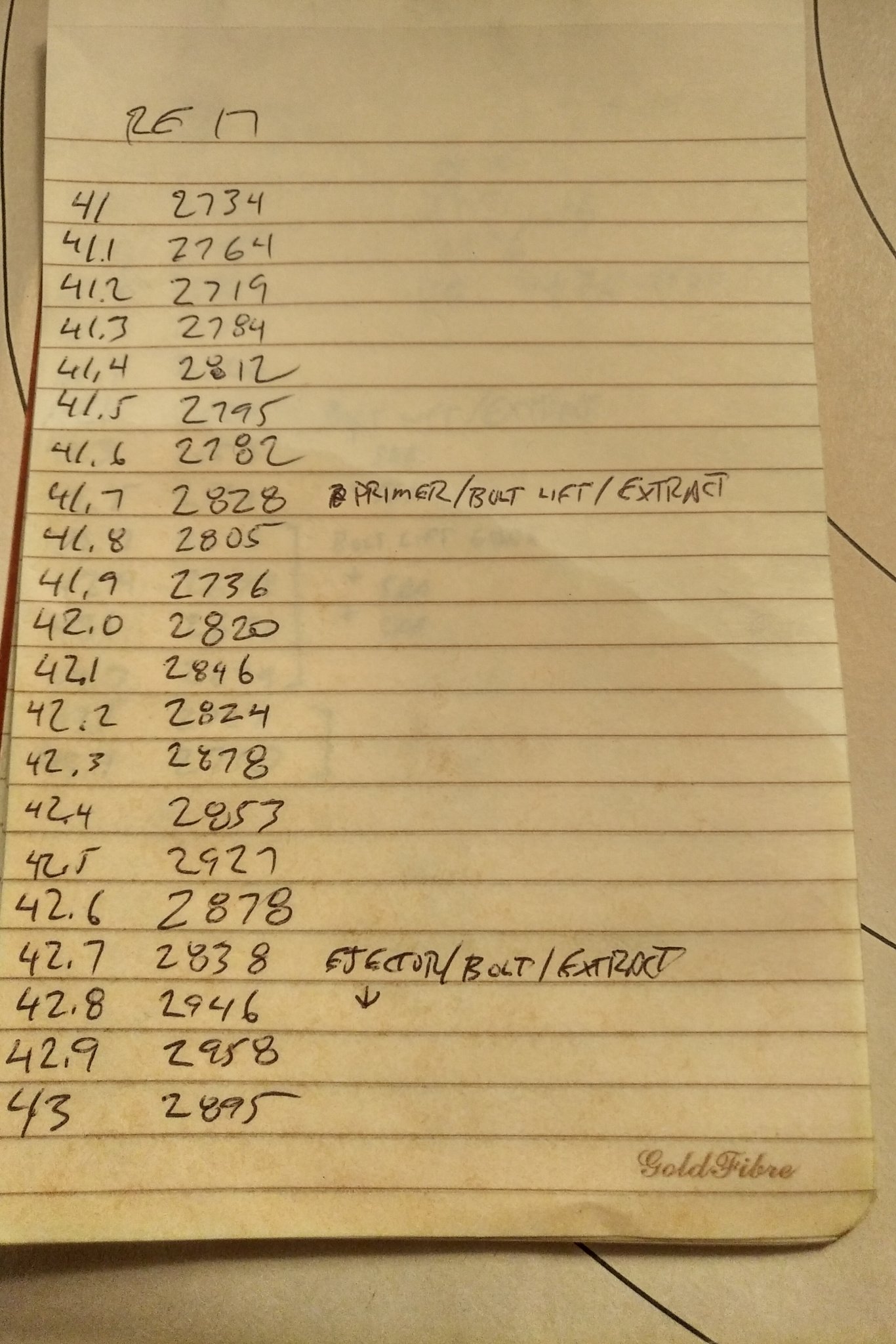

Reloder 17 will push 2900+ as well.... In a 24" ? 'Murica... Prime brass, Federal 210M, .025" off the lands.
7038932

Today, with lack of complete burn rate charts, using Quickload's burn rate properties is about the only option. I've said for 3 yrs we will never see a complete burn rate chart again.
Then, we need to understand specific burn rates change per case size too. We are doing things today with powders that 15 yrs ago we would have been laughed off a range if we divulged the load. Like sticking powders made for magnum cases into a case like the 6.5 creed and it is working.

EXACTLY. People using Magnum primers in non-magnum loads, Magnum powders with standard primers!

7039079


I wonder who decided to stir the pot. I actually thank them because we are obviously getting fantastic results.

I picked up 16lbs of rl26 so I could use the same powder for 6.5, .308, 30-06 and 300wm/nm.

Has anyone tried rl26 with Norma or Lapua 6.5cm. what kind of capacity we're you running?

I know with my Prime (Norma) brass, I had to subtract 1-1.5 grains from the powder charge for any book load that used Hornady brass in their testing. Same soup with Lapua.

If you weigh them side by side, the Hornady is 10 grains lighter in average...

Prime average 156.38
Hornady average 147.97

I've found in my experience, a 10 grain difference in brass weight of the same cartridge (after cleaning/trimming/prep) equates to about a 1 grain difference in powder capacity.

Side note, with Hornady brass I had previously weight-sorted them because their weights were mainly in the 145-147 area with a few down to 141 or up to 152. 11 grain spread. So if you work up a load, that difference in weight could contribute to velocity spreads and correlated impact spreads at distance. For killing paper at 100, you're fine.

The Prime brass, I measured 20 randomly picked cases from a ~200 piece lot I processed. Average was 156.38 high was 157.7, low 154.3. 3 grain spread from high to low.


7039089

Last edited:
Went out to shoot some of these loads at 47.4gr and they performed very at ranges from 400yards out to 1000 yards. They were nailing the 18” plate at 1000 yards over and over without a single miss in 14 rounds and only required 23MOA for 1000yards. Bucked the wind way better than my buddy that was shooting the 140gr BTHP as expected.

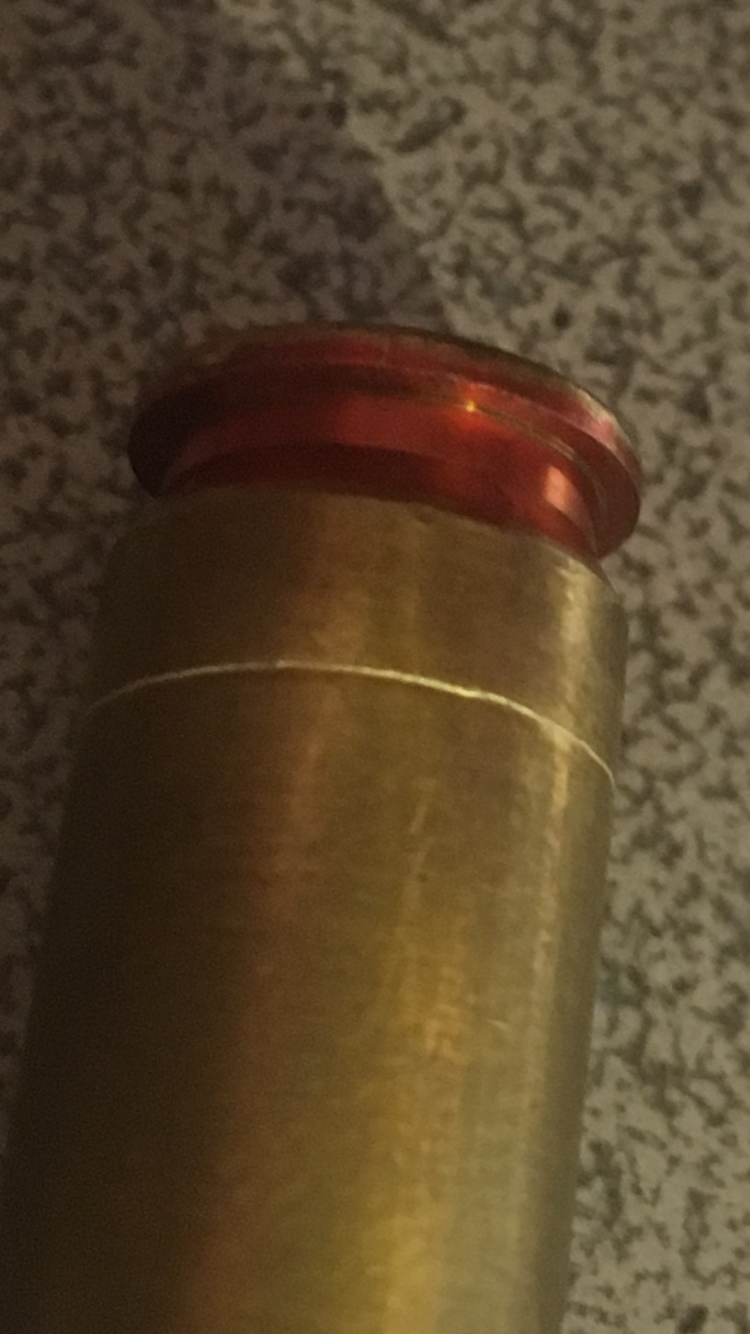

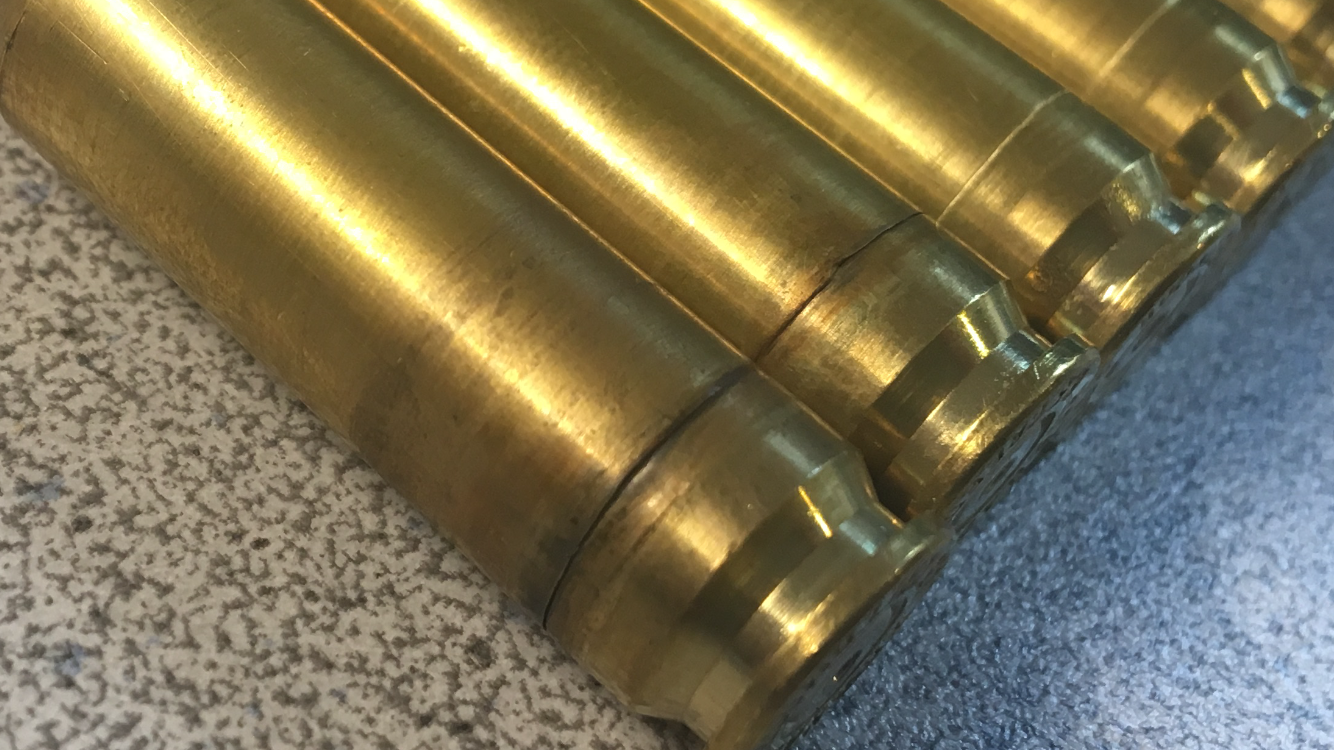

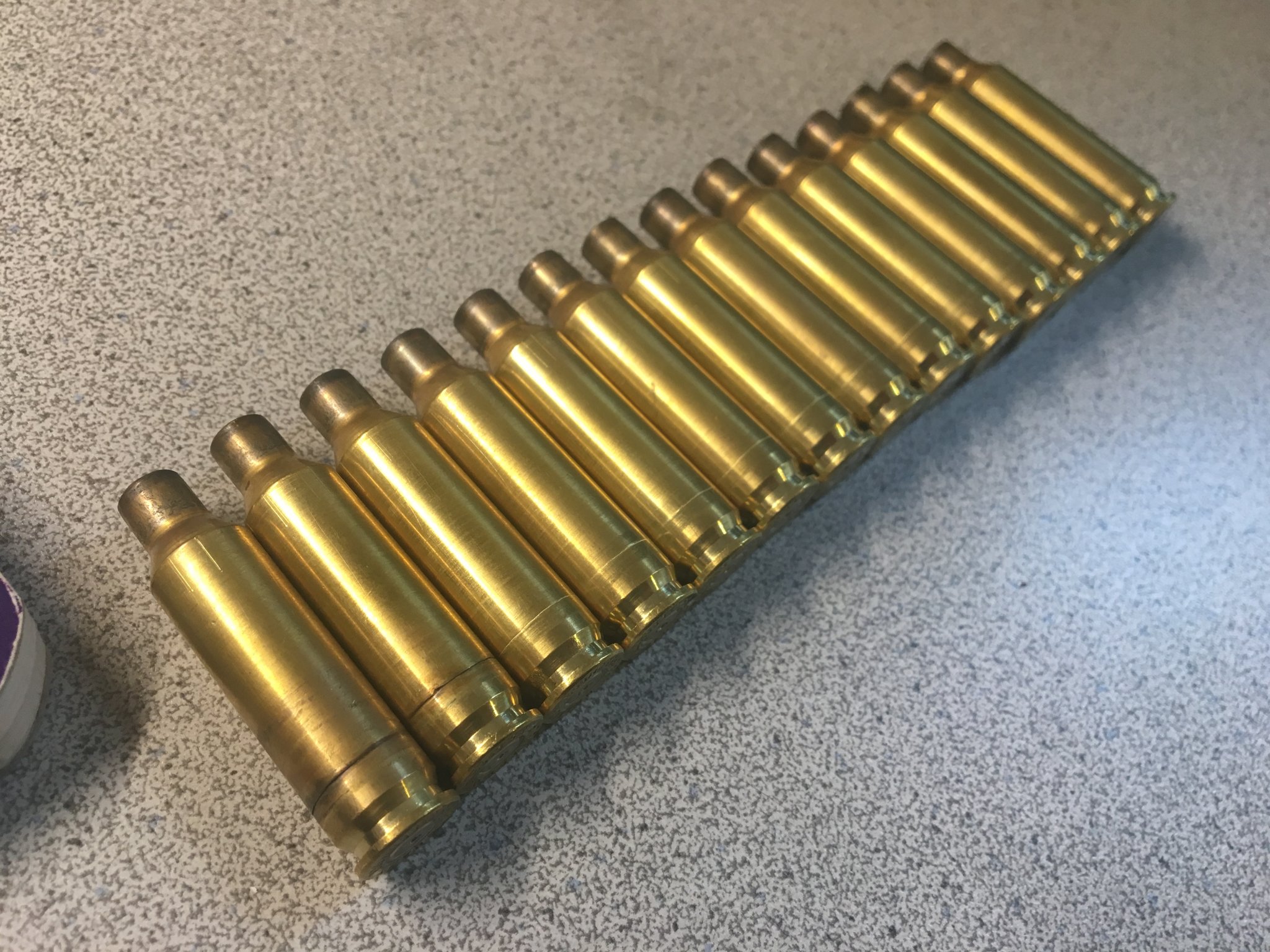

The bad news is the case head separtations on 2 and the the obvious start on another 12. It doesn’t surprise me but I’m not 100% certain it’s the load or the fact it’s Hornady brass that has been shot 11 times or a combination of the two. View attachment 6927147View attachment 6927148
I have another 50 that is on its 9th reloading so I’m going to continue to shoot that until failure of some sort.

I’m reporting back as I said I would on the other batch of Hornady brass that was not loaded with RL26 or 147eld. This brass was with 42.2gr H4350 and 140eld sized and shoulder bumped with the same die and shot from the same rifle as the RL26 and 147eld. This made it to 14 firings before case head separation appeared. I did start bumping the shoulder back 0.002” less at around the 10th firing.
