16” 6.5 creedmoor?

steve101610

Sergeant of the Hide
Full Member
Minuteman
Jan 13, 2019
137
95
Anyone mess around with a 16” 6.5 creedmoor? I keep eyeballing a craddock 16” with rifle gas and it seems like it would make a really handy deer rifle. I’m curious how bad the port erosion would be and how bad it will beat brass.

Nope not in a 16" barrel...my 6.5 CM in AR is 24".
But I have a 16" barreled 6 lb 2 oz 308 AR 10 that is a delight to shoot and carry.
It is also accurate, and fast with the right powders. Running 168eldm at 2756 fps with .5" accuracy.
Made with magnesium upper, titanium bolt carrier, titanium muzzle brake, carbon fiber hand guard, but not a pencil barrel... But a light fluted 16" Wilson Combat Recon.

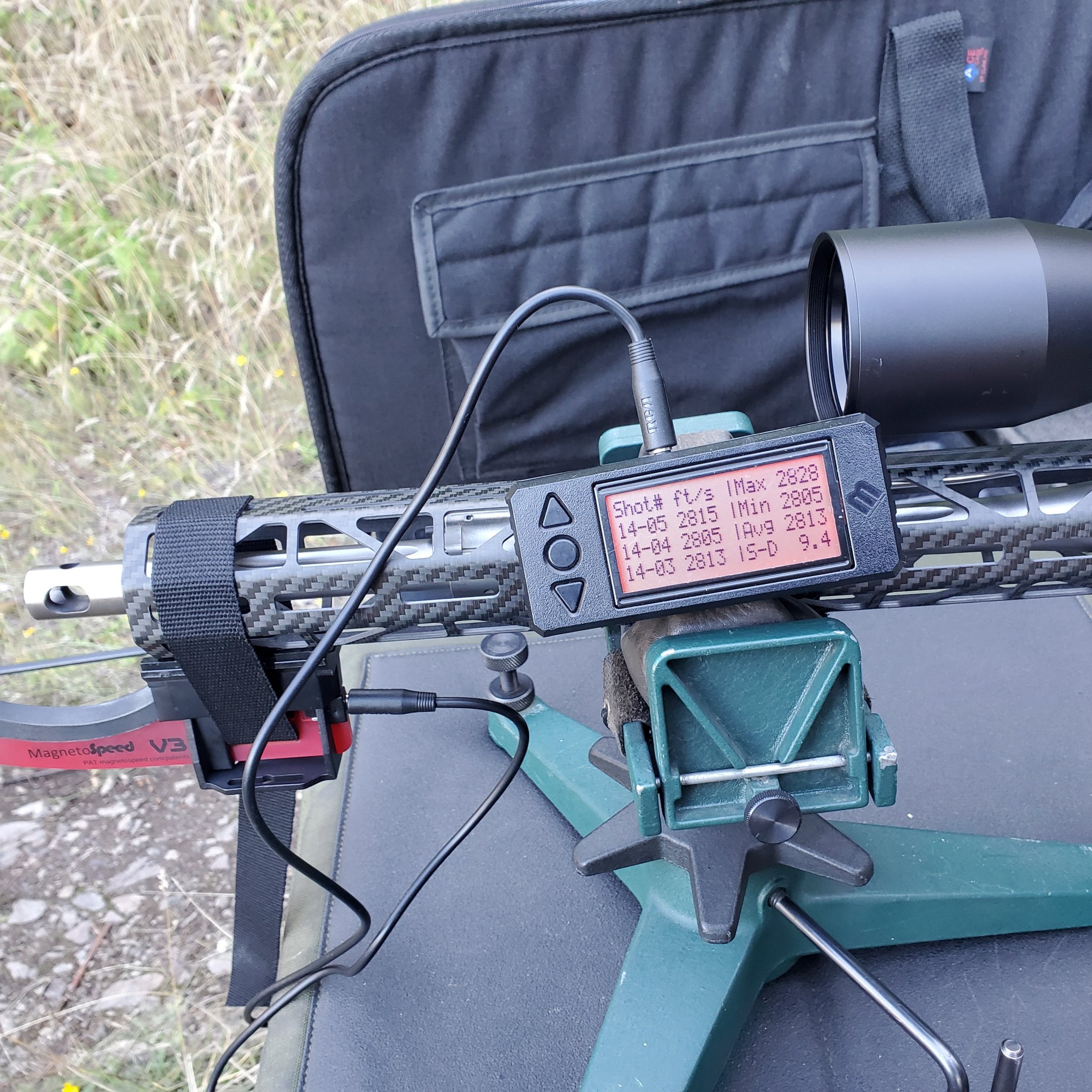

Running 155s in photo at 2813 fps, but went to 2922 fps, but that load was inaccurate, settled on 2877 for the 155 Palma. But the 168, 169, & 177 are the accuracy bullets. Or 208s at 2442 fps, The 168 eldm at 2756 ave velocity is good to 1200 yds...
And it doesn't beat up brass.
You could build a 6.5 CM, AR 10 with the same components, the hole in the barrel being smaller will add a few ounces.


Attachments

  • 20230905_150313.jpg
    752.6 KB · Views: 67
  • 20230913_143419.jpg
    341.1 KB · Views: 66
If you are going that short, I would consider going even shorter to 13.7-14.5”, use a 45˚ angle gas port, and locate the gas port out far enough to reduce the plug dwell for optimum cycling for the projectile weights you intend to shoot.

I would also suppress it. Port size, steel hardness, how cleanly the port is cut, what powder and bullet weights you use, and rate of fire especially will all contribute to port erosion.

How well or poorly it treats the brass will depend on plug dwell relative to lock time on the bolt (staying locked up), how cleanly your feeding system is tuned with feed ramps, how you de-edge the sharp corners on the extractor shelf on the bolt and the ejector channel mouth, the extractor, and what pressures you try to push. Ejection impacts with the upper receiver/brass defector will also factor into brass treatment.

If I was doing it, I would use either a rifle speed gas block or the new Bootleg LR-308 bolt carrier. Feed ramps would be de-edged, blended, and polished. Tune-up the bolt, bolt face, ejector, extractor, gas tube, carrier key, bed the barrel, and all the normal little accuracy build techniques. A5 RET, rifle spring, AR-15 H3 carbine buffer.

With 129gr SST at 2594fps, you’ll have expansion out to 475yds with ~900ft-lbs.

With 130gr ELD-M, 525yds for 1809fps and 945ft-lbs

129gr ABLR 575yds for simialr numbers, but that bullet will expand out much further.

  • Like
Reactions: Jsp556
I built one using a faxon big gunner barrel. I liked the size and weight savings it offered. I will not ever be buying a Faxon barrel again though. The chamber is rough as hell and overall just not a nice barrel, shouldve sent it back immediately but impatience bit me in the ass. I have a 20" proof stainless to replace it eventually. Go 16", it's fun.

I rebarreled my SP10 with a melonited 16” Criterion 6.5 Creedmoor barrel and have a couple of rifle gassed 16” 308’s(Criterion & a chopped SS LMT). They’re all a pleasure to shoot. They all have a smooth recoil impulse and are easy on brass. I’ve been busy as heck with work so I haven’t got a lot of time on the 6.5 yet. I’ve got the gas block wide open and it’s been 100% reliable unsuppressed so far. The only one I’ve had to lighten up buffer weight on is the chopped LMT barrel. I haven’t looked through any of them with a bore scope so I can’t comment on the port erosion.

  • Like
Reactions: PappyM3
Faxon seems to have been putting out crappy barrels for quite some time, I bought 2... The first one wasn't that good, made a mistake of trying another, and it was of unacceptable quality, unworthy of even putting it on a plinker.
I Will buy no more from them.

  • Like
Reactions: GhostFace
Thanks for all the info guys. I will go with the craddock rock creek for now to see if it works out as planned then probably have craddock make me a bartlein.

  • Like
Reactions: jh2785
6.5 creedmoor is still ballistically superior to 308, even out of a 16" barrel.
I have both 2 6.5 CM's and 8 308's ...so I know what they are capable of ...if you handload, and chamber your own rifles, use heavy high BC bullets, 9 and 8 twist barrels, the 308 can easily out perform the 6.5 CM.
You need hybrid cases to bring the CM back into contention. Then it's pretty good again. I use the both, but dropped the 6.5 CM for awhile, because it couldn't keep up...until I acquired hybrid cases, and run high pressure handloads with RL 26, so now it's back in the lineup...plus a new 26" Bartlein 6.5 CM barrel, ready to go.

I have both 2 6.5 CM's and 8 308's ...so I know what they are capable of ...if you handload, and chamber your own rifles, use heavy high BC bullets, 9 and 8 twist barrels, the 308 can easily out perform the 6.5 CM.
You need hybrid cases to bring the CM back into contention. Then it's pretty good again. I use the both, but dropped the 6.5 CM for awhile, because it couldn't keep up...until I acquired hybrid cases, and run high pressure handloads with RL 26, so now it's back in the lineup...plus a new 26" Bartlein 6.5 CM barrel, ready to go.

Could you elaborate on these hybrid 6.5 cases? And where you are acquiring them from. I'd like to see yours.

Last edited:
  • Like
Reactions: LRRPF52
How do you run high pressure in 6.5CM with RL26?
RL26 ran some wildly fast numbers for me in 6.5 with no pressure signs, although out of a 22” barrel with a Sandman L.

Worked up load was 2850 with a 140 Hybrid. Book max shot 2925 although the primer looked like an accident waiting to happen. Berger stated over the phone their max was 2917 FPS with a 140 with a 24” barrel, but real world came out faster. Probably temp related - RL26 is very temp sensitive and I live in Louisiana.

Data was direct from Berger off the phone and some of it was close to 6.5 PRC territory. I think it let you stuff 10-20% more powder in than H4350 while remaining within Capstone’s published (sort of) data.

It’s a slow powder though - surprised it worked well with a 16” barrel. Accuracy was mediocre compared to the one hole groups Varget and 4350 were capable of - ultimately decided I didn’t need all that speed and I could just reach for a bigger rifle if I wanted the horsepower.

But back to the 6.5 vs 308 debate - I’m building an 18” 6.5 right now, the numbers substantially favor 6.5 for the range at least. A 16” 308 might hit harder, but you don’t need the extra bullet weight for deer. You’ll want a can or double hearing protection though. Lots of unburnt powder traveling out of that barrel.

Last edited:
Nope not in a 16" barrel...my 6.5 CM in AR is 24".
But I have a 16" barreled 6 lb 2 oz 308 AR 10 that is a delight to shoot and carry.
It is also accurate, and fast with the right powders. Running 168eldm at 2756 fps with .5" accuracy.
Made with magnesium upper, titanium bolt carrier, titanium muzzle brake, carbon fiber hand guard, but not a pencil barrel... But a light fluted 16" Wilson Combat Recon.
Running 155s in photo at 2813 fps, but went to 2922 fps, but that load was inaccurate, settled on 2877 for the 155 Palma. But the 168, 169, & 177 are the accuracy bullets. Or 208s at 2442 fps, The 168 eldm at 2756 ave velocity is good to 1200 yds...
And it doesn't beat up brass.
You could build a 6.5 CM, AR 10 with the same components, the hole in the barrel being smaller will add a few ounces.
What powder are you running to get 2750 with a 168 out of a 16" barrel ?

The best I've ever done with a 16" gasser and 168's is at least 200 fps slower than that.

I ended up picking Wilson Combat's 16" 6.5cm barrel with their/KAC length intermediate gas port. Its a nice barrel but I still polished the feed ramps to match my upper receiver. I would 100% recommend getting a JP high pressure bolt or RCA HP bolt. I'm using a SprinCo orange spring with a 5 3/8" 6.1oz buffer with a superlative arms gas block at setting 5 or 6 from closed with a Hyperion. They can definitely get gassy quick

Could you elaborate on these hybrid 6.5 cases? And where you are acquiring them from. I'd like to see yours.

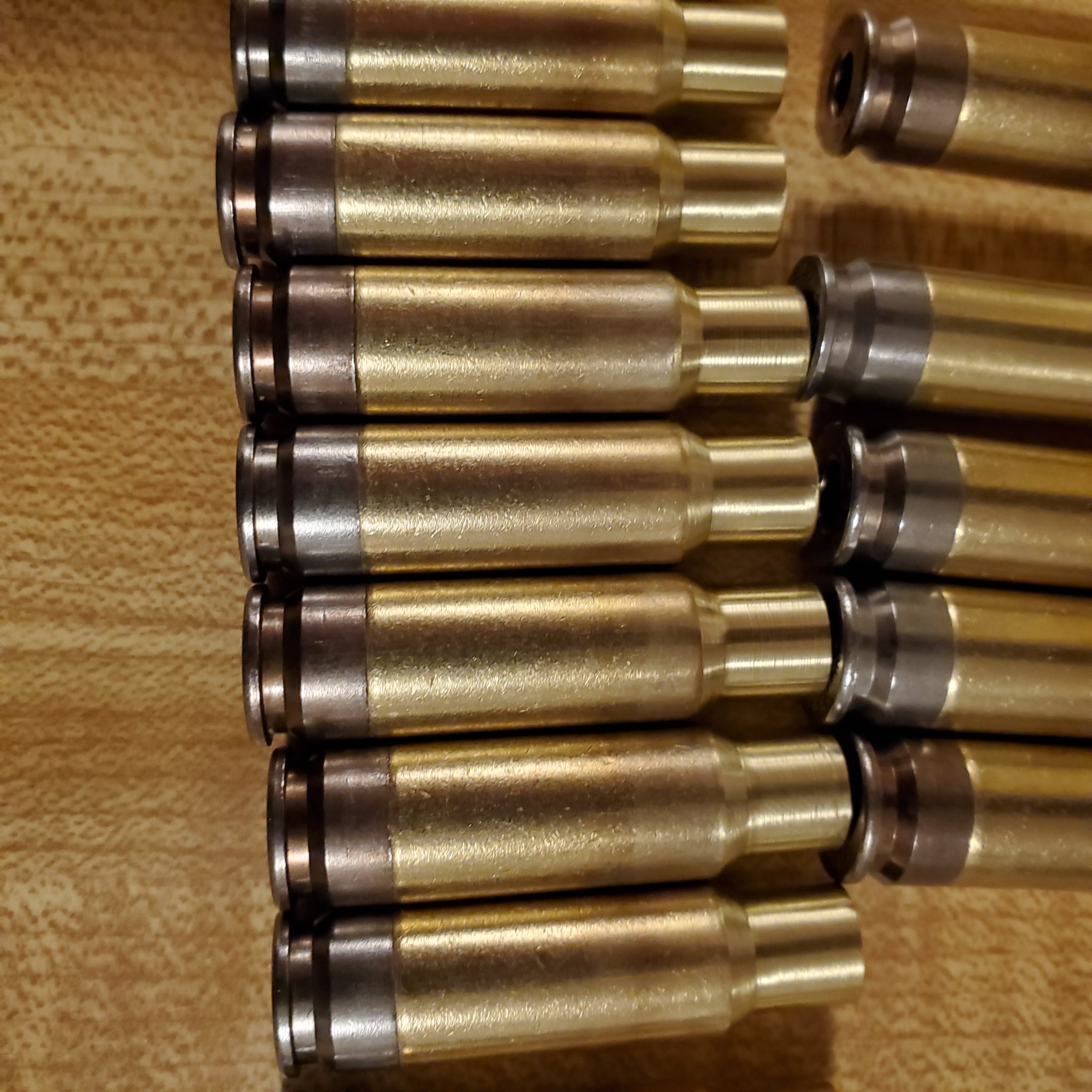

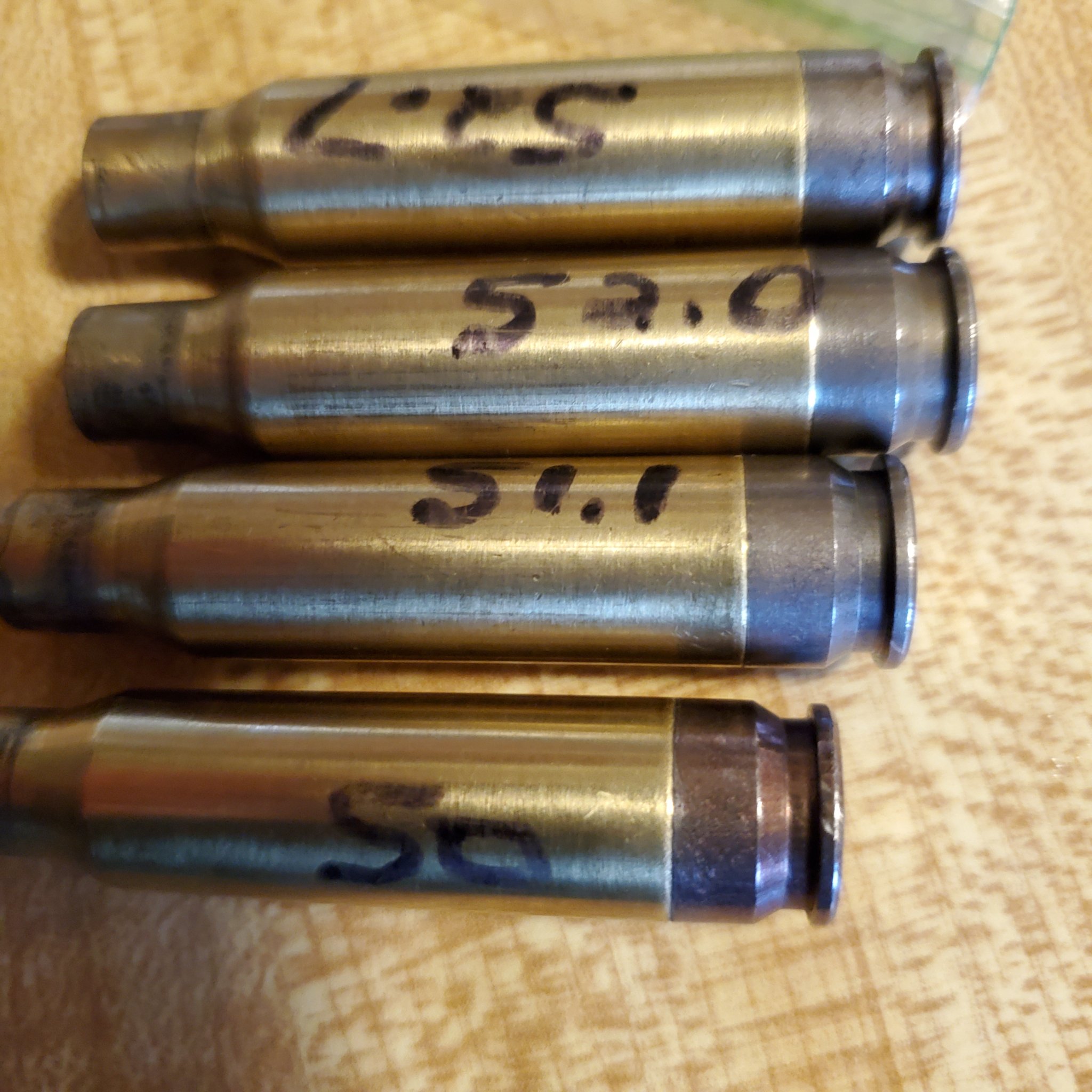

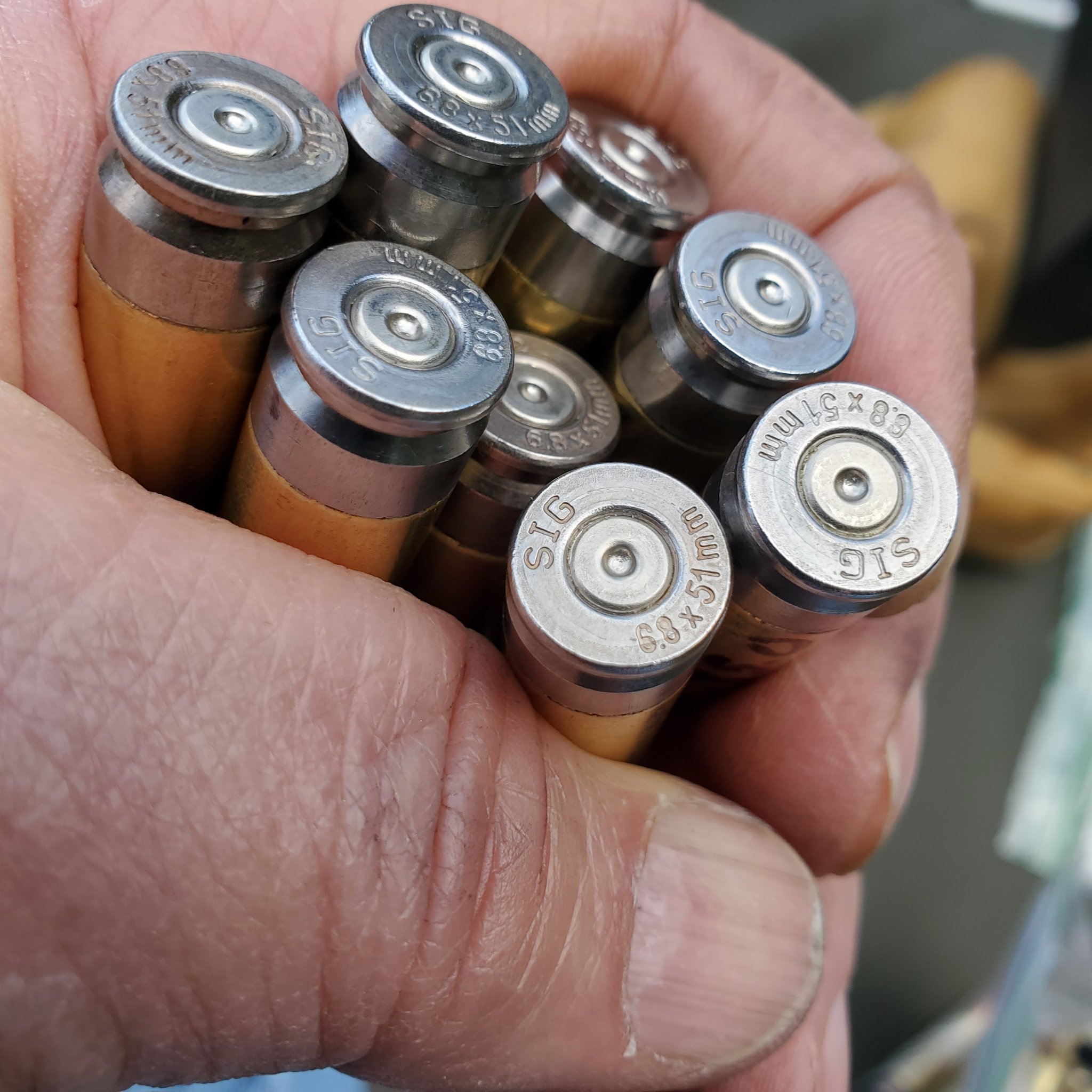

I have a couple thousand, and I purchased the last 300 available...for now.
I use them for 8.6 blackout, 6.5 CM, 308 Win, and 358 Win.
Here are some pics, and one string of 308 Win 200 gr SMK .715 BC at 2874 fps ave, probably out shoots your factory 6.5 CM, in every category, and they have been up to 2952 fps in the long barrel.
So that's why the cases are needed to bring my anemic 6.5 CM back in contention with the 308, using 150gr SMK or 153 Atip bullets.


Attachments

  • 20240216_213144.jpg
    506.5 KB · Views: 80
  • 20240222_132408.jpg
    440 KB · Views: 70
  • 20240102_152143.jpg
    486.7 KB · Views: 78
  • 20230519_125022.jpg
    1.1 MB · Views: 79
  • Like
Reactions: GhostFace
I have a couple thousand, and I purchased the last 300 available...for now.
I use them for 8.6 blackout, 6.5 CM, 308 Win, and 358 Win.
Here are some pics, and one string of 308 Win 200 gr SMK .715 BC at 2874 fps ave, probably out shoots your factory 6.5 CM, in every category, and they have been up to 2952 fps in the long barrel.
So that's why the cases are needed to bring my anemic 6.5 CM back in contention with the 308, using 150gr SMK or 153 Atip bullets.
So does the steel case head provide more powder capacity?

  • Like
Reactions: 45-90
Also did the Faxon 16” originally for weight savings. Mine actually shot pretty well, buddy who did similar build did not shoot as well. Very handy setup, especially running suppressed. Eventually switched to 20” Proof with +2 gas. Much better setup. Appreciate the velocity increase and very soft shooting.

  • Like
Reactions: AZLONGRIDER
RL26 ran some wildly fast numbers for me in 6.5 with no pressure signs, although out of a 22” barrel with a Sandman L.

Worked up load was 2850 with a 140 Hybrid. Book max shot 2925 although the primer looked like an accident waiting to happen. Berger stated over the phone their max was 2917 FPS with a 140 with a 24” barrel, but real world came out faster. Probably temp related - RL26 is very temp sensitive and I live in Louisiana.

Data was direct from Berger off the phone and some of it was close to 6.5 PRC territory. I think it let you stuff 10-20% more powder in than H4350 while remaining within Capstone’s published (sort of) data.

It’s a slow powder though - surprised it worked well with a 16” barrel. Accuracy was mediocre compared to the one hole groups Varget and 4350 were capable of - ultimately decided I didn’t need all that speed and I could just reach for a bigger rifle if I wanted the horsepower.

But back to the 6.5 vs 308 debate - I’m building an 18” 6.5 right now, the numbers substantially favor 6.5 for the range at least. A 16” 308 might hit harder, but you don’t need the extra bullet weight for deer. You’ll want a can or double hearing protection though. Lots of unburnt powder traveling out of that barrel.

You may have reached some pressure due to chamber shape/size/whatever but that isn't "high pressure" as it pertains to what @45-90 is doing. It's pretty difficult to reach 70kPSI+ in 6.5CM with 140's, traditional brass, and RL26. Even adding two grains extra doesn't get you there.

I'd be pretty concerned running 70kPSI in an AR10. Mauser actions have the safety margin, AR10's don't.

  • Like
Reactions: Gustav7
You may have reached some pressure due to chamber shape/size/whatever but that isn't "high pressure" as it pertains to what @45-90 is doing. It's pretty difficult to reach 70kPSI+ in 6.5CM with 140's, traditional brass, and RL26. Even adding two grains extra doesn't get you there.

I'd be pretty concerned running 70kPSI in an AR10. Mauser actions have the safety margin, AR10's don't.
For your information:
The 16" 308 168 eldm at 2756 fps is .5 gr under max in the Speer loading manual, and their fastest powder listed.
It only loses less the 16 fps per inch compared to 16" and 24" they are not hybrid cases.
The hybrid case loads can actually handle and is designed to handle 80,000 psi and will run there for the military in full auto weapons.
Some Hybrids loads reach close to 70,000 psi and operate just fine there, and hybrid cases have more capacity for powder. Some have been loaded 4 times and snug primer pockets,.. with regular dies.
My equalizing 308 load for 6.5 CM RL 26 153 gr Atip is 2953 fps from a 24" barrel at my COAL, with my chamber, and hybrid case capacity.
QL says I'm at 67,593 psi, but I believe it to be right at 70,000 psi.
Many of todays magnums run at 65,000 psi with larger square inch surface area for more bolt thrust on the action.
I run the hybrid cases by the hundreds in various calibers. They offer a significant improvement in performance.
My standard 308 Lapua brass long barreled load offers over 3600 ft/lbs but hybrid case has reached 4000 ft- lbs of energy out of a 308 case and the 6.5 CM hybrid can reach over 2900 ft-lb.of energy.

You don't have to do any of it, I don't care, but the information and the availability to do so is.

So yes the 6.5 CM in normal factory, & handloads loads is way behind the 308 Win cased handloads in performance with modern components, 9, and 8 twist barrels starting at 200 gr .715 BC SMK and moving to the 230 gr Atip...then add the hybrid cases for and even greater increase in performance, where the 6.5 CM benefits the most, where RL 26 and hybrid cases and 2 high BC bullets 150 SMK and 153 Atip bring it back to compete with my 308s..and why I have so many 308s.

The newer bullets for .30 cal with more modern shaping and high BCs really brought the .308 back in capability, though self-spotting isn’t as easy. When I eventually get down to loading for my 16” .308, I’ll be looking at some of the newer bullets for sure.

  • Like
Reactions: 45-90
For your information:
The 16" 308 168 eldm at 2756 fps is .5 gr under max in the Speer loading manual, and their fastest powder listed.
It only loses less the 16 fps per inch compared to 16" and 24" they are not hybrid cases.
The hybrid case loads can actually handle and is designed to handle 80,000 psi and will run there for the military in full auto weapons.
Some Hybrids loads reach close to 70,000 psi and operate just fine there, and hybrid cases have more capacity for powder. Some have been loaded 4 times and snug primer pockets,.. with regular dies.
My equalizing 308 load for 6.5 CM RL 26 153 gr Atip is 2953 fps from a 24" barrel at my COAL, with my chamber, and hybrid case capacity.
QL says I'm at 67,593 psi, but I believe it to be right at 70,000 psi.
Many of todays magnums run at 65,000 psi with larger square inch surface area for more bolt thrust on the action.
I run the hybrid cases by the hundreds in various calibers. They offer a significant improvement in performance.
My standard 308 Lapua brass long barreled load offers over 3600 ft/lbs but hybrid case has reached 4000 ft- lbs of energy out of a 308 case and the 6.5 CM hybrid can reach over 2900 ft-lb.of energy.

You don't have to do any of it, I don't care, but the information and the availability to do so is.

So yes the 6.5 CM in normal factory, & handloads loads is way behind the 308 Win cased handloads in performance with modern components, 9, and 8 twist barrels starting at 200 gr .715 BC SMK and moving to the 230 gr Atip...then add the hybrid cases for and even greater increase in performance, where the 6.5 CM benefits the most, where RL 26 and hybrid cases and 2 high BC bullets 150 SMK and 153 Atip bring it back to compete with my 308s..and why I have so many 308s.

I have some of the hybrid cases. Your post doesn't contradict my post.

  • Like
Reactions: 45-90
Hope you’ll be shooting it suppressed. 16” large frames are for masochists.
My 16” Criterion 6.5 CM AR10 is very pleasant to shoot. It wears a BCM Mod 1 comp.
Anyone mess around with a 16” 6.5 creedmoor? I keep eyeballing a craddock 16” with rifle gas and it seems like it would make a really handy deer rifle. I’m curious how bad the port erosion would be and how bad it will beat brass.
My rifle gassed 16” chrome lined Criterion is great. Relatively easy to reach out to 1k with 140gr+ ELDs. 2520 -2550 fps with factory 143gr ELD-X depending on lot/temperature.

If you go with a 16”, definitely go with a rifle length gas system. I’m sure a craddock setup would shoot. But if you’re fine with 0.75-1.25 MOA factory loads without tuning, then the Criterion will get you there and should have a good bit longer barrel life. Note their newer 6.5 Creedmoor are nitrided rather than chrome lined. But they should still have a good barrel life.


I built one using a faxon big gunner barrel. I liked the size and weight savings it offered. I will not ever be buying a Faxon barrel again though. The chamber is rough as hell and overall just not a nice barrel, shouldve sent it back immediately but impatience bit me in the ass. I have a 20" proof stainless to replace it eventually. Go 16", it's fun.
Me too. Got it for the weight, but what a piece of garbage. Failures to extract all over the place.

The newer bullets for .30 cal with more modern shaping and high BCs really brought the .308 back in capability, though self-spotting isn’t as easy. When I eventually get down to loading for my 16” .308, I’ll be looking at some of the newer bullets for sure.
Which ones? The 185 jugger / hybrid is probably the the best 308 bullet out there but once you go above that in BC (and grains) you loose way too much velocity to take advantage of the higher BC.

You are also going to get into OAL and mag length issues with the longer bullets.

  • Like
Reactions: matt33 and st1650
Which ones? The 185 jugger / hybrid is probably the the best 308 bullet out there but once you go above that in BC (and grains) you loose way too much velocity to take advantage of the higher BC.

You are also going to get into OAL and mag length issues with the longer bullets.
I’ve been eyeballing 168gr and 178gr ELD-Ms, 169gr SMKs, 155gr Scenars, 175gr TMKs, 168gr Bergers, 185gr Bergers.

Not a priority other than to have another loaner carbine for courses and a demo gun to show how the .308 differs from the other cartridges.

I’ve watched so much 168gr SMK, 173gr M118, and 175gr SMK go downrange over the past 30 years that I feel very confident when spotting for people who are shooting it, even in full-value winds. I used to shoot 155gr Scenars in competition before we knew about the BC games companies were playing, but I verified my data at distance as much as I could.

You don't.
That's my point. If the argument is that 308 is superior at range to a 6.5 creed out of a gasser because of the 200gr+ 30cal projectile then I beg to disagree.
168 eld-m & 185 Berger would be about the longer I'd go for a 308 gasser (.263 G7 BC for the 168 ) and .284 G7 BC and then comparing to 130 eld-m (0.279 G7 BC) and 140 eld-m (0.326 G7 ), I don't understand how it makes the case for 308 over 6.5.
I'd be happy to be wrong about this
