7 mil high at 50m

[Th1nor]

Been unable to re zero my shv 4-14*50 F1 after changing mounts.

I am 7mils high at 50meters and seem to have bottomed out the scope.
I can go 25,5mils up, but unable to go down.

Blaser R93 22lr
Contessa zero tilt rail.
Spuhr sp 3001 no tilt.
Sk std +

When using the blaser saddle mount i was able to zero at 50m.
But could not get correct eye relief.



[huntnh]

Is the zero stop set?



[Th1nor]

Is the zero stop set?

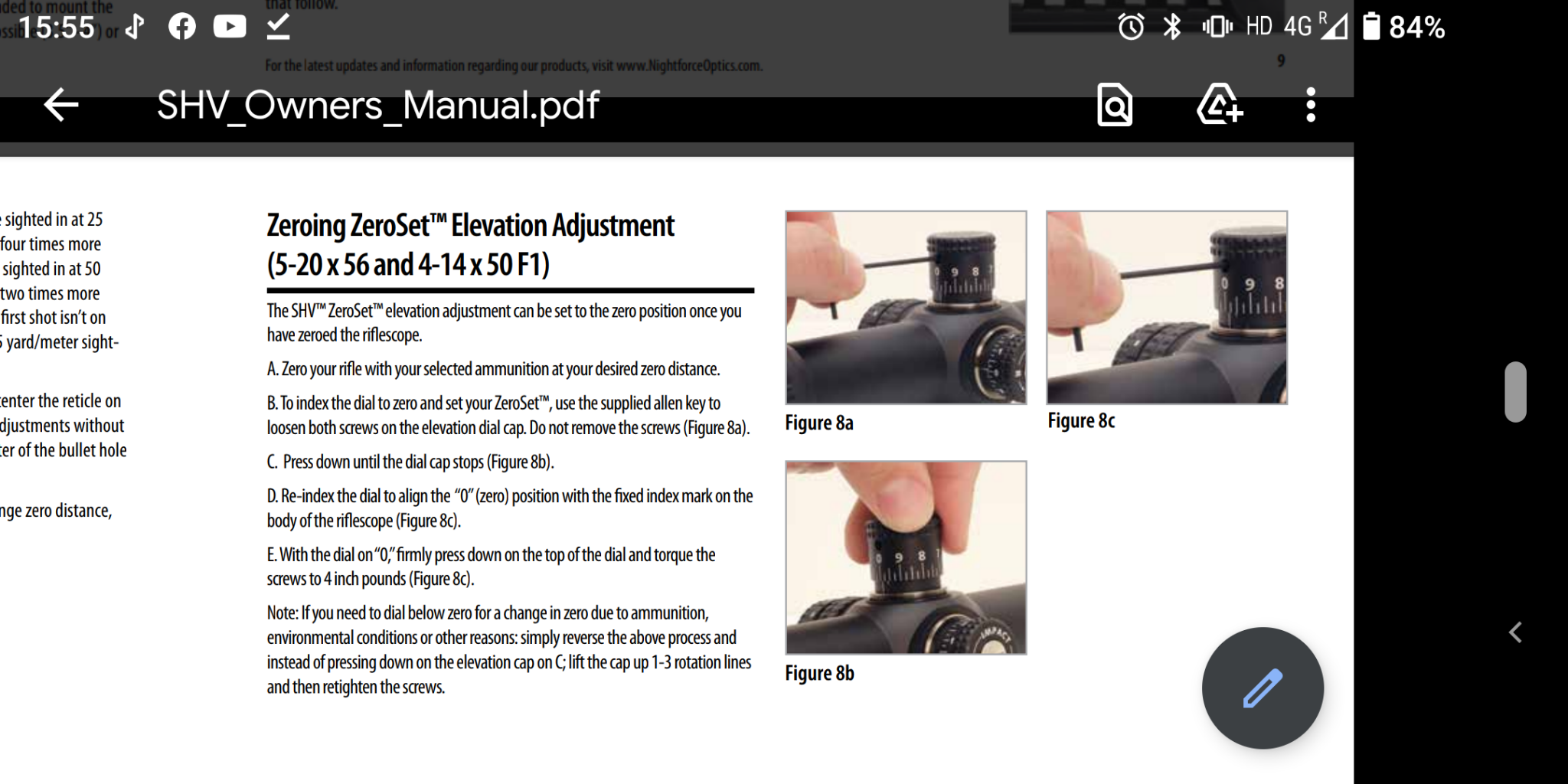

Have followed instructions. But like I said can't get lower. No matter how high og low i resett it.



[jcmullis2]

You only get a total of 27 Mil of adjustment. 13.5 above zero and 13.5 mil below zero. You’re getting a little over 25 mils. Either NF lied about specs or you lost over a mill someplace. Check your zero stop. Hopefully you don’t have something going on with the scope itself isn’t broken.



[orkan]

Either your barrel is pointed ridiculously off center... or the rail/mount solution you're using is mislabeled and actually has a ton of slope in it.

It's also possible that specific scope is simply faulty and has a severe reticle alignment issue.



[chevy_man]

You only get a total of 27 Mil of adjustment. 13.5 above zero and 13.5 mil below zero. You’re getting a little over 25 mils. Either NF lied about specs or you lost over a mill someplace. Check your zero stop. Hopefully you don’t have something going on with the scope itself isn’t broken.

He's still 5+ mills off if he gets the extra 2.


Something is canted. I'd guess rings and base both have 30moa.



[alamo5000]

Turn the mount around backwards (I had to do this before to diagnose a problem) and remount the scope. Make note of how much or if the POI changes.



[nikonNUT]

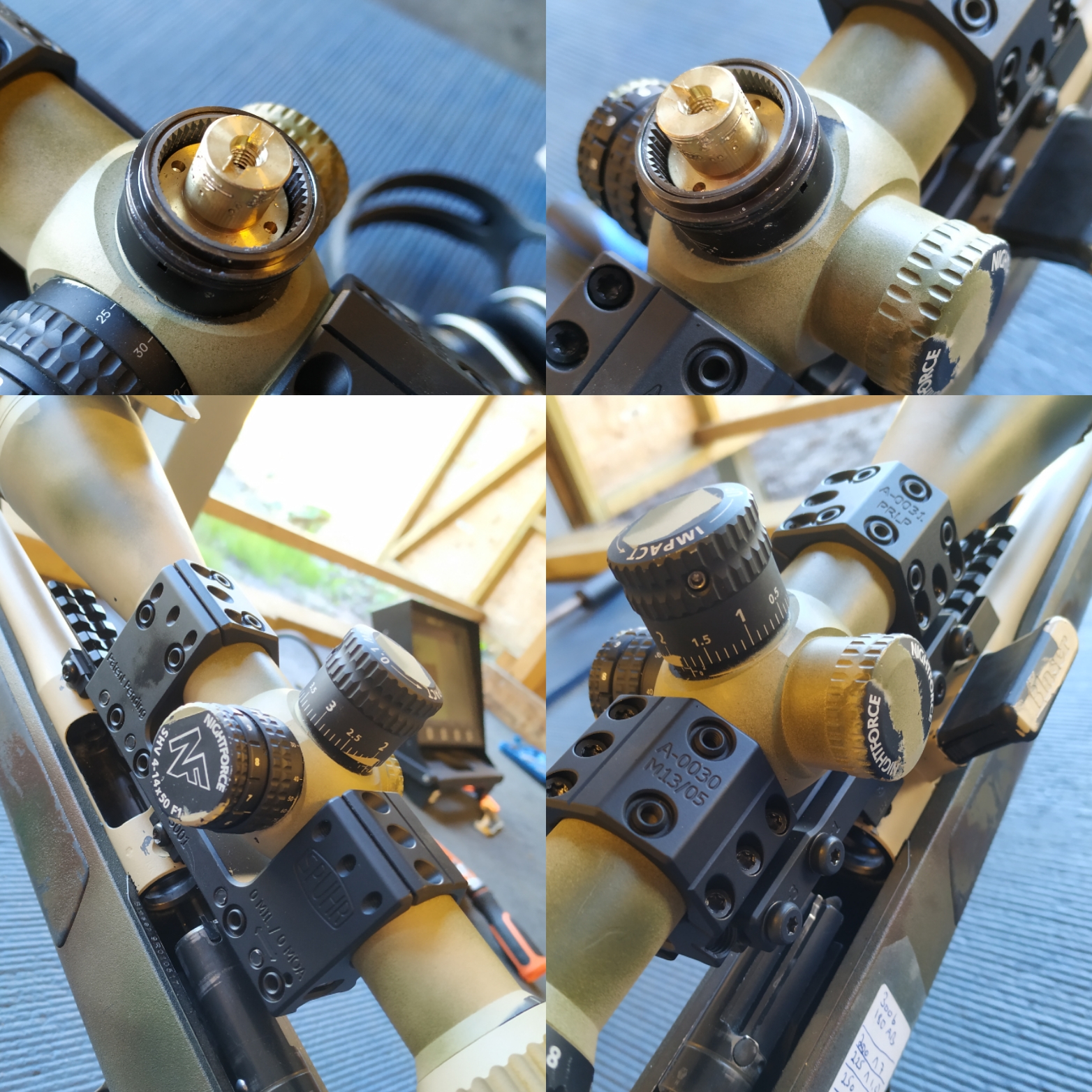

So I'll be the idiot in the room and ask... From the picture it looks like the back of the Sphur is not even on the rail. Is this the case or am I hallucinating?



[acudaowner]

but you still got hold under you can try and use . and there's always using the force you could try not sure it would work but you never know you could be the first . and are you quite sure you did not mount the mount on backwards ?



[6.5SH]

Didn't someone recently have an issue with a scope not adjusting properly when clamped that close to the turret housing in a Spuhr?



[Th1nor]

Thanks for feedback.

May have found the issue.
Range day today to confirm.

Will post if fixed.

Ps it is an extended contessa rail for blaser. Nothing is floating



[Th1nor]

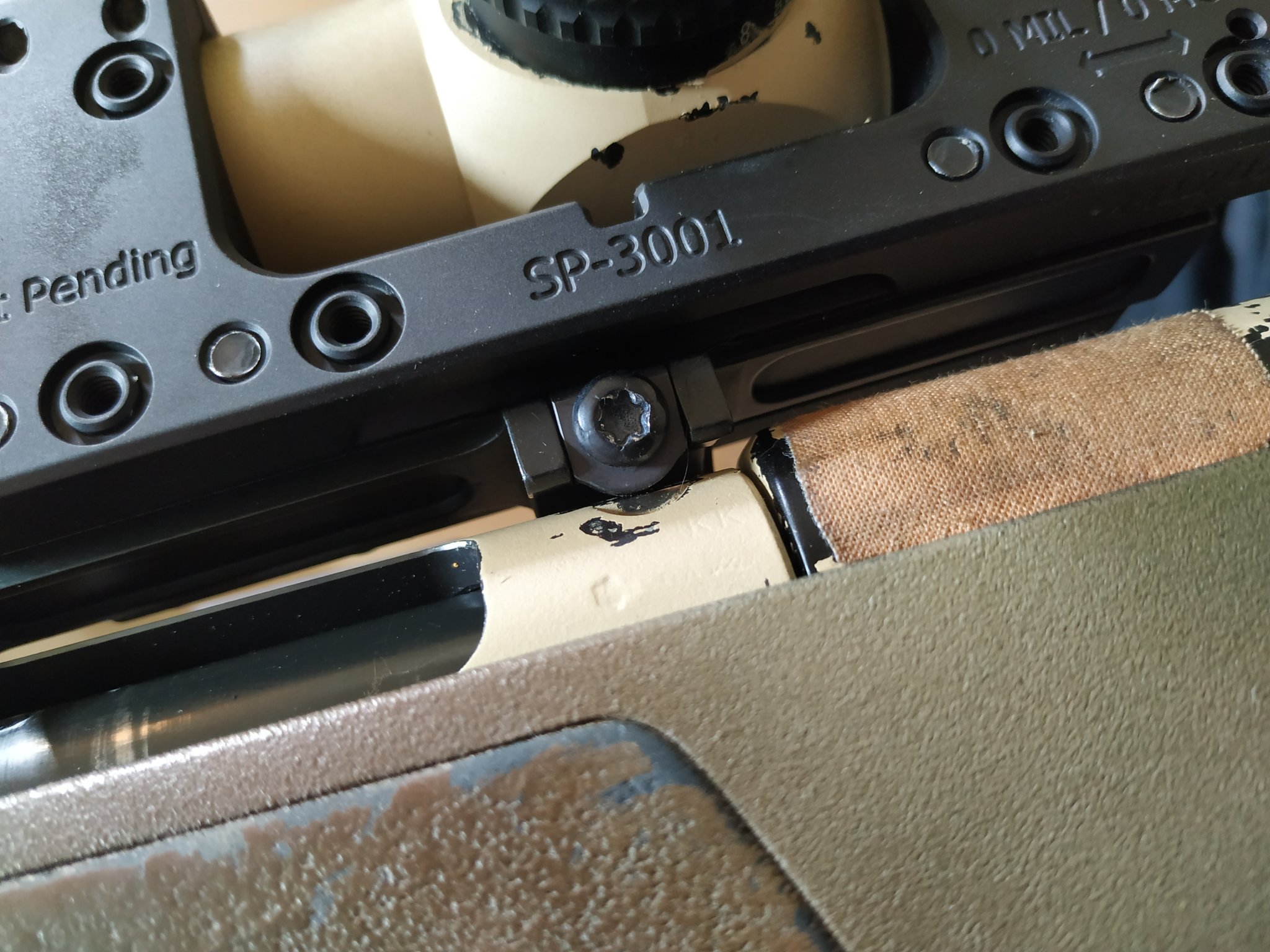

Here's the problem.
Back rail attachement not properly seated. Creating a fair amount of tilt

Corrected and zeroed without any issue afterwards.
