Suppressors Abel Co Pi - Rimfire & 5.7 suppressor

hic28

The Legman
Full Member
Minuteman
Supporter
Apr 2, 2017
1,853
5,931
Hey everyone,

Our new .22 suppressor just went live on the website!

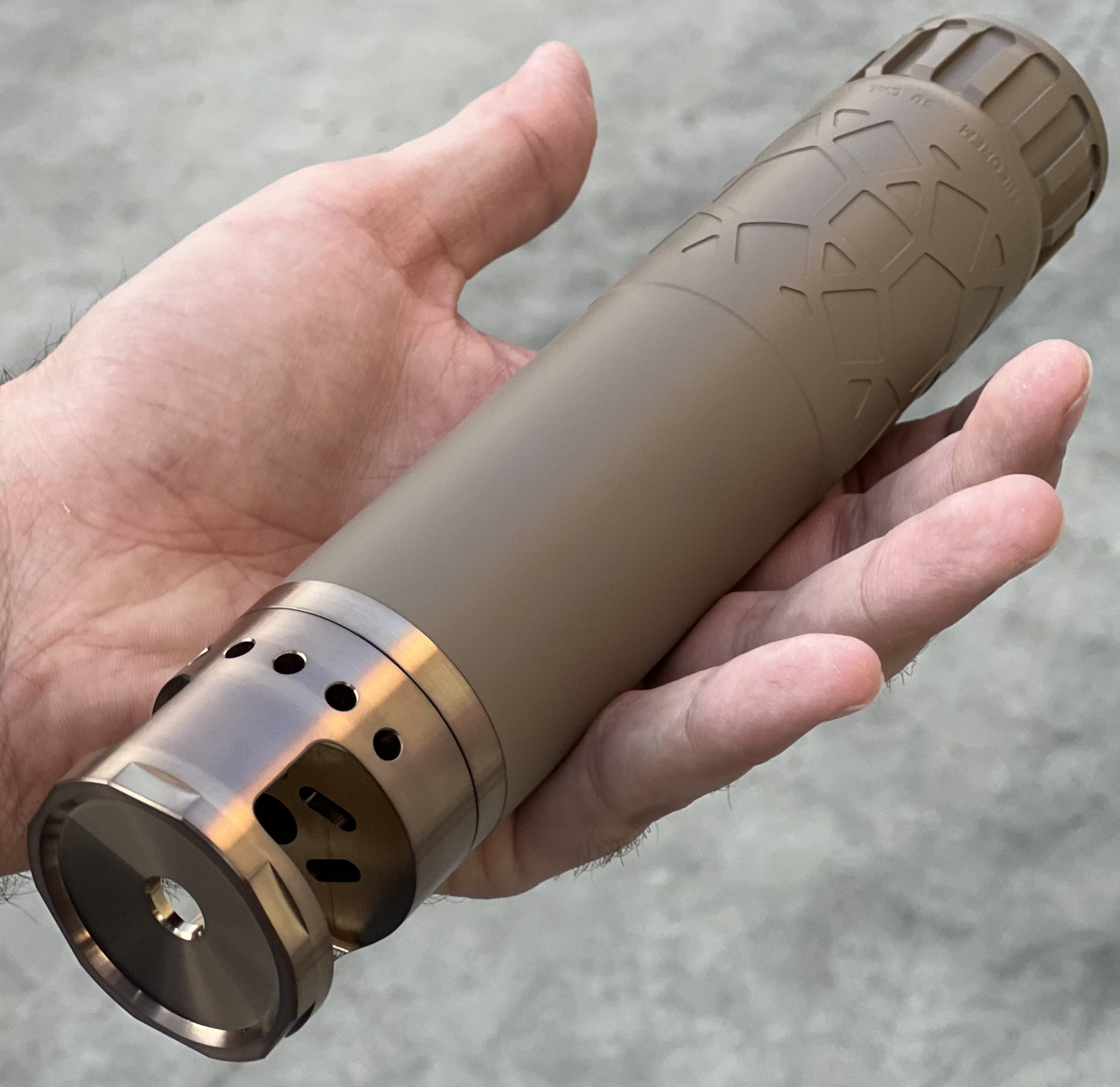

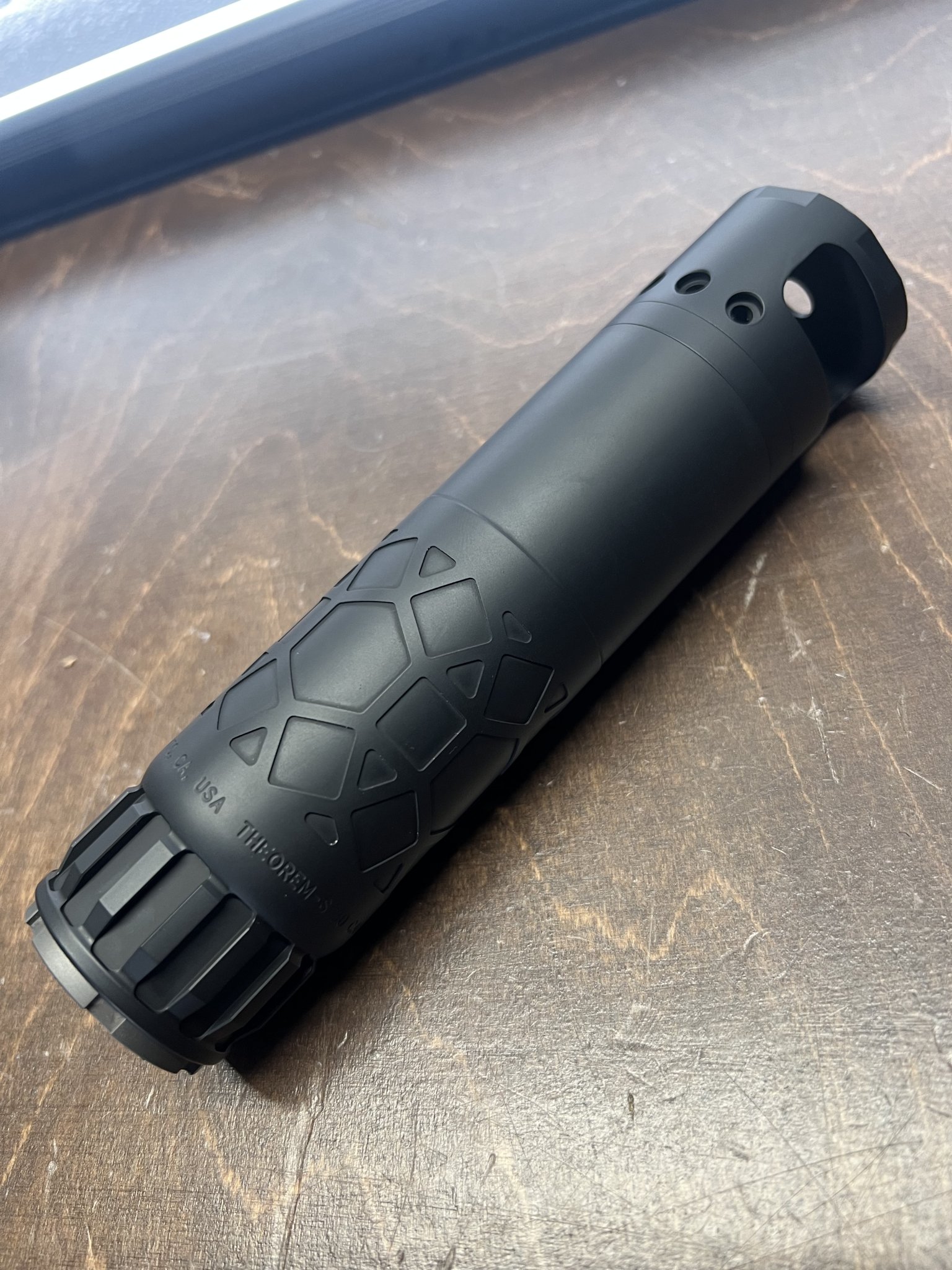

The Pi is our newest addition to our suppressor lineup. The Pi is a precision .22 caliber suppressor rated for .22 (full auto), .22 Mag, FN 5.7 and 17 HMR. Each end of the Pi is built with modularity in mind - the mounting adapter and the end cap are fully removable. Each baffle is designed with a key and keyway, and is numbered - this takes the guesswork out of re-assembly after cleaning/maintenance. Key performance features we pursued in development were consistent POI and return to zero, minimum First Round Pop (FRP) and significant decibel reduction on both .22 pistols and rifles. We designed a product that not only outperforms the majority of what is currently on the market, but also highlights our craftsmanship and extreme attention to detail.



This is not another basic tube design with identical baffles shoved into it and designed to be the cheapest option on the market. We wanted this suppressor to posses the characteristics of what we at Abel Co. value - performance, mastery and obsession with our craft. THIS suppressor does just that. The Pi takes on the aesthetic design of our Theorem line - paying homage to one of the greatest mathematicians of all time in both name and artistry.



The Pi ships with the following:

(1) Closed front end/exit cap

(1) Multi-tool

(1) 1/2-28 Mounting Adapter

(1) User Manual

(1) Creature Patch & Stickers

WARRANTY:

100% covered, don't stress.



BARREL LENGTH RECOMMENDATIONS:

.22, .17: None/No Restrictions

FN 5.7: 4.8"

*Barrel length recommendations listed reflect what has been tested by our team in-house.



SPECIFICATIONS:

Length: 5.5"

Diameter: .970" - 1.00"

Weight: 6.3 oz

Caliber: .22, .17

Material: Tube: Grade 9 Titanium, Baffles: 17-4PH H1150

Finish: High Temp Cerakote (C Series)

*Decibel Rating: Left/Right Ear: 115dB, Muzzle: 120dB (16" Vudoo, 40GR CCI Standard)

*Decibel Rating: Left/Right Ear: 117-118dB, Muzzle: 121dB (4.4" Ruger MKIV, 40GR CCI Standard)

*All dB ratings are expected to be within <1.5% margin of error

*All testing was carried out using the B&K PULSE Sound Level Meter (SLM) using a LAN‐XI 3‐ch. Input Module Type 3052 (Sampling rate of 262k samples/s) and (3x) 4944-A pressure field microphones in specified locations in accordance with MIL-STD-1474E.




3RD PARTY TESTING:

2024 TBAC Suppressor Sound Summit Results HERE


Attachments

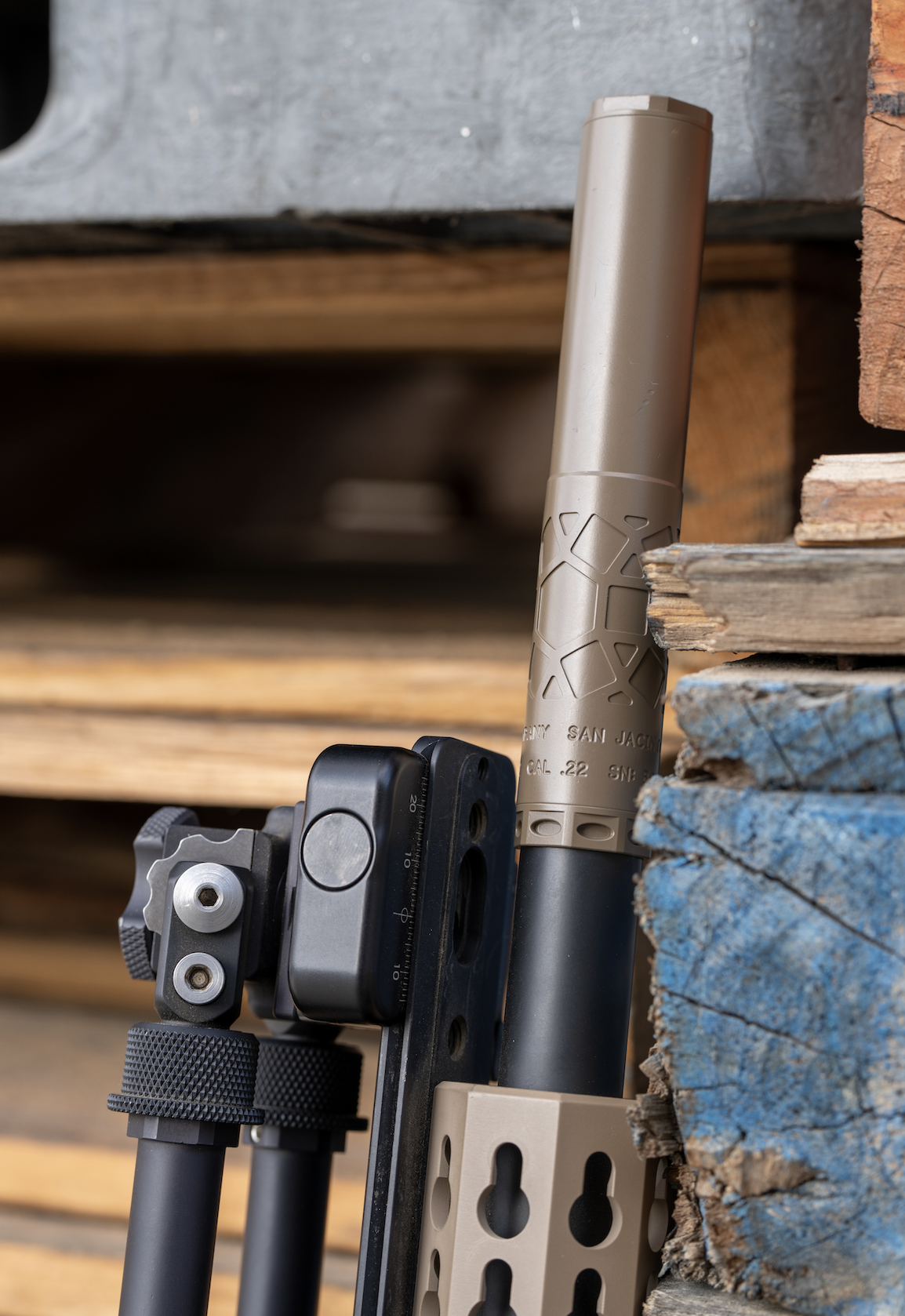

  • Screen Shot 2024-10-31 at 4.37.49 PM.png
    Screen Shot 2024-10-31 at 4.37.49 PM.png
    3 MB · Views: 12

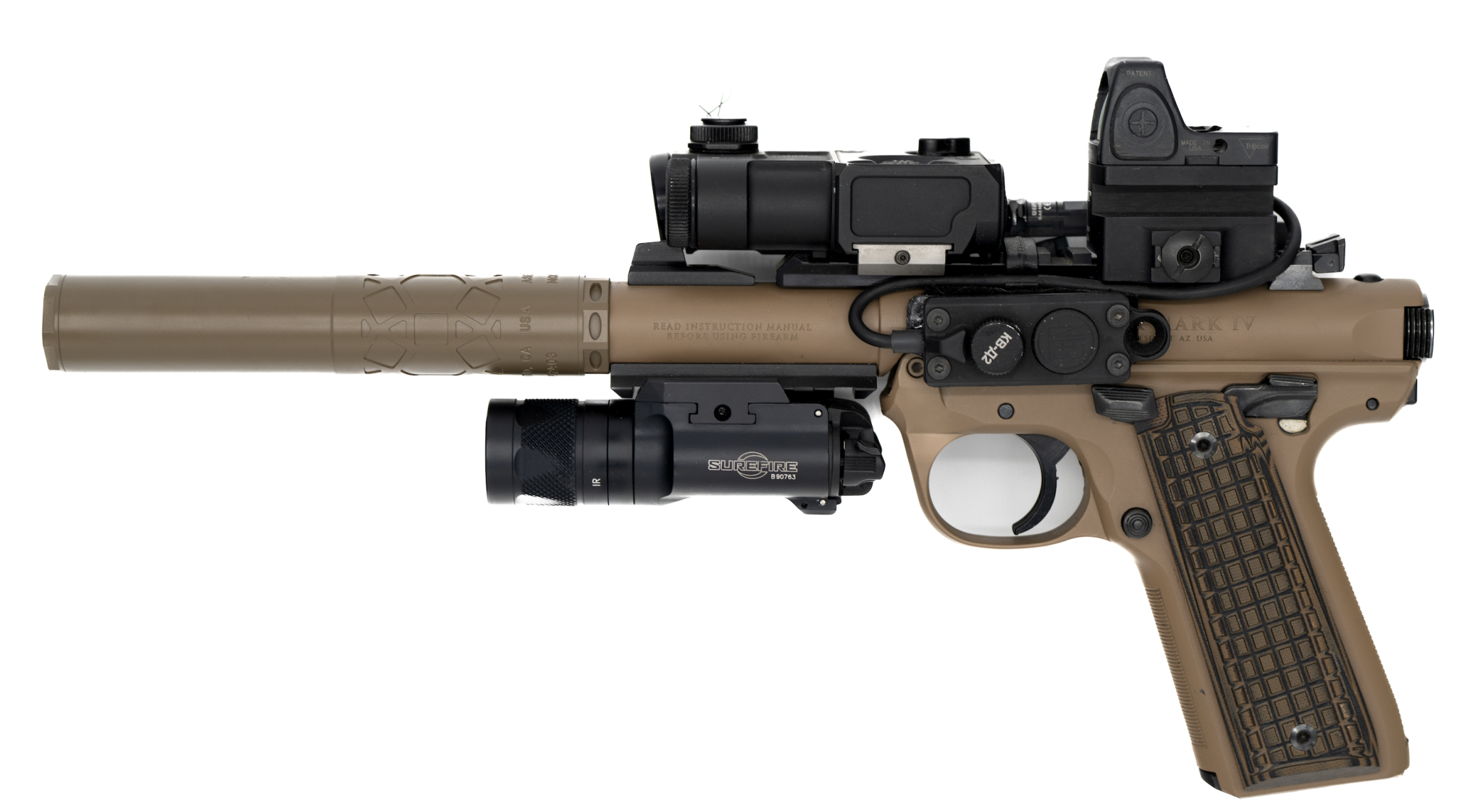

  • Screen Shot 2024-10-31 at 4.37.57 PM.png
    Screen Shot 2024-10-31 at 4.37.57 PM.png
    1.1 MB · Views: 12

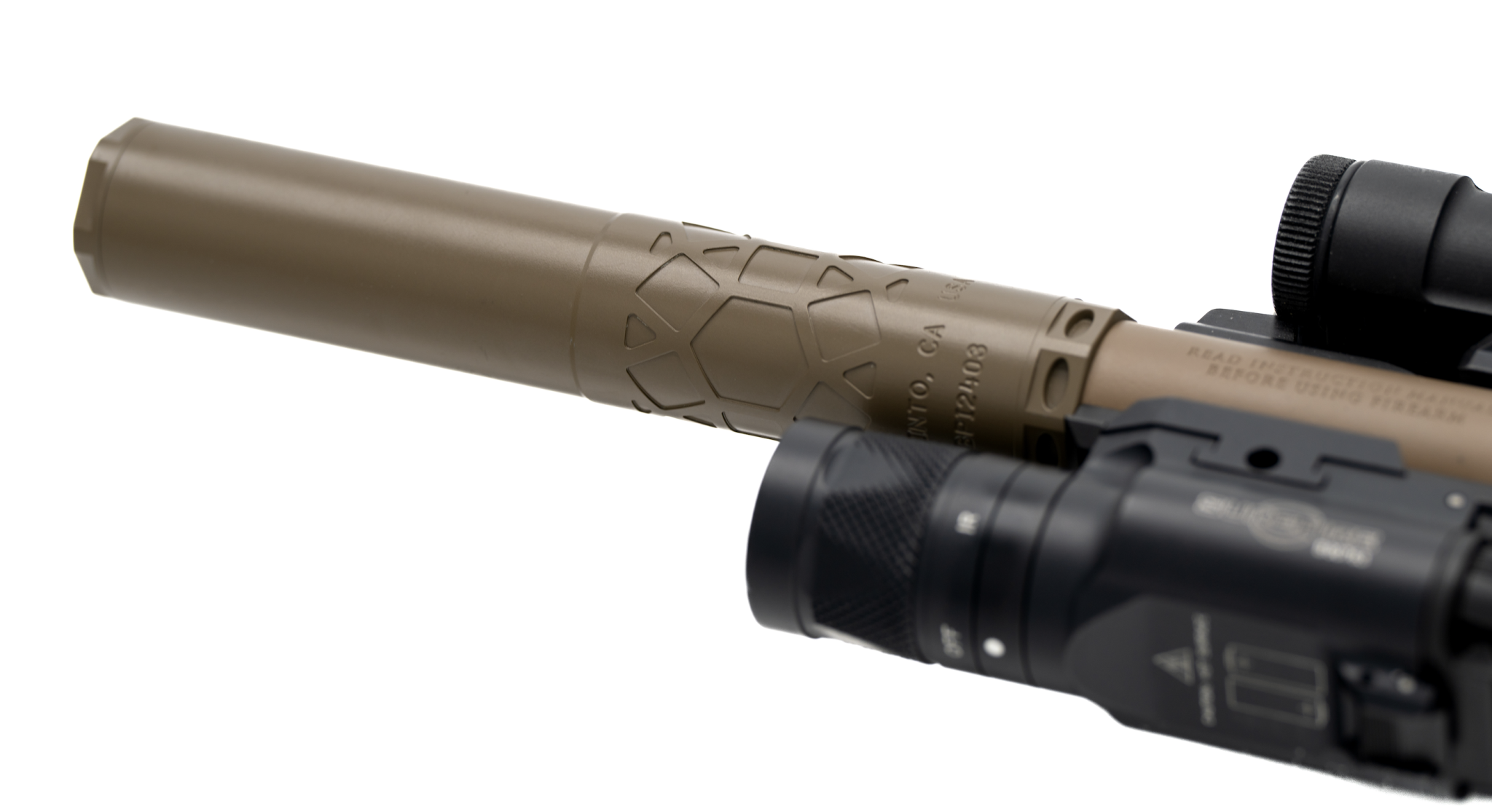

  • Screen Shot 2024-10-31 at 4.38.04 PM.png
    Screen Shot 2024-10-31 at 4.38.04 PM.png
    1,005.6 KB · Views: 12

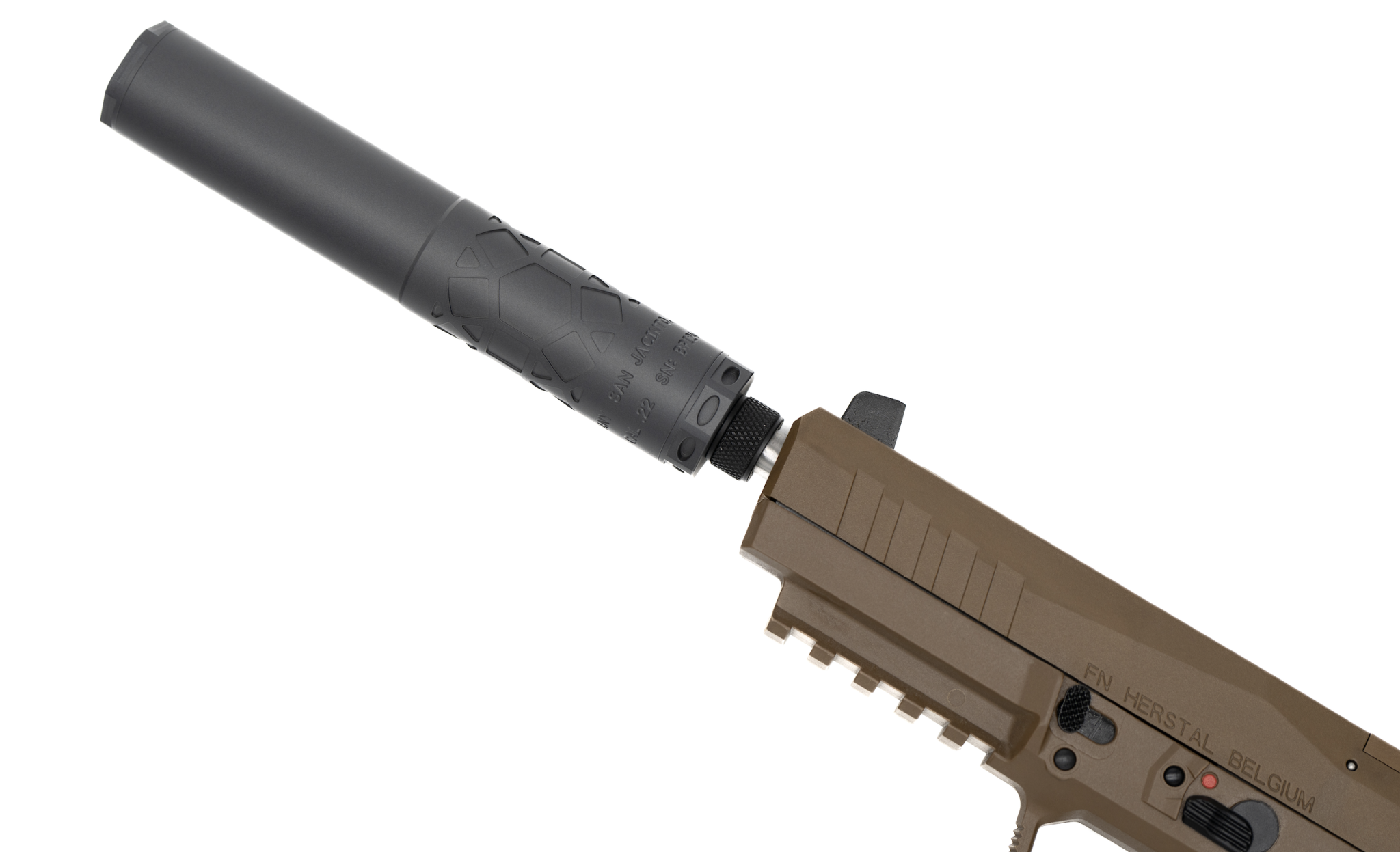

  • Screen Shot 2024-10-31 at 4.38.12 PM.png
    Screen Shot 2024-10-31 at 4.38.12 PM.png
    808.1 KB · Views: 11
Last edited:
