ARC Shouldered BarLoc review

CHances are that's not reality. We have the vast majority of the Nucleus group buy and Nucleus barreled action barrels done just waiting for the laser work. Ted is sending me a timing artifact to use for finding TDC, that's the only reason we haven't shipped the barrels yet. They are lined up along the wall.
Thanks for the quick answer.

CHances are that's not reality. We have the vast majority of the Nucleus group buy and Nucleus barreled action barrels done just waiting for the laser work. Ted is sending me a timing artifact to use for finding TDC, that's the only reason we haven't shipped the barrels yet. They are lined up along the wall.

I bet that’s a pretty sight.

A bit off topic, but has anyone gotten the barrel nut version bar-loc? Im wondering what the install process looks like since there is no hard stop. Set the headspace off of the go gauge, but after that, the barrel nut will have alot of leeway as to how tight it should be screwed against the barloc (essentially the barrel nut is a moveable shoulder). Is it just something you have to be consistent about i.e. do a half turn once the nut contacts the barloc, then torque the barloc screw? Is there a desired spacing gap b/w the barloc halves that must be reached before torquing the screw - therefore a caliper or feeler guages are needed as well? Am i over thinking this?

With the supplied spanner wrench, you tighten the barrel nut until the split collar is wide enough to fit the wrench in. The you torque the split collar screw.

So yes, you are consistently tightening the barrel nut then torquing down the clamp screw.

With the supplied spanner wrench, you tighten the barrel nut until the split collar is wide enough to fit the wrench in. The you torque the split collar screw.

So yes, you are consistently tightening the barrel nut then torquing down the clamp screw.

So is it possible to change barrels with the action still in the stock/chassis?

So is it possible to change barrels with the action still in the stock/chassis?

I think you could, yes. Your scope most likely will have to be removed to give you room to work, and all my actions have integral lugs so I don't know how much of a hassle it might be to line that up right.

So is it possible to change barrels with the action still in the stock/chassis?
I have one with a barrel nut. Ted spoke about the procedure in one of his videos. What I've done is put the go gauge in the chamber and screw until you just barely feel it making contact with the go gauge. Then screw the barrel nut down until it makes contact with the barloc. ARC provides a 1/2 wrench that kind of hooks onto the barrel nut and you can torque until the barloc separates with the action in the chassis. Then torque the hex screw down to 90 in lbs. Ted estimated that if you followed this procedure, the force of the barloc would give you go gauge + .002 headspace (that was speculation in his video though).

It is possible to do this procedure with the action in the chassis and with the scope on. The caveats are that with the scope on you can't get the wrench into the separation on the barloc to check the spacing, but after you do it a couple times you'll know how much force it needs. Also, for me, the bell on the scope kind of traps the barloc in the chassis so it can't be removed when the barrel comes off (not that you need to).

Also, one note is that Ted also mentioned in one of his videos that the hex screws should be treated as disposable. I ordered a couple of boxes from mcmaster carr. They're really cheap. Ted gives specifics on the screws in his video. If you put a little lube on the threads when you screw it in, you should get more consistent tension.

Last edited:
What is everyone using for a torque wrench? I have a borka adjustable kit that works great in the field, but it only hits 85 in/lb. I can't find any compact wrench that hits 90, and one big plus of the barloc for me is barrel change in the field - not ideal conditions to carry a 12"-15" long wrench.

I've had several Precision Torque Limiters (PTLs), originally preset to 95 inch-lbs. (For Ruger 77/XX action screws.) Recently, we sold like 4-5 of them, which we re-calibrated to 90 inch-lbs. per customers request, and I have a couple left, I believe... We can easily have a bunch of PTLs in 90 inch-lbs. made, to support this ARC spec, if there is enough interest in 90 inch-lbs. PTLs.

Boris
Borka Tools

I've had several Precision Torque Limiters (PTLs), originally preset to 95 inch-lbs. (For Ruger 77/XX action screws.) Recently, we sold like 4-5 of them, which we re-calibrated to 90 inch-lbs. per customers request, and I have a couple left, I believe... We can easily have a bunch of PTLs in 90 inch-lbs. made, to support this ARC spec, if there is enough interest in 90 inch-lbs. PTLs.

Boris
Borka Tools

Placed an order for PTL090K this morning. I will be returning the Fix It Sticks 80 in-lbs limiter

I've had several Precision Torque Limiters (PTLs), originally preset to 95 inch-lbs. (For Ruger 77/XX action screws.) Recently, we sold like 4-5 of them, which we re-calibrated to 90 inch-lbs. per customers request, and I have a couple left, I believe... We can easily have a bunch of PTLs in 90 inch-lbs. made, to support this ARC spec, if there is enough interest in 90 inch-lbs. PTLs.

Boris
Borka Tools

Update: Both remaining PTL090K (90 inch-lbs.) were purchased today, so I do not have any more of PTL090Ks in stock. While this kit appears to be in certain demand, it is still difficult for me to estimate the scale of such demand, which is an important metric for business decision.

But we can certainly have more of them made, if I see posts or related e-mails from interested SH members.

3 positive replies here and 2 e-mails to Borka, related to the need to keep offering PTL90K, in such relatively short period of time, looks statistically promising. So, more PTL090Ks will be coming this year.

The only question remains - how much more, and I think I know how to figure it out...

Please do me a favor and send a very brief e-mail reg. your interest in PTL090K to:

[email protected]

I will then create a list of potential customers for this kit, so when PTL090Ks are back in stock, I could inform all of you right away.

Thanks!

Boris
Borka Tools

What is everyone using for a torque wrench? I have a borka adjustable kit that works great in the field, but it only hits 85 in/lb. I can't find any compact wrench that hits 90, and one big plus of the barloc for me is barrel change in the field - not ideal conditions to carry a 12"-15" long wrench.

PTL090K is on its way to you.

Thanks,

Boris

I got a good number of e-mails reg. interest in PTL090K, and all of these e-mails are saved to compile a list. I'm now working to have more of PTL090Ks as soon as possible.

Actually, what we having here is some kind of "Group Buy" event, except that when I've run GBs in the past, I've been ready to ship relatively fast because I've had a product for immediate delivery. This time is a little bit different, I have to wait for the product to be delivered to me first... But concept is the same - to inform people on the list when product is available...

Question for:

CavScout85
SuperSneakySnip
Afkirby


Gentlemen, did you also send your e-mails to [email protected] ?

If you did not, please do so. Keeping all info in one place, specifically in my e-mail based database, is a lot better for reliable notification of product availability.

Thanks very much to everybody.

Boris

  • Like
Reactions: Afkirby
I got a good number of e-mails reg. interest in PTL090K, and all of these e-mails are saved to compile a list. I'm now working to have more of PTL090Ks as soon as possible.

Actually, what we having here is some kind of "Group Buy" event, except that when I've run GBs in the past, I've been ready to ship relatively fast because I've had a product for immediate delivery. This time is a little bit different, I have to wait for the product to be delivered to me first... But concept is the same - to inform people on the list when product is available...

Question for:

CavScout85
SuperSneakySnip
Afkirby


Gentlemen, did you also send your e-mails to [email protected] ?

If you did not, please do so. Keeping all info in one place, specifically in my e-mail based database, is a lot better for reliable notification of product availability.

Thanks very much to everybody.

Boris

Yup I was one of the guys who also sent an email

Last edited:
Update, June 29th:

I've approved production specifications for PTL090K and a number of new PTLs with different torque settings, to further expand our PTL product line. Production will start early next week.

When I have PTL090K units in stock, I'll inform all interested SH members by e-mail.

Thanks very much,

Boris
Borka Tools

Here's my 20 rounds worth.

M5 Mausingfield
Brux 1:8 twist 6.5 Creedmoor (Saami chamber), 21" long #4 contour
Shouldered Barloc
SRT Arms magnum Ti suppressor
147gr Hornady factory match ammo
100yd indoor tunnel off bags

First I fired a 6 round group (lost count and fired an extra round). Then I removed the barrel and replaced it via sharpie index lines on either side of the stock show-line. Torqued the barloc hand tight with an allen wrench (sorry, no torque wrench here). Fired a 4 shot group. Removed and replaced the barrel, and fired the final 5-shot group on the right side of the target. POA for all three was the center of the square.

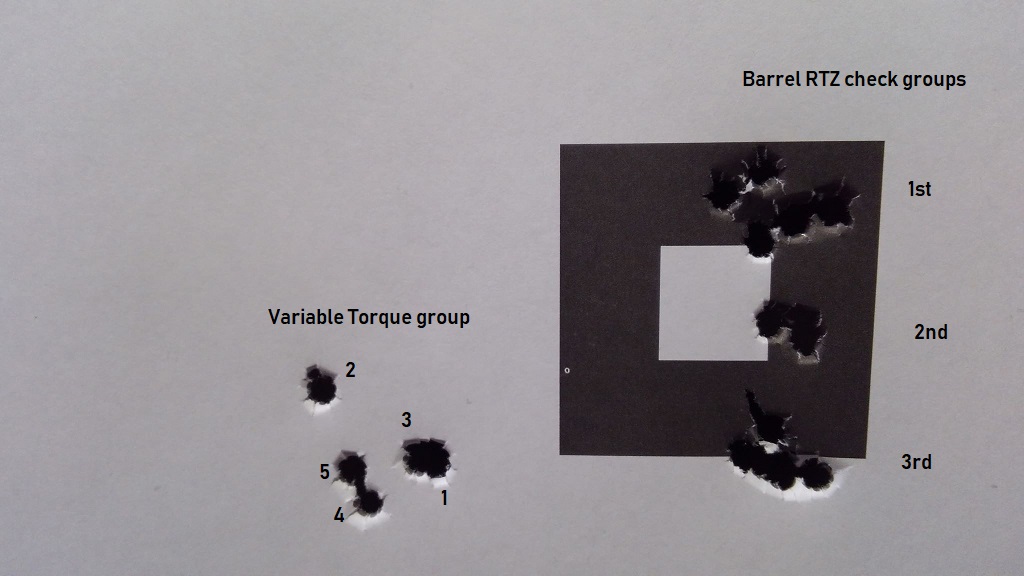

Then I put 1 mil left on the scope, and fired the remaining 5 rounds with variable torque on the barloc screw (same POA). The first round was with just enough torque to prevent the barrel from spinning freely. From there I gave each successive shot what I presumed to be about 1/5th increase to a "normal" final torque value (5th shot).
