AX Chassis- Lets see them!

[seafury]

What barrel length is that above? I’m assuming its the 16“ hand guard.



[eyekahn]

What barrel length is that above? I’m assuming its the 16“ hand guard.

16.5” on a 13” handguard.



[seafury]

16.5” on a 13” handguard.

Thanks! Been looking at this chassis for my 223 rem 700 with a 16.5“ barrel or a 20” in what will be a 6.5cm. Seems I need to go with a 13” hand guard then. Have not had much luck narrowing it down with the googles.



[eyekahn]

13” is the way to go. I prefer the 10” like on the MK13 but I’ve got the 13” so that’s what I’m running.



[seafury]

I’ve been thinking the same. Been waiting for a 13” FDE version to come back in stock at MH for a while.



[seafury]

BTW, anyone know if the chassis will fit with a remage barrel and nut?



[Rebelirons]

300 WM & 6.5 Creed. M2013 actions



[eyekahn]

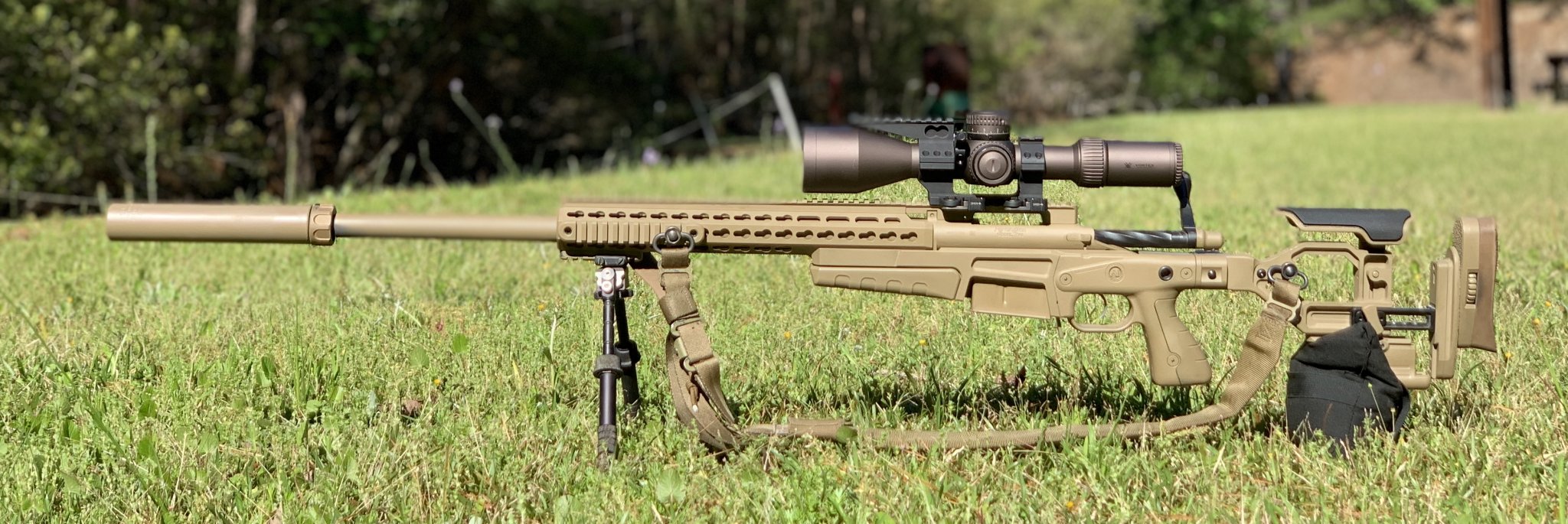

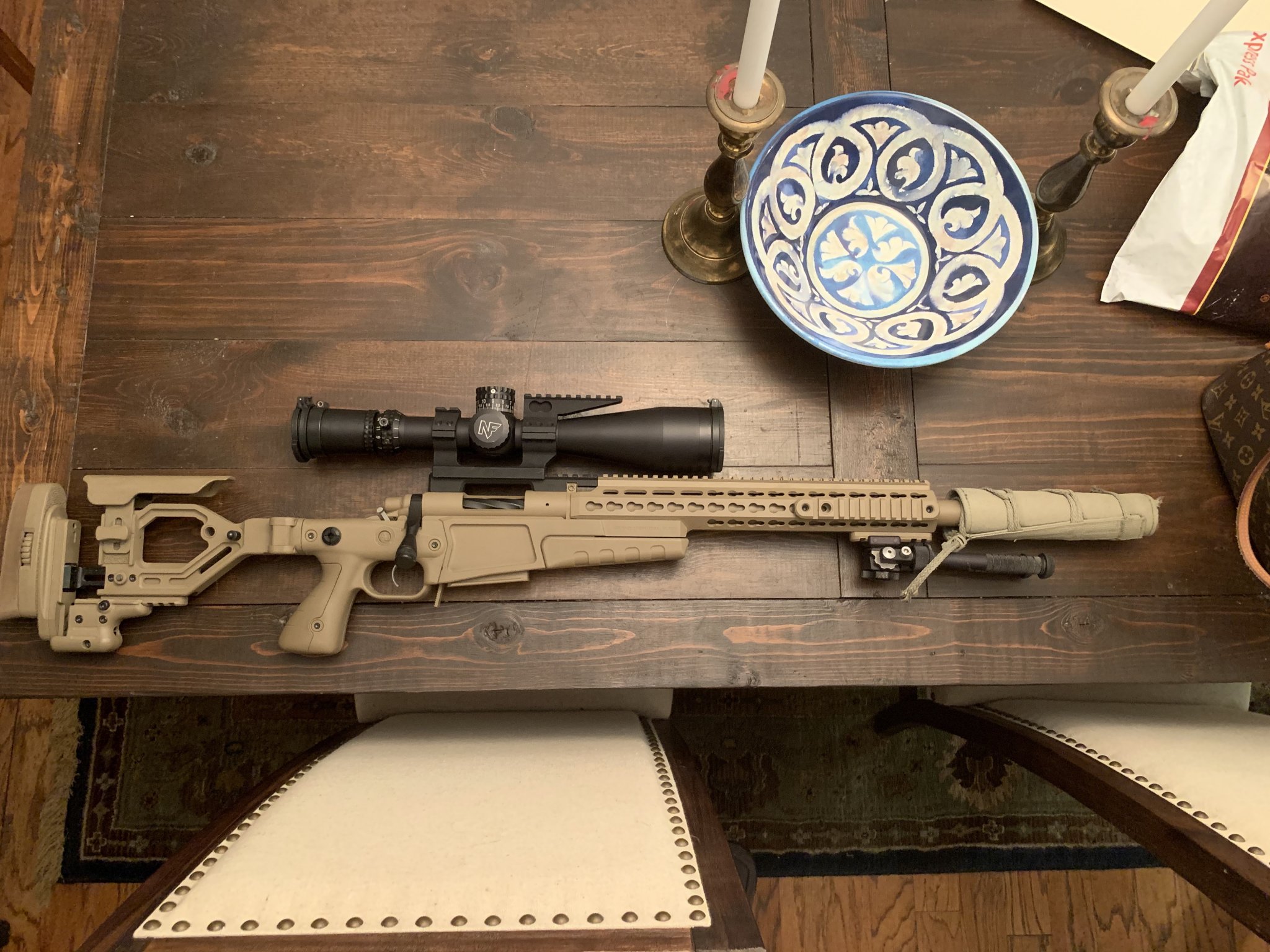

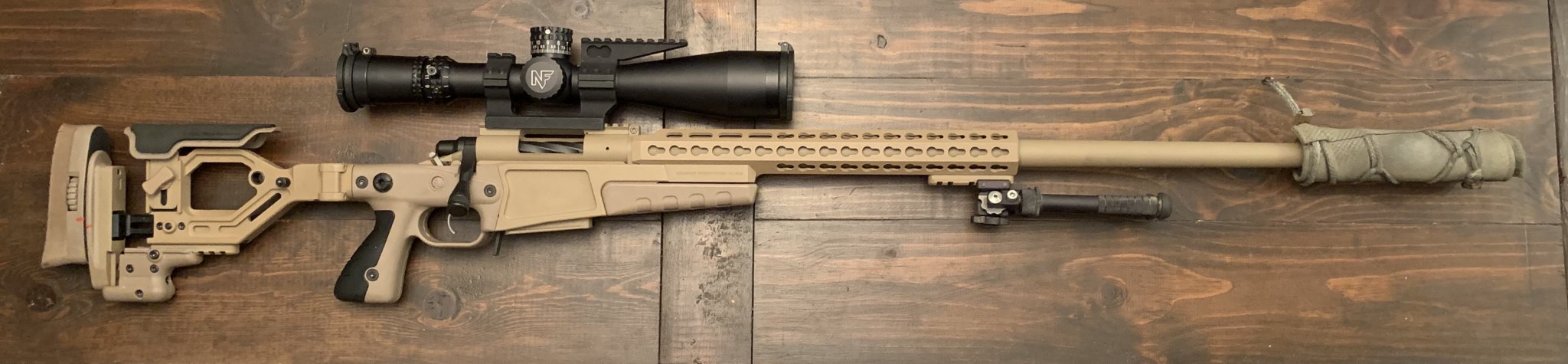

Finally all assembled.

Trued SS R700SA
PTG 1 piece fluted bolt
Surgeon scope base
WTO switch lug
Triggertech special set at 1.5lb
26” Proof Stainless 6XC barrel(pictured)
24” Proof Stainless 6.5CM barrel
16.5” Proof Stainless 6.5CM barrel
AIAX Chassis
Hoptic cheek pad
NF ATACR 5-25 Tremor 3
Larue LT845 Mount
AAC SDN6 converted to direct thread
(Surefire SOCOM 762RC pending)


Thinking of coating the entire chassis in Coyote Brown to match the Cerakote on the BA.



[steyraug]

nice



[eyekahn]

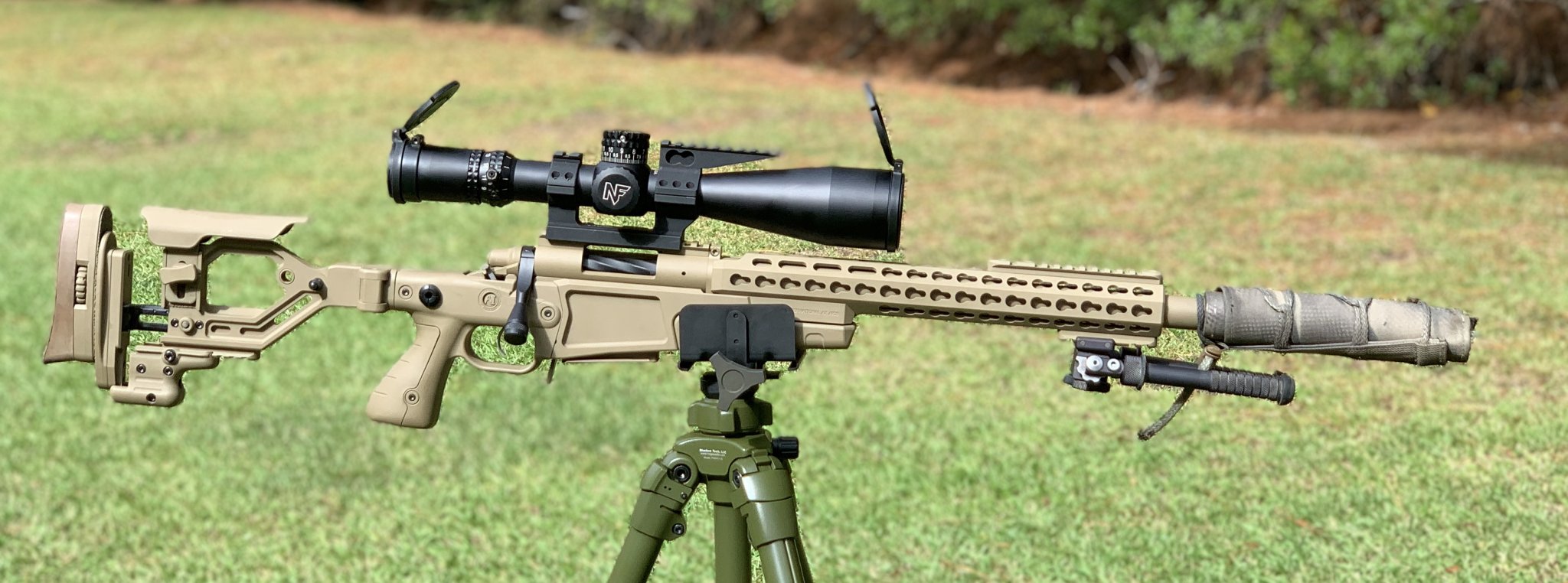

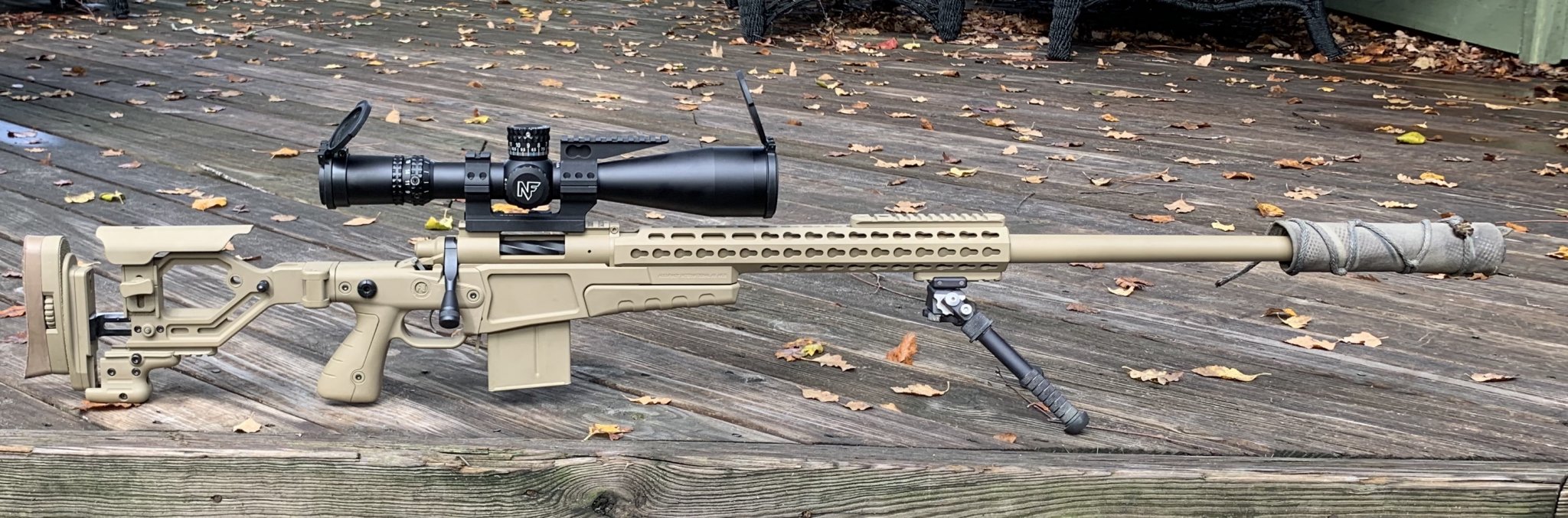

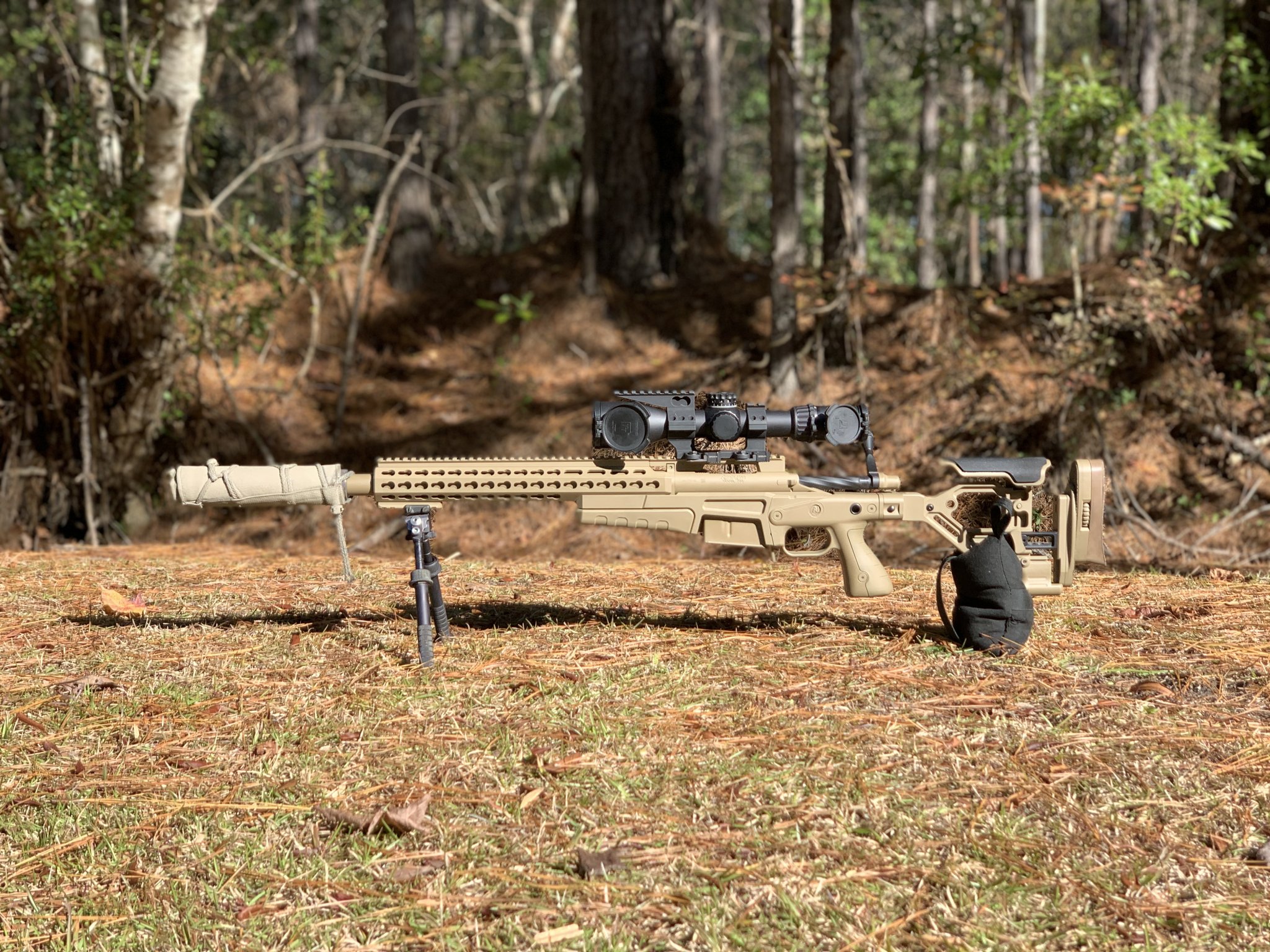

Had the chassis cerakoted coyote tan.



[eyekahn]

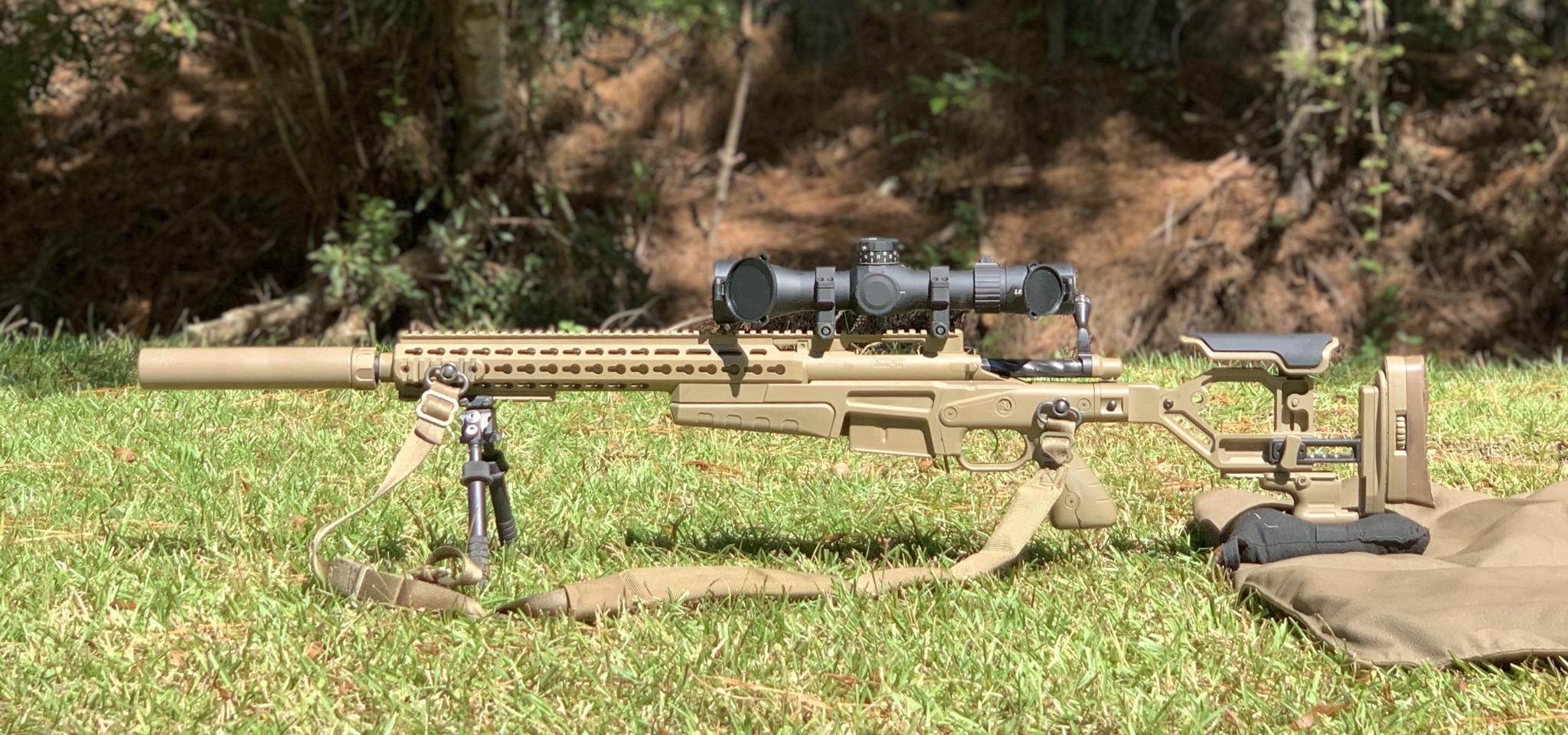

Just about got it all finished up. Got the AI scope base and top rail mounted. Had my buddy mill the scope base to clear the WTO lug. Just need to cerakote it to match and it’s all wrapped up.



[CaptainChaos51]

6.5 Cr



[eyekahn]



[eyekahn]



[Night Assassin]



[Batemanb12]

Here is my Vudoo in an AT chassis.



[eyekahn]



[Krob95]

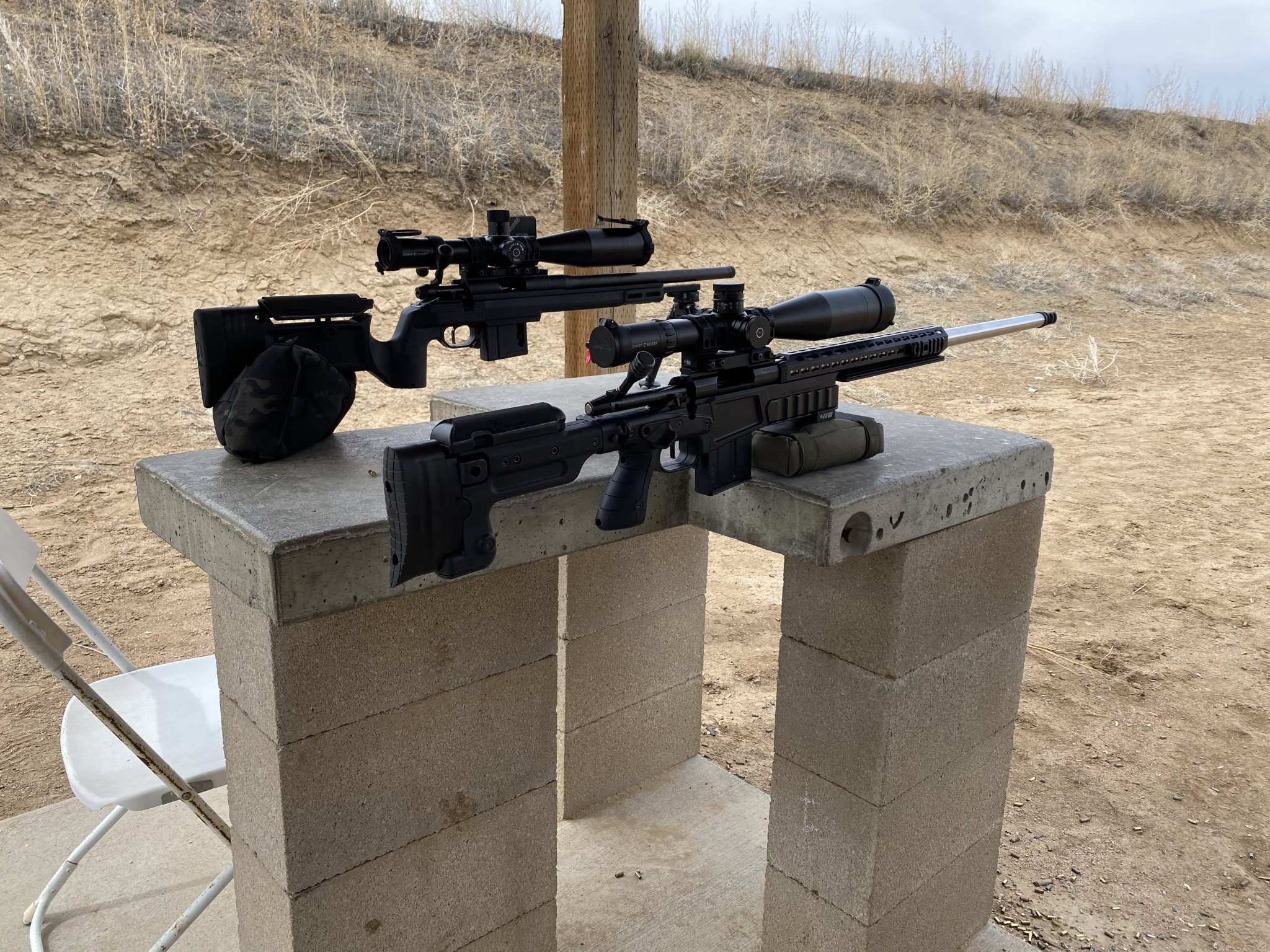

My impact 6br in my ax chassis and my
Vudoo in the same chassis before switching them around.



[03CR]

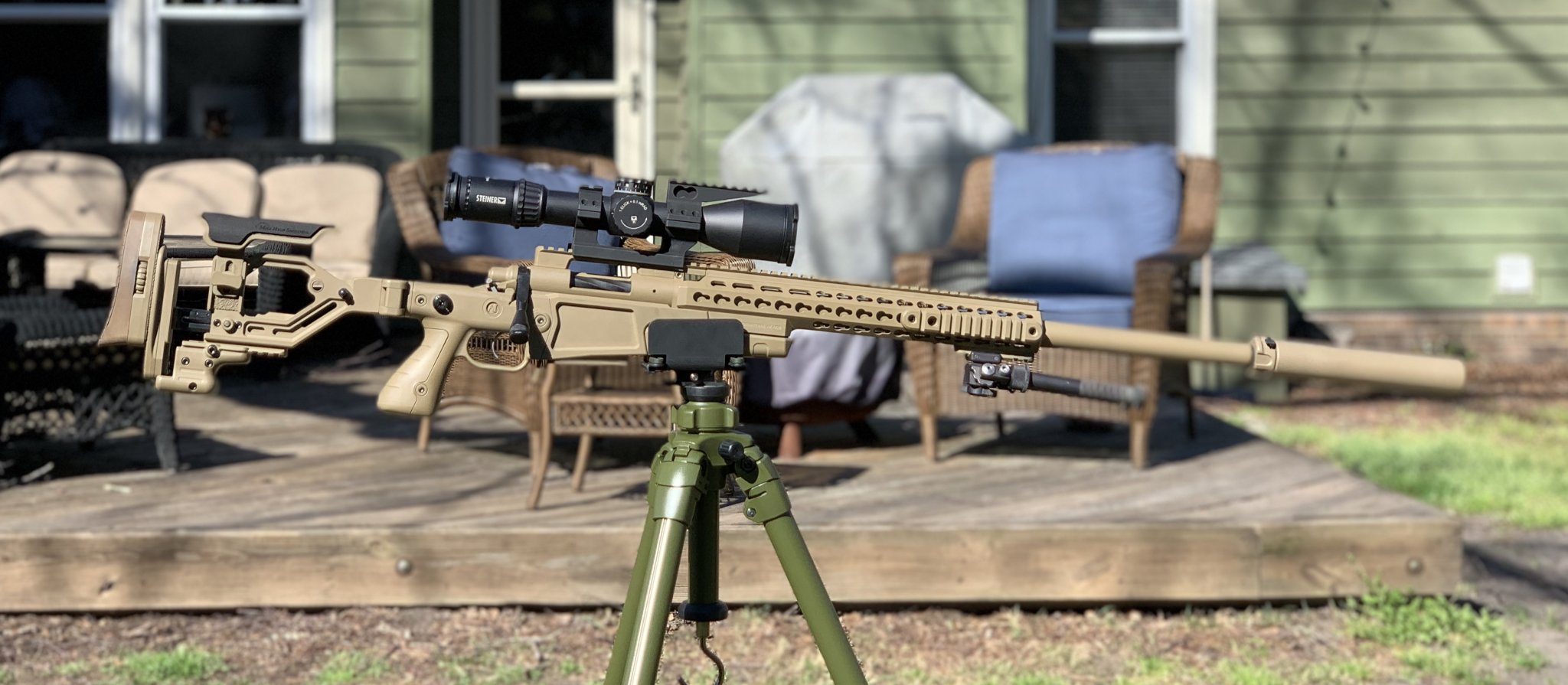

View attachment 7275992

Is that an FA762SS? @eyekahn



[Victor Co Heather]



[eyekahn]

Is that an FA762SS? @eyekahn

SOCOM762RC



[eyekahn]

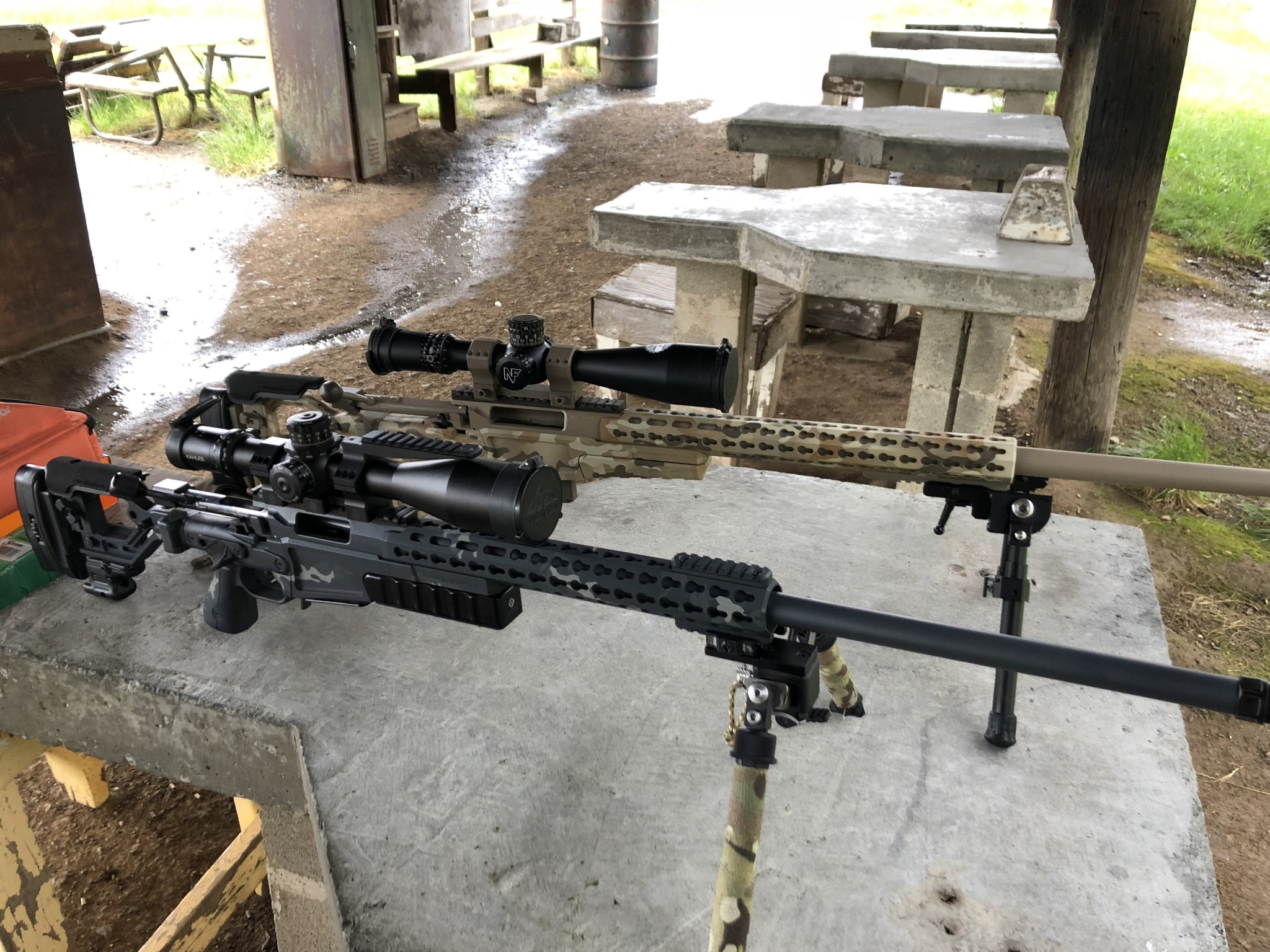

New B14R Carbon BA to train with. Waiting on AI scope base to get cerakoted to match chassis.



[Krob95]

Can someone measure their mag catch lever OAL and report back to me please? Mines been modified so I want to see what the default length is.



[Trigger Monkey]

I measured my AX chassis and to the best of my ability I'd say they're both 1.98"



[Krob95]

I measured my AX chassis and to the best of my ability I'd say they're both 1.98"

Was this from the short edge or in the middle where it’s longest?



[Trigger Monkey]

Was this from the short edge or in the middle where it’s longest?

From end to end along the center line of the lever.



[Krob95]

Thanks man! I appreciate it!



[SpookM14]



[Huskydriver]

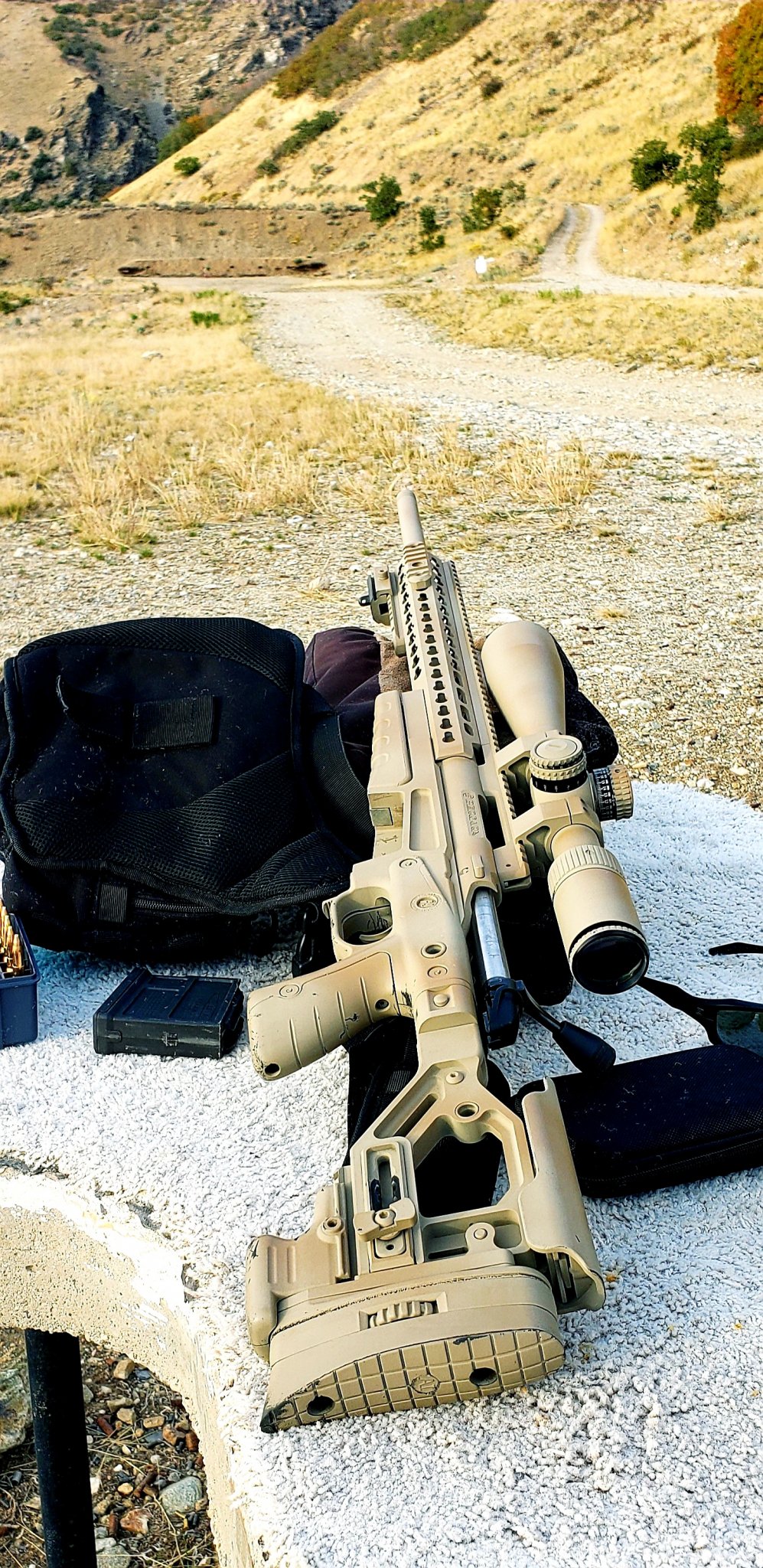

View attachment 8083139View attachment 8083139

Well that range is familiar.....



[Precision Underground]

Well that range is familiar.....

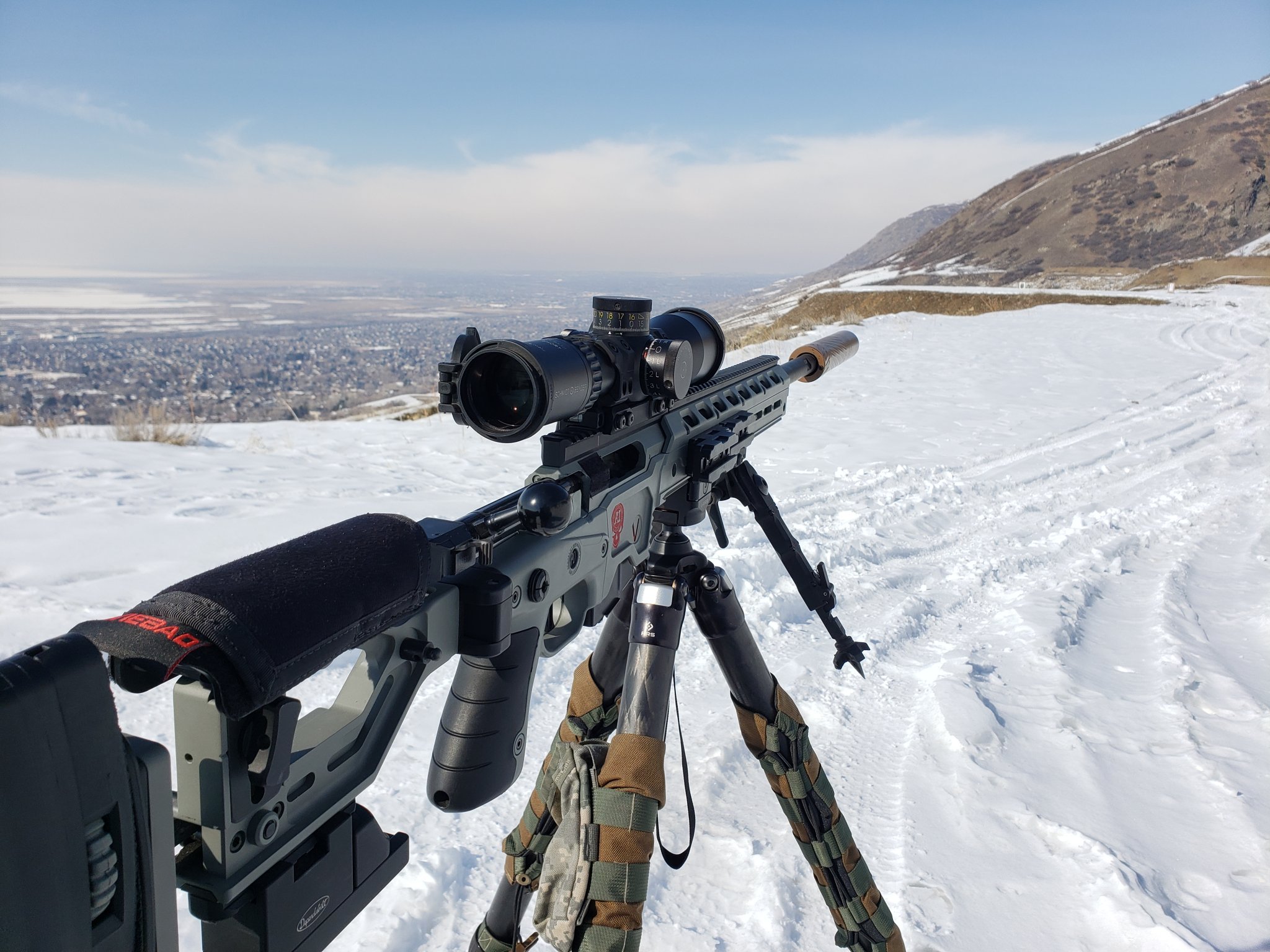

View attachment 8083169

That AI Vision is straight



[Trigger Monkey]

I had my 6.5CM out today since it's been a long while since I've shot it and it showed. Wind kicked my ass today and made me look like a chump but that's what it does I guess.

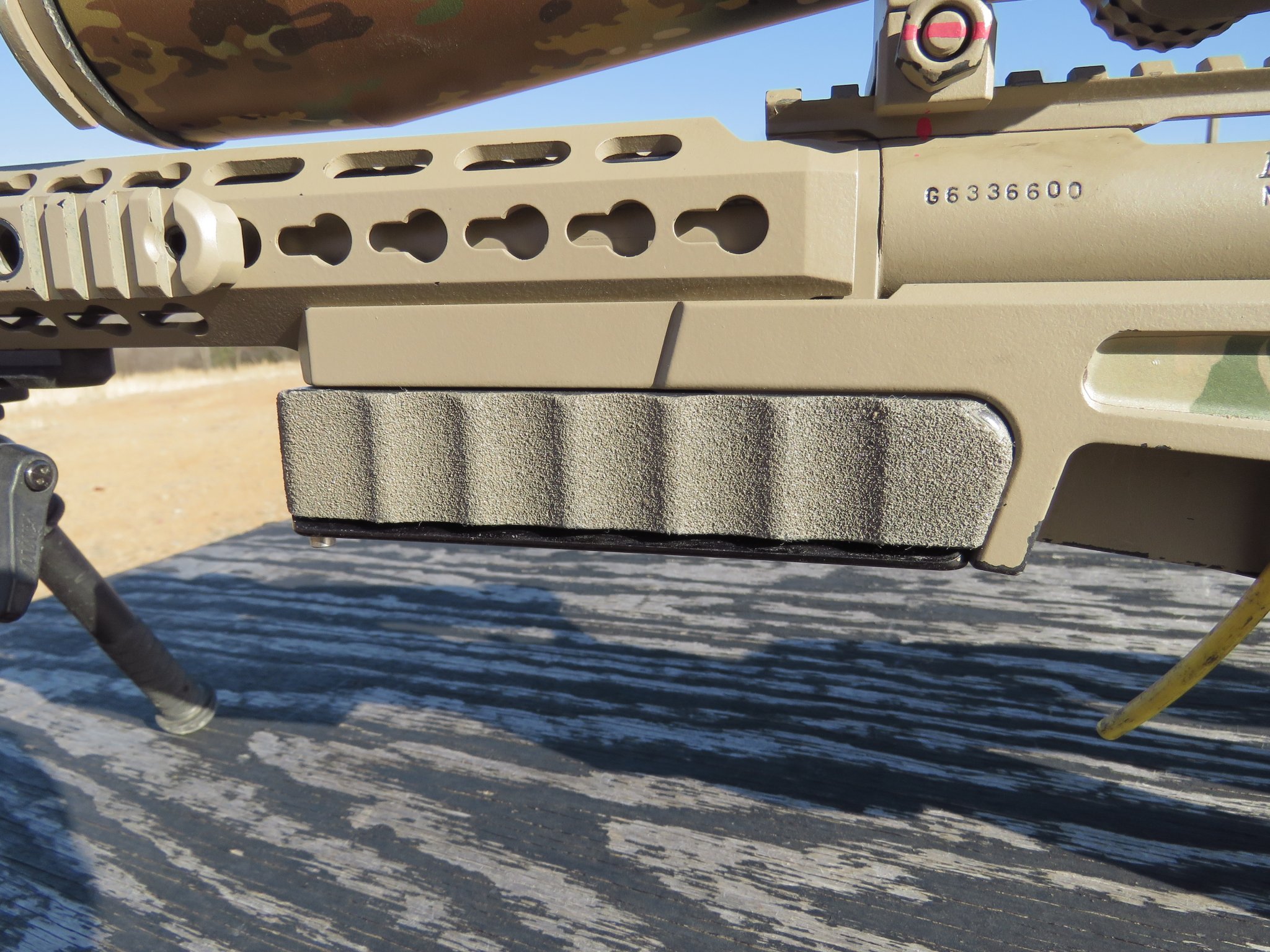

Something I've done to this one and my other AX is wrap the RRS Arca adapter with skateboard tape and then dab it with rattle can paint to color match it. Even with the paint it's quite grippy.

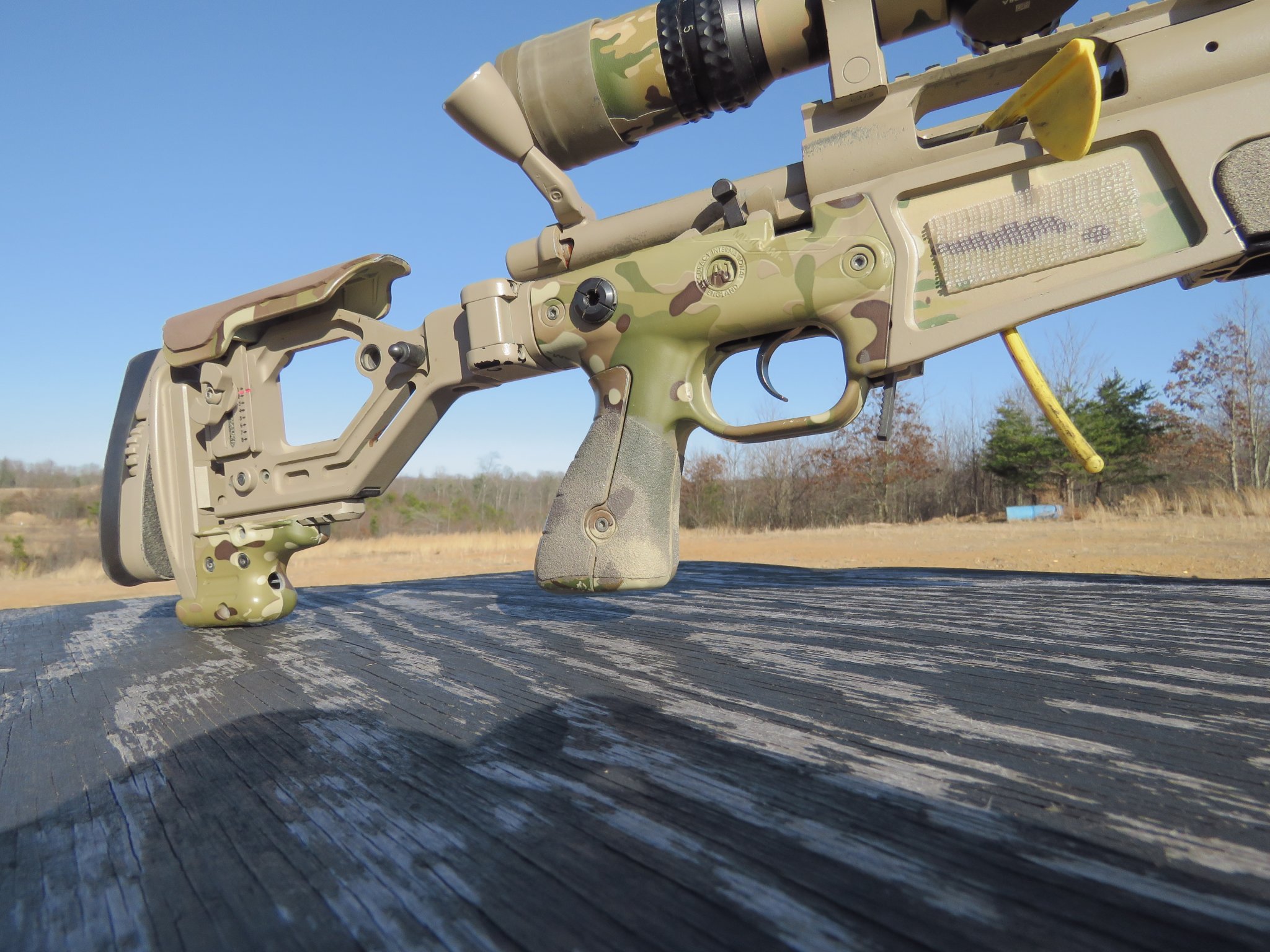

Did it to the grip too and did some arts and crafts to it so it didn't look like gray sparkly grip tape.



[ADT3]

View attachment 8083139View attachment 8083139

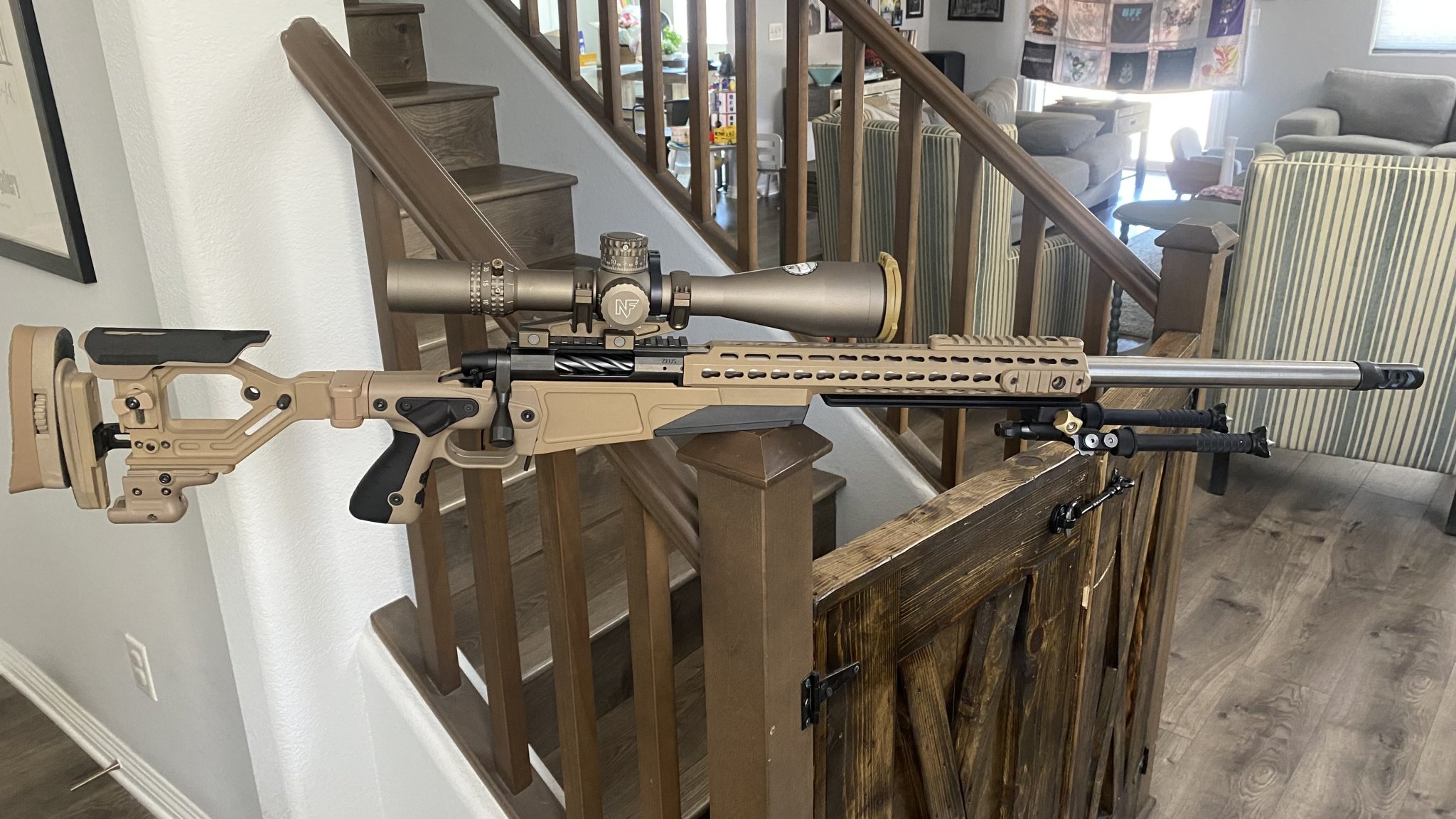

Awesome rig, do you have more pictures? Looking at a atx chassis for my BERGARA HMR. Did you need to do any modifications or was it drop in?



[SpookM14]

Awesome rig, do you have more pictures? Looking at a atx chassis for my BERGARA HMR. Did you need to do any modifications or was it drop in?

No mods at all. I torqued everything down to the propper spec and it shoots like a dream. Found the Norma 143gr shoot incredibly well.



[eyekahn]

View attachment 8083139View attachment 8083139

Beautiful rifle. Is that a gen 2 pst 5-25?



[SpookM14]

Beautiful rifle. Is that a gen 2 pst 5-25?

Yes sir. Its pretty decent glass for the price I paid for it.



[Islas82]



[Infidel4life11]



[eyekahn]
