Some context: Have a switch barrel short action MPA BA rifle in 6.5 CM, with the West Texas Ordnance SwitchLug system. I want to make full use of the barrel switching / caliber switching capabilities of the rifle system, and get a new barrel in the largest possibly 300 cal magnum cartridge that will fit in the Axiom short action. Single feeding is fine. Idea is to shoot 210 to 240 grain bullets. Yes I realize that a 300 WSM is a compromise compared to say building a new 300 Norma or a 300 RUM, and that the short action choice will cost me 200-300 fps in speed. But there are budget limitations, so want to buy only a new barrel and a new magnum bolt, and use the same MPA chassis, Curtis Axiom action, Triggertech Special trigger and the existing ATACR scope. I am trying to get an idea of what speed and therefore wind drift numbers i can expect at 1,500 yards, and how far i could stretch the distance before a heavy high BC bullet will go subsonic. My “ELR on a tight budget” project.
The latest Hornady load book predicts a rather slow 2650 fps from a 24” barrel for the 220 gn ELDM, for a multitude of powders, and none really stand out. RL26, Win 760 and N570 are not in the list.
For comparison, a 300 RSAUM, which has less case capacity, using Win 760 and driving a 220 gn bullet gets to 2700 fps from a 24” barrel, according to the Hornady load data (11’th edition). So i think their load data is rather incomplete - and perhaps a little conservative. What double base powders will do better than 2650 fps for a 220 gn?
Assuming 25 fps per inch of additional barrel length, maybe i can hope to see 2750 to 2800fps from a 28” barrel?

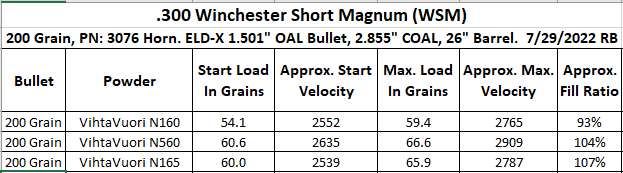

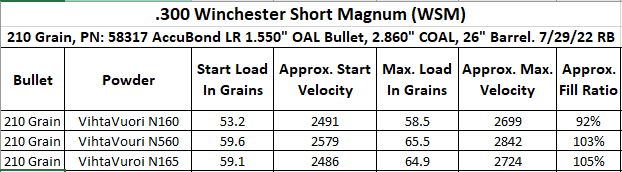

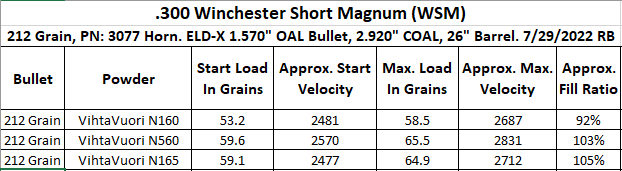

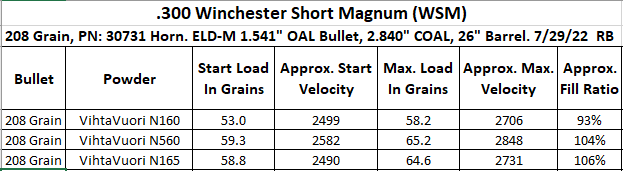

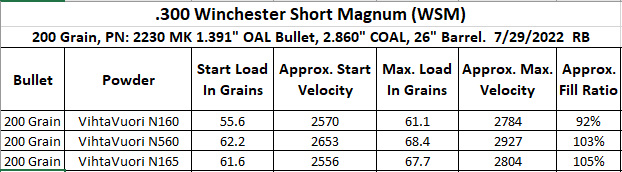

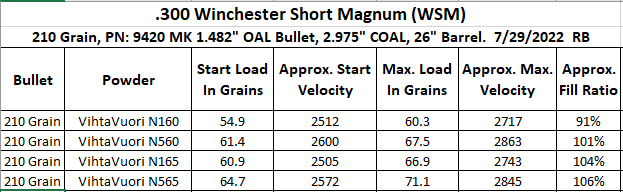

Below is load data for the 300 WSM, 24” barrel, 220 gn bullet:
The latest Hornady load book predicts a rather slow 2650 fps from a 24” barrel for the 220 gn ELDM, for a multitude of powders, and none really stand out. RL26, Win 760 and N570 are not in the list.
For comparison, a 300 RSAUM, which has less case capacity, using Win 760 and driving a 220 gn bullet gets to 2700 fps from a 24” barrel, according to the Hornady load data (11’th edition). So i think their load data is rather incomplete - and perhaps a little conservative. What double base powders will do better than 2650 fps for a 220 gn?
Assuming 25 fps per inch of additional barrel length, maybe i can hope to see 2750 to 2800fps from a 28” barrel?
Below is load data for the 300 WSM, 24” barrel, 220 gn bullet:
