For the new guys

Autonomous · Apr 19, 2020

bosurinko · Apr 29, 2020

I don't really understand what this topic is all about, can someone explain it to me?

Stir-Crazy Nomad · May 7, 2020

Wow!!! Serious FNG here (To the bolt action/Long range world). Soooo much info in just this thread. I just learned more in an hour of reading than I have in months of trying to search google and talk to other shooters and employees at my local Corporate Outdoor store. Thank you for all this info!

MilesDyson · May 18, 2020

I'm going to be reading here for the next week. Thanks for the info

TACC · May 18, 2020

Old thread resurrection, but packed with immense amounts of information and knowledge

Ratstomper · May 22, 2020

Thanks for this! Great resource .

Nowhere_001 · May 26, 2020

Incredible first read. Thanks. Really solidified that I don't know shit!

Looking forward to learning what I can about this sport.

Mr.Pool · Jun 17, 2020

So much info here. Thank you to all who contributed!

rutman308 · Jun 25, 2020

New member here, Tommy Rutter. Someone wanted to know about a marine photo from Beirut 83. I was there.

buschdog · Jul 7, 2020

Thanks for the great post and so much detailed information!

billymagg · Aug 12, 2020

Greetings from the plains of Central Obamastan, hope some of you can come on out to our "farm range", the range is cold after the new corn comes up until after harvest, lol! more importantly, the range is cold when the beef cattle happen to "walk on".

Grandpa, decided I needed to shoot my rifles last fall, and was surprised at how poorly I shot, I had a few 98 Mauser platform rifles, and a really ugly Savage 110 in 308, a 94 Winchester and a lone 5.56 AR. Anyway, my Dad's old Ford Truck, a front bag, and some cardboard, and "Bob's your Uncle"!!

To much time on my hands, and decided to get into a 308 AR, (those little bitty holes are hard to see), and I've really enjoyed it, sadly my range sessions are all solo, my old shooting buddy is too domesticated these days and can't get out to shoot, lol...

Anyway, I'm learning a lot, and after hanging out a while, I realize I've got a lot to learn, come on out, I'd like some company, just watch the cows...

Roy789 · Sep 3, 2020

Hi there, Im new here

CyBuzz · Sep 28, 2020

Wow. This is so much great information. I appreciate you taking the time to put this all together.

CyBuzz

Horseman · Oct 2, 2020

Thanks John & All,
Great info and very much appreciated!

Johnerz · Oct 21, 2020

Thanks everyone, great revision and lots of new info, a good start to my time on here

CyBuzz · Oct 21, 2020

I am more confused that ever now.

Maybe not so much confused but too much info and now cant decide what to start with. Analysis Paralysis. I though i knew what i wanted when i started shopping and now it is "for a few hundred more" and "x is so much better for the same $$"

by the time i decide i will have enough saved up for a custom.

back to reading.

Olddognewtrix · Dec 21, 2020

i feel your pain CyBuzz. By the time i finish reading all the info on this forum, I may be too old to shoot.
I think I'll spend more time on the range and read when I cant shoot

CybrSlydr · Mar 7, 2021

Appreciate this post - lots of info to digest!

Pbrown219573 · Mar 30, 2021

Ex military man who is very very interested in long range shooting. I have fired thousands of 308 rounds and just switched to the 6.5 Creedmoor Savage Axis XP II rifle. I did not have to pay my left arm and leg for a good riffle. It is a stable round that cuts down the wind drift a heck of a lot more than the 308.

Zorrosdens · Mar 30, 2021

Sounds great..welcome to Sniper’s Hide, make yourself at home

…from SC.

Bean · Apr 4, 2021

Many thanks to all who have contributed to this thread over the past years. New member here who came to this particular forum to introduce myself, but got caught up in this excellent thread instead! I'll be coming back to read here and follow links for months.

McNally.Chuck · Jun 2, 2021

Another retired Army guy, just getting started in the LR realm. I'm currently fine tuning the build I was able to cobble together. It's basically an unsurpressed M110 SASS varient, sort of...
DPMS LR308 80% lower. Magpul PRS Gen3 stock, AreoPrecision M5 complete upper 24", 1:8 twist, bbss barrel in 6.5mm Creedmoor, 3lb single stage cmc trigger, nitride BCG. I've topped it with a Vortex Diamondback Tactical, 6-24x50mm, FFP scope. I've already changed a few things, as I read and learn by trial on error.
What I really need is someone in Las Cruces, NM to help flatten our collective learning curves.
Reading through some of the newbie posts, there were a couple of long range shooters from Las Cruces also looking for training partners, over the years. With any luck, some of you have connected, learned, trained and are still reading the forums; can now help a newbie expand his knowledge.
Thanks all,
Chuck

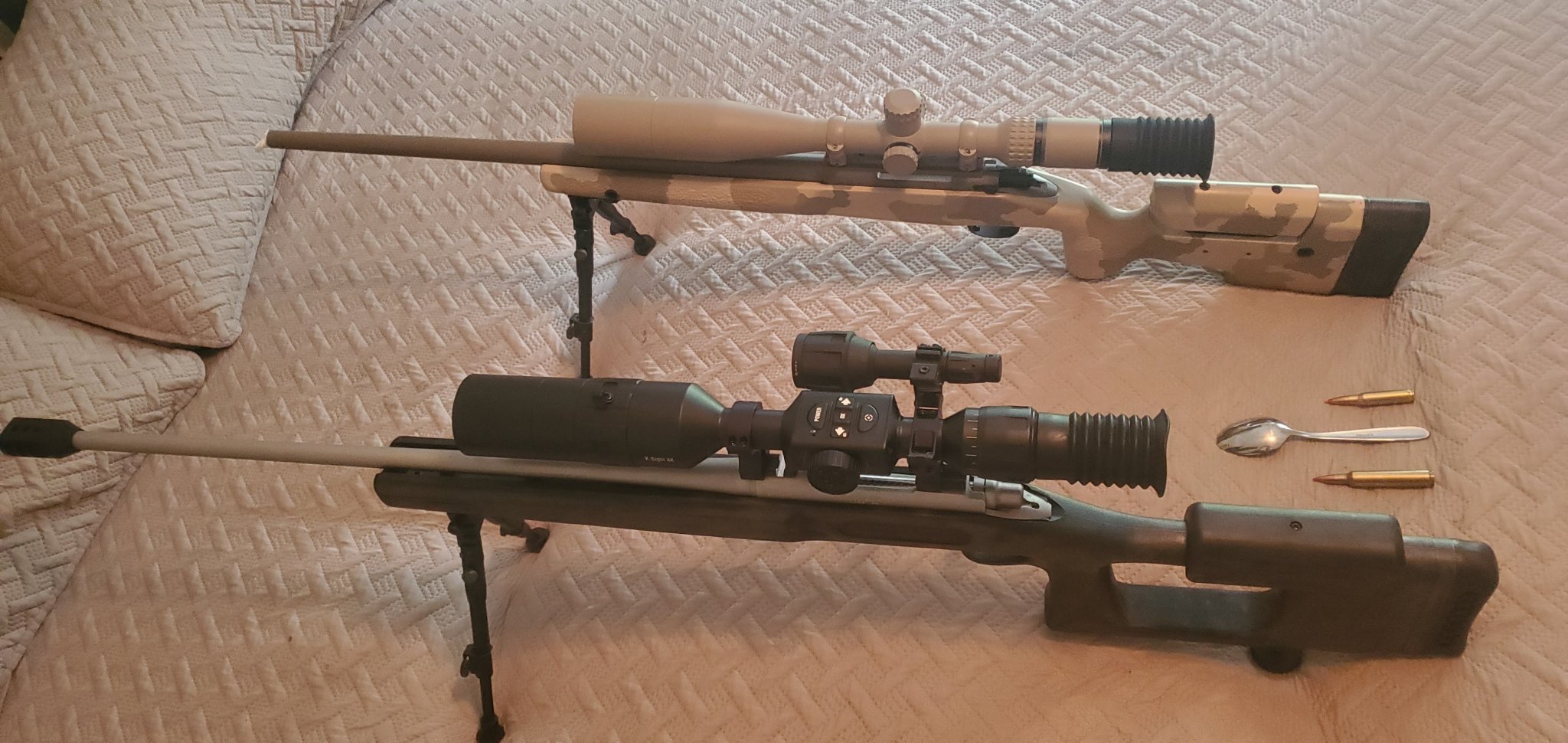

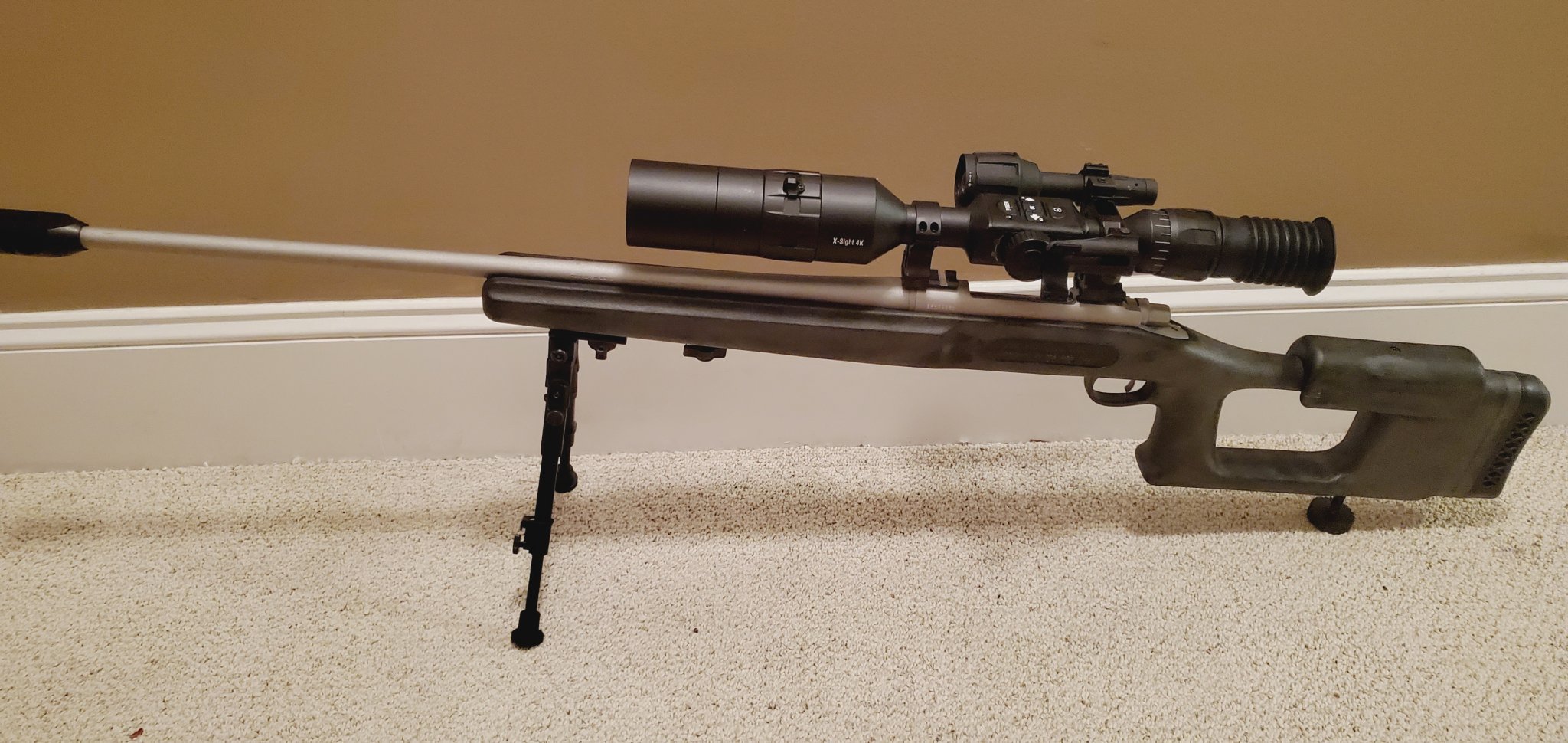

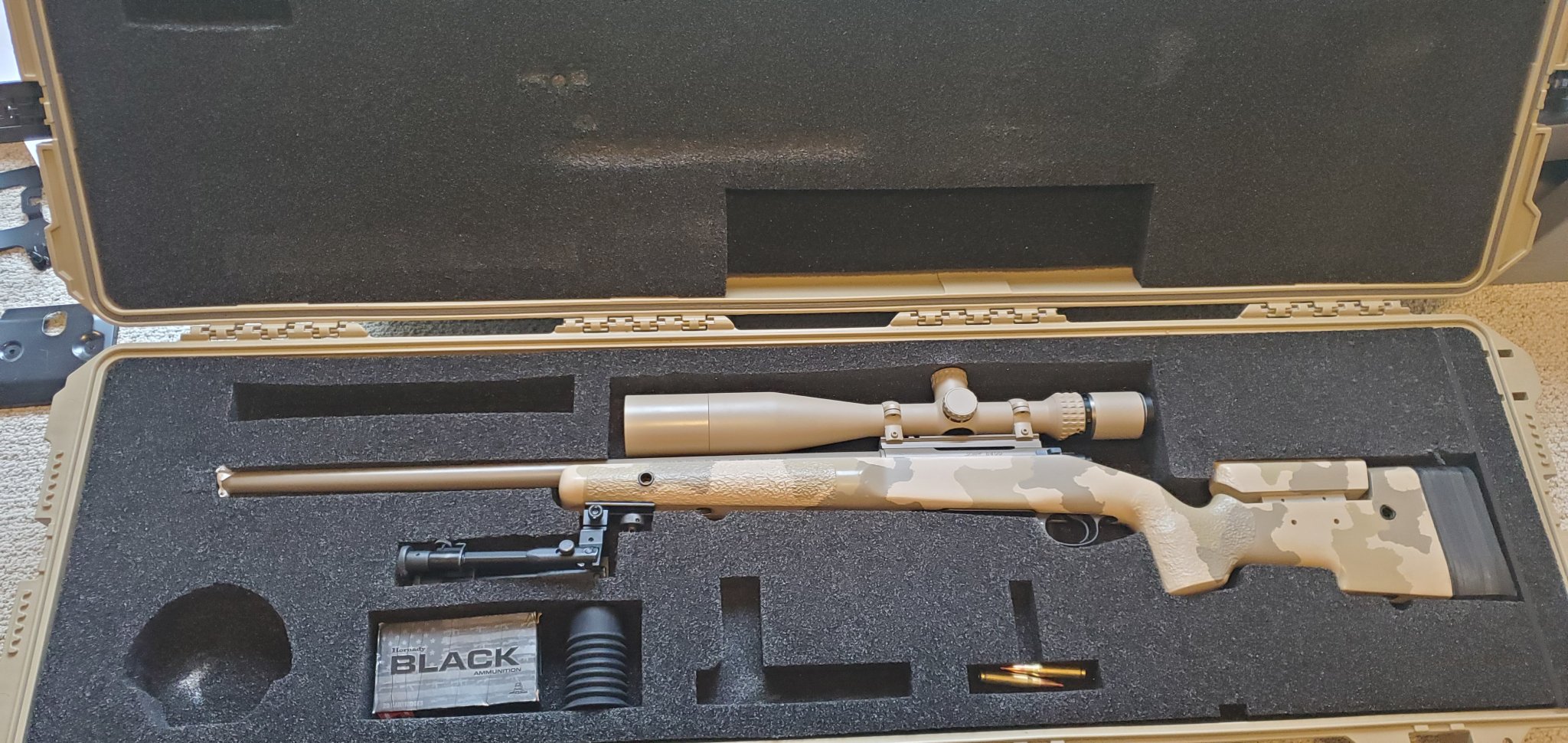

Hatch 47 · Jun 4, 2021

New guy here, retired AF (retired in '91, retired from trucking in 2014). Live in southeast Alabama, like hunting, fishing, flying, off road, motorcycles, photography, music, the usual guy things. Started reloading in 1975 while working part-time at Gun World in Austin TX. Hoping to be able to add something along the way.

MADDOG310166 · Sep 2, 2021

I'm very new here but not so new in the USA. I came over from South Africa in 2014 and I was shocked that I could buy a rifle without waiting for 6 months to first do "training" !!!!!
So to make a long story - short I invested in two rifles since then and did a bit of "upgrades" on them. Just wish I could read this before I bought my rifles.

First one I bought was a Remington 700 in .300 Ultra Magnum and bedded it to a Vermit stock, fitted a little 6" - 9" bipod and added a ATN 5-25x50 X-Sight 4K scope.

My second rifle is a Kimber 8400 Advanced Tactical in .308

with a Burris 5-25x50 scope.

IronBar · Oct 9, 2021

Above all the best rifles and tools to calculate a shooting solution - you must believe in yourself! In every competition I ever participated in I started winning only after I decided I was there to WIN and I was convinced that I would WIN. Like the Gunny said, "It's the hard heart that kills." Spend the time to program yourself to make the shot every time no matter what - you don't even need to believe what you are telling yourself - just keep telling yourself and your sub-conscious WILL pull the trigger for you.

Compadre · Oct 19, 2021

J.Boyette said:
OK old timers time to step up & help out !

AZYoungGun brought up a good point on a post in the bear pit:

So with that in mind I want to post some of the info I can think of to help out the new shooter.

I want them not to make bad buying decisions on gear, training and other stuff. So here goes my try at it.

Please add to it.

BUT DO NOT POST ANYTHING UNLESS YOU KNOW IT IS TRUE, HAVE USED IT OR KNOW IT WORKS !!!

Training:

Any local match is the best place to start. F-Class, Tactical rifle, High Power or a “Sniper Match”

Schools:

Rifles Only

BlackWater Level 1

Black Water Level 2

Black Water Level 3

McMillan Sniper School

Shooter Ready

Optics

I feel the best way to get started is to buy a used or last years modal Scope. Look at the for sale section here at SH or some of the links I list below to find good prices.

Leupold will do reticule installs for under $215 if you find a duplex scope or any other reticule you want changed out.

I did just that. I Called Leupold at 1.503.526.1400 and found out that the install price for the new TMR is $199.95 in my Leupold Tactical VARI-XIII 3.5-10x40mm 45266 Duplex scope. So I shipped off a check with the scope for $215 for the install and shipping to them. After my scope arrived I was sent an e-mail from a costumer service rep. It only took 12 days from my house and back to have the scope done.

This is not a do all list but it’s a start

Quality Brands

 Schmidt and Bender

Carl Zeiss

 USO

 Nightforce Optics

 NEW Leupold Tactical Scopes

 Premier Reticles

Sightron

Places to Buy optics

SWFA

SWFA Sample List

 Bear Basin

Stocks

McMillan

 Robertson Composites

Choate

SSS for Savage Arms Stocks ONLY

Parts

Badger Ordance

Tactical Precision Systems

 Ken Farrell

SSS for Savage Arms Parts

Tactical Gear Suppliers

 Triad Tactical

 Tactical Tailor

 High Speed Gear inc.

Out of towners

Canadians

http://oneshottactical.com/

Man that Sucked, Your turn

Basic rifle Marksmanship

CBS Definition: CBS (Cold Bore Shot) is the first shot fired for the day from your rifle through a dirty bore, or from a barrel that has been fired and allowed to cool for at least 20 minutes.

CCBS Definition: CCBS (Clean Cold Bore Shot) is the first shot fired for the day from your rifle through a CLEAN bore.

Learning how your rifle will fire its first shot from a cold and "dirty or clean" bore is especially useful to hunters and tactical shooters, who by nature will experience long time intervals between shots. To become a better marksman The CBS CCBS shot is VERY IMPORTANT to your rifle data.

basic principles of marksmanship

The purpose of any good shooting position is to support the two basic principles of marksmanship
 Sight Alignment

Sight Alignment with iron sights is centering the tip of the front sight post in the center of the rear sight aperture both vertically and horizontally, and aligning this relationship with the shooter’s dominant eye.

FM23-10 Chapter 3

Sight Alignment With telescopic sights, sight alignment is the relationship between the cross hairs (reticle) and a full field of view as seen by the sniper.

The sniper must place his head so that a full field of view fills the tube, with no dark shadows or crescents to cause inaccurate shots. He centers the reticle in a full field of view, ensuring the vertical cross hair is straight up and down so the rifle is not canted. Again, the center is easiest for the sniper to locate and allows for consistent reticle placement.

Once this alignment has taken place the shooter should maintain the same head position and head pressure. This will help build consistency from shot to shot.

SIGHT PICTURE

Sight Picture for iron sights is the placement of the tip of the front sight post in relation to the target while maintaining sight alignment.

FM23-10 Chapter 3

Sight Picture. With telescopic sights, the sight picture is the relationship between the reticle and full field of view and the target as seen by the sniper. The sniper centers the reticle in a full field of view. He then places the reticle center of the largest visible mass of the target. The center of mass of the target is easiest for the sniper to locate, and it surrounds the intended point of impact with a maximum amount of target area.

There are many different ways to introduce a target. These different views are called holds. The different holds are not incorrect; they are just an individual’s way of viewing the target/sight relationship. The shooter should experiment and use what is most comfortable to them.

Correct sight alignment and correct sight picture will result in an impact on the target as desired.
 Trigger Control is the skillful manipulation of the trigger that causes the rifle to fire without disturbing sight alignment and sight picture.

Controlling the trigger is a mental process while pulling the trigger is a mechanical process.

Three elements of a Steady position:
 Support (Artificial & Bone)
 Muscular Relaxation
 Natural Point of Aim

The most stable platform in the world is the ground. What you have to do is; transfer the stability of the ground into your position through the use of artificial and bone support

Muscular Relaxation
 If you have good support, your muscles will be relaxed
 Less muscle tension means less movement
 Comfort equals relaxed

natural point of aim:
 Where your position is naturally pointing
 Your position must be adjusted so that your natural point of aim (NPA) is aligned with the target

This is what I do. Not the only way to skin the cat!!!
 I locate the target
 Place the weapon to point at the target and get to battery.
 At this time I look though my sights and see where the weapon is aimed at.
 Now I ajust my HOLE BODY AND WEAPON till the weapon and sights are pointing at the target.
 Close my eyes; reopen my eyes and if I need to move left or right I do so.
 Once that is done. I ajust the front suport " Sling, Bi-pod, sand bag, what ever it is" till my evevation is right on.

Now my NPA is right on target.

The following is a part of a class from the AMU that I have on NPA.

ADJUSTING NATURAL POINT OF AIM

1) Natural point of aim is the point at which the rifle sights settle when bone support and muscular relaxation are achieved. When in a shooting position with proper sight alignment, the position of the tip of the front sight post will indicate the natural point of aim. When completely relaxed the tip of the front sight post should rest on the desired aiming point.

2) If the natural point of aim is above or below the desired aiming point: move your body slightly forward or back using your non-firing elbow as a pivot point.

A) Pushing your body forward causes the sights to settle lower on the target.

B) Pulling your body back causes the sights to settle higher on the target.

3) Another way to adjust height is by varying the placement of the non-firing hand in relation to the handguard.

A) Moving the non-firing hand forward lowers the muzzle of the rifle.

B) Moving the non-firing hand back raises the muzzle of the rifle.

4) Varying the placement of the buttstock in the pocket of the shoulder will raise or lower the muzzle of the rifle.

A) Moving the stock higher in the pocket of the shoulder lowers the muzzle of the target.

B) Moving the stock lower in the pocket of the shoulder will raise the muzzle of the rifle.

5) The natural point of aim can be adjusted left or right. In the prone position by adjusting the entire position left or right in relation to the target. Keep in mind that when adjusting the position that the non-firing elbow remains in the same place and is used as the pivot point.

The inverted elbow support position is not as hard as it sounds. All it is, is this:

You want the hand guard of the rifle to rest in the “V” formed by the thumb and index finger of the non-firing hand. The non-firing wrist is straight with the rifle resting across the heel of the hand. The fingers can curl against the stock, but should apply only the minimum amount of pressure needed to prevent the hand from slipping on the hand guard.

Barrel is centered over crease in palm, wrist is very close to being directly under barrel. The non-firing elbow should be positioned as close to directly underneath the rifle as possible to create bone support and a consistent resistance to recoil. The non-firing elbow must be inverted in order to obtain a good prone position.

As these pic's show me doing at the SDM Instructor course.

6 Factors of a Solid Position
 Rifle Butt
 Firing Hand
 Stock Weld
 Elbows
 Breathing

Rifle Butt:
 Place the rifle butt firmly into the pocket formed in the shoulder. This reduces the effect of recoil, helps steady the rifle, and prevents the rifle butt from slipping in the shoulder during firing. The rifle should be brought to the head when placing it in the shoulder and not the head to the rifle. The closer the butt stock is place toward the neck, the more upright and vertical the head will be.

Firing Hand
 Placed high on the grip
 Firm handshake grip
 Trigger finger should be placed naturally on the trigger
 Proper placement of the firing hand on the grip allows the trigger to be moved straight to the rear without disturbing sight alignment.

Stock Weld
 This is where your face contacts the stock
 Head should be vertical and upright
 Consistent from shot to shot
 Purpose is to achieve proper achieve eye-sight alignment
 Look for excess skin forming a roll

Elbows
 The non-firing elbow should be positioned as close to directly underneath the rifle as possible to create bone support and a consistent resistance to recoil. The non-firing elbow must be inverted in order to obtain a good prone position.
 The firing elbow should be positioned naturally to provide balance to the position and create a pocket in the shoulder for the rifle butt

Breathing
 Breathing causes movement of the chest and a corresponding movement in the rifle and sights. To minimize this movement and the effect it has on your aim, learn to control your breathing and extend your natural respiratory pause for a few seconds during the final aiming and firing process. Do not extend your natural respiratory pause for an uncomfortable period. This can cause blurry vision and will decrease your ability to deliver well-aimed shots.

EFFECTS OF LIGHT

Light does not affect the trajectory of the bullet; however, it does affect the way the shooter sees the target through the scope. This effect can be compared to the refraction (bending) of light through a medium, such as a prism or a fish bowl. The same effect, although not as drastic, can be observed on a day with high humidity and with sunlight from high angles. The only way the sniper can adjust for this effect is to refer to past firing recorded in the rifle data book. He or she can then compare different light and humidity conditions and their effect on marksmanship. Light may also affect firing on unknown distance ranges since it affects range determination capabilities.

EFFECTS OF TEMPERATURE

Temperature affects the firer, ammunition, and density of the air. When ammunition sits in direct sunlight, the bum rate of powder is increased, resulting in greater muzzle velocity and higher impact. The greatest effect is on the density of the air. As the temperature rises, the air density is lowered. Since there is less resistance, velocity increases and once again the point of impact rise. This is in relation to the temperature at which the rifle was zeroed, if the shooter zeros at 50 degrees
and he is now firing at 90 degrees, the point of impact rises considerably. How high it rises is best determined once again by past firing recorded in the rifles data book. The general role, however, is that when the rifle is zeroed, a 20-degree increase in temperature will raise the point of impact by one minute; conversely, a 20-degree decrease will drop the point of impact by one minute.
EFFECTS OF HUMIDITY By Greg Langelius

As long as the humidity is in vapor form (oxygen and hydrogen molecules) it displaces air of a higher mass (oxygen and nitrogen, nearly in total), thereby decreasing overall density, and therefore offering reduced air resistance. The projectile covers the overall distance in less time, resulting in less drop. Drop is a factor of time-of-flight, period. Reduce the time, you also reduce the drop.

Therefore as humidity increases, POI is higher, and as it is reduced, POI is lower.

Now then, lest we get carried away with this, let us also recognize that the effect of humidity is actually pretty slight. I would suggest that a rough estimate of the overall difference between 0% humidity and 100% humidity would probably account for less than 1 MOA difference in drop at 1Kyd.

RANGE ESTIMATION METHODS

100-Yard / Meter-Unit-of-Measure Method. To use this methodThe shooter must be able to visualize a distance of 100 yards / meters on the ground. For ranges up to 500 yards / meters the shooter determines the number of 100-meter increments between the two objects it wishes to measure. Beyond 500 yards / meters, it must select a point halfway to the object and determine the number of 100-meter increments to the halfway point, then double it to find the range to the object.

Appearance-of-Object Method. This method is a means of determining range by the size and other characteristic details of the object. To use the appearance-of-object method with any degree of accuracy, the Shooter must be familiar with the characteristic details of the objects
as they appear at various ranges.

Range-Card Method. The shooter uses a range card to quickly determine ranges throughout the target area. Once the target is seen, the shooter determines where it is located on the card and then reads the proper range to the target. Also you can label your targets as "TRP" Target Reference Point.

Combination Method. Some times only one method of range estimation may not be enough for a shooter. Terrain with much dead space limits the accuracy of the 100-yard / meter method. Poor visibility limits the use of the appearance-of-object method. However, by using a combination of two or more methods to determine an unknown range, an experienced shooter should arrive at an estimated range close to the true range.

What the Mil-dot is and how it works

A milliradian is a unit of measure derived from the degrees of a circle.

(Note: in a 360 degree circle, there are 6283.2 milliradians, or 17.45 milliradians per degree.)

This means that a milliradian will subtend different distances at different ranges. For example:

The subtension of 1 mil equals 3.6 inches at 100 yards or 36 inches at 1,000 yards. In metric units, the correspondence is 1 mil equals 10 centimeters at 100 meters or 1 meter at 1,000 meters.

Knowing this subtension and knowing the size of the target (or a reference object near the target) allows the distance to the target to be estimated with considerable accuracy.

Mil-Relation Formula.

The mil-relation formula is the preferred method of range estimation. This method uses a mil-scale reticule located in binoculars, spotting scopes or rifle scopes with a Mil-dot recital. The shooter must know the target size in inches yards or meters. Once the target size is known, the team then compares the target size to the mil-scale reticule and uses the following formula:

Size of target in yards x 1,000 / Size of target in MIL's = range in yds

Size of target in inches x 27.778 / Size of target in MIL's = range in yds

Size of target in inches x 25.4 / Size of target in MIL's = range in meters

MIL-DOT HOLD OVERS AND UNDERS

MOA data / 3.438 = mil hold over/under

This is how you do it in steps:
1. Shoot your dope to ranges you will use your rifle at. Record your dope in MOA.
2. Pick a range as the set constant on the scope.
3. follow this conversion to get hold unders.
4. Follow this conversion th get hold overs

EXAMPLE MOA

Step 1.
100yds ZERO
150yds .75 MOA
200yds 1.75 MOA
250yds 3.50 MOA
300yds 4.25 MOA
350yds 5.75 MOA
400yds 7.25 MOA
450yds 8.50 MOA
500yds 10.75 MOA
550yds 12.25 MOA
600yds 14.00 MOA
700yds 18.00MOA

Step 2.
I WILL USE: 500yds as my set constant on the scope.

Step 3.
500yd MOA - 450yd MOA = MOA between 500 yds and 450yds / 3.438 = Mil-dot hold under

10.75- 8.50= 2.25 MOA

2.25MOA / 3.438= .65 Mil-dot Hold under

So if I want to shoot the 450yd target with 500yds dialed in the scope. All I need to do is hold .65 mills under and I will hit the 450yd target.

Step 4.
550yd MOA - 500yd MOA = MOA between 550 yds and 500yds / 3.438 = Mil-dot hold over

12.25 - 10.75 = 1.5 MOA

1.5MOA / 3.438 = .43 Mil-dot hold over

ANGLE FIRING from FM 23-10

3-11. ANGLE FIRING
Most practice firing conducted by the sniper team involves the use of military range facilities, which are relatively flat. However, as a sniper being deployed to other regions of the world, the chance exists for operating in a mountainous or urban environment. This requires target engagements at higher and lower elevations. Unless the sniper takes corrective action, bullet impact will be above the point of aim. How high the bullet hits is determined by the range and angle to the target (Table 3-3). The amount of elevation change applied to the telescope of the rifle for angle firing is known as slope dope.

FM 23-10 Chapter 3

Section III
EFFECTS OF WEATHER

For the highly trained sniper, the effects of weather are the main causes of error in the strike of the bullet. Wind, mirage, light, temperature, and humidity affect the bullet, the sniper, or both. Some effects are minor; however, sniping is often done in extremes of weather and all effects must be considered.

3-12. WIND CLASSIFICATION

Wind poses the biggest problem for the sniper. The effect that wind has on the bullet increases with range. This is due mainly to the slowing of the bullet's velocity combined with a longer flight time. This allows the wind to have a greater effect on the round as distances increase. The result is a loss of stability.

a. Wind also has a considerable effect on the sniper. The stronger the wind, the more difficult it is for him to hold the rifle steady. This can be partly offset by training, conditioning and the use of supported positions.

b. Since the sniper must know how much effect the wind will have on the bullet, he must be able to classify the wind. The best method is to use the clock system (Figure 3-19). With the sniper at the center of the clock and the target at 12 o'clock, the wind is assigned three values: full, half, and no value. Full value means that the force of the wind will have a full effect on the flight of the bullet. These winds come from 3 and 9 o'clock. Half value means that a wind at the same speed, but from 1,2,4,5,7,8, 10, and 11 o'clock, will move the bullet only half as much as a full-value wind. No value means that a wind from 6 or 12 o'clock will have little or no effect on the flight of the bullet.

3-13. WIND VELOCITY

Before adjusting the sight to compensate for wind, the sniper must determine wind direction and velocity. He may use certain indicators to accomplish this. These are range flags, smoke, trees, grass, rain, and the sense of feel. However, the preferred method of determining wind direction and velocity is reading mirage (see paragraph d below). In most cases, wind direction can be determined simply by observing the indicators.

a. A common method of estimating the velocity of the wind during training is to watch the range flag (Figure 3-20). The sniper determines the angle between the flag and pole, in degrees, then divides by the constant number 4. The result gives the approximate velocity in miles per hour.

b. If no flag is visible, the sniper holds a piece of paper, grass, cotton, or some other light material at shoulder level, then drops it. He then points directly at the spot where it lands and divides the angle between his body and arm by the constant number 4. This gives him the approximate wind velocity in miles per hour.

c. If these methods cannot be used, the following information is helpful in determining velocity. Winds under 3 miles per hour can barely be felt, although smoke will drift. A 3- to 5-mile-per-hour wind can barely be felt on the face. With a 5- to 8-mile-per-hour wind, the leaves in the trees are in constant motion, and with a 12- to 15-mile-per-hour wind, small trees begin to sway.

d. A mirage is a reflection of the heat through layers of air at different temperatures and density as seen on a warm day (Figure 3-21). With the telescope, the sniper can see a mirage as long as there is a difference in ground and air temperatures. Proper reading of the mirage enables the sniper to estimate wind speed and direction with a high degree of accuracy. The sniper uses the M49 observation telescope to read the mirage. Since the wind nearest to midrange has the greatest effect on the bullet, he tries to determine velocity at that point. He can do this in one of two ways:

(1) He focuses on an object at midrange, then places the scope back onto the target without readjusting the focus.

(2) He can also focus on the target, then back off the focus one-quarter turn counterclockwise. This makes the target appear fuzzy, but the mirage will be clear.

e. As observed through the telescope, the mirage appears to move with the same velocity as the wind, except when blowing straight into or away from the scope. Then, the mirage gives the appearance of moving straight upward with no lateral movement. This is called a boiling mirage. A boiling mirage may also be seen when the wind is constantly changing direction. For example, a full-value wind blowing from 9 o'clock to 3 o'clock suddenly changes direction. The mirage will appear to stop moving from left to right and present a boiling appearance. When this occurs, the inexperienced observer directs the sniper to fire with the "0" wind. As the sniper fires, the wind begins blowing from 3 o'clock to 9 o'clock, causing the bullet to miss the target therefore, firing in a "boil" can hamper shot placement. Unless there is a no-value wind, the sniper must wait until the boil disappears. In general, changes in the velocity of the wind, up to about 12 miles per hour, can be readily determined by observing the mirage. Beyond that speed, the movement of the mirage is too fast for detection of minor changes.

3-14. CONVERSION OF WIND VELOCITY TO MINUTES OF ANGLE

All telescopic sights have windage adjustments that are graduated in minutes of angle or fractions thereof. A minute of angle is 1/60th of a degree (Figure 3-22). This equals about 1 inch (1.145 inches) for every 100 meters.

EXAMPLE

1 MOA = 2 inches at 200 meters
1 MOA = 5 inches at 500 meters

a. Snipers use minutes of angle (Figure 3-22) to determine and adjust the elevation and windage needed on the weapon's scope. After finding the wind direction and velocity in miles per hour, the sniper must then convert it into minutes of angle, using the wind formula as a rule of thumb only. The wind formula is--

If the target is 700 meters away and the wind velocity is 10 mph, the formula is--

This determines the number of minutes for a full-value wind. For a half-value wind, the 5.38 would be divided in half.

b. The observer makes his own adjustment estimations, then compares them to the wind conversion table, which can be a valuable training tool. He must not rely on this table; if it is lost, his ability to perform the mission could be severely hampered. Until the observer gains skill in estimating wind speed and computing sight changes, he may refer to Table 3-4.

John

thanks john this was really helpful

Capitata Malleus · Nov 2, 2021

I just want to say--- A great big THANKS to Gunny Boyette! While I'm not a new or "younger guy" anymore, I've had some years of shooting experience, on and off unfortunately, and your intro here was a great primer for not only new young guys, but for us just "gettin' back into shootin' again," older guys, like myself, who've deprived ourselves of our love of shooting, for whatever reasons--- for too darn long!

Retired now, living in northern AZ, and my aim is to return to regular range visits, with friends, and with my varied collection of firearms, acquired over my years as a slave to The Almighty Dollar. Looking forward to meeting some of you fine folks here--- online or otherwise~! ciao~!

druid628 · Nov 22, 2021

Lurker coming out of the shadows here.
Been around for a while just reading and learning but finally ready to participate.
Just wanted to stick my head up and say hello.

valsport · Feb 6, 2022

Great read this thread was thank you

John Stones · Jul 27, 2022

New guy
It feels good to be here. Thanks

TRG 42 · Aug 6, 2022

Hey all,

New guy to the hide, shooting from Las Vegas and looking forward to seeing what everyone is up to in LR and ELR.

Cheers!

Capitata Malleus · Aug 10, 2022

This thread is just awesome!

Strangely, I've only shot a scoped rifle like twice in my entire life. But then I'm an old guy, (aka old school) Been shooting since before my time in the military (1973) and own a handful of WWI/WWII bolt action rifles. Also own a few 5.56 and 7.62x39 semi-autos too, plus M1 Garand.

Oddly, in the early days of the CMP M1 Garand buying hysteria, I was a terror of CMP qualifying matches--- shooting strictly iron sites--- REAL 300 yds--- no scope--- and have placed as high as Second overall. Also reloaded for my old Mk4 British Enfield .303 and can easily put ten rounds inside a 10-inch circle at REAL 400 yds. No tack driver, but military-grade kill-zone accurate. Love old rifles.

What's my point? I am here now to learn more about the mystical art of REAL long range shooting w/scoped, bolt rifle, and this site looks to be a treasure trove of info therein.

After a year of studying this subject, and reading on this site, I recently purchased a slightly used Remington 700 XCR Tactical .308 and am in the process of scoping the rifle myself. Taking my time. So much useful info here has helped me in this project and am grateful for the many contributors and tutorials like this one.

Thanks for a great site and for bringing together younger and the older shooters. Keep up this good and noble work!

Old Wrench 62 · Apr 15, 2023

Hello everyone, I want to thank the moderators and members for sharing the wealth of experience, opinion and information found on this site. New to the sport of target shooting, long time hunter, I am looking to build or purchase a rifle. I enjoy reading and finding answers to my questions. Thanks again for this great resource.

Steelpython · Apr 16, 2023

Hello, I just wanted to say thank you for the opportunity to participate in the forum! I’m wanting to learn more about precision shooting and loadin the right loads for my firearms. I am open to any advice or suggestions! Thank you again!

Prophet1975 · Jun 11, 2023

New to this account. Look forward to sharing and gaining info.

TexasRedcoat · Jul 16, 2023

New member from the UK living in Texas for the last 7 years. Ex British Army.
Great to be here hope to learn a bunch and happy to help anyone that needs it.

Bern199 · Jul 25, 2023

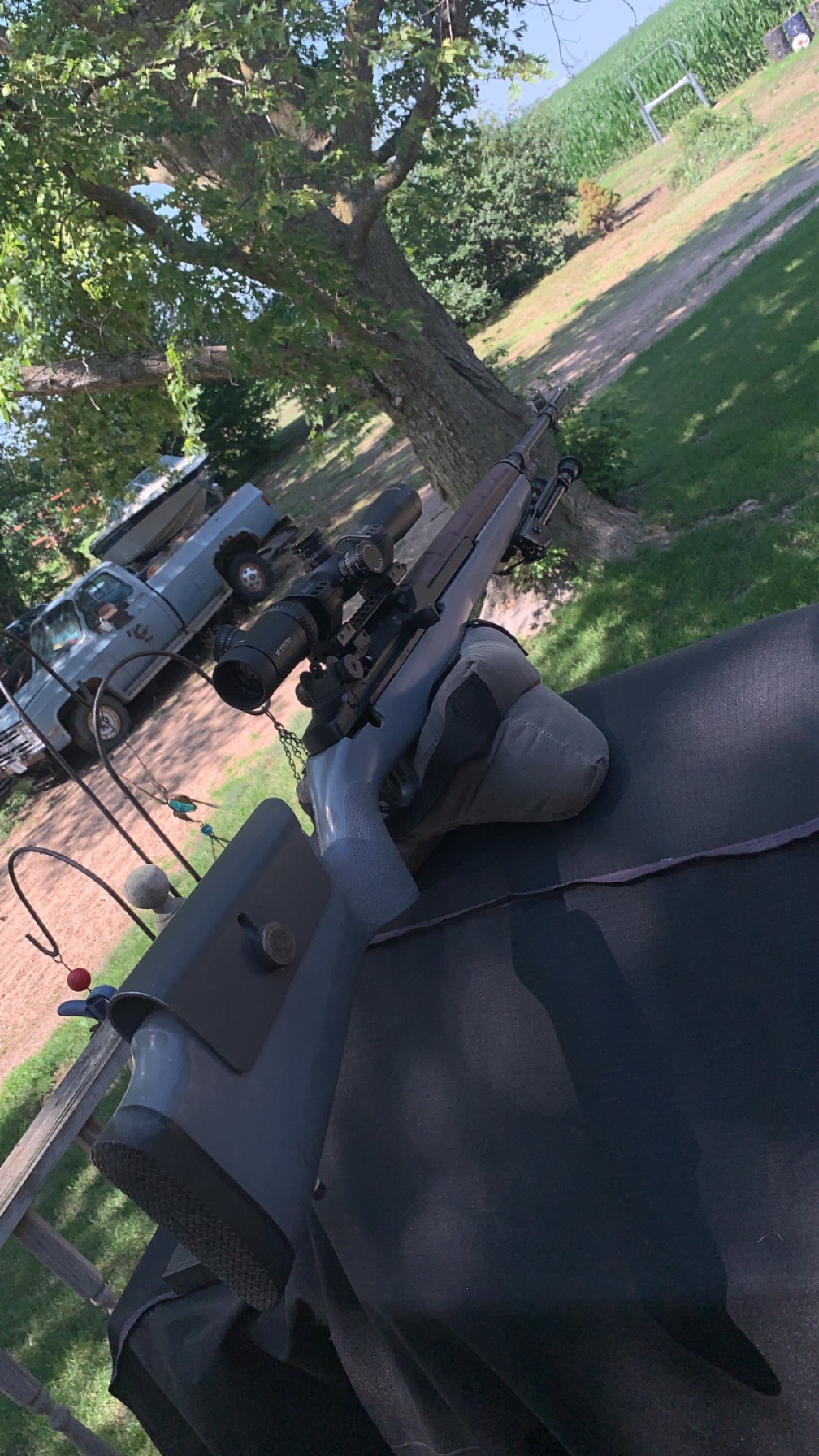

New guy here from the middle of the corn fields of Nebraska. Looking forward to some great information about firearms and load data

Johnny Díaz · Aug 3, 2023

Howdy from San Antonio, Tx! Thanks for allowing me to learn and converse with y'all. I'm VERY new to sniping / long range shooting. I'm a 24yr military veteran and currently police officer who's going to attend sniper school in the end of September. Nothing was really put out in regards to equipment needed and things you should learn prior to the course except a rifle, scope, range finder, and spotter scope. I don't know what's good at a reasonable price. Can anybody give me some ideas on what to buy and study? Thus far all I have is a Remington 700 (7.62x51) without a scope. Any help would be greatly appreciated!

Elkin41 · Aug 7, 2023

I live in the great state of Wyoming and love to shoot. I really enjoy taking in all the good info on this site. In the process of building a rifle on a Zermatt Origin receiver. First bolt gun build for me. I have built a few AR's in the past

Zagros_Partizan · Aug 22, 2023

Hi!

I'm just now returning to the US after doing sniper-role work in a US-adjacent foreign military. My experience so far has mostly been with soviet style equipment, so I'm excited to be back and pick up some more modern and precise stuff. Cant say I care as much about a lot of the technical stuff, but I love shooting.

wilsonPdilson · Aug 25, 2023

Not sure if this is the right place for this or not but I need some advice, Iv been here for a while, but haven't done much, bought a few things and looked at a lot, I want to post a for sale but can't figure out how, any help?

Cpaul · Sep 27, 2023

Hello, from Indiana.

Cpaul · Sep 27, 2023

Anyone know how to provide creds and gain access to the private LEO threads?

Excessforce · Sep 30, 2023

Hello , Wayne here from Central Pa . Thank you for allowing the sign up to site . Looking to learn and read about long range shooting and improving my shooting in all areas . Nice to meet everyone.

SportShooterMike · Oct 21, 2023

Hi guys/gals. Mike from Indiana.
Longtime shooter, but only pistols. I have just started to get into the rifle scene. I am hooked already.
I hope to learn ton of info from here.
I am interested in semi long distance shooting. Less than 1000 yards.

sarge133 · Oct 21, 2023

Hello from lower Michigan! I'm new to long range shooting, only had access to a 50 yard range most of my life. Now looking to increase my skills out to 1000 hopefully. Currently only have access to 300-500 yard range.

BigRich16051 · Nov 19, 2023

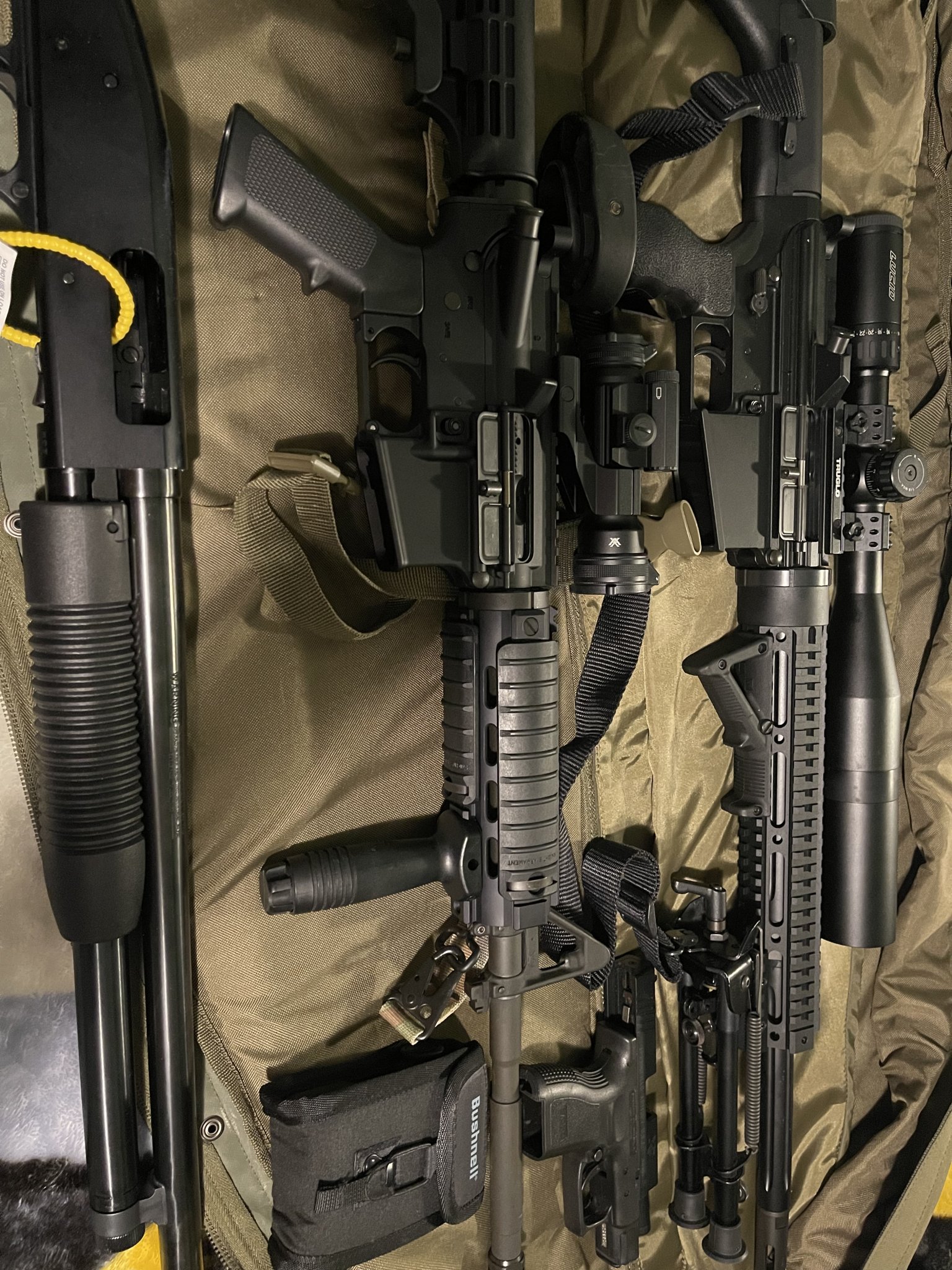

New to the forum from Portersville, Pennsylvania. I'm an Army vet that was rather proficient with the M16. It's been a while since I was on a range and just recently put together a new weapon for the sake of self defense.

30calspec · Dec 1, 2023

New here, awesome information. From Pennsylvania. Shoot a bunch of different stuff but enjoy bench rest, long range, and elr

BradXB · Dec 7, 2023

Hello from the Arizona desert! Just started long-range shooting in 2023. I'd like to thank the members and moderators for building this incredible online community.

FireFoot · Dec 18, 2023

Hello to all from the urban jungle of the Metro Detroit region. Very new to long range shooting and am very happy and blessed to have found this incredible resource, thanks to everyone for this opportunity to learn.

Having trouble using the site?

Subscribe to HideTV with code XMAS20 for 20% Off

For the new guys

Looking for people with similar values

Banhammer

I like “assault butter”

Private

Major Hide Member

Private

Captain Dave

Private

Private

Supporter

Private

Private

Private

Private

Private

Private

Private

Sergeant of the Hide

Private

LM308MWS-MARS

Supporter

Private

Private

Private

Private

Machinegun Joe

Private

Private

Supporter

Private

Go long!

Private

Private

Private

Private

Private

Private

Attachments

Private

Private

Private

Private

Private

Private

Private

Attachments

Private

Private

Private

Private

Private

Private

Similar threads
