KRG BRAVO bipod mounting

[Qwkcrss]

Looking to get a krg bravo.. I still dont understand how I can mount a bipod to it. Cant find any pictures of the rail. Anybody have the setup and have pictures or advice?



[kthomas]

What mounting system do you have on your bipod? Sling stud (Harris), picatinny, ARCA/RRS?

I put an ARCA/RRS plate and spigot on the wife's bravo. Her bipod is mounted using the RRS slots machined into the spigot.



[Qwkcrss]

Dont have one yet.. what's the best setup for strength/weight savings for the bravo chassis



[DMP]

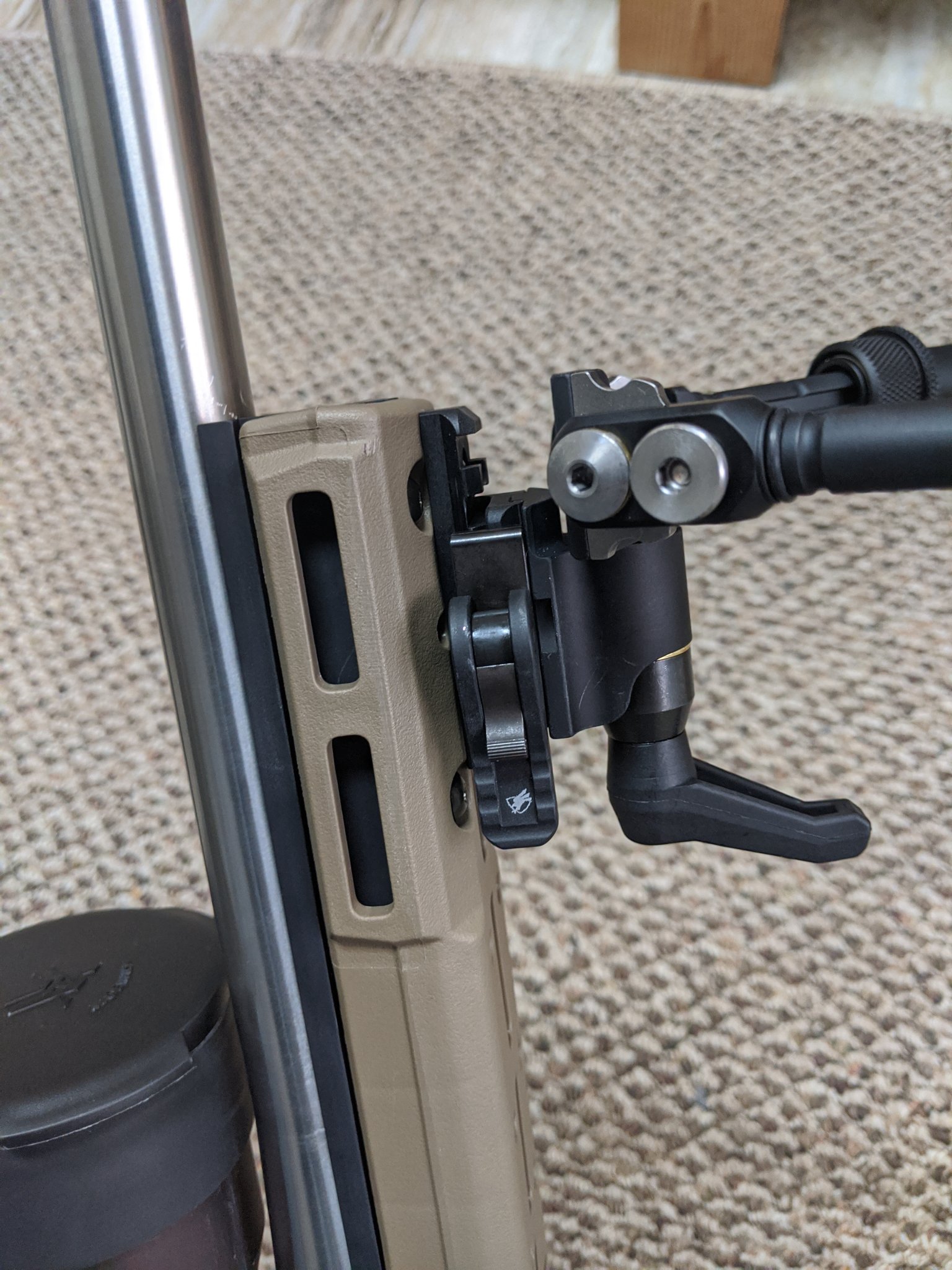

Atlas Cal2, KRG pic rail



[Qwkcrss]

Atlas Cal2, KRG pic rail

Damn that's a nice setup



[spife7980]

It comes with both a sling stud and a pic rail section so you can choose which you want to use.



[Qwkcrss]

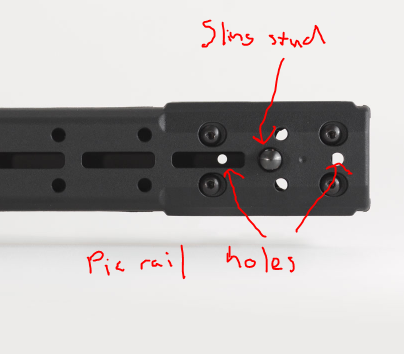

View attachment 7275255

It comes with both a sling stud and a pic rail section so you can choose which you want to use.

This is exactly what I needed. Thanks bro!



[Qwkcrss]

Do they usually come with the pic rail when you get the stock or is that an extra purchase?



[spife7980]

Do they usually come with the pic rail when you get the stock or is that an extra purchase?

It comes with both a sling stud and a pic rail section so you can choose which you want to use.



[DMP]

Sling stud included. Polymer pick rail also included but I bought the aluminum



[Qwkcrss]

Ha! Sorry didnt even see that.. mostly looked at the picture



[1911hombre]

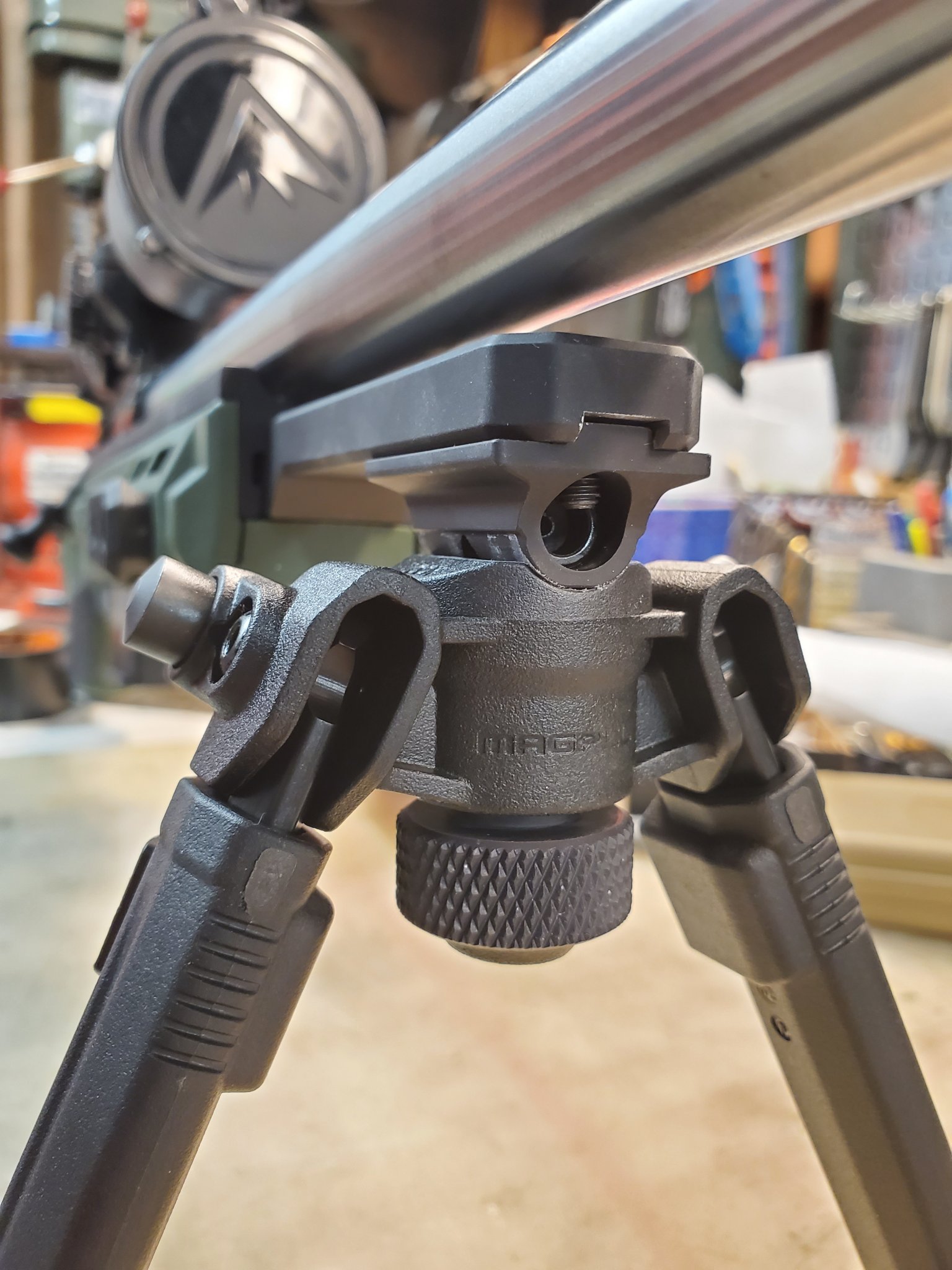

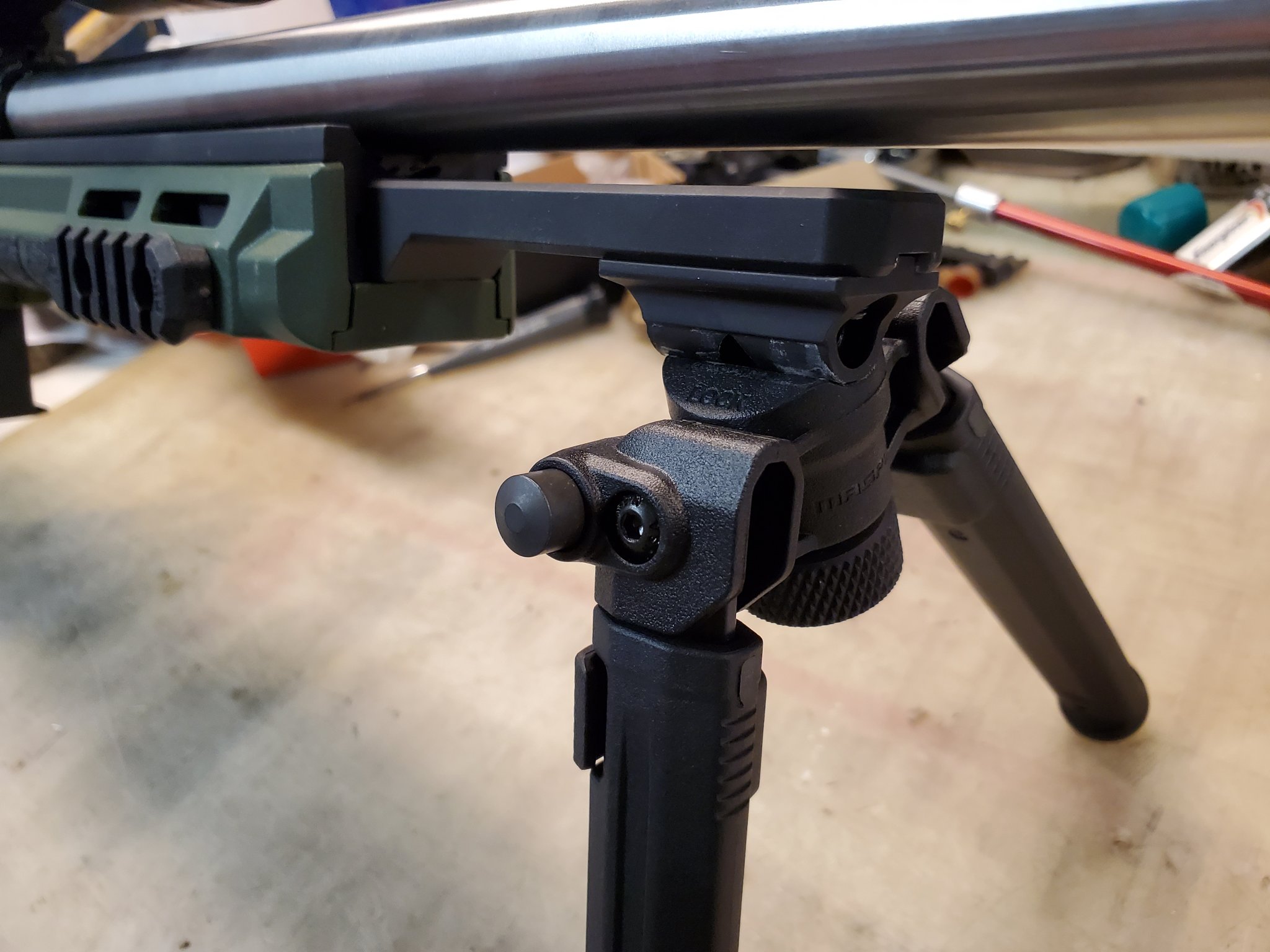

I used a KRG Minimalist Spigot mount and a section of alloy Pic rail for my SuperCal. Haven't shot it yet; just had a knee replacement. Looks and feels good, though.



[WtxMSCL8188]

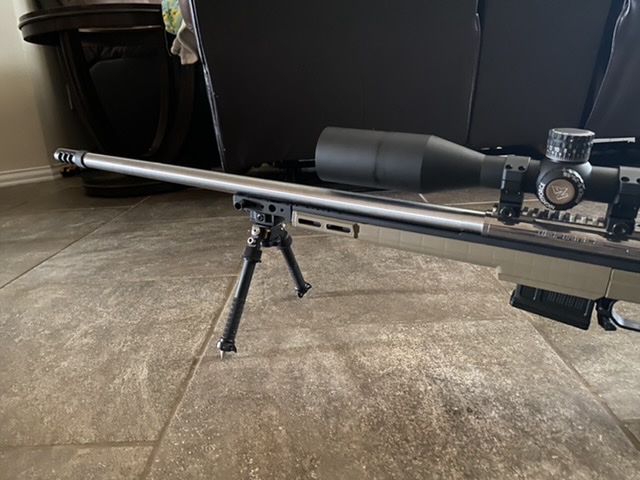

Spigot Mount, pic rail, and a nice Atlas. Balances very well with the heavier barrel. Invest in the mount. Well worth it!



[6brshooter]

The spigot is better option. It bolts to aluminum backbone, very rigid. Rail or stud on polymer forend will flex, unless they have changed it. The one I was around just bolted to plastic, not what I'd prefer.



[WtxMSCL8188]

^^^^
Lesson I had to learn. Made me a bit angry!



[chevy_man]

The spigot is better option. It bolts to aluminum backbone, very rigid. Rail or stud on polymer forend will flex, unless they have changed it. The one I was around just bolted to plastic, not what I'd prefer.

It's plenty sturdy. More-so than a polymer stock that works for people every single day.


I did a spigot just to move the balance point. I had zero issues using the stud for a Harris.



[6brshooter]

Ok, the spigot is more sturdier, lol.



[fcyle10]

Ok, the spigot is more sturdier, lol.

The rifle feels much more balanced with the spigot on. Get the minimalist if you’re concerned about weight, I have the standard spigot and don’t think it weighs much at all. It’s like 4 ounces



[2aBaC̶a̶]

spigot and mounted direct A.R.M.S. 17S Style. Not necessary but I milled a slot in the spigot for for a better fit and to push the apex as close to the barrel as I could.

The bipod felt too high when mounted to the pic rail below the hand guard.



[Sieg]

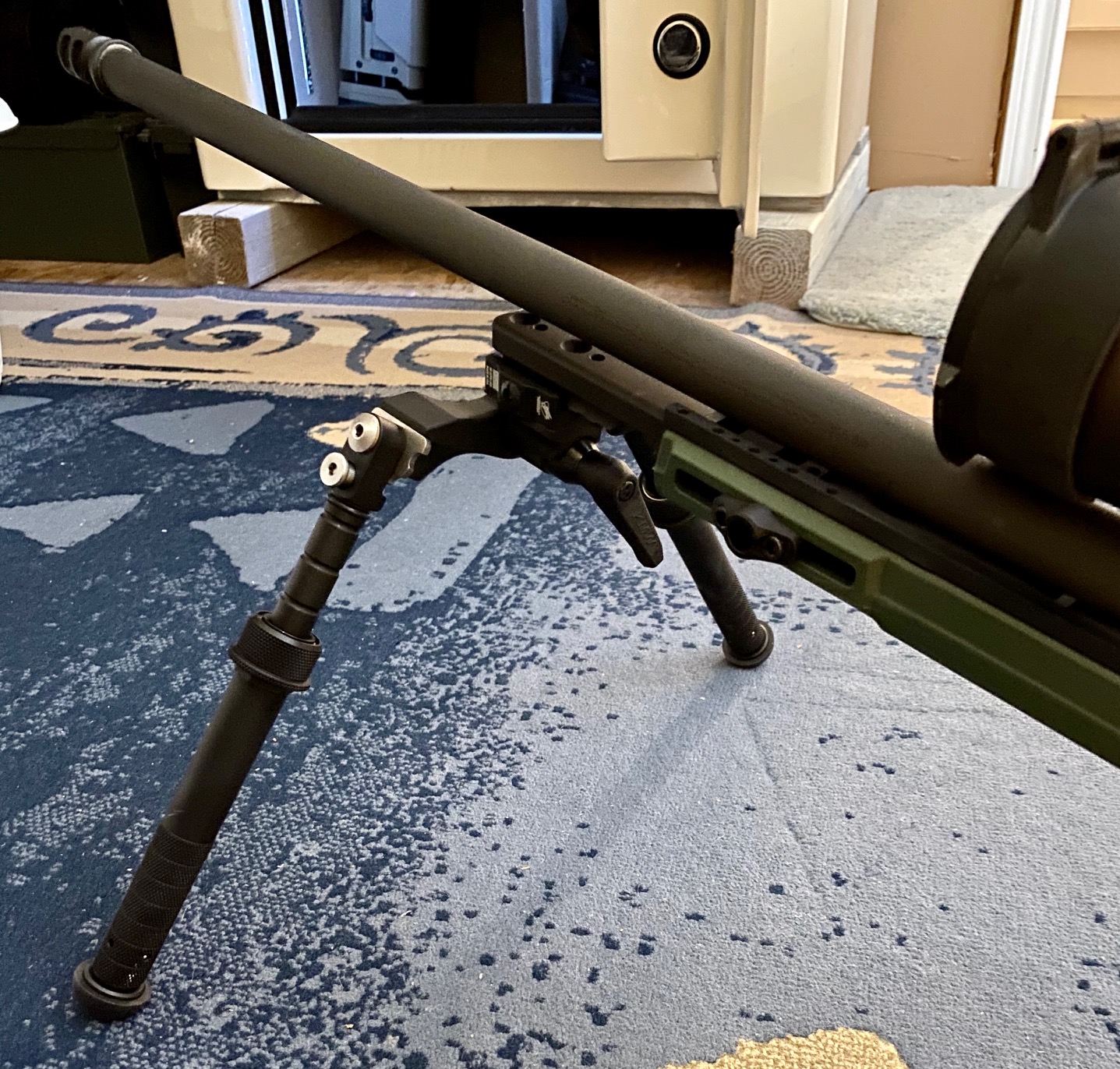

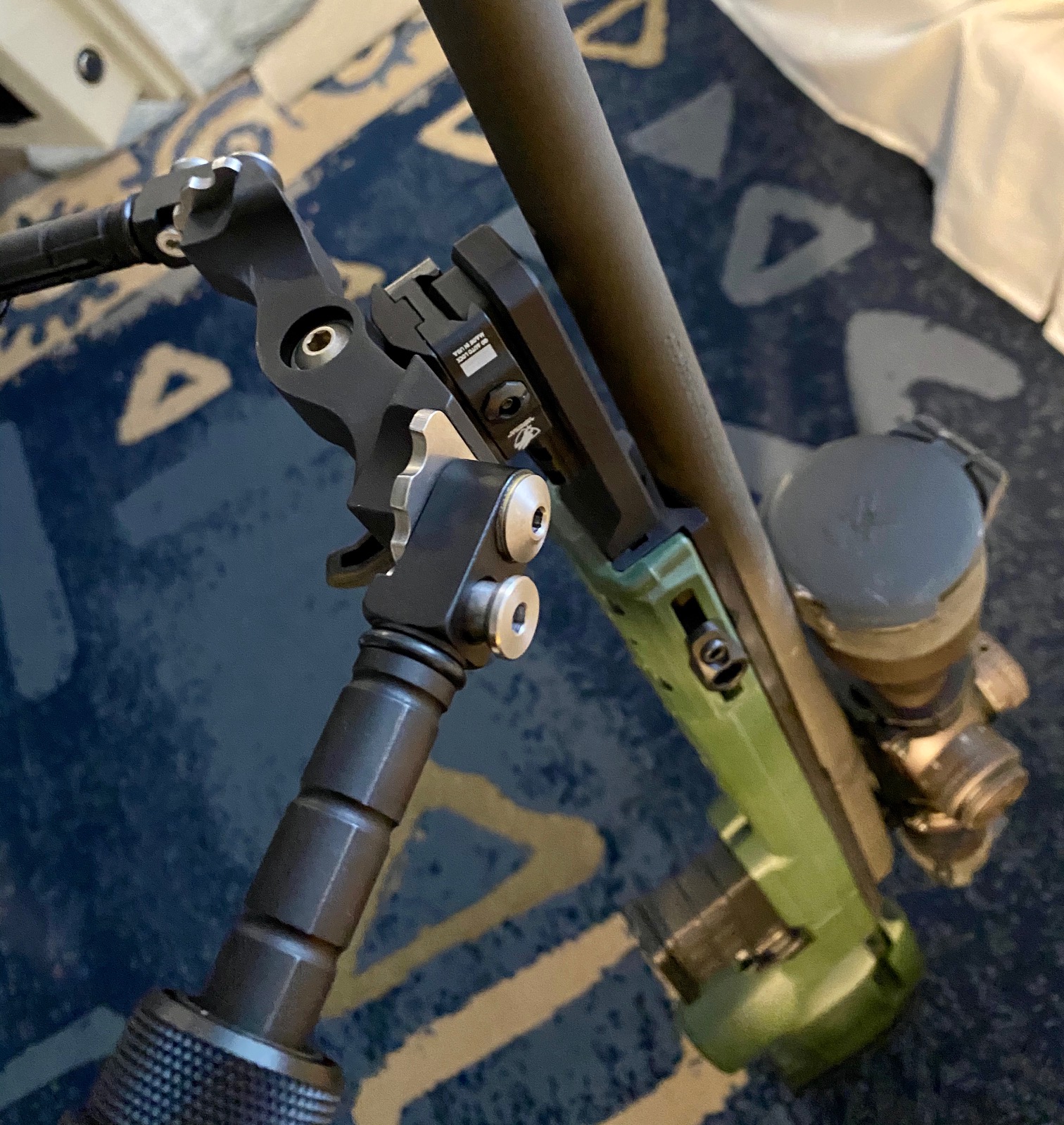

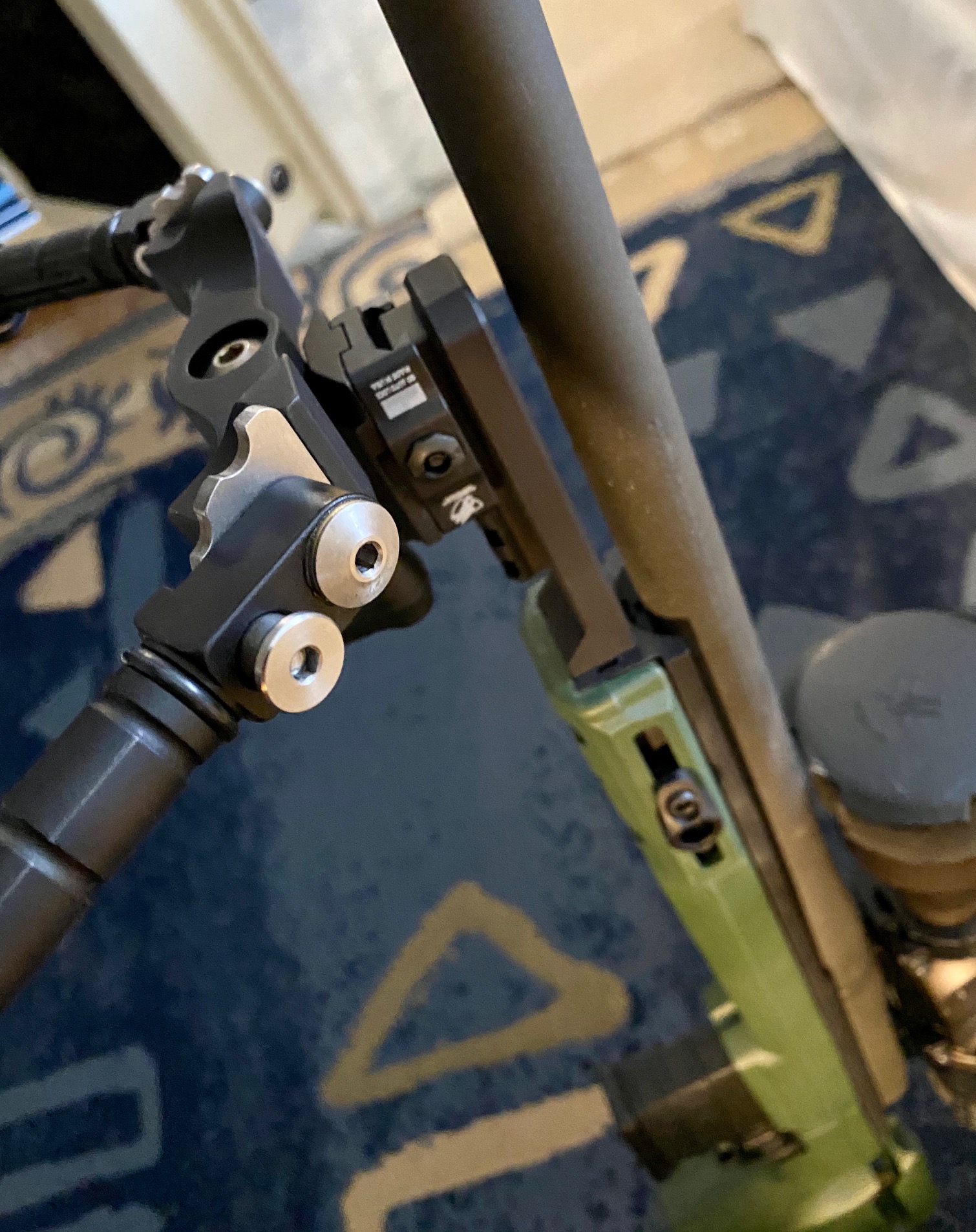

My two setups, bipod or benchrest plate.

I've been considering an Arca rail that would ride on a benchrest bag or shooting bag ok and accept a bipod, though I like the extended length (pivot) of the Spigot mount.



[1911hombre]

My two setups, bipod or benchrest plate.

I've been considering an Arca rail that would ride on a benchrest bag or shooting bag ok and accept a bipod, though I like the extended length (pivot) of the Spigot mount.

Nice! Gotta love the Sako Green!



[Sieg]

Nice! Gotta love the Sako Green!

Especially in good lighting.......



[PAYDIRT]

Don't do the m-lok mounting on the side, not real sturdy.



[Sieg]

Don't do the m-lok mounting on the side, not real sturdy.

Agreed, I just got the MK Machining Magneto Speed mount and using a picatinny rail mounted on the side of the forearm is flexi. Should work, but it's not ideal.



[Underaverage]

Good info on here, thanks guys. I'm in the process of building a rifle now. Getting a Bergara HMR barreled action off of a buddy (has the HMR Pro bolt in it and barreled action was sent to LRI to get trued and blued). Definitely planning on dropping that barreled action into a KRG Bravo and just doing my recon to figure out all the little details ahead of time so I don't waste time and money trying stuff that people already identified as an issue. I'll definitely be investing in a spigot mount for the bipod
