Muzzle Brake for .223 or go "naked"?

Packfan

Sergeant of the Hide
Full Member
Minuteman
Apr 2, 2021
240
109
Reno, NV
Just completed my .223 build and I am on the fence about adding a muzzle brake or just going "naked" with a thread protector. Rifle is based on an Origin action and has a 26 inch Remington Varmint contour barrel in an MPA Hybrid chassis. Weight is about 13 pounds with scope and rings (less mag and ammo).

Recoil is already pretty mild, so it may not be worth the effort and additional noise. Muzzle is threaded 5/8-24, so any brake recommended would have to fit.

Interestingly, the rifle seems to group a tad better with my Magnetospeed on the barrel. Maybe the additional weight is improving the harmonics? Could a muzzle brake have the same impact?

Any thoughts or experiences here are appreciated.


Attachments

  • Origin .223 Wylde.jpg
    Origin .223 Wylde.jpg
    765.3 KB · Views: 322
At a 26" barrel, you aren't going to have all that much gas pressure left, so a brake is kind of a why?
If you say the rifle shoots better with the MS on the end, perhaps you have some harmonics going on you need to address, maybe try with and without the thread protector or the thread protector spaced out with some washers etc. or a heavier / lighter thread protector.

But seriously,

With a 26" barrel in a bolt gun, throw a nice suppressor on the end and that thing will be a beauty to shoot.
The loudest part will be the SS crack from the bullet downrange.

First thing I did before scrolling was click the header to see where the op lives.

@Packfan, dude, dont be a filthy barbarian(like @Steel head),you live in a free state man! Come down to my place if you want to demo all the latest and greatest. Or take our word for it, go to reno guns and range and just buy one.

For what? Everything positive a brake would do is already being done by the small caliber and heavy gun.
Everything great about a low recoil gun is even better when it recoils less. Balance the rifle on a fence post and watch the trace out to the 500 yard steel. Instead of a one mil jump while prone at the 100 yard line watch the hole appear in paper in real time. Shooting that 300 yard raccoon off the front porch you can see where the fur flew off instead of just seeing it drop.
It's like putting R compound tires on your sports car. Just because it was great before doesn't mean you can't make it better.

My Ruger 6.5 RPR with the factory hybrid brake moves less after breaking a shot than my wife's bare muzzle 14lb Savage .223 shooting 80gr pills. As far as brakes go, the Heathen brake seems to be the least obnoxious due to the first port being 90 degrees. The hybrid brake on my Ruger RPR isn't obnoxious to the shooter at all.

My Ruger 6.5 RPR with the factory hybrid brake moves less after breaking a shot than my wife's bare muzzle 14lb Savage .223 shooting 80gr pills. As far as brakes go, the Heathen brake seems to be the least obnoxious due to the first port being 90 degrees. The hybrid brake on my Ruger RPR isn't obnoxious to the shooter at all.
Heathen is one of my favorites.

  • Like
Reactions: kthomas
Everything great about a low recoil gun is even better when it recoils less. Balance the rifle on a fence post and watch the trace out to the 500 yard steel. Instead of a one mil jump while prone at the 100 yard line watch the hole appear in paper in real time. Shooting that 300 yard raccoon off the front porch you can see where the fur flew off instead of just seeing it drop.
It's like putting R compound tires on your sports car. Just because it was great before doesn't mean you can't make it better.
I must be more noise sensitive than you. I can’t stand brakes even with double hearing pro. I would wager that everything you described could be done with a bare muzzle 13lb 223 anyhow. I don’t have one to confirm though. I guess like many things, it comes down to personal preference. Enjoy your obnoxious rifles. Lol

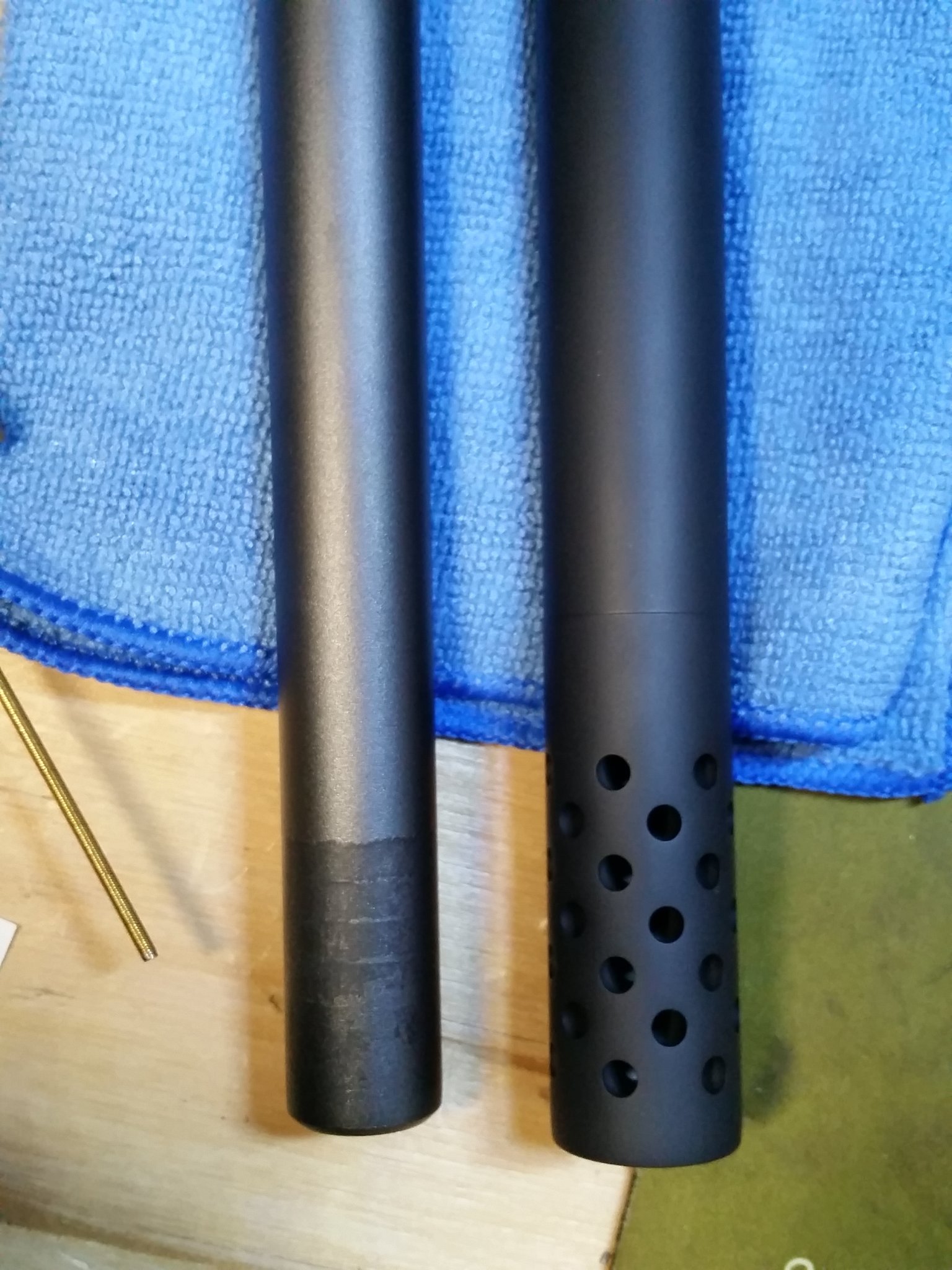

Originally I put a muzzle brake on mine, a 24" MTU profile Krieger, to protect the threads, but it isn't that loud that far out. I feel like the gun tracks a little nicer during recoil.

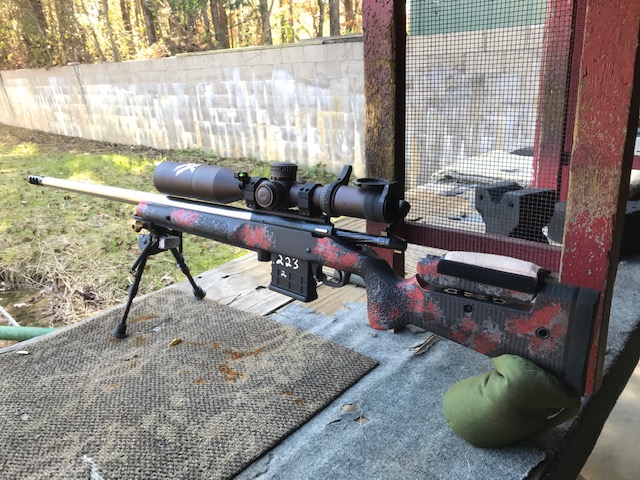

Put a brake on it and you decide. I have a brake on my 27" .223 with a Proof Comp contour barrel and it almost feels like my .22. It's very nice and barely moves. I wouldn't take it off or put a can on it. Perfect like it is.


Wow. Lot's of opinions. I wasn't planning on a supressor which is why I went with a longer 26 inch barrel. My original thought was to go with nothing, but I added 5/8-24 threads just in case. I may throw the brake off my 6.5 CM on the .223 and see what I think. I heard the caliber difference shouldn't affect the performance much.

Wow. Lot's of opinions. I wasn't planning on a supressor which is why I went with a longer 26 inch barrel. My original thought was to go with nothing, but I added 5/8-24 threads just in case. I may throw the brake off my 6.5 CM on the .223 and see what I think. I heard the caliber difference shouldn't affect the performance much.
You had a brake this whole time that you could just throw on the end to see if you like it or not? Good grief. Lol

Wow. Lot's of opinions. I wasn't planning on a supressor which is why I went with a longer 26 inch barrel. My original thought was to go with nothing, but I added 5/8-24 threads just in case. I may throw the brake off my 6.5 CM on the .223 and see what I think. I heard the caliber difference shouldn't affect the performance much.

The brake I have on mine is a .30 brake. It works fine.

  • Like
Reactions: Gee Kay
All my rifles wear brakes now.

Its how I mount my QD Suppressor....:cool:

(Actually I put Flash Hiders on the .223s for QD)
And the magnums get muzzle brakes for all those A holes at the range blowing gas in my face with their .223/6mm pea shooters. APA lil bastard. Its like calling in an airstrike. Very comfortable for me for long range sessions. Others--not so much.

I run a brake on a 24" .223 and a .224V. I prefer it with a brake when I can't run a can (which in my state is illegal). When I can run a can (up in Montana), I do prefer it over just a brake (since you really don't need ear pro with a suppressed .223/.224V in an open area).

  • Like
Reactions: greybeard0058
