I’m a good 45 minutes from the closest range, and when doing load development it’s a pain to load a few of what I think might work and find out they don’t. So, has anyone built a portable kit just to be able to reload a few at different seating depths or whatever, so that you’re not wasting trips back and forth? Pics?
-
Having trouble using the site?
Contact support
Portable Reloading Bench
- Thread starter 83Scout
- Start date
I have a friend that rebuilt an Airsteam travel trailer just to reload out of it remotely.
There are a ton of designs and such via Google images as well, might be a good starting point.
There are a ton of designs and such via Google images as well, might be a good starting point.
The bench rest guys have it figured out. They don’t need a bench because they use an auger press and hand dies. You can buy all that stuff at https://www.brownells.com/manufacturers/sinclair+international/index.htm
When I started reloading I had zero space so I made my bench from a folding Black and Decker work bench I found at a yard sale. It's like this one:
I basically cranked it to its full "open" position and made a plywood tabletop for it. It's folds flat (and the legs fold flat underneath) so it's very portable. Would easily fit into any trunk or the back of a SUV/truck.
I have a Hornady progressive press and Lyman single press bolted to it so they can easily be removed/remounted.
You could probably use it as a makeshift shooting bench in a pinch as well.
I basically cranked it to its full "open" position and made a plywood tabletop for it. It's folds flat (and the legs fold flat underneath) so it's very portable. Would easily fit into any trunk or the back of a SUV/truck.
I have a Hornady progressive press and Lyman single press bolted to it so they can easily be removed/remounted.
You could probably use it as a makeshift shooting bench in a pinch as well.
Does it still fold up somewhat compact with the modifications or does it not affect it?
Mine does.
All you're really doing is adding a solid tabletop to it instead of having the split/adjustable tabletops. If you make a REALLY big tabletop then you'll have to consider that when you transport, but I kept mine in pretty much the same dimension as the original. If I remember I'll take a picture tonight.
Great. That’s what I was wondering, if it would still be somewhat compact for hauling around. I may check into creating a type of quick disconnect for the tools I mount on there, should I need to.
I once spent an entire summer deep in Hell's Canyon (Idaho) and took along a Black & Decker workmate as was pictured above. I took a 2x6 screwed to a double thickness of 1 1/8 plywood that had been glued and screwed together. All of those screws were from the under side. I didn't even apply any finish. Clamp that 2x6 in the vise of the workmate. I mounted my old Rockchucker press and it worked just fine. I took along most of my reloading gear..case trimmer, etc. There were times when I would not see another human other than my wife for a couple of weeks at a time. There are rocks galore to shoot at any distance you can imagine and pretty much any angle up or down. I learned very much that summer.

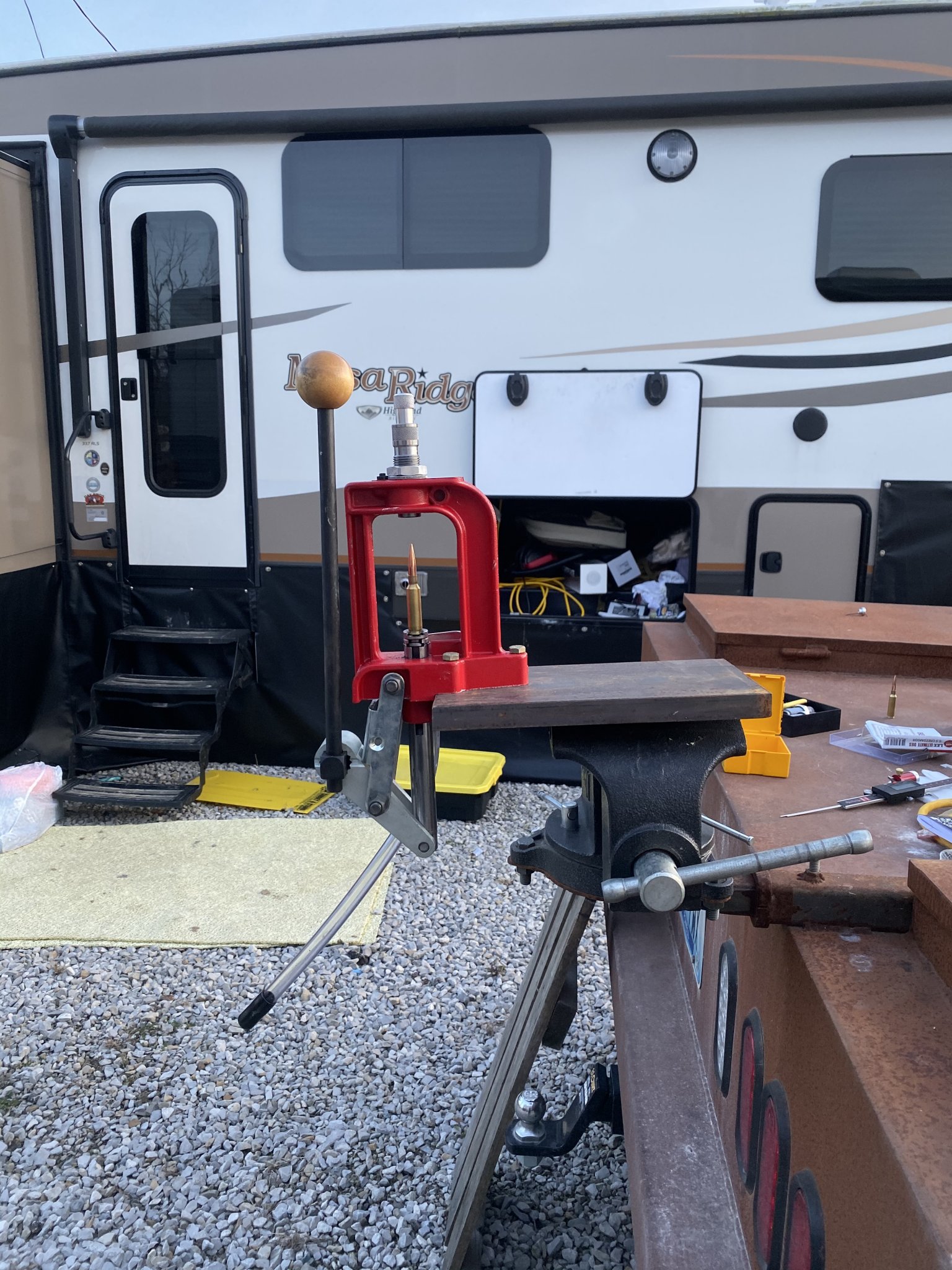

If you've got a trailer hitch on your vehicle, I'd imagine it would be fairly simple to fab a rig that would mount on the trailer hitch.

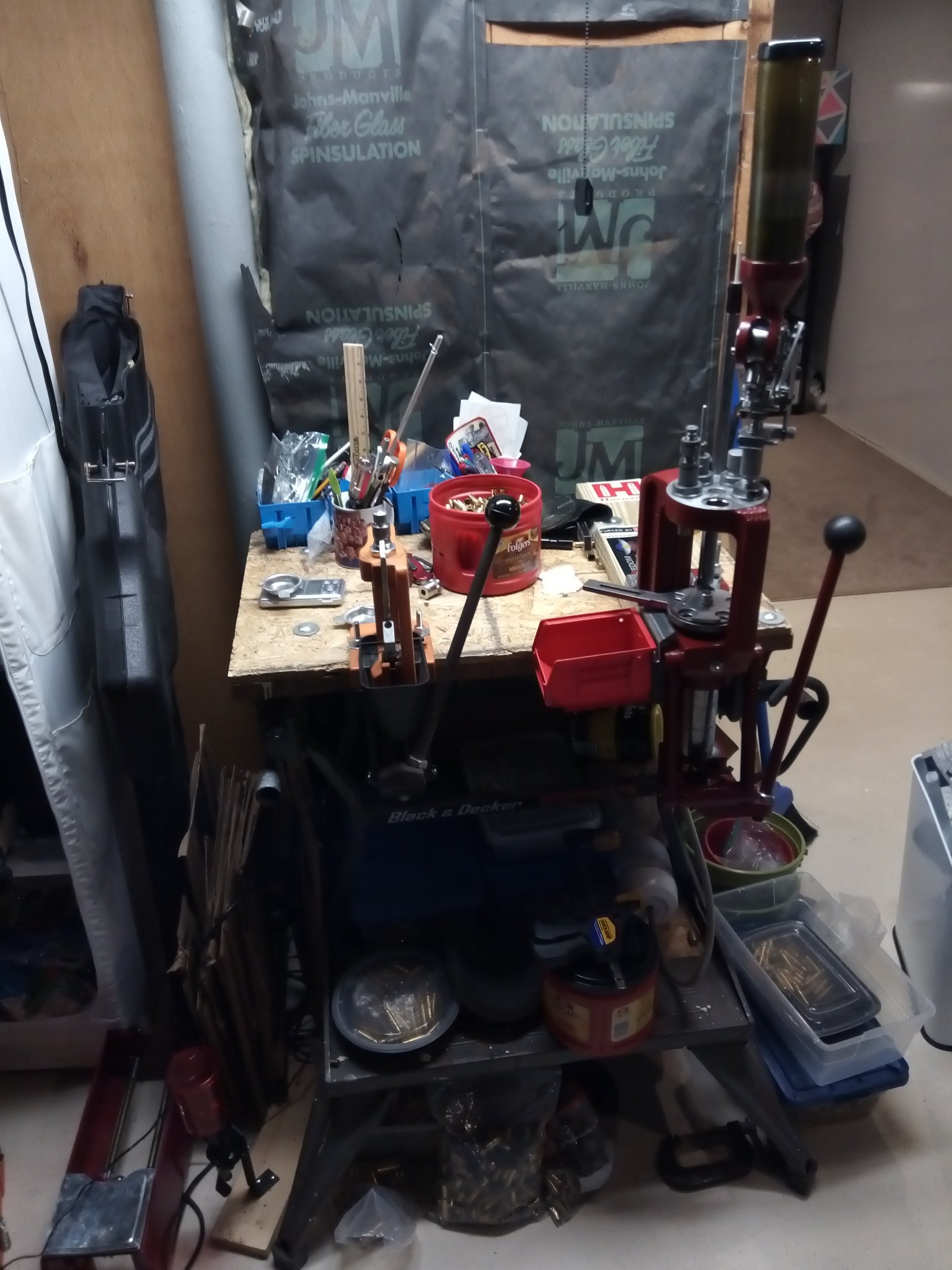

It's messy and crowded now because I was loading 9mm on the progressive and .308 on the single last week. I usually take the single press off if im not loading rifle ammo for a while.
Just take the presses off (and the random shit piled underneath) and it folds flat.
I just welded a rectangle frame and mounted a wood piece on the top. Bolted an Inline Fab reloading press stand and ordered the quick change system. My frame is fairy small and has handles, just large enough for the press stand and powder dispensing. I just C clamp it to whatever table I am using and with the quick change system can easily switch between the two single stage presses I use one with a sizing die, the other with a seater.
I tried the workmate for a while but it was a pain to keep level with a bunch of weight hanging off one side or the other and it wasn't as portable as I'd like. I switched to a harbor freight grinder stand, reinforced the top with a 1/8" plate, welded nuts to the plate so I only need one wrench to bolt the press down, its pretty fast to set up, and fits in the trunk of a Ford Focus. I haul my press, dies, powder, scale, dies, etc around in a cheap toolbox. Usually it is all assembled and kept in a closet, I pull it out, grab a chair from the kitchen, and load ammo in the living room while watching TV. With some random clamps I can hang my power thrower off of it, set up some Akro bins on a piece of angle, or even expand it to have a little flat spot off the side to hold reloading blocks. There is also an extra shelf on it that comes in handy.
Black and Decker workmate with two 24' shelves screwed into the top, cut one of them off to give myself some room for the press and to center the force over the legs.
Last edited:
How stable is it when you pull the lever down during full length re-sizing and up to pull the case out of the die?
It isn't rock solid but it isn't bad. If you look underneath the tabletop I have two old IKEA coffee table legs supporting a cinderblock for more weight. I usually hold on to the back side of the press as I full length size to prevent any wear and tear on the table itself but I don't think it's necessary. I'll run down there and take a quick video of a few so you can see the flex. Back in a few.
Yeah the basement walls are lined with totes full of decor and my wifes clothes... So until I build or buy shelving for all of that stuff I'm stuck with my little Workmate. Better than nothing.
How often does your wife go into those totes? Does she leave the house for work before you? Hmmmm - I would take a tote each day when I go to work and donate to the Salvation Army dumpster.
Seasonal and no she works from home, I'd be in some deep shit if I pulled that!
Anyone use the Lee Breech Lock Hand Press? Doesn't seem like you can get much more portable than that thing if it works
It works, I've used it for .22 Hornet to .338 Win Mag and 45-70. Ideally, I'd load my rounds at maximum length and use it to test different seating depths at the range.
It works and works well. It's what I started reloading with.
I stored the tool, dies, scale, brass, bullets, loading block, one lb of powder, primer loader and a couple of packs of primers in a tackle box (larger size, but not huge) and nobody was the wiser.
I would reload 100 rounds of .38 Special in a sitting.
