Primer Catch for MEC Marksman

[OneMilRight]

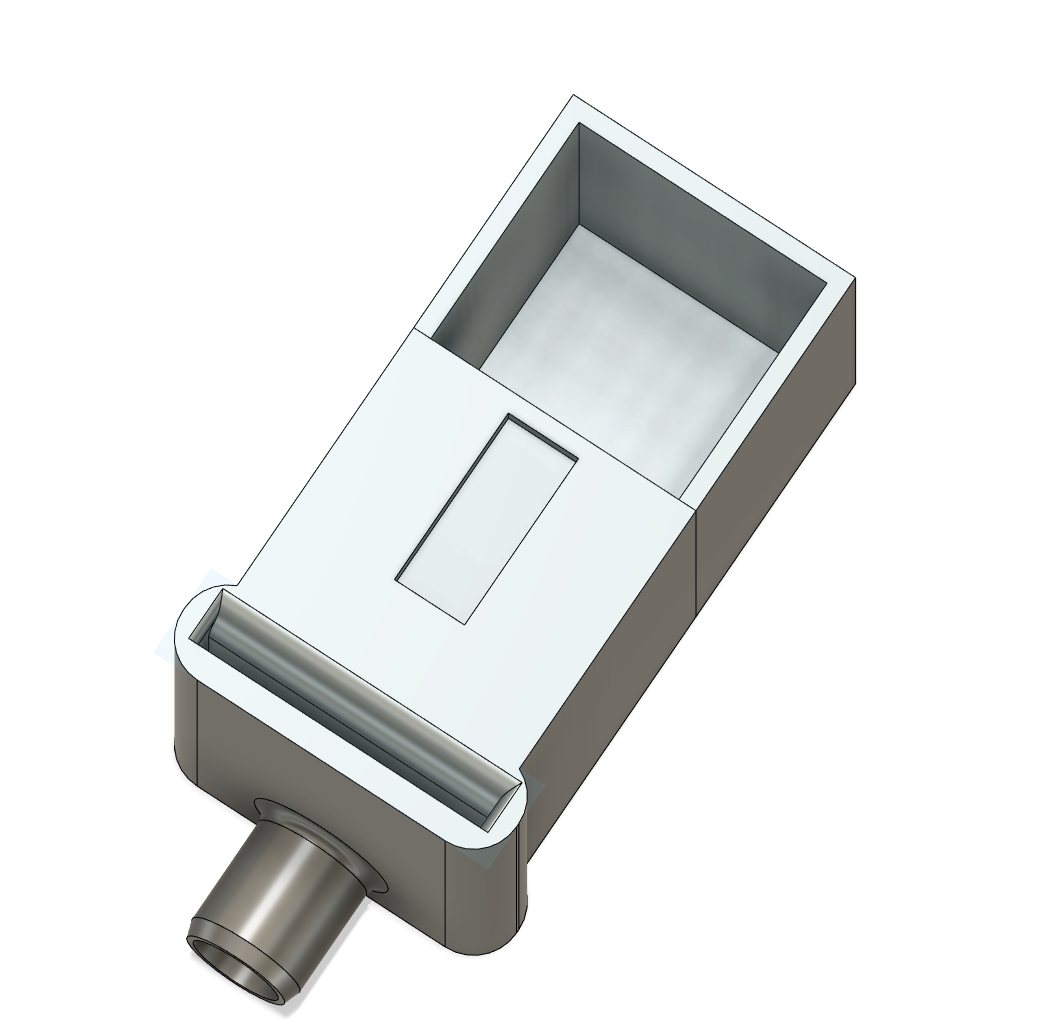

I created a little primer catch for the MEC Marksman and figured if anyone else wanted the files to create one too I'd share them here.
This design works with either a 1/2 ID tube, or directly into a bin of some kind. If anyone has any feedback I'd love to hear it.

Print settings:
Material: PLA+, ABS, or ASA
Supports: Yes
Support Overhang: 30 degrees
Top/Bottom Layers: 5
Walls: 5
Layer Height: .2



[BuildingConceptsllc]

How does that work? I can't use the crappy little catch bin that came with it because I have mine mounted on a qc workbase and it hits the base. I'd love to see how what you've made fits in there



[OneMilRight]

How does that work? I can't use the crappy little catch bin that came with it because I have mine mounted on a qc workbase and it hits the base. I'd love to see how what you've made fits in there

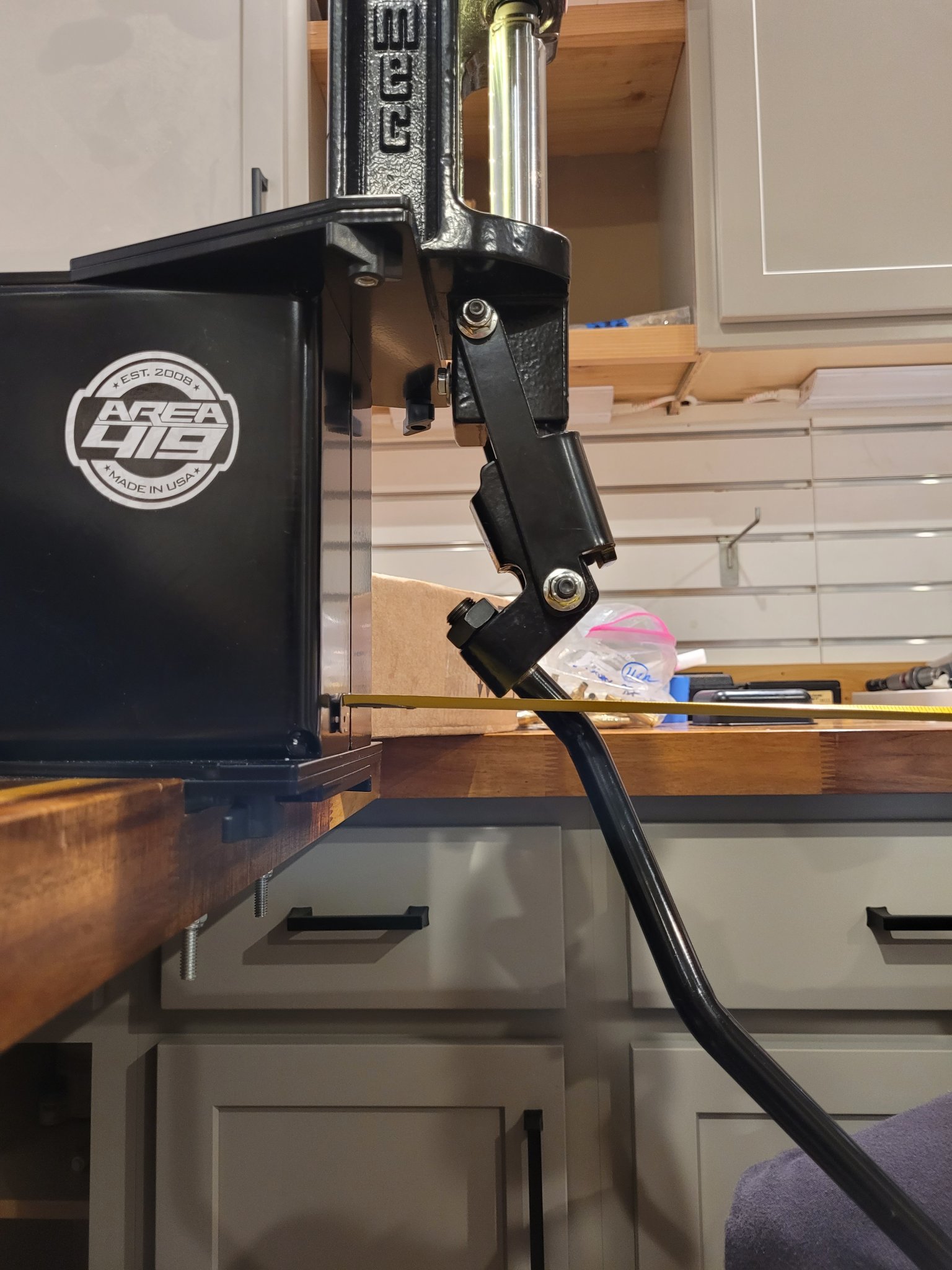

So there is a slot in the bottom of the part that fits the metal tab below the rivet. The part is exactly wide enough to be held in place against the little ramp. I'm currently using an Inline Fabrication Ultra Mount, but I have the flush mount as well, and it fits both, but with the flush mount you have to install the catch after you mount the press. Basically the catch acts as a funnel and keeps the primers from flying everywhere. I've attached a few pictures to show you how it fits. The primers come out of the little spout at the bottom.



[BuildingConceptsllc]

Thats cool. I had a funnel printed that magnet attached to catch primers under it but it's not 100%.

Does your catch protrude under your top plate at all though? That's what caused me the trouble. The qd base has a flat metal wall there under the press so it can't go past that point.



[OneMilRight]

Thats cool. I had a funnel printed that magnet attached to catch primers under it but it's not 100%.

Does your catch protrude under your top plate at all though? That's what caused me the trouble. The qd base has a flat metal wall there under the press so it can't go past that point.

How much room do you have between where the bracket attaches and your QD base? This design takes up about 49mm from the point where the bracket attaches (including the bracket). I could reduce it more by having the primers drop out of the sides, but its more prone them getting stuck due to the primers taking a 90 turn while dropping, but it could be done.



[BuildingConceptsllc]

Yeah I think I've only got 43 ish millimeters. It's ok, I think I'm gonna sell ghe MEC and get a Nexus for that spot which will eliminate this issue. The MEC I'd a great press but not the best for the qc workbase.



[Quietguy88]

Yeah I think I've only got 43 ish millimeters. It's ok, I think I'm gonna sell ghe MEC and get a Nexus for that spot which will eliminate this issue. The MEC I'd a great press but not the best for the qc workbase.

What would you want for the mec?



[BuildingConceptsllc]

What would you want for the mec?

Sorry I sold it a while back.



[Slayor]

That's really awesome! Thanks for sharing your primer catch design for the MEC Marksman. I love the fact that SH members love contributing to the forum. Your print settings look solid, and I'm sure other members will appreciate having the files to create their own.

If you get any more feedback or suggestions, it would be interesting to see how they might improve the design or printing process. Keep up the good work!



[BuildingConceptsllc]

That's really awesome! Thanks for sharing your primer catch design for the MEC Marksman. I love the fact that SH members love contributing to the forum. Your print settings look solid, and I'm sure other members will appreciate having the files to create their own.

If you get any more feedback or suggestions, it would be interesting to see how they might improve the design or printing process. Keep up the good work!

Yeah that is one of the things that makes this place so special. I've had numerous guys help me make stuff and do stuff and I've been able to help some guys as well. It's a very special place.
