Re: Ring Height Questions

The above is taking into account the butler creek caps. The ones i have are aprox .035-.040 thick and get thinner when stretched over the scope. I have been known to sand down butler creek caps to allow the use of lowest possible rings...

Clearance is just that, it doesn't matter if you have 1/16 inch or a foot, its still clearance. On a .50 cal it might matter...
Why might it matter on a .50 cal?

Guys,

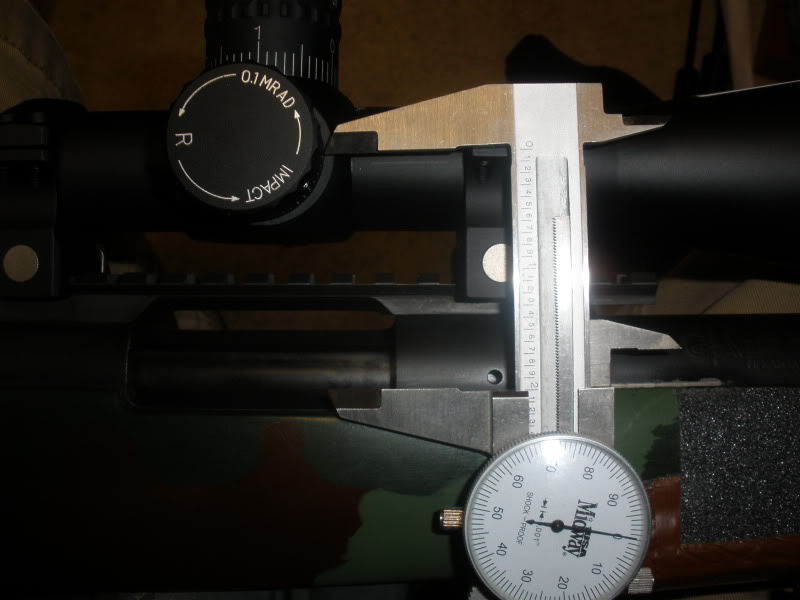

Lately, on average of about 1 per day, I have seen quite a few posts (mostly from newbies) regarding questions about what ring height should be used. They usually request pics for comparison. For all new guys, there is a systematic way of calculating ring height that doesn't require more than a simple elementary school ruler. You measure 3 things:
1. the height of the front of your base/rail from the barrel
2. the height of your rings from the top of the rail to centerline
3. the outside diameter of the bell of the scope (not the size of the objective lens)

Here is the equation:

[rail height + ring height] - [bell diameter x 0.5]

If the value is positive, then your bell will clear the barrel. Ideally, you want that bell to be about 1/4" or less over the barrel. This will give you a tight cheek weld. Be sure to account for Butler Creek caps if you intend on using them.

If you are using a 40mm objective, then you can use the lowest rings and bases available, as the bell will certainly clear the barrel with no problem. i.e. don't worry if the bell ends up being higher than 1/4" over the barrel.

Hope this helps.

mike

Just another note. If you are using a scope base and/or mount/rings that have built in elevation, that may have to be accounted for in the case of very small clearance. To calculate this, we need to know the amount of elevation built into the mount/rings and/ or base, and the length from the end of the scope base to the end of the scope bell. Convert MOA into degrees, and then the equation is:

Tan ? x length

For example, if you are using a 20 MOA base, and the distance from the edge of the scope base to the end of the bell is 5". 20 MOA = 0.333 degrees, so:

Tan 0.333 x 5 = 0.029"

This means that you need an extra 0.029" of clearance in addition to the calculation above

-mp
Thank you for the information!

  • Like
Reactions: SniperGirl666
I am looking for some help, and yes, I saw the calculator :) I am in the process of putting together the final pieces of my rifle and I am trying to place an order for scope rings, but I'm struggling with the height requirement. Rifle is a R700 with a Bartlein 3B barrel and I am adding a 20MOA Area 419 Rail, which I don't have yet. My scope is a Nightforce SHV with a 50MM objective (should be 59MM OD) which I would like to put in ARC M-Brace rings.

I can account for the scope (29.5MM) + I am using 2MM for cap thickness so that puts me at 31.5MM or 1.24 inches. I don't know the rail thickness as I don't have it yet, but it looks like I am at the high ring mark (excluding barrel taper & 20 MOA rail). This feels off based upon what others are saying but I know the math is right, obviously excluding a few key factors. I am trying to have everything ordered together.

Anyone with a similar setup or insight?

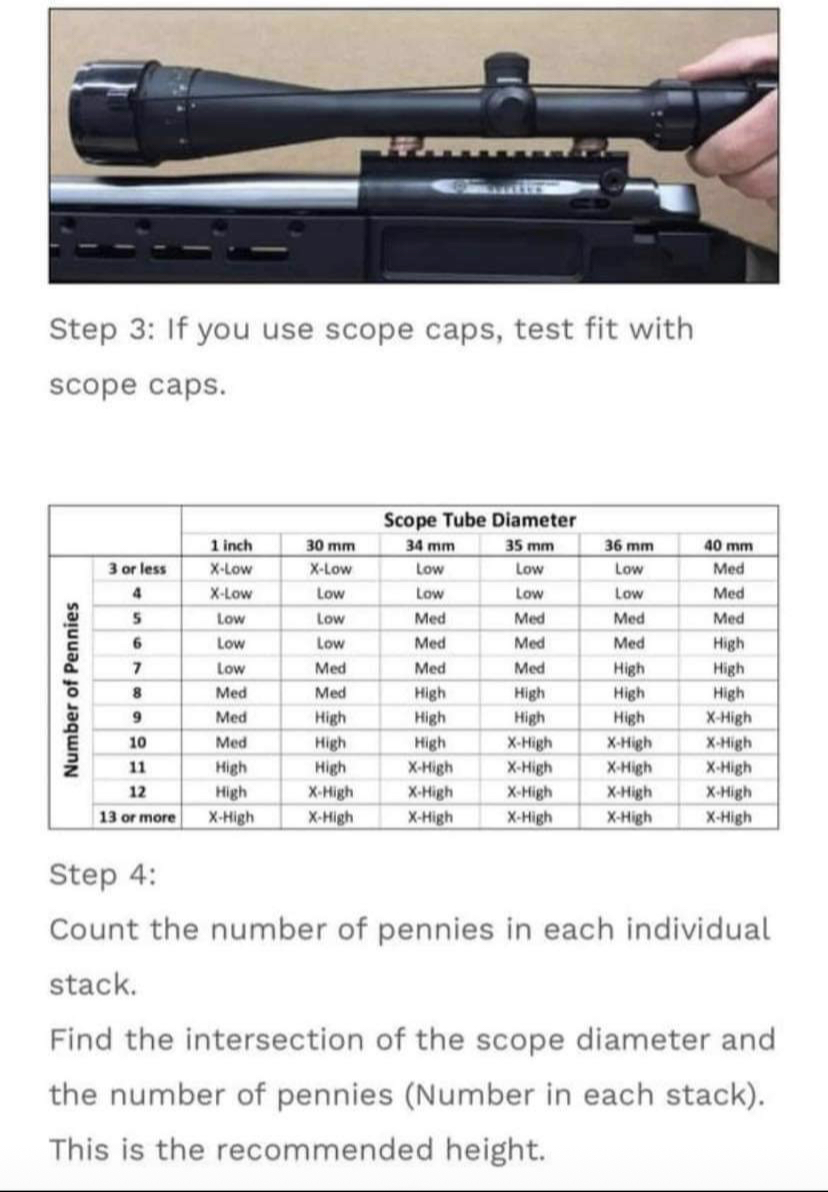

I didn’t go through every page. But if it’s not been posted, this may be of help to someone.


Attachments

  • A1ACB9CC-817B-4514-8CA5-BD4635ABB381.jpeg
    326.4 KB · Views: 349
  • Like
Reactions: Dr. Davy Jones
Re: Ring Height Questions

<div class="ubbcode-block"><div class="ubbcode-header">Originally Posted By: Fritz24</div><div class="ubbcode-body">I have no problems with bell/barrel clearance - but as we speak am having a mounting issue where the scope's bell is making contact with the forward end of the 20MOA base(a Seekins base as it happens). I can't get the scope back far enough for proper relief without contact with low or medium rings on my 700P. (Scope is 10x40 SS)

Is it just me? </div></div>

I personally havent heard of this problem. It may come down to you needing a different mount. Maybe Glen or someone will chime in with a solution.
I had to trim one picatinny lug’s worth of rail in order to mount 50 and even 44mm bells far enough back for proper eye relief. Thankful that i had Brownells Alumablack and Ampho Blue on hand.

  • Like
Reactions: Tcorb734
Only 15 years late to this post, but I find I have to figure in another factor...neck length. I have a long neck and find I need the highest rings/mount I can get or else I'm crushing whats left of my vertabrae trying to get down to eye level for the scope. If theyre a bit high its easier to stretch said neck than compress it.

Some of you no neck guys built like cinderblocks dont seem to have the problem.

Guys,

Lately, on average of about 1 per day, I have seen quite a few posts (mostly from newbies) regarding questions about what ring height should be used. They usually request pics for comparison. For all new guys, there is a systematic way of calculating ring height that doesn't require more than a simple elementary school ruler. You measure 3 things:
1. the height of the front of your base/rail from the barrel
2. the height of your rings from the top of the rail to centerline
3. the outside diameter of the bell of the scope (not the size of the objective lens)

Here is the equation:

[rail height + ring height] - [bell diameter x 0.5]

If the value is positive, then your bell will clear the barrel. Ideally, you want that bell to be about 1/4" or less over the barrel. This will give you a tight cheek weld. Be sure to account for Butler Creek caps if you intend on using them.

If you are using a 40mm objective, then you can use the lowest rings and bases available, as the bell will certainly clear the barrel with no problem. i.e. don't worry if the bell ends up being higher than 1/4" over the barrel.

Hope this helps.

mike

Just another note. If you are using a scope base and/or mount/rings that have built in elevation, that may have to be accounted for in the case of very small clearance. To calculate this, we need to know the amount of elevation built into the mount/rings and/ or base, and the length from the end of the scope base to the end of the scope bell. Convert MOA into degrees, and then the equation is:

Tan (theta) x length

For example, if you are using a 20 MOA base, and the distance from the edge of the scope base to the end of the bell is 5". 20 MOA = 0.333 degrees, so:

Tan 0.333 x 5 = 0.029"

This means that you need an extra 0.029" of clearance in addition to the calculation above

-mp

Guys,

Lately, on average of about 1 per day, I have seen quite a few posts (mostly from newbies) regarding questions about what ring height should be used. They usually request pics for comparison. For all new guys, there is a systematic way of calculating ring height that doesn't require more than a simple elementary school ruler. You measure 3 things:
1. the height of the front of your base/rail from the barrel
2. the height of your rings from the top of the rail to centerline
3. the outside diameter of the bell of the scope (not the size of the objective lens)

Here is the equation:

[rail height + ring height] - [bell diameter x 0.5]

If the value is positive, then your bell will clear the barrel. Ideally, you want that bell to be about 1/4" or less over the barrel. This will give you a tight cheek weld. Be sure to account for Butler Creek caps if you intend on using them.

If you are using a 40mm objective, then you can use the lowest rings and bases available, as the bell will certainly clear the barrel with no problem. i.e. don't worry if the bell ends up being higher than 1/4" over the barrel.

Hope this helps.

mike

Just another note. If you are using a scope base and/or mount/rings that have built in elevation, that may have to be accounted for in the case of very small clearance. To calculate this, we need to know the amount of elevation built into the mount/rings and/ or base, and the length from the end of the scope base to the end of the scope bell. Convert MOA into degrees, and then the equation is:

Tan (theta) x length

For example, if you are using a 20 MOA base, and the distance from the edge of the scope base to the end of the bell is 5". 20 MOA = 0.333 degrees, so:

Tan 0.333 x 5 = 0.029"

This means that you need an extra 0.029" of clearance in addition to the calculation above

-mp
Ok. Using a ring calculator, I have a 64mm outside objective diameter, 3mm for tenebraex cap, 20 MOA rail, and 0 rail to barrel clearance as the top is all rail. Using a 38 mm / 1.5 inch ring height it says I have 2.06 mm clearance. March 5x42 HighMaster 34mm scope and Cadex Covert rifle. I can get a deal on a Spuhr 4602 with 20MOA built in for a reasonable price. The example above is almost bang on that I would need .029 extra clearance which is 0.7366mm. Giving me a grand total of 1.32 mm clearance. Am I cutting it too close? Should I pull the trigger with these calculations as they are expensive rings that cant be returned. Any input appreciated. Thanks.

What's the application?
Use whatever ring height feels comfortable, especially if you have a stock/chassis with an adjustable cheek piece. To echo Maggot's statement, why screw up your neck if you don't have to?
Here's just one of several videos on the subject:

To the "newbies": take whatever dose of Ritalin necessary to address your ADHD and watch the entire video.

Ok. Using a ring calculator, I have a 64mm outside objective diameter, 3mm for tenebraex cap, 20 MOA rail, and 0 rail to barrel clearance as the top is all rail. Using a 38 mm / 1.5 inch ring height it says I have 2.06 mm clearance. March 5x42 HighMaster 34mm scope and Cadex Covert rifle. I can get a deal on a Spuhr 4602 with 20MOA built in for a reasonable price. The example above is almost bang on that I would need .029 extra clearance which is 0.7366mm. Giving me a grand total of 1.32 mm clearance. Am I cutting it too close? Should I pull the trigger with these calculations as they are expensive rings that cant be returned. Any input appreciated. Thanks.

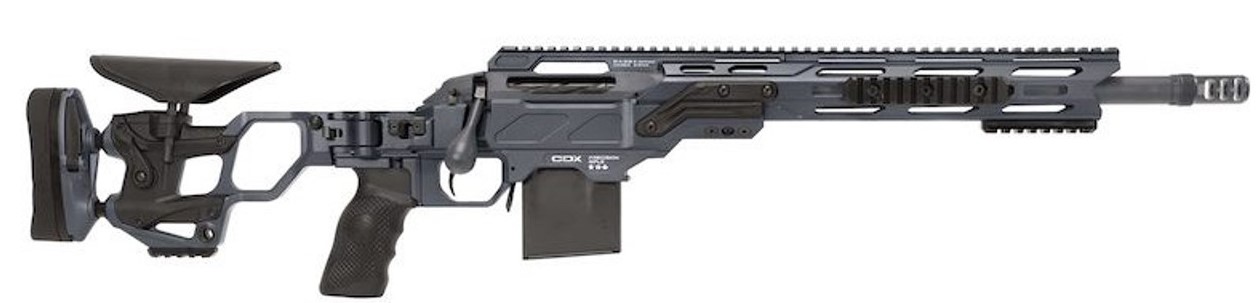

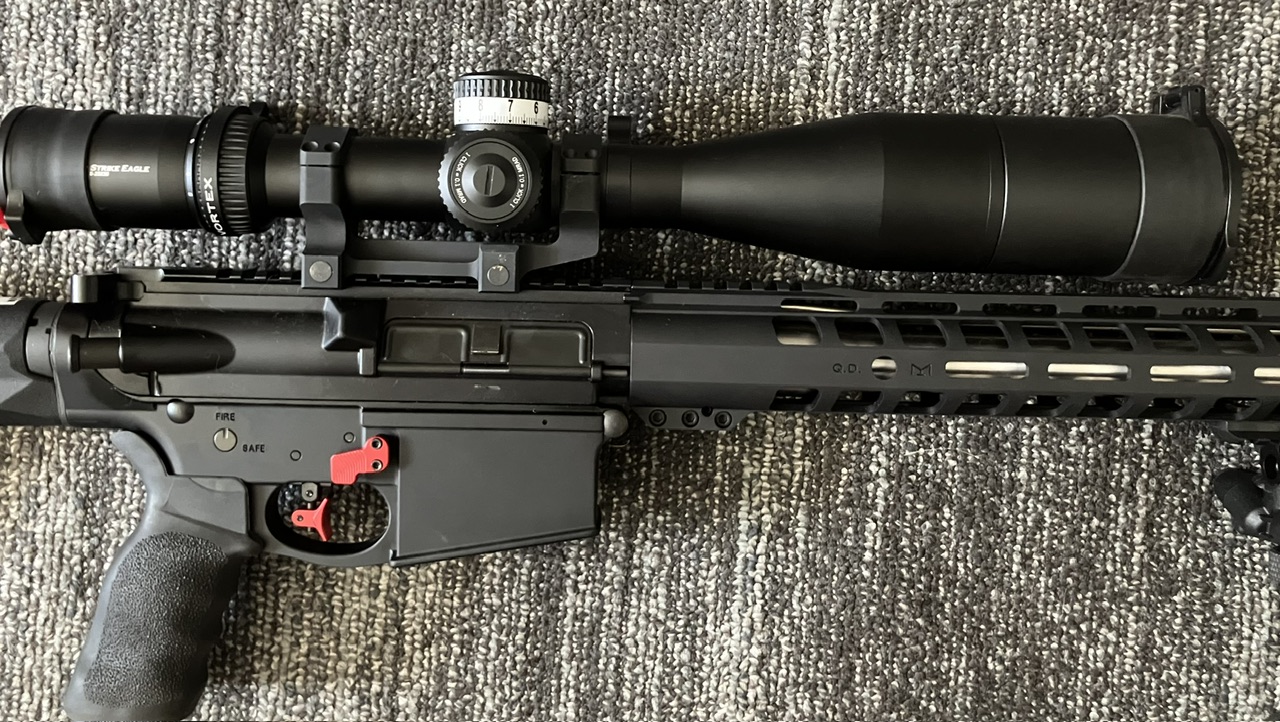

This rifle below? It's a flat top so you will need something in the 1.5" height whether ring or mount.

Screenshot 2024-09-26 130822.jpg

This rifle below? It's a flat top so you will need something in the 1.5" height whether ring or mount.

View attachment 8510845

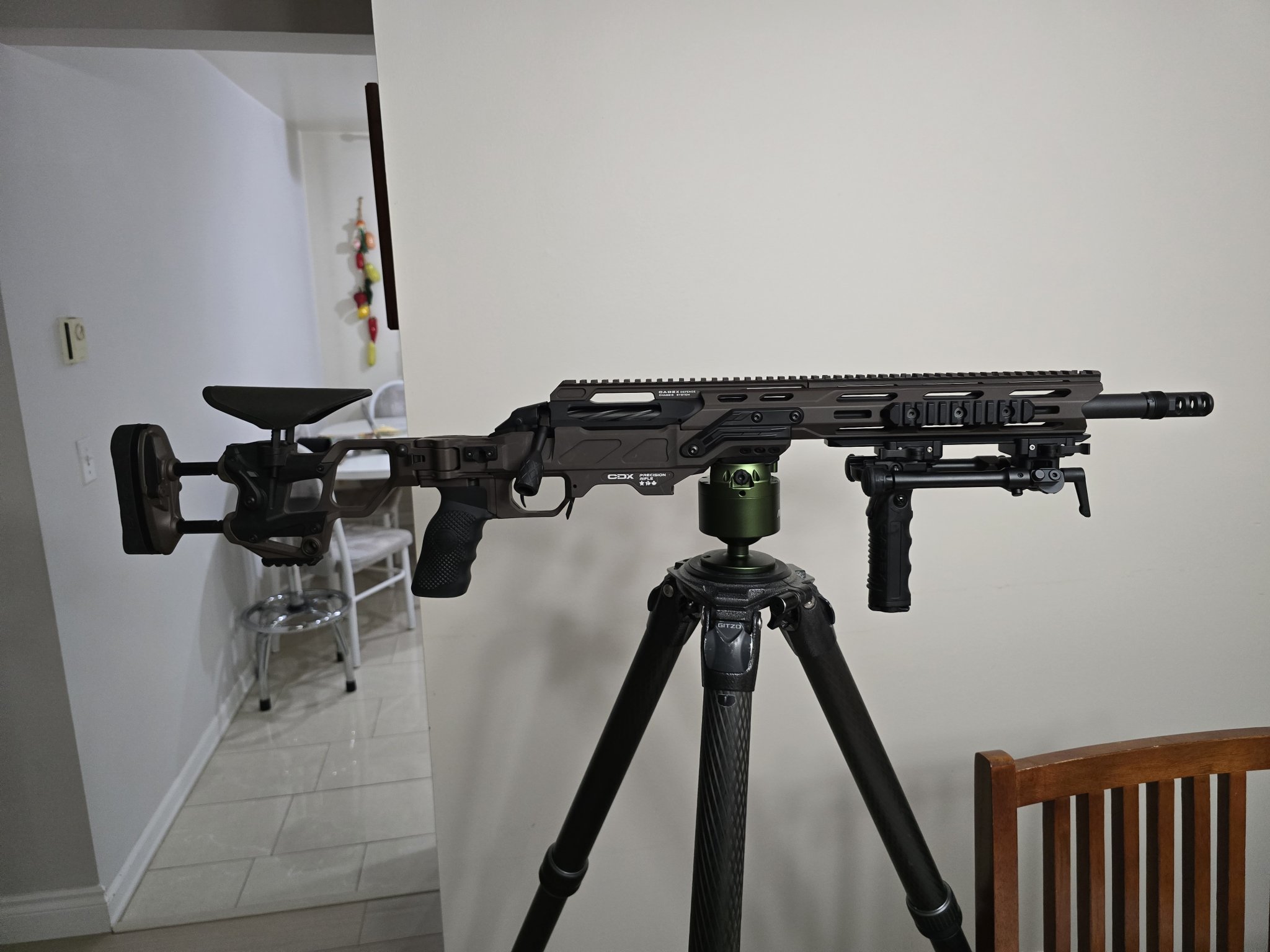

Hi. Yes that is the rifle as I will mainly be shooting from a tripod as below ...it's a cross over gun hunting/range/SHTF . Lots of adjustments to make it fit as an extension of the body. Only concerned with it clearing the rail and the additional 20 MOA on the mount. 20-30 MOA is good for this scope as it packs a lot of magnification in a small package and you will get IQ degradation at the outer limits of the magnification range. I would want to be looking through the centre of the lens as much as possible. It may seem a bit of overkill on the magnification for this rifle and therefore the problem with 64mm outside objective diameter but I want to clearly identify game at 1000 yrds and see groupings at 500 yrds.
A 20MOA rail will shift the adjustment range by about 5.7MIL to 25.7MIL up and 14.3MIL down.
A 30MOA rail will shift the adjustment range by about 8.6MIL to 28.6MIL up and 11.4MIL down.”
Perhaps 40 MOA is a little much?
  • CantileverNo
  • ColorBlack Hardcoat Anodized
  • Height38 mm
  • Quick ReleaseNo
  • Rail/TypePicatinny
  • Tilt6 MIL/20.6 MOA
  • Tube Diameter34 mm
Wont be able to return this mount if I buy it. Just dont want to do my due diligence the best I can. I took my Ritalin as recommended above and was able to watch all the videos till the end :) I am on to something!


Attachments

  • 308onstand.jpg
    267.1 KB · Views: 8
  • spuhr4602.jpg
    9.3 KB · Views: 7
I think Dark Lord of Optics has expressed some opinion on SPUHR and other manufacturers. It might be worth a visit to his posts:



My experience with SPUHR mounts is mixed. I've owned several and most would hold a scope without leaving ring marks or rotating the scope during installation. I did have two which pinched the scope and caused rotation during installation and left ring marks (I always follow the installation instructions to the letter).
There is some conjecture about the type of screws used by some manufacturers with claims that mounts using screws with countersunk heads (such as those on the SPUHR) are problematic since the top cap of the ring is forced to align itself with the taper or the screw head instead of the scope tube or something to that affect while those mounts using cap head screws don't tend to have this issue.
I don't own any SPUHR mounts currently. I do have several mounts from Masterpiece Arms, none of which have any of the issues listed above. I can't say for sure this is because they use cap head screws or are machined more precisely or what.

Check out the vids from MPA and AREA 419:





Fortunately, you have many great options to choose from.
