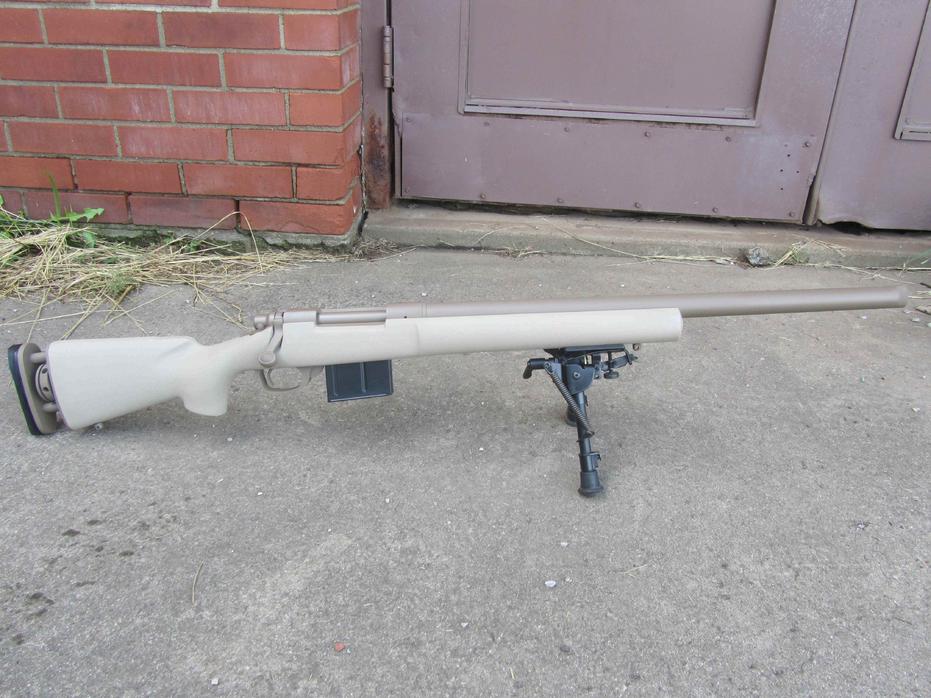

Well here's my latest COMPLETED weapon from Mark at Short Action Customs LLC. Some you are just looking for the meat and potatoes of the build so here they are (below is the back story for those of you who care).
Mark specialty is Short Actions but I was for a M24 SWS hence the Remington Long Action
Items supplied

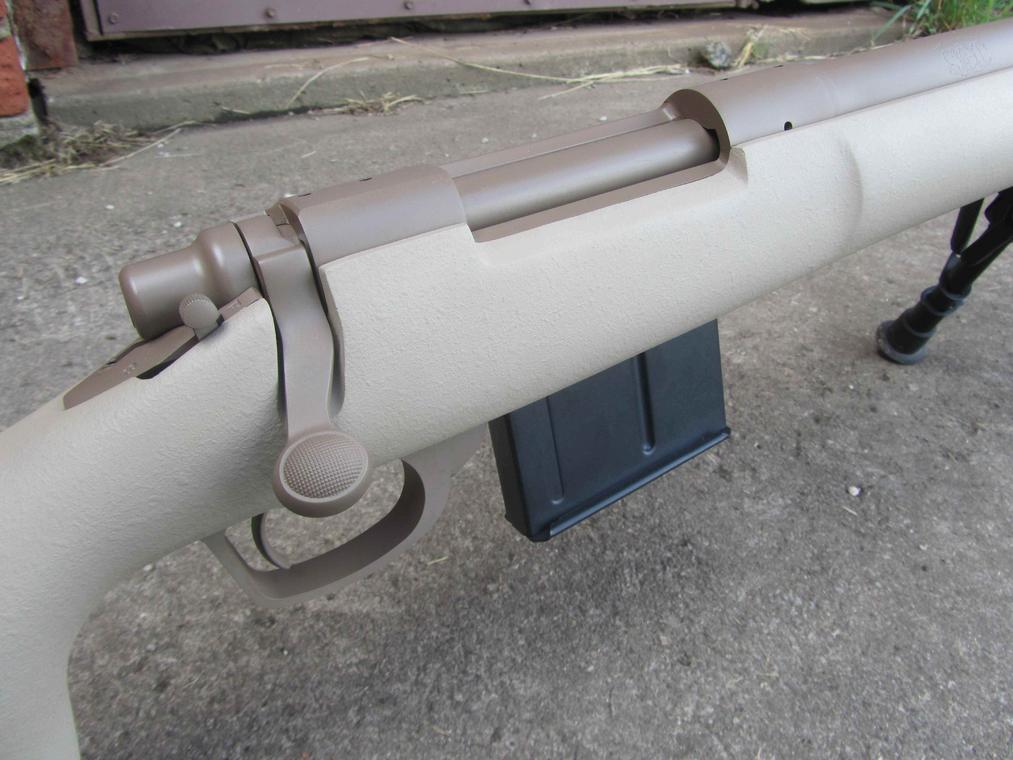

-Stock triggered Remington Long Action
-Remington marked M24 stock (from my research this is an actual M24 purposes stock, sideways branding and no HS markings.
-Dakota Amrs Base medal, stamped by inspectors
-Stock mag spring and follower
Work done
-Supply of the M24 30cal 1-11.25 theist barrel
-Supply Badger M24 DBM assy
-Indicated action lure printing fixture within .0001" concentric of centerline of action, single point cut receiver threads, square bolt locking lugs, square receiver face. Indicated bolt, square bolt face, square bolt lugs.
-Indicate, cut, thread barrel tennon, time curvature of bore to index in the 12o'clock position in relationship to the action, barrel chambered .308Win
-22" cut barrel
-Clean barrel, indicate in lathe within .0001" concentric to bore, turn barrel down and thread to 5/8-24. Crown barrel

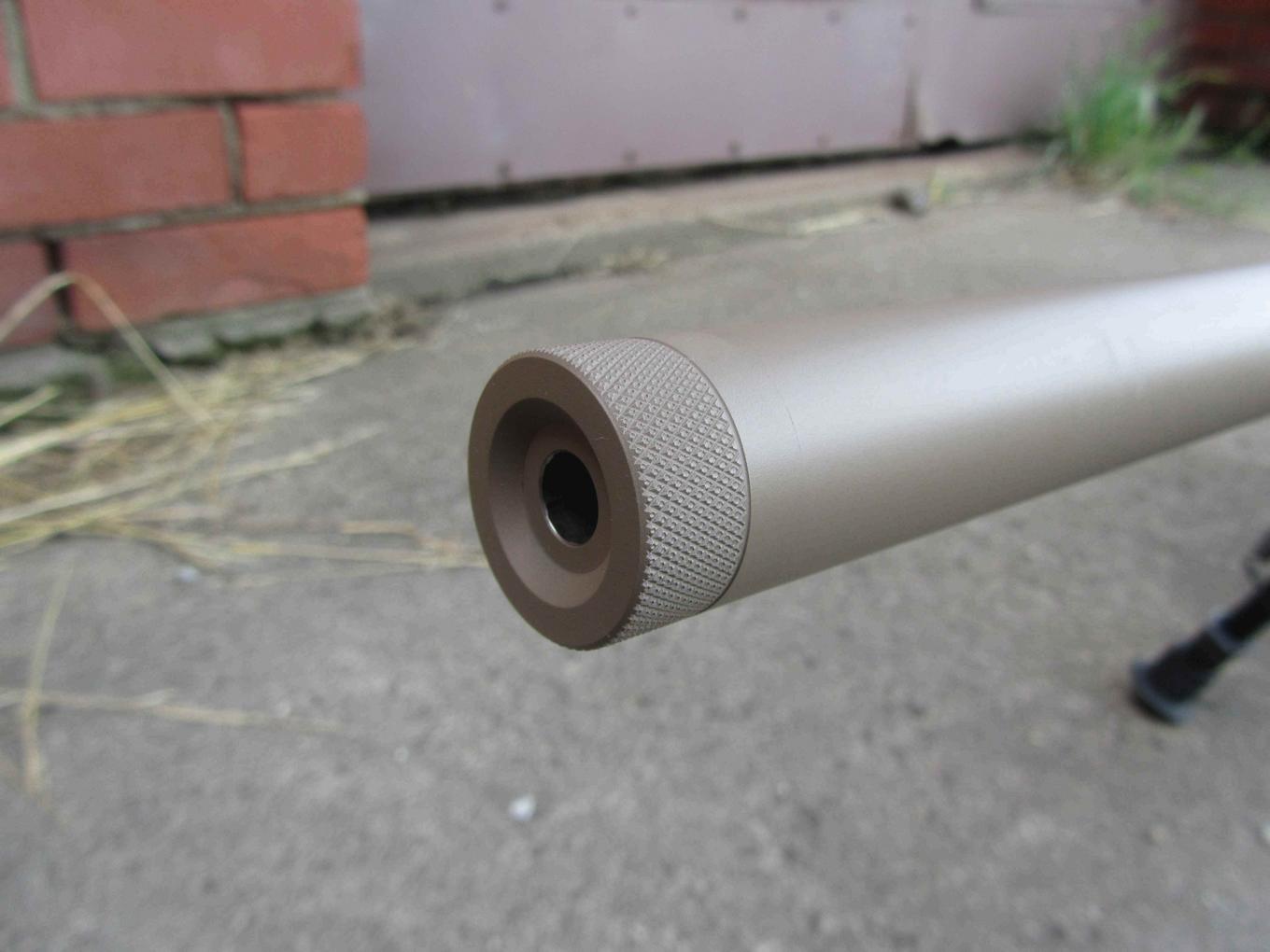

-Fit and installed custom Knurled thread protector
-Cleaned and polished trigger to 3lbs
-Inspected bedding block, centered barrel in channel, leveled action and stock, skim bed action with Devcon Steel Poddy
-Painted metal and stock
Mark specialty is Short Actions but I was for a M24 SWS hence the Remington Long Action
Items supplied
-Stock triggered Remington Long Action
-Remington marked M24 stock (from my research this is an actual M24 purposes stock, sideways branding and no HS markings.
-Dakota Amrs Base medal, stamped by inspectors
-Stock mag spring and follower
Work done
-Supply of the M24 30cal 1-11.25 theist barrel
-Supply Badger M24 DBM assy
-Indicated action lure printing fixture within .0001" concentric of centerline of action, single point cut receiver threads, square bolt locking lugs, square receiver face. Indicated bolt, square bolt face, square bolt lugs.
-Indicate, cut, thread barrel tennon, time curvature of bore to index in the 12o'clock position in relationship to the action, barrel chambered .308Win
-22" cut barrel
-Clean barrel, indicate in lathe within .0001" concentric to bore, turn barrel down and thread to 5/8-24. Crown barrel
-Fit and installed custom Knurled thread protector
-Cleaned and polished trigger to 3lbs
-Inspected bedding block, centered barrel in channel, leveled action and stock, skim bed action with Devcon Steel Poddy
-Painted metal and stock
