Suppressors Threading for Savage Rascal

[aaaaaz]

I’m working on getting the kids started properly. I have a couple of the older, lighter Savage Rascals. I bought in before the heavier FV-SR and Target XP Rascals came out with the heavy, threaded barrels. I have a Rugged Occulus suppressor which has a short configuration on the way. I’ve found varying information on threading a Rascal barrel. Because of the thinner barrel it seems to be necessary to thread for an adaptor to get a proper shoulder. I’m interested in anyone’s experience doing something similar or thoughts. Thank you.



[Zak Smith]

Hi,

With the small muzzle OD, we threaded them 1/2-28, made sure the crown was faced correctly, and then used a rear suppressor endcap that was designed to shoulder on the muzzle not the normal shoulder. It's a very clean setup but requires a custom part.



[ZY100]

Zak has the clean answer. But I had my sons Rascal threaded 1/2 - 28 then added the adaptor just like you said. Works great for my TBAC takedown!

ZY



[ZY100]

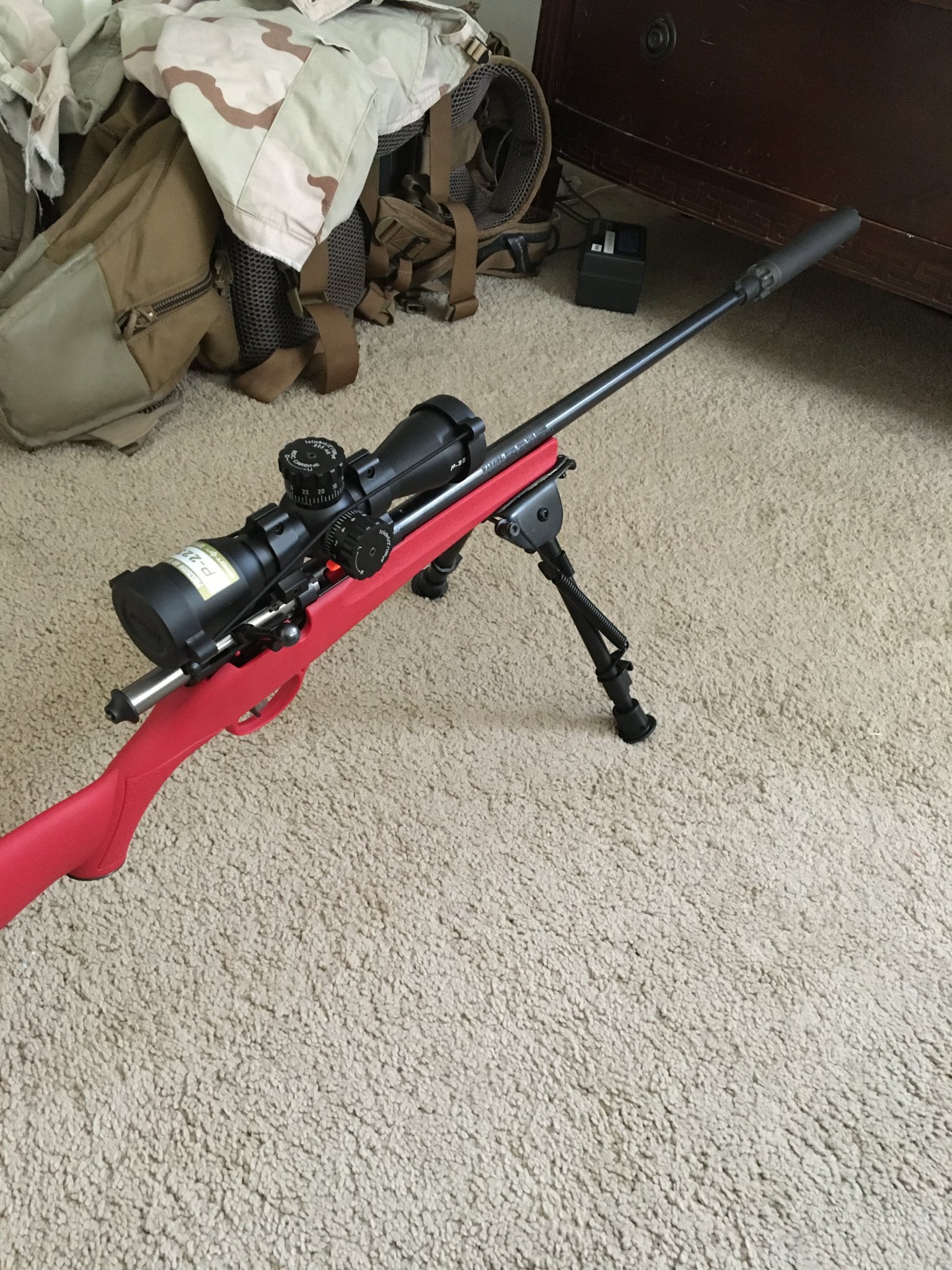

Not the TBAC on it but you get the idea...



[aaaaaz]

Some of the different adaptors mentioned in other posts had different threads on the barrel to come up to the 1/2 - 28. I should be safe with a standard 1/2 -28 thread job and then add the adaptor?



[aaaaaz]

Hi,

With the small muzzle OD, we threaded them 1/2-28, made sure the crown was faced correctly, and then used a rear suppressor endcap that was designed to shoulder on the muzzle not the normal shoulder. It's a very clean setup but requires a custom part.

Where should I be looking for the custom part? I think at least one of the similar suppressors has a replaceable connection to attach to different threads but I didn’t think the oculus had that capability. Is the rear end cap something I would need to get from Rugged?



[Zak Smith]

It would be an alternate rear endcap (ie thread end) that the manufacturer would probably have to make.

With regard to ZY100's adapter photo-- be aware of the (lack of) thread relief cut! Just make sure it's shouldering up. Sometimes the lack of a thread relief cut can prevent the rear of the suppressor from shouldering up to the barrel or adapter shoulder.
