Weight System for Aero Solus

cavegeo64

Private
Minuteman
Sep 10, 2024
6
2
Central Florida
I have installed a new Weight System in my Aero Solus. I was able to balance my rifle just ahead of the Barricade Stop. The system consists of a Buttstock weight which adds 1.5 lbs and the internal forearm weights add 0.5 lbs for each weight.

The weight system is manufactured by Dauntless Engineering.

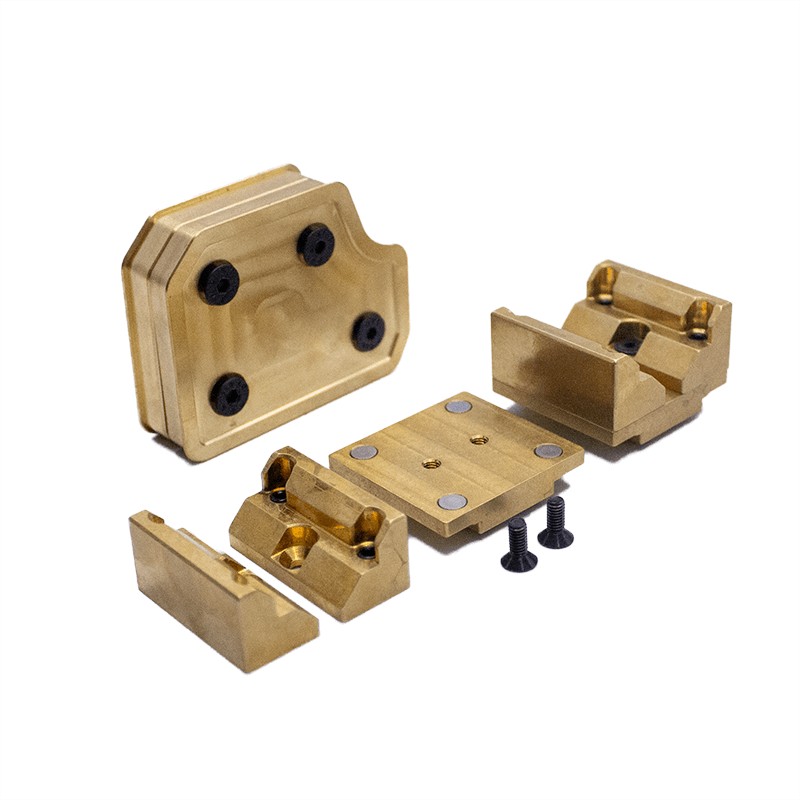

The internal weight come in three pieces the base plate and two side pieces. The side piece has one fastener that attaches to the side piece to the base plate. There are two threaded rods (Jack Screws) that when screwed down expand the side piece to hold it in place. The base plate is cut to fit in an M Lok slot on the bottom. See attached photos. I installed the base plate first then slide a side piece in and loosely tightened the fastener. Then slowly tightened the jack screws, once the side piece was jacked into place then tightened the fastener. There are steel inserts in the base plate that the jack screws tighten against.


Last edited:
