Winchester Model 70 Pre64 Bolt Disassembly

FNG1001

Sergeant of the Hide
Full Member
Minuteman
Sep 5, 2022
452
199
USA
Anyone know of any guide or manual describing how to disassemble and, more importantly, reassemble a Winchester Model 70 bolt?

Particularly, how to remove the claw, the bolt face, ring, etc. Not a field strip.


Anyone know of any guide or manual describing how to disassemble and, more importantly, reassemble a Winchester Model 70 bolt?

Particularly, how to remove the claw, the bolt face, ring, etc. Not a field strip.

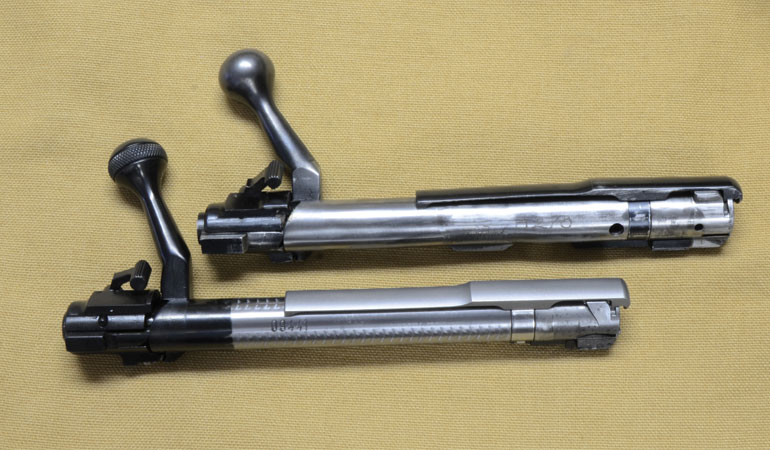

View attachment 8320658
Rotate the claw around the bolt body until it is out of the exterior guide groove in the bolt nose.
Push the extractor forward off of the spring steel ring.

.

.
