22 creedmoor

Is anyone else running 22 CM in an AR10?

I have had mediocre results with 90 grain ATIPs with a CBTOL of 2.120”, CCI BR Primers and STABAL HD. I get 3100 fps out of a 26” Bartlein 400MODBB 1:7.7 barrel and about 1-1.25 MOA.

Has anyone tried the ALCO 90 grain bullets? Or RL25 or the Vihtavouri powders?

  • Like
Reactions: mettee
Is anyone else running 22 CM in an AR10?

I have had mediocre results with 90 grain ATIPs with a CBTOL of 2.120”, CCI BR Primers and STABAL HD. I get 3100 fps out of a 26” Bartlein 400MODBB 1:7.7 barrel and about 1-1.25 MOA.

Has anyone tried the ALCO 90 grain bullets? Or RL25 or the Vihtavouri powders?
I am not but my experience with Hornady 88gr eldm which is very similar in measurements to the atip did not shoot under .7-.75 which was unacceptable.

I switched to Berger LRHT 85.5gr and now I’m .3 and better all day. This is with a bipod and rear bag off a bench.

  • Like
Reactions: 232593
I am not but my experience with Hornady 88gr eldm which is very similar in measurements to the atip did not shoot under .7-.75 which was unacceptable.

I switched to Berger LRHT 85.5gr and now I’m .3 and better all day. This is with a bipod and rear bag off a bench.
Is this with a semiautomatic and what powder did you use if you don’t mind me asking?

Peterson has the following as max charges


STABAL HD might be an option. Hogdgon has data for a 90 grain ATIP that might help.

Is anyone else running 22 CM in an AR10?

I have had mediocre results with 90 grain ATIPs with a CBTOL of 2.120”, CCI BR Primers and STABAL HD. I get 3100 fps out of a 26” Bartlein 400MODBB 1:7.7 barrel and about 1-1.25 MOA.

Has anyone tried the ALCO 90 grain bullets? Or RL25 or the Vihtavouri powders?
I am running some 52gr hammers in the AR platform.

  • Like
Reactions: 232593
Guys , I just got on here after a long hiatus, I have got to say, I am impressed with some of the test results you guys have been getting with this cartridge, I burned up one barrel shortly after starting this thread and I've got a spare barrel in the safe, it has always been one of my favorites, you comp guys running these new 90+ bullets are doing what I always thought was a bad ass match round.

I applaud you guys for smoking rounds down down range.
I'm back in the game again but for hunting only and I've got some 50 gr sierras im about to test out on some Yotes, Remember.....Speed Kills!

good luck to anyone who jumps into this fun round, take care

  • Like
Reactions: 232593
Guys , I just got on here after a long hiatus, I have got to say, I am impressed with some of the test results you guys have been getting with this cartridge, I burned up one barrel shortly after starting this thread and I've got a spare barrel in the safe, it has always been one of my favorites, you comp guys running these new 90+ bullets are doing what I always thought was a bad ass match round.

I applaud you guys for smoking rounds down down range.
I'm back in the game again but for hunting only and I've got some 50 gr sierras im about to test out on some Yotes, Remember.....Speed Kills!

good luck to anyone who jumps into this fun round, take care
How many rounds did you put through the barrel before it was shot out?

With a 26” barrel I was able to get them to 3150ish. But I can’t get a decent ES or group size. I think it’s because when the bolt goes forward the inertia moves them about .010. I have a crimp die so maybe that will help?
Just use 4831SC or VV555. Crimping will only lead to more problems, Probably.

  • Like
Reactions: 232593
I’ll get ahold of some of that VV555. Do you have a starting charge weight?

I also blew up 2 ALCO 90 grain bullets at 3070fps. 3030 fps didn’t have any problems and produced a 3/4” group.

What primers do you use?

I’ll get ahold of some of that VV555. Do you have a starting charge weight?

I also blew up 2 ALCO 90 grain bullets at 3070fps. 3030 fps didn’t have any problems and produced a 3/4” group.

What primers do you use?
How many rounds did it take to blow up a bullet?

CCI 450's

With H1000 and 95smk I’m guessing I should find a load somewhere between 42gr-44gr? Of all the information I’ve searched through this is kind of what I have seen. Just wanted to make sure I was on the right path.

24” 1:7 Mullerworks
Virgin Peterson 22 Creedmoor SRP brass
95 SMK

Last edited:

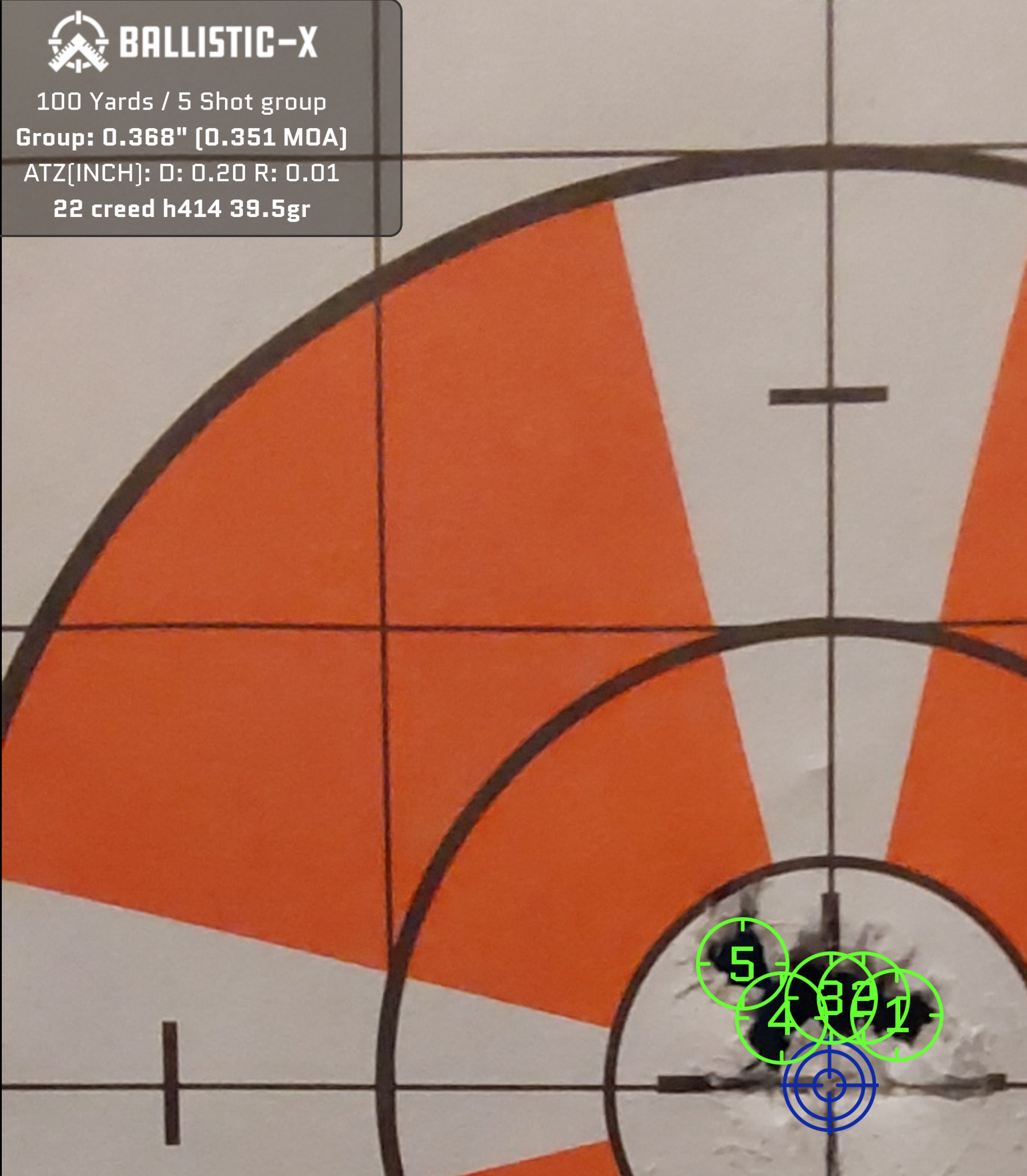

Ruger American with PVA 7T 26" barrel
80 ELDM
Peterson LRP brass
Fed match primer
H414 39.5
3250 estimate from quickload
3200 actual using garmin chrono


Attachments

  • Ballistic-X-Export-2024-01-08 00_30_37.694665~2.png
    Ballistic-X-Export-2024-01-08 00_30_37.694665~2.png
    2.6 MB · Views: 71
Last edited:
With H1000 and 95smk I’m guessing I should find a load somewhere between 42gr-44gr? Of all the information I’ve searched through this is kind of what I have seen. Just wanted to make sure I was on the right path.

24” 1:7 Mullerworks
Virgin Peterson 22 Creedmoor SRP brass
95 SMK
Not H1000, but
95 SMK
Converted 6.5 Creedmoor Lapua Case
FED 205
2.270" BTO
4831SC
43.0grs
3014 FPS

With H1000 and 95smk I’m guessing I should find a load somewhere between 42gr-44gr? Of all the information I’ve searched through this is kind of what I have seen. Just wanted to make sure I was on the right path.

24” 1:7 Mullerworks
Virgin Peterson 22 Creedmoor SRP brass
95 SMK
24" Bartlein 1-6.5 twist .120 Freebore
95 SMK at 0.40 Jump
Alpha Brass with CCI450
With H-1000 I started at 41.5 and went to 45.2, best node was at 3050s with 44.2 grains.

I tired, H4350, 4831SC, RL26, N565, and H-1000
Current load is 43.00 of N565 for 3010

I have 5 to 600 through mine I would guesstimate maybe towards 700 I haven’t kept track like I should . Running 75’s at 3435 with 41h4350. Throat is really fire cracked. But it still shoots in the .3s

  • Like
Reactions: DIBBS
With H1000 and 95smk I’m guessing I should find a load somewhere between 42gr-44gr? Of all the information I’ve searched through this is kind of what I have seen. Just wanted to make sure I was on the right path.

24” 1:7 Mullerworks
Virgin Peterson 22 Creedmoor SRP brass
95 SMK
I tried that combo and it was terrible. TS Custom barrel, 1:7, 22". Then someone commented on this thread that was way too slow of a powder for that bullet. Settled on RL26 and 88 eldm which was amazing.

  • Like
Reactions: Heretic
What speeds can I expect out of a 16.5 shooting 50-60gr pills? I am considering going to a smaller more efficient case like a 22GT over the creedmoor, unless I can still get blistering speeds with a short barrel. I already own the barrel so I am set on the length. Any input?

What speeds can I expect out of a 16.5 shooting 50-60gr pills? I am considering going to a smaller more efficient case like a 22GT over the creedmoor, unless I can still get blistering speeds with a short barrel. I already own the barrel so I am set on the length. Any input?
What you’re talking about is my setup. I have two loads for my 16” 22creed. Mine is a 1-8t X-Caliber.

60g Berger FBV @3430
68g Hammer HHT’s @3450 (leaning on it)


Attachments

  • IMG_8903.jpeg
    767.9 KB · Views: 43
  • IMG_4237.jpeg
    383 KB · Views: 47
If anyone is looking for 22 CM brass, Grafs has 100pcs of Peterson for $79. Comes in a bag, with a label that reads "Major Manufacturer blah blah blah" Don't know if the brass is "seconds" or blem but they look exactly like the 50 I bout for $56.

If this post doesn't belong here, please let me know.
