I single load them.
col is 2.540
mv is 2670 fps
18" 1-7" twist barrel.
col is 2.540
mv is 2670 fps
18" 1-7" twist barrel.
88 ELD-M in .223 Rem
- Thread starter generalzip
- Start date
2825 in a 20” with 4895 is probably not going to be obtainable. Probably closer to 2700. They have a pretty long bearing surface. My 88 in a 29” barrel throated for this bullet pops primers at 2875
I have 3 barrels .
2 , 1-8 ackleys
1 1-7.5 Wylde
I’m sure it will work in one of them.
Is anyone trying these out of a magazine? I'm guessing they protrude into the case too far, but was curious if anyone had tried it and what velocity was.
Are you loading to factory OAL? Which powder? I'm getting ready to buy gain twist barrel and am wondering if I can make it work with this bullet.
I'd expect a COAL in the ballpark of 2.45-2.51" with 88s in an appropriately throated (ie. Wylde or longer) 223, which should work just swimmingly with AICS-pattern 223 magazines.
There's no way they would work @ AR15 maglength, just too long (as are the 75s), but they're fine in AICS mags. I've run them in Ruger 223 AI mags, and in an Accurate Mag without issue, loaded in 223 AI.
might help if you ask a more specific question. There’s plenty of data in this thread to get you started with the 88s And load data. Not sure what else you need to grab some to try out if you want. Im happy with the 88s in my rifle but it’s def the limit for this cartridge. The 80 is better suited in my opinion for the 223. The 88 is better for a 224v or 22Br honestly.
I had to give up on the 88's in my 7 twist 28" 223AI/2814 fps/ yes a light load. Some weren't making it to the target or would wack out, especially after 40 rounds post cleaning.
Got a ladder test ready for when the window opens on a windless morning. 75 ELDM/H4895 and this time I'm going to crank those suckers up! Hoping for 3050 -3100 fps.
BTW, I'm selling about 450 of the 88's, if someone wants them please contact me.
Got a ladder test ready for when the window opens on a windless morning. 75 ELDM/H4895 and this time I'm going to crank those suckers up! Hoping for 3050 -3100 fps.
BTW, I'm selling about 450 of the 88's, if someone wants them please contact me.
Well specifically I loaded up 10 the other day with Varget and was getting 2700 FPS. 25” xcaliber barrel. The 75 eld has been somewhat hard to tune imo so I was looking at the 88. Varget is scarce so I was mostly curious about powder and velocity guys are getting. It looks like the other common powder is H4895 which is also scarce. I have some 8208 xbr on hand and thought about trying that but I didn’t see anywhere in this thread somebody was running xbr.
Two and a half inches long, 22N
2900+
1920fps avg crossing the target @ 600
Not gonna fit in no mag that I know of
2900+
1920fps avg crossing the target @ 600
Not gonna fit in no mag that I know of
I forgot to mention that Ned ludd, a high scoring paper shooter, who has shot a ton of 223 heavies in 223, has suggested people go with a .219 bore instead of the normal .218 bore, and in 7 twist vs a 6.5-6.8 twist. I plan on doing this as well as going with a 5R twist configuration. Combined these are supposed to eliminate blow ups.
Also gave up on 88’s in my 223. couldnt get em to group in a 1-8 twist. got great speeds. over 2900 before blew a primer. tried from jamming to 80 off. nvr could group. 1.5”+
couldnt get the 75’s to group either.
ended up settling with 80gr bergers and they flat shoot. one hole fo sho.
VVN135
24.0 gr
26” barrel 1-8
80’s
2990
just ordered a pile of 85.5’s. Hope barrel can balance em.
GL
DT
You should be able to hit 3100 with 75 ELDM/H4895 out of an AI with no problem. I am getting 3000-3035 out of a 223 with 24.9 gr H4895, CCI450, and Nammo brass. 1-8" Tikka varmint, 24" factory barrel suppressed. Loading .020" off the lands at 2.49" COAL.
It's almost Easter, I'm resurrecting this thread again!
I have a 1/7 twist 223 Ackley pre-fit barrel on it's way. Loaded up some 88's in twice fired Federal 223 brass. 23.3 grains XBR 8208. COAL of 2.52" which just fits in the mdt polymer 223 mag.
I don't have my barrel yet and don't know what the reamer specs were, hopefully l won't be jammed in the lands at that length. I'm guessing it's a standard 223 Ackley reamer if there is such a thing.
I'm at 5400' ASL, anyone running a similar combo? Just curious if people are still trying to get these to work, variable success it seems.
I have a 1/7 twist 223 Ackley pre-fit barrel on it's way. Loaded up some 88's in twice fired Federal 223 brass. 23.3 grains XBR 8208. COAL of 2.52" which just fits in the mdt polymer 223 mag.
I don't have my barrel yet and don't know what the reamer specs were, hopefully l won't be jammed in the lands at that length. I'm guessing it's a standard 223 Ackley reamer if there is such a thing.
I'm at 5400' ASL, anyone running a similar combo? Just curious if people are still trying to get these to work, variable success it seems.
I just finished loading the last box of the 1000 88s i originally ordered. They have been shooting great for me. I have 2 top 5s and a top 20 running this setup in 3 matches (1 local and 2 PRS 2 day). Im running a 27" Hawk Hill 6.5 twist with a custom reamer i spec'd out with JGS and my TBAC Ultra 7. I also milled out the front and back of the plastic on my accurate mags to accommodate for the long freebore. I'm using Varget, cci 450s, and lapua brass pushing the 88s at 2890 from a regular 223 (not an Ackley)
Thanks for the info. I have some loaded up that I'm hoping will stabilize in my 1/7, shorter chamber. If not I may have 975 of them to sell you in the near future, lol.
What's your freebore and coal on this reamer out of curiosity?
I have been shooting the 88 eldm. To the lands I am 1.530. I asked my gun smith but he said he used a regular reamer. (Not sure)
At first a look at the numbers very closely comparing 88 grain ELD to the 80 grain
At first a look at the numbers very closely comparing 88 grain ELD to the 80 grain
Got mine going, it's showing promise. 223AI, 2.25" COAL, just got brass formed, starting load workup after 200 rounds.
23" button pre-fit for Origin from Preferred Barrel Blanks (great guys) . Node appears to be at 24.5 grs XBR 8208. That charge is giving 2788 fps avg assuming barrel is done speeding up. I'm debating on calling it good there or looking for a node closer to 2900 fps.
23" button pre-fit for Origin from Preferred Barrel Blanks (great guys) . Node appears to be at 24.5 grs XBR 8208. That charge is giving 2788 fps avg assuming barrel is done speeding up. I'm debating on calling it good there or looking for a node closer to 2900 fps.
Attachments
Last edited:
785 yards is the furthest I have shot the 88eld. It shot just as good as my 6mm br but not quite the hit percentage as my 6.5 Creedmoor.
Digging up an old thread.
How did you get on with this?
Thinking of doing a 223 with a long freebore to run 88elds (.169 seems to be common) but not sure how well it'll run lighter bullets.
Would be great to be able to use both 88s for short-medium range matches, then cheaper 75bthp for practice/varmint shooting.
I’m right at the gate of the 7000 rounds. I’ll chamber a new one this summer.
I had the best results with AR comp. If you want to run 88’s I strongly suggest you to ask you gunsmith to run an unithroater to get you freebore from 0.168" to around 0.190". It’s the key for speed with 223’s
Have you been running lighter bullets or just stuck to the 85gr+?
What speeds you getting?
Did you find the 75gr bullets difficult to tune with the longer FB? Or the ELDMs fairly jump tolerant.

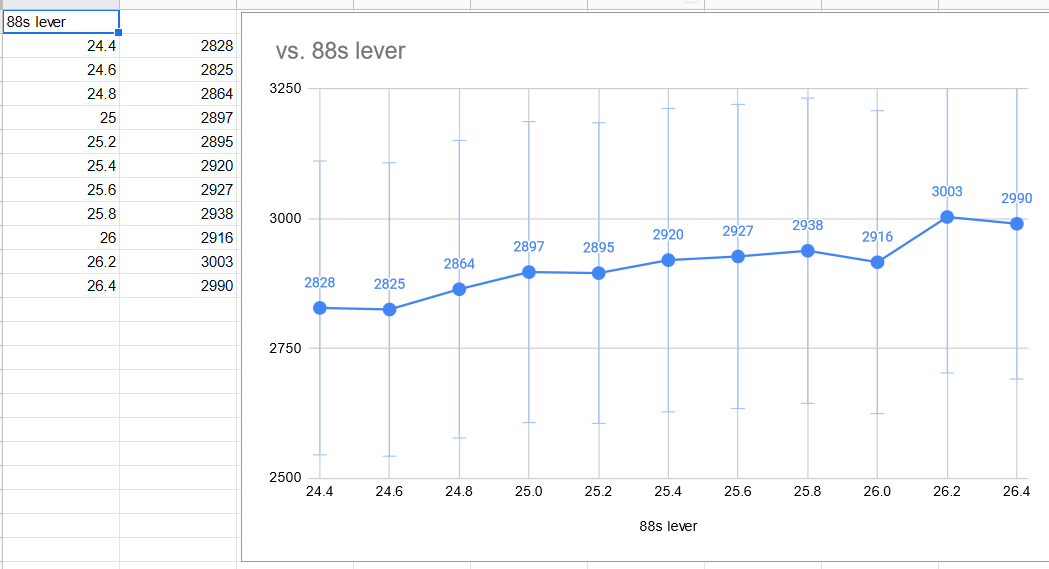

I'm seeing 3000 FPS with Leverevolution and 88s in a 26" long throat 223. I haven't messed with seating depth yet, no time. I imagine I'll settle on a slightly lower charge but I saw no signs of pressure with any of these charges on a pretty warm day. 5000". COAL is around 2.54ish" jumping around .030"
LC brass, CCI 41s
LC brass, CCI 41s
Attachments
Last edited:
