Bulletseeker Mach 4 doppler chrono

[Mr.BR]

What ranges will it measure ? Is it a fixed distance or is it user adjustable ?

Looks excellent. Any export restrictions to certain countries ?

It measures only cca 1.5m in front of the sensor but it makes measurements at a much higher frequency than Labradar



[Shooter CZ]

Can I get the app directly from you? I don't do Google Play.

Yes, of course. I can send it immediately as application will be officialy issued.



[Shooter CZ]

What ranges will it measure ? Is it a fixed distance or is it user adjustable ?

Looks excellent. Any export restrictions to certain countries ?

BS measures V0 only. No export restriction if country is in Europe now. Other countries are in progress.



[Lowlight]

For this looks like the right application

I am interested too



[Commander Shepard]

I am pretty excited about this one. It fixes every single complaint I’ve ever had with Magnetospeed and Labradar, if it performs as advertised.



[VSP968]

Came very close to pressing the order button for one but I’m waiting on an Apple type app….



[db2000]

I actually ordered with Apple Pay through my Amex and it was declined for security reasons. Then I realized about the Apple compatibility, or lack there of, and pulled the cord. When it’s compatible I’m in!



[Lowlight]

Is that site live to order here in the US ?

I see the link, site, etc, but is that good to go, or are we all just guessing at this point it will arrive ?



[wldott]

Is that site live to order here in the US ?

I see the link, site, etc, but is that good to go, or are we all just guessing at this point it will arrive ?

I ordered a couple of them yesterday, I’ll report back after they arrive and I have a chance to take them out and try them on a few different rifles from 22lr to 375CT.



[Shooter CZ]

Short video from ARMECA, dealer for France



[Mr.BR]

Is it a rocket, is it a plane ? no its a spherical radar lens prototype ,sort of booster to better measure fast varmint loads in .17-.22 cal , that will in one form or another be offered as an accessory as the tests seem to confirm it works well.



[db2000]

Is it a rocket is it a plane ? no its a spherical radar lens prototype ,sort of booster to better measure fast varmint loads in .17-.22 cal , that will in one form or another be offered as an accessory as the tests seem to confirm it works well.

SCIENCE!!!



[Shooter CZ]

Can I get the app directly from you? I don't do Google Play.

Yes, you can as new version will be released.



[Defender3]

Came very close to pressing the order button for one but I’m waiting on an Apple type app….

Just order it so I live vicariously through you on Range 4 please.



[Moodilistic]

Has the iOS version been released?



[superde]

Tag



[rydah]

I hate my labradar.

Very keen to see more on this.



[Habu34]

Hello from France
Just ordered one on Armeca website as soon as it was available.
Link to the Bulletseeker : Armeca-vpc.fr

Bruno PUT owns the shop and with his collegue Jeremy DELETRE, are some of the best long distance shooter/spotter in Europe

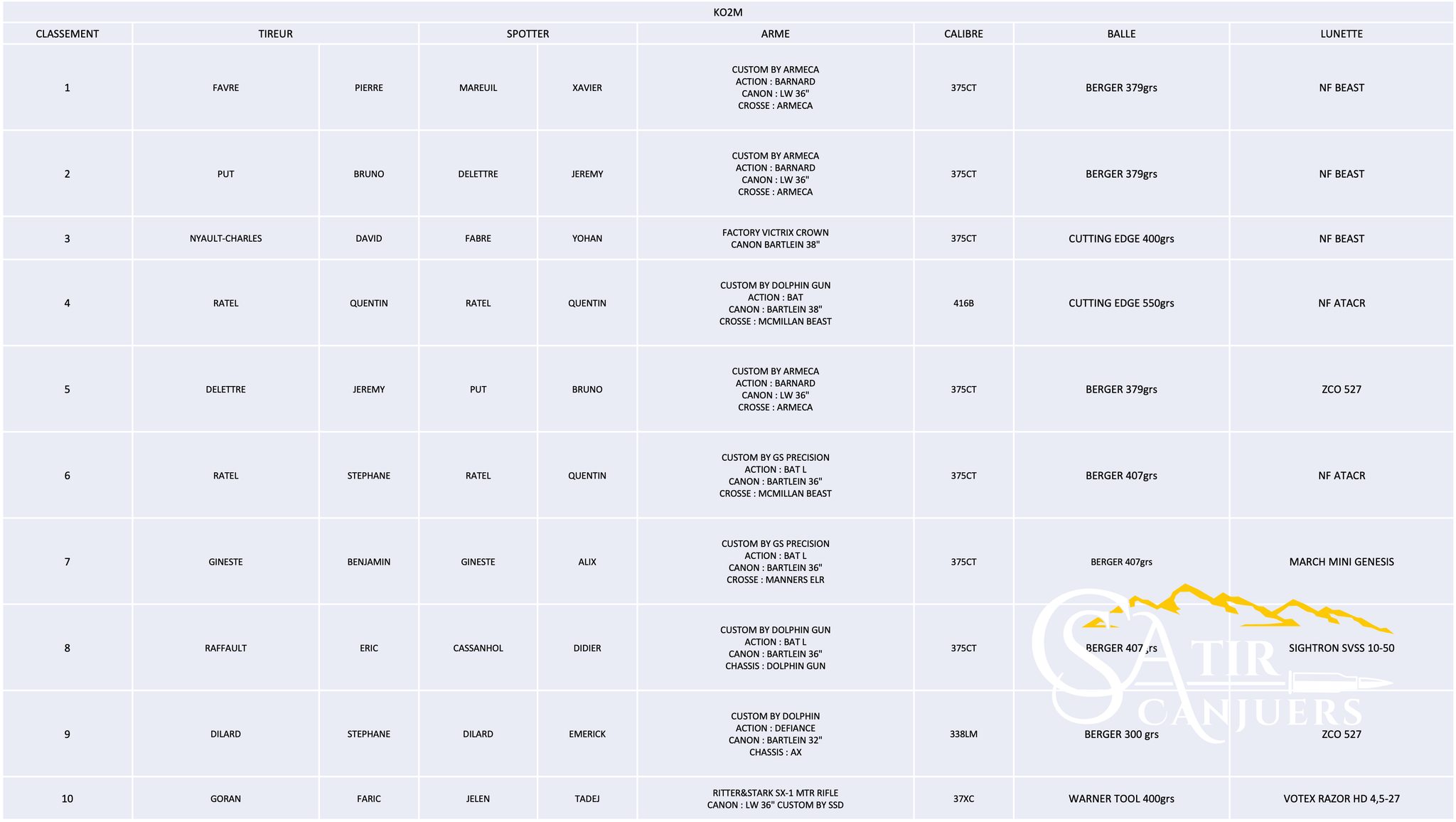

King Of 1Mile 2022 in France

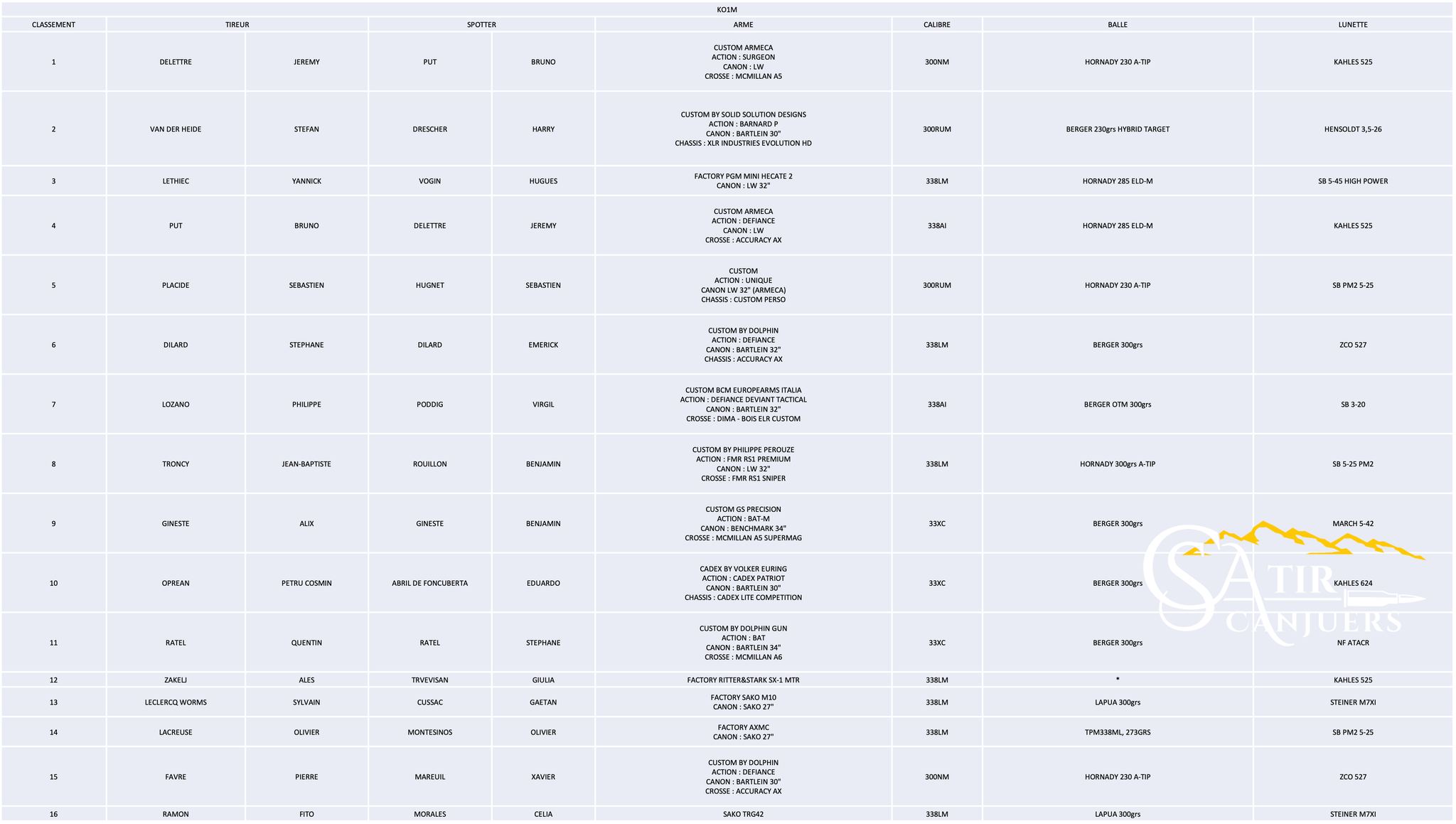

King Of 2Miles 2022 in France

Take care

Habu34



[Snuby642]

Ok
You got me.

Looks like this eliminates all the hassles other chronograph's have.

Says it will work in tunnel, so I'm guessing standard indoor range is good to go?

Do we have a US distributor yet ?



[Habu34]

Hello from France

The 120 GHz Transceiver TRA_120_002 is coming from « Silicon Radar GmbH (SiR), Germany »

120 GHz Transceiver TRA_120_002 - indie Semiconductor FFO GmbH

A compact 120 GHz radar transceiver on a chip in the 120-GHz ISM band. It is characterized by a high measurement resolution.

siliconradar.com

https://siliconradar.com/datasheets/Datasheet_TRA_120_002_V0.8.pdf

Habu34



[LastShot300]

How do you attach it to, say a hunting rifle, with no picatinny rail?



[Ericsl2]

How do you attach it to, say a hunting rifle, with no picatinny rail?

Id bet you can just duct tape it on



[b6graham]

Id bet you can just duct tape it on

i'd be curious how close it needs to be. i.e. can it just sit on the ground/bench between the bipod legs (provided visibility down range)



[Eric32]

I wonder if it can sit on a RAPTOR mount



[Habu34]

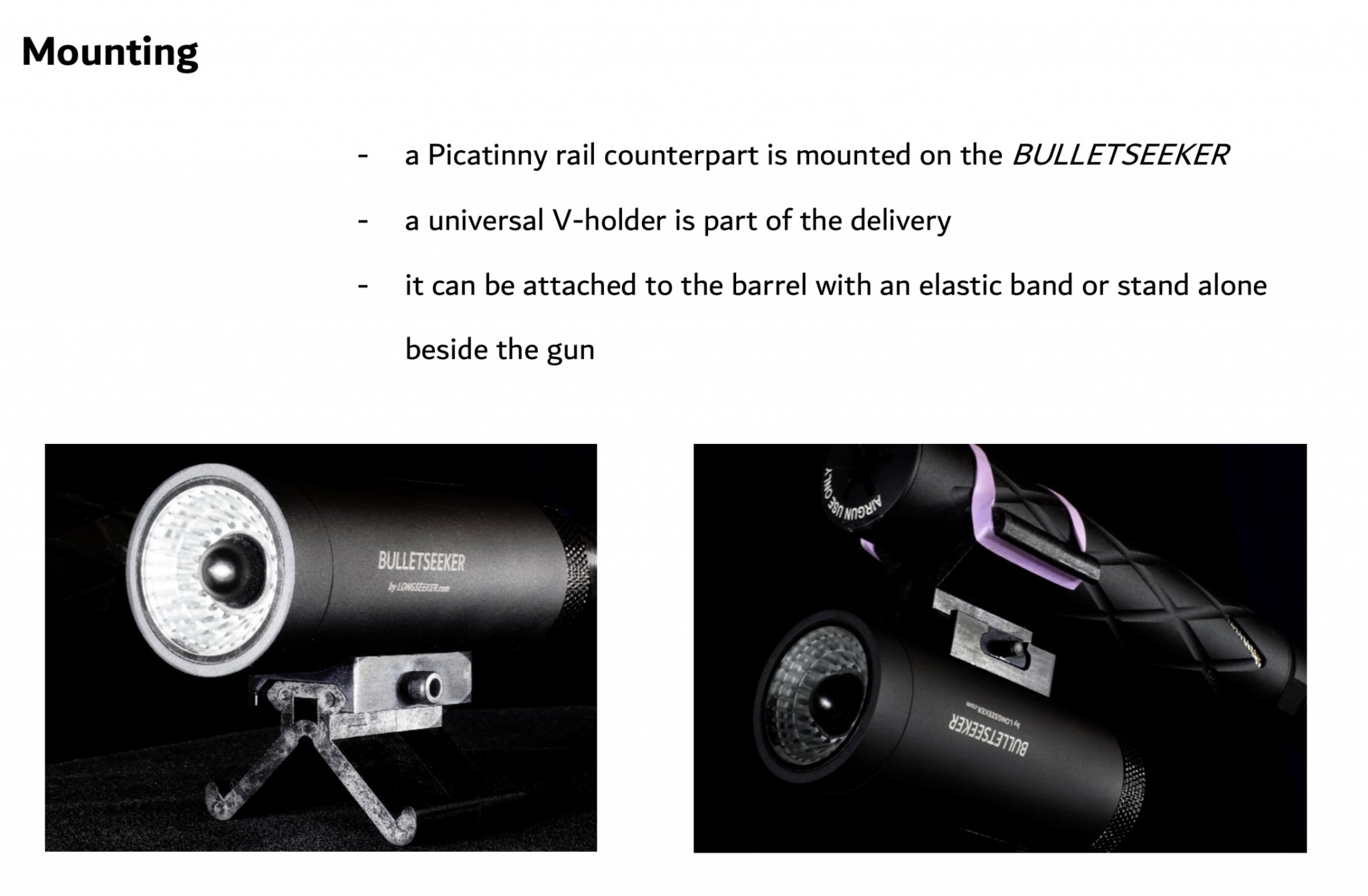

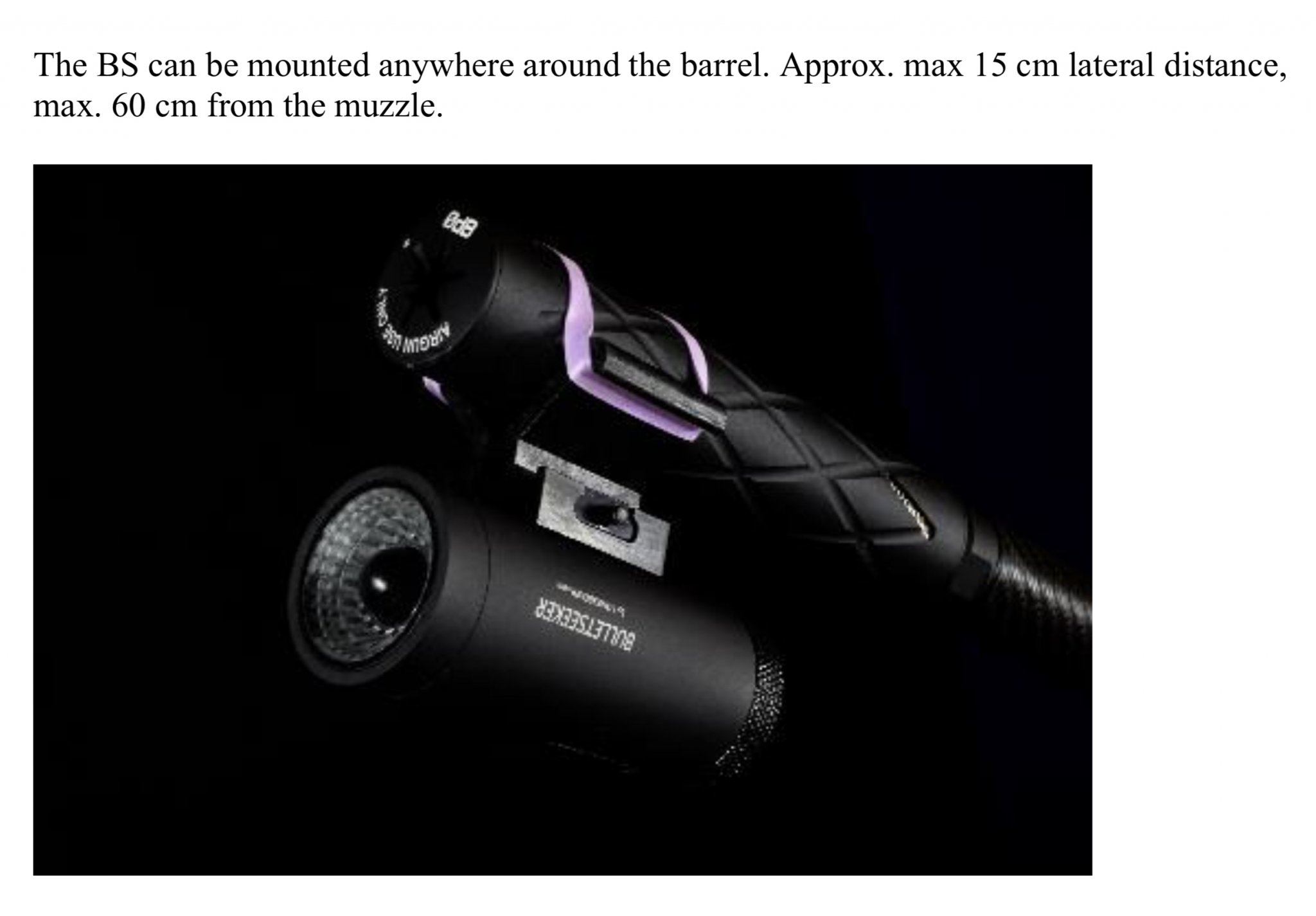

And the Bulletseeker Instructions:
Products can be mounted from 10.5" to 24" behind the muzzle. This applies to all calibers.



[Habu34]

Why would you send that demo version to me, there are not much posse on the forum, that do hear or read Portuquese

And the air rifle conversion kit is not available for all calibers ;-) (It was the first version of the Bulletseeker limited to 350m/s)



[LastShot300]

Very interesting, looking forward to hear more about real field testing.



[Habu34]

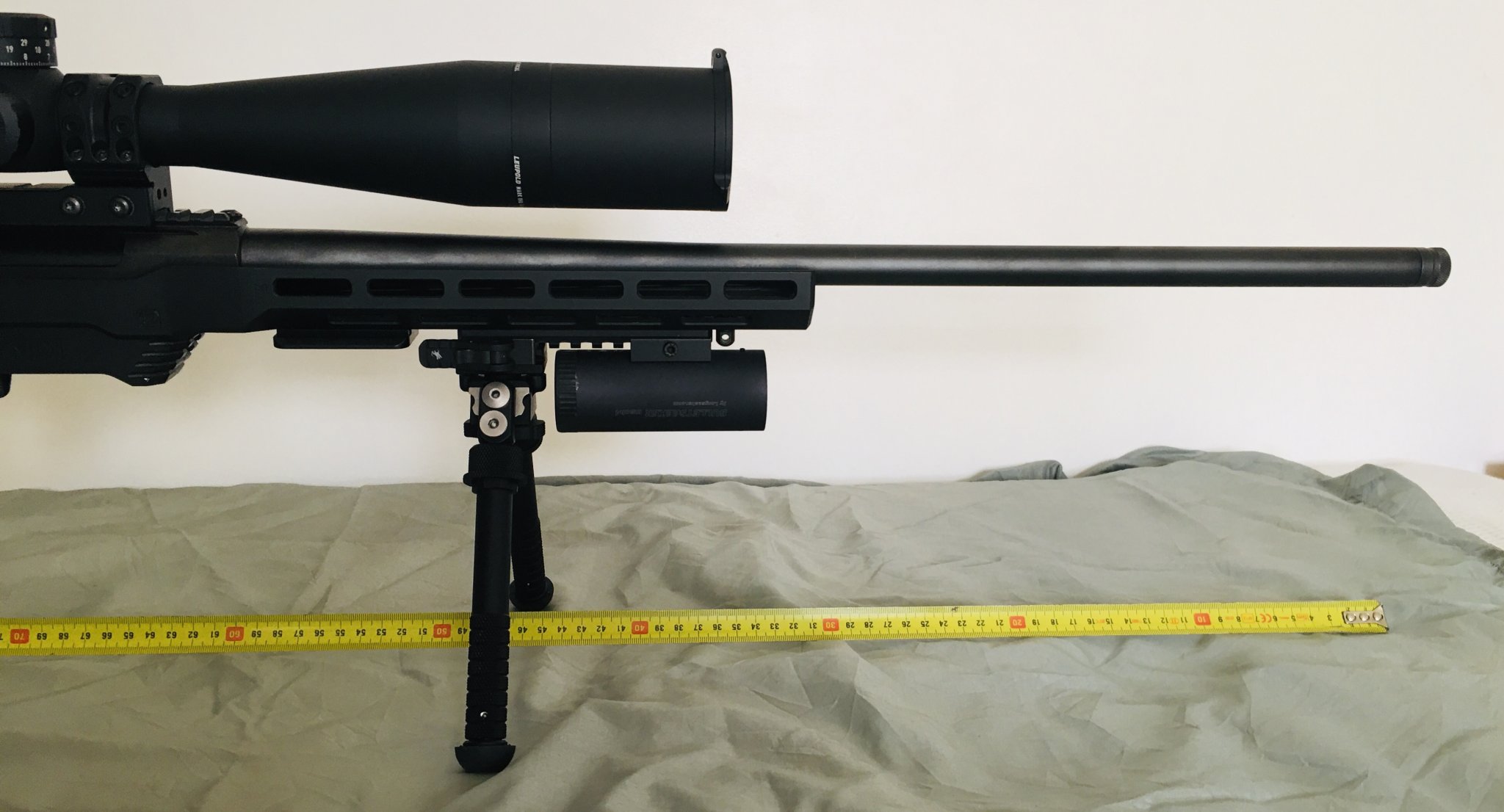

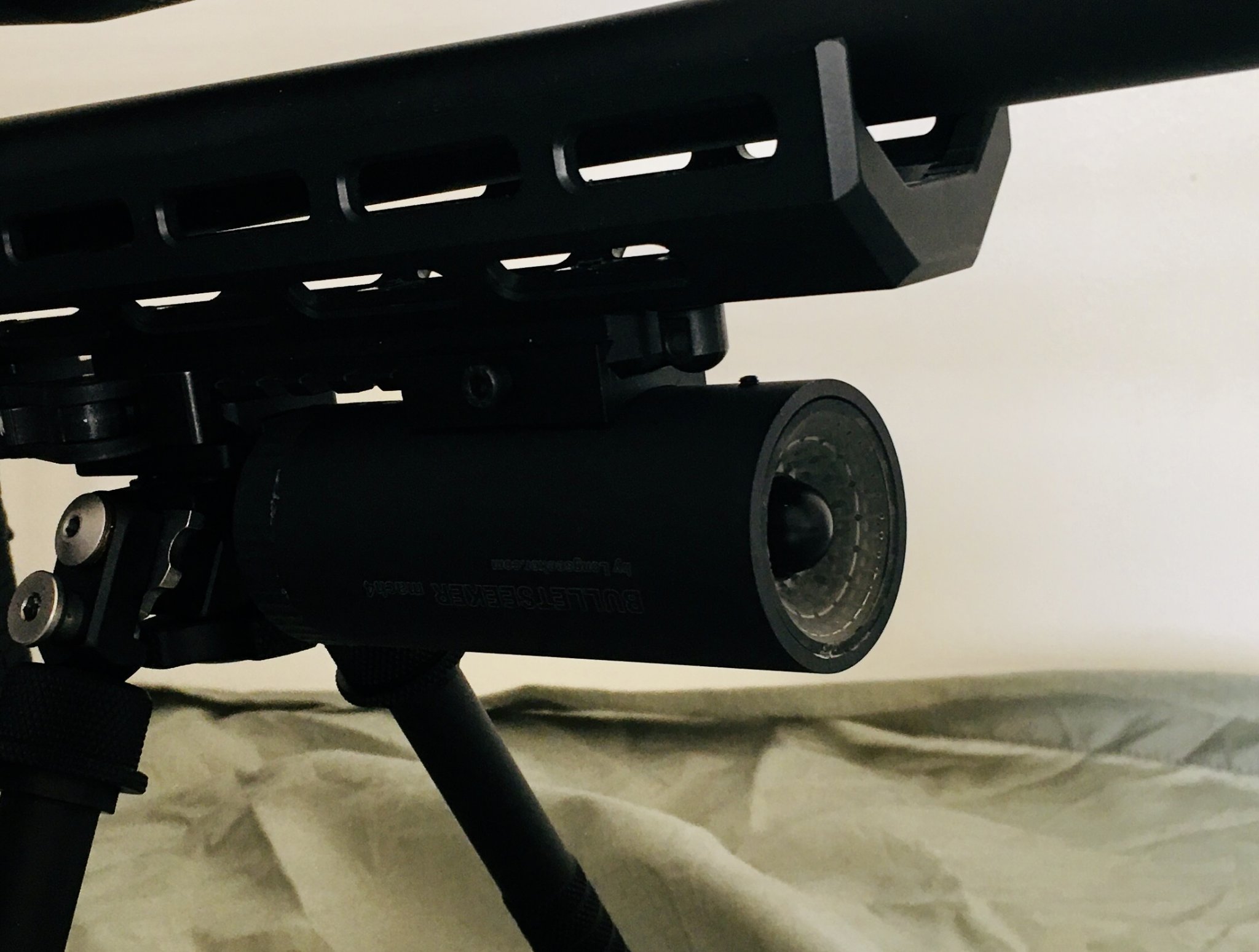

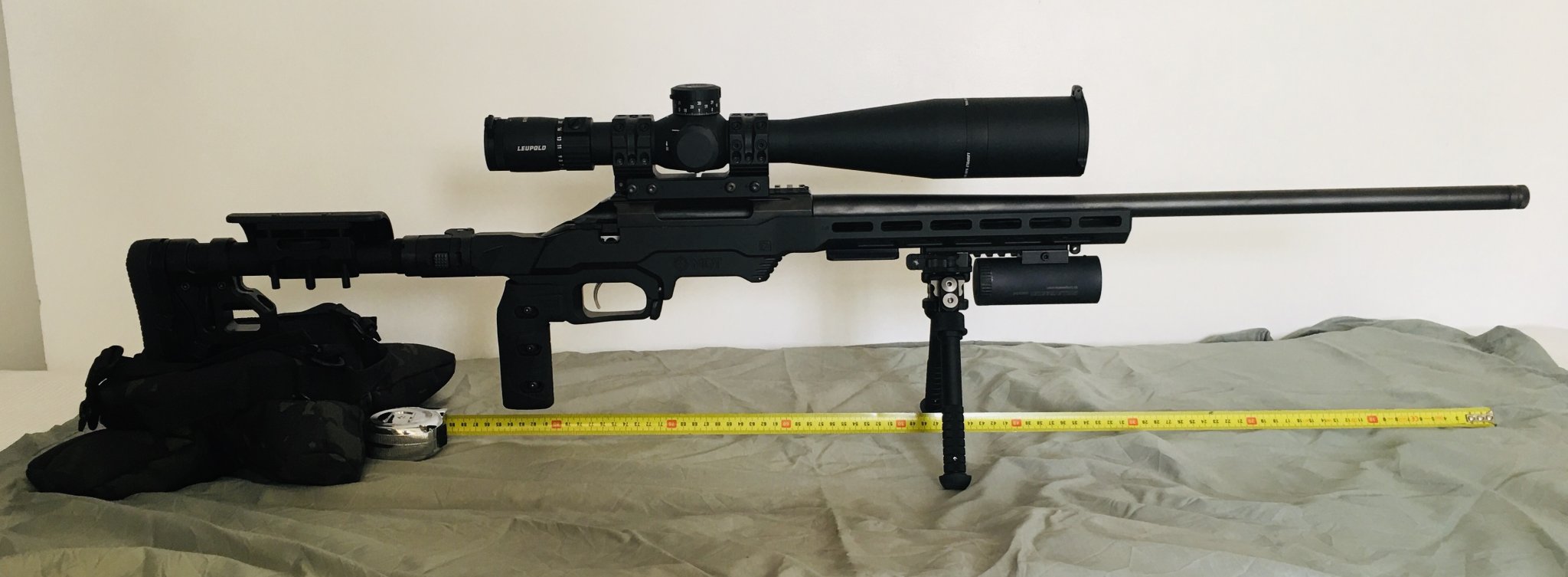

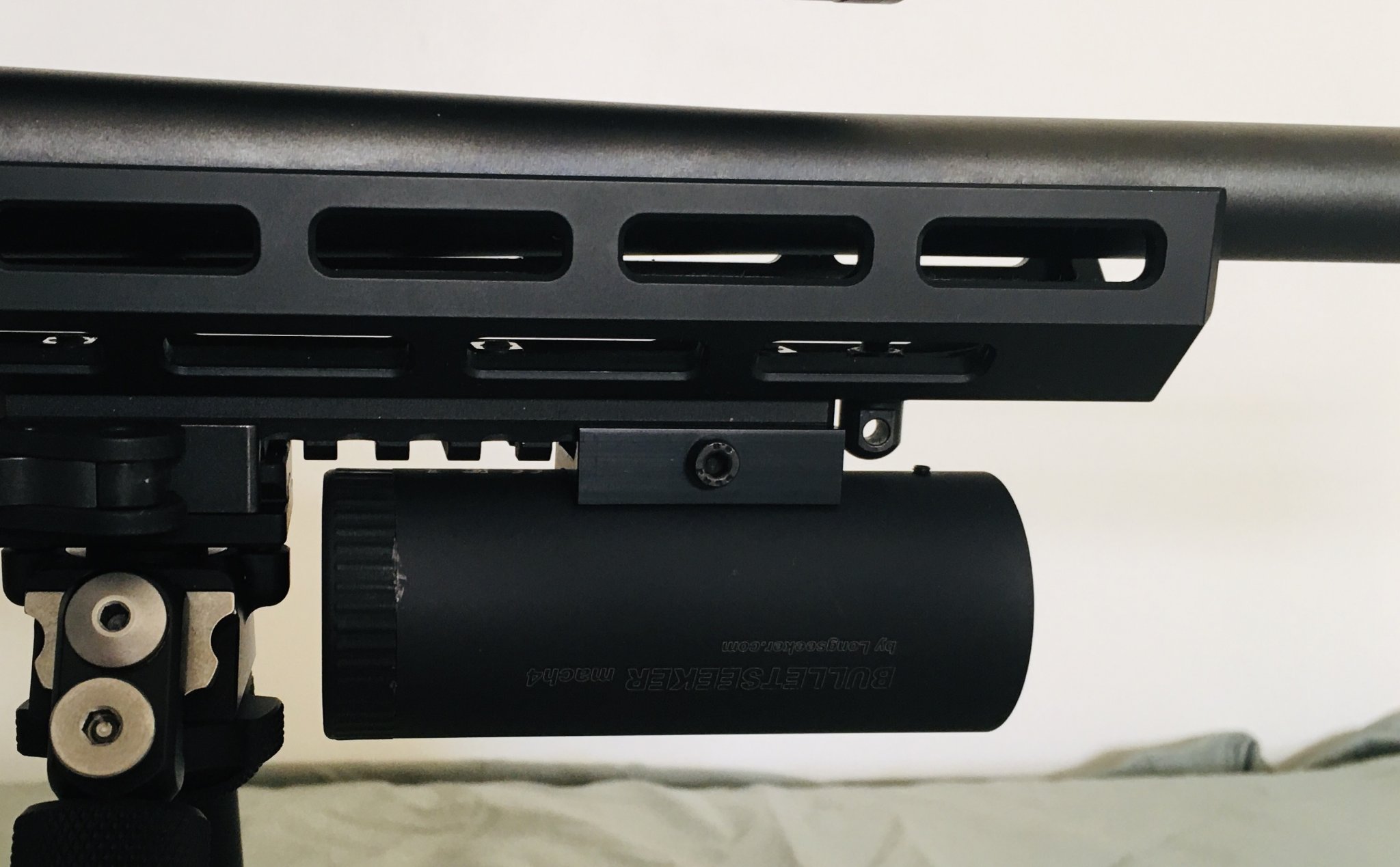

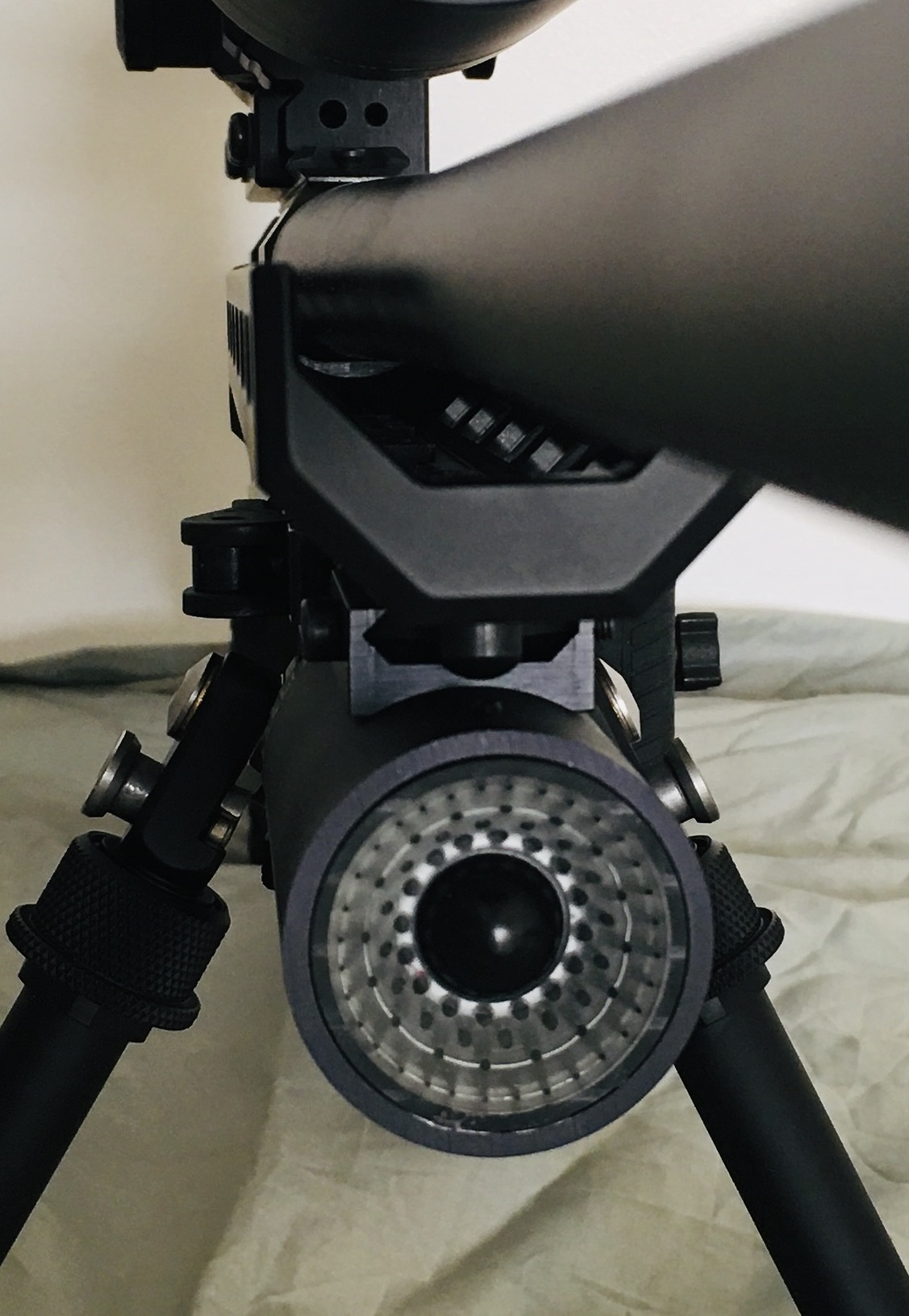

Tikka T3X CTR 24" 6.5 Creedmoor on MDT LSS-XL GEN2

As the detection begins at the muzzle, on my rifle there is only 100-33 = 67 centimeters available for measurements instead of 100 cms announced) (The Bullet seeker should be between 27cm and 60cm behind the muzzle according to the instructions supplied. (10,5 to 24 inches).

Initially the Bulletseeker was designed for Air rifles, so the detection could start at the muzzle until the end of first 100 centimeters.



[BuildingConceptsllc]

View attachment 7889789View attachment 7889790View attachment 7889791View attachment 7889792View attachment 7889793

Tikka T3X CTR 24" 6.5 Creedmoor on MDT LSS-XL GEN2

Have you tested it out?



[Habu34]

Have you tested it out?

Not yet :-(



[Mr.BR]

Eagerly awaiting mine that is already in the post , and it seems an Arca to pic 3d printed adapter is next project , to mount the Bulletseeker under the gun kinda like Habu



[Habu34]

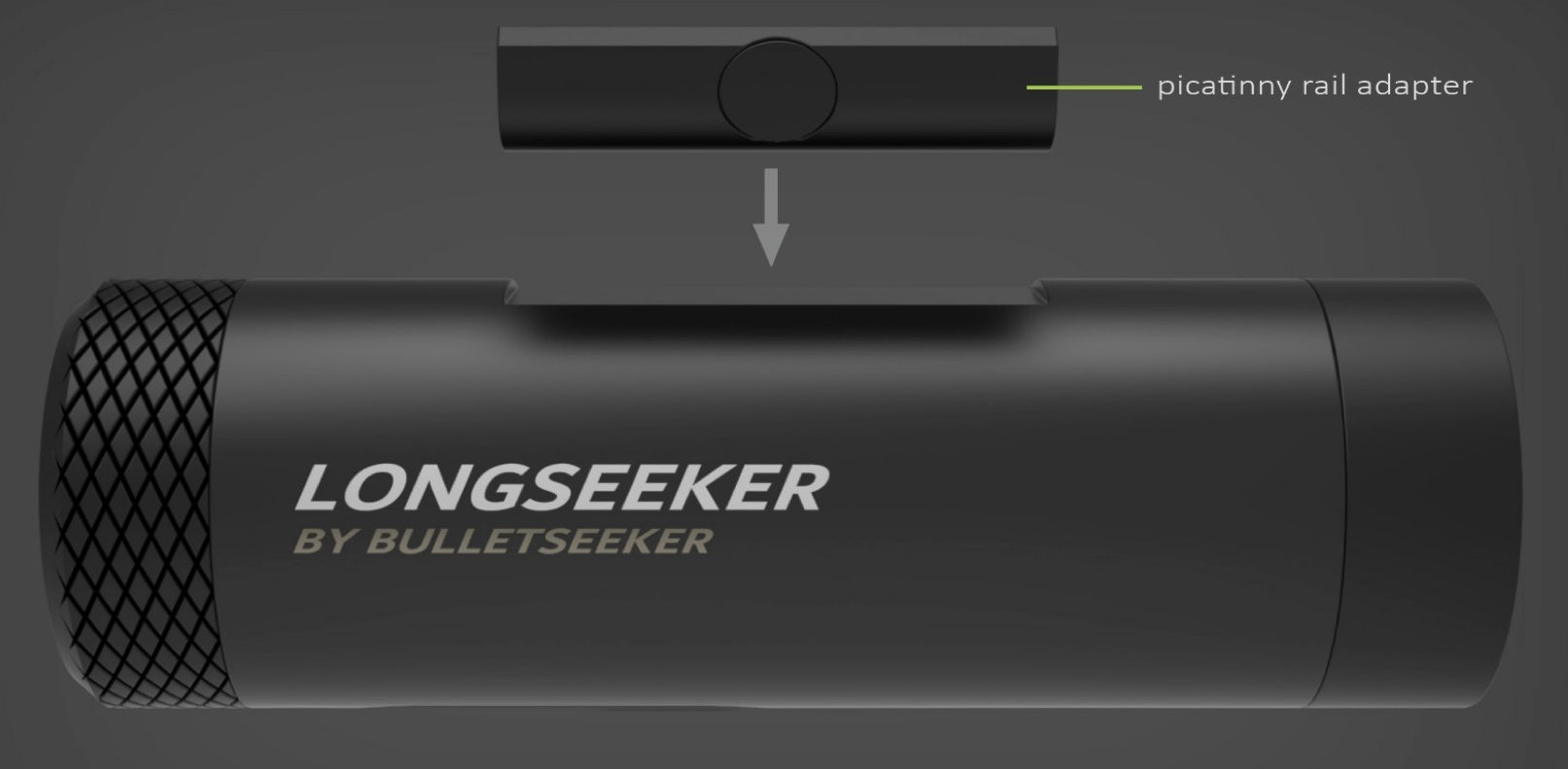

It should be possible to 3D print an arca rail adapter instead of the picatinny rail adapter and to mount it with the two existing screws..(and less bulky)

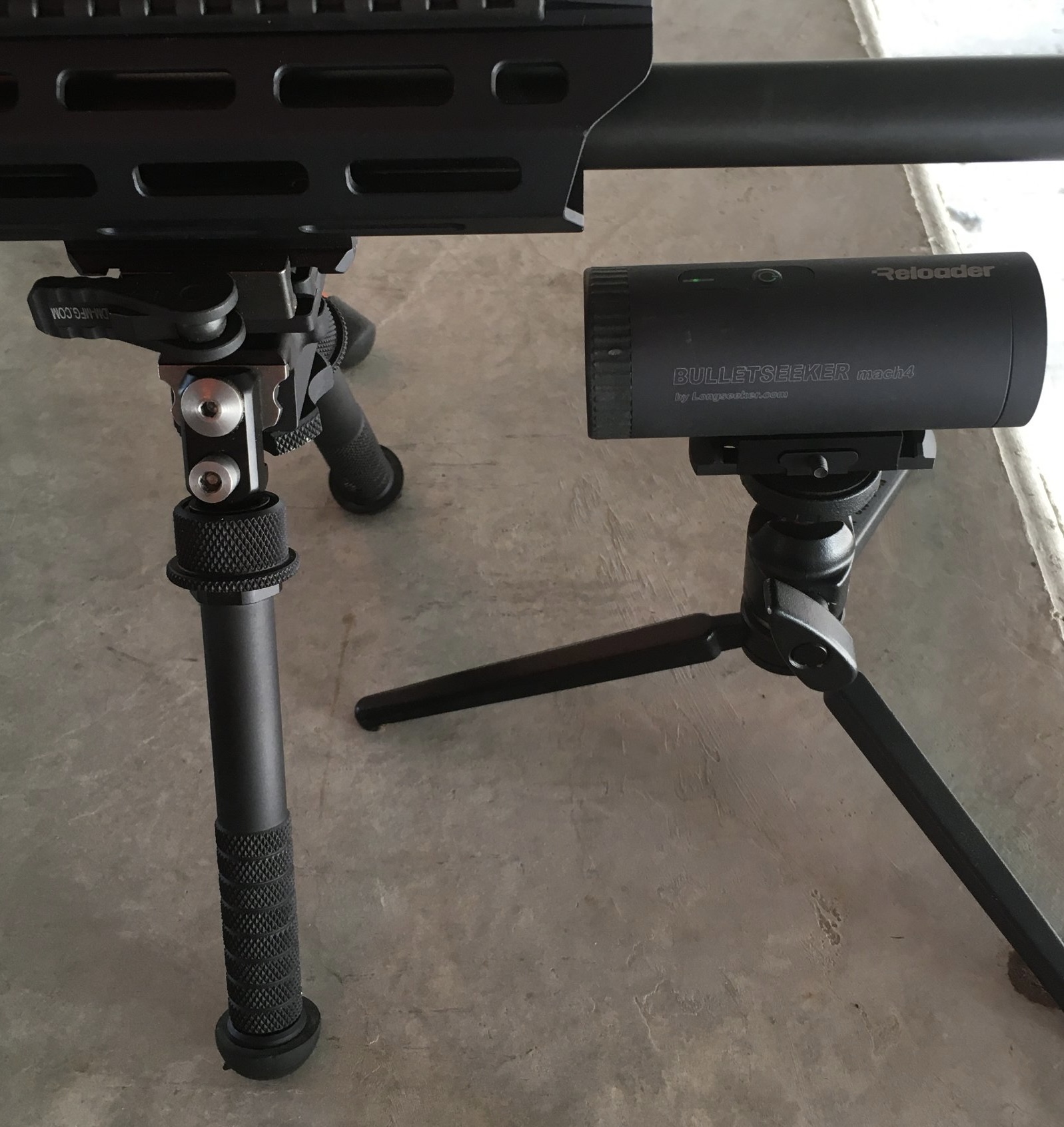

Maybe Longseeker could also sell a tripod adapter with 1/4" and 3/8" Thread Holes (Or just a small picatinny rail with with 1/4" and/or 3/8" Thread Holes like below)

Source: https://www.facebook.com/armecaTLD

The first accessory to be released according to Longseeker : « For difficult situations (especially with strong muzzle clouds) a parabolic adapter is available which enables to receive more data (more detections) . As a standard, it only measure on the first meter. With a parabolic attachment up to 2-3 meters. »

A picture of a prototype :

source: https://www.facebook.com/EasyReloading/



[db2000]

I ordered a couple of them yesterday, I’ll report back after they arrive and I have a chance to take them out and try them on a few different rifles from 22lr to 375CT.

Since you ordered, have you gotten an update on shipping or iOS compatibility yet? Thanks



[rydah]

I finally found someone in Europe willing to sell me one. Will share my experience when I get it.



[Mr.BR]

Just received mine today will use it on a workshop tomorrow with some 26 guns (at least those that have pic rails) and try to compare it with a couple of Labradars



[db2000]

Just received mine today will use it on a workshop tomorrow with some 20 guns and try to compare it with a couple labradors

Is there an Apple app yet?



[Mr.BR]

I haven't checked , i run android



[Snuby642]

See if you can pick up an out of date android phone.

No chip or service.
I have one I use for ballistic calculator and load it from yfi.



[Yerman]

Since you ordered, have you gotten an update on shipping or iOS compatibility yet? Thanks

He has both of ours in hand as of last week (we ordered two)

Apple app is supposed to be out soon. It was too windy for him to go over the weekend. Works good in his backyard with his pellet rifle.

I’m sure he’ll have an update for us after this weekend on his 375ct.

He is going to set up both of them as well as his Magnetospeed and Labradar all at the same time to compare velocities.



[wldott]

Since you ordered, have you gotten an update on shipping or iOS compatibility yet? Thanks

I have received both of the devices and have the android version 12 app, they are going to send me the Apple app this week as well.



[Habu34]

Sorry, only French language with accent ;-)

Otherwise, you have to select subtitles and automatic translation in english with youtube.

Sources :
Benjamin GINESTE (2016 World recordman https://www.thefirearmblog.com/blog/2016/11/03/408-cheytac-at-4-540-yards/)
https://www.facebook.com/Balistique-05-103034977885033/
Armeca
https://www.facebook.com/armecaTLD/



[rydah]

Sorry, only French language with accent ;-)

Otherwise, you have to select subtitles and automatic translation in english with youtube.

Sources :
https://www.facebook.com/armecaTLD/
https://www.facebook.com/Balistique-05-103034977885033/

Great video mate. Excited to get mine.



[Mr.BR]

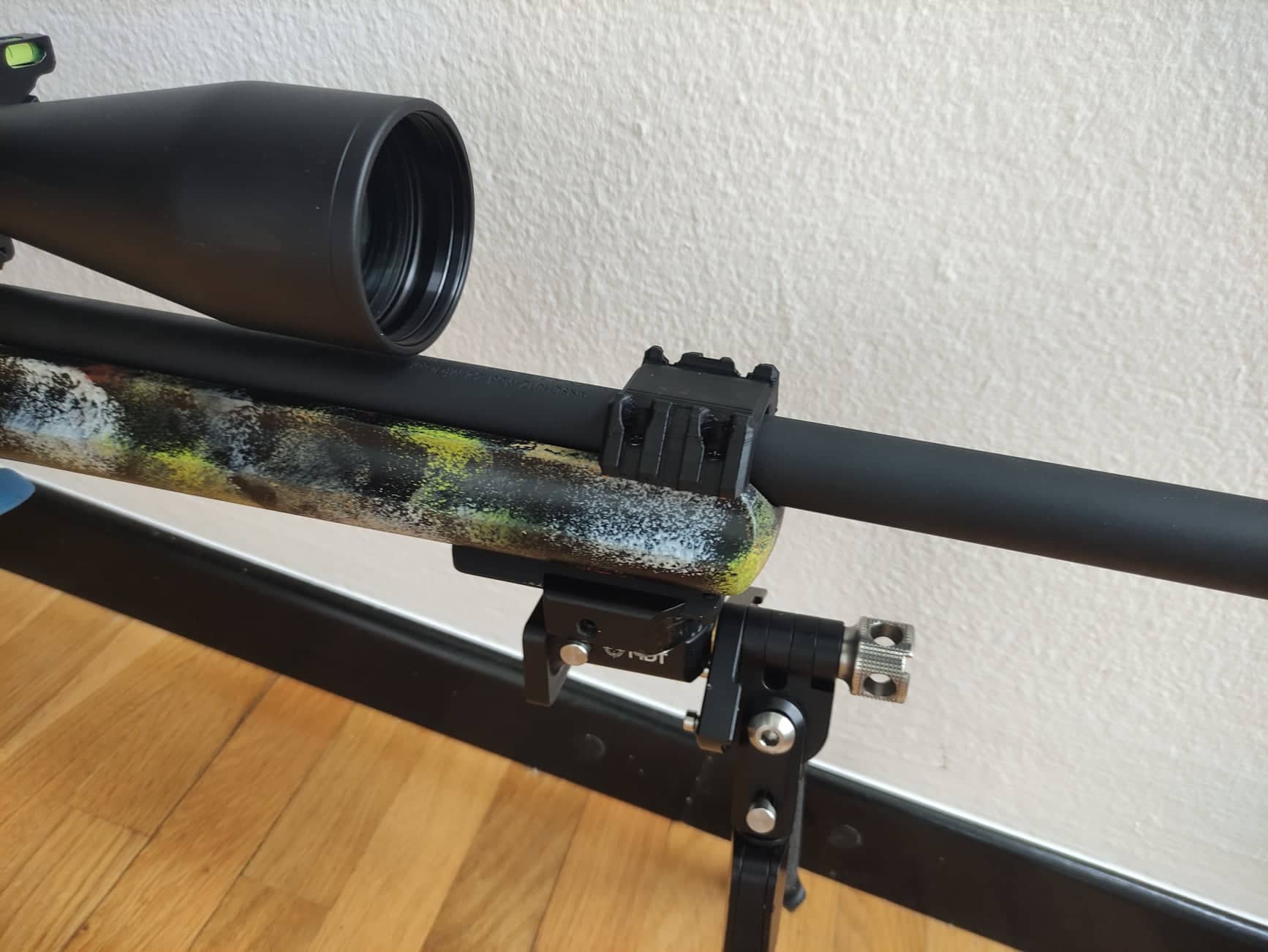

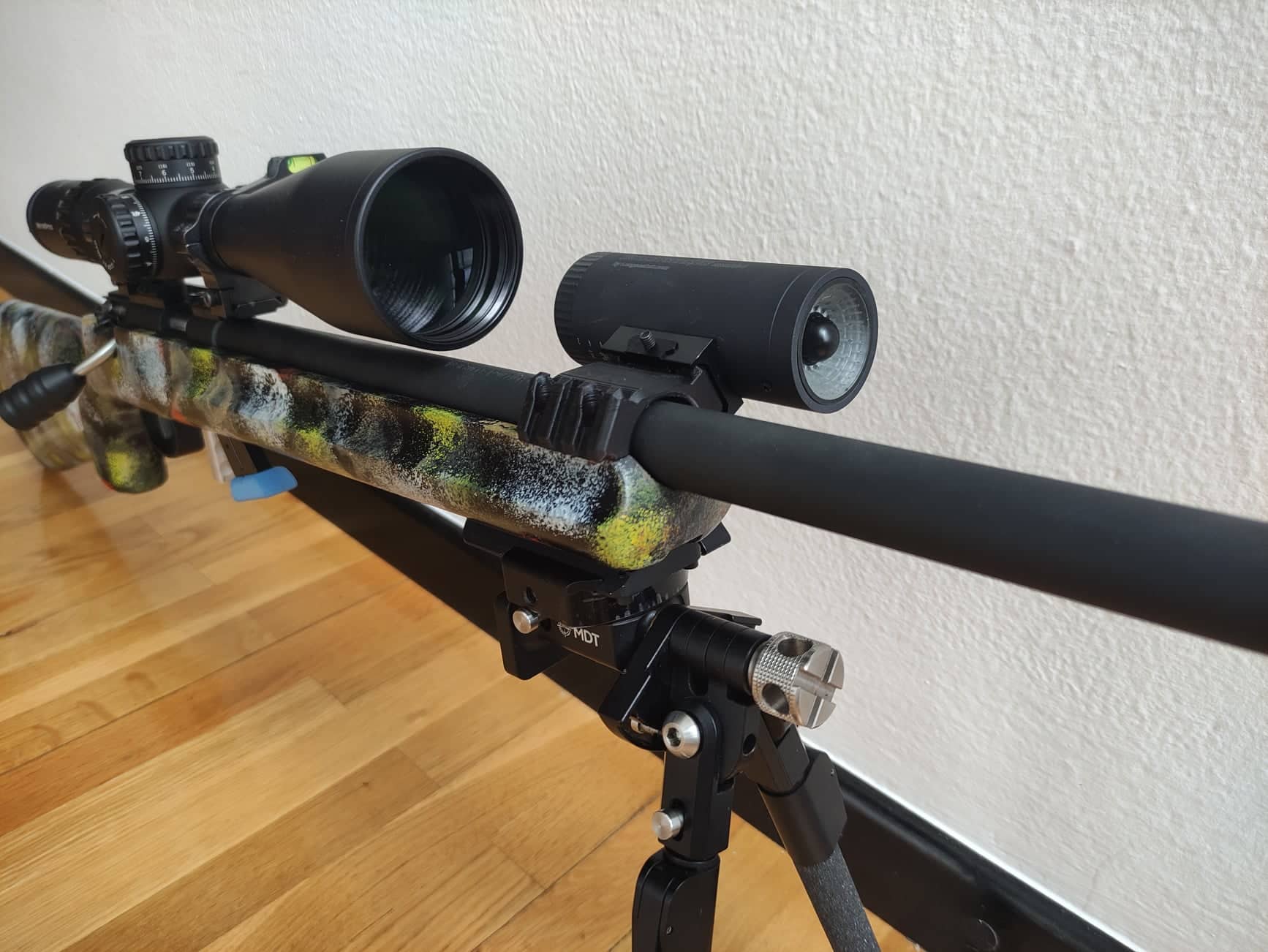

Drawn up a design for a 3d printed mount for Anschutz 64MPR stock

Picatinny rail for MPR64 by One_T

Picatinny rail bridge for Anschutz 64 MPR stock aded also one for a centerfire riflestock Print with supports

www.thingiverse.com



[db2000]

Any progress with the iOS app???



[Shooter CZ]

Any progress with the iOS app???

Yes, app for iOS is loadable for testers and in final phase. Probably it will be published on the end of week or on start of next week



[rydah]

Got mine. Guess I’ll have to find an android something to use in the meantime.



[iceng]

Bring it this weekend fool, can mount my magneto arca-clamp and run both. Could be a good video



[Mr.BR]

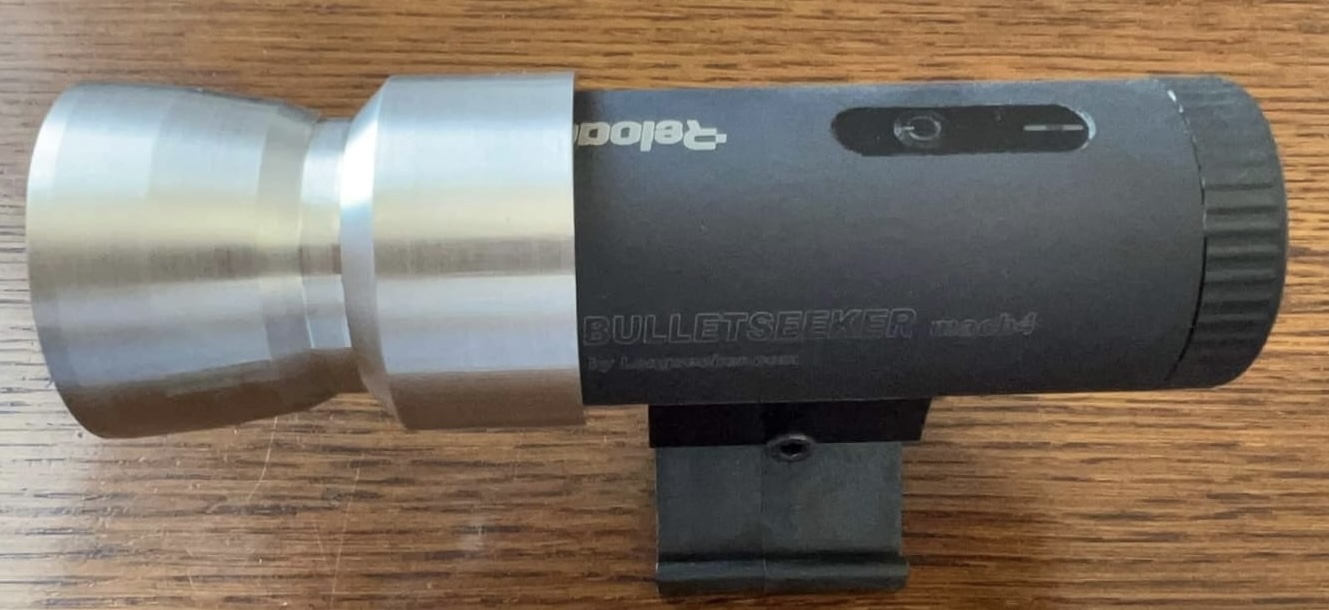

booster lens



[db2000]

Got mine. Guess I’ll have to find an android something to use in the meantime.

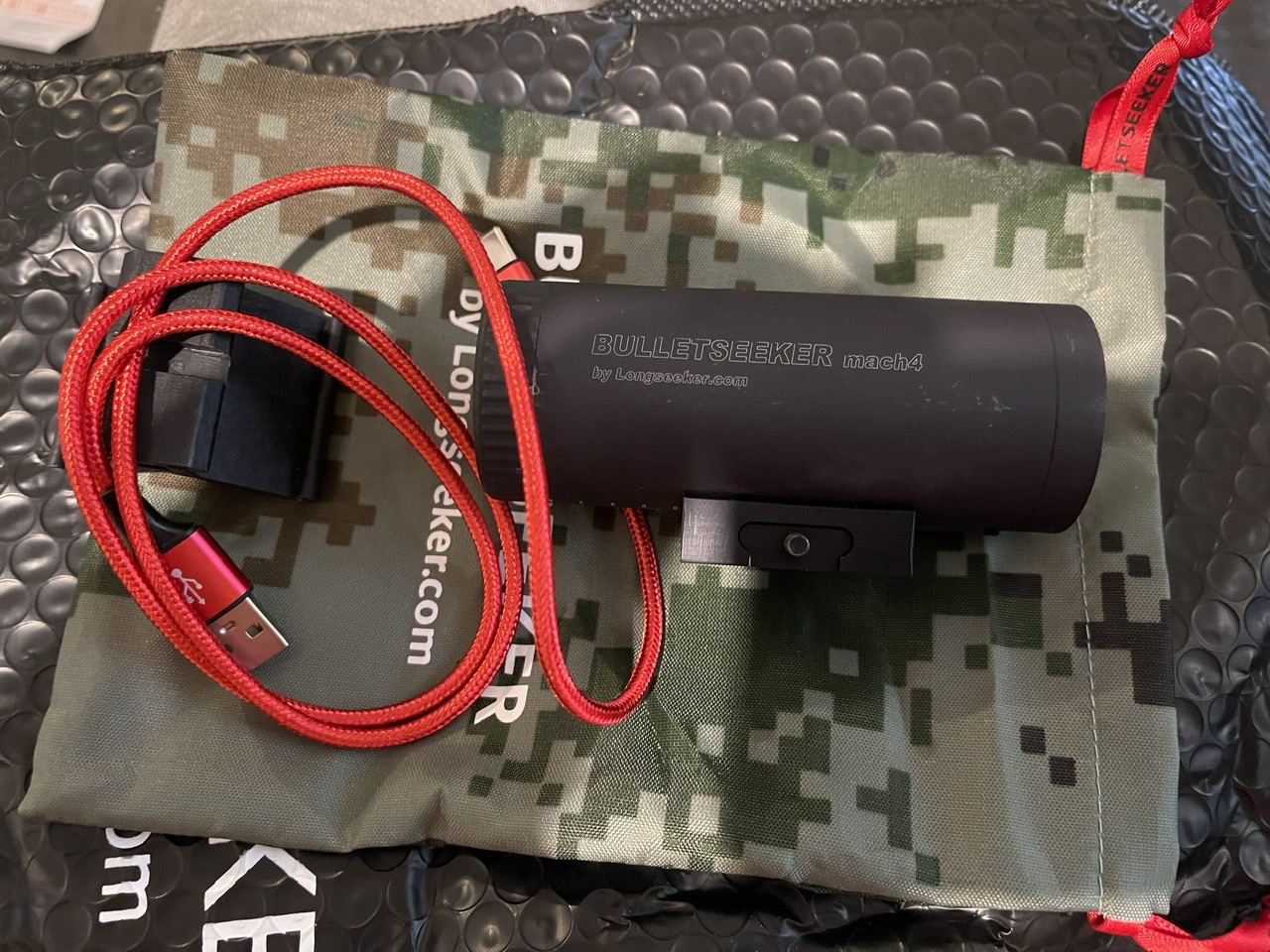

View attachment 7902159

Did you get a booster lens by chance?



[rydah]

Did you get a booster lens by chance?

Negative.
