Cleaning rod recommendations Vudoo

T

texasrimfirenut

Sergeant of the Hide
Full Member
Minuteman
Nov 14, 2020
148
103
East Texas
#1
Gentlemen, I've always just used a bore snake on my rimfires but have watched the Vudoo video on recommended cleaning which I will prescribe to.

I've got the bore guide in my cart on their web site but when it comes to a rod, are any of them just fine or are there specific brands I should look at?

Also I know for my CZ 452's I've seen it recommended to use a .20 cal rod instead of .22 because of the tightness. Would the same thing apply here or should I stick with a .22 cal rod?

I am assuming a 1-piece rod would be the best.

Thanks for any help/recommendations.

#3
I am using a 20 cal Dewey rod with VFG felts (I turned the OD of the felt jag and thread adapter down quite a bit with an electric drill and sand paper to give more clearance in the bore). A quick note with the Vudoo bore guide (I have the original one they offered back when they first released them), the VFG 22 cal felt is a little tight going into the bore guide so I roll the tip of the felt between my fingers so it doesn’t get hung up. Also the bore guide I have which was introduced when the only action was the Gen I repeater does not fit in the Gen II repeater, it hits on the bolt guide pin in the top of the action. A few quick passes with a file, or die grinder with a roloc disc takes care of the fitment issue.

  • Like
Reactions: isofahunter and texasrimfirenut
#6
Kadams1563 said:
Get one about 6” longer then you think you need.
Click to expand...
good advice &

  • Like
  • Haha
Reactions: Strong76, tomcatmv, Krob95 and 6 others
#7
I have been using one peace carbon fiber Tipton rods for many years and love them. They come in many calibers and lengths for any gun and that is also what I use on my Vudoo. While I have never used a Bore Tech, I have never seen anything bad written about them and I do like many of their other cleaning supplies. As long as you use a good quality one peace rod you will be good to go.

  • Like
Reactions: Sagittarius and texasrimfirenut
#8
Lots of guys use the Bore tech but they are barely passable.
problem is they are not stiff enough or hard enough and you are striving for ZERO flex in the bore. If you do get one, polish the hell out of it.
If possible try and get an IVY which are super hard, stiff, and mirror polished.
the absolute best available are the ones Stiller made. I think there are a few left at KSS. Very hard, stiff, melonited. These are not cheap($100+) but well worth it . Most guys have no idea how soft SS is and how easy it is to ruin a barrel with cleaning rod damage......don’t scrimp on a C,C+ grade rod.

Last edited:
  • Like
Reactions: ccollier and texasrimfirenut
#12
Tim7139 said:
Lots of guys use the Bore tech but they are barely passable.
problem is they are not stiff enough or hard enough and you are striving for ZERO flex in the bore. If you do get one, polish the hell out of it.
If possible try and get an IVY which are super hard, stiff, and mirror polished.
the absolute best available are the ones Stiller made. I think there are a few left at KSS. Very hard, stiff, melonited. These are not cheap($100+) but well worth it . Most guys have no idea how soft SS is and how easy it is to ruin a barrel with cleaning rod damage......don’t scrimp on a C,C+ grade rod.
Click to expand...
Wanna talk about flex get a Dewey rod. Since they use the same one for .17 to 6mm lol. The Boretech are much better and I don’t have an issue with it flexing too much unless I’m pushing over sized patches through

  • Like
Reactions: Doctorwho1138, akmike47 and texasrimfirenut
#17
Jefe's Dope said:
(y)

Boretech was supposed to be coming out with a Delrin version for the Vudoo. Might ask them if it's available. It was supposed to be done in conjunction with Vudoo as well.
Click to expand...

It's done and we should have 80 or so showing up from BoreTech if they're not already there. I designed it and BoreTech makes it for us; it works in Gens 1, 2 and 3.

MB

  • Like
Reactions: Baron23, Hutch86, GTI and 2 others
#21
Montana gold for the cleaning rod.


Thoughts I’ll add about the bore guides on vudoo’s website is make damn sure to get their custom one NOT the universal one if you even think you’re gna have clearance issues with your cheek piece.

I added a bore guide to my order and received the Delrin universal one made by bore tech with my rifle. It’s quality but lengthy, at 10.5” long.



I believe with the V22 in my xylo it will clear (currently has my nucleus in it)


In my mpa there’s zero chance of using it with out complete removal of the cheek piece; a known issue with the mpa chassis. It completely binds with about .5” to go. Does not matter if cheek piece is completely lowered or raised as the forward support rod is the way.



Side note And a PSA (because I was unaware and dumb), if you’re in that same boat with the mpa chassis and need to completely remove the cheek piece pay extra attention to the thumb wheel. If the thumb wheel gets removed from its slot the detent ball and spring will launch to the next dimension. (Not taking a photo of that, hunting for them was a bitch in my garage, a needs to add a small parts kit on their site for big dummies like me to buy.

The custom steel bore guide seems like it should be about two inches shorter total length when removing the insert. Hoping that one will allow me to run a guide rod in with out pulling out the cheek piece.

A suggestion for @RAVAGE88 . With the next batch of delrin rods from boretech please make them 1.25”-1.5” shorter. On the current batch there’s about 1.75-2” from the forward edge of the opening to the rear tang. I really like delrin guide despite the length issue.




  • Like
Reactions: texasrimfirenut
#22
texasrimfirenut said:
Thank you everyone!

Are the bore snakes something that should NOT be used? On any rimfire?
Click to expand...

There are a lot of opinions out there about bore snakes. Mine is I would not use a bore snake for cleaning. But, they do have their place. I use them while at the range to a initial swipe before I start shooting to clean out any dust or extra lube or while shooting if I am putting a lot of rounds down range. But, you need to clean them often, otherwise you are just dragging dirt down your barrel.

  • Like
Reactions: texasrimfirenut
#23
BOISCOID said:
Montana gold for the cleaning rod.


Thoughts I’ll add about the bore guides on vudoo’s website is make damn sure to get their custom one NOT the universal one if you even think you’re gna have clearance issues with your cheek piece.

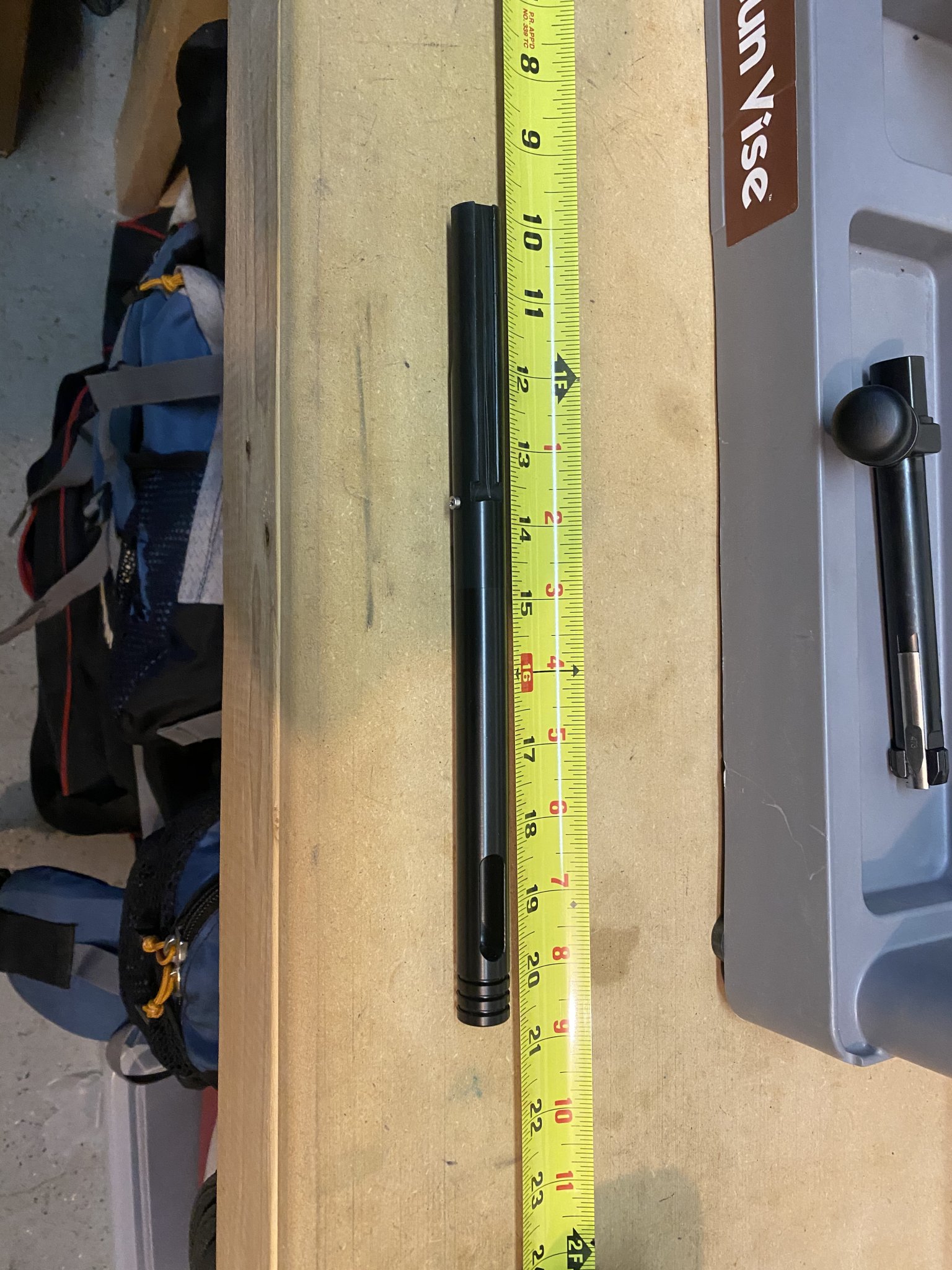

I added a bore guide to my order and received the Delrin universal one made by bore tech with my rifle. It’s quality but lengthy, at 10.5” long.

View attachment 7485292

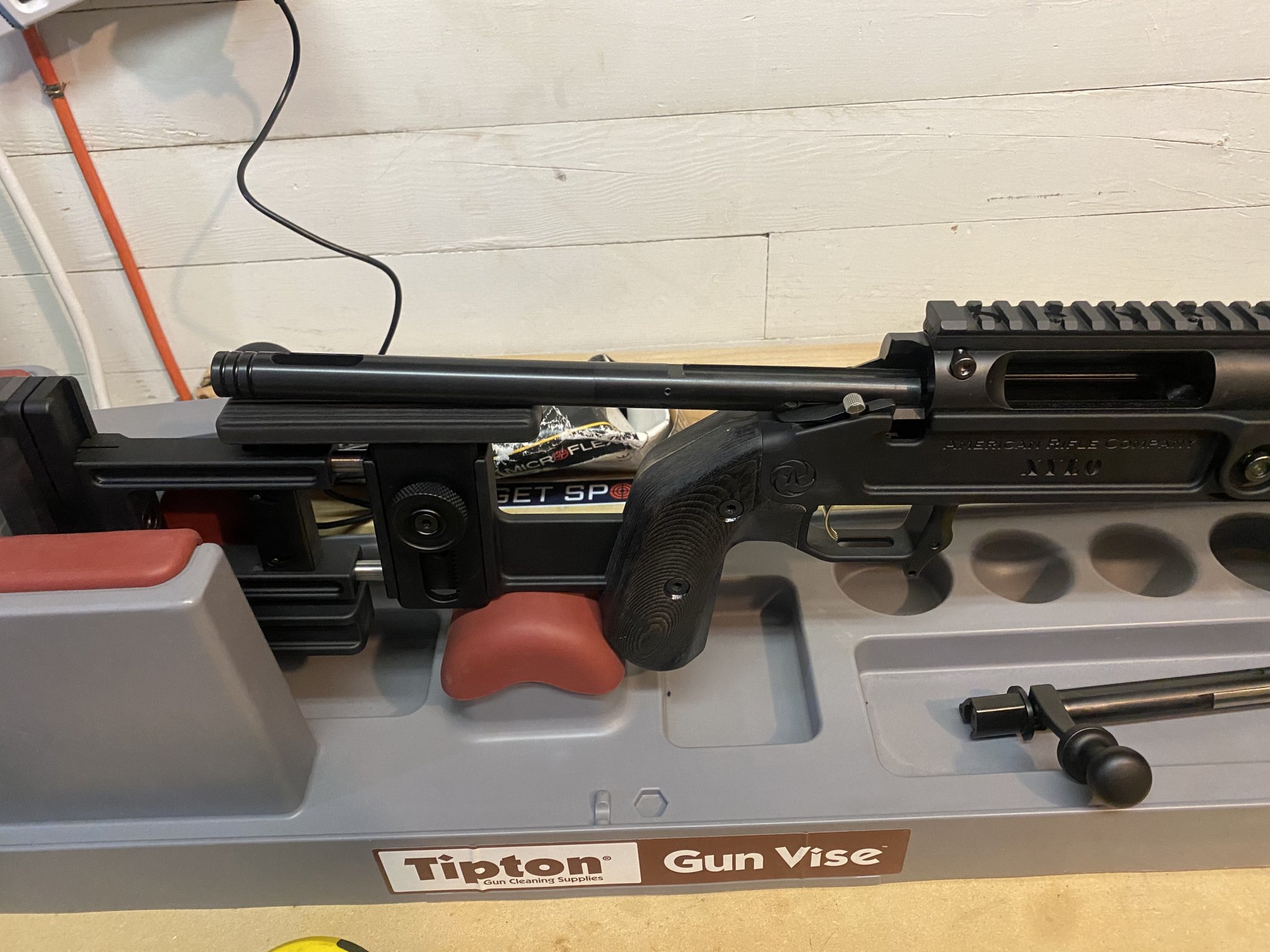

I believe with the V22 in my xylo it will clear (currently has my nucleus in it)
View attachment 7485293

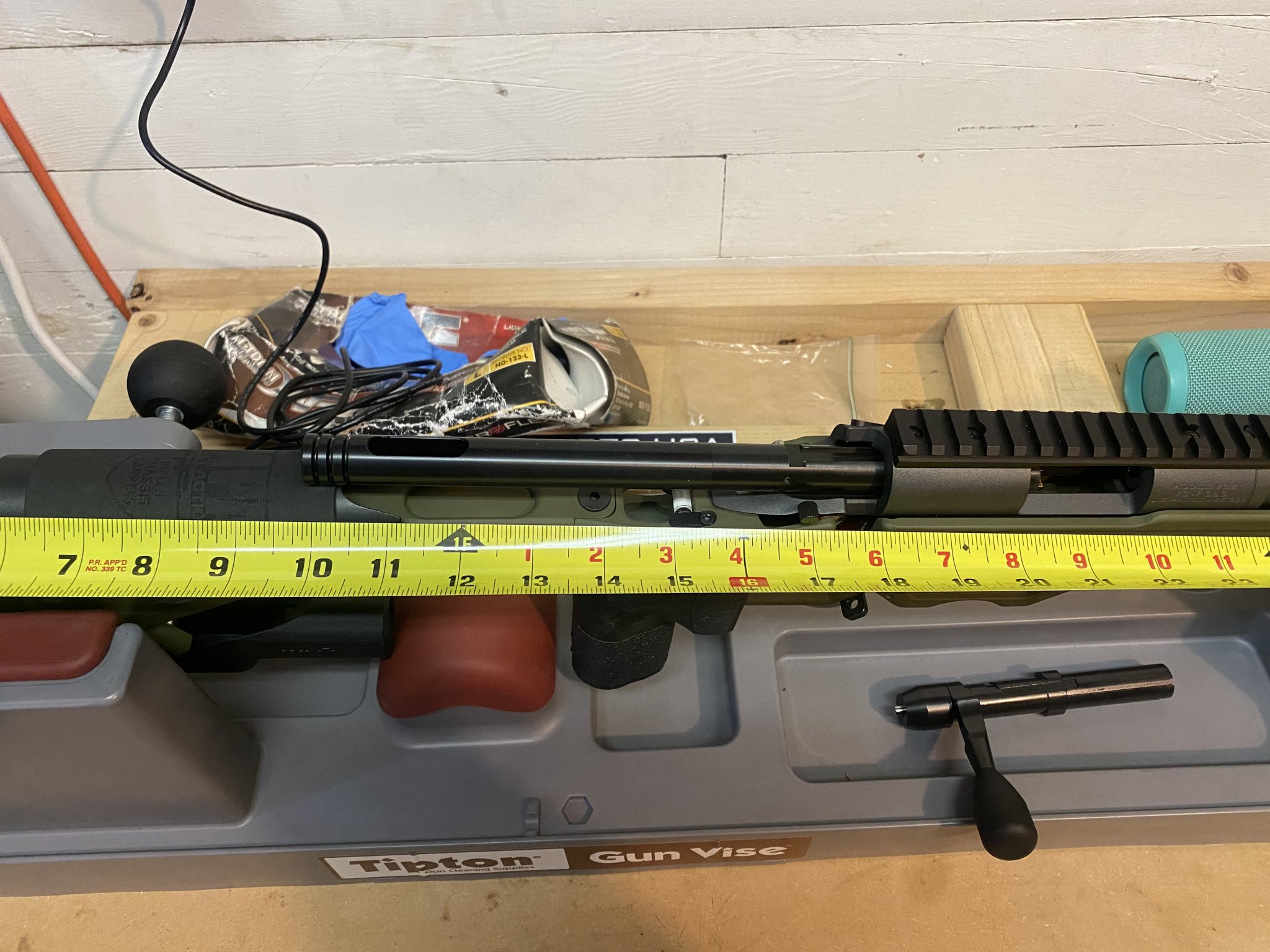

In my mpa there’s zero chance of using it with out complete removal of the cheek piece; a known issue with the mpa chassis. It completely binds with about .5” to go. Does not matter if cheek piece is completely lowered or raised as the forward support rod is the way.

View attachment 7485312

Side note And a PSA (because I was unaware and dumb), if you’re in that same boat with the mpa chassis and need to completely remove the cheek piece pay extra attention to the thumb wheel. If the thumb wheel gets removed from its slot the detent ball and spring will launch to the next dimension. (Not taking a photo of that, hunting for them was a bitch in my garage, a needs to add a small parts kit on their site for big dummies like me to buy.

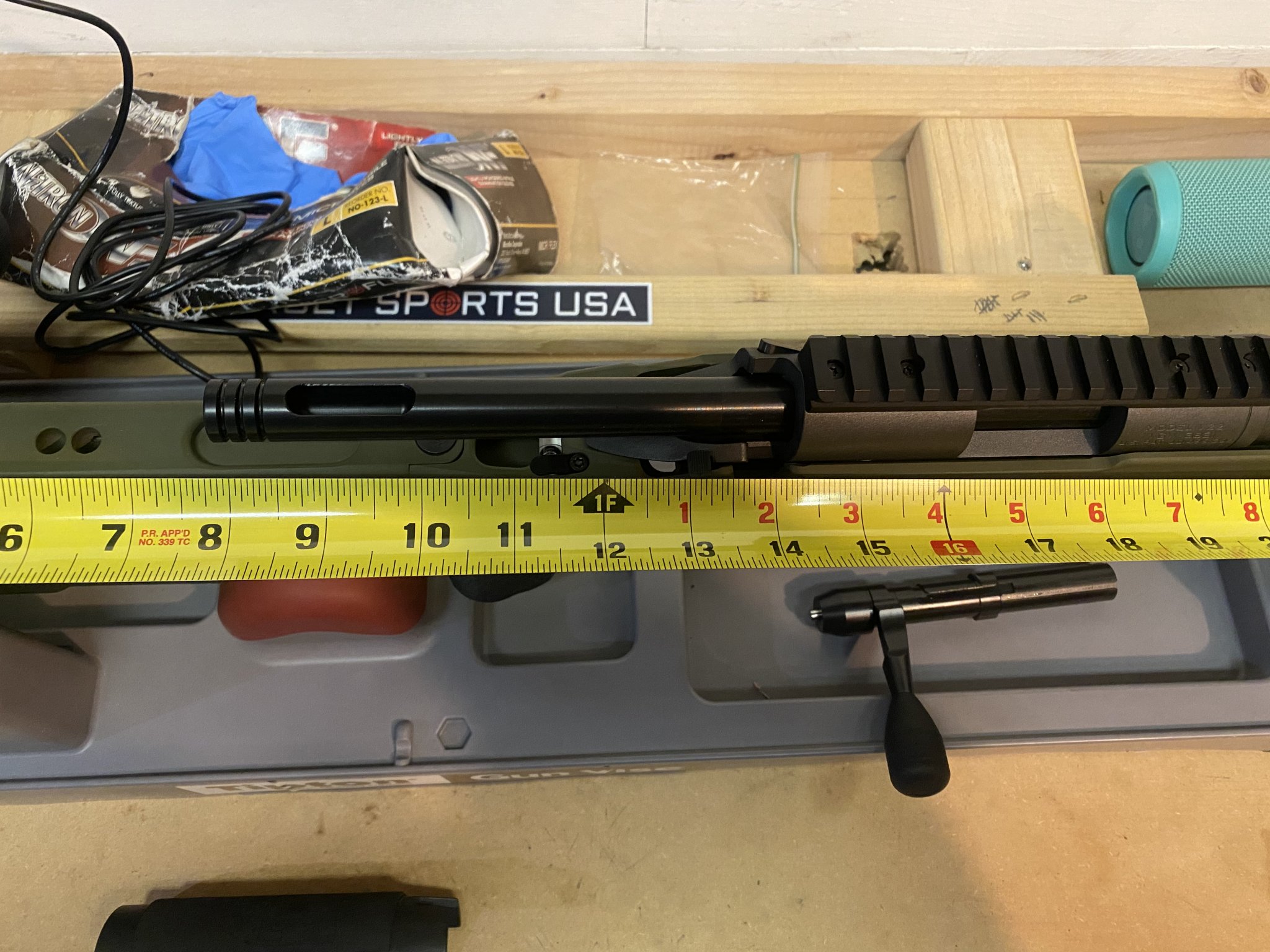

The custom steel bore guide seems like it should be about two inches shorter total length when removing the insert. Hoping that one will allow me to run a guide rod in with out pulling out the cheek piece.

A suggestion for @RAVAGE88 . With the next batch of delrin rods from boretech please make them 1.25”-1.5” shorter. On the current batch there’s about 1.75-2” from the forward edge of the opening to the rear tang. I really like delrin guide despite the length issue.



View attachment 7485341
Click to expand...

Good info. Mine is currently sporting a Bravo stock so I will double check on this.

#26
I've also stayed away from boresnakes after hearing a couple horror stories of the pull string breaking and leaving the snake lodged in the barrel. Probably a rare occurrence, but never saw the need...and would rather push clean patches through the bore.

  • Like
Reactions: texasrimfirenut
#27
RAVAGE88 said:
It's done and we should have 80 or so showing up from BoreTech if they're not already there. I designed it and BoreTech makes it for us; it works in Gens 1, 2 and 3.

MB
Click to expand...
Mike, playing catch up here. How does ID of this new version differ from the original's .187"?

What I'm tracking for new version:
- delrin
- works in all Gen
- longer (per BOISCOID, may be an issue)

Anything I'm missing?

  • Like
Reactions: texasrimfirenut
#28
pucker said:
I've also stayed away from boresnakes after hearing a couple horror stories of the pull string breaking and leaving the snake lodged in the barrel. Probably a rare occurrence, but never saw the need...and would rather push clean patches through the bore.
Click to expand...
Boresnakes are for field "cleaning". they are not for regular cleaning stuff. good to have in the kit but only used when absolutely necessary, like i dropped my rifle in a swamp.

  • Like
Reactions: RGStory, texasrimfirenut and BOISCOID
#30
TacticalDillhole said:
Boresnakes are for field "cleaning". they are not for regular cleaning stuff. good to have in the kit but only used when absolutely necessary, like i dropped my rifle in a swamp.
Click to expand...
Exactly.

And I’m unlikely to be on a 3-day mission to hunt down the VC General... so I’ll probably just take my swampy self home and climb in the shower, with my rifle. 😄

  • Like
Reactions: BikePilot and texasrimfirenut
#33
RAVAGE88 said:


MB
Click to expand...


Mike, nice update.
If I might, I’m gonna throw something out there for your consideration as you do runs of guides.
You should consider cutting back a good 1” or so off the breach end.
First, that really won’t do much to mitigate solvent seepage since none of these things go into the chamber and you shouldn’t slobber too much anyway.
The biggest improvement you get, however, is the ability to watch the rod and help keep it centered in the bore, especially since allowing the rod ANY flex/ misalignment will be right at that important leade.
Few of the custom 2piece guides go to breach for that reason.

  • Like
Reactions: texasrimfirenut and RAVAGE88
#34
Tim7139 said:
Mike, nice update.
If I might, I’m gonna throw something out there for your consideration as you do runs of guides.
You should consider cutting back a good 1” or so off the breach end.
First, that really won’t do much to mitigate solvent seepage since none of these things go into the chamber and you shouldn’t slobber too much anyway.
The biggest improvement you get, however, is the ability to watch the rod and help keep it centered in the bore, especially since allowing the rod ANY flex/ misalignment will be right at that important leade.
Few of the custom 2piece guides go to breach for that reason.
Click to expand...

Thanks Tim, that's good input and I appreciate the perspective. The feature you're referring to is one of the many that have to meet the requirement that the guide works in three generations of actions to include the magnum version of the Gen 2. In the magnum, the ejector is fixed further back from the breech face, so the relief cut is longer. If I were able to do multiple guides, or one specific to the magnum, I could get away with what you're describing....

MB

  • Like
Reactions: texasrimfirenut
#42
I didn't read any comments. Came straight here to give my answer. To put Vudoo on even playing fields you should always clean your vudoo with a brass multi section rod with a steel wire brush. It must be cleaned from the muzzle end. For extra cleanliness be sure and scrub the brass rod against the crown to remove any lead deposits. For heavily fouled barrels it is recommended to use a coarse valve grinding compound. Leave the lapping compound in and shoot to fire lap the barrel.

If you do this to your Vudoo it will take the accuracy level to the equivalent of the top of the line Escort rifles of European decent. "Sounds good"!

BTW, this is meant for your reading pleasure. Please do not try this at home. For that matter just don't try it at all. Keep dominating everyone else's ass like the boss you are. LOL.

  • Like
  • Haha
Reactions: swish, GTI, jharms80439 and 3 others
#43
Kisssofdeath said:
I didn't read any comments. Came straight here to give my answer. To put Vudoo on even playing fields you should always clean your vudoo with a brass multi section rod with a steel wire brush. It must be cleaned from the muzzle end. For extra cleanliness be sure and scrub the brass rod against the crown to remove any lead deposits. For heavily fouled barrels it is recommended to use a coarse valve grinding compound. Leave the lapping compound in and shoot to fire lap the barrel.

If you do this to your Vudoo it will take the accuracy level to the equivalent of the top of the line Escort rifles of European decent. "Sounds good"!

BTW, this is meant for your reading pleasure. Please do not try this at home. For that matter just don't try it at all. Keep dominating everyone else's ass like the boss you are. LOL.
Click to expand...

Shame on you....:ROFLMAO:

MB

#44
Kisssofdeath said:
I didn't read any comments. Came straight here to give my answer. To put Vudoo on even playing fields you should always clean your vudoo with a brass multi section rod with a steel wire brush. It must be cleaned from the muzzle end. For extra cleanliness be sure and scrub the brass rod against the crown to remove any lead deposits. For heavily fouled barrels it is recommended to use a coarse valve grinding compound. Leave the lapping compound in and shoot to fire lap the barrel.

If you do this to your Vudoo it will take the accuracy level to the equivalent of the top of the line Escort rifles of European decent. "Sounds good"!

BTW, this is meant for your reading pleasure. Please do not try this at home. For that matter just don't try it at all. Keep dominating everyone else's ass like the boss you are. LOL.
Click to expand...

LOL

#45
RAVAGE88 said:
It's done and we should have 80 or so showing up from BoreTech if they're not already there. I designed it and BoreTech makes it for us; it works in Gens 1, 2 and 3.

MB
Click to expand...
What size rod (not length, girth) the 17-20 cal or 22-26? Wish I’d have ordered from you, shipping $$ from Boretech is insane.

  • Like
Reactions: texasrimfirenut and RAVAGE88
#46
The key is to remove the ejector when you clean. It is held by a single Allen screw and is easy to remove and replace sliding the allen key in though the mag well. If you do not remove, you run the chance of scraping up your rod. With the ejector out I expect any quality 1 peice ball bearing rod would work fine.

  • Like
Reactions: texasrimfirenut and Krob95
#47
BigJimFish said:
The key is to remove the ejector when you clean. It is held by a single Allen screw and is easy to remove and replace sliding the allen key in though the mag well. If you do not remove, you run the chance of scraping up your rod. With the ejector out I expect any quality 1 peice ball bearing rod would work fine.
Click to expand...
Is that the Allen on the bottom of the receiver by chance?

  • Like
Reactions: texasrimfirenut and RAVAGE88
#48
Redfisher60 said:
What size rod (not length, girth) the 17-20 cal or 22-26? Wish I’d have ordered from you, shipping $$ from Boretech is insane.
Click to expand...

Exactly what @BigJimFish said just after your post. If one doesn't remove the ejector, the .20 cal rod is almost a must, but you create a weak point due to the smaller thread on the brushes and jags. I've always cleaned with a .22 cal rod and I don't always remove the ejector, but one scrapes their rod less or not at all by removing the ejector.

MB

  • Like
Reactions: texasrimfirenut
