2. Vortex Viper HST 6-24x50mm 30mm tube + Warne rimfire 30mm rings, medium height (0.990''). Product code # 731M
All steel rings with a horizontally split design and only ?" wide. Assymetrical reversible side clamp fits a 3/8" or 11mm dovetail. Securely mounts to firearm with Torx style T-15 socket cap screws, 25 in/lb. of torque recommended.
warnescopemounts.com

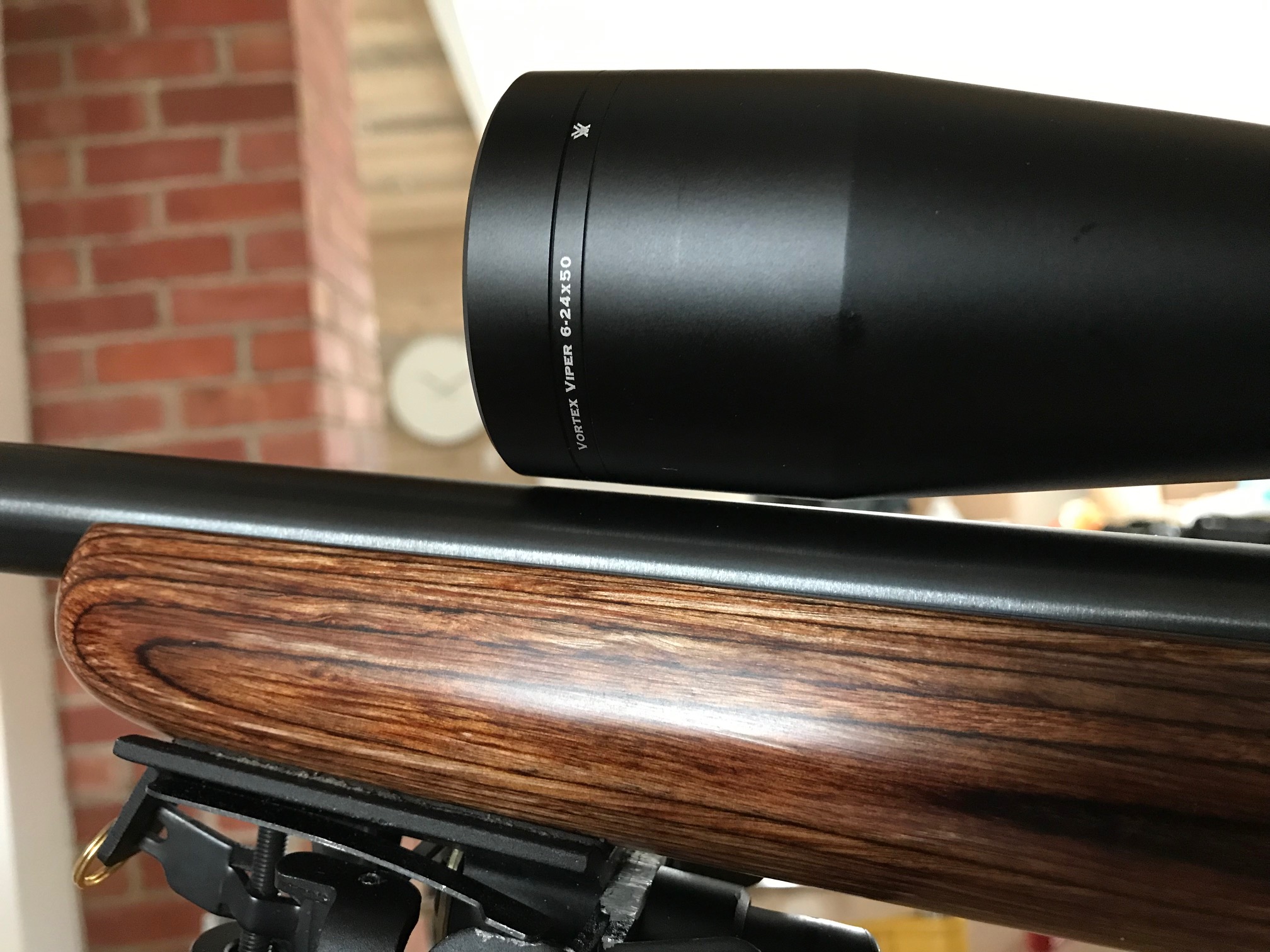

The 50mm objective bell diameter is 2.26'' and almost touching the barrel with 0.045'' of clearance. Same thing with the bolt handle. The eye piece diameter is 1.745'' on the widest (zoom ring). This set up is 0.130'' higher than the previous one… so not exactly the perfect eye alignment with the scope… but this is the lowest I could put my Vortex on.
View attachment 7052252

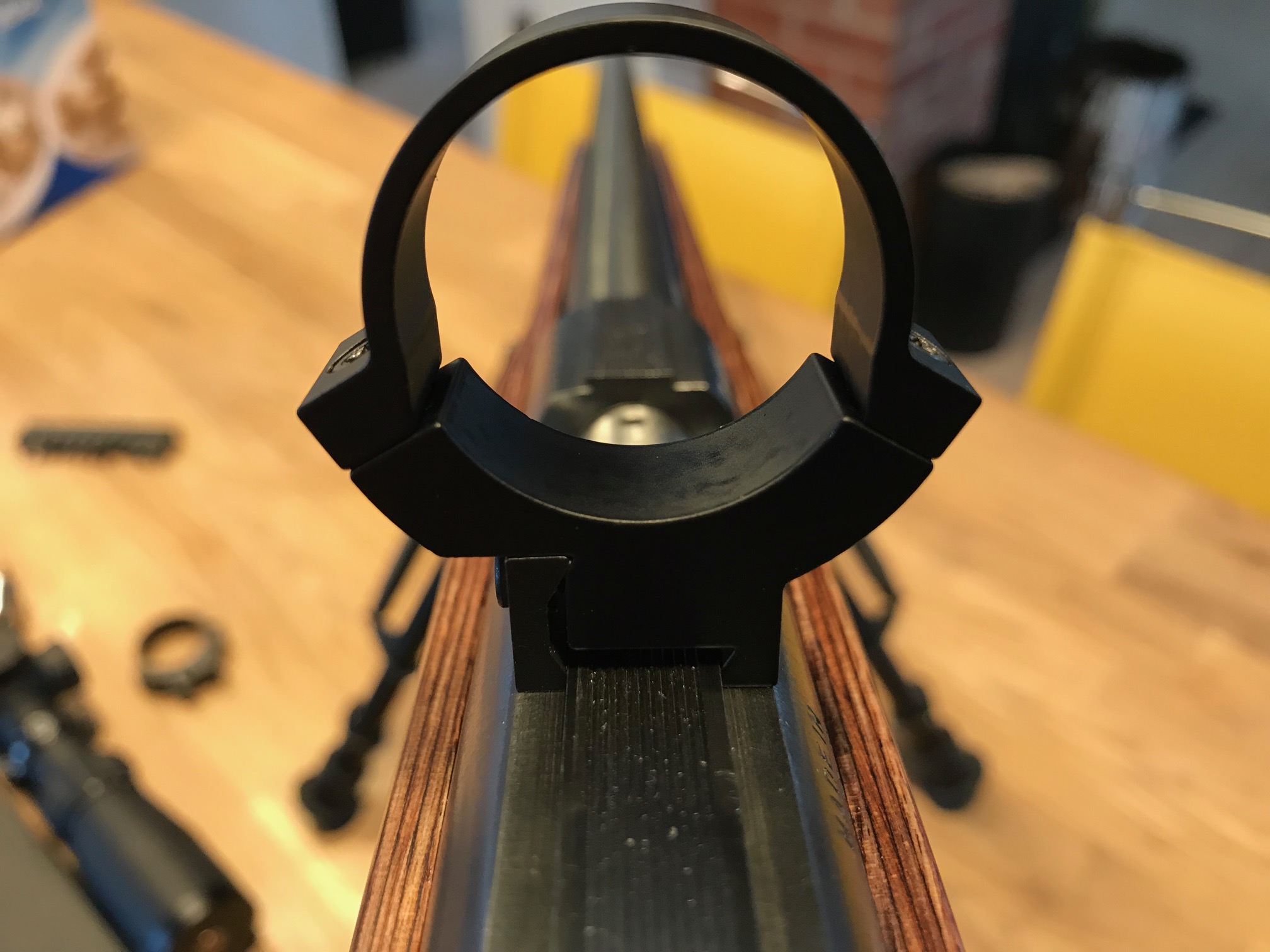

3. As you probably noticed, the bolt body of the new 457 slides in the receiver differently than the 455. As I saw on the previous pics that some posted here, we have to be carefull not going too wide with the ring clamps. Some rings won't prevent the bolt to slide properly. The width of the clamps of the 2 sets of rings I proposed here are pretty slim. I'm almost sure the new 457 bolt body/handle will clear these rings.
View attachment 7052268
