Guys..... This has been beaten to death but you have to watch how your using abrasive cleaners! Here is a 223 barrel with 800 rounds on it. Cleaned after every 75 rounds fired. I know the pitting is from a chemical reaction but I didn't get the whole story. It was cleaned approximately 10-12 times from what the shooter told us.

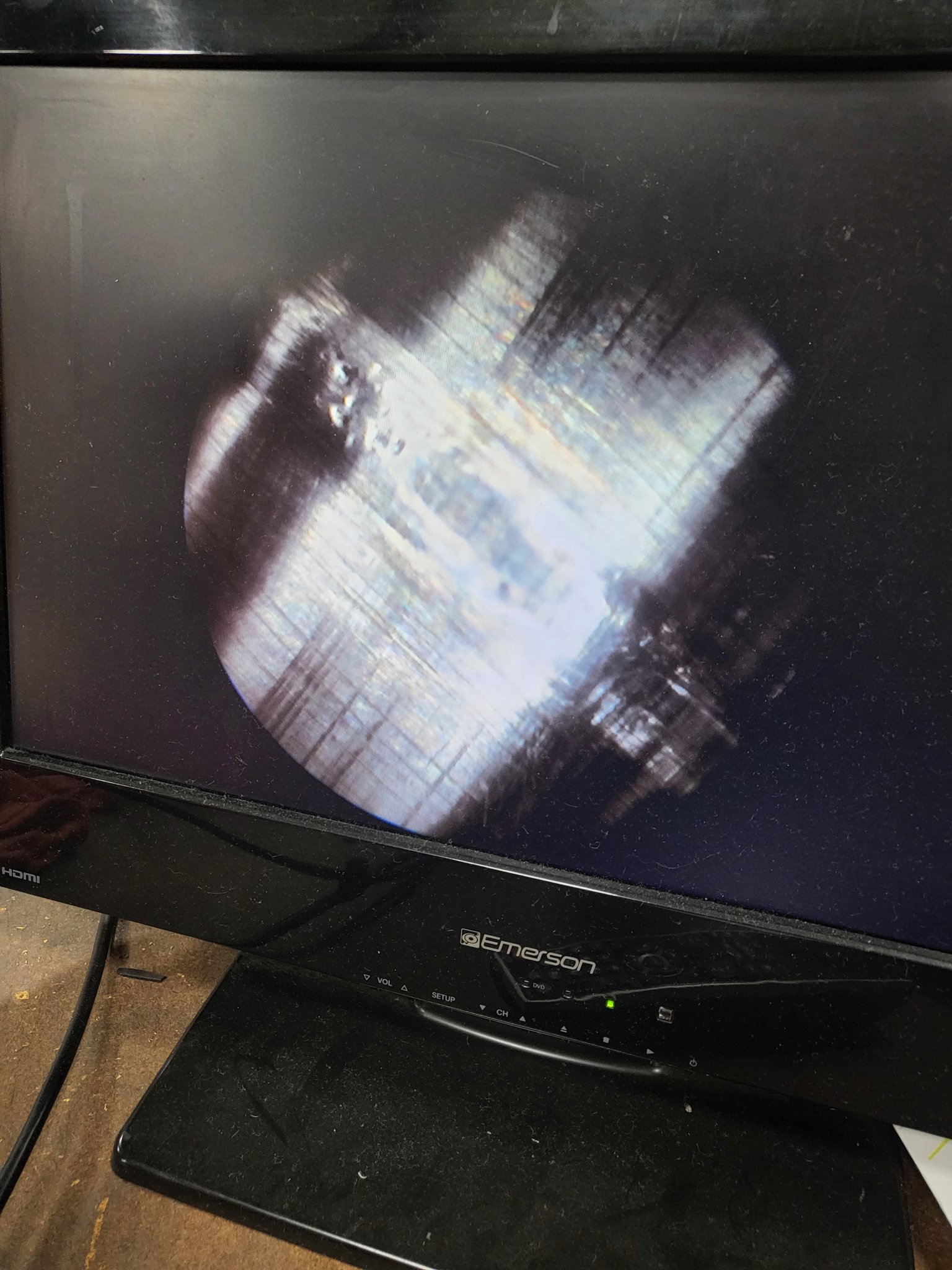

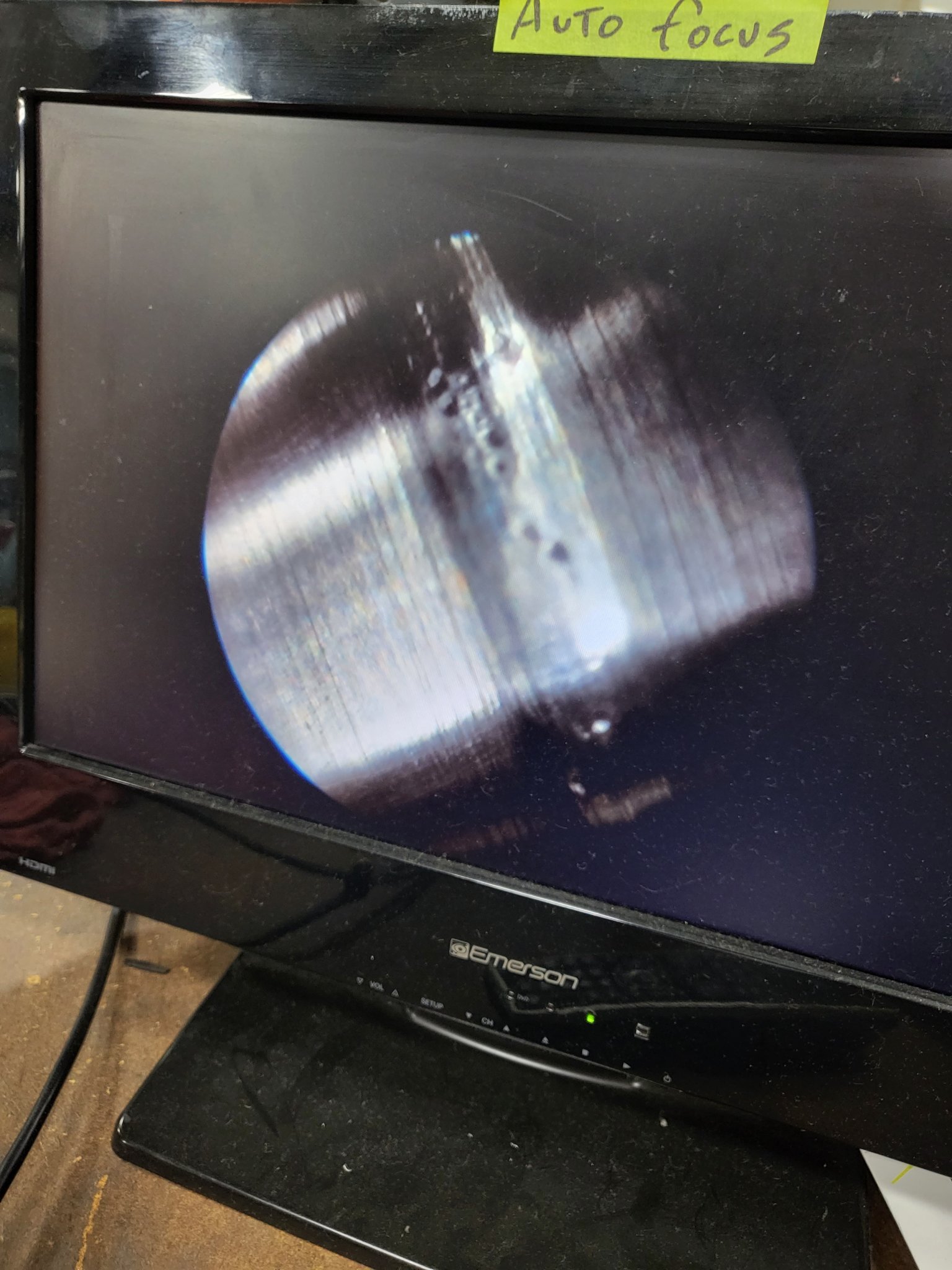

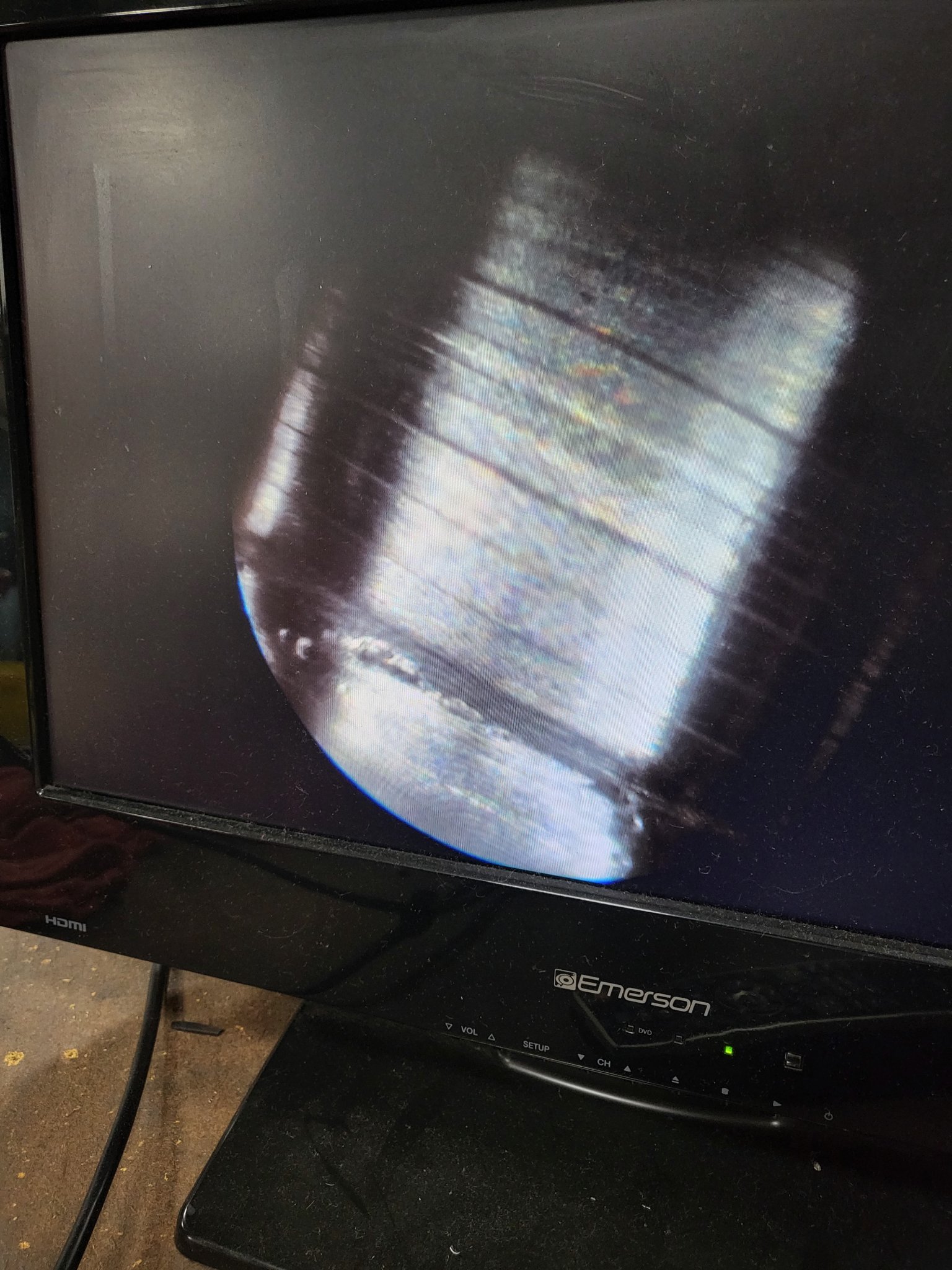

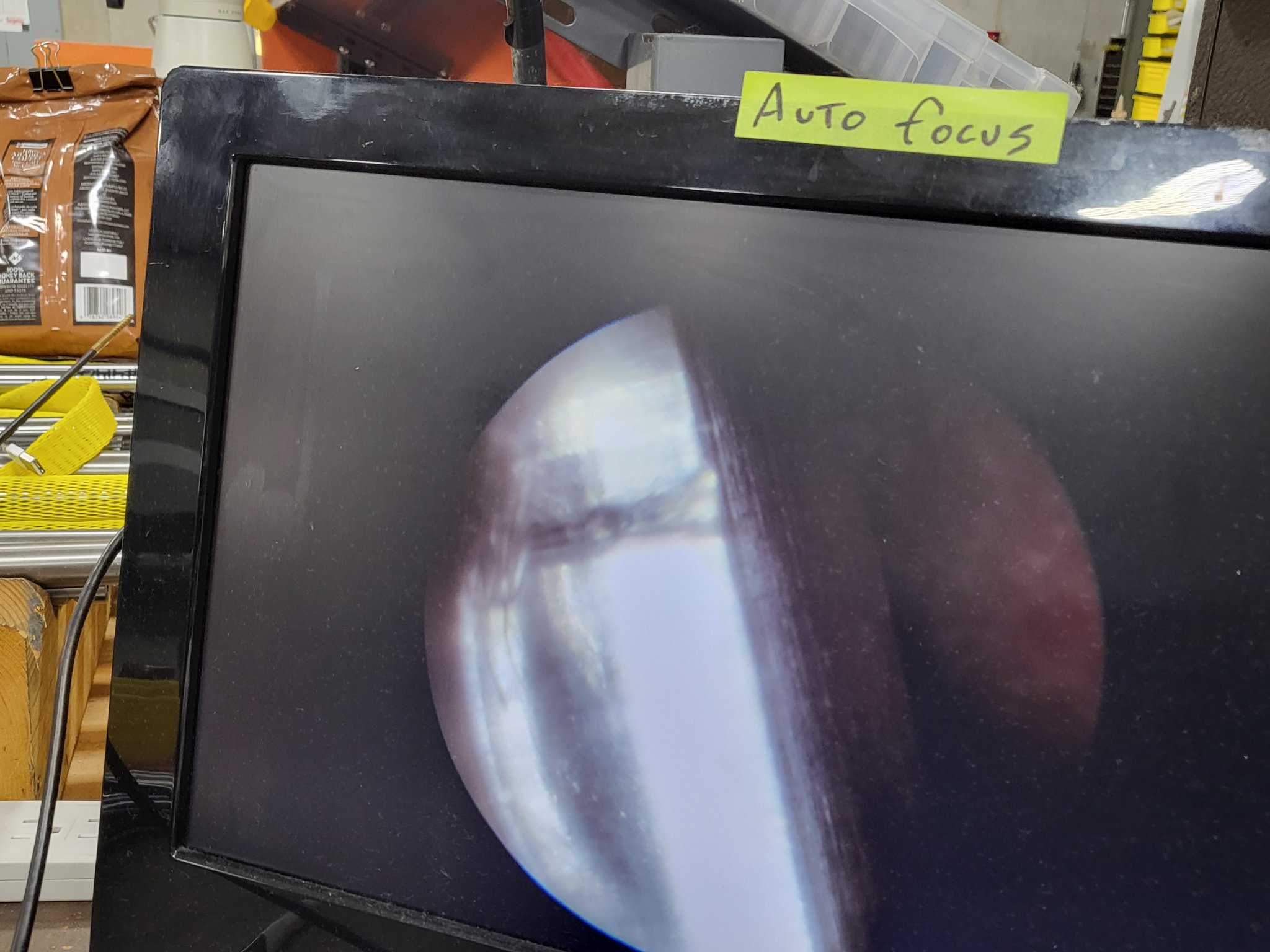

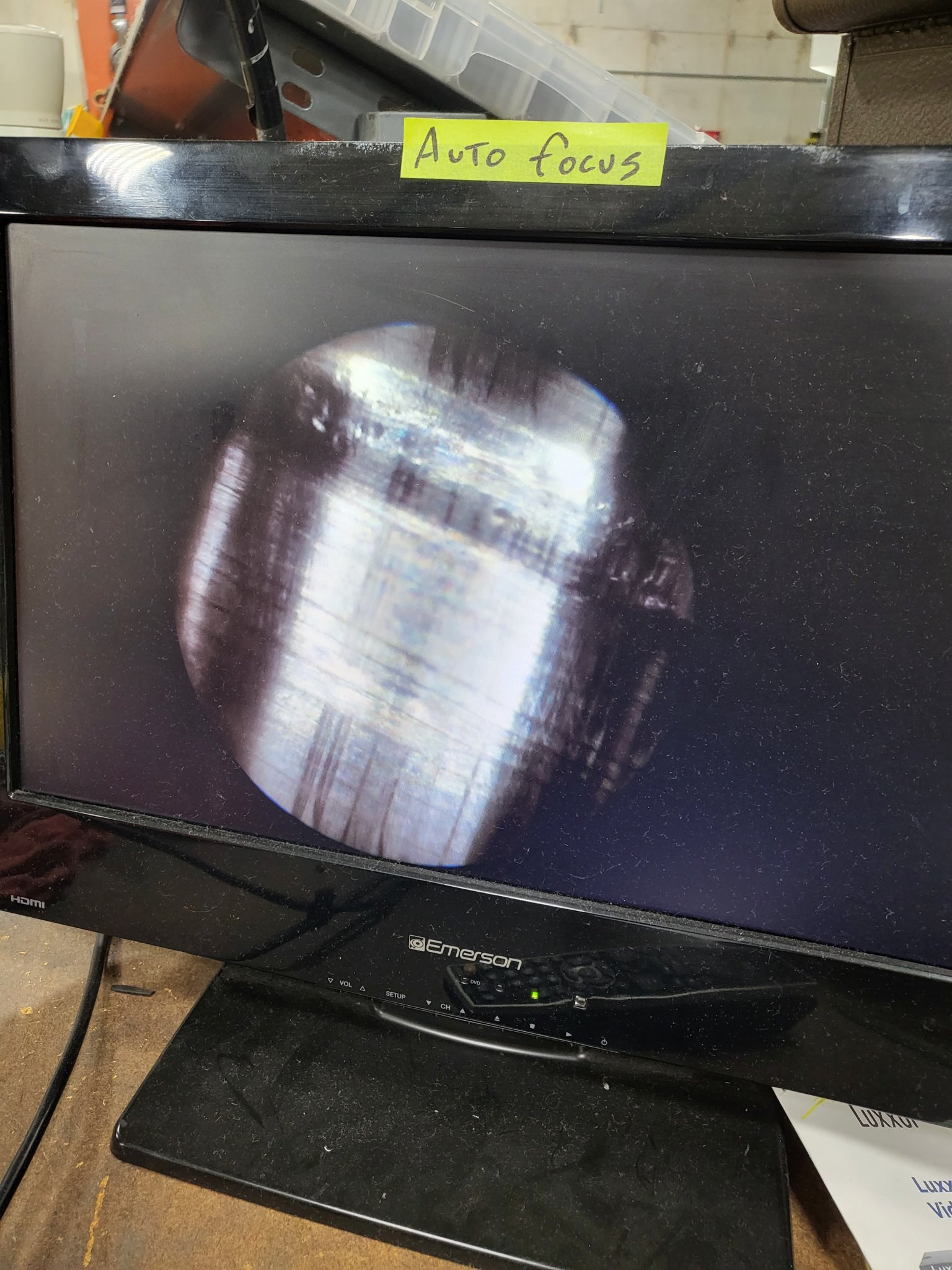

What I did get was the shooter was using ThorroClean. This is a cleaner made and mixed with Iosso Bore Paste! So sum it up how ever you want.... it's an abrasive cleaner. The lands and bore are completely damaged. The lands are all rounded over, damage to the muzzles crown as well as polished and rounded over. In the first 2" of the barrel from the chamber a brush with the cleaner was run either by hand or with a drill on it. You can see the drag marks going over the tops of the lands and down in the grooves. This isn't from when the barrel got made. My guess is the shooter was worried about the carbon ring build up in the throat. Also notice the gouges running down the bore on tops of the lands and grooves.
Watch what your doing please.
The last picture for a reference for comparison is also a 223 Remington barrel. This was a accuracy test barrel I got back from the bullet maker. It quite shooting at 14,000 rounds! Up to that point it held .5moa or better at 200 yards. This is a saami spec. 6 groove barrel (not 5R rifling). Only one guy in the ballistic lab is allowed to clean the barrel with JB bore compound when they start getting a carbon ring built up. They only use the JB when the need is felt to use it. For an approximate number of cleanings on the accuracy test barrel it got cleaned 140 to 200 times.
Later, Frank
Bartlein Barrels

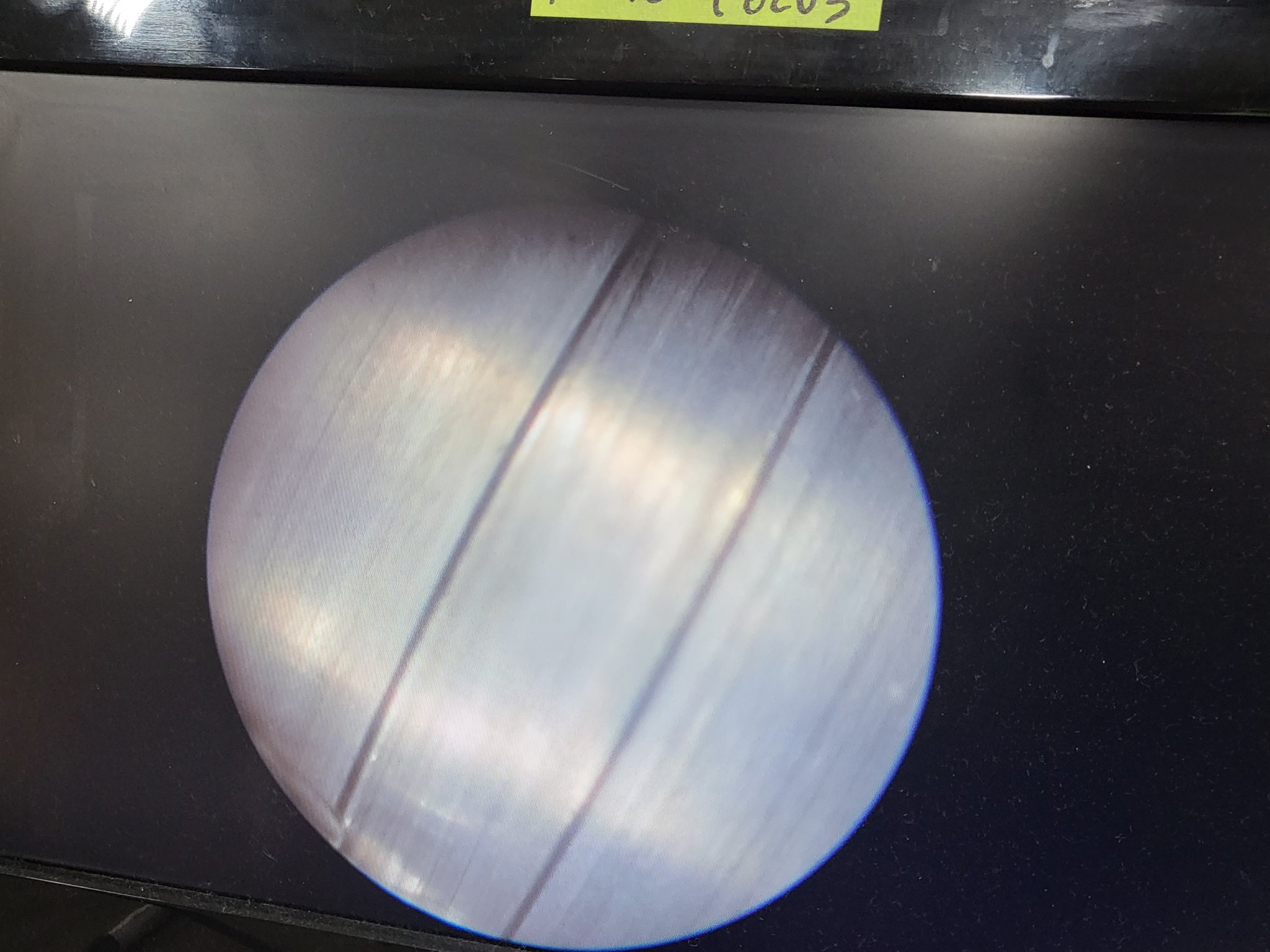

here is the accuracy test barrel with 14k on it....
What I did get was the shooter was using ThorroClean. This is a cleaner made and mixed with Iosso Bore Paste! So sum it up how ever you want.... it's an abrasive cleaner. The lands and bore are completely damaged. The lands are all rounded over, damage to the muzzles crown as well as polished and rounded over. In the first 2" of the barrel from the chamber a brush with the cleaner was run either by hand or with a drill on it. You can see the drag marks going over the tops of the lands and down in the grooves. This isn't from when the barrel got made. My guess is the shooter was worried about the carbon ring build up in the throat. Also notice the gouges running down the bore on tops of the lands and grooves.
Watch what your doing please.
The last picture for a reference for comparison is also a 223 Remington barrel. This was a accuracy test barrel I got back from the bullet maker. It quite shooting at 14,000 rounds! Up to that point it held .5moa or better at 200 yards. This is a saami spec. 6 groove barrel (not 5R rifling). Only one guy in the ballistic lab is allowed to clean the barrel with JB bore compound when they start getting a carbon ring built up. They only use the JB when the need is felt to use it. For an approximate number of cleanings on the accuracy test barrel it got cleaned 140 to 200 times.
Later, Frank
Bartlein Barrels
here is the accuracy test barrel with 14k on it....
