Maggie’s Machining and woodworking for guns
- Thread starter scasa
- Start date

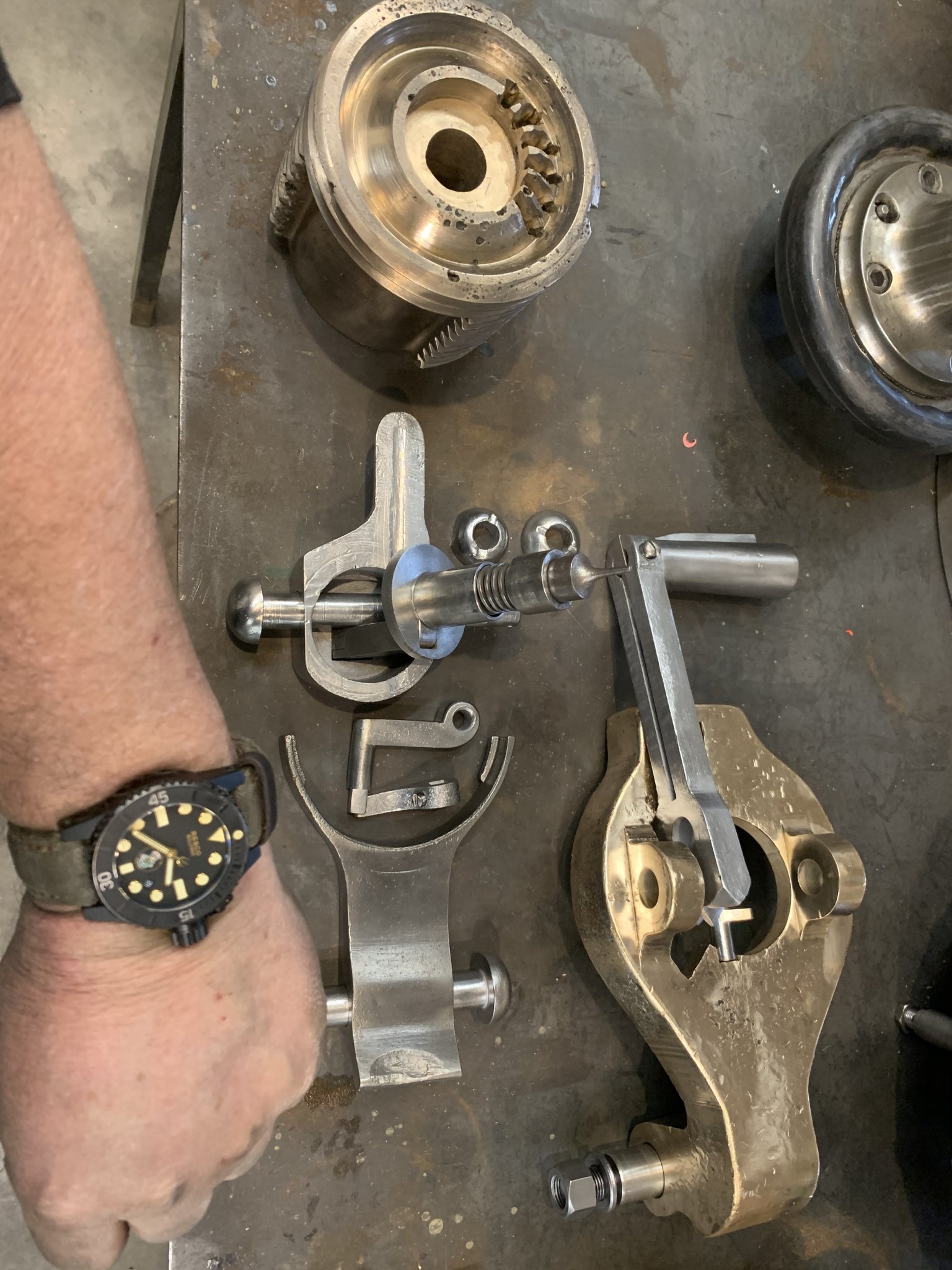

Bevel gear on the handle and cast/machined into the breech block. Dead simple! When the breech closes, a plunger releases the breech block to spin. The lever rotates the block with a 90 degree bevel. Fast, smooth and few moving parts.
cheers, Sirhr
you can see teeth on back of breech block at top.

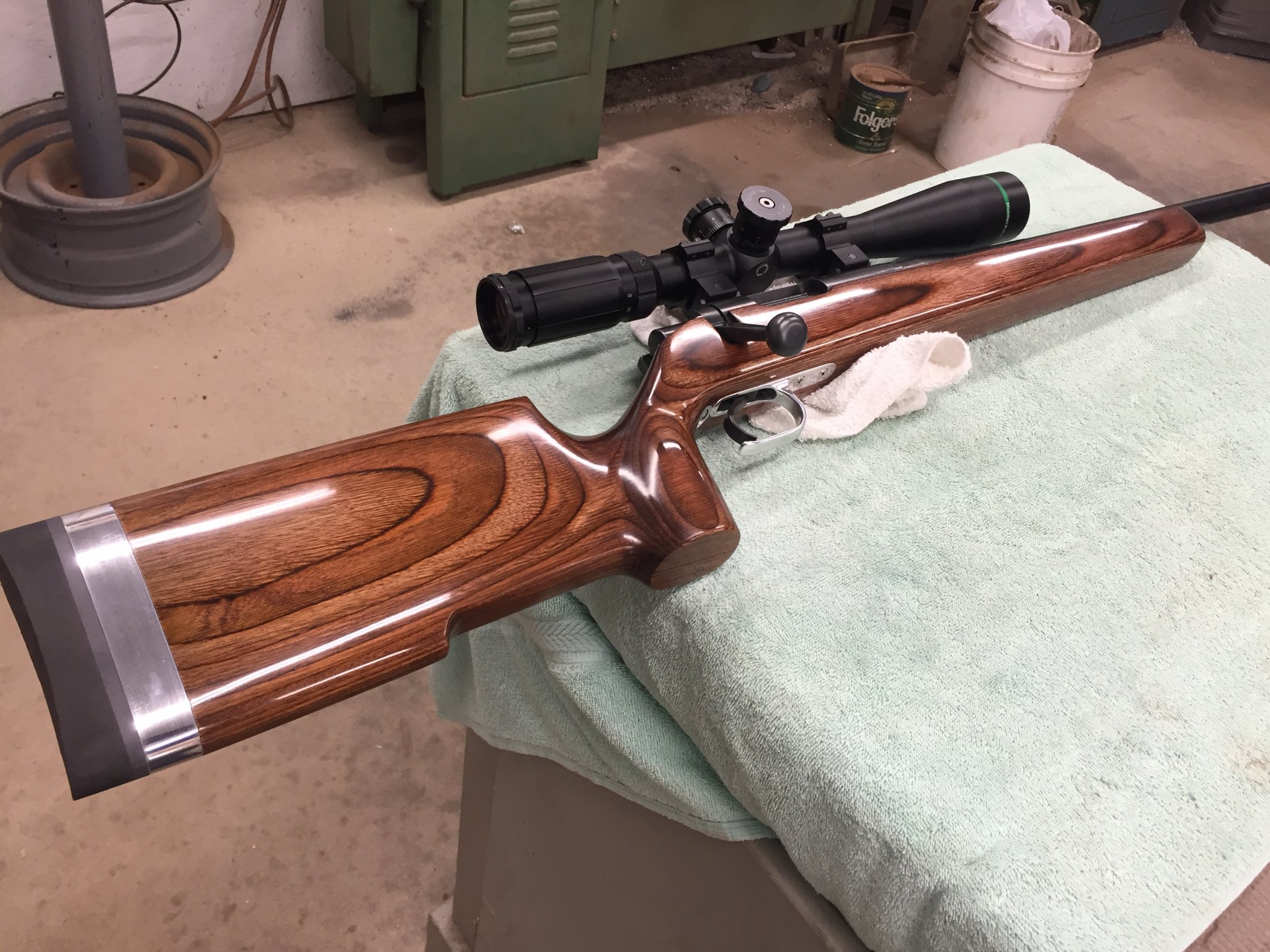

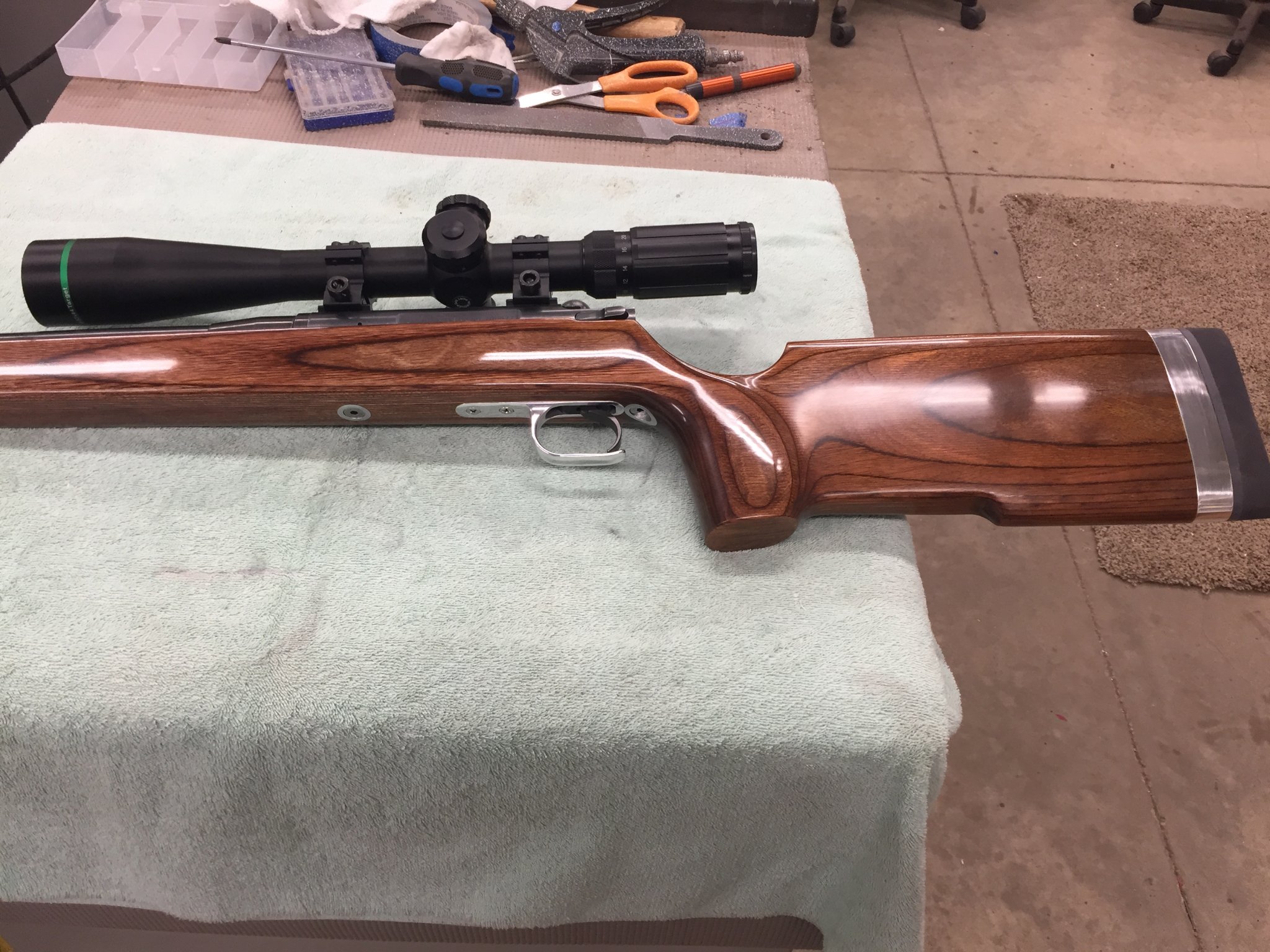

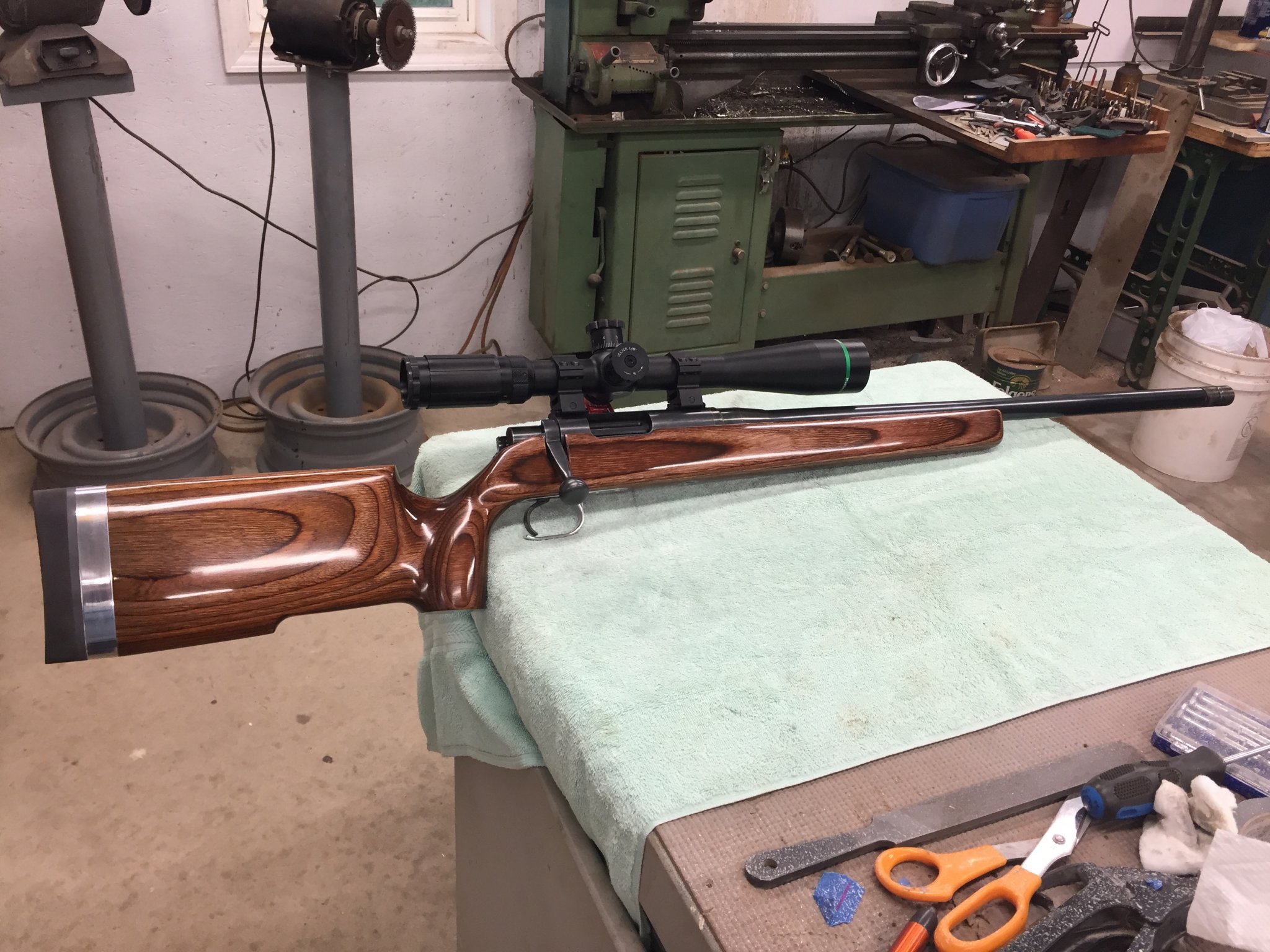

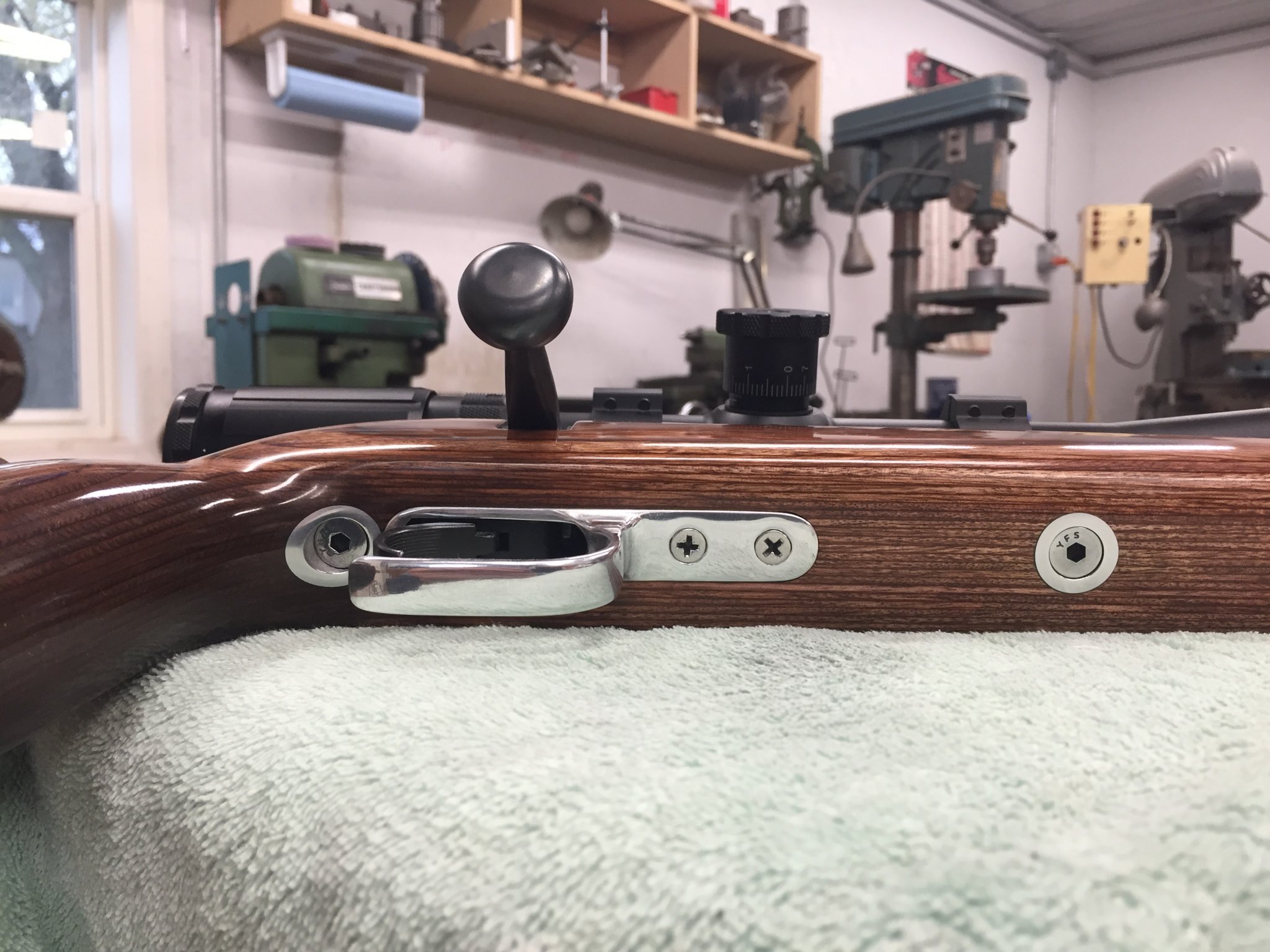

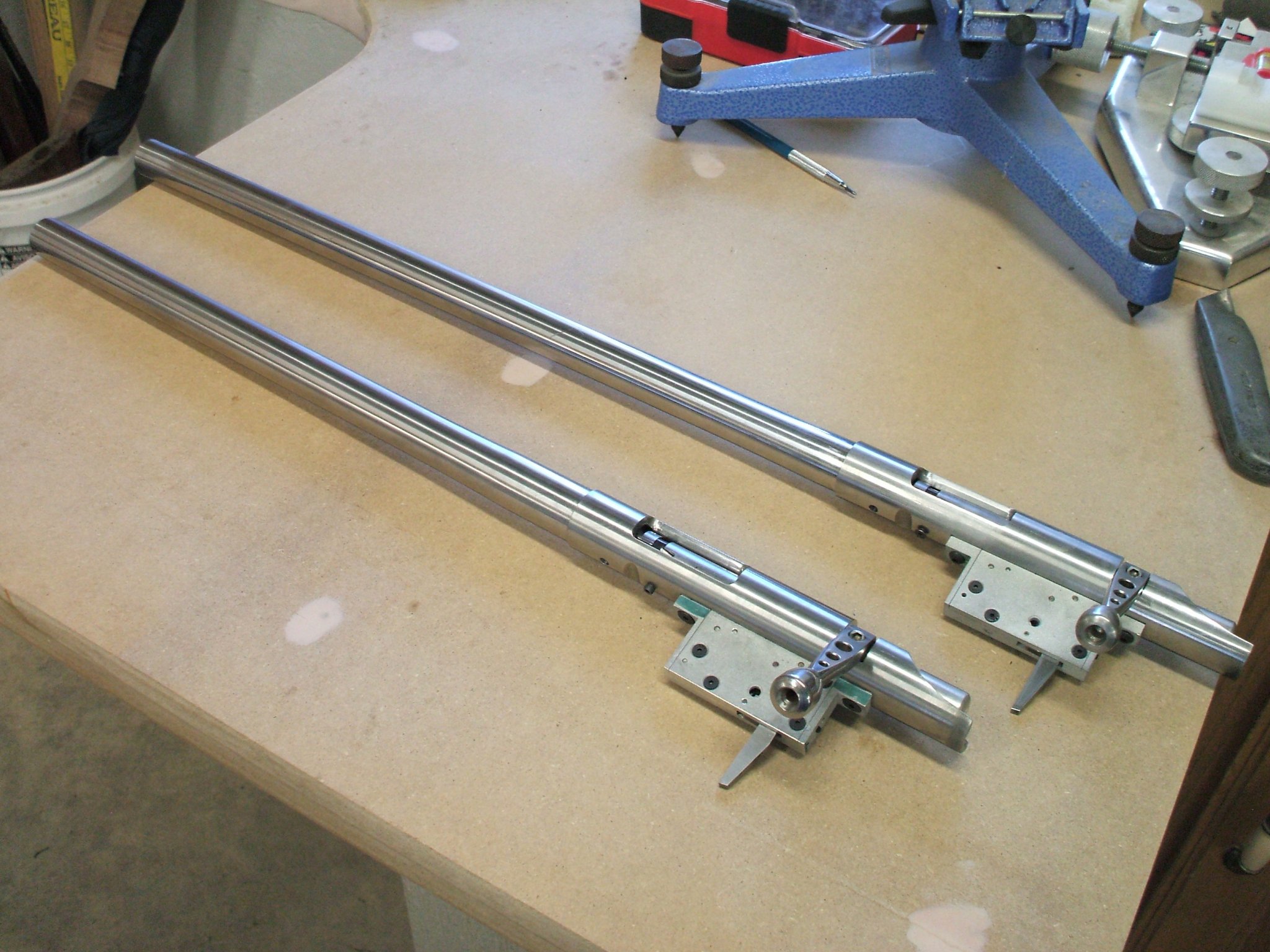

Well the .223 project is down to load development started in the rain yesterday. I'm only set up for 50 yds out of the shop window.but at least it's dry inside.Left group was .020 off the lands , right was .010 off.
Barrel is a green mountain .223 ,1 in 8 twist 25.5 long, mueller 8x32 scope, timney trigger. Stock was finished with minwax stain and satin wipe on poly. Target is a PSL , white circle is .300.
Barrel is a green mountain .223 ,1 in 8 twist 25.5 long, mueller 8x32 scope, timney trigger. Stock was finished with minwax stain and satin wipe on poly. Target is a PSL , white circle is .300.

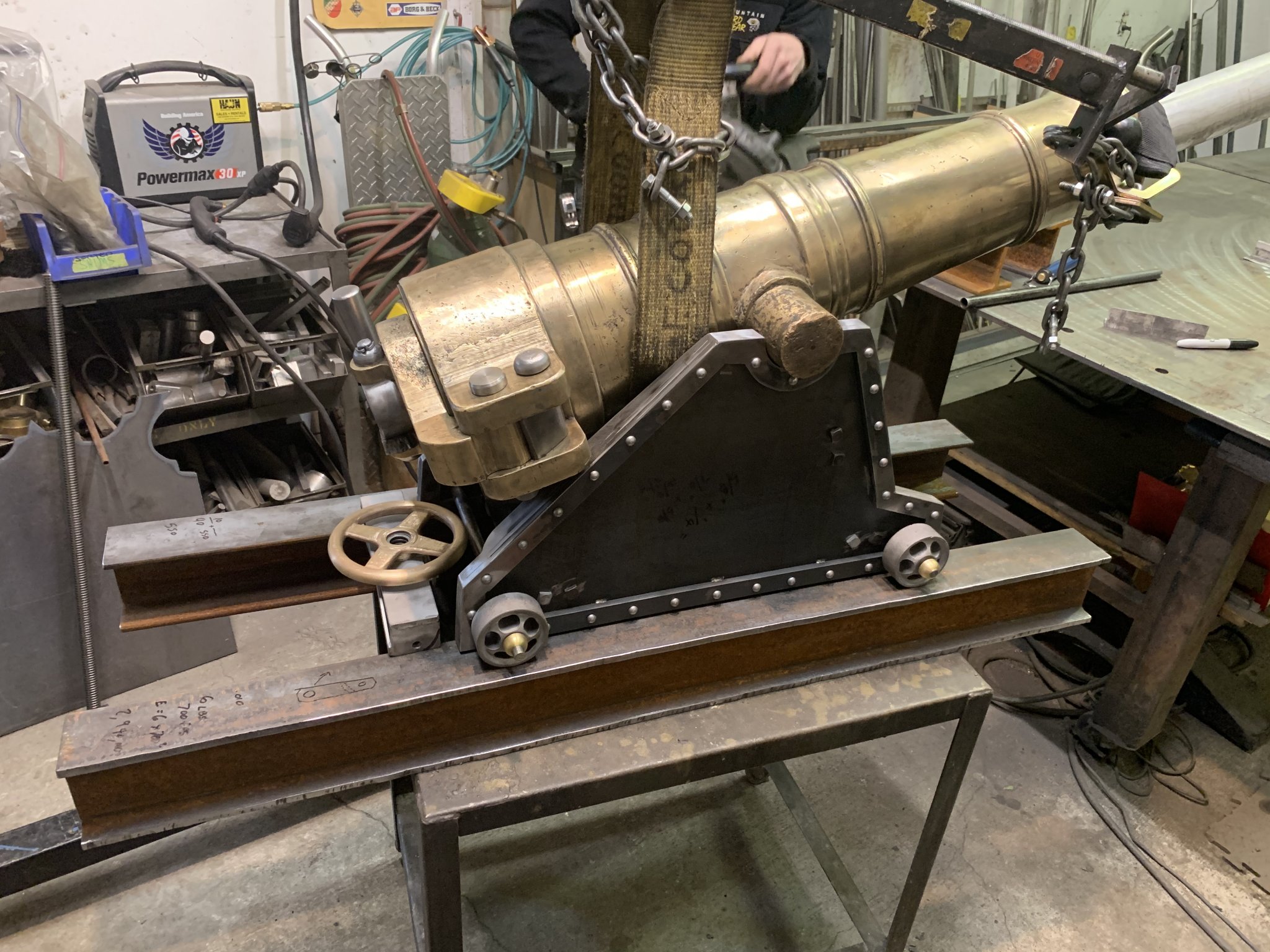

Precisely! It's a classic rampart-style mount. Pivots on a pin with wheels that run on steel circles. They range from giant 20 ton monsters like this one at Ft. Pickett... to half ton mini's like the one I'm working on !
On recoil, the carriage runs back on the rails, absorbing the recoil. And returns to zero when it rolls back forward to its stops.
Cheers,
Sirhr

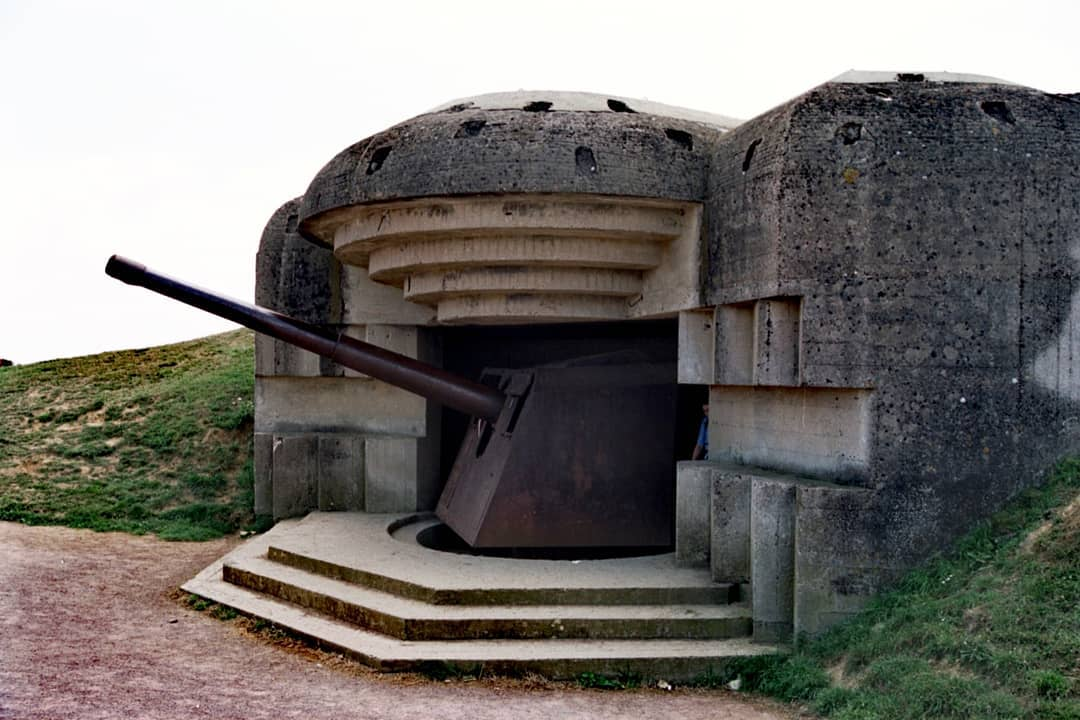

You are right... I think that is either Ft McHenry or Fort Clinch. I grabbed the image in a hurry and didn’t pay attention to where it was.
cheers, Sirhr

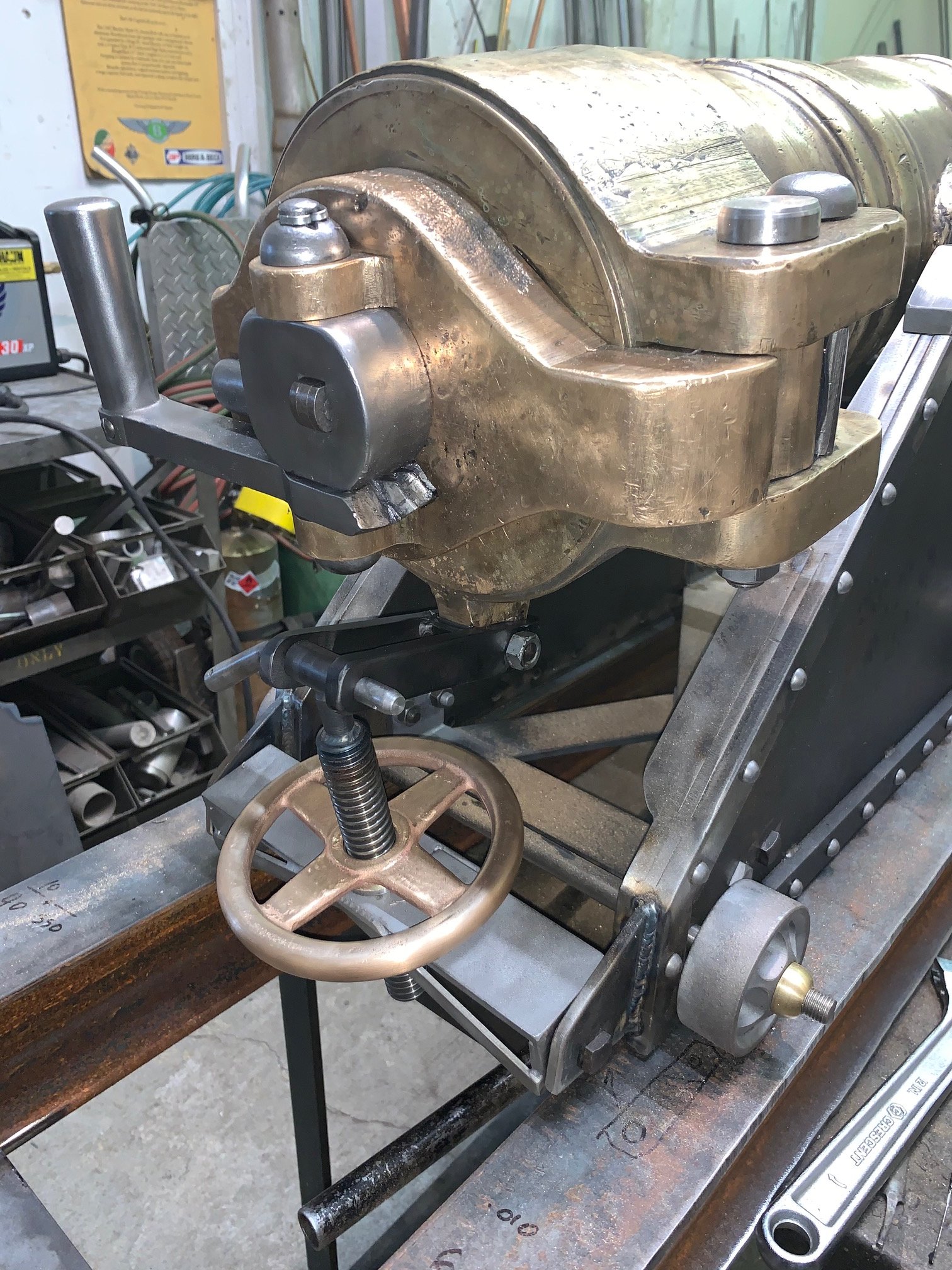

Got the elevation mechanism done today. Slicker than goose turds on linoleum! A bunch of other stuff, too. But this was the big milestone. The main carriage is done except for details (chains, footman loops, axle cotter keys, guides, etc.) Now for the rails and traversing carriage!
Should be done early next week! Coolest carriage I have ever built!
Sirhr

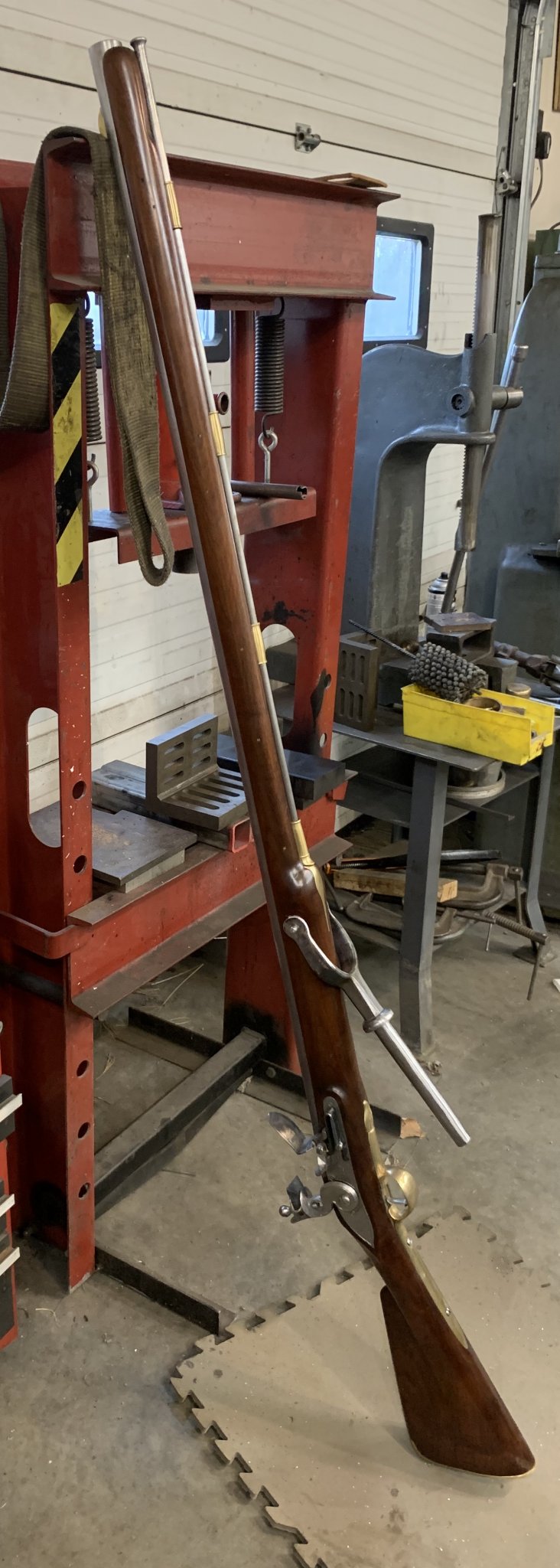

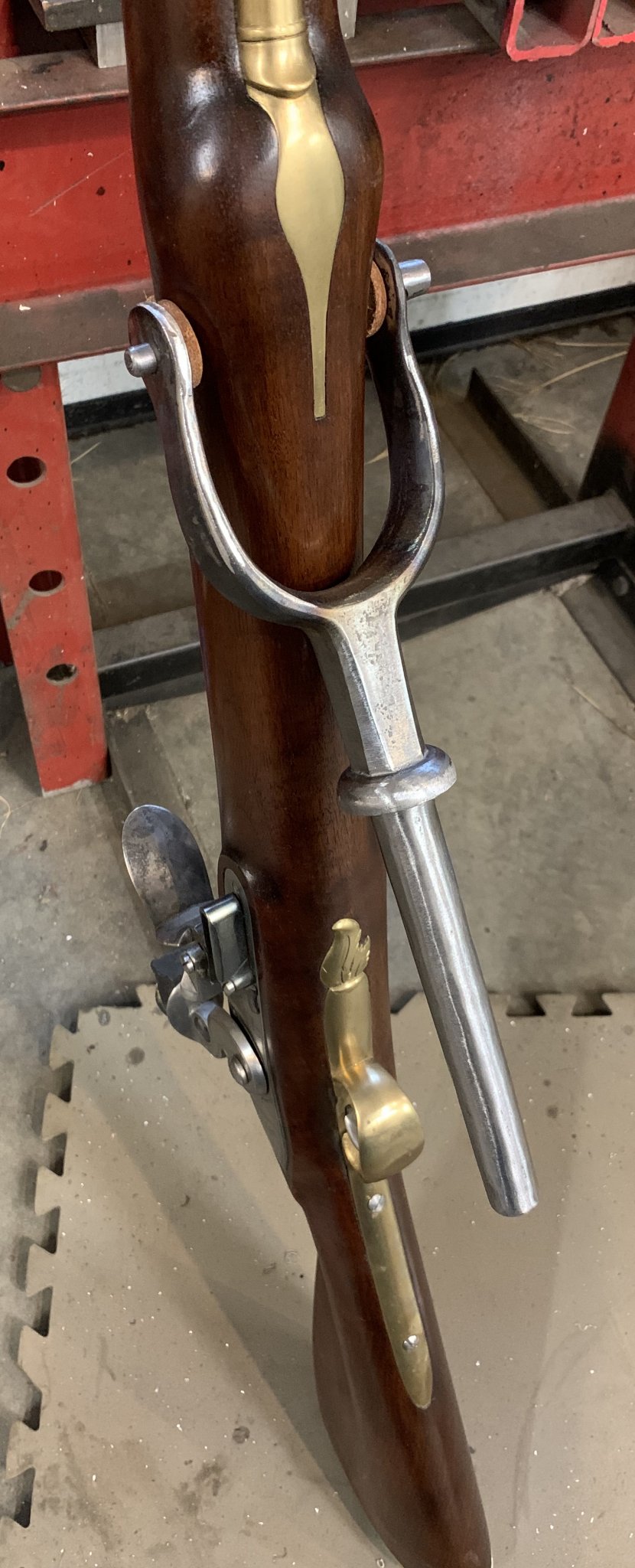

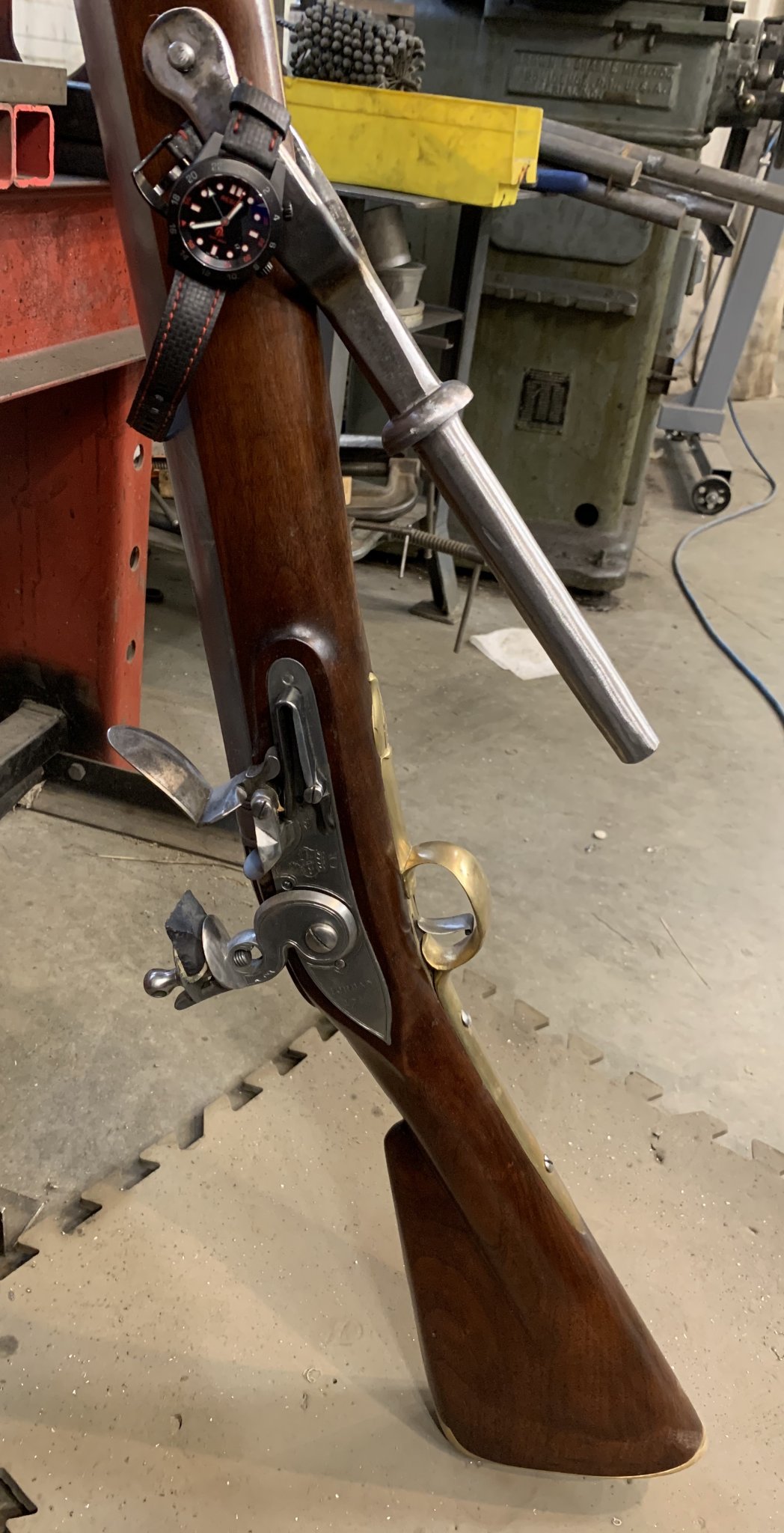

Finally got the yoke done for the wall gun!
Before there was a Barrett, c.1750, there were these!
cheers, Sirhr

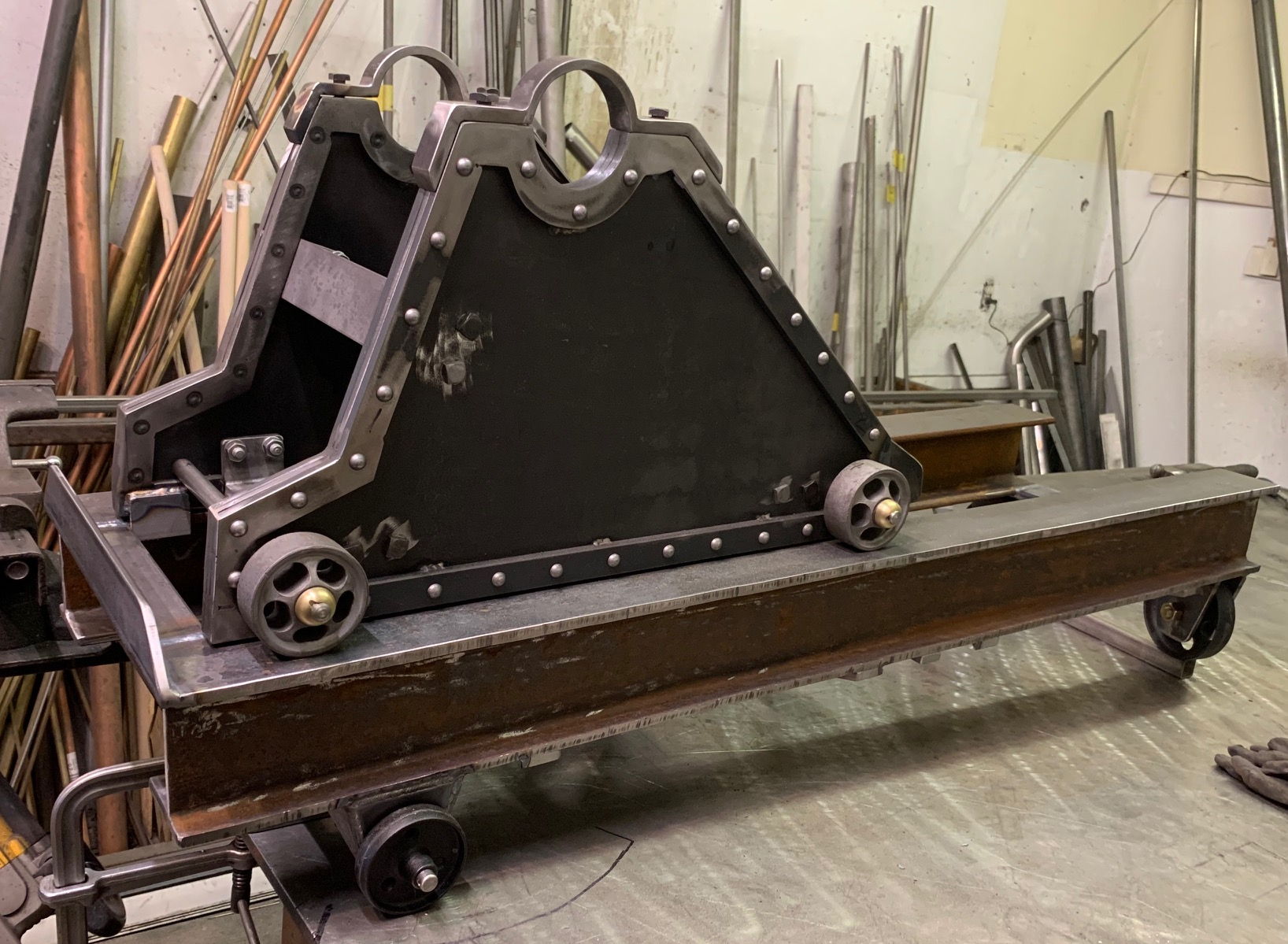

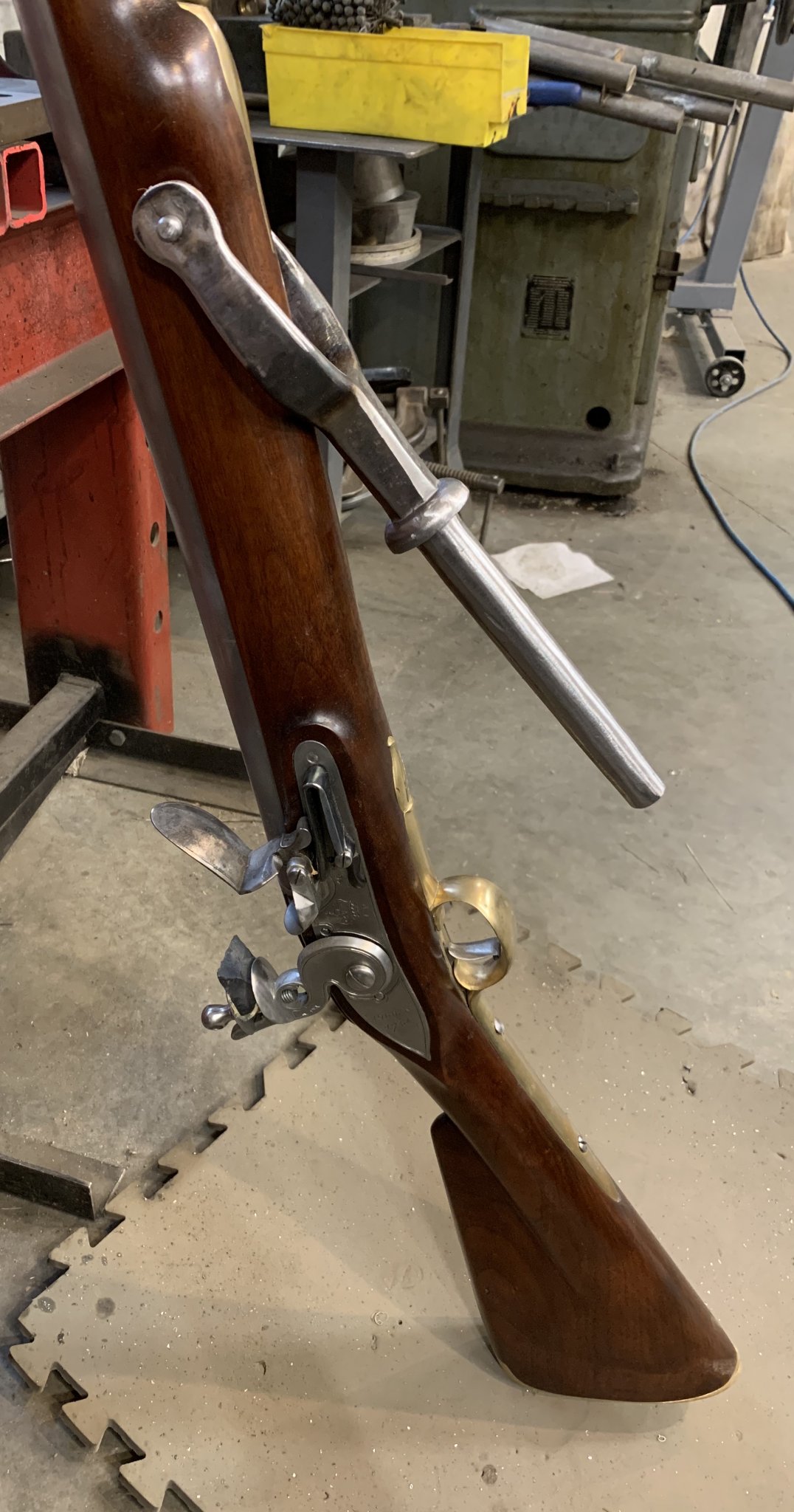

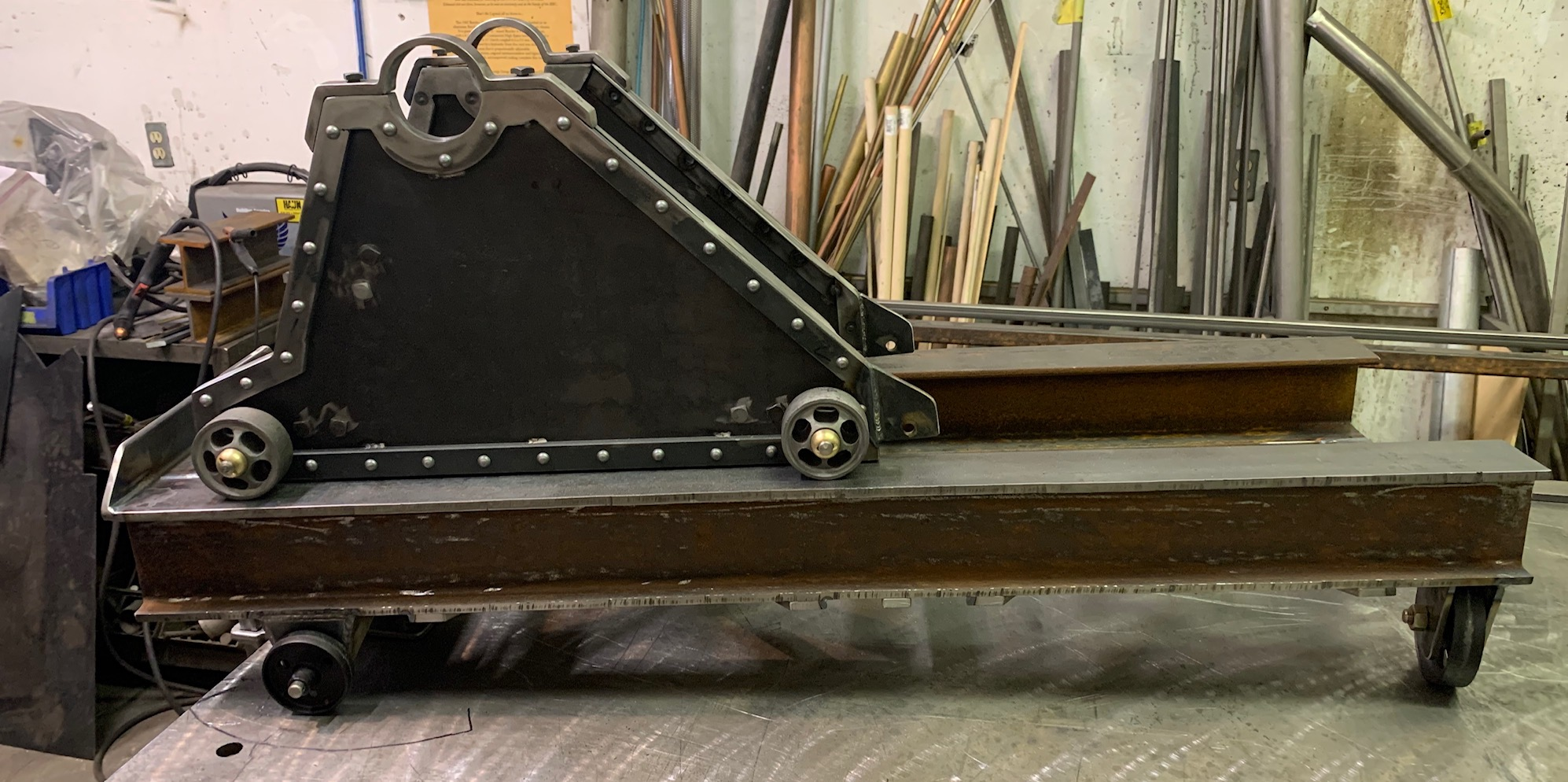

Rampart mount basically done. Needs a couple of footman loops and rail clamps, then I'll sandblast and paint. Except for paint, will be done tomorrow!
Next project... and amusette cart for the Wall Gun!
Cheers,
Sirhr

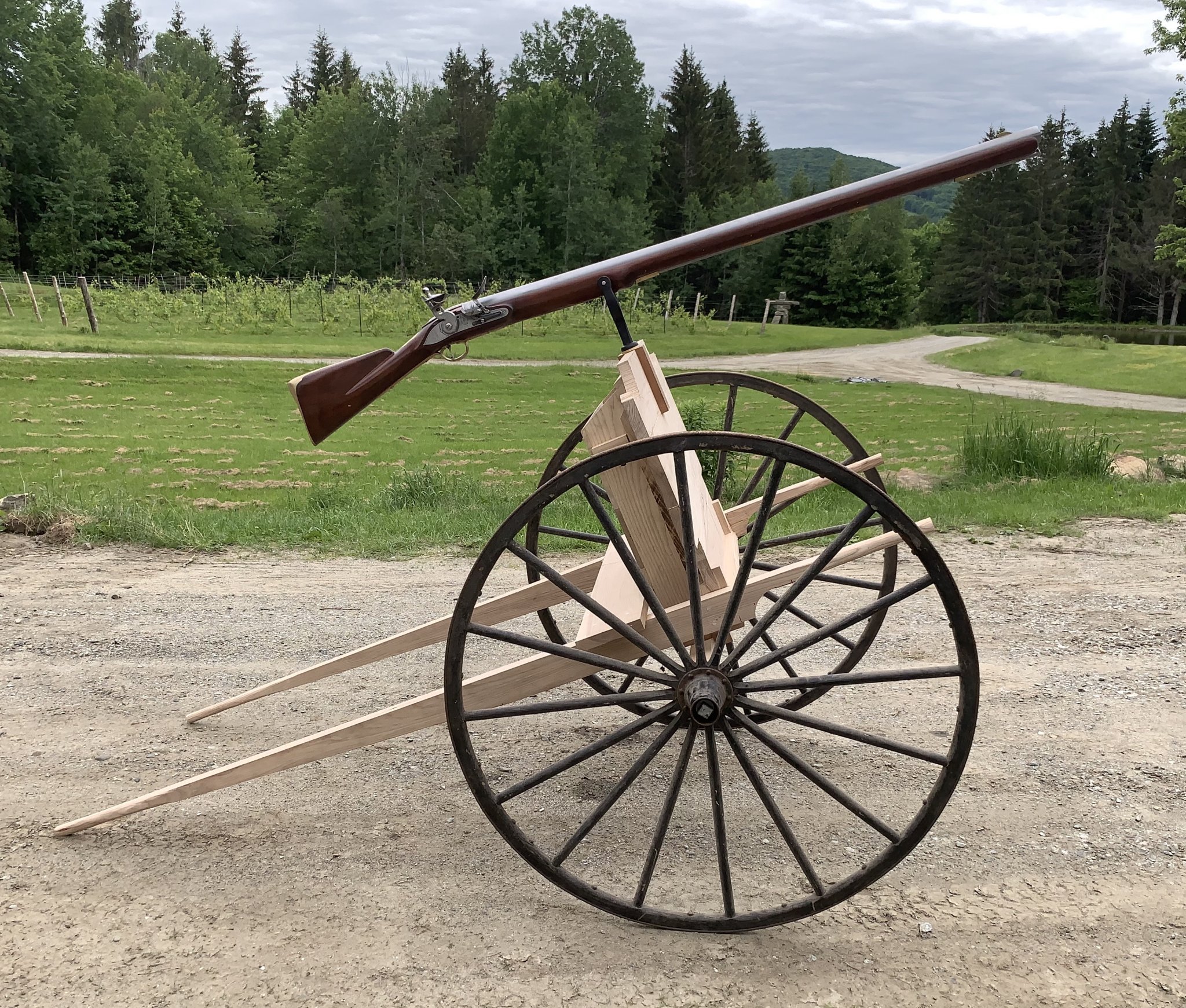

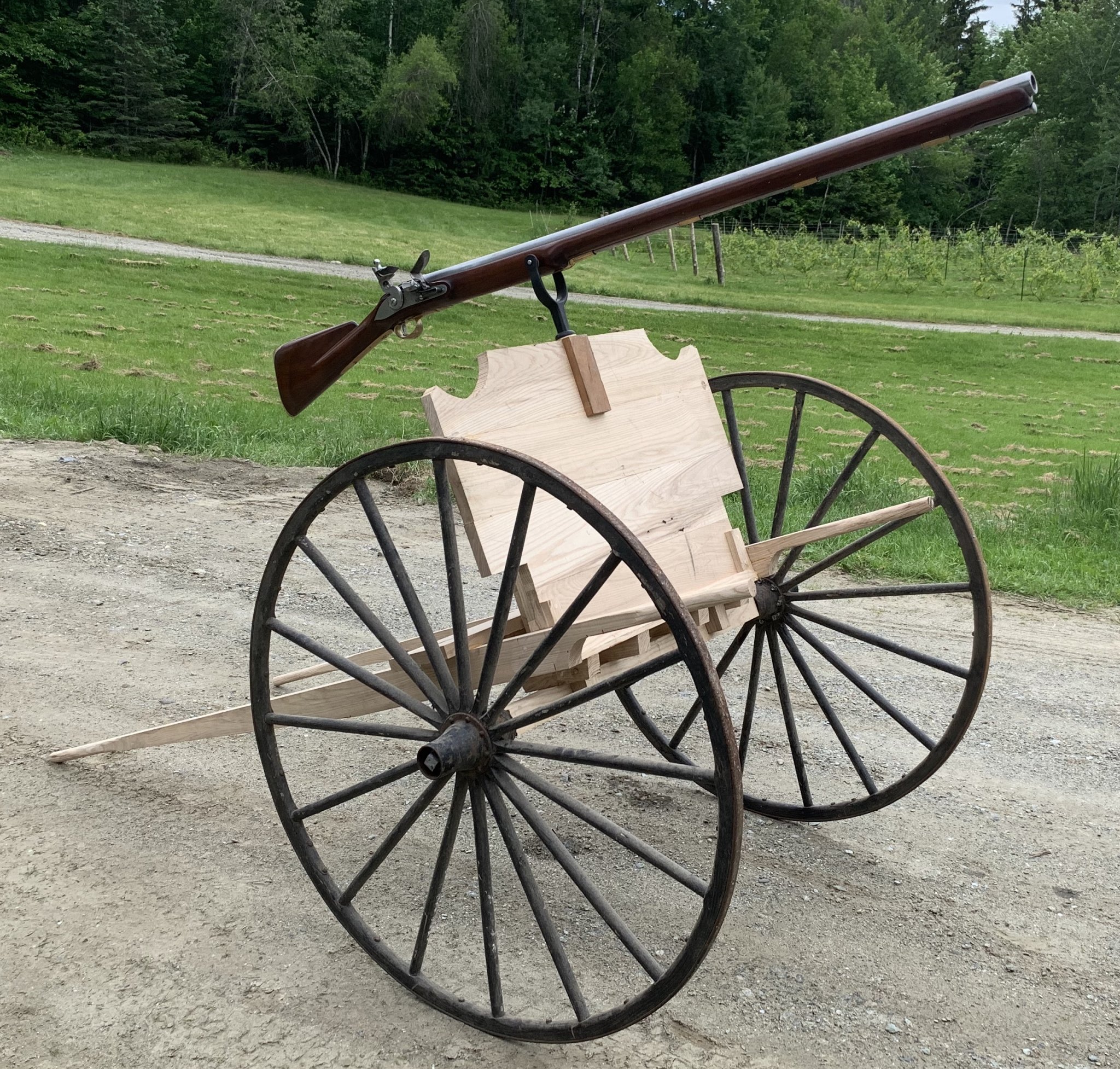

Finished the Amusette cart except for some sanding and painting. Came out pretty durn good!!!
Cheers, Sirhr
Cheers, Sirhr

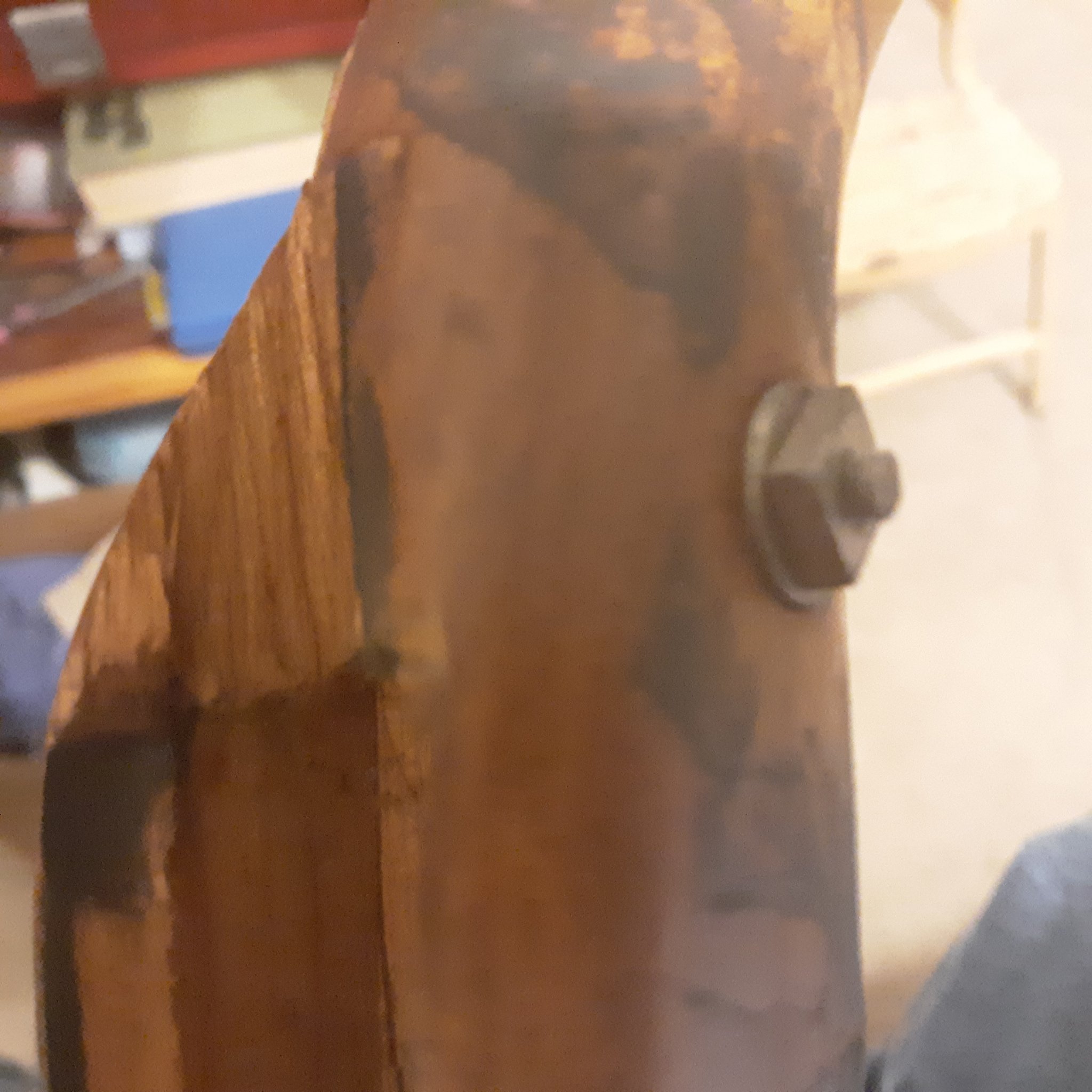

Numrich has them listed but they are out of stock. You might give them a call or Email to ask when they expect to restock.

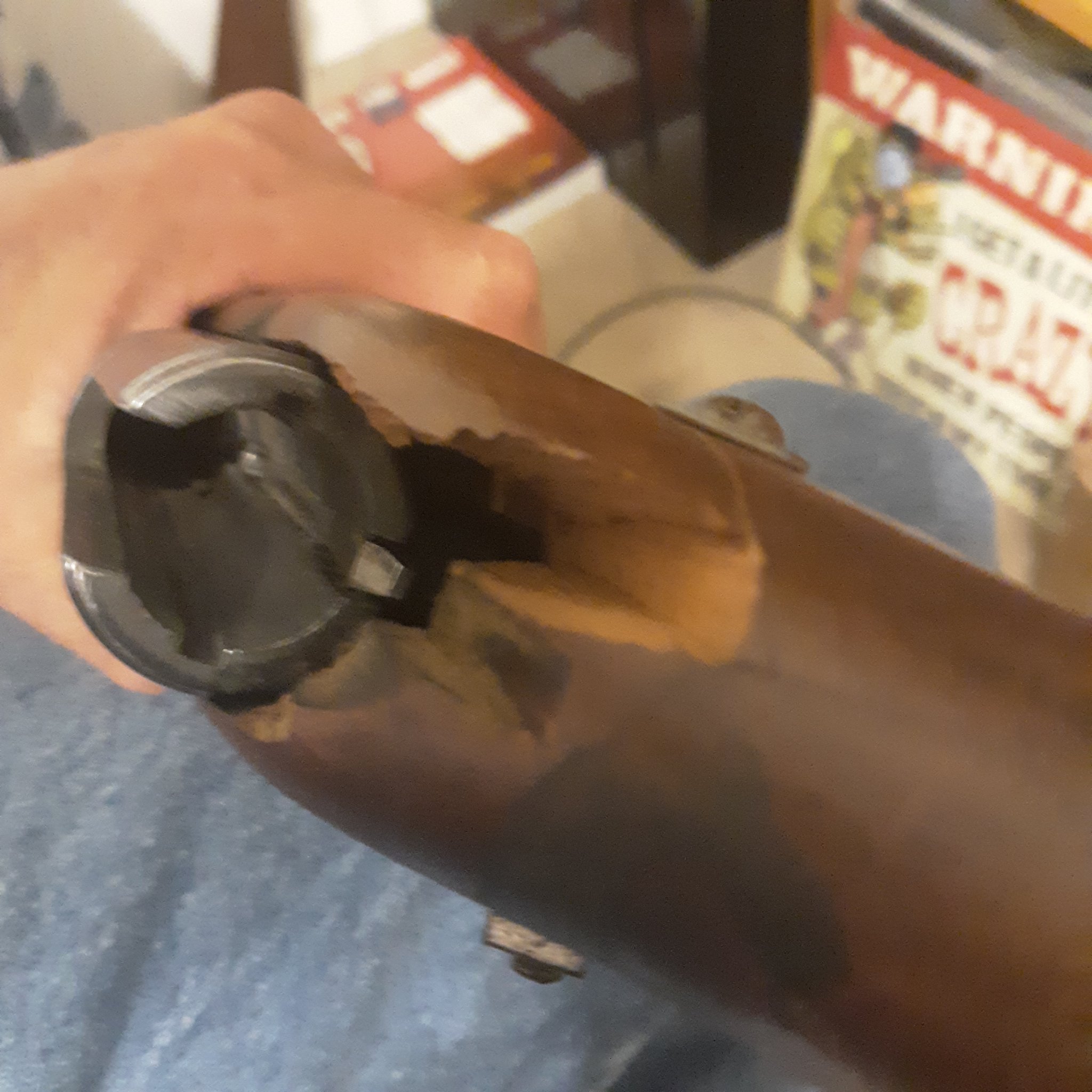

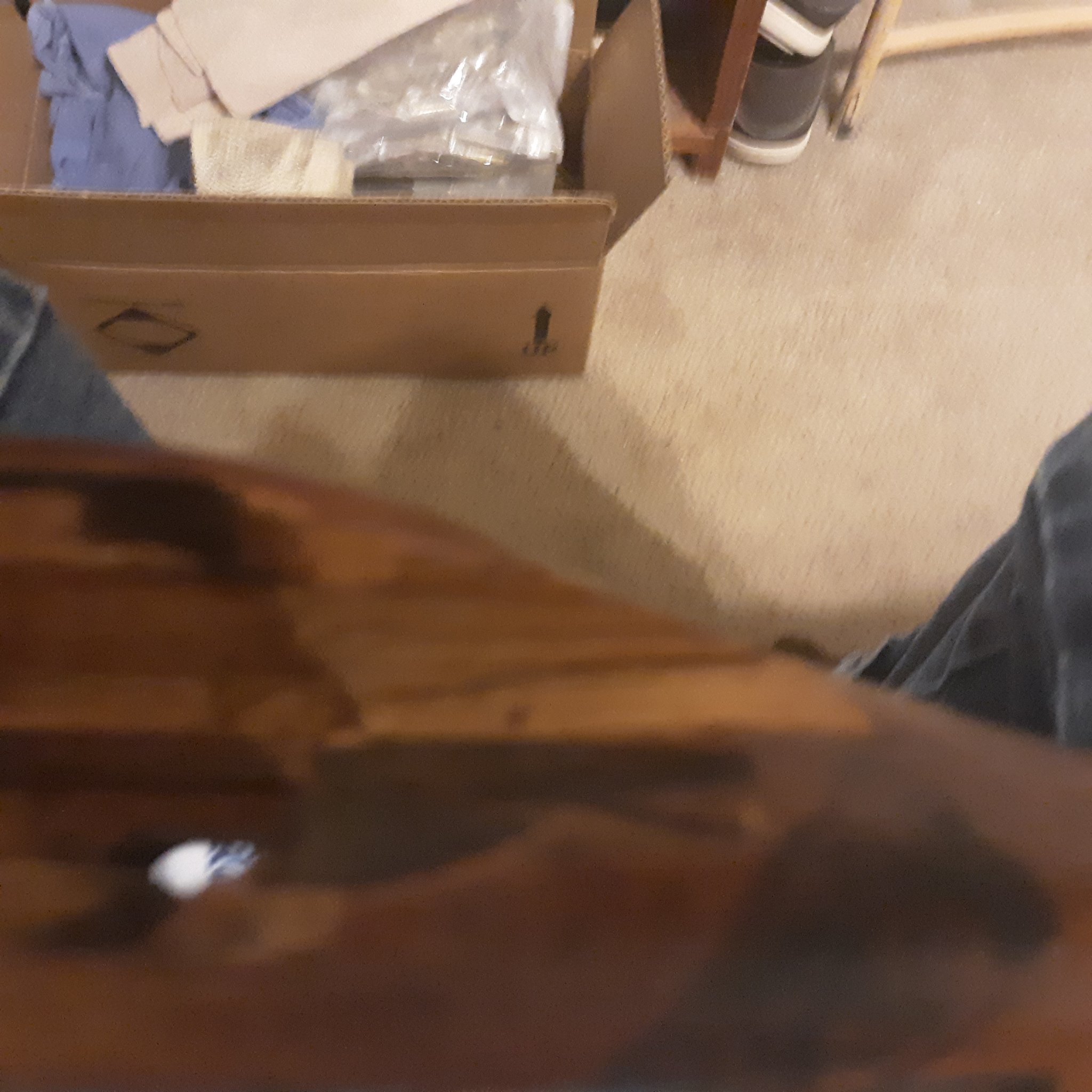

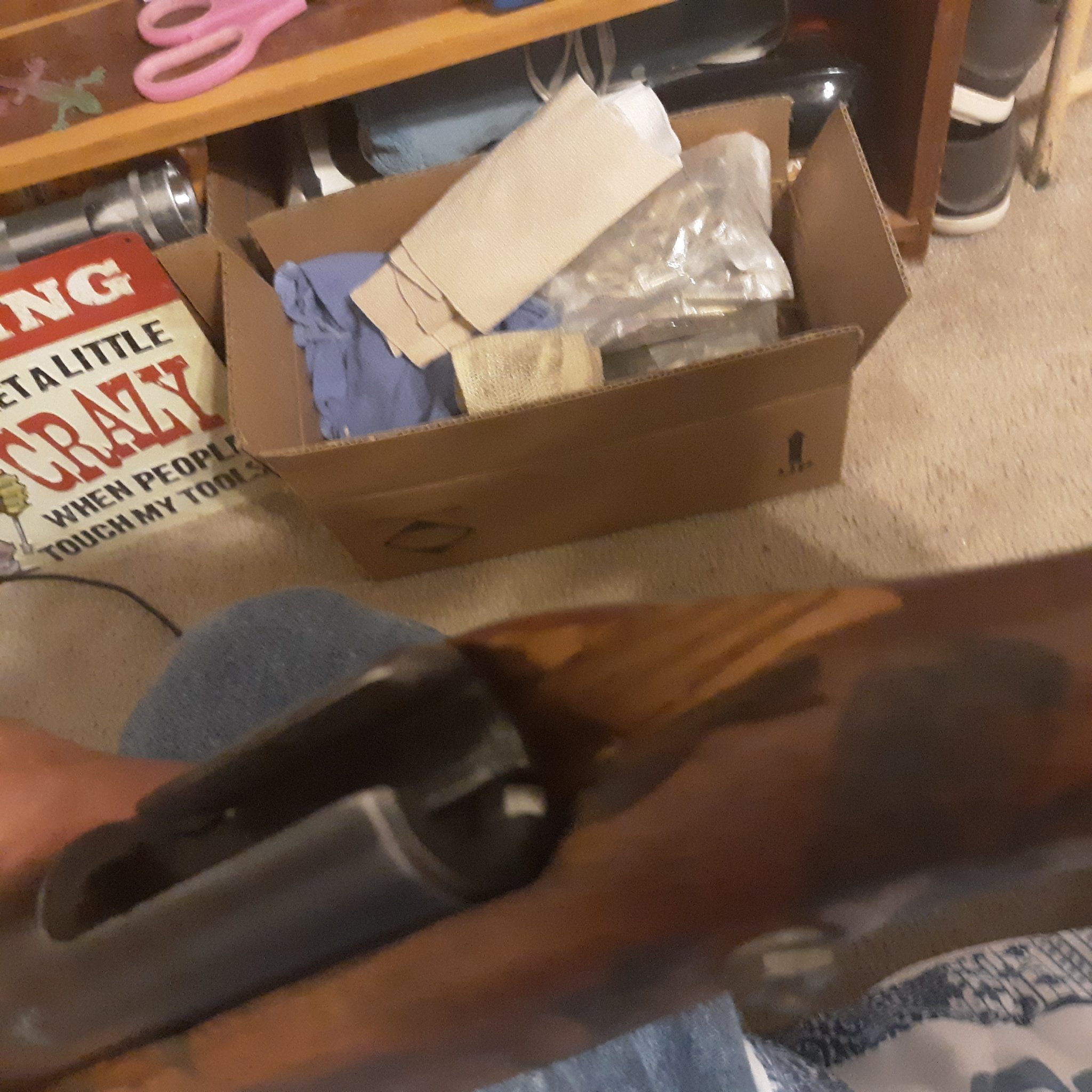

Graft in a new piece of wood.
File the broken area smooth. Find a small piece of walnut that roughly matches and glue it in. Hold in place with a wedge. If you want, after glue sets. Put in a couple of wood dowel pins with glue. Allow to set. File/sand to shape and re stain and finish. Easy fix.
Sirhr
Farm work mostly caught up and did some miniatures work today. Ever heard of a Puckle Gun? Ever heard of one in 1/6th scale? 10BA screws are really small to make and tap.
Sirhr
Sirhr
Round chambers only?
Ex wiki
Puckle demonstrated two versions of the basic design: one, intended for use against Christian enemies, fired conventional round bullets, while the second variant, designed to be used against the Muslim Turks, fired square bullets which were considered to be more damaging and would, according to its patent, convince the Turks of the "benefits of Christian civilization."[2]
Ex wiki
Puckle demonstrated two versions of the basic design: one, intended for use against Christian enemies, fired conventional round bullets, while the second variant, designed to be used against the Muslim Turks, fired square bullets which were considered to be more damaging and would, according to its patent, convince the Turks of the "benefits of Christian civilization."[2]
cool project . I'm not familiar with the screw designation 10 BA where did that come from.
British Association (BA)
47-1/2 degree thread angle. This is a metric thread system devised by the British for small screws used in components like speedos. Not metric like you might expect, but with diameters determined by a factor proportional to a power of the logarithm to the base 10 of the thread pitch in millimeters.
You'll find lots of BA threads on any British car, but only for fasteners smaller than 1/4". BA fasteners have their own set of spanner sizes. Typically, a set of "Whitworth" sockets will include a OBA (and maybe a 2BA--bigger number = smaller size) socket.
47-1/2 degree thread angle. This is a metric thread system devised by the British for small screws used in components like speedos. Not metric like you might expect, but with diameters determined by a factor proportional to a power of the logarithm to the base 10 of the thread pitch in millimeters.
You'll find lots of BA threads on any British car, but only for fasteners smaller than 1/4". BA fasteners have their own set of spanner sizes. Typically, a set of "Whitworth" sockets will include a OBA (and maybe a 2BA--bigger number = smaller size) socket.
| 0 BA | 0.2360 inch | 25.4 tpi | 0.0394 inch | 0.1887 inch | Number drill 9 5.1 mm 0.2008 inch |
|---|---|---|---|---|---|
| 1 BA | 0.2090 inch | 28.2 tpi | 0.0354 inch | 0.1665 inch | Number drill 16 4.5 mm 0.1772 inch |
| 2 BA | 0.1850 inch | 31.4 tpi | 0.0319 inch | 0.1467 inch | Number drill 22 4 mm 0.1575 inch |
| 3 BA | 0.1610 inch | 34.8 tpi | 0.0287 inch | 0.1266 inch | Number drill 29 3.4 mm 0.1339 inch |
| 4 BA | 0.1420 inch | 38.5 tpi | 0.0260 inch | 0.1108 inch | Number drill 31 3 mm 0.1181 inch |
| 5 BA | 0.126 inch | 43 tpi | 0.0232 inch | 0.0981 inch | Number drill 37 2.65 mm 0.1043 inch |
| 6 BA | 0.11 inch | 47.9 tpi | 0.0209 inch | 0.0849 inch | 2.3 mm 0.0906 inch |
| 7 BA | 0.0982 inch | 52.9 tpi | 0.0189 inch | 0.0753 inch | Number drill 46 2.05 mm 0.0807 inch |
| 8 BA | 0.086 inch | 59.1 tpi | 0.0169 inch | 0.0657 inch | Number drill 50 1.8 mm 0.0709 inch |
| 9 BA | 0.075 inch | 65.1 tpi | 0.0154 inch | 0.0565 inch | 1.55 mm 0.061 inch |
| 10 BA | 0.067 inch | 72.6 tpi | 0.0138 inch | 0.0504 inch | Number drill 54 1.4 mm 0.0551 inch |
| 11 BA | 0.059 inch | 81.9 tpi | 0.0122 inch | 0.0443 inch | Number drill 56 1.2 mm 0.0472 inch |
| 12 BA | 0.051 inch | 90.9 tpi | 0.011 inch | 0.0378 inch | Number drill 60 1.05 mm 0.0413 inch |
| 13 BA | 0.047 inch | 102 tpi | 0.0098 inch | 0.0352 inch | Number drill 62 0.98 mm 0.0386 inch |
| 14 BA | 0.039 inch | 109.9 tpi | 0.0091inch | 0.028 inch | 0.8 mm 0.0315 inch |
| 15 BA | 0.035 inch | 120.5 tpi | 0.0083 inch | 0.025 inch | Number drill 70 0.7 mm 0.0276 inch |
| 16 BA | 0.0310 inch | 133.3 tpi | 0.0075 inch | 0.0220 inch | Number drill 73 0.6 mm 0.0236 inch |
| Screw Numbers | Diameter of Screw Over Thread | Threads per inch | Pitch | Diameter at Thread Bottom | Tapping Drill Size |

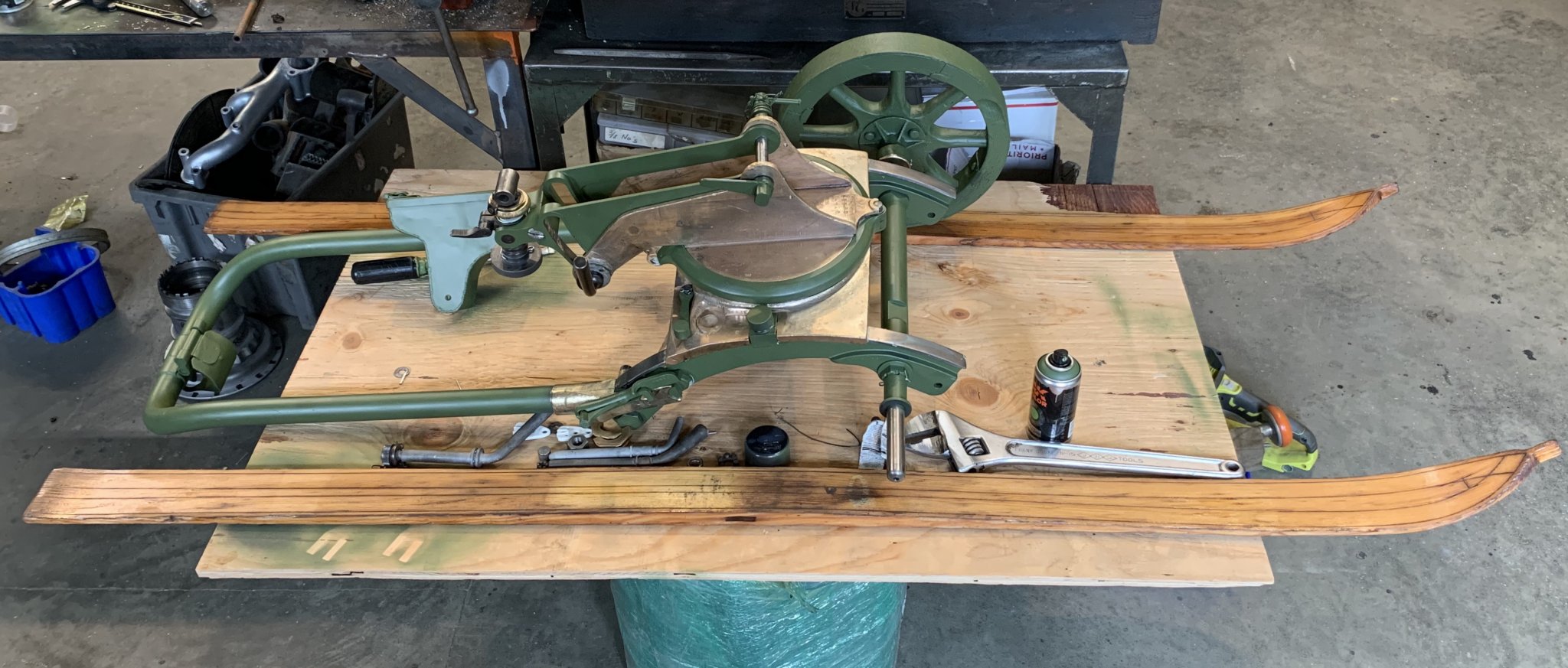

Finally getting to reassemble Maxim carriage and decided to add a couple of antique ski's and make a reproduction of a Soviet Ski mount. The Sokolov is real, 1917 Imperial. And am putting together a ski mount with a couple of garage sale wood ski's.

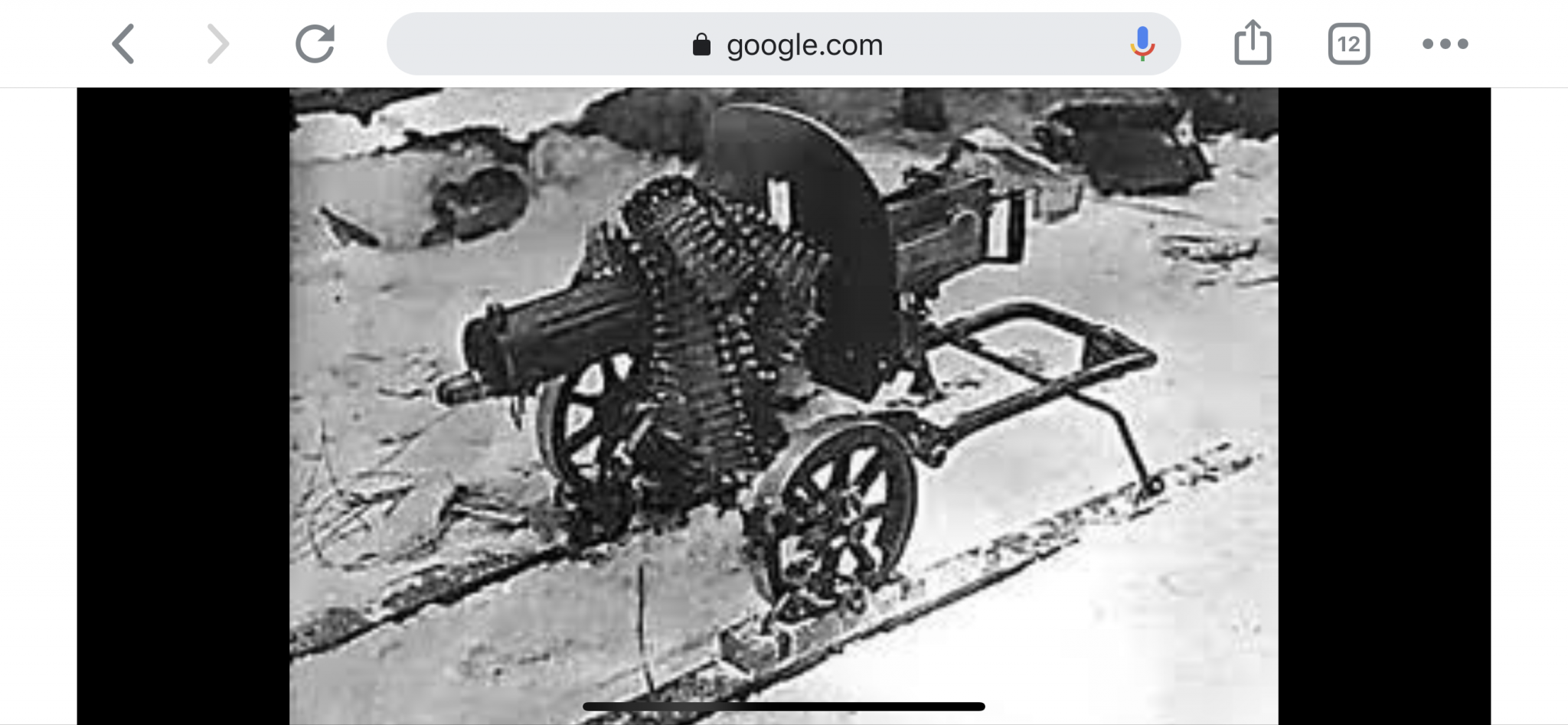

Here is one in the snow during WW2.
Not an especially challenging restoration. The hardest part has been getting the paint right. I'll have the ski's done next weekend, probably.
Cheers,
Sirhr
Here is one in the snow during WW2.
Not an especially challenging restoration. The hardest part has been getting the paint right. I'll have the ski's done next weekend, probably.
Cheers,
Sirhr

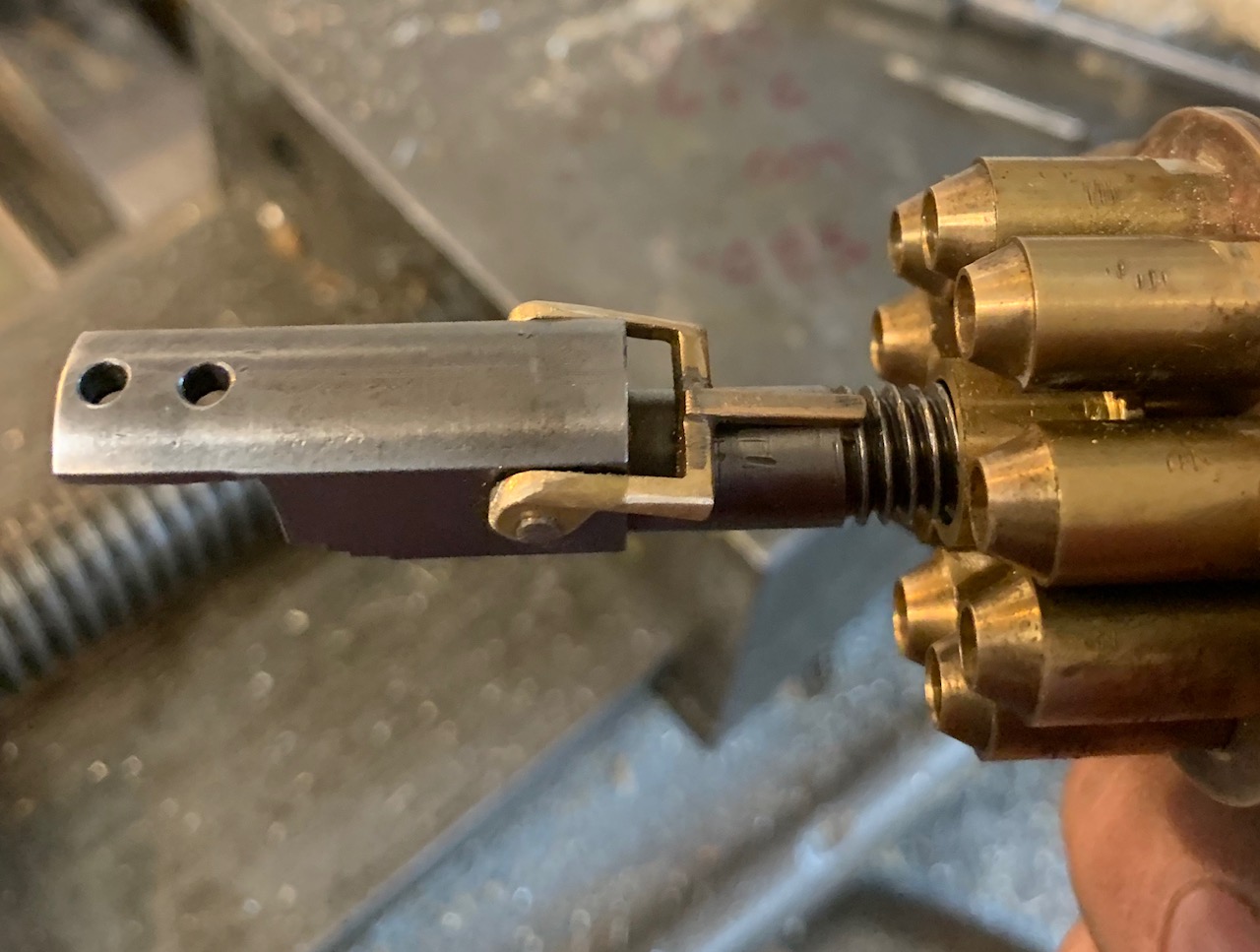

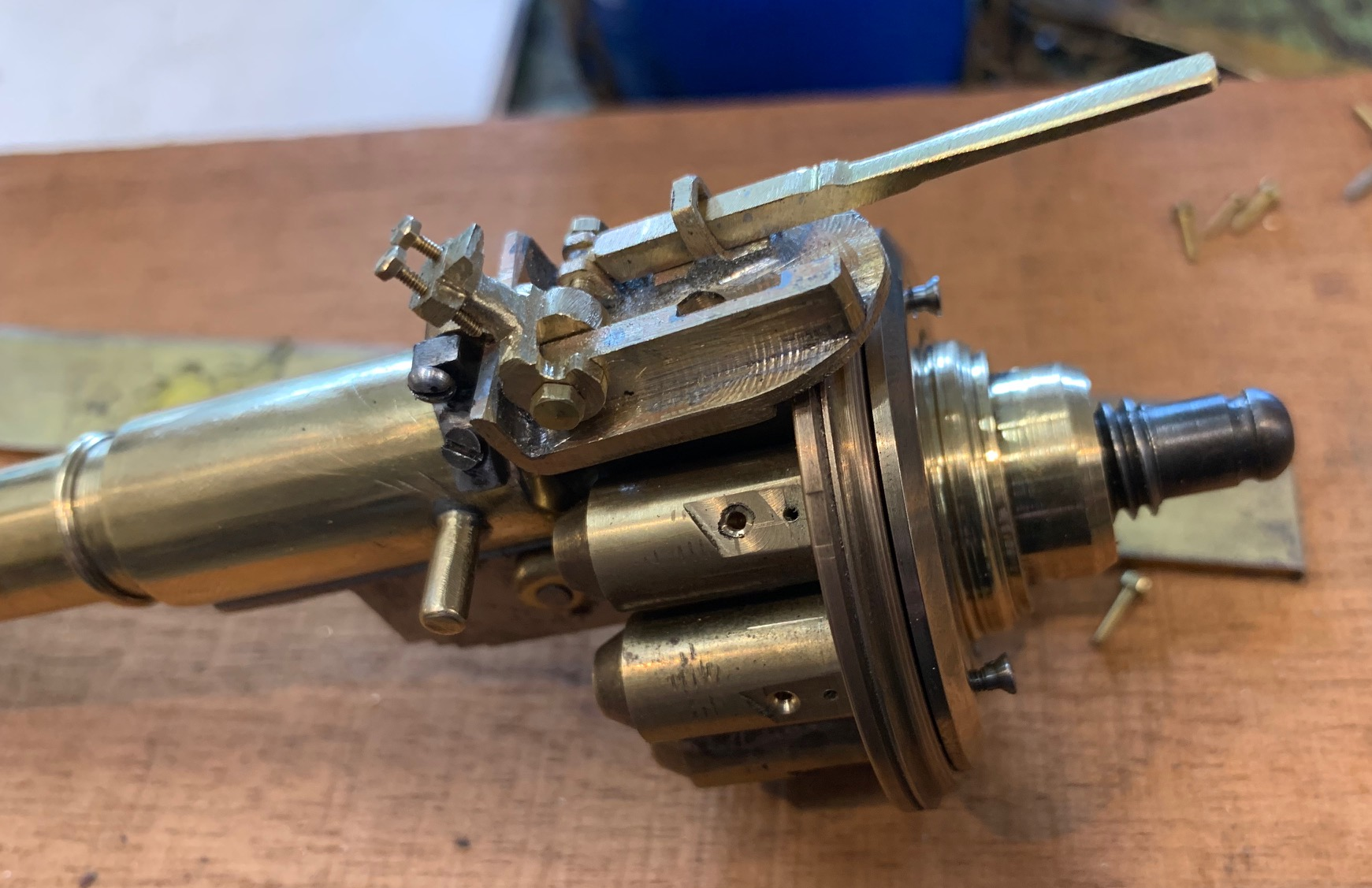

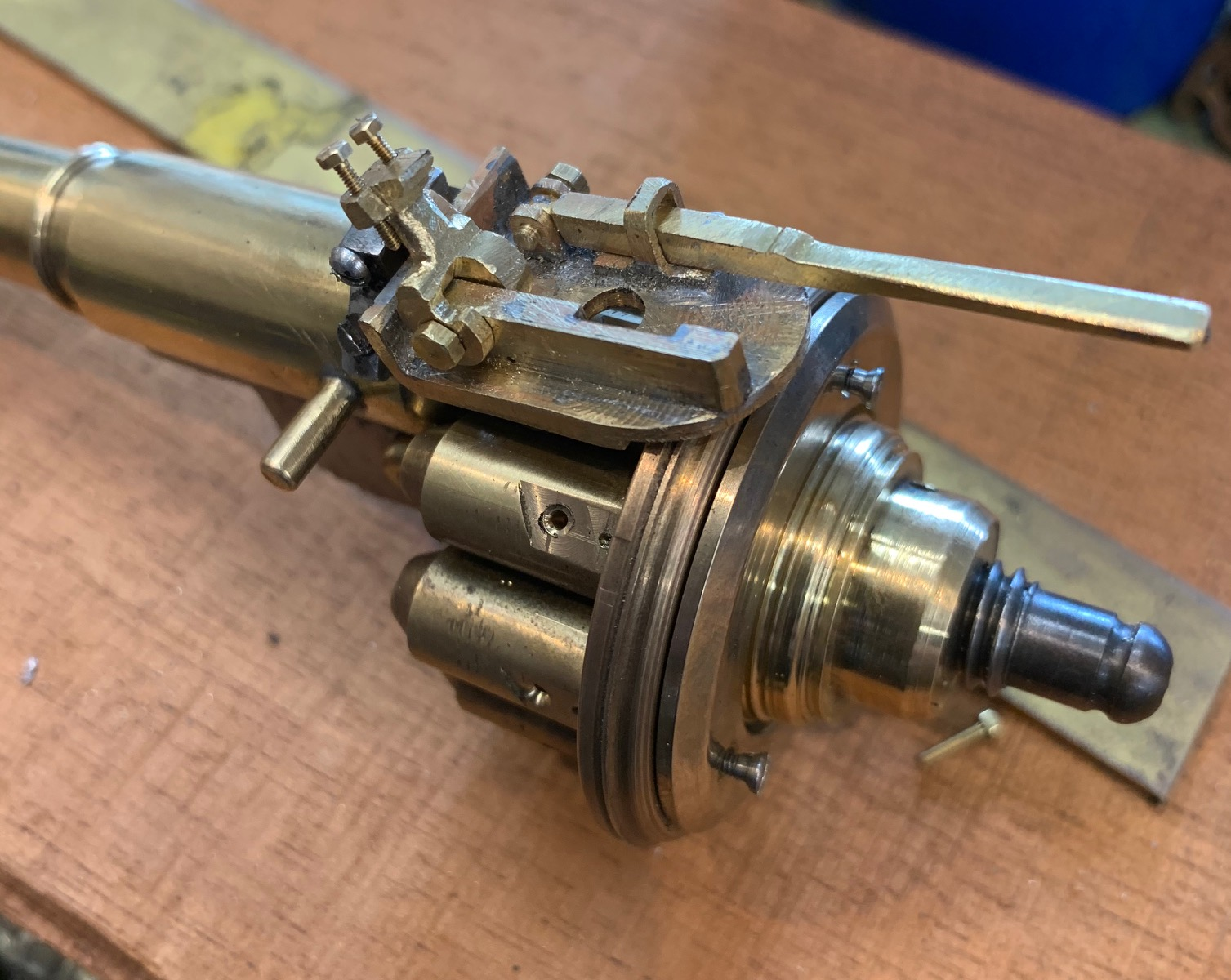

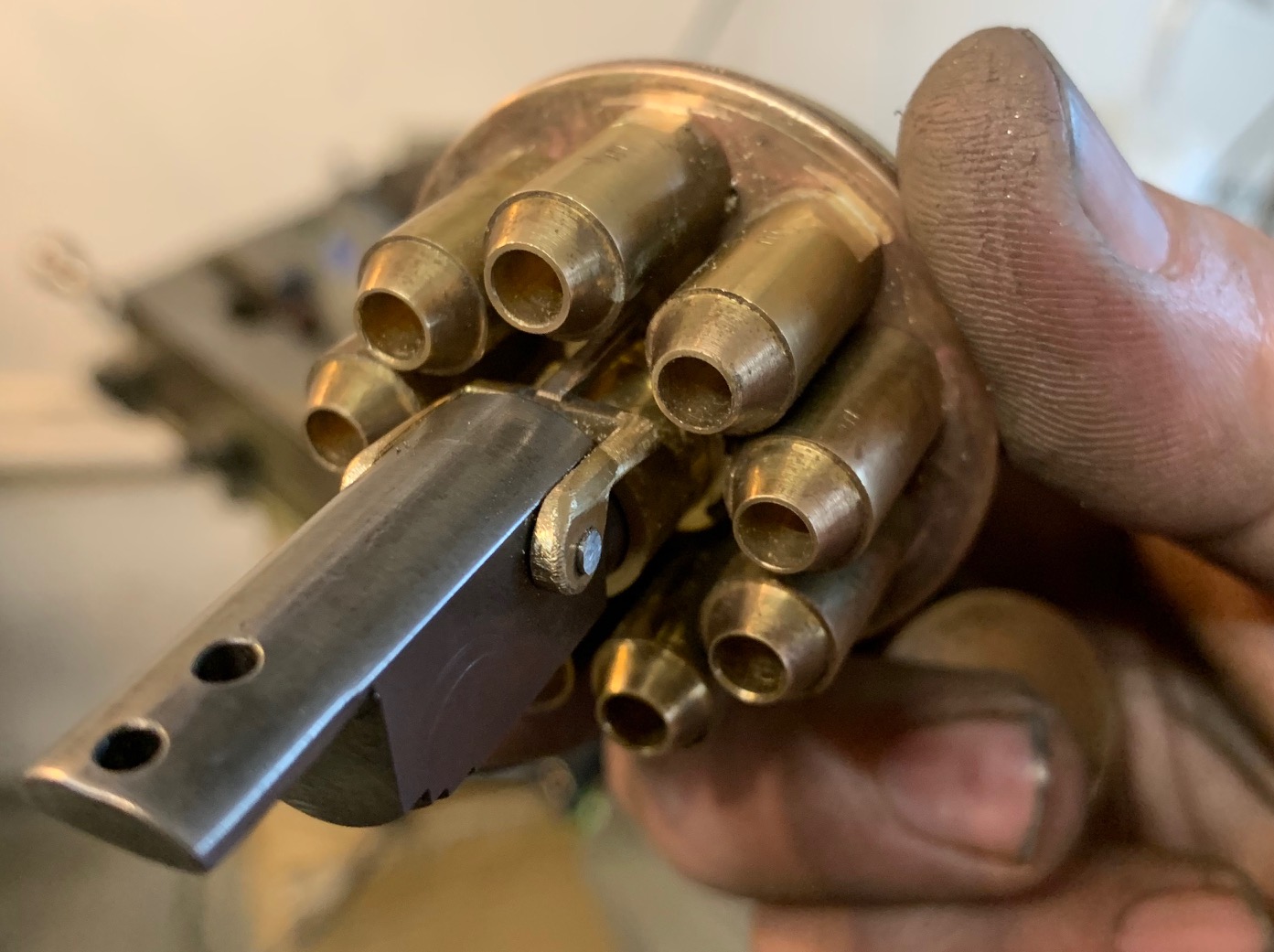

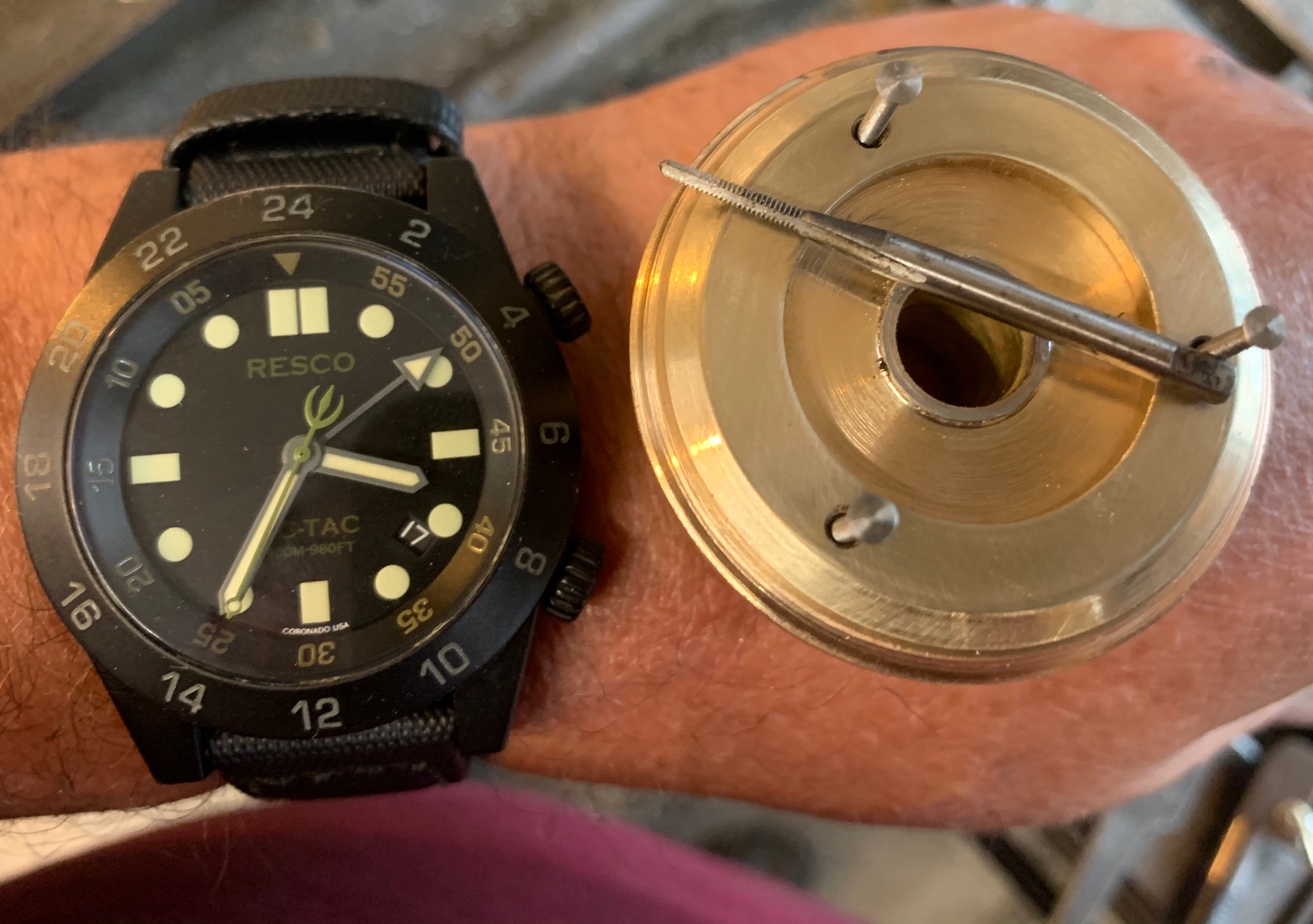

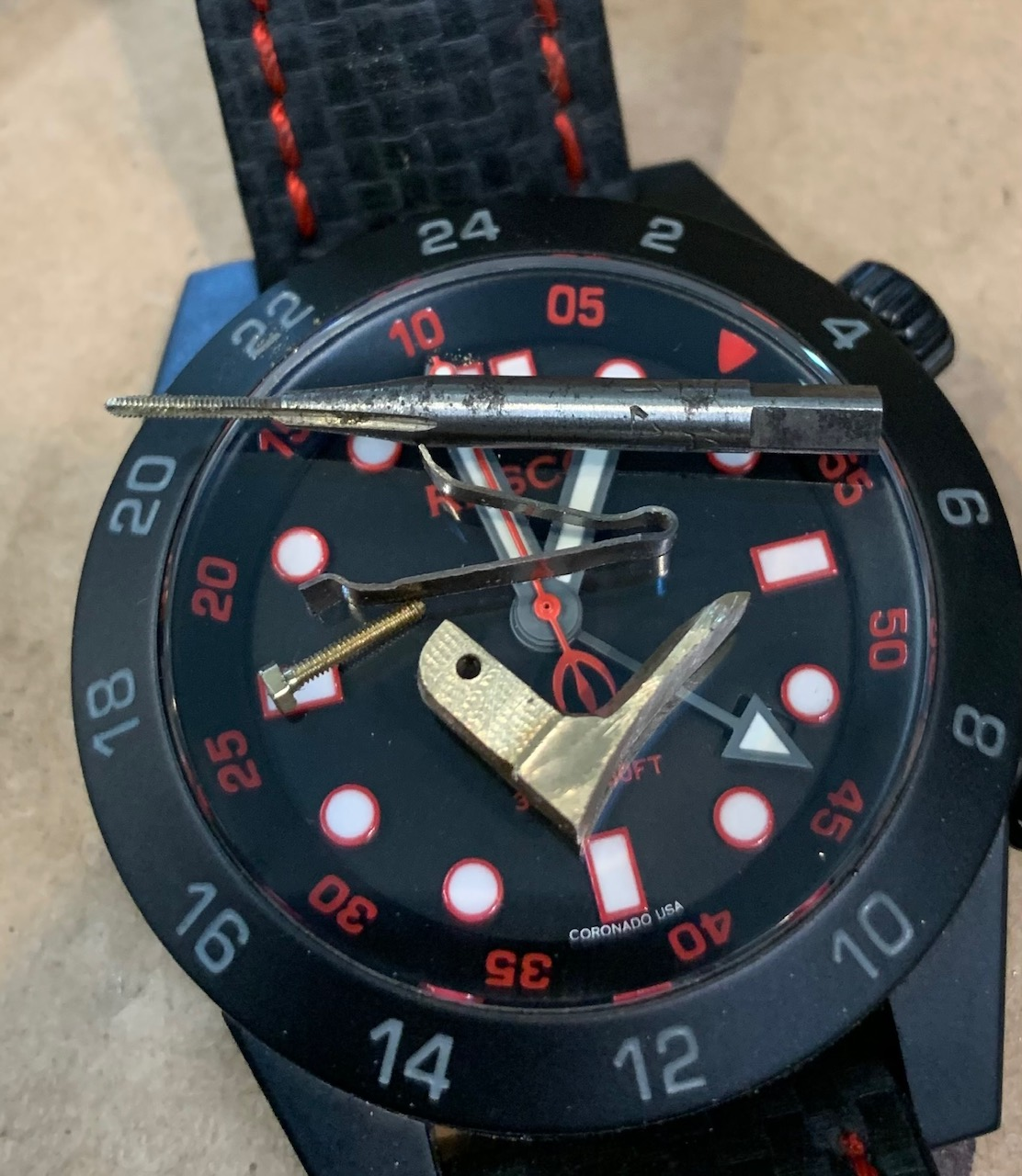

Started on the Puckle Gun lock.... geeze these parts are tiny!!!!
Cheers,
Sirhr
Cheers,
Sirhr

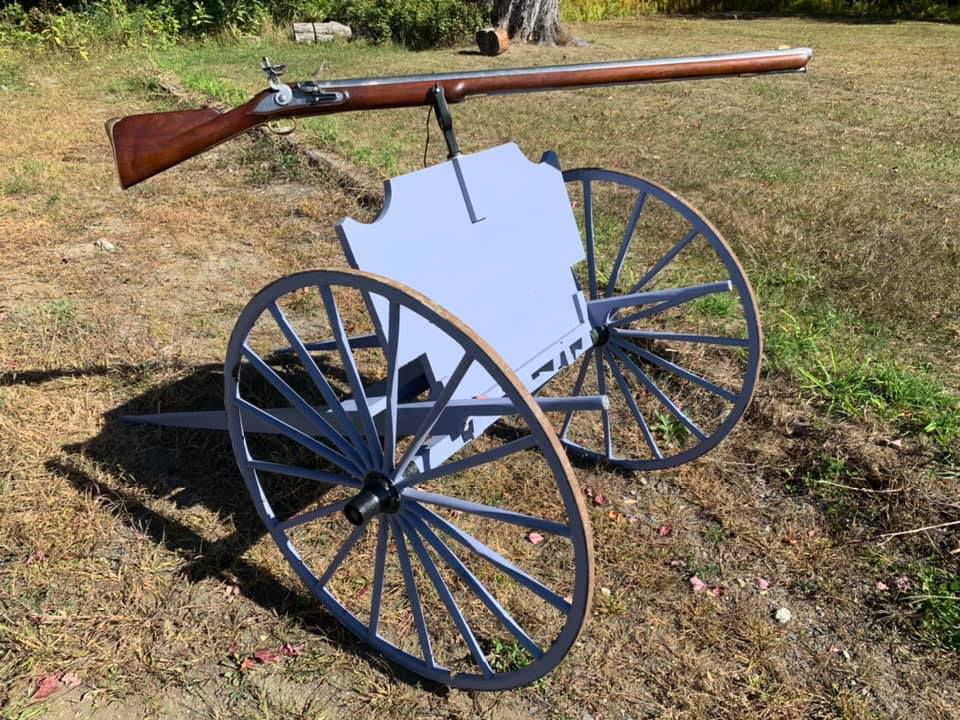

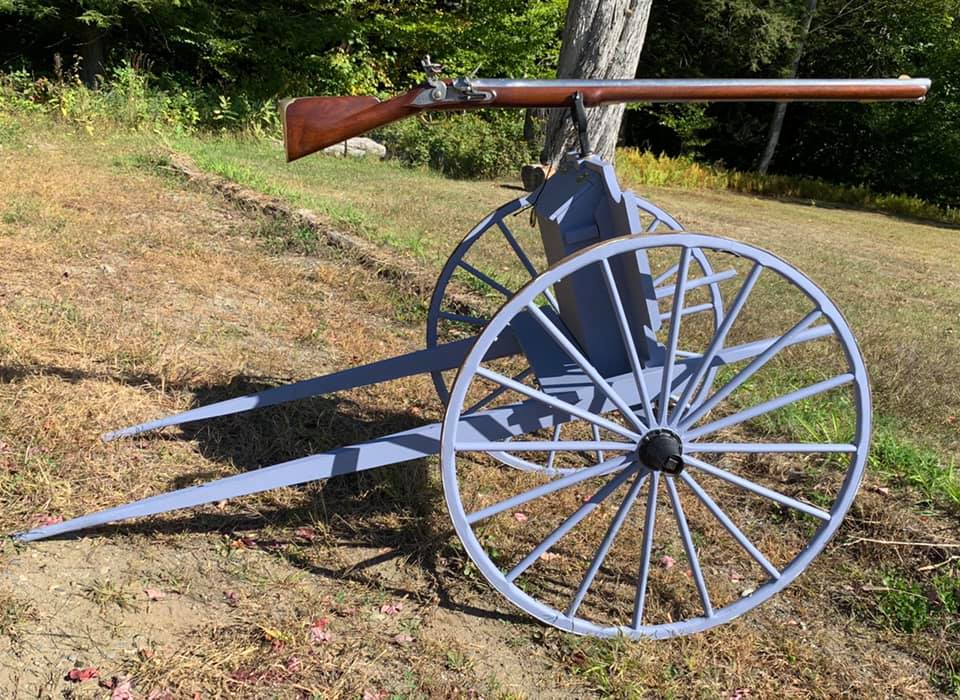

Finished both the Amusette Cart and the Sokolov Mount today... ready for winter.
Painted in a French Blue, representative of Revolutionary War American Artillery. Washington ordered his artillery painted blue after the French came in to the American Cause.
Amusette Carts were known to have been used at Saratoga, Trenton and Cowpens. I believe that the Wall Guns were captured at Ticonderoga by Arnold and Allen and were part of the captured 'booty' brought to Boston by Knox. Amusette carts were built 'on site' and were not especially rugged. But allowed the guns to be moved quickly around the battlefield where they could be loaded with ball or buck.

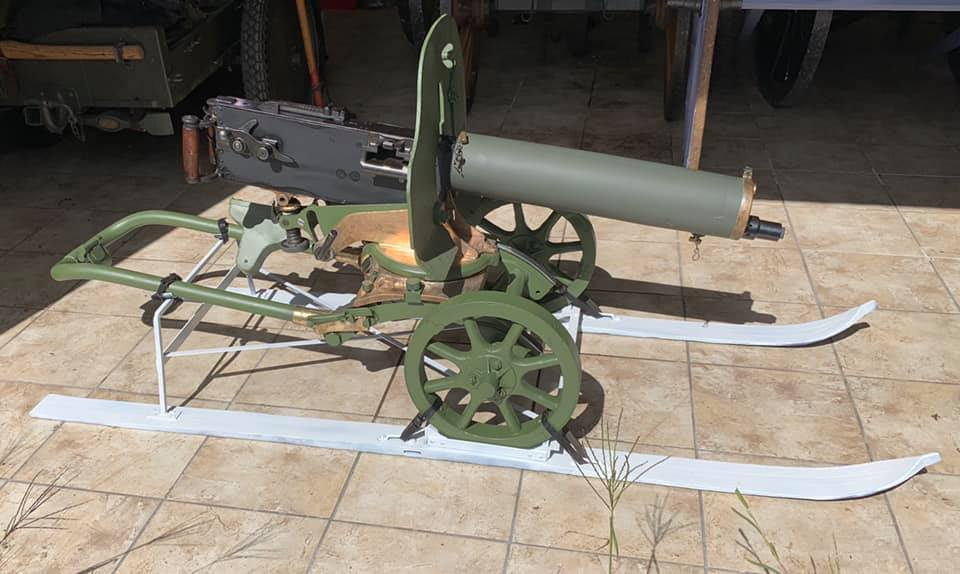

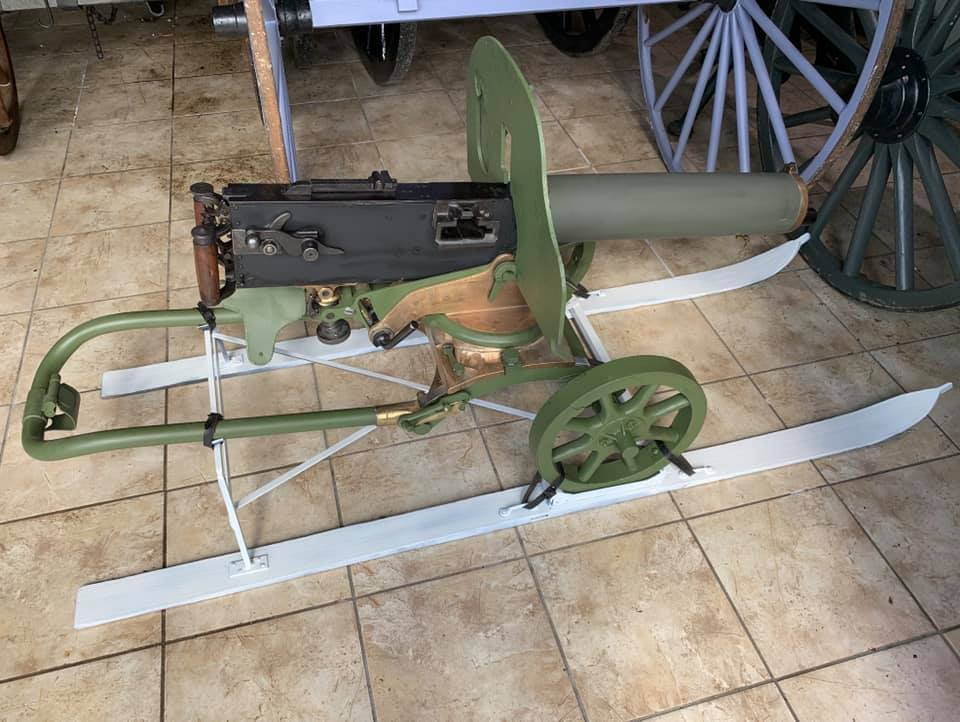

Second project finished is the pre-Revolution Imperial Maxim with Sokolov cart. And I built a ski set for the heck of it. Seemed like a neat way to display it here in the far North. Maybe I'll make a Christmas Card out of it!
I'd really like to ride a toboggan behind it down a ski slope firing like some kind of James Bond opening sequence. But the local ski area would probably make me buy it a ticket.
Idle hands are the devils playthings...
Cheers,
Sirhr
Painted in a French Blue, representative of Revolutionary War American Artillery. Washington ordered his artillery painted blue after the French came in to the American Cause.
Amusette Carts were known to have been used at Saratoga, Trenton and Cowpens. I believe that the Wall Guns were captured at Ticonderoga by Arnold and Allen and were part of the captured 'booty' brought to Boston by Knox. Amusette carts were built 'on site' and were not especially rugged. But allowed the guns to be moved quickly around the battlefield where they could be loaded with ball or buck.
Second project finished is the pre-Revolution Imperial Maxim with Sokolov cart. And I built a ski set for the heck of it. Seemed like a neat way to display it here in the far North. Maybe I'll make a Christmas Card out of it!
I'd really like to ride a toboggan behind it down a ski slope firing like some kind of James Bond opening sequence. But the local ski area would probably make me buy it a ticket.
Idle hands are the devils playthings...
Cheers,
Sirhr
So working on a new project... building a pair of DeLisle carbines.
Can't start on any barrel work or suppressor work until paperwork comes back... but getting the sheetmetal, mag wells, bolts shortened (and recessed), extractors... etc. done. And the wood forend... Doing one with folding stock and one with a wood stock. The sheetmetal is quite the challenge... having to fold the mag well up correctly involved making some interesting tools!

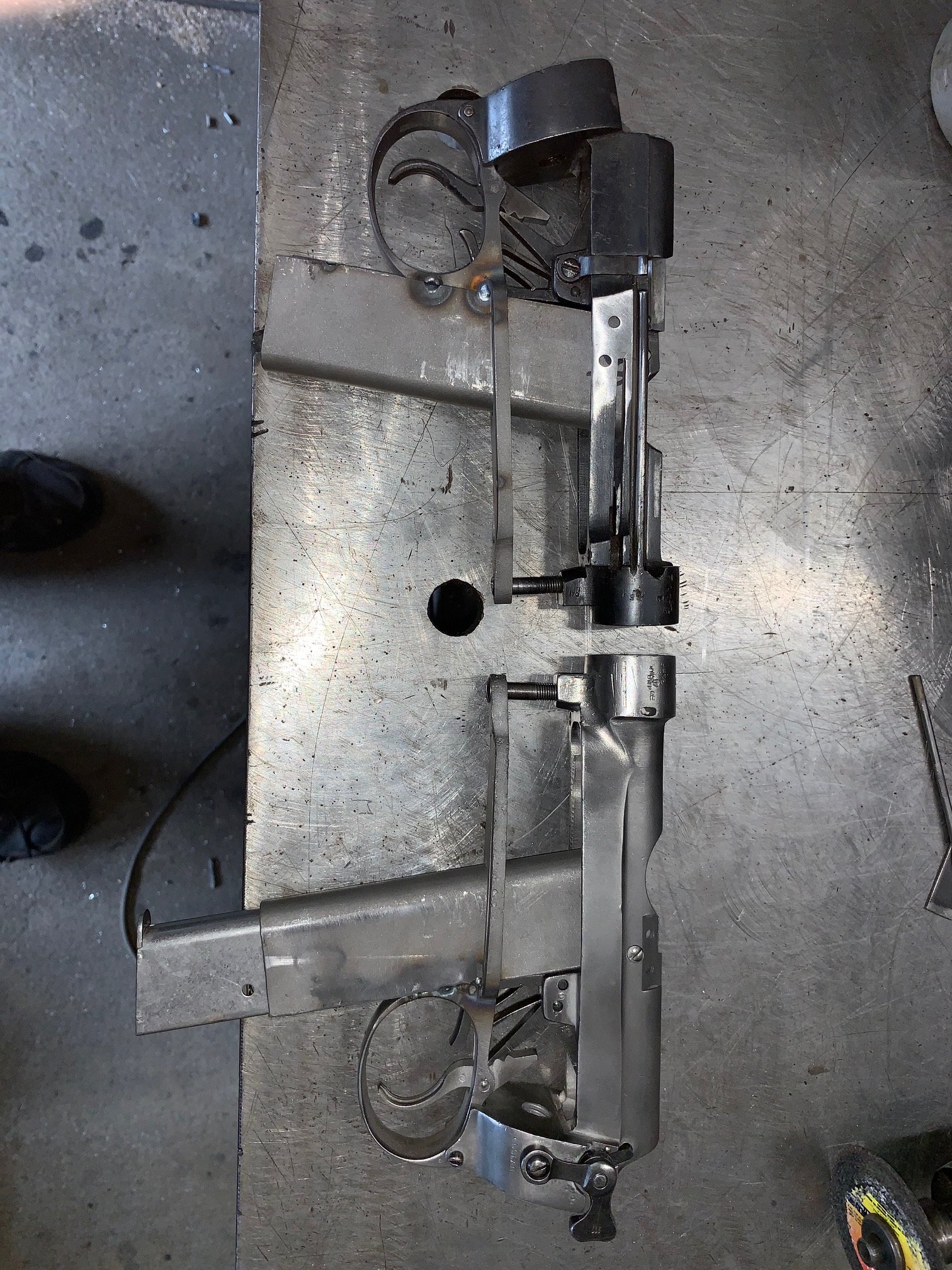

Mag wells fabricated and tacked. They use standard 1911 mags. Don't know what British Enfield Mag wells were made of... but damn the steel tacks like crap!

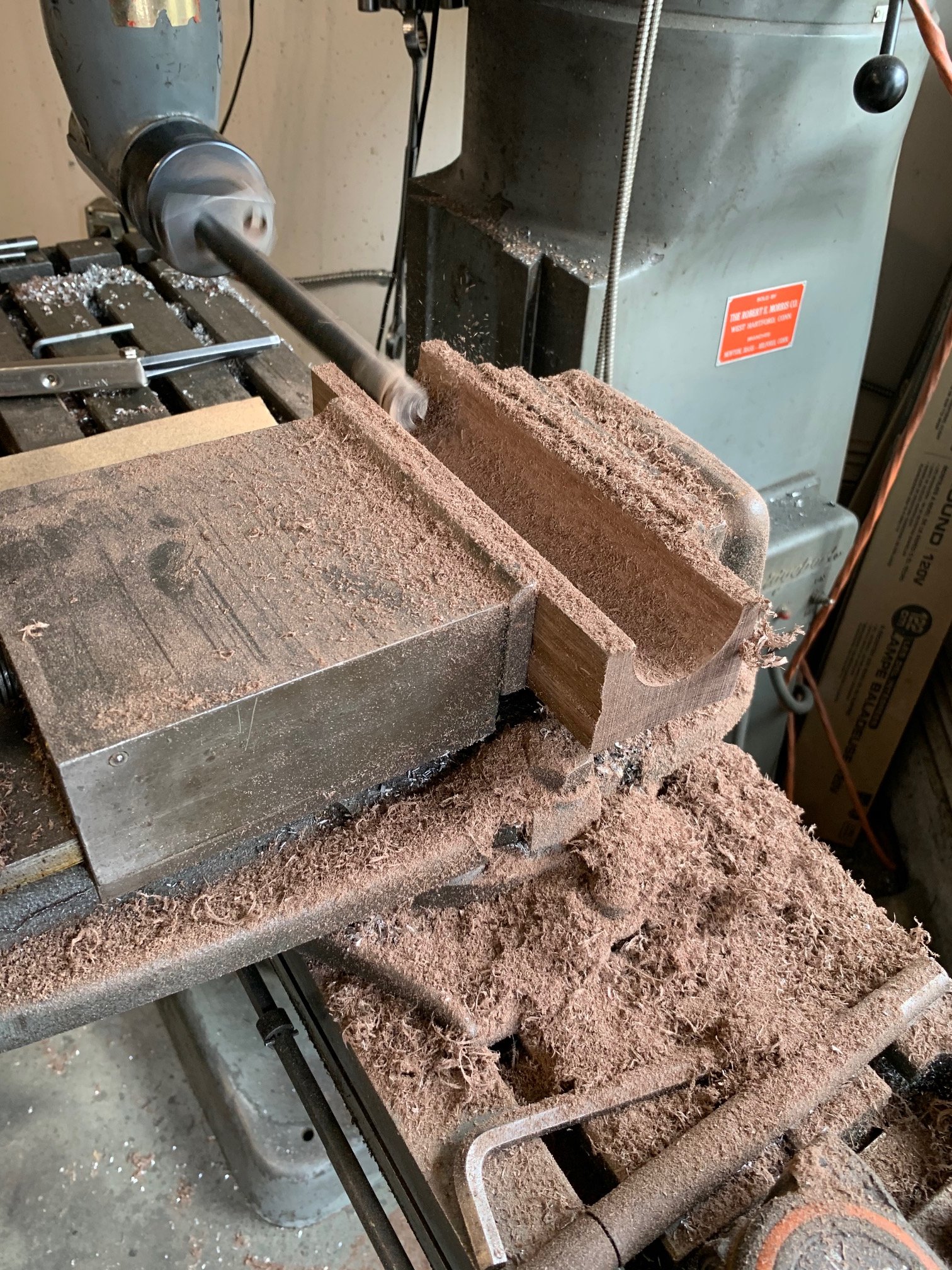

An interesting setup to make the forends... long and a 2" groove for the suppressor tube. Chunks of Walnut.

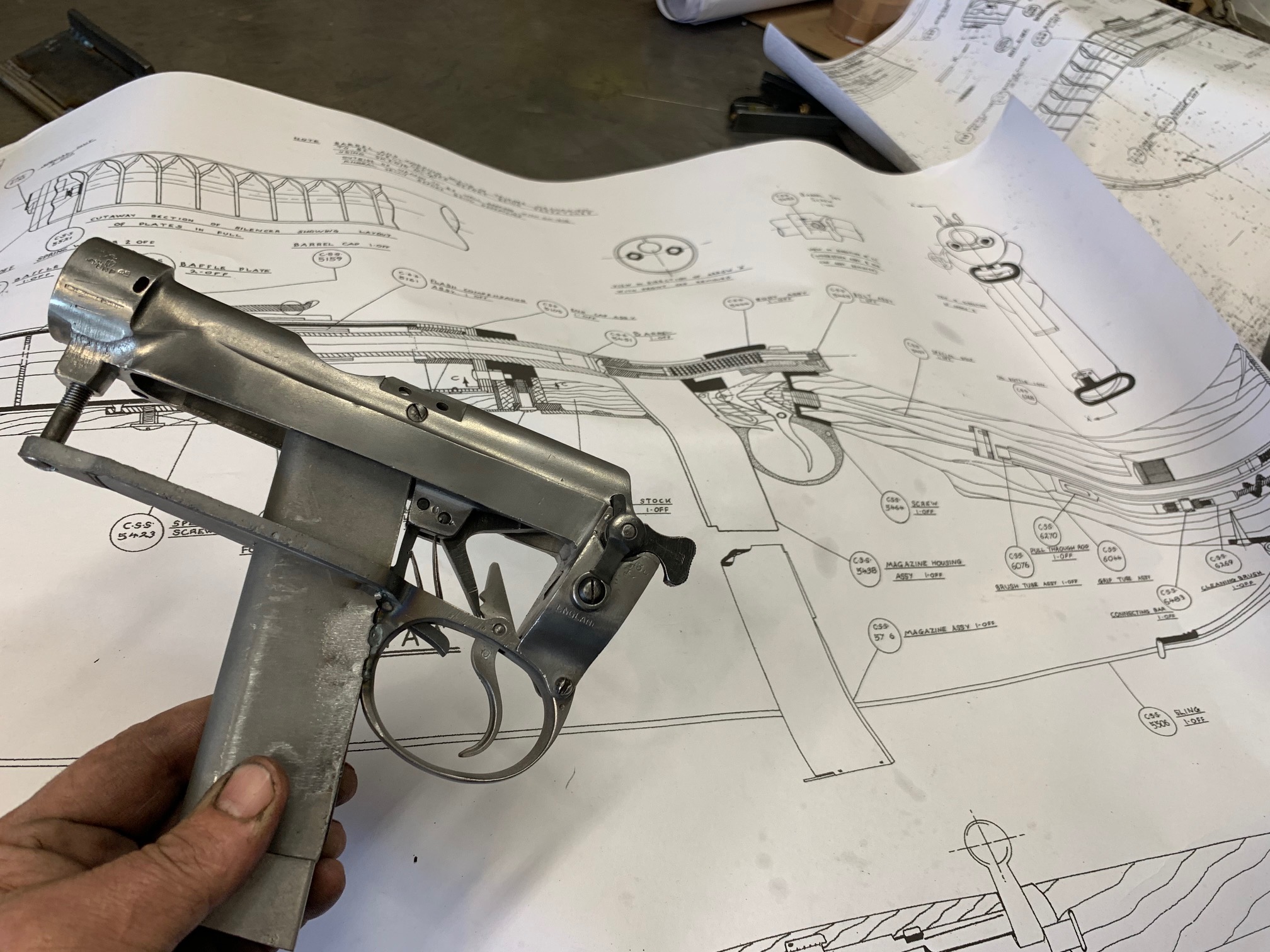

Action and some of the blueprints... Basically a standard SMLE action, but a Thompson Barrel re-threaded and screwed deep into the action. Bolt is shortened almost an inch. And an ejector is added. Some interesting machining!

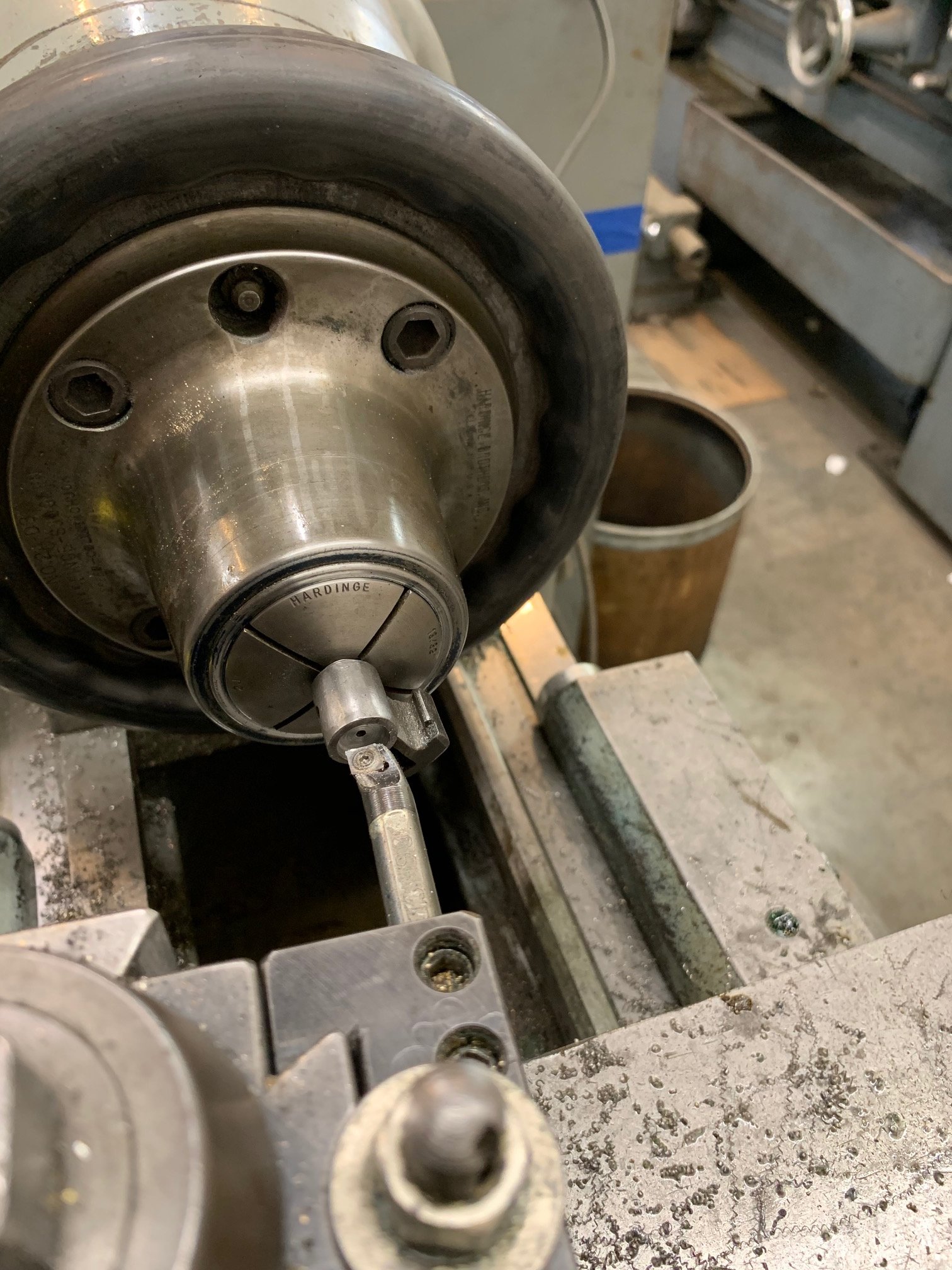

Recessing the bolt face to change it from a .303 British to a .45 ACP. DeLisle tried several variants, but the .45 was the most successful and went into production. Only about 150 were built before Normandy and after that, the need for it went away. Though they were in some inventories all the way into the 1990's and may still be in some inventories! The British Army actually gave them away to planters in Malaysia during the troubles there.
For those who don't know much about the DeLisle... It was created for SOE in the early part of WW2.
Fun with machine tools!
Sirhr
Can't start on any barrel work or suppressor work until paperwork comes back... but getting the sheetmetal, mag wells, bolts shortened (and recessed), extractors... etc. done. And the wood forend... Doing one with folding stock and one with a wood stock. The sheetmetal is quite the challenge... having to fold the mag well up correctly involved making some interesting tools!
Mag wells fabricated and tacked. They use standard 1911 mags. Don't know what British Enfield Mag wells were made of... but damn the steel tacks like crap!
An interesting setup to make the forends... long and a 2" groove for the suppressor tube. Chunks of Walnut.
Action and some of the blueprints... Basically a standard SMLE action, but a Thompson Barrel re-threaded and screwed deep into the action. Bolt is shortened almost an inch. And an ejector is added. Some interesting machining!
Recessing the bolt face to change it from a .303 British to a .45 ACP. DeLisle tried several variants, but the .45 was the most successful and went into production. Only about 150 were built before Normandy and after that, the need for it went away. Though they were in some inventories all the way into the 1990's and may still be in some inventories! The British Army actually gave them away to planters in Malaysia during the troubles there.
For those who don't know much about the DeLisle... It was created for SOE in the early part of WW2.
Fun with machine tools!
Sirhr
Sir, you have mad skills. I wish I had the time and knowledge to do stuff at the level you are doing at. I’m hoping to retire in about two years, and hope to start turning out some knives. If I can get any of my stuff to your level, I will consider it a success!
I am just an amateur... but have fun working with my hands!
I learn from the real masters all the time... the people who built things the "first" time. As the saying goes "What was first the work of masters, later becomes the work of tinsmiths."
Thanks for the compliment. Work with your hands. Every day. It's a good thing. Idle hands are the devils' playthings.
Sirhr
Thread needed a bump and since I am thinking that lots of folks will be using Christmas for some projects... here's one recently-completed.

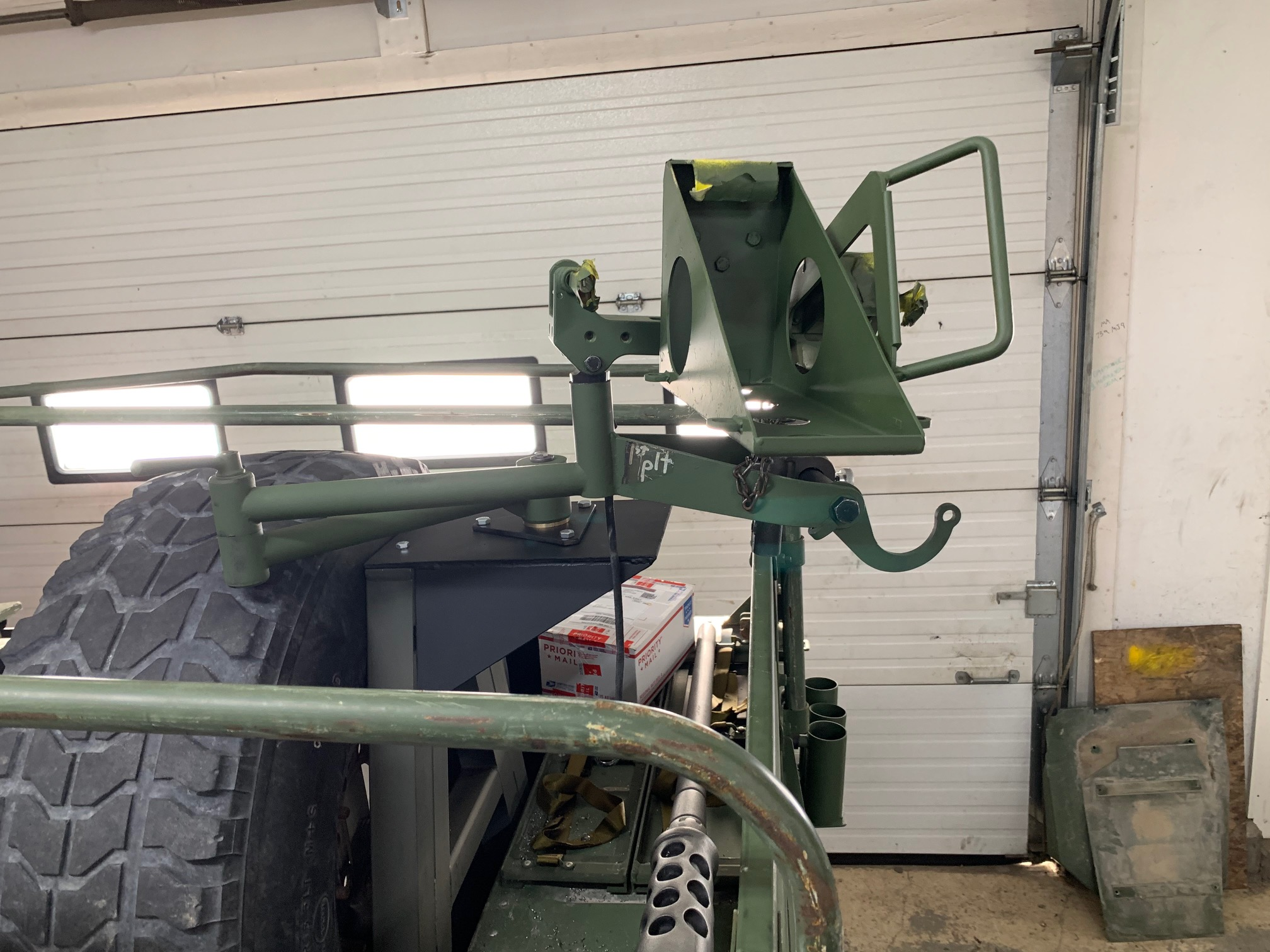

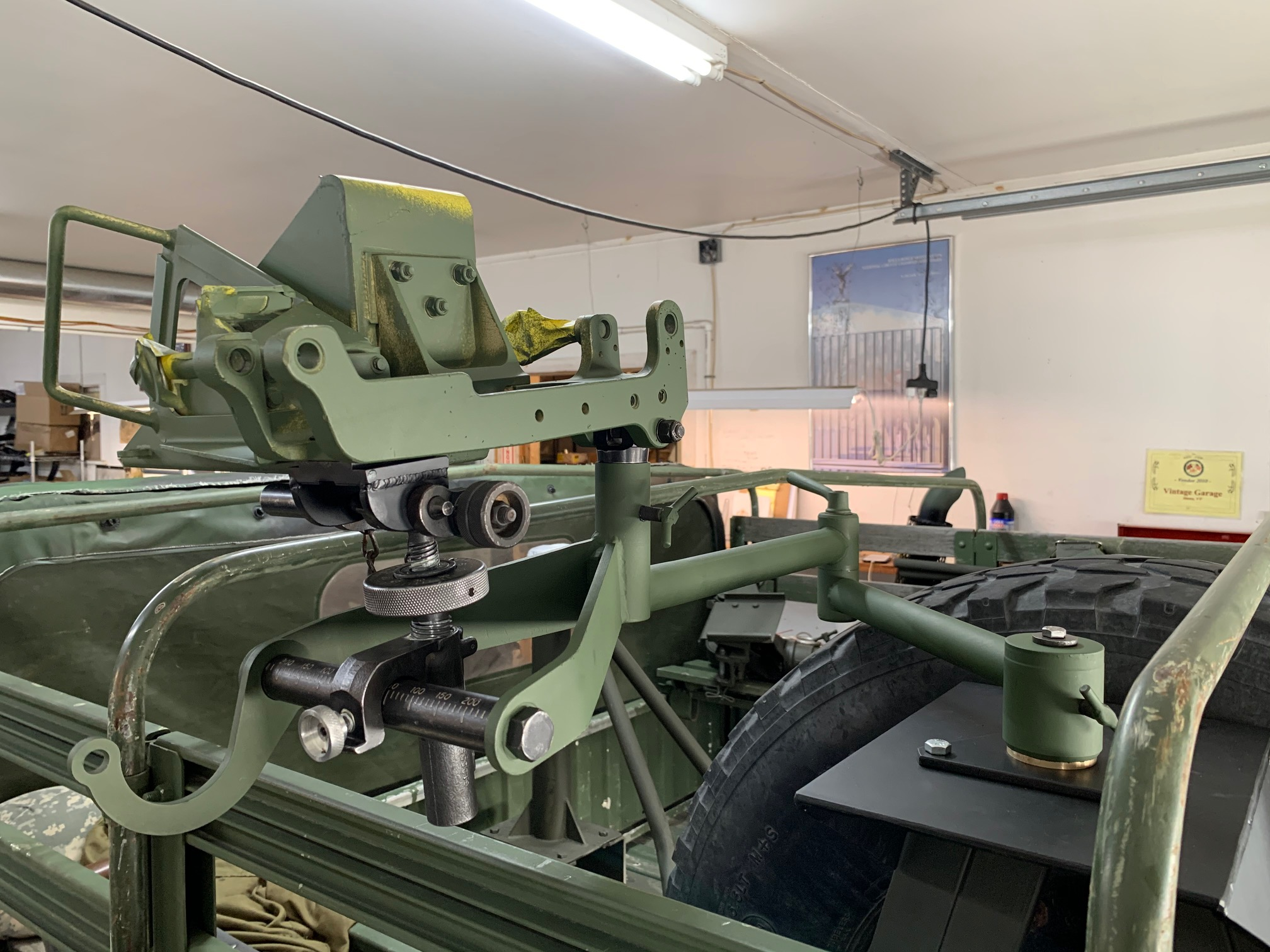

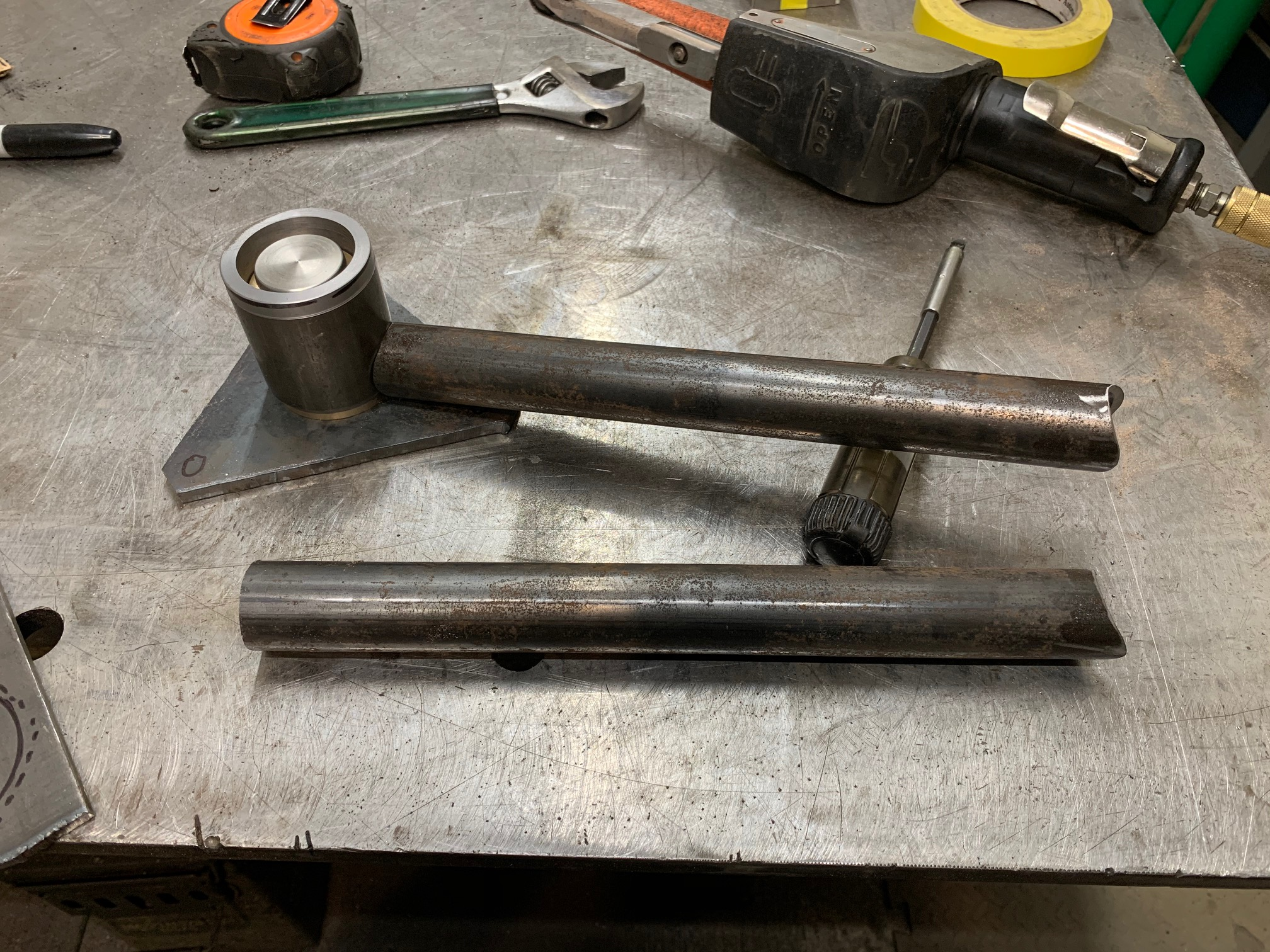

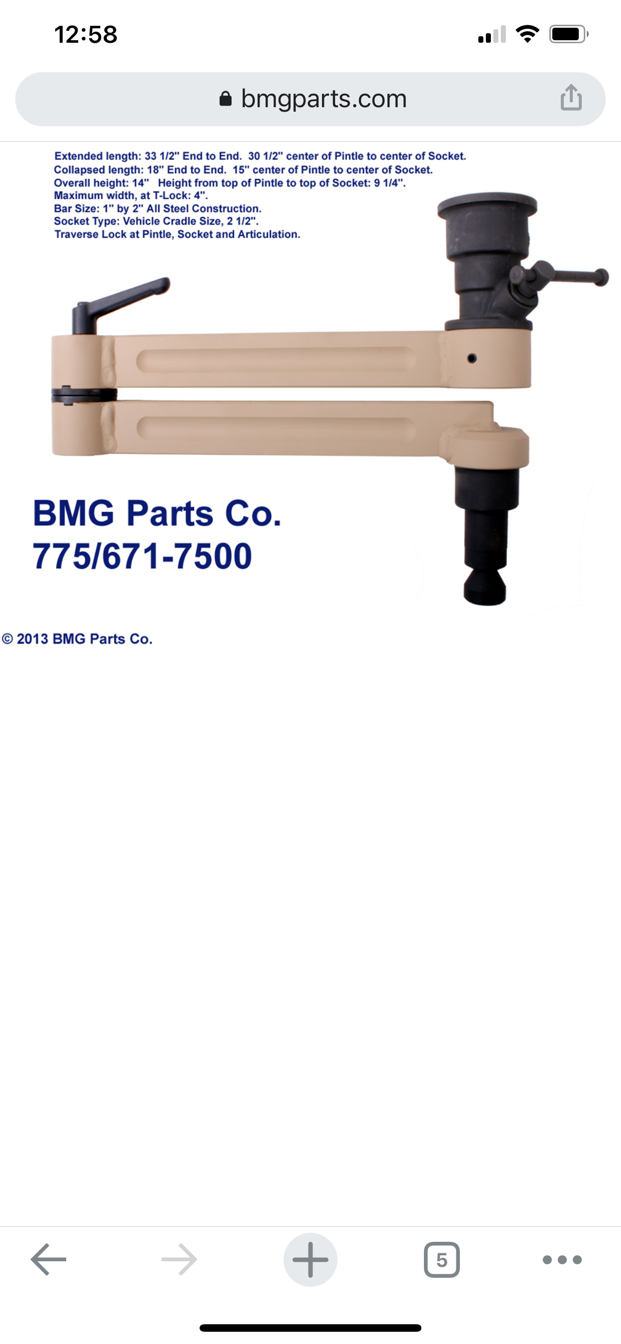

So I wanted one of these for my M998 project... but had no intention of paying BMG Parts prices (they are buying these for scrap prices and putting $1500 on them. Probably less than they cost the gummint... but still.
So a bunch of scrap metal from around the shop accumulated and the machining begins...
A bit of welding (not me, I had one of my guys do it... I am an appallingly bad welder.). We also fabbed up the base that will attach to the SF Spare Tire carrier that we built in-house.
Bought a really sandy and nasty T&E from eBay. Missing one small part, so got it for $50! An hour of machining and the new locking knob was made and fitted and the whole thing was restored. Also bought the traverse bar and cut it off to fit to the new mount. Field expedient engineering. A bit of Carc-like paint and it bolts right up.
Another view. The mount arm had some paint pen marking that I preserved when I bead blasted it and welded it up. Original GI markings should always be preserved! Mount is rugged as hell and a drop-in fit for M249 SAW. The cradle I got from a guy on G503 forum. Wicked good folks over there. Sort of like the 'Hide Vintage area. Real knowledge and little bs! So now both the .50 mount and the SAW mount are fitted. You can see the SF spare tire mount. They want $500 for those things plus another $300 to ship on eBay. Made this one up from scrap metal in about 2 hours. Just like they did in Baghdad and Campbell...
Note the BMG on the fender is fiberglass.... It looks the part, but is no substitute for the real thing ;-)
Show your Christmas projects!
Sirhr

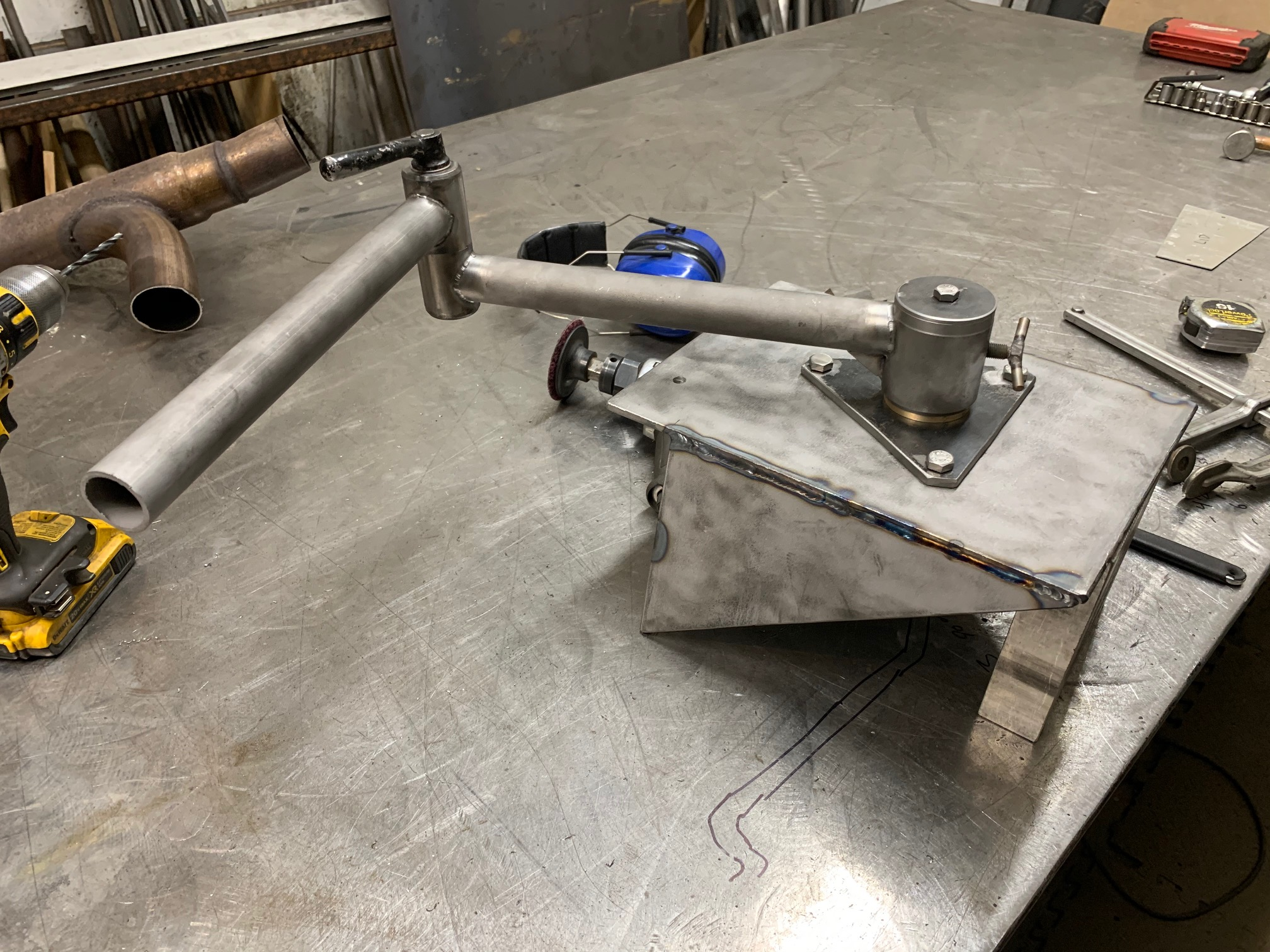

So I wanted one of these for my M998 project... but had no intention of paying BMG Parts prices (they are buying these for scrap prices and putting $1500 on them. Probably less than they cost the gummint... but still.
So a bunch of scrap metal from around the shop accumulated and the machining begins...
A bit of welding (not me, I had one of my guys do it... I am an appallingly bad welder.). We also fabbed up the base that will attach to the SF Spare Tire carrier that we built in-house.
Bought a really sandy and nasty T&E from eBay. Missing one small part, so got it for $50! An hour of machining and the new locking knob was made and fitted and the whole thing was restored. Also bought the traverse bar and cut it off to fit to the new mount. Field expedient engineering. A bit of Carc-like paint and it bolts right up.
Another view. The mount arm had some paint pen marking that I preserved when I bead blasted it and welded it up. Original GI markings should always be preserved! Mount is rugged as hell and a drop-in fit for M249 SAW. The cradle I got from a guy on G503 forum. Wicked good folks over there. Sort of like the 'Hide Vintage area. Real knowledge and little bs! So now both the .50 mount and the SAW mount are fitted. You can see the SF spare tire mount. They want $500 for those things plus another $300 to ship on eBay. Made this one up from scrap metal in about 2 hours. Just like they did in Baghdad and Campbell...
Note the BMG on the fender is fiberglass.... It looks the part, but is no substitute for the real thing ;-)
Show your Christmas projects!
Sirhr
I've been studying this picture and have a question. The chamber seems to be exposed in the bolt closed position. Is this a safety concern? I would think a short part of the front of the bolt should be covered. Maybe I'm just worrying too much about someone elses build.

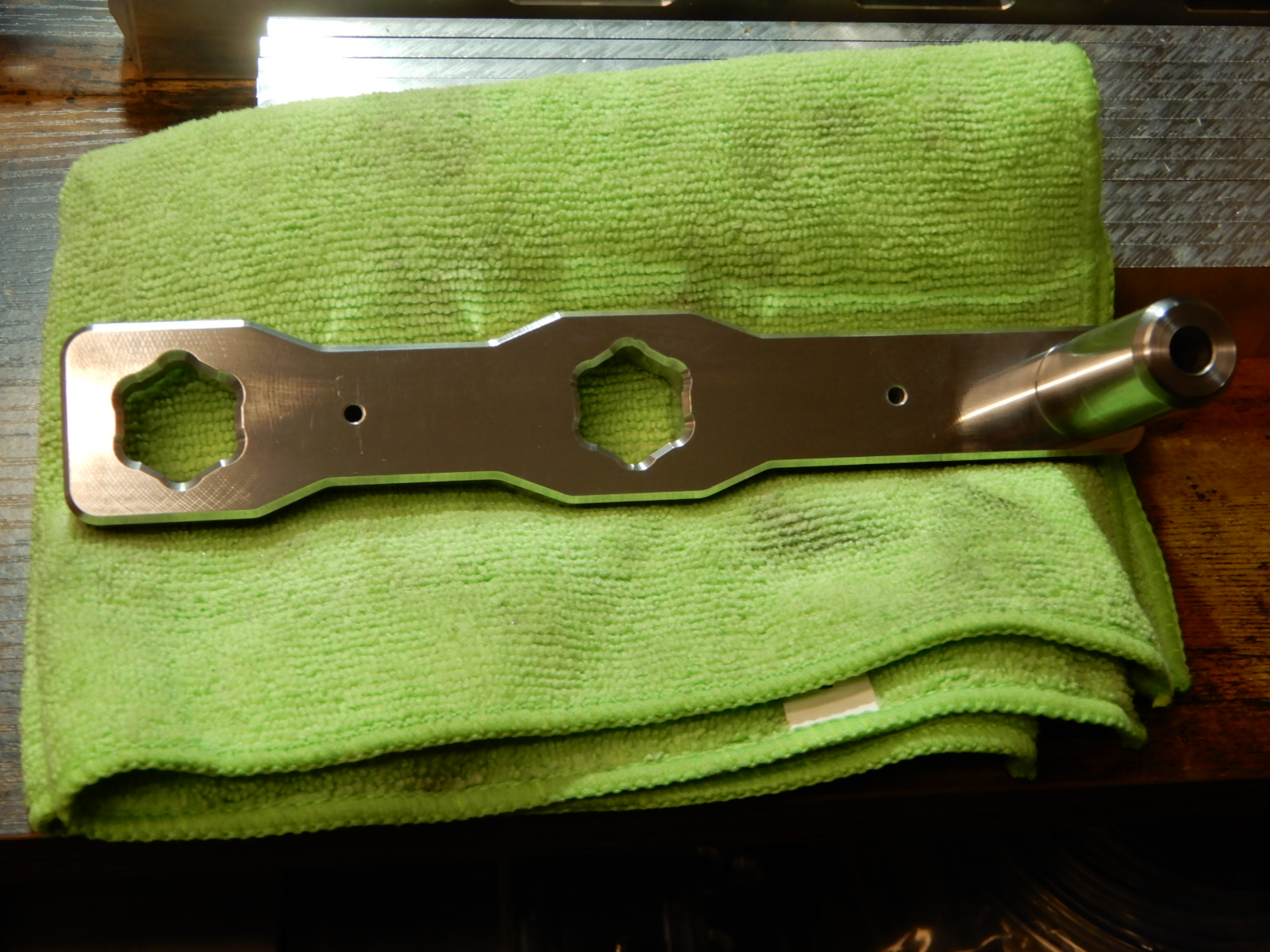

Pretty basic tool but handy all the same.
If you don't have one for your Kurt vise ect I highly recommend them.
Cut a few recently for myself and friends.
R
If you don't have one for your Kurt vise ect I highly recommend them.
Cut a few recently for myself and friends.
R
This thread needs a bump... Finished a project I have been tinkering with for a year. Most of it waiting for an engraver to finish up on the rear disk and the barrel. Totally awesome work by Adams and Adams.
Bought this as a really damaged and incomplete museum-quality (once upon a time) replica of a puckle gun. About 1/8th - 1/10th scale, I think. From some research, I think the original firing mechanism on this was solid cast pewter. But I wanted to make it work and add some detail.

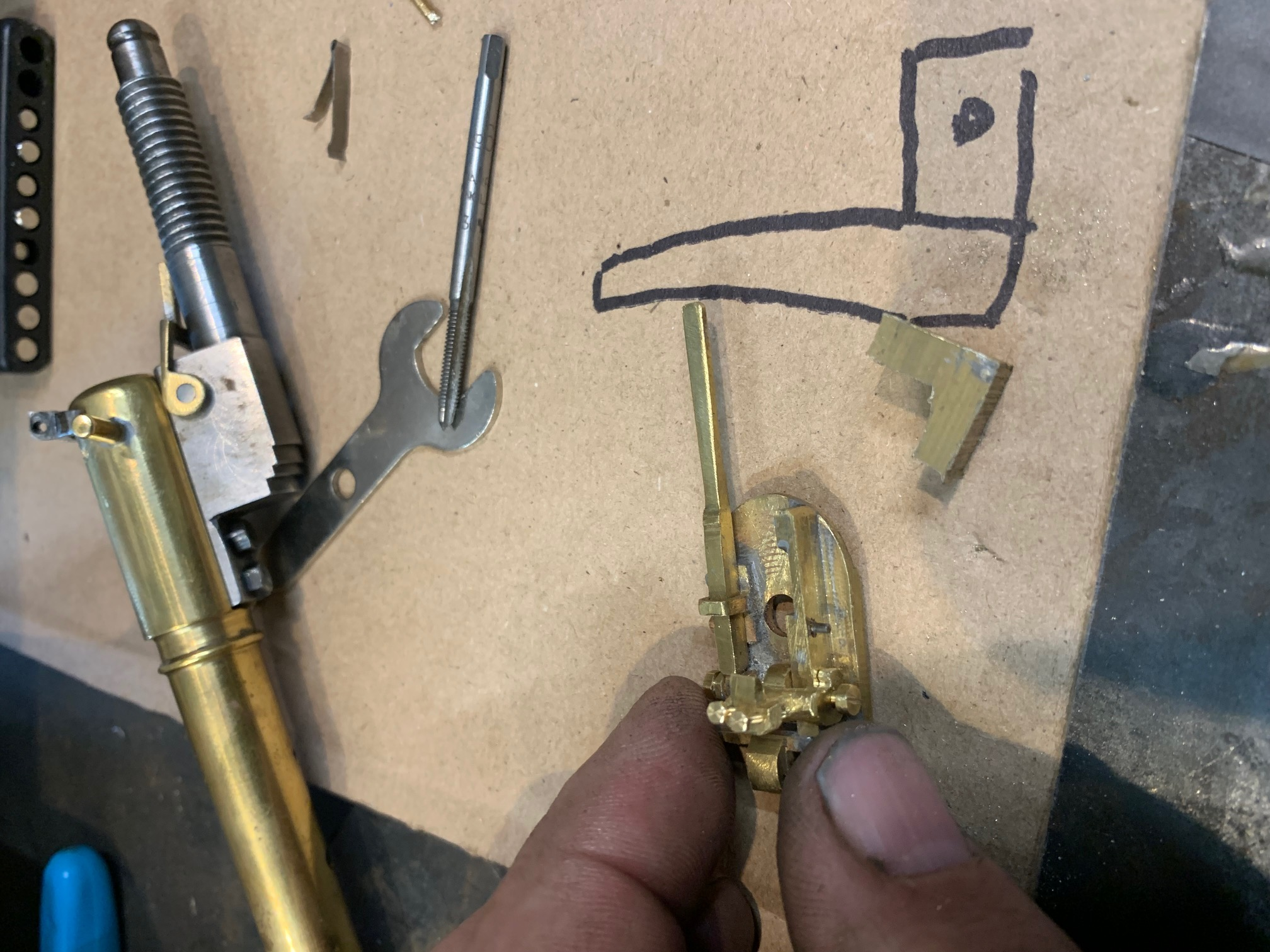

New firing mechanism, made of brass. Some very tiny parts there!
It has taken me months of 'playing' to figure out how to make and temper miniature main springs. But here is the frizzen and mainspring. It worked!!!

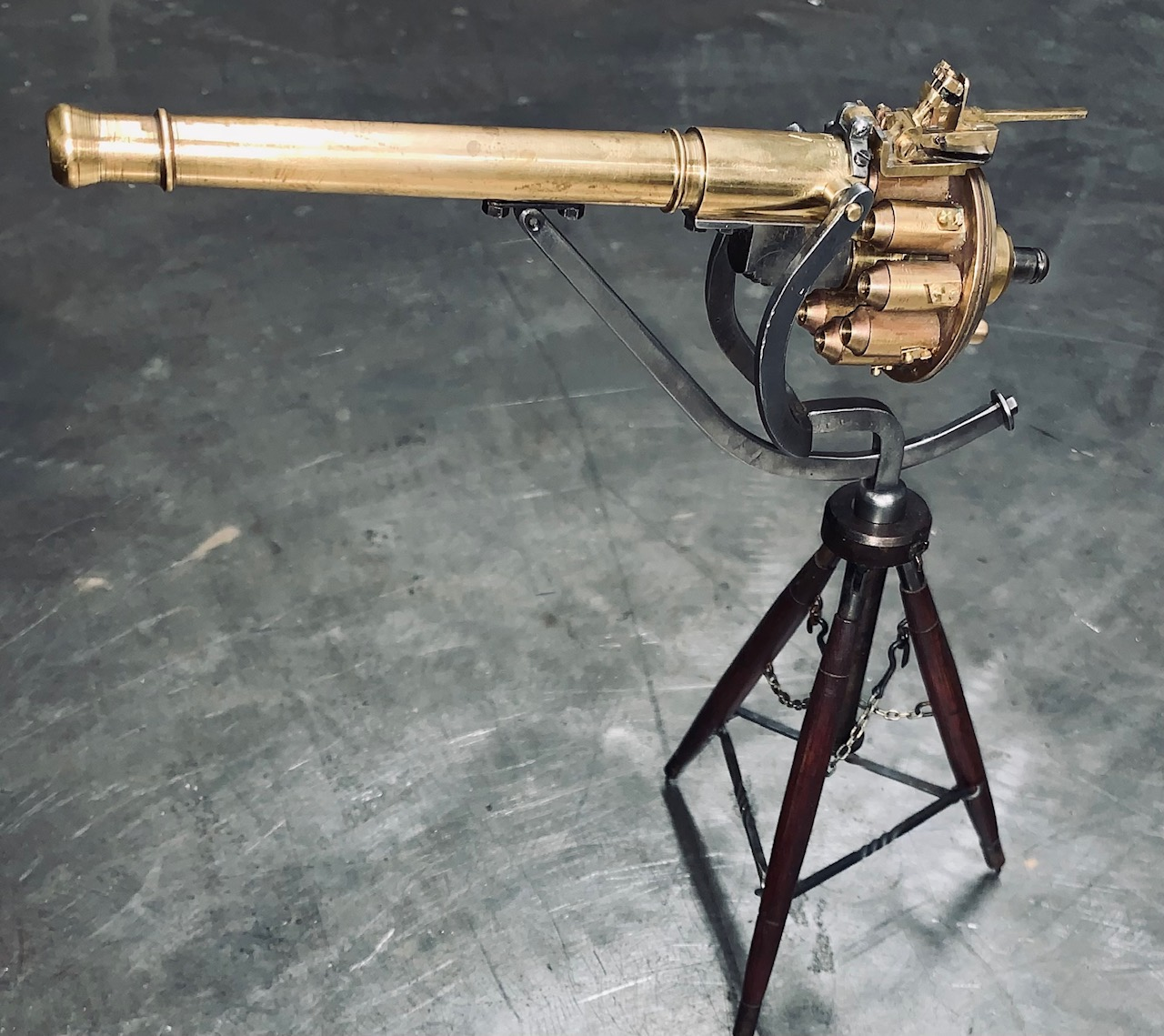

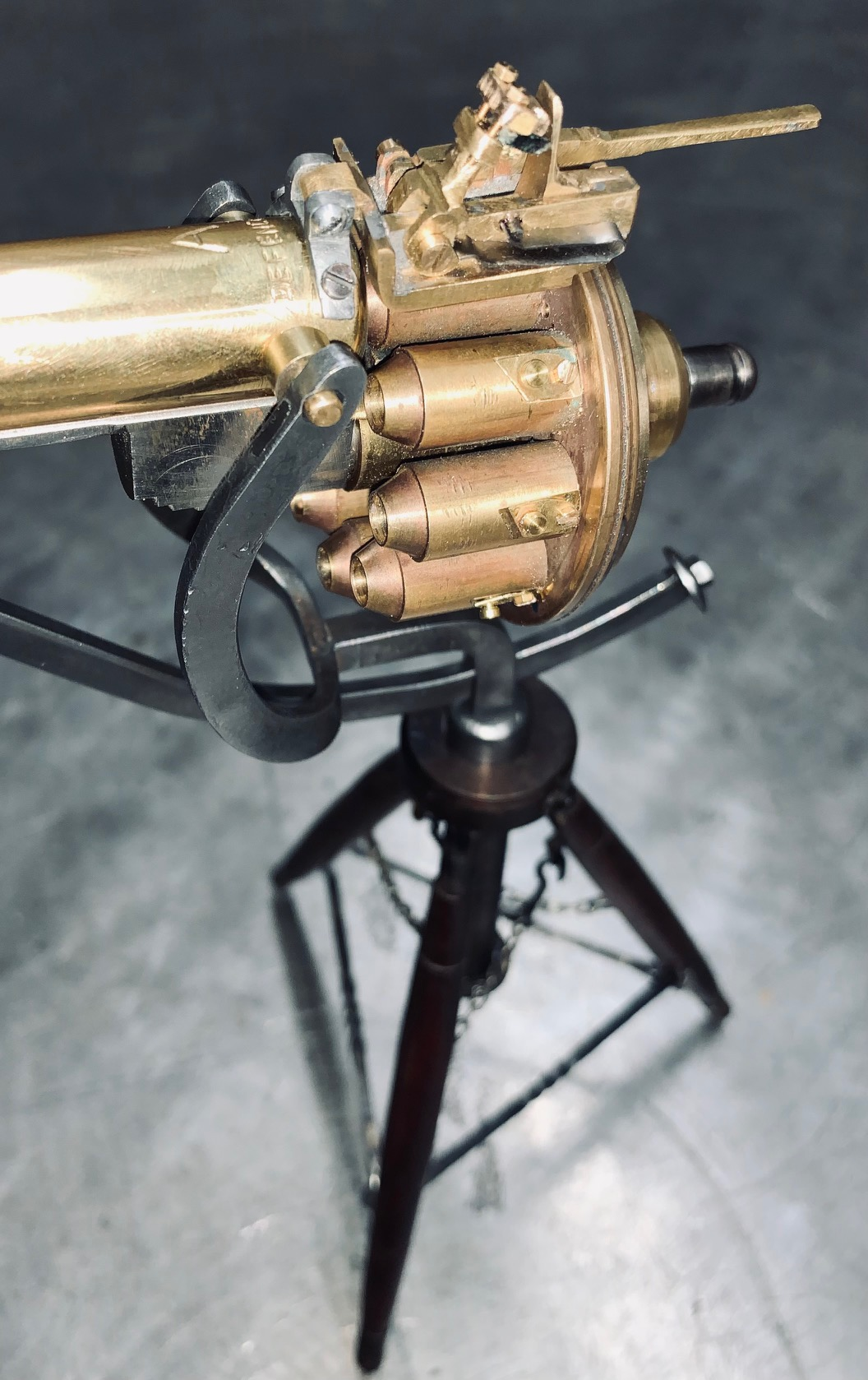

Finished Puckle Gun. Almost 100 new parts added and the tripod, firing mechanism, etc. repaired.

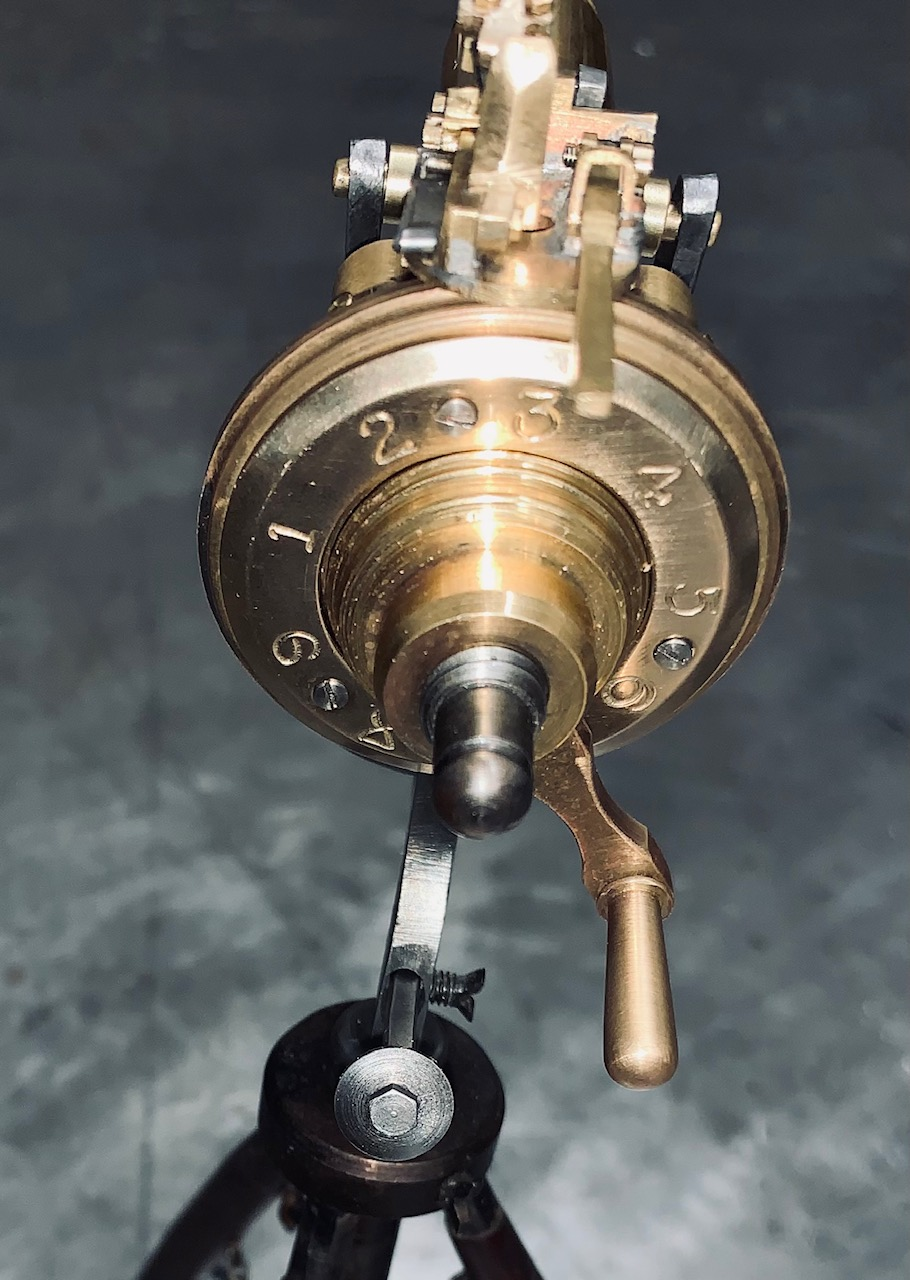

Engraved Above and working firing mechanism below.
Pretty happy with restoration! When I got it... it was broken, missing parts, rusted and had no firing mechanism at all. Now far improved and a really fun miniature.
Cheers,
Sirhr
Bought this as a really damaged and incomplete museum-quality (once upon a time) replica of a puckle gun. About 1/8th - 1/10th scale, I think. From some research, I think the original firing mechanism on this was solid cast pewter. But I wanted to make it work and add some detail.
New firing mechanism, made of brass. Some very tiny parts there!
It has taken me months of 'playing' to figure out how to make and temper miniature main springs. But here is the frizzen and mainspring. It worked!!!
Finished Puckle Gun. Almost 100 new parts added and the tripod, firing mechanism, etc. repaired.
Engraved Above and working firing mechanism below.
Pretty happy with restoration! When I got it... it was broken, missing parts, rusted and had no firing mechanism at all. Now far improved and a really fun miniature.
Cheers,
Sirhr
So finally got these guys all done. Made the cases and many of the accessories including cleaning rods, accessories, grips, oil bottles.... had the one engraved.
Compliments of Colonel Colt Indeed!

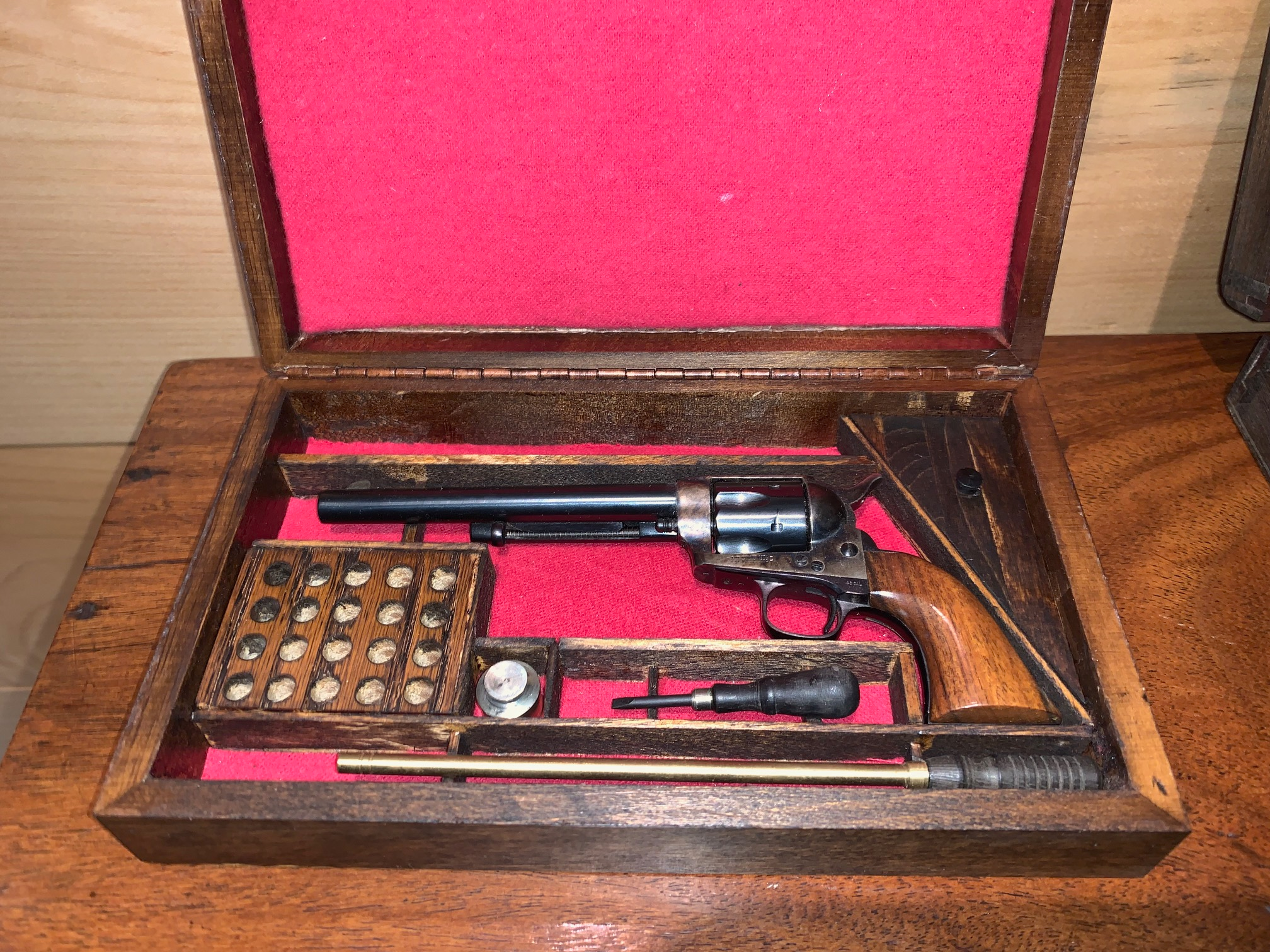

Colt Single Action Army... Standard configuration. Blue and case frame. Walnut grios. Cleaning rods and turnscrew are ebony.

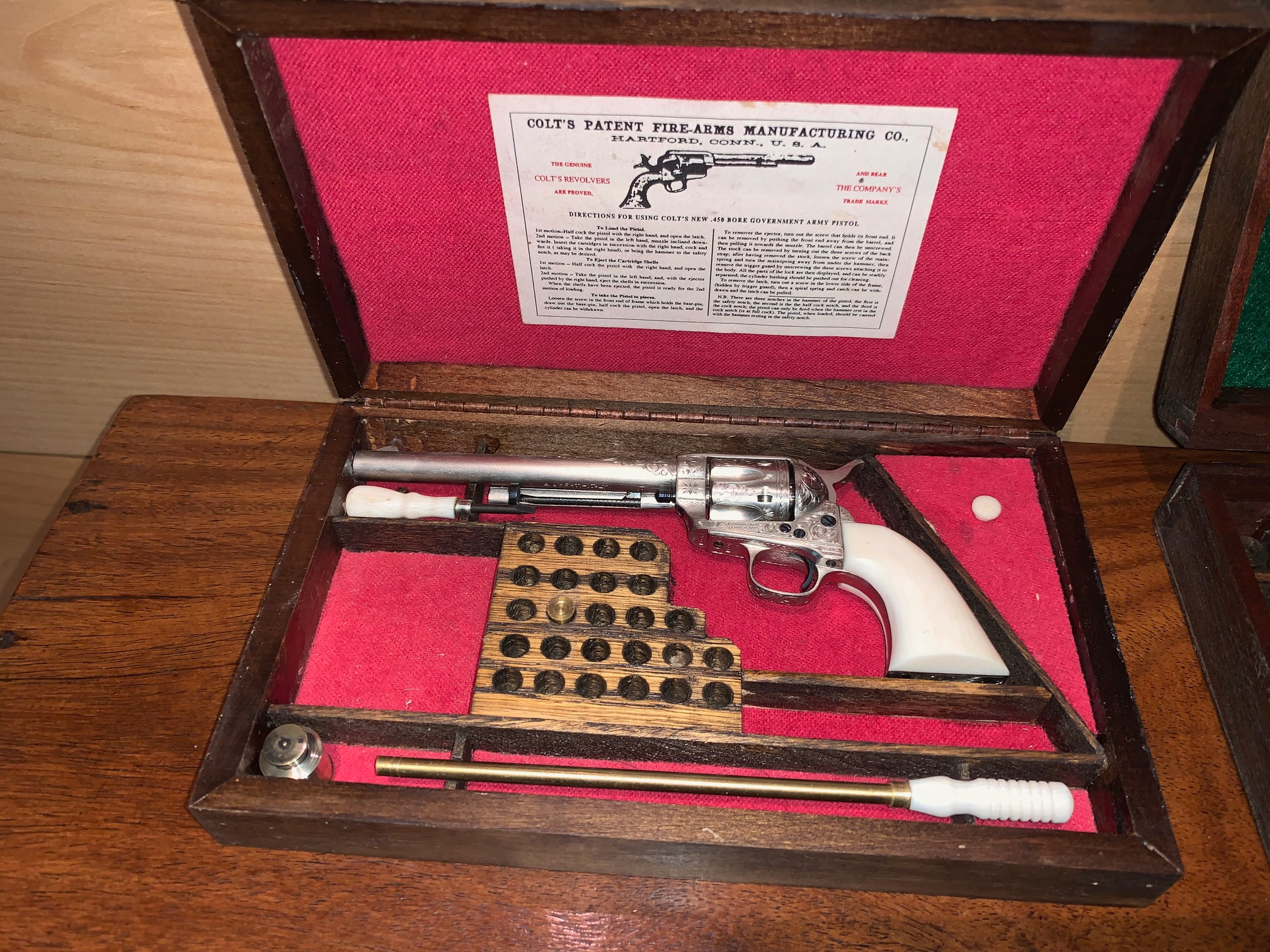

Colt Class B engraved SAA with ivory grips, ivory accessories, ivory case handle. Silver plate (not nickel)! A stunning piece!
1847 Walker with full set of accessories...
A good day was had by all!
Cheers,
Sirhr
Compliments of Colonel Colt Indeed!
Colt Single Action Army... Standard configuration. Blue and case frame. Walnut grios. Cleaning rods and turnscrew are ebony.
Colt Class B engraved SAA with ivory grips, ivory accessories, ivory case handle. Silver plate (not nickel)! A stunning piece!
1847 Walker with full set of accessories...
A good day was had by all!
Cheers,
Sirhr
Rainy weekend with no particular motivation to go out for muzzle-loading season today...

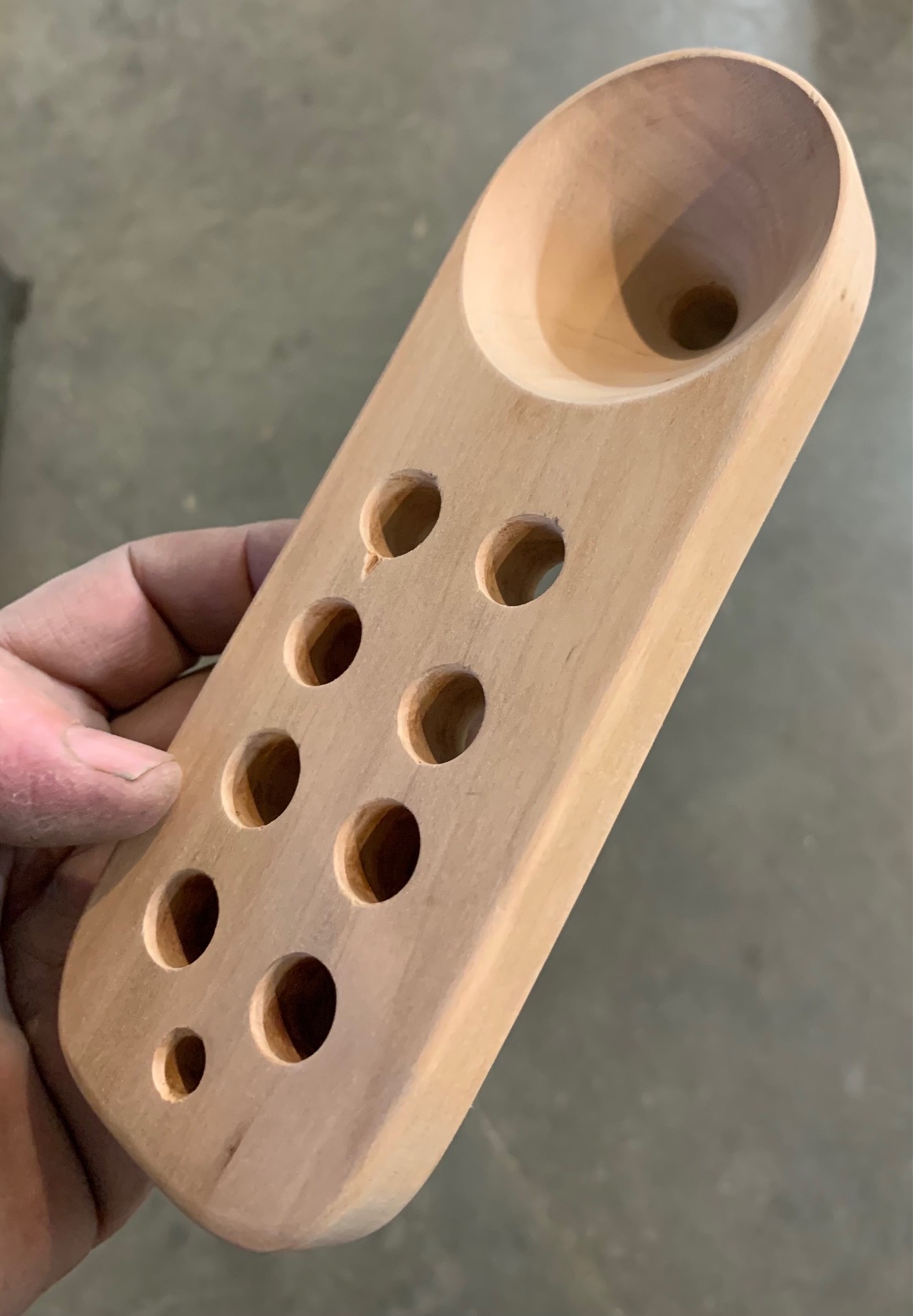

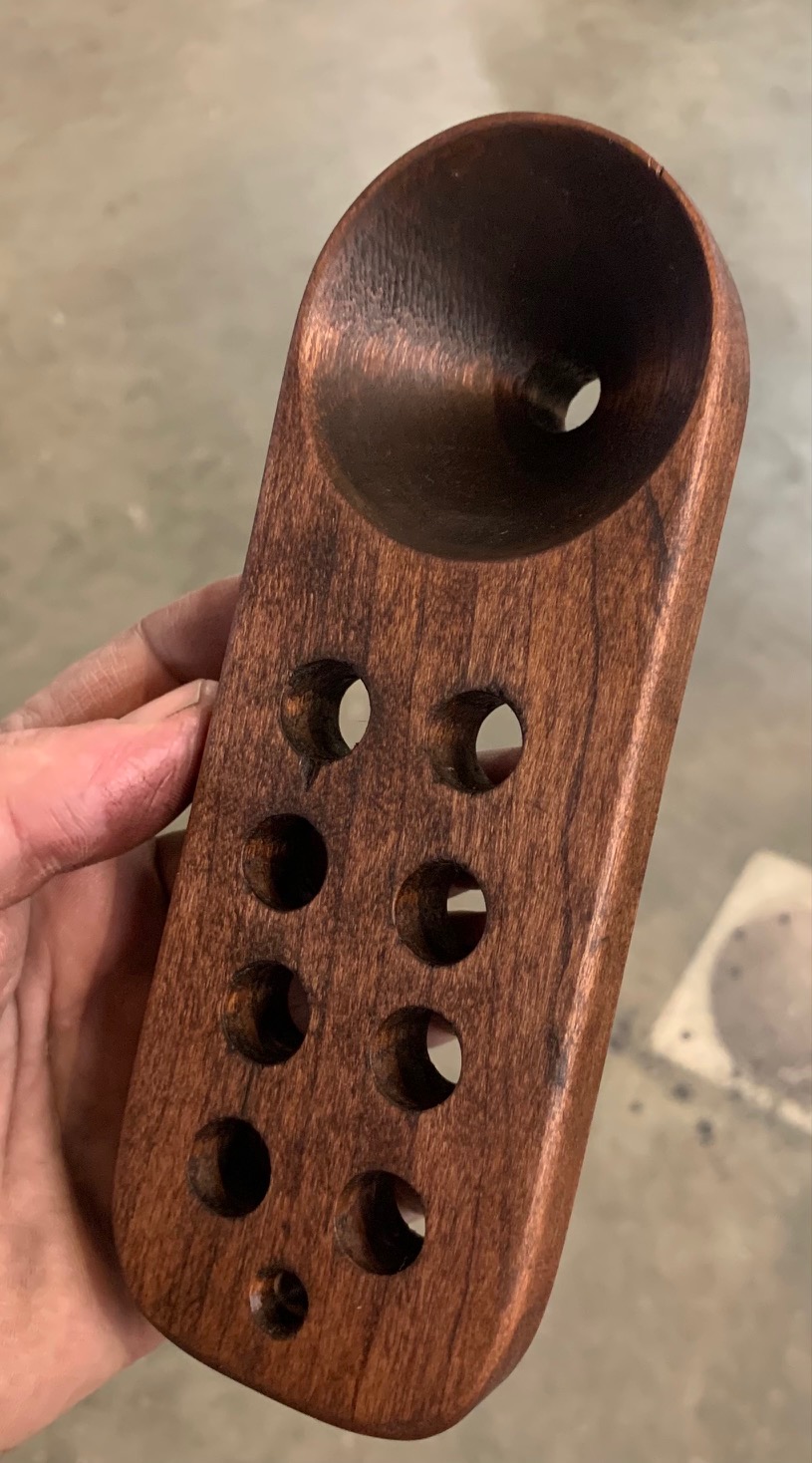

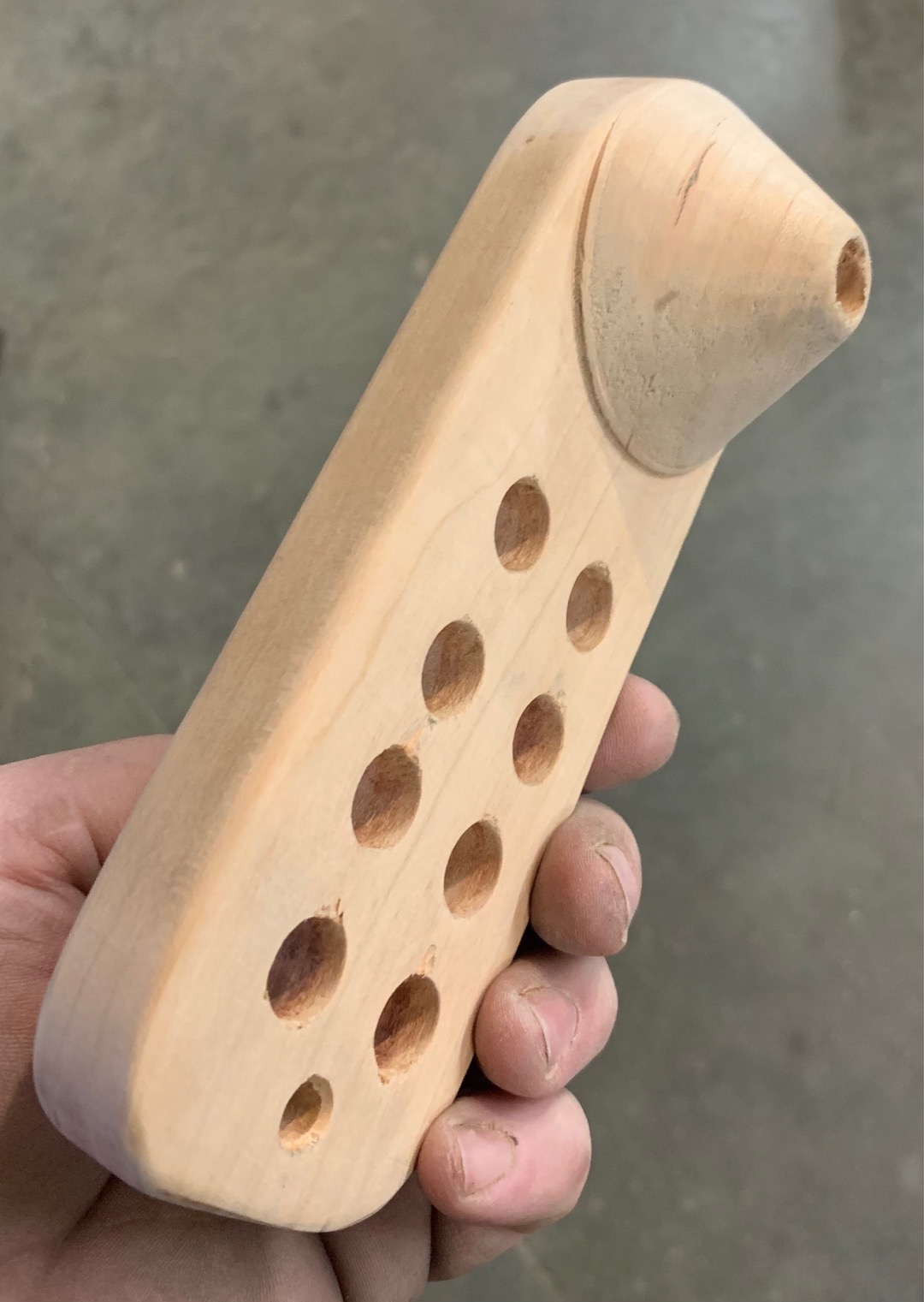

Decided to make a neat little loading block with a built-in powder funnel. Saw an original and a repro on the Contemporary Longrifles Assn. chat area and thought it would be a really fun thing to make!
Used lathe to turn funnel... drilled out the .50 holes.
Drilled for 8 patched .490 balls.
A bit of Mahogany stain added. The next one is going to have a Ball Starter built into it... as the original did.
This was sort of a test piece and came out great!
Cheers,
Sirhr
Decided to make a neat little loading block with a built-in powder funnel. Saw an original and a repro on the Contemporary Longrifles Assn. chat area and thought it would be a really fun thing to make!
Used lathe to turn funnel... drilled out the .50 holes.
Drilled for 8 patched .490 balls.
A bit of Mahogany stain added. The next one is going to have a Ball Starter built into it... as the original did.
This was sort of a test piece and came out great!
Cheers,
Sirhr

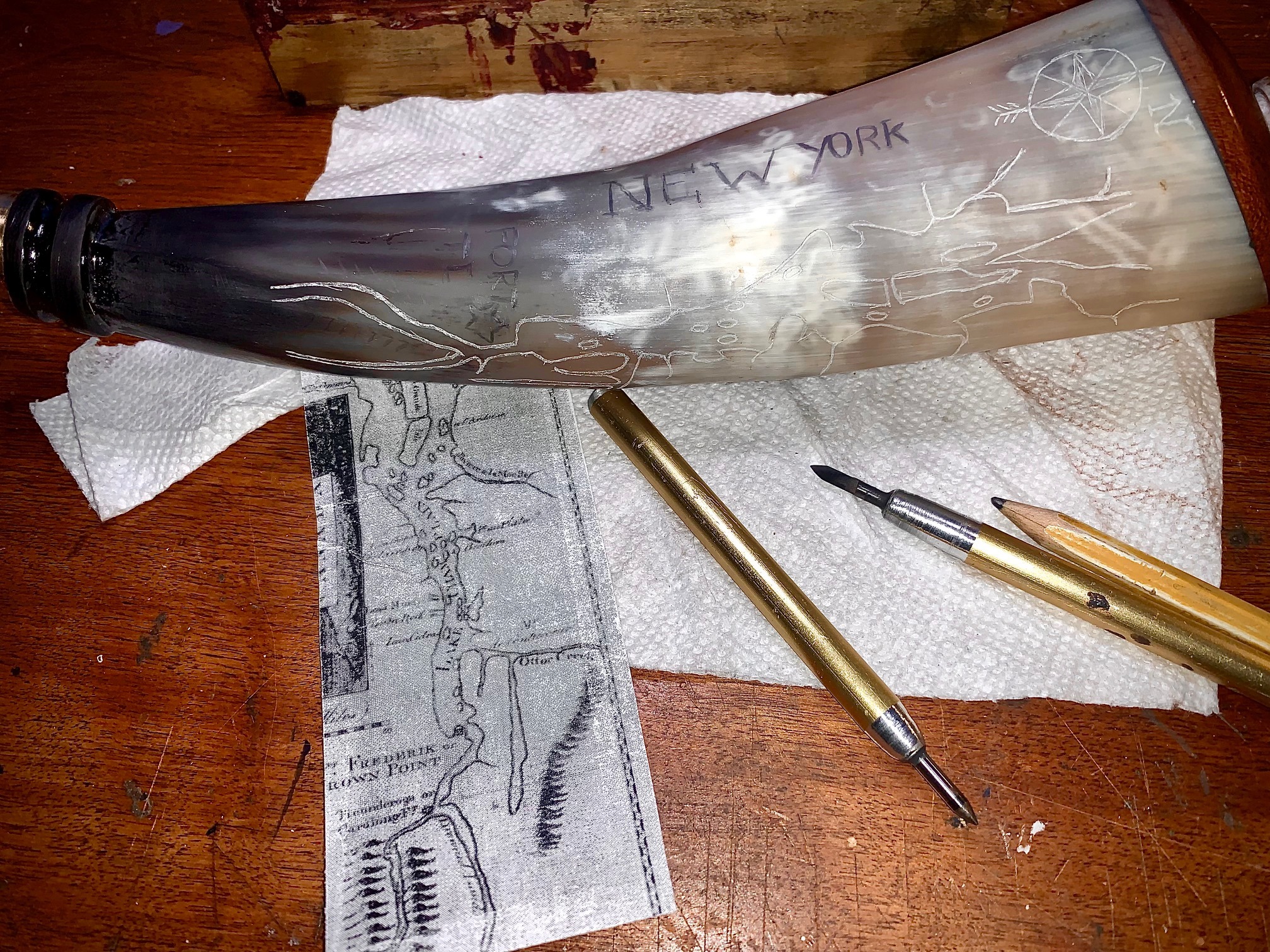

Been a while (like almost 2 years!) since I worked on some of my horning projects. But dusted them off this weekend to do the scrimshaw. This is one of several in process.
Cheers,
Sirhr
Cheers,
Sirhr
He must be singing an old fashioned work song.
Either way it's always something interesting coming out of his shop
