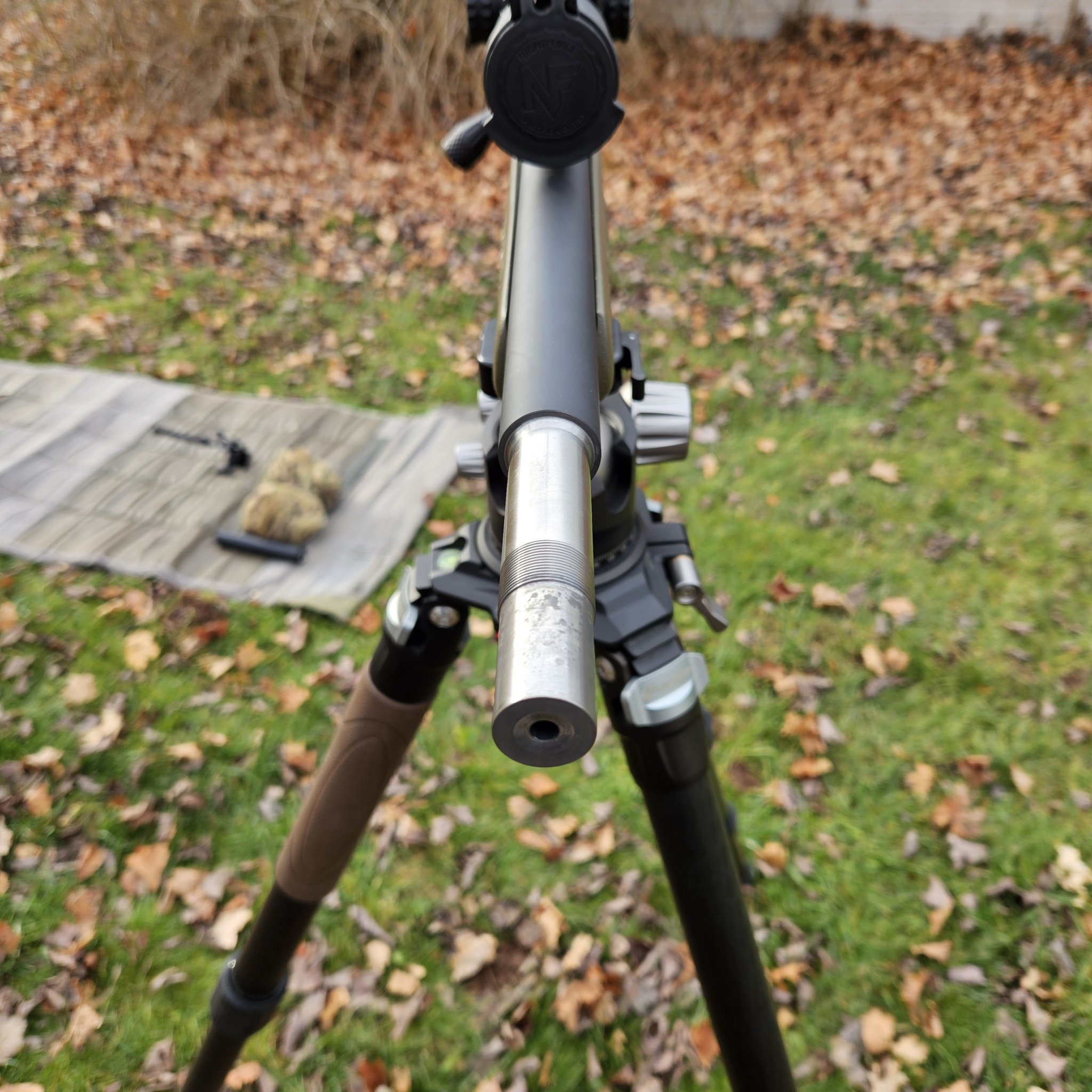

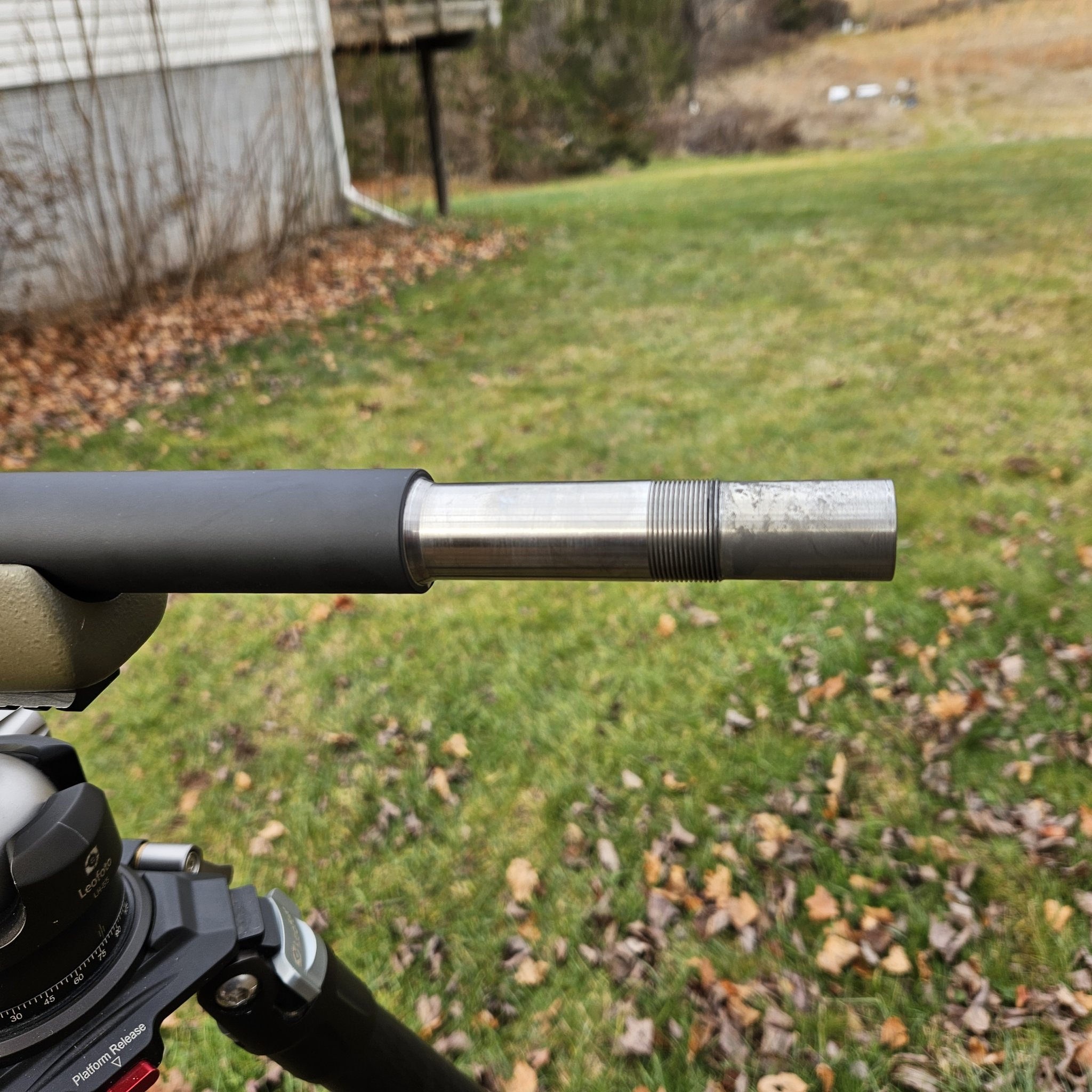

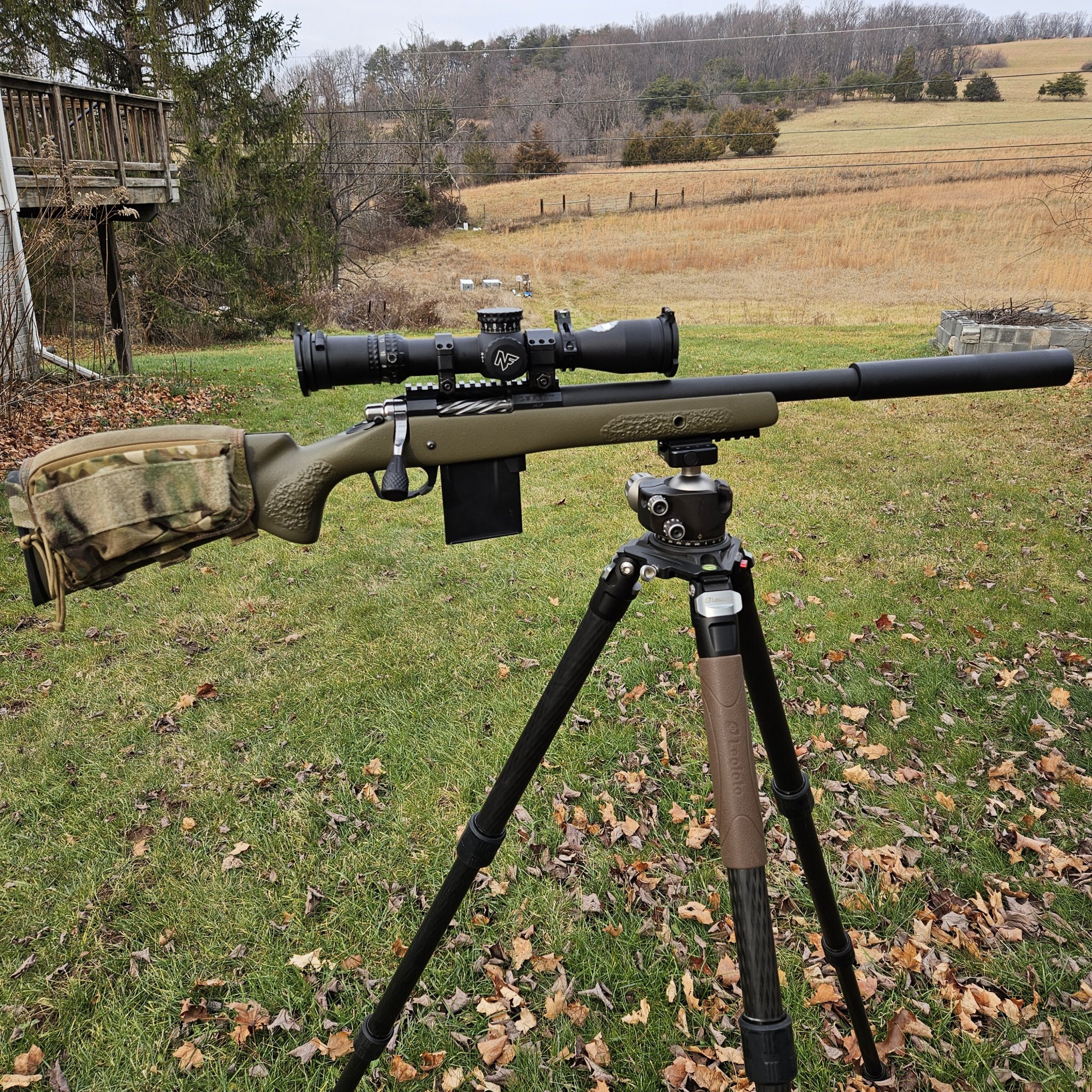

Finally got one of my 223 barrels cut for my Otter Creek Labs OCM5. I wanted to minimize the added OAL when the suppressor was added so I wanted more barrel past the threads where there would normally be a brake or flash hider. I brought the idea to Ryan Beck with Base Camp Guns in Martinsburg, PA and he created a program for his CNC. With the mount cut into the barrel the suppressor only adds 5" to the overall length. Ryan did an awesome job with the machining and their cerakoter Dave(I think is his name) did and awesome job too. I'm really happy with how it turned out. Almost looks like a 16.5" 223 version of the XM3.
-
Having trouble using the site?
Contact support
Suppressors Otter Creek Labs OCM5 on a 16.5" 223 bolt action.
- Thread starter jzerfoss
- Start date
I love that. Been debating getting a 22 creed barrel cut the same way, or go carbon fiber and use a regular direct thread.
So from bolt face to end of can is 21.5"?
What contour is the barrel? Also what is the rig total weight as you have it shown with can?
So from bolt face to end of can is 21.5"?
What contour is the barrel? Also what is the rig total weight as you have it shown with can?
I like that! That would be a sexy setup in a 1:7 twist .300 BLK with an OCM-30 when they finally make them.
It wouldn't look quite as cool, and would be about 6" instead of 5" added length, but you could essentially achieve the same thing with a Polonium 5.56 can with a ZR0-DTA direct-thread mount.
It wouldn't look quite as cool, and would be about 6" instead of 5" added length, but you could essentially achieve the same thing with a Polonium 5.56 can with a ZR0-DTA direct-thread mount.
Yeah, I follow Andrew's IG. He said they will eventually, but for right now it's not a priority.
That rig with a 16" barrel in .300 BLK and a Hydro-S 7.62 would be nasty. I have a similar setup with my Ruger Ranch 16" .300 BLK with the Hydro-S 7.62. It's a ridiculous combo.
What are the rifle specs? Action? Stock?

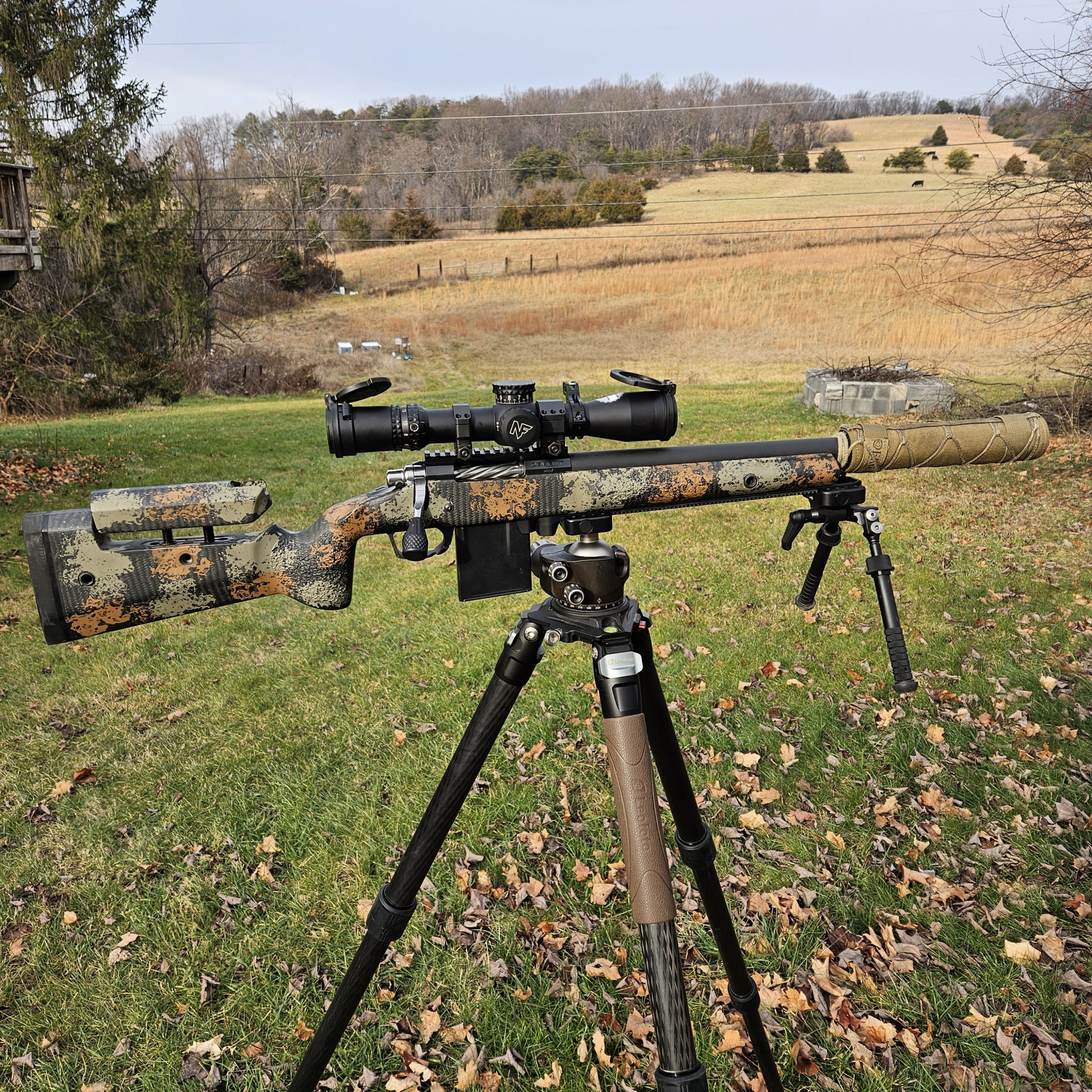

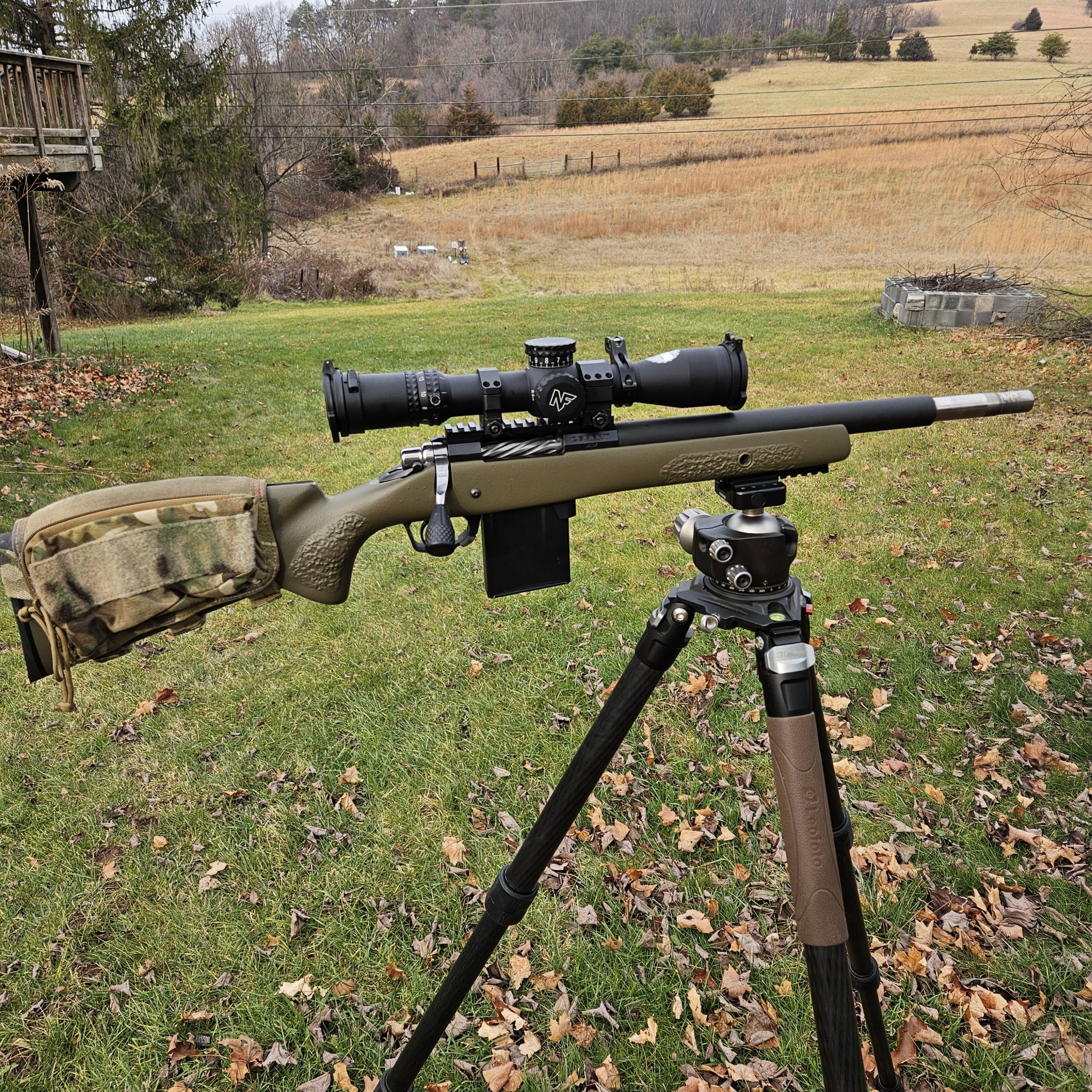

The OD green stock is a Manners EH-4 and the other is T2A
Defiance Deviant
16.5" Krieger HV 7.5 twist in 223 wylde
NF 4-16x42 with Mil-XT
Badger USMC 1" height 34mm Steel rings
Yeah, within a few tenths of an inch. Heavy Varmint contour but I think I'll go with M24 with the next one. I'm not sure on the weight and I'm not home ATM.
Last edited:
Would appreciate a weight if you had one but no hurry. And yes, looking at dims, I would go M24 also. Been doing some calcs, M24 gets close to the weight of a proof carbon sendero 18" . A little flutting and it may get below it.
This thread came along at the right time. I'll have to get with Base Camo soon
i appreciate the info. im trying to get under 10 lbs, which i think i can do with my plan of attack. action, stock, barrel contour, can and scope.
in this scenario, the role of the brake protecting the blast baffle will be played by "extra barrel".
I was just thinking today that I kinda want to build a bolt gun around the OCM5. I was also reading about the XM3 today. I think you've inspired my next project!
I've got to shoot it more recently. I love this thing. I don't think the extra barrel taking up room in the expansion chamber is hurting performance much or at all. Sounds excellent.
No but someone contacted Ryan about doing that and I think he is going to try to machine a brake into the barrel for him and avoid a pin and weld brake.
I don't see how the "extra barrel" is directing gas to the side and away from the blast baffle
If the brake is firmly inserted into the blast baffle, then the barrel in this scenario then blocks the blast baffle from getting direct gasses. And the bullet enters the can effectively after the blast baffle ends.
But with this being a reflex can, gas still fills back to the rear.
This could maybe put more direct force on another baffle but I'm not worried about it at all. Ops inc cans are way over built and have been for decades.
Maybe the ocm is also but it's different materials to cut down on weight, so ymmv
