PRS Talk PRS DIY barricades (pics encouraged)

[Krazy Korean]

Hello,

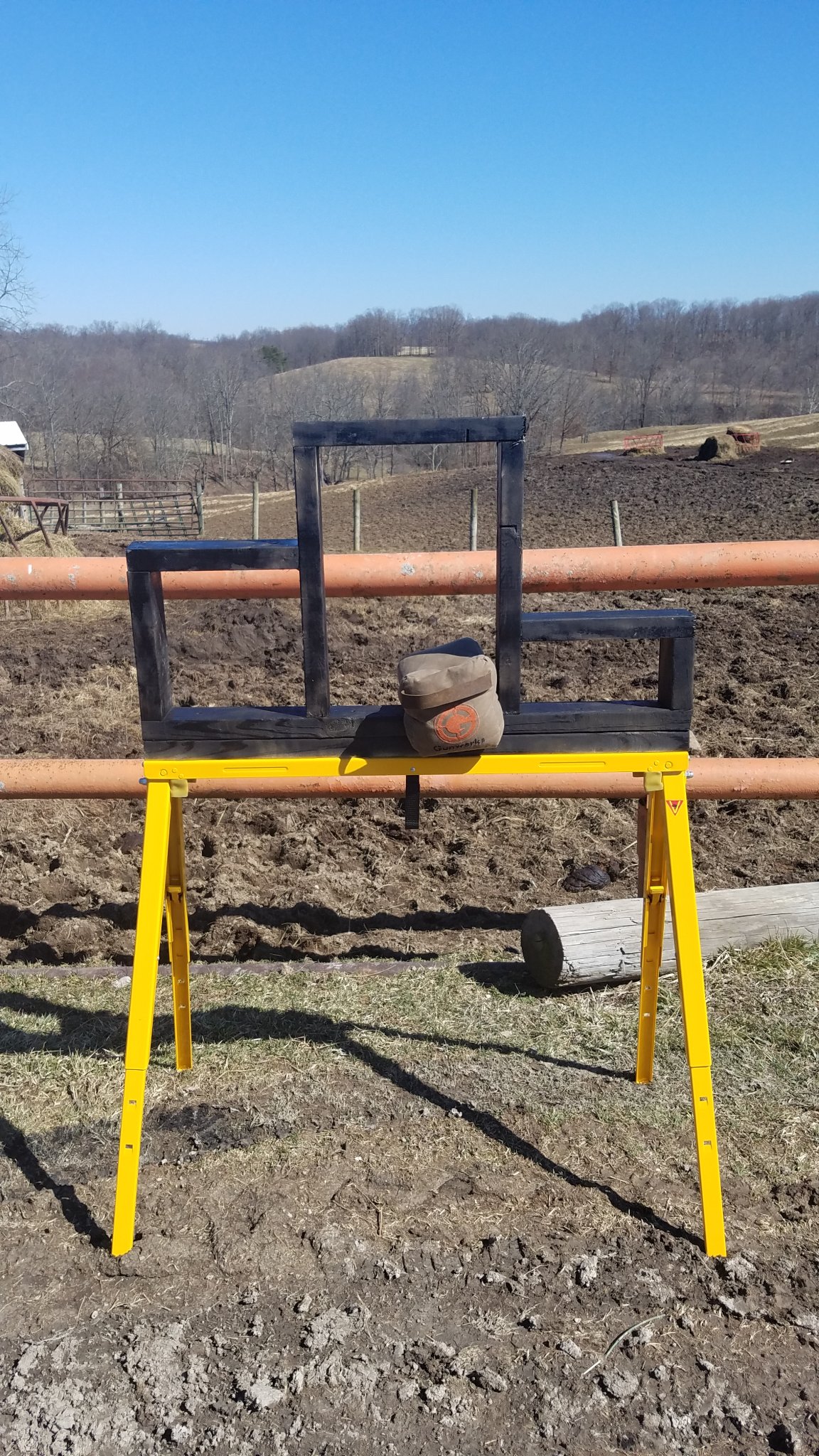

I was wanting to build another barricade to practice with. I currently have barrels, tank trap, skills barricade with a couple pipes in the middle that are 2" and 1", and a mobile barricade built into a collapsible sawhorse that I saw in a video. Looking for cattle gate ideas, and something to work on lower positions between prone and sitting. Any pictures of barricades or links would be greatly appreciated. Thanks!

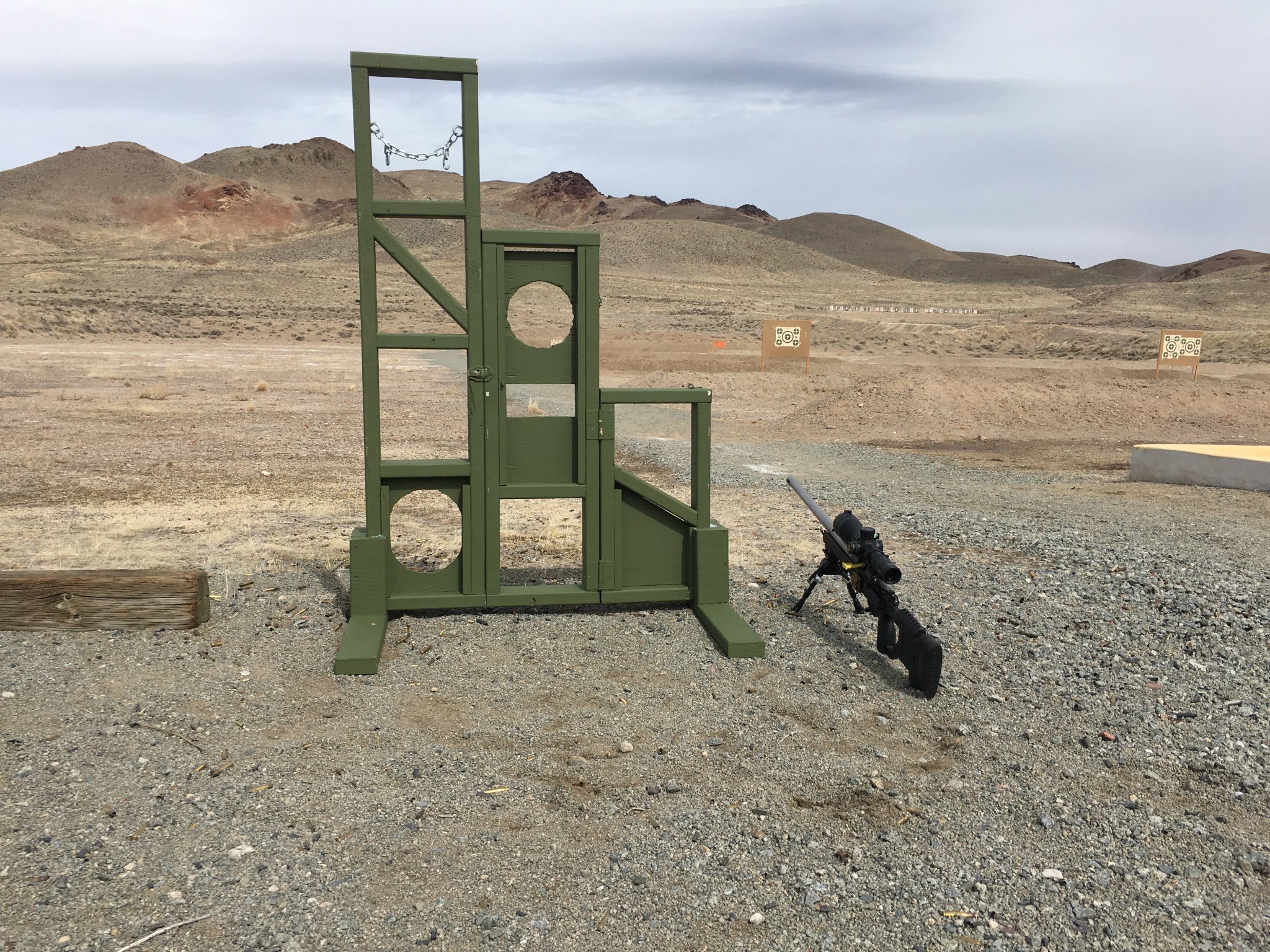

[Rugster]



[Dthomas3523]

This is awesome.


What’s the total width on the base?



[Rugster]

I believe about 72 inches. I’ve built another that is smaller in width. Only 2 sections that are PRS barricade in height, and 30 inches of cattle gate. The gate comes from tractor supply and I believe are less than $50. I’ve got a few buddies that split the gate in half and built 2 units from 1 gate. Theirs are only 48” wide.



[Lionsbreath]

Hello,
I was wanting to build another barricade to practice with. I currently have barrels, tank trap, skills barricade with a couple pipes in the middle that are 2" and 1", and a mobile barricade built into a collapsible sawhorse that I saw in a video. Looking for cattle gate ideas, and something to work on lower positions between prone and sitting. Any pictures of barricades or links would be greatly appreciated. Thanks!

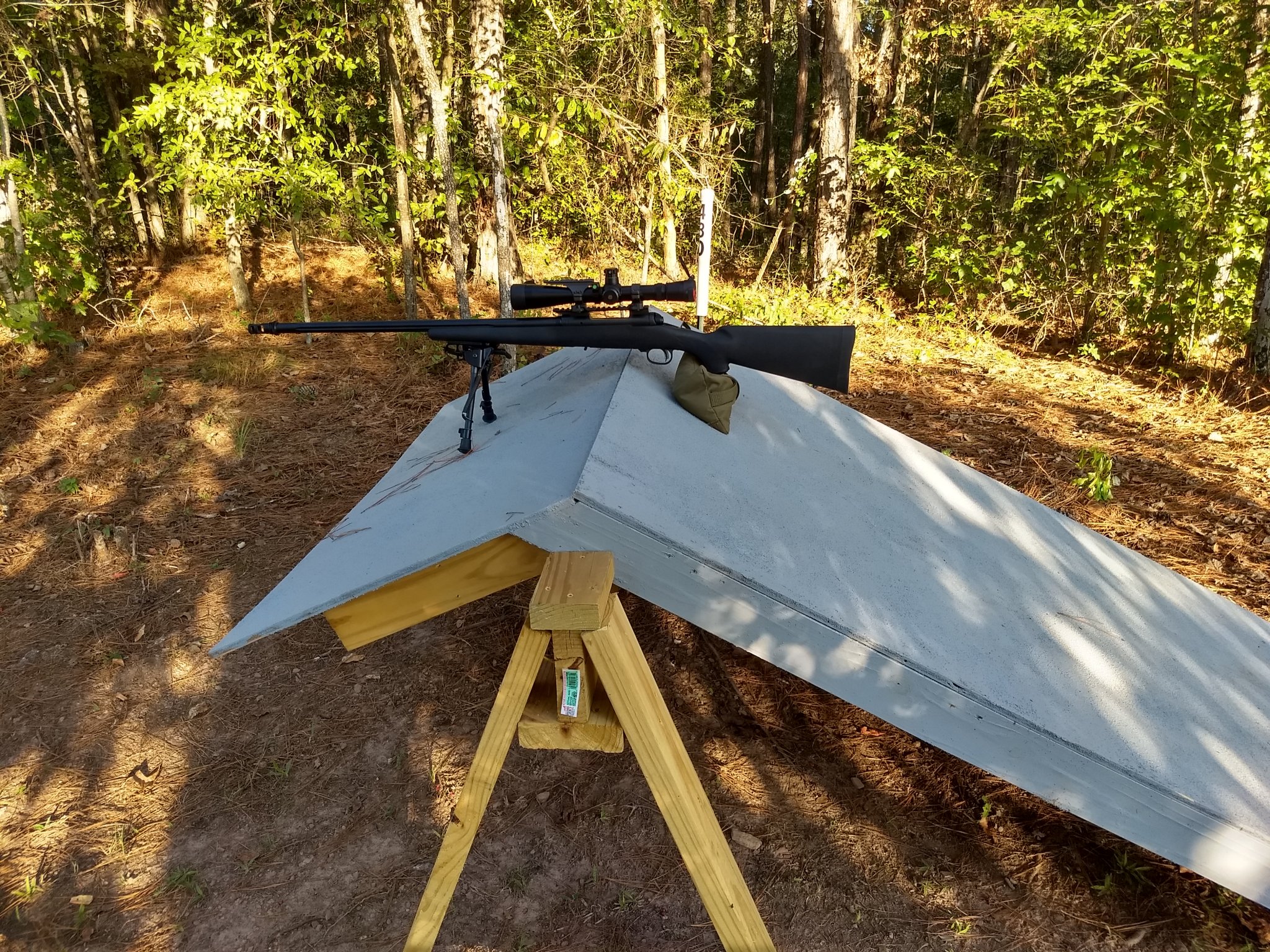

Consider adding a roof-top barricade, me and my brother-in-law built a 7/12 pitch complete with shingles on it.. In hindsight tho, a shallower roof pitch (4/12 or 5/12) might give you more practice on how not to jam a mag into the shingles causing feeding issues? nice barricade Rugster



[Rugster]

I’ll try to get a photo of my roof top, it’s adjustable in pitch from VERY steep all the way to barely pitched. Also consider a tank trap, those seem to be at every 2 day match.



[Rugster]

Photo of a buddy on the rooftop I built. You can see it rests of a piece of piping that goes through the holes on the stanchion posts. You can choose the height you want based on the holes you use, which also induces more/less angle. Cotter pins fit through holes I drilled in the ends of the pipe to keep them from sliding themselves out.



[hlee]

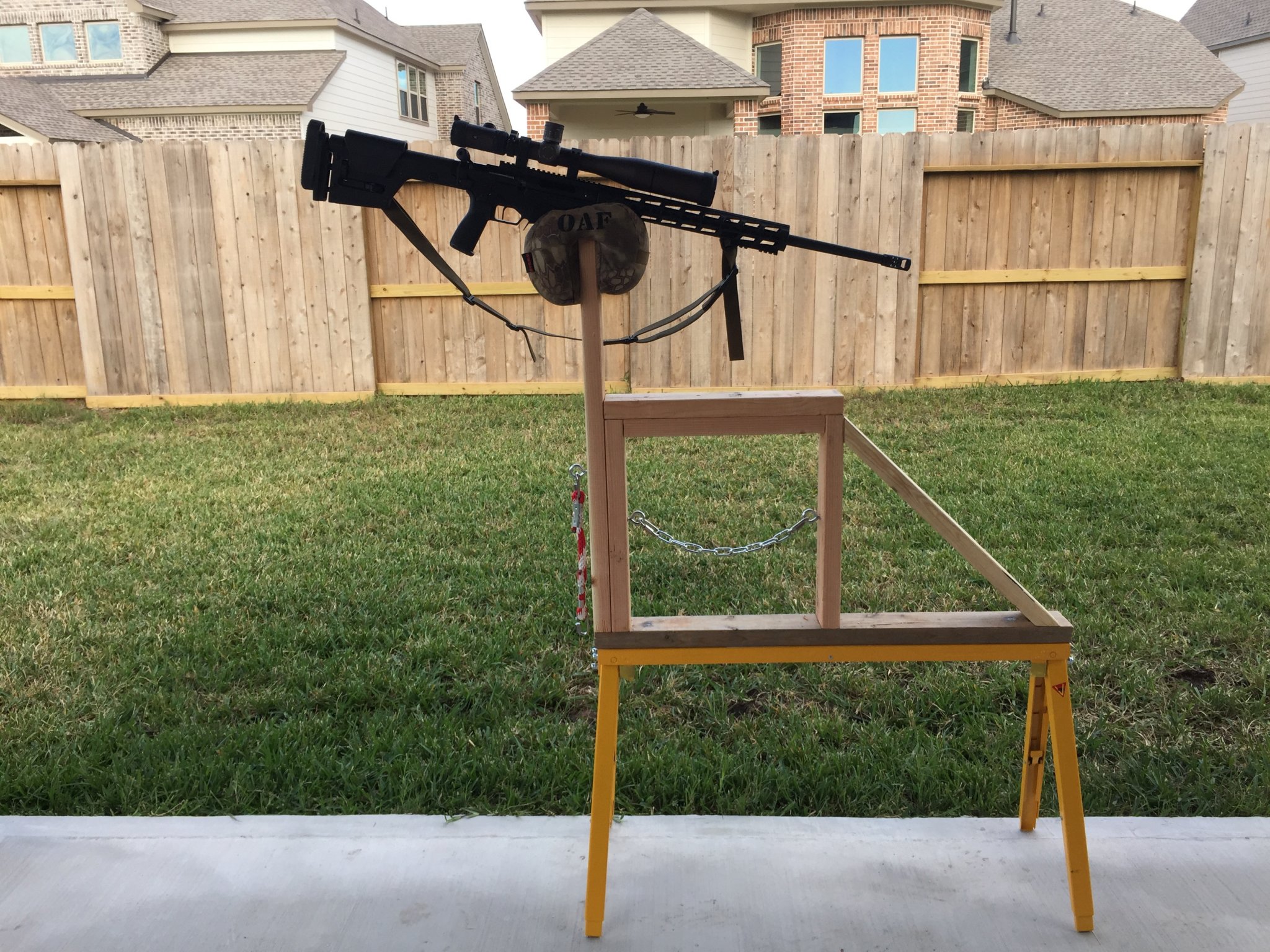

Here is a portable barricade I built for practice... The 45 deg board is removable, and the chain can be replaced with a rope segment. The legs are adjustable. It's very solid, but will also fall if you load into it too hard.



[Krazy Korean]

I think I may have copied your saw horse idea if you did a YouTube video and a link. Really appreciate all of the videos people do of their practice routines. Gives a lot of useful information. Ruggles, you make some good stuff. I am going to add to my barricade I have by the garage with some pipes.



[Adam81]

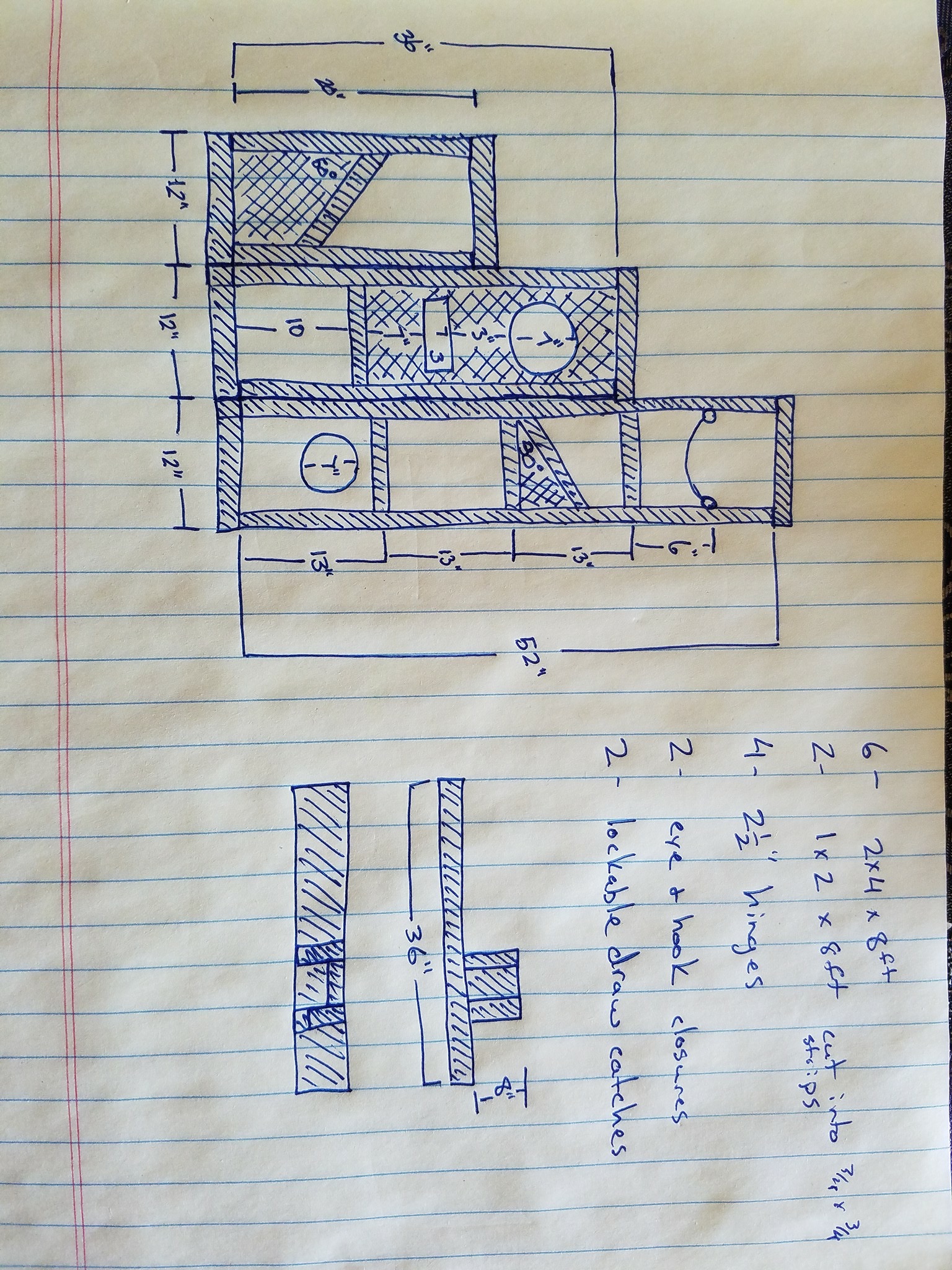

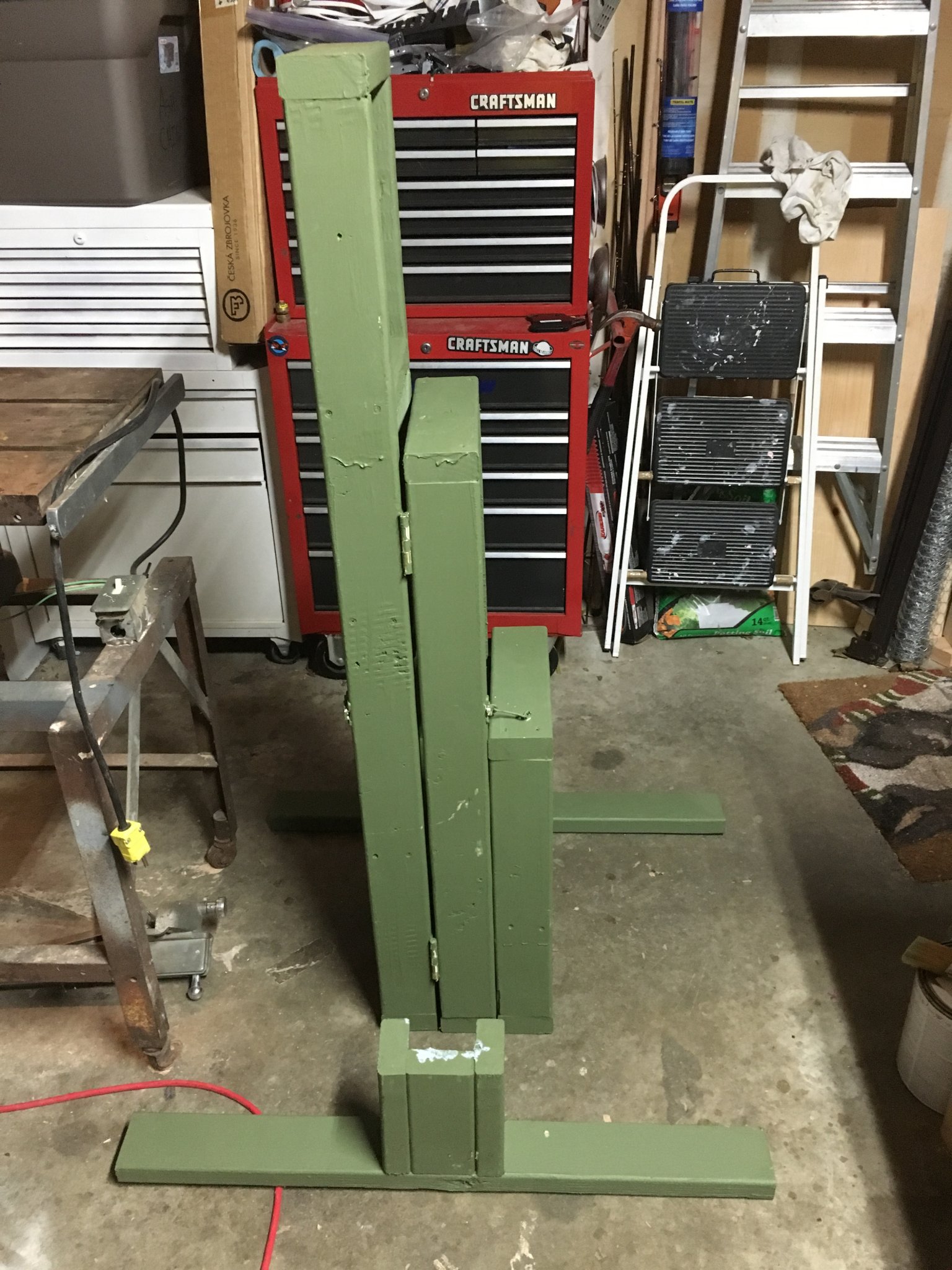

I saw these plans awhile ago on another page and decided to make one. I really like it. It’s easy to fold down and throw in the back of a car or truck. It works great.



[AMGtuned]

I saw these plans awhile ago on another page and decided to make one. I really like it. It’s easy to fold down and throw in the back of a car or truck. It works great.

That's a really cool idea with the hinges. I copied the vtac barricade, and have to just toss it in the truck bed however it fits. Add to that, steel, hangers, other wooden stands, rifle cases, the list goes on. Kudos on the compact transport.



[Adam81]

That's a really cool idea with the hinges. I copied the vtac barricade, and have to just toss it in the truck bed however it fits. Add to that, steel, hangers, other wooden stands, rifle cases, the list goes on. Kudos on the compact transport.

Thanks. It does make it pretty portable. I’m trying to build a few other props that I can either fold up or take down and put together at the range with very little trouble.



[Mach1pilot]

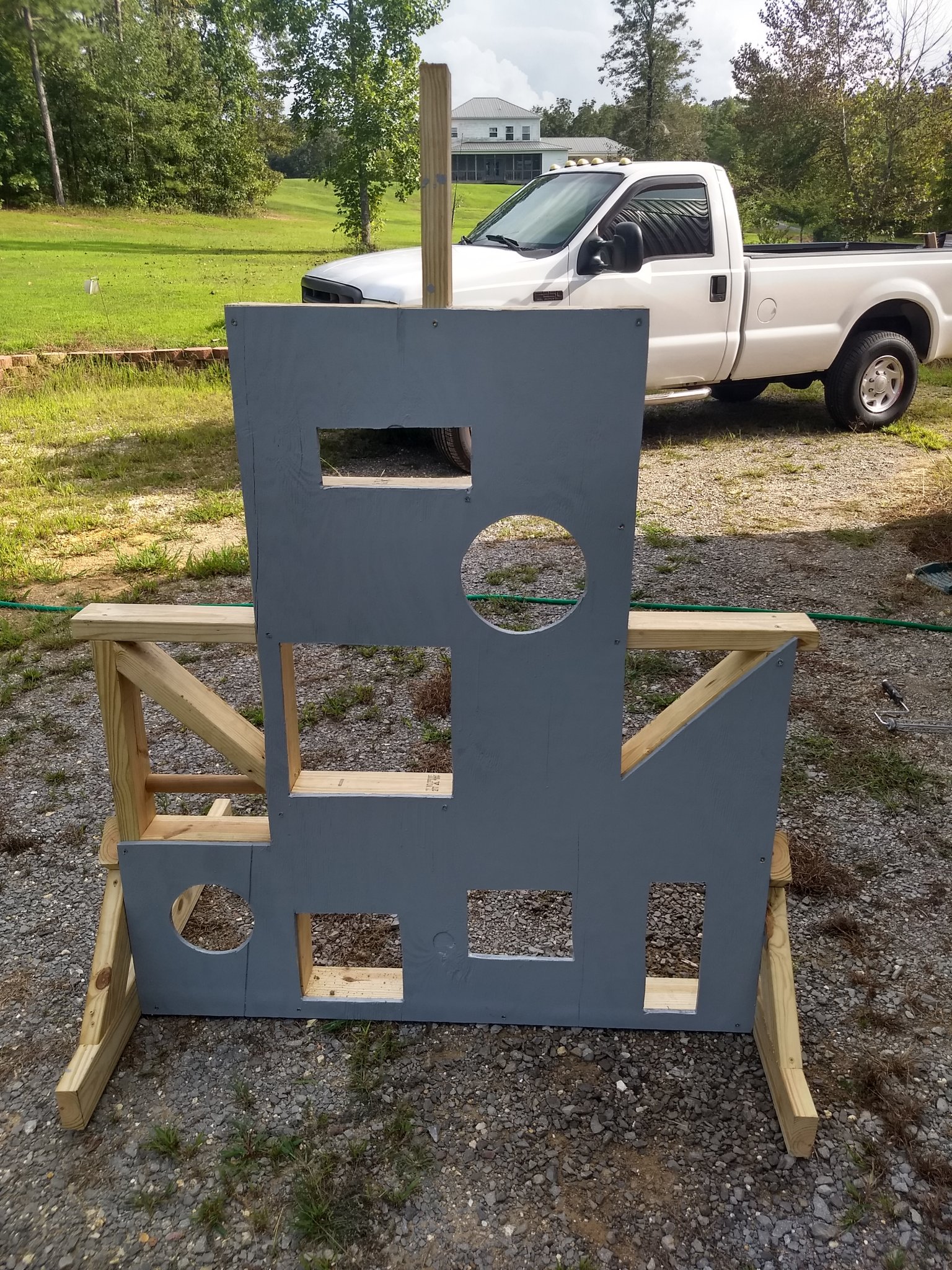

Here is what I made up for practice.



[Alpine 338]

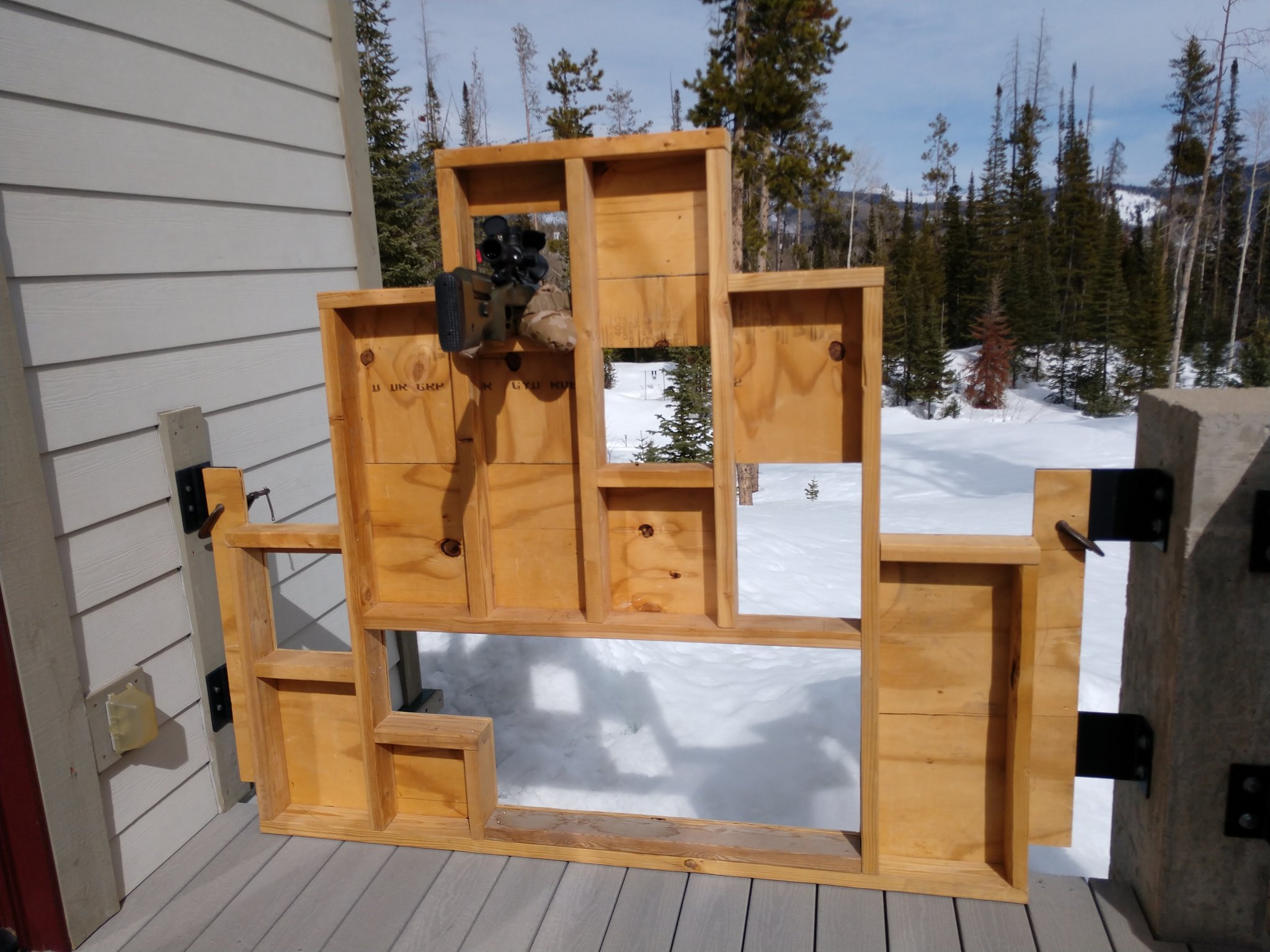

Built this one to shoot off my deck. C-clamp it in place where the guardrail attaches and it's rock solid. Mostly practice off of it with my 22LR trainer.



[patriotnation]

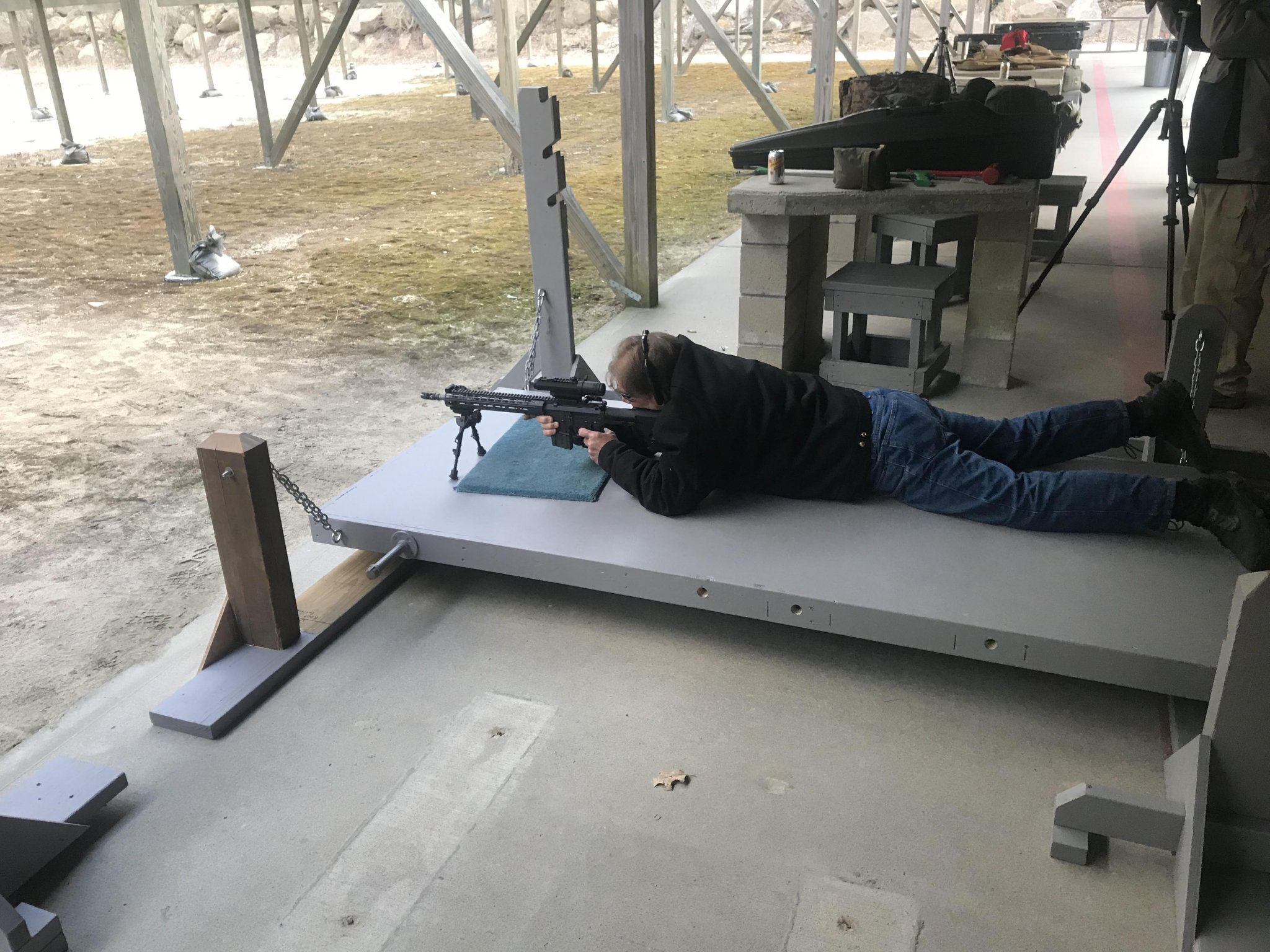

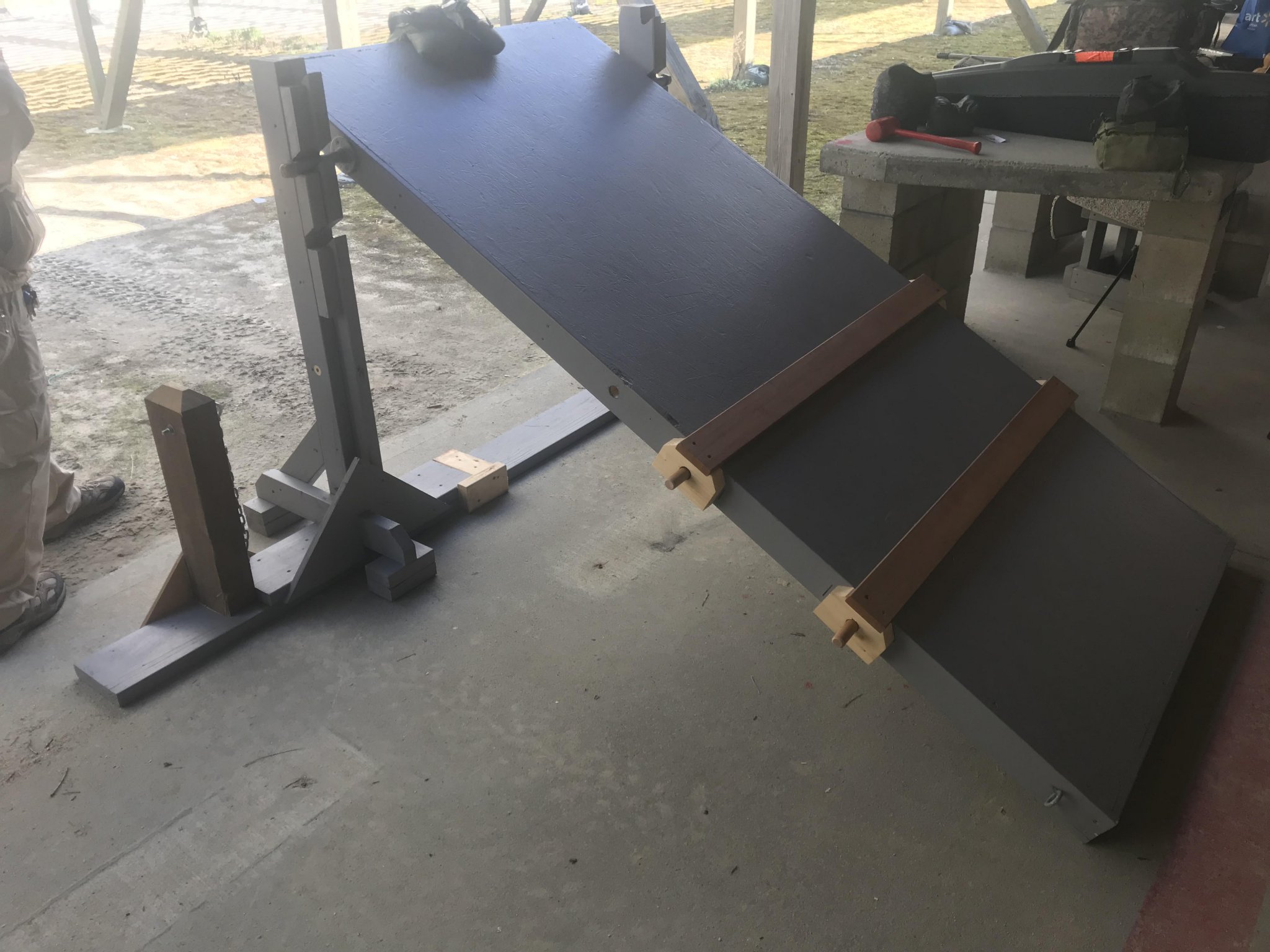

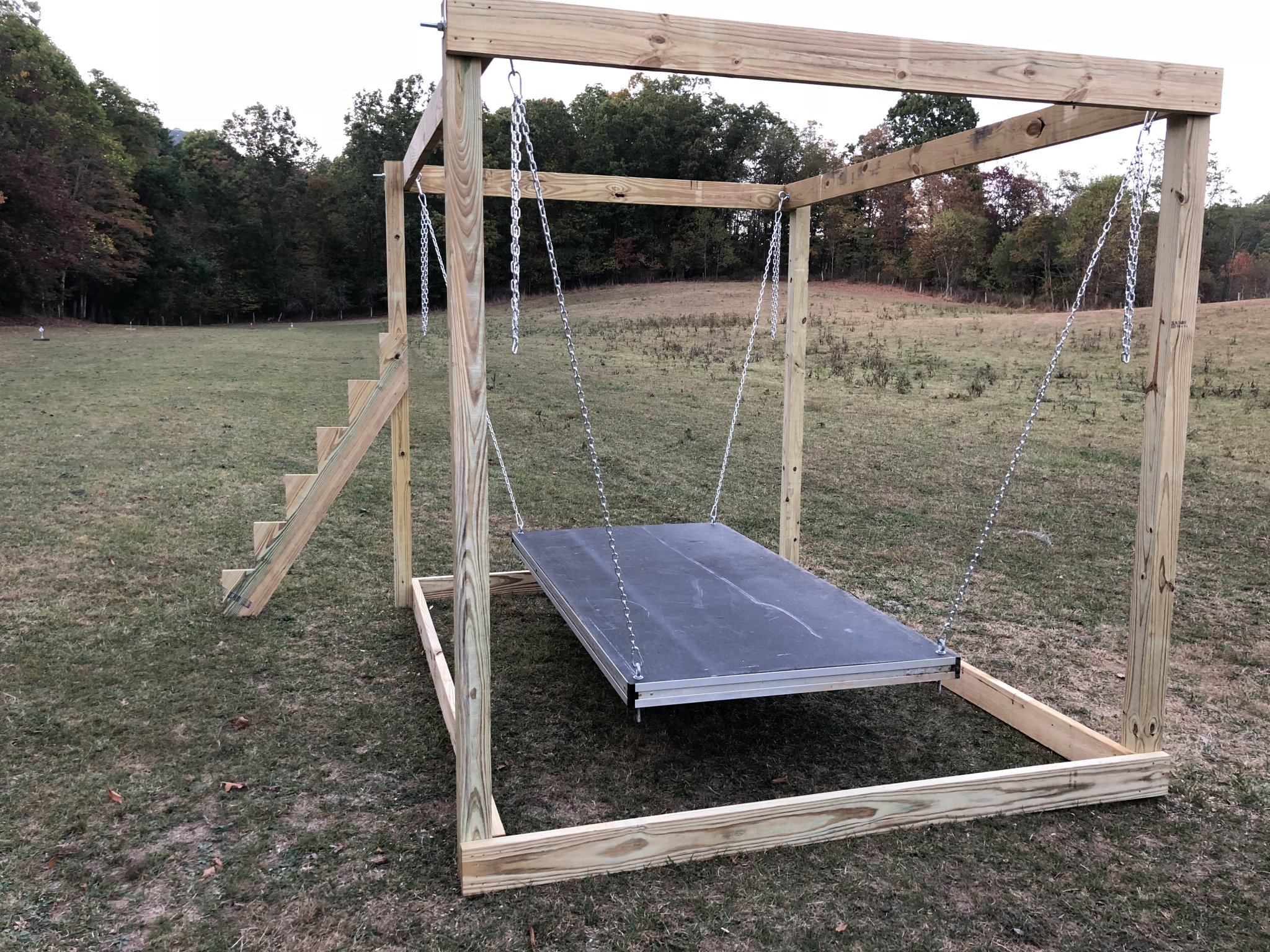

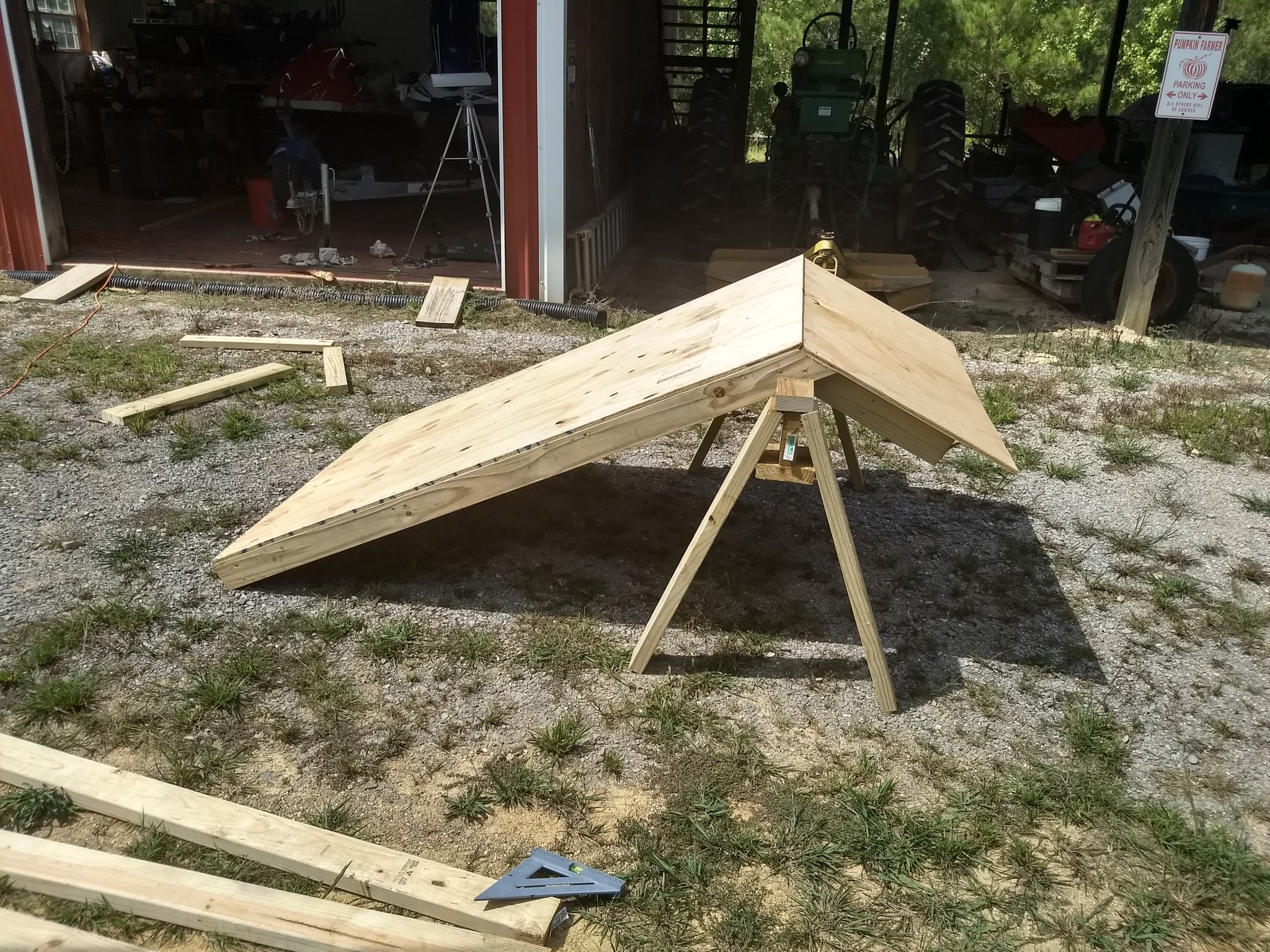

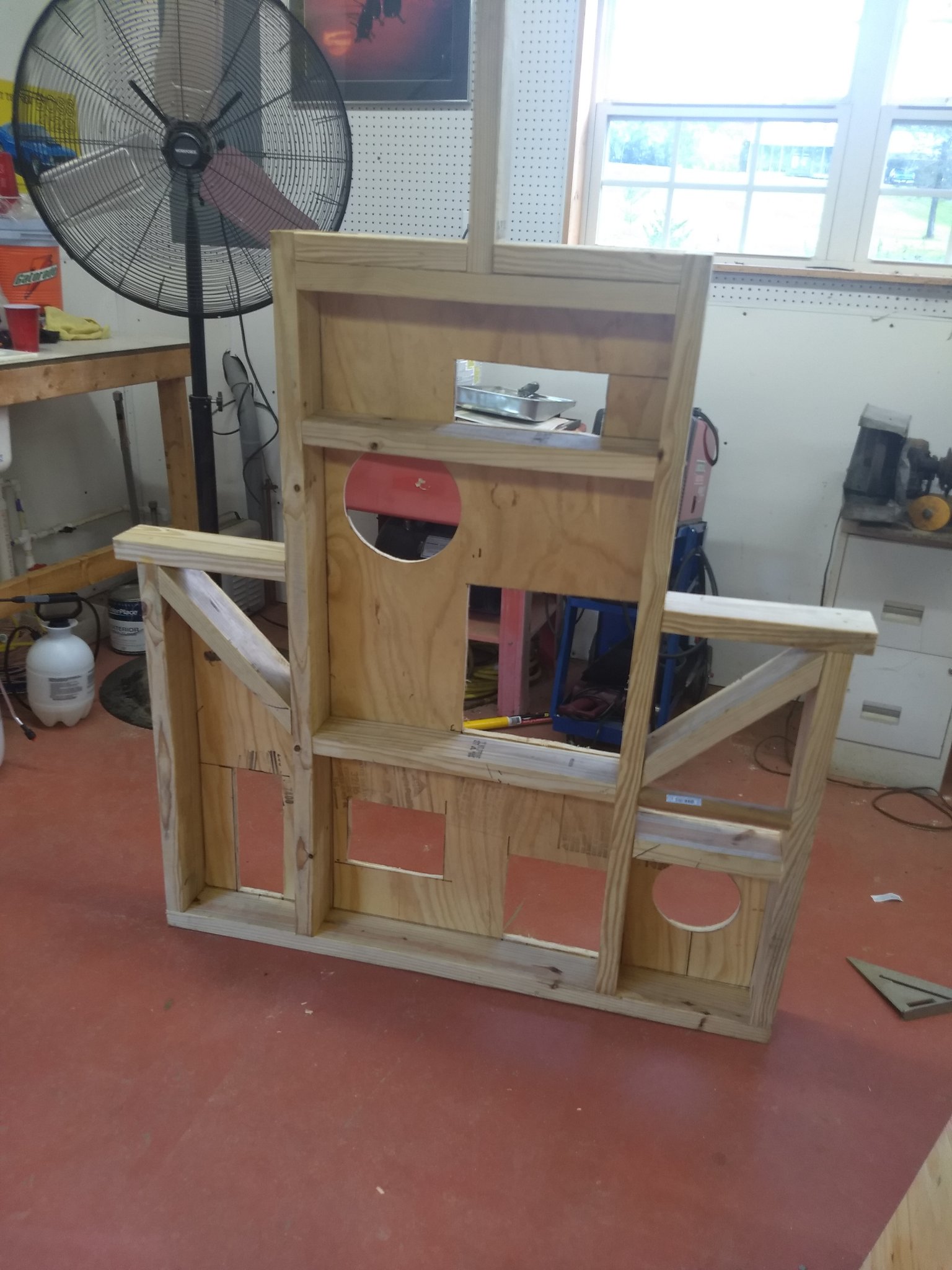

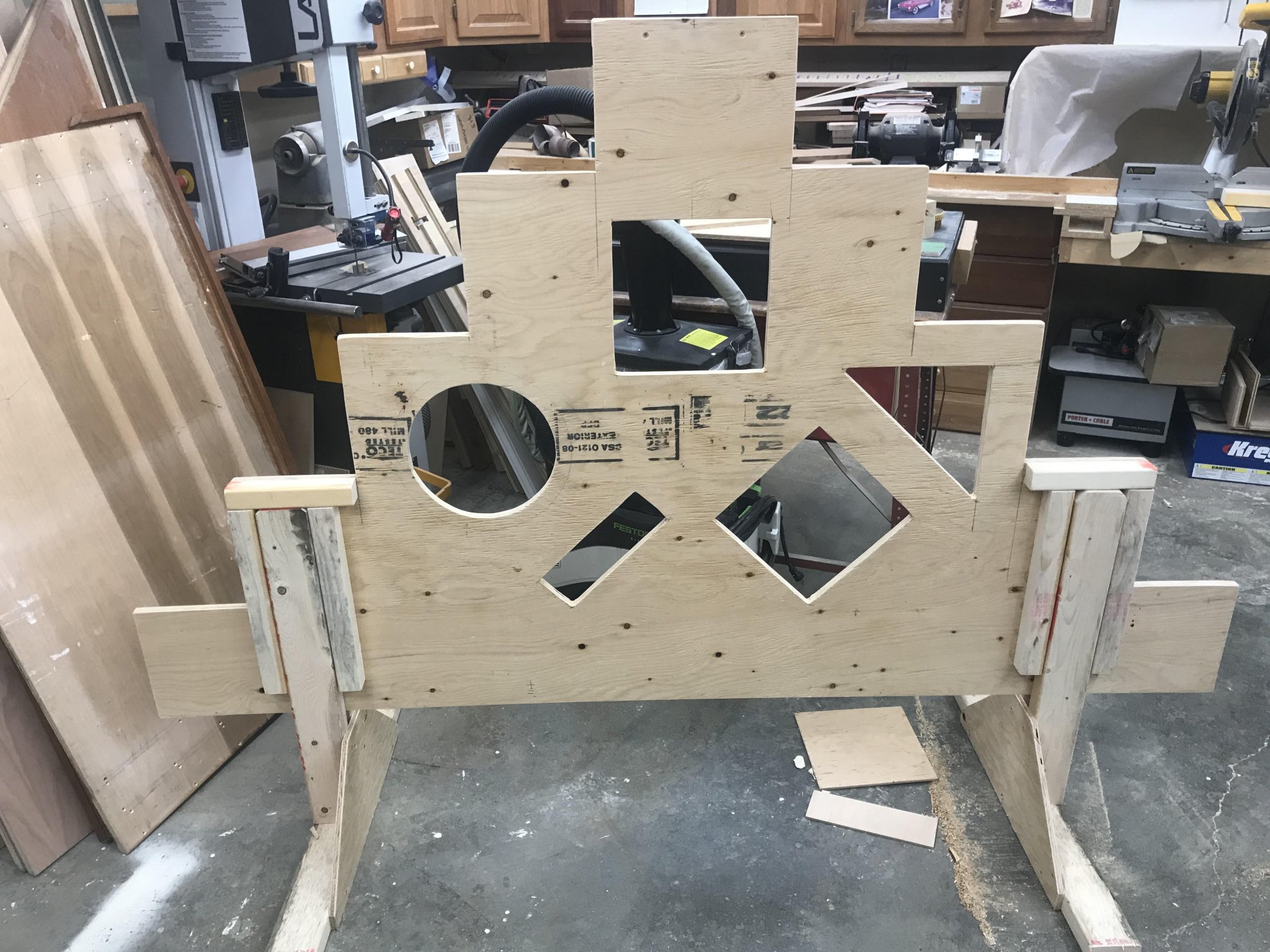

I made some practice props also. A simple barricade that breaks down off of the 2 stands. A rooftop that converts to a floating platform as well. I used gas pipe fittings to support the roof in notches in the 2x6 uprights for 3 different roof pitches. I added a front peak section since this picture was taken. The recoil actually makes the platform sway.



[Kane0519]

Nice work here guys. Some creative props to work with.



[*Dranmelex*]

I built one for the house and have one of the portable ones using a metal sawhorse that was originally thought up by Paul Reid I believe.



[hacabrera071]

I made some practice props also. A simple barricade that breaks down off of the 2 stands. A rooftop that converts to a floating platform as well. I used gas pipe fittings to support the roof in notches in the 2x6 uprights for 3 different roof pitches. I added a front peak section since this picture was taken. The recoil actually makes the platform sway.
View attachment 7073608View attachment 7073609View attachment 7073610

That floating platform pal.... Looks awesome!!!! Do you have any diagrams for it by any chance? Cheers!



[tsu45]

Would you mind snapping some pics of how the gate attaches on both sides?



[Mxridr]

Floating platform is awesome and difficult. Whatever you build make it difficult. Rooftop is not so tough unless they make you shoot weakside



[patriotnation]

That floating platform pal.... Looks awesome!!!! Do you have any diagrams for it by any chance? Cheers!

No diagrams, sorry

All from my head just winging it

Thanks



[jdodd]

A lot of awesome pictures! Gives me some ideas for a winter project.



[Subwrx300]

Tag for later... @Rugster , great looking barricades! You going to be at Rayners on Sunday?

Francis



[Ccollins02]

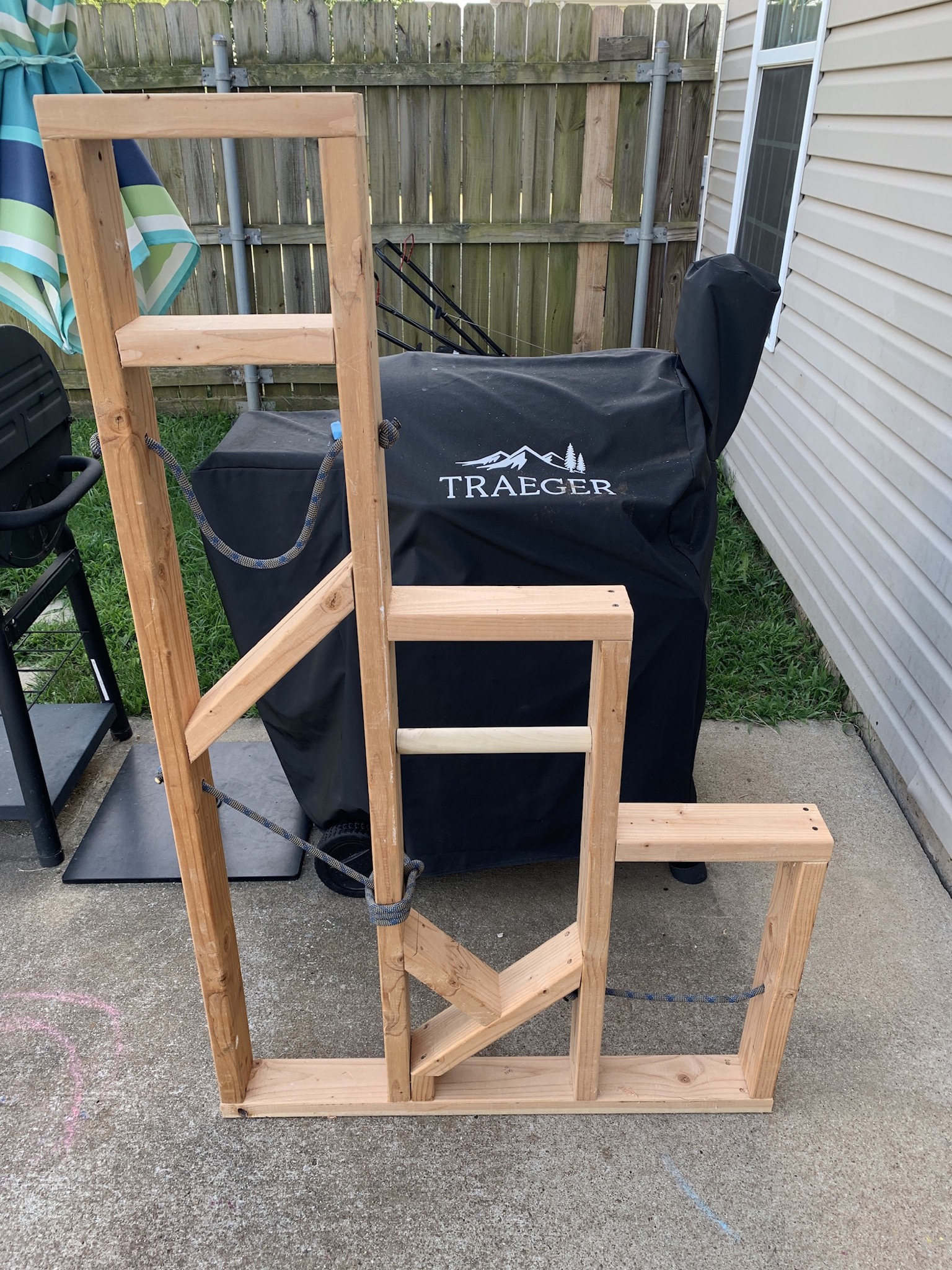

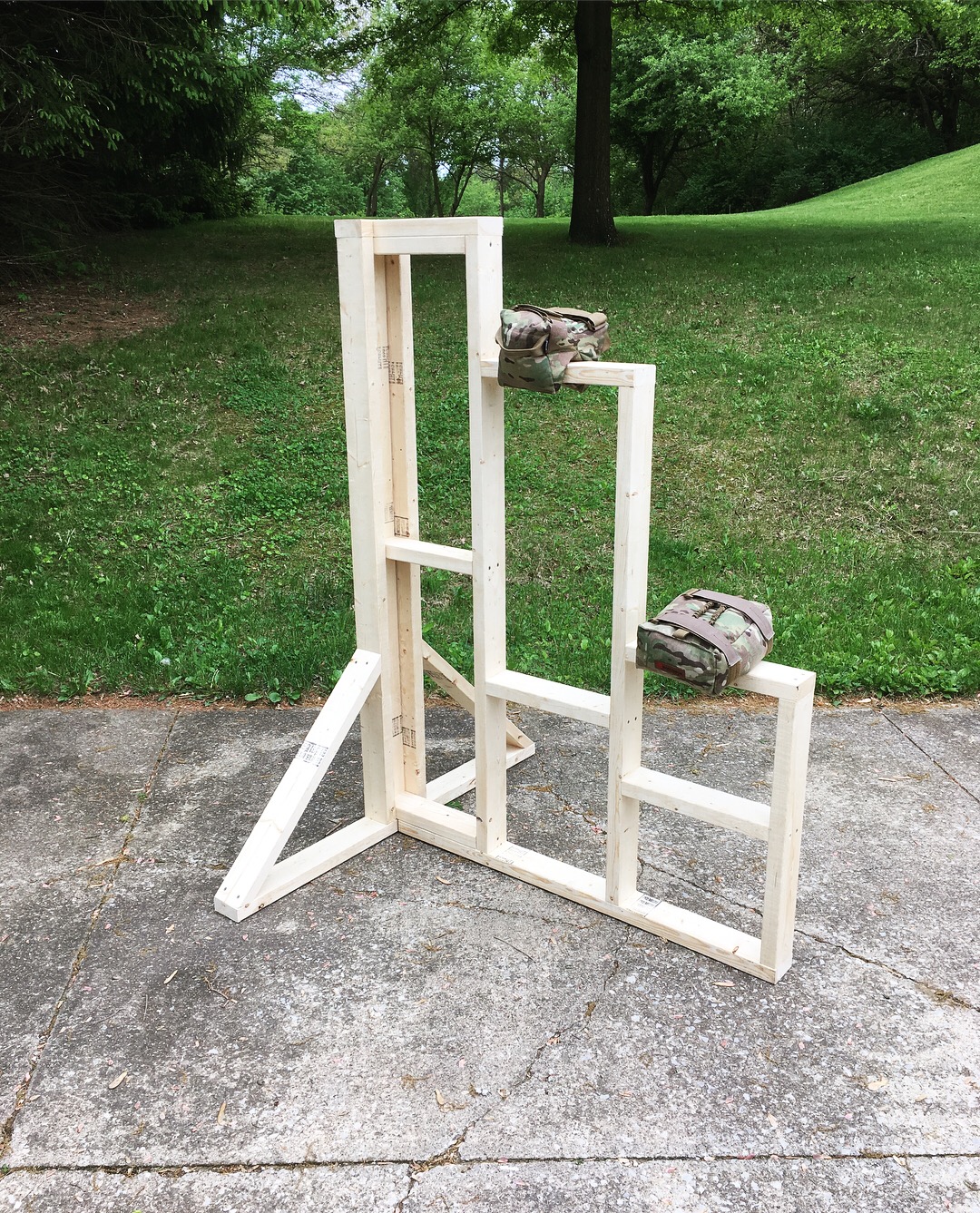

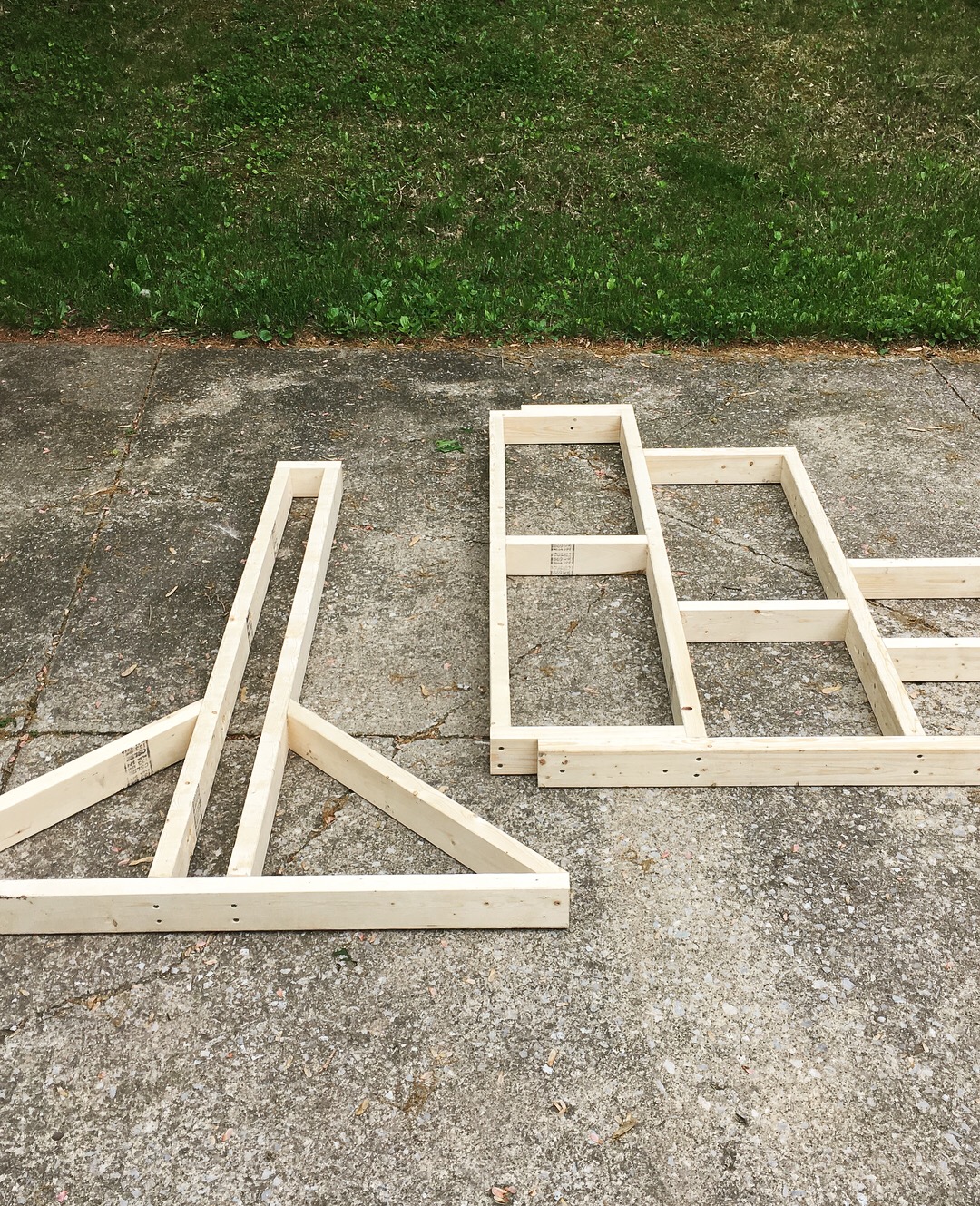

Here’s a simple one I threw together. Breaks down easily and fits nicely in the bed of my truck...



[Mr. Twoguns]

Some really good ideas in this thread. Thanks!



[Ironmaker]

Scavenged some scrap wood from work and spent $6 on lag bolts.



[Kane0519]

Here’s a simple one I threw together. Breaks down easily and fits nicely in the bed of my truck...

View attachment 7125192View attachment 7125193

Liked this one enough that I built a nearly identical one yesterday & tried it out this afternoon. Works really well. Stable, lots of shooting options, & very portable.



[LawnMM]



[km77]



[Birddog6424]

I used to use a fancy wooden gig, all cut up with ledges and holes. Then I stepped up to this. Its foldable, super lightweight, easy to pack up, and quite honestly, works about the same.

Edit; Oh! And I forgot to add... it doubles as a ladder.



[Kane0519]

I like the step ladder & used it as well, but I got tired of hauling it out & wanted something I could leave in the field. I still use the step ladder for dryfire practice in the house.



[Birddog6424]

I like the step ladder & used it as well, but I got tired of hauling it out & wanted something I could leave in the field. I still use the step ladder for dryfire practice in the house.

Funny. I'm just the opposite. My fancy wooden thing a ma jig is in my backyard. I haul my nice collapsible lightweight ladder to and from my shooting spot.

If I go to my actual range there are bunches of barricades, bars, tractor tires, rooftops and other toys to play on.



[Rexwagon]

I copied the VTAC barricade and slightly changed some of it to my liking. Works well and it’s wobbly. Just like the barricades I shoot off in competition. If most of the matches you shoot have wobbly ones make yours wobbly also. I practice in my backyard doing dry fire with a DFAT



[10xk9]

This “boat” barricade is very modular, I can add a ton of other things to it:
Roof top, cow gate, ropes, chains, hanging tire, ladder on springs , etc.



[Jfc24]

I believe about 72 inches. I’ve built another that is smaller in width. Only 2 sections that are PRS barricade in height, and 30 inches of cattle gate. The gate comes from tractor supply and I believe are less than $50. I’ve got a few buddies that split the gate in half and built 2 units from 1 gate. Theirs are only 48” wide.

Where do you find the PRS barricade dimensions? I looked on their site last night and couldn’t find it.



[tsu45]

Where do you find the PRS barricade dimensions? I looked on their site last night and couldn’t find it.

FYI before you start cutting wood, think I heard they just lowered the standard height on this so make sure you have the latest dimensions.



[Jfc24]

FYI before you start cutting wood, think I heard they just lowered the standard height on this so make sure you have the latest dimensions.

That will actually make my life better since I rarely hit my head on stuff.



[Rugster]

Yea you’ll want to see the updated dimensions. I imagine they are posted in the PRS rulebook but they made some changes and there are now 2 options for the upper barricade height.



[Kane0519]

So @lowlight can leave the high heels at home now?



[davsco]

wow some great ideas and i'm super jealous of some of your backyards!

regarding the prs barricade:

https://www.precisionrifleseries.com/static/media/uploads/prs_rules.pdf

Barricade Dimensions • Positions 1 and 2 are 52”-54” tall x 48” wide x 4”-5” thick. • Positions 3 and 4 are 28”-30” tall x 72” wide x 4”-5” thick. • Positions 1 and 2 will change to 48”-50” by the end the 2019 season to allow time for the MDs to update their barricades for shorter shooters. During the 2019 season MDs are encouraged to update their barricades to meet the new measurements. Both measurements are authorized for the 2019 season.



[6cmShooter]

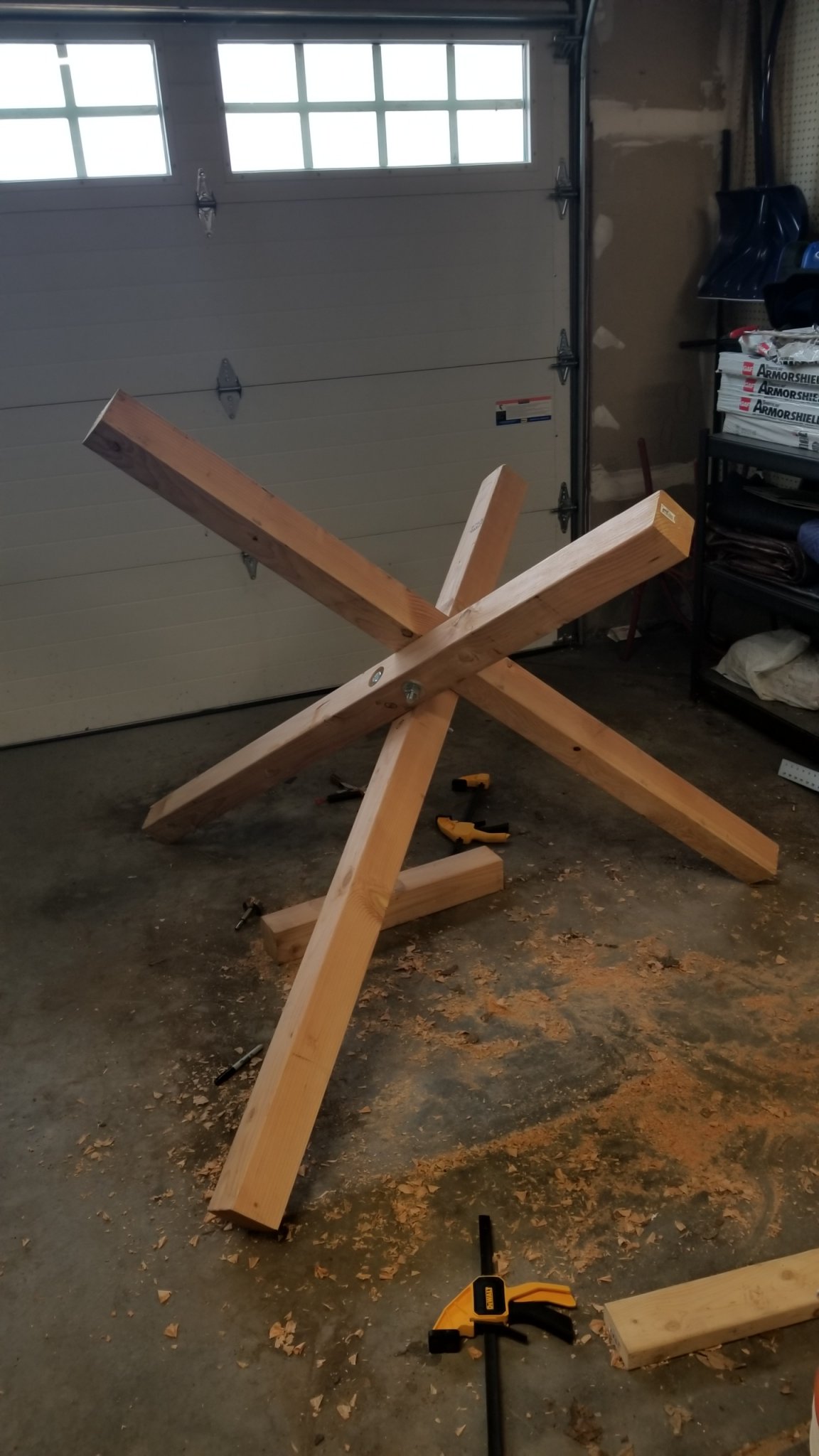

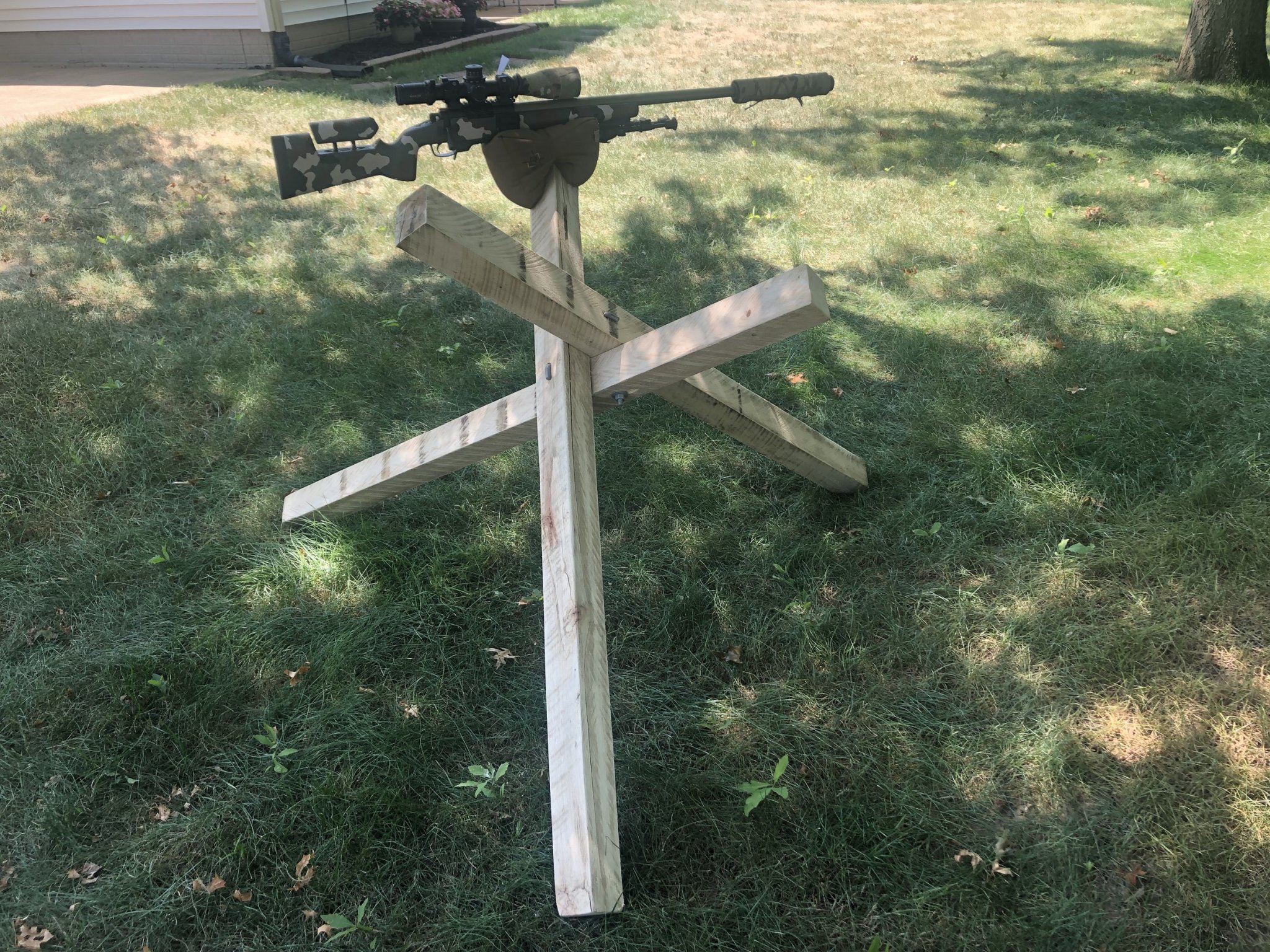

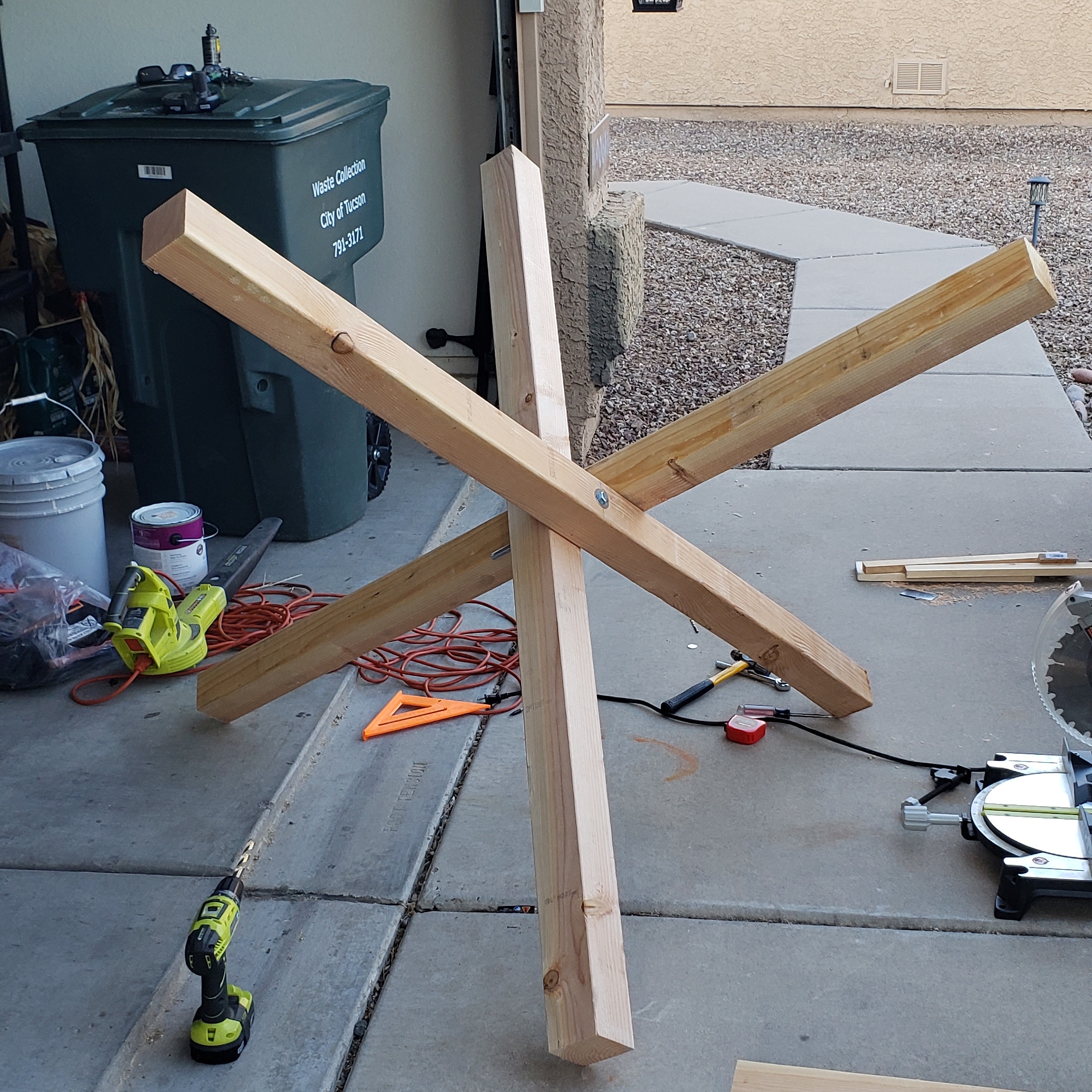

Finally had time to get my tank trap together. Will be working on a roof top attachment for it and one other barrier.



[jsel10]

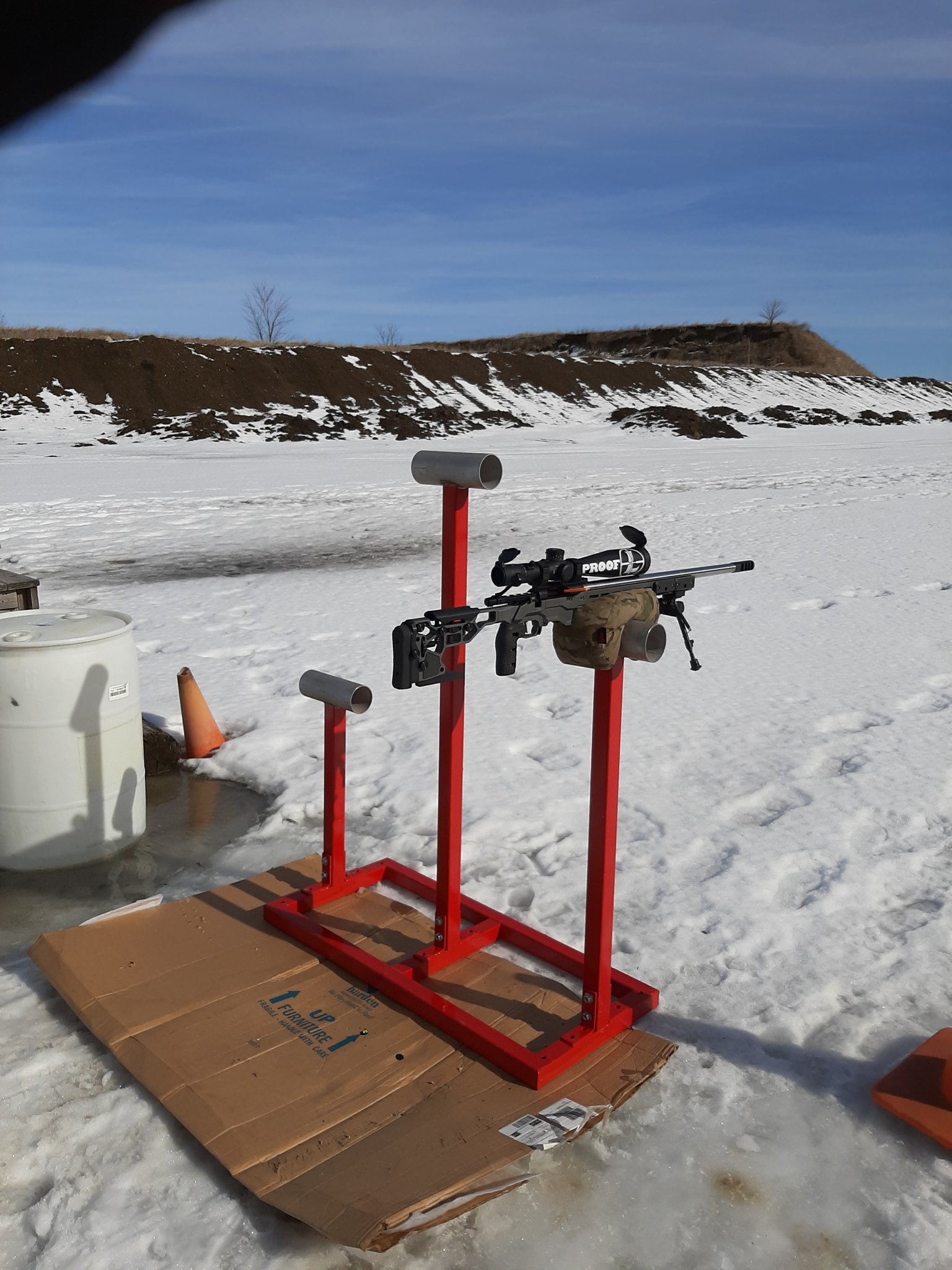

3" sch 10 stainless, 2" tubesteel. Legs bolt on for easy transportation.



[madmikes262]

I used to use a fancy wooden gig, all cut up with ledges and holes. Then I stepped up to this. Its foldable, super lightweight, easy to pack up, and quite honestly, works about the same.

Edit; Oh! And I forgot to add... it doubles as a ladder.

Ive never seen anyone use a ladder.What a unique idea.



[TangoDown7717]

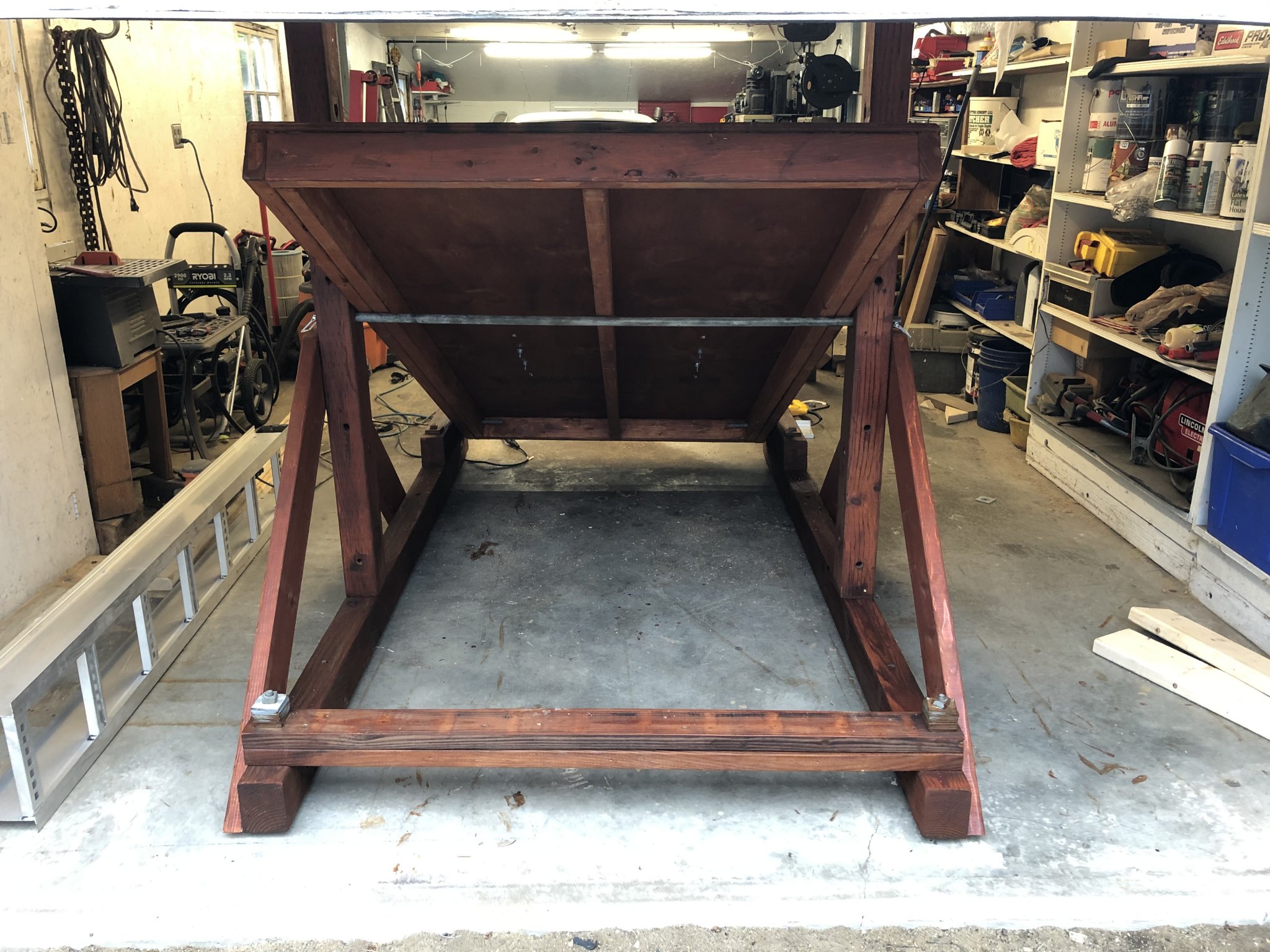

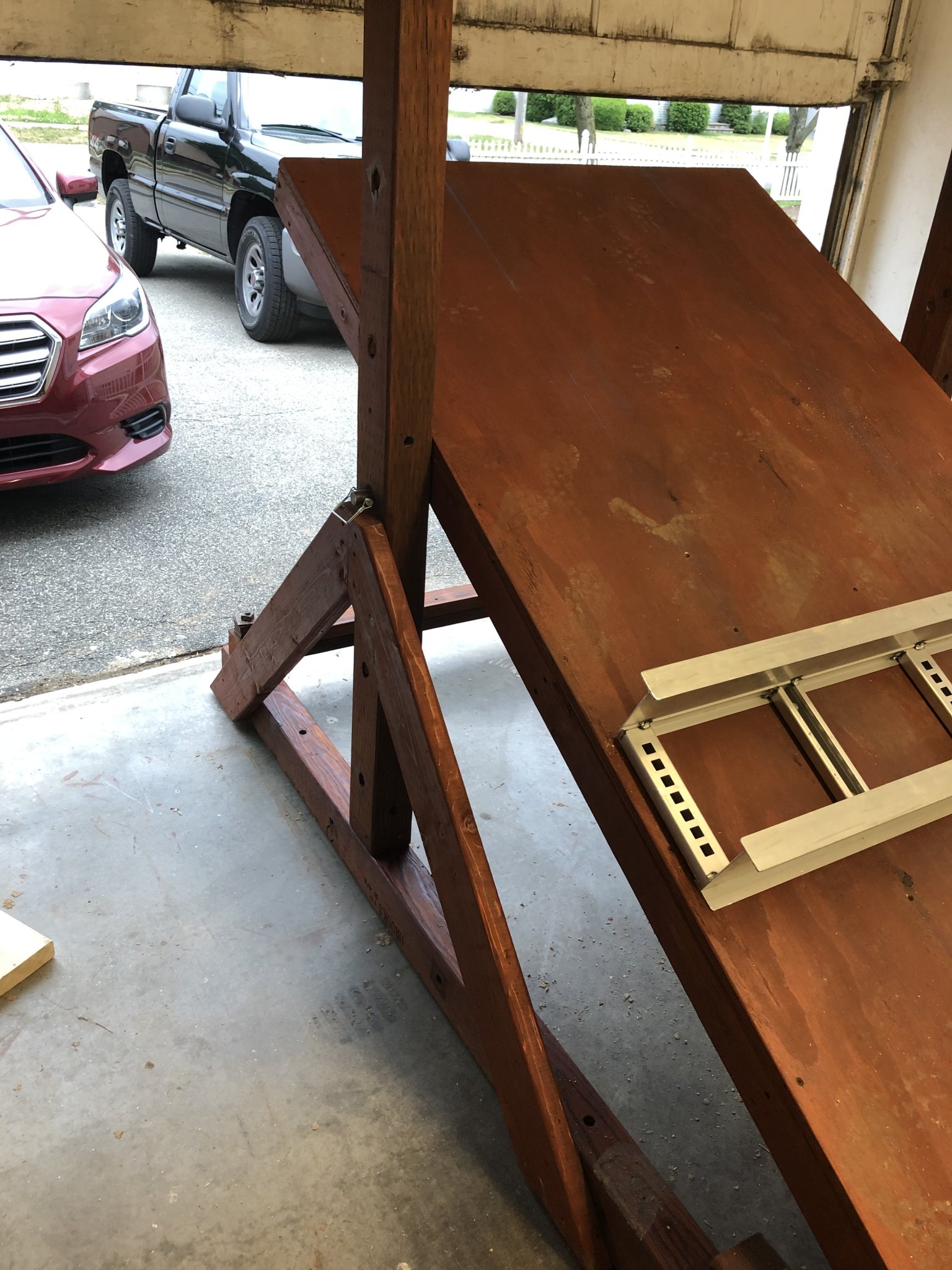

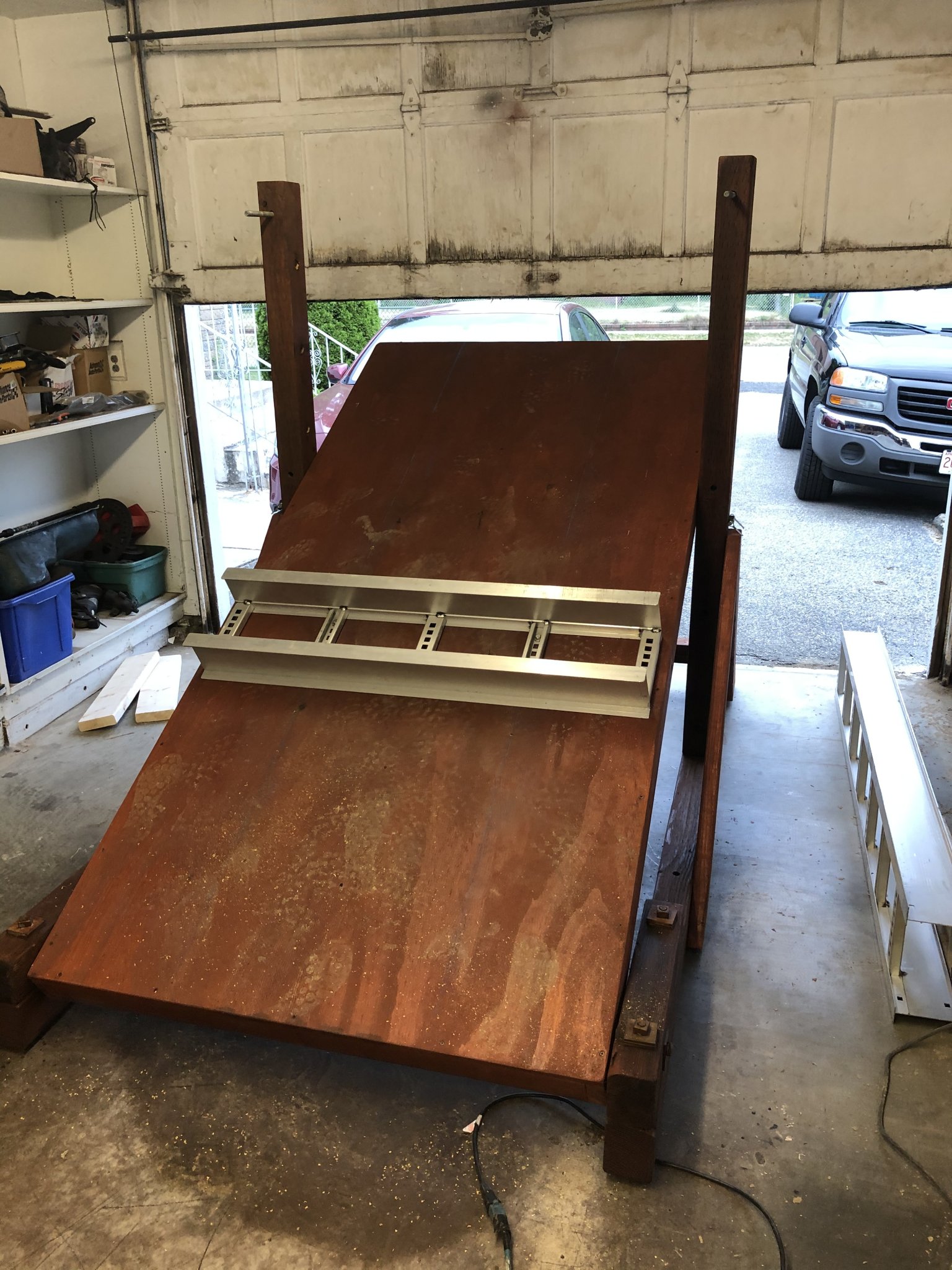

Here’s one I made two weeks ago. 4x6 crossarms for base and stand, 2x6 for support, everything bolts together, even the 4x8 top to the back. Allows it to swing easily to adjust and keeps everything supported.



[tsu45]

Here’s one I made two weeks ago. 4x6 crossarms for base and stand, 2x6 for support, everything bolts together, even the 4x8 top to the back. Allows it to swing easily to adjust and keeps everything supported. View attachment 7358839View attachment 7358842View attachment 7358844

you must own a forklift!



[TangoDown7717]

you must own a forklift!

HA! Sometimes I wish! It all bolts together. Nice and easy to fit in the back of the truck but definitely need 2 people for each piece!



[CShooter92]

Threw together a tank trap and barricade this spring for my range. Barricade folds in half to fit in the bed of my truck. It's a little wobbly so I might throw a lag bolt through the middle when I'm shooting to snug things up.



[1moaoff]

For those of you looking for portable....
Triangle ladder steps on both sides
X4 2×4 8' long cut into 4' length = 4' sections
X8 clamps (Irwin or other quick clamps)
Place boards through ladder and clamp boards.
Should be simple enough pics arent needed.

I shoot at home so I dont need portable but I see the question asked alot.
Most people need a ladder soooooo.

I have thought about other simple designs and it's not hard to make inexpensive portable ones. Less than 75$



[Kddt]

Worked like a charm!



[jetjock07]

How did you anchor the cattle gate to the vertical 2x4
