Night Vision Rangefinders mounted on 90* pic adapter

[BurtG]

Seems like this would work better than the traditional over the top scope mounts. Especially on lighter weight rigs / where you want less snags

Anyone doing this ?
Am I missing something ?



[the_assman]

it does work good mounted there but i would replace that painter's tape with some duct tape , that blue tape will never hold a zero

if you were running a scope with a larger objective like 50mm you could start to run into clearance issues and need to push the rangefinder out or farther forward

oddly in my case the reason i had to move my impact from a 9 o'clock position to a diving board was because i couldn't reach the controls of a clip on with it at 9 o'clock without having to break my cheekweld



[BurtG]

What mount are you using for the RF?



[the_assman]

i have an area 419 one piece scope mount that i was running a pic rail on then i had the impact mounted on a fast eotech riser with an adm qd lever so i could remove/install it without any tools. this also gave me a little more room to adjust the parallax

i like your idea with the offset mount from the top rail , since the fix rail doesn't give us 9 or 3 o'clock options for direct mount . a 90 degree mount from the top rail with an adm 170 mount would keep it pretty tight to the gun and still give toolless quick disconnect



[Huskydriver]

Seems like this would work better than the traditional over the top scope mounts. Especially on lighter weight rigs / where you want less snags

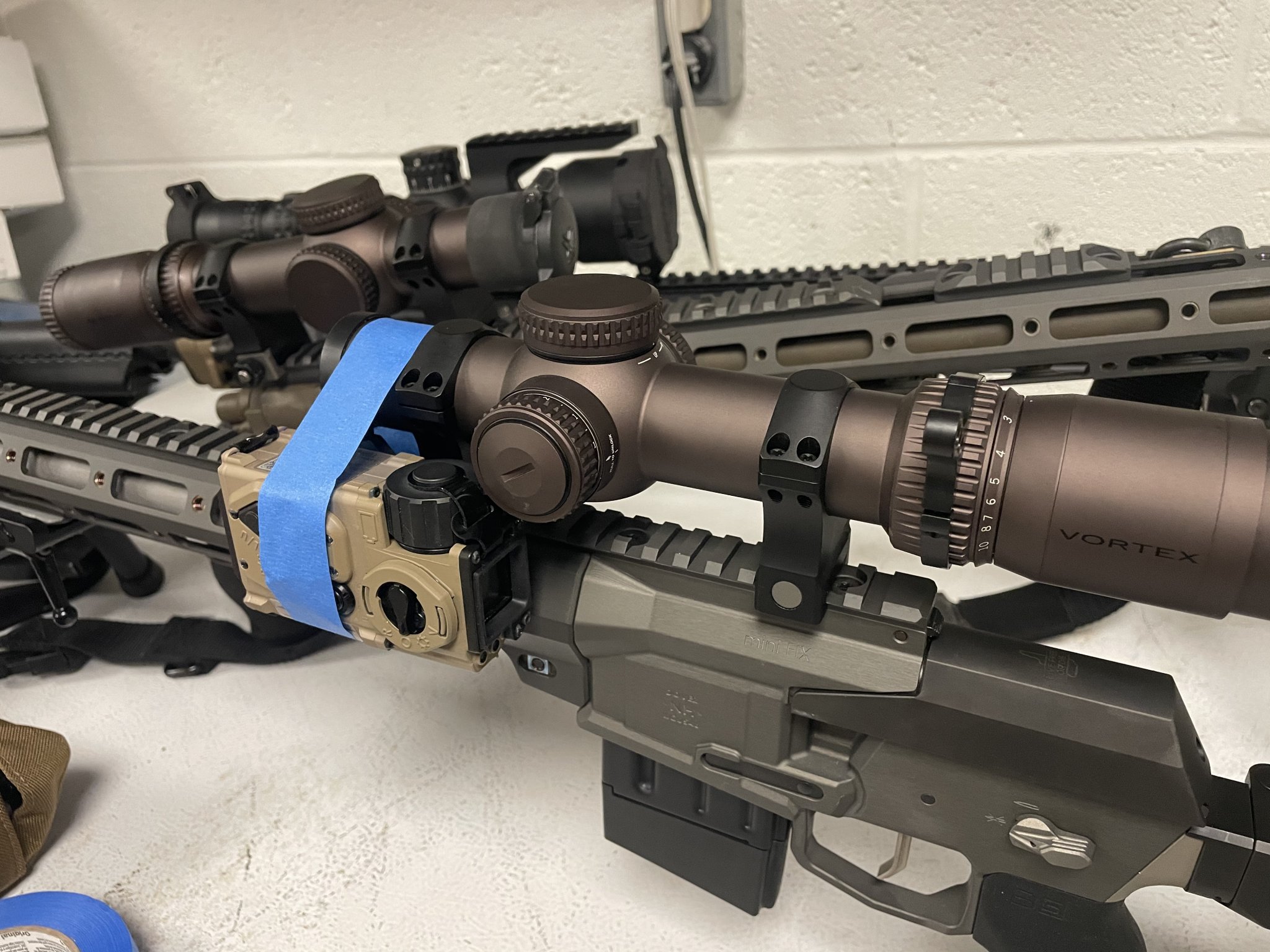

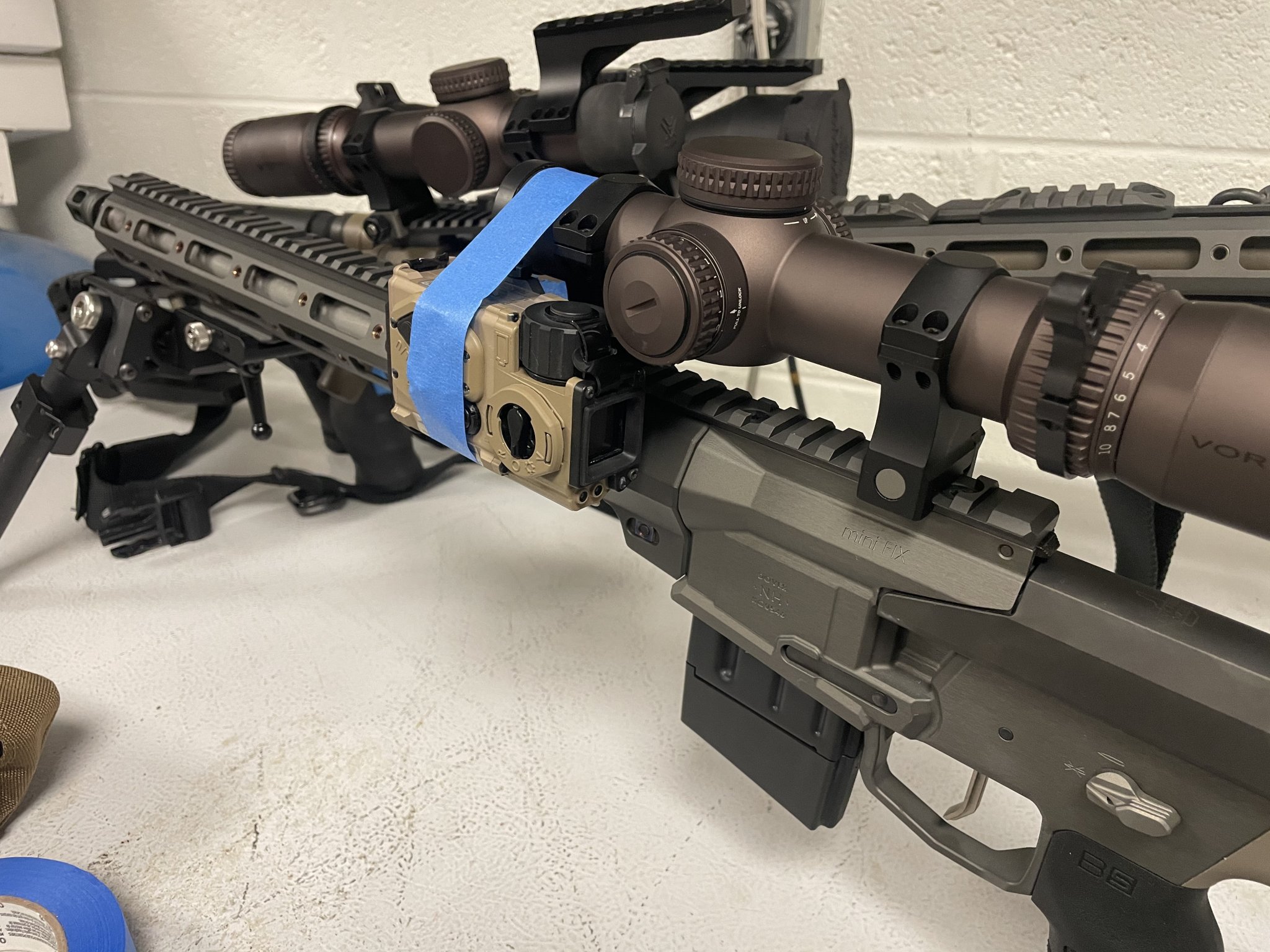

View attachment 8492148View attachment 8492150View attachment 8492151


Anyone doing this ?
Am I missing something ?

Problem with side mount is the zero offset that can cause issues depending on target size, distance, and beam divergence... Def less fuss top mounted
