The AR15 Picture Thread

[jumrobe]

Current competition setup:

-18” Criterion CORE
- ADM upper
- ADM lower
- CMT 15” handgaurd
- Trijicon Credo 2-10x36
-Griffin RECCE 5



[806guns]

Very nice… Is that a 4600 series Deere? The intake is throwing me off, having trouble IDing it.

4440 john deere



[Necessary 3vil]

Details moved to a different thread.



[IWillNotComply]



[21bto11b]

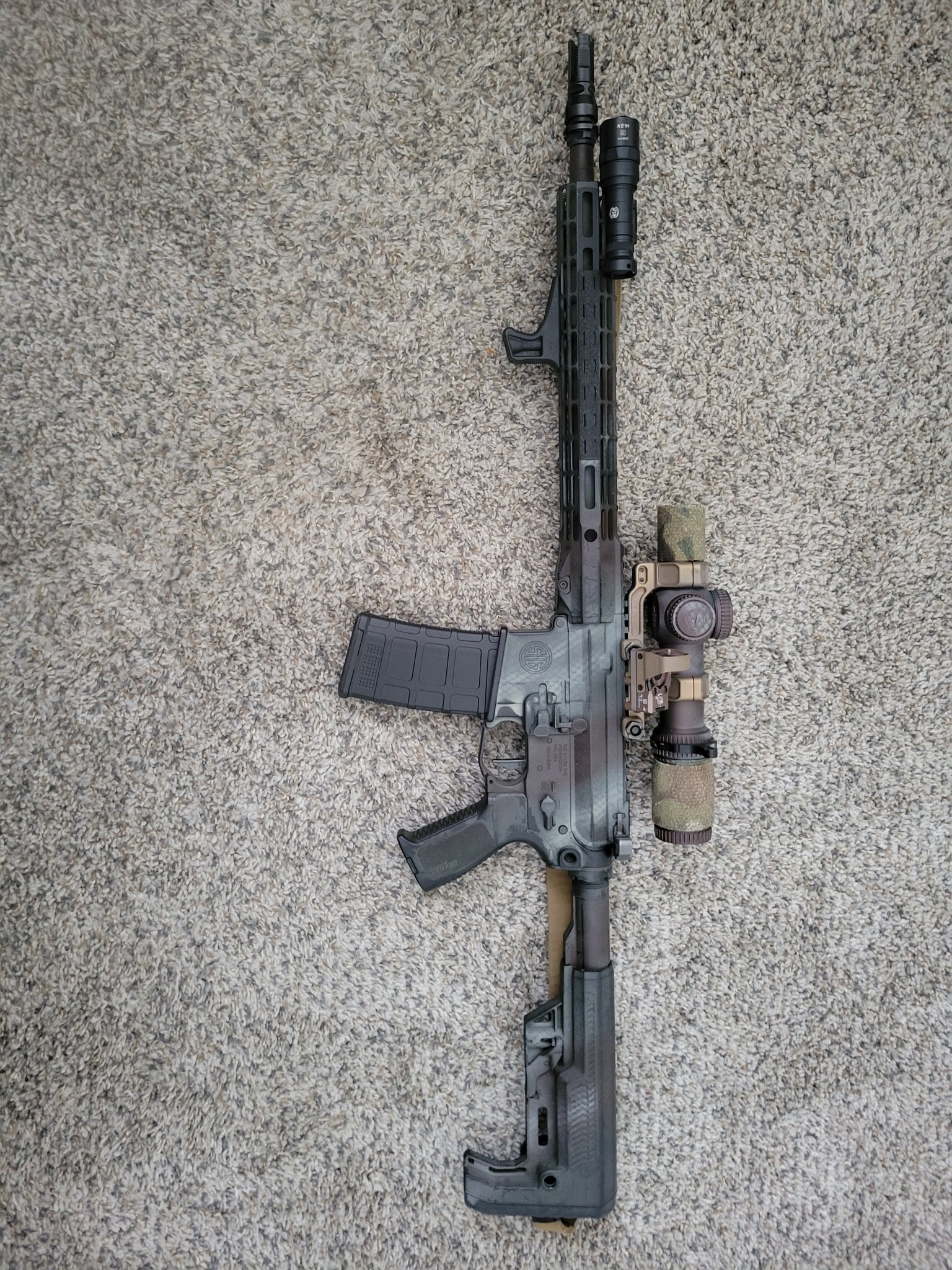

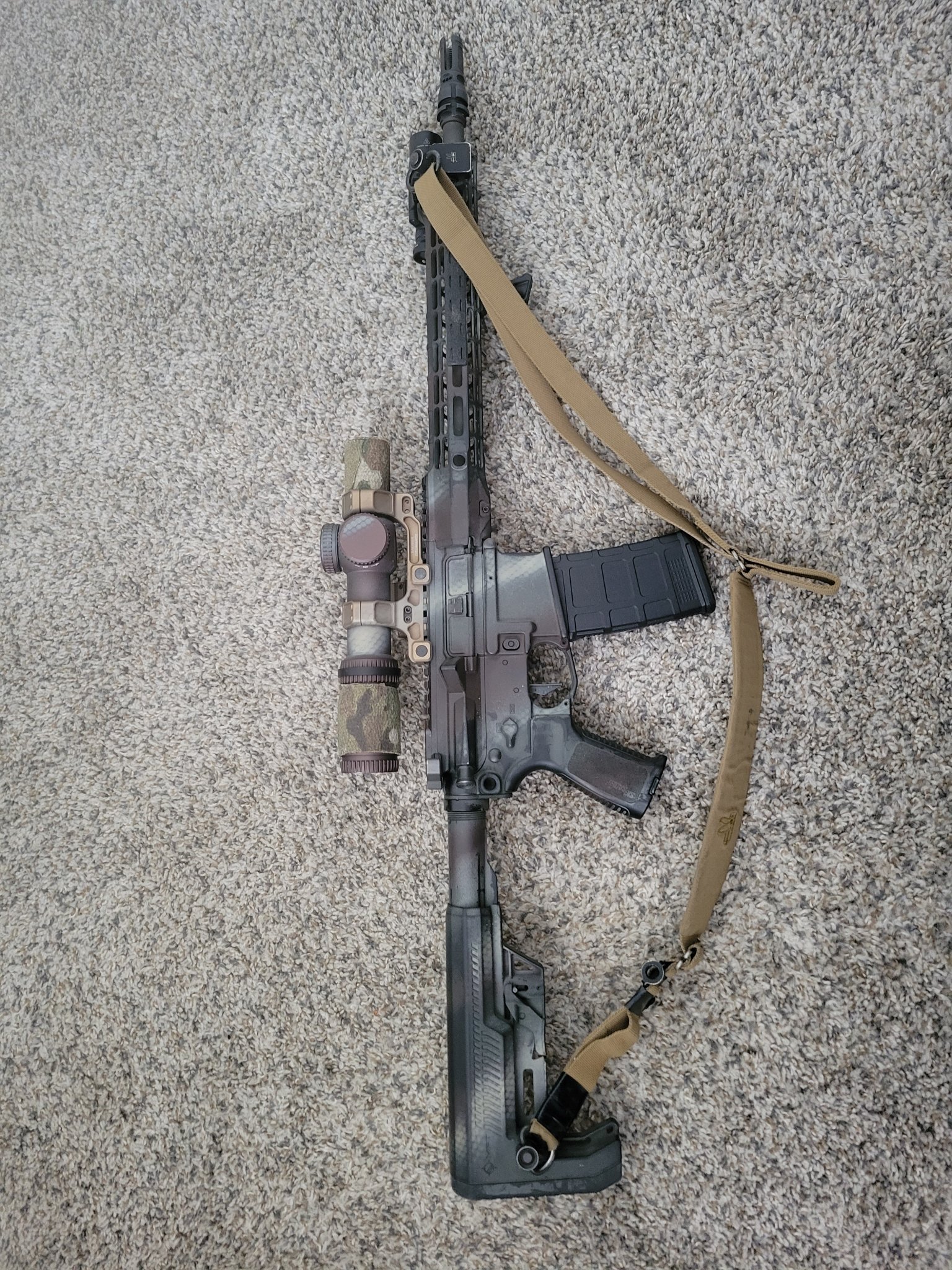

Figured I would throw in my Recce build for Ss and Gs.

Sig Lower (I'm a lefty and the ambi controls are super nice and still low profile. I've found some of the other lowers ambi lower controls stick out a little too far and are prone to snag. Sig built the receiver around the controls so they are essentially snag free.
The trigger is the Geissele SD-3. You just can't go wrong with a Geissele.
Upper is an Aero M4E1 14.5 Upper with SOLGW NOX break. Threw in a JP BCG and JP captured buffer. The buffer was the best $80 dollars I've ever spent. That action is smooth as glass. Radian Raptor SD charging handle to mitigate some of the gas blowing back in my face when I run it suppressed. Also have an MFT butt stock. I am not sure that I like it to be honest. It has a tendency to get caught in my gear if I am wearing a chest rig. I have seen people tie some paracord onto it to bridge that gap, but that just seems like extra work for an additional failure point.

Optics are Vortex Razor Gen 3 on a 1.73 Badger Ordinance mount with a 6 MOA DPP on a 45 degree mount. I had 3 MOA that worked great as well, but I didn't need that fine of a dot for this set up as I don't use it for anything beyond 50m. If the target is that far out im transitioning to my primary optic. The 3MOA went on one of my pistols.

Light is just a SF scout. I use to have a Unity Fast Button but it just took up unnecessary space and with my grip on the rifle my thumb activates the pressure switch with ease.

I use the Haley Strategic sling. I know there are probably better options but I've used this exact sling on all of my rifles when I was in. (M4, M14EBR, and M2010) and its just powered through and held up nicely.

I can get .75" groups out of it at 100 using good ammo and I've gotten consistent dope out to 1K with this rifle using 77gr Sierra MKs (and good weather) As we all know, the extra 5.5 inches on a DMR build makes a hell of a difference when stretching your legs beyond 500.



[greg1147]

Figured I would throw in my Recce build for Ss and Gs.

Sig Lower (I'm a lefty and the ambi controls are super nice and still low profile. I've found some of the other lowers ambi lower controls stick out a little too far and are prone to snag. Sig built the receiver around the controls so they are essentially snag free.
The trigger is the Geissele SD-3. You just can't go wrong with a Geissele.
Upper is an Aero M4E1 14.5 Upper with SOLGW NOX break. Threw in a JP BCG and JP captured buffer. The buffer was the best $80 dollars I've ever spent. That action is smooth as glass. Radian Raptor SD charging handle to mitigate some of the gas blowing back in my face when I run it suppressed. Also have an MFT butt stock. I am not sure that I like it to be honest. It has a tendency to get caught in my gear if I am wearing a chest rig. I have seen people tie some paracord onto it to bridge that gap, but that just seems like extra work for an additional failure point.

Optics are Vortex Razor Gen 3 on a 1.73 Badger Ordinance mount with a 6 MOA DPP on a 45 degree mount. I had 3 MOA that worked great as well, but I didn't need that fine of a dot for this set up as I don't use it for anything beyond 50m. If the target is that far out im transitioning to my primary optic. The 3MOA went on one of my pistols.

Light is just a SF scout. I use to have a Unity Fast Button but it just took up unnecessary space and with my grip on the rifle my thumb activates the pressure switch with ease.

I use the Haley Strategic sling. I know there are probably better options but I've used this exact sling on all of my rifles when I was in. (M4, M14EBR, and M2010) and its just powered through and held up nicely.

I can get .75" groups out of it at 100 using good ammo and I've gotten consistent dope out to 1K with this rifle using 77gr Sierra MKs (and good weather) As we all know, the extra 5.5 inches on a DMR build makes a hell of a difference when stretching your legs beyond 500.

Is the mag release by SIG, I have tried a couple of others Forward Controls, can't recall the others. FC seems to be my preference on a similar
rifle but pricey $$.



[21bto11b]

Is the mag release by SIG, I have tried a couple of others Forward Controls, can't recall the others. FC seems to be my preference on a similar
rifle but pricey $$.

Yes the lower was actually off of a Sig M400. I bought the whole rifle a number of years back and hated the upper so I put that on my sons rifle. The lower is great and has solid lock up with both Pmags and STANAG magazines. I highly recommend it for a lefty.



[81STFACP]

Disregard



[TCKev]

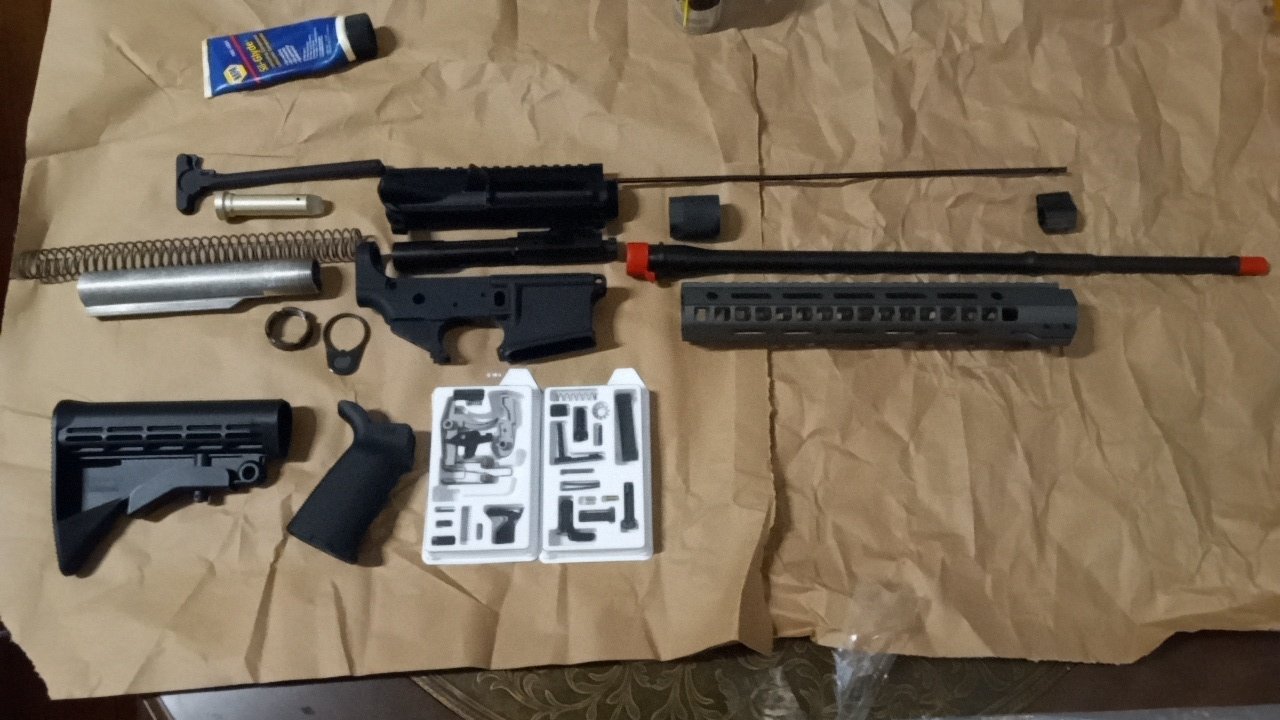

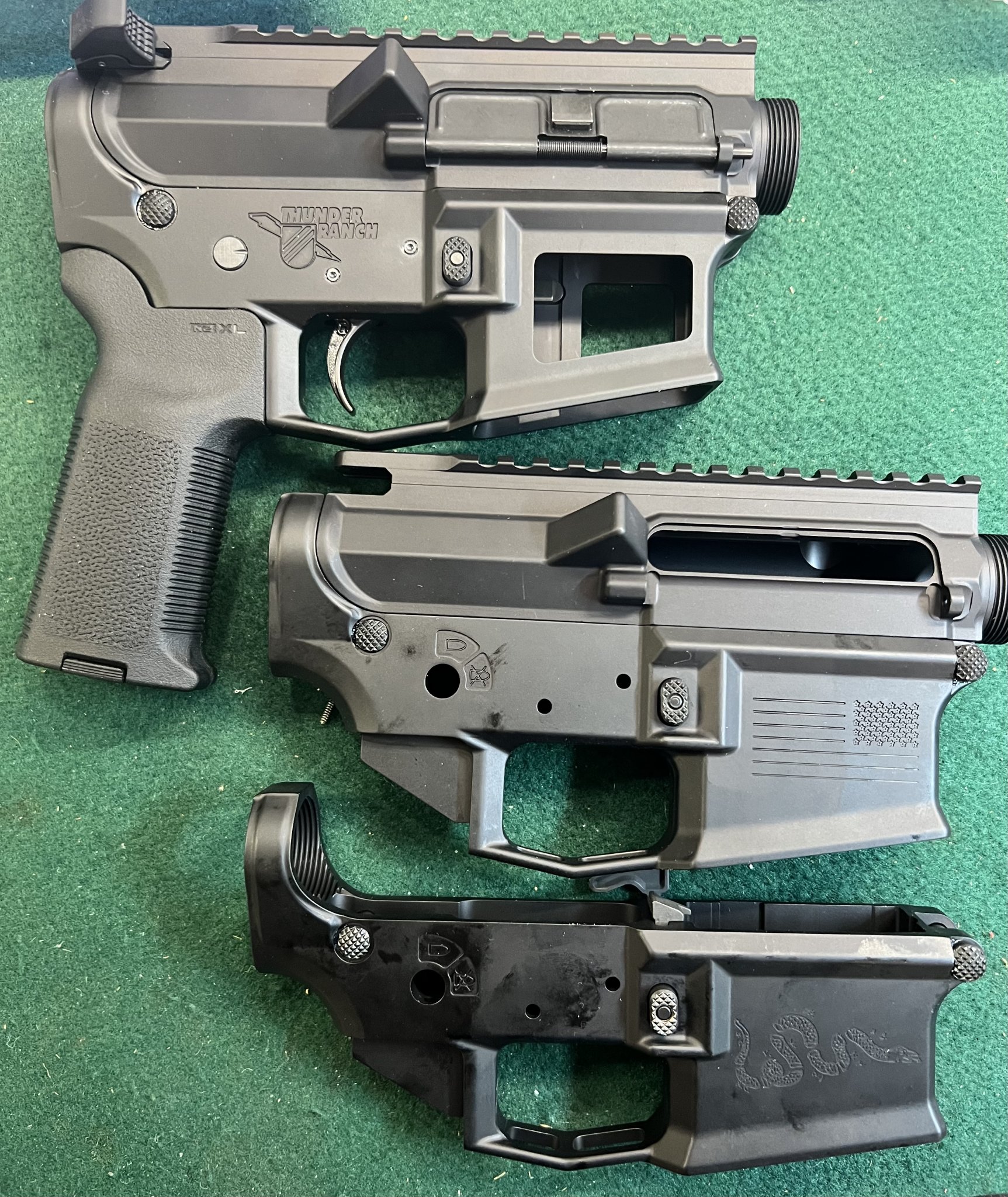

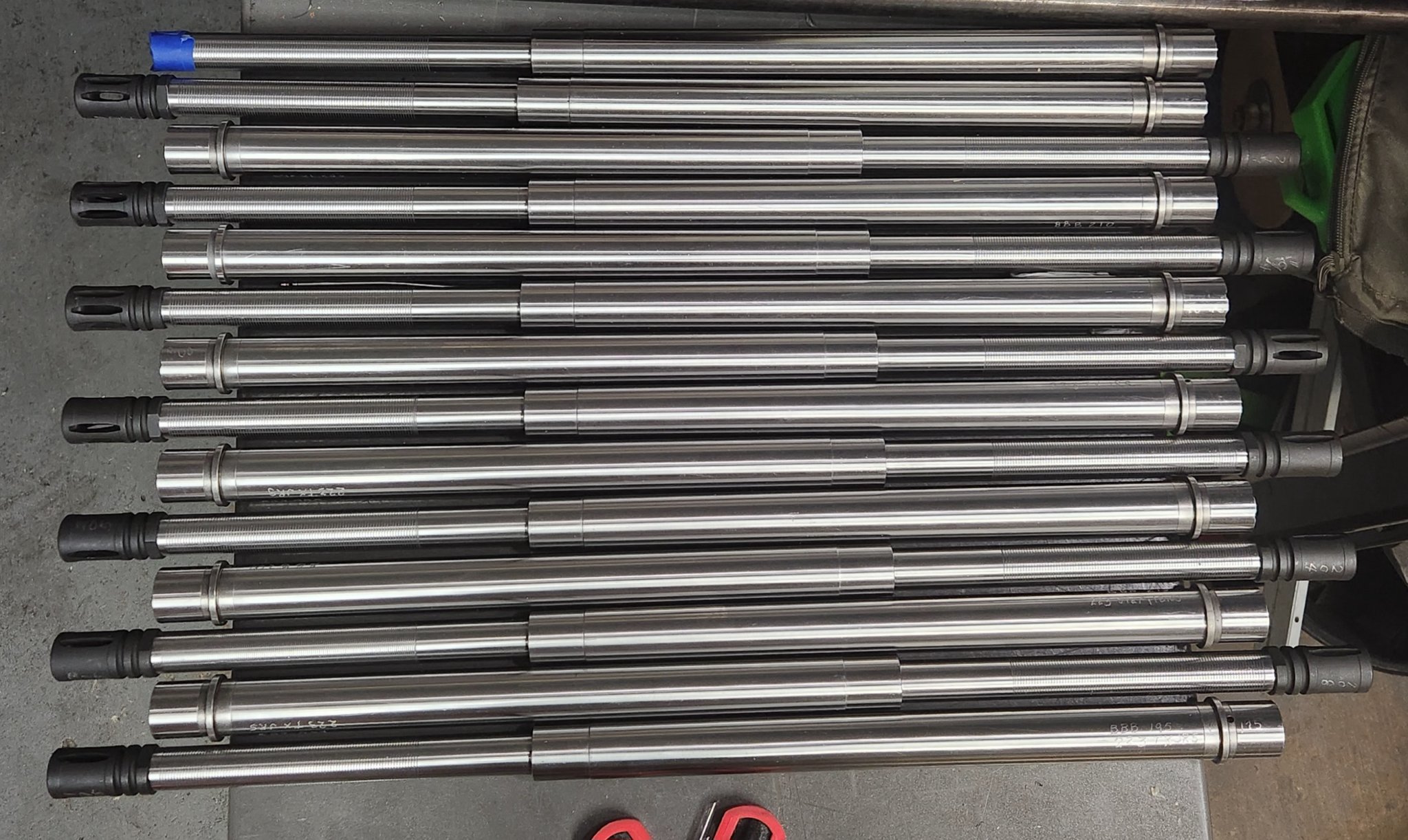

Different stages of the build process.



[MSTN]

I believe the optimum long range performance per pound is achieved with a lightweight yet sturdy 18" Proof CF barrel 6mm ARC build. This rifle, even with heavier buttstock and pistol grip, still comes in at 6 LB 10 OZ. With Hornady factory ammo, accurate 1000 yard shots are quite achievable.



[benchmstr]

I believe the optimum long range performance per pound is achieved with a lightweight yet sturdy 18" Proof CF barrel 6mm ARC build. This rifle, even with heavier buttstock and pistol grip, still comes in at 6 LB 10 OZ. With Hornady factory ammo, accurate 1000 yard shots are quite achievable.

What mags?



[MSTN]

Duramag.



[Seadweller23]

First rifle since my Army days back in the late 80’s…



[BigBabyMoses06]

Love seeing all these high end builds. Here's something a little different.

Snagged this super cheap complete upper last week from SAA. $260.
Threw on some MI sights and a spare radian CH I had to replace the basic one.



[BigBabyMoses06]

And my fde/brown/tan build reconfigured.



[Tex68w]

LMT monolithic quad rail upper and Proof Research carbon fiber goodness.



[On-the-Bayou]



[PBWalsh]

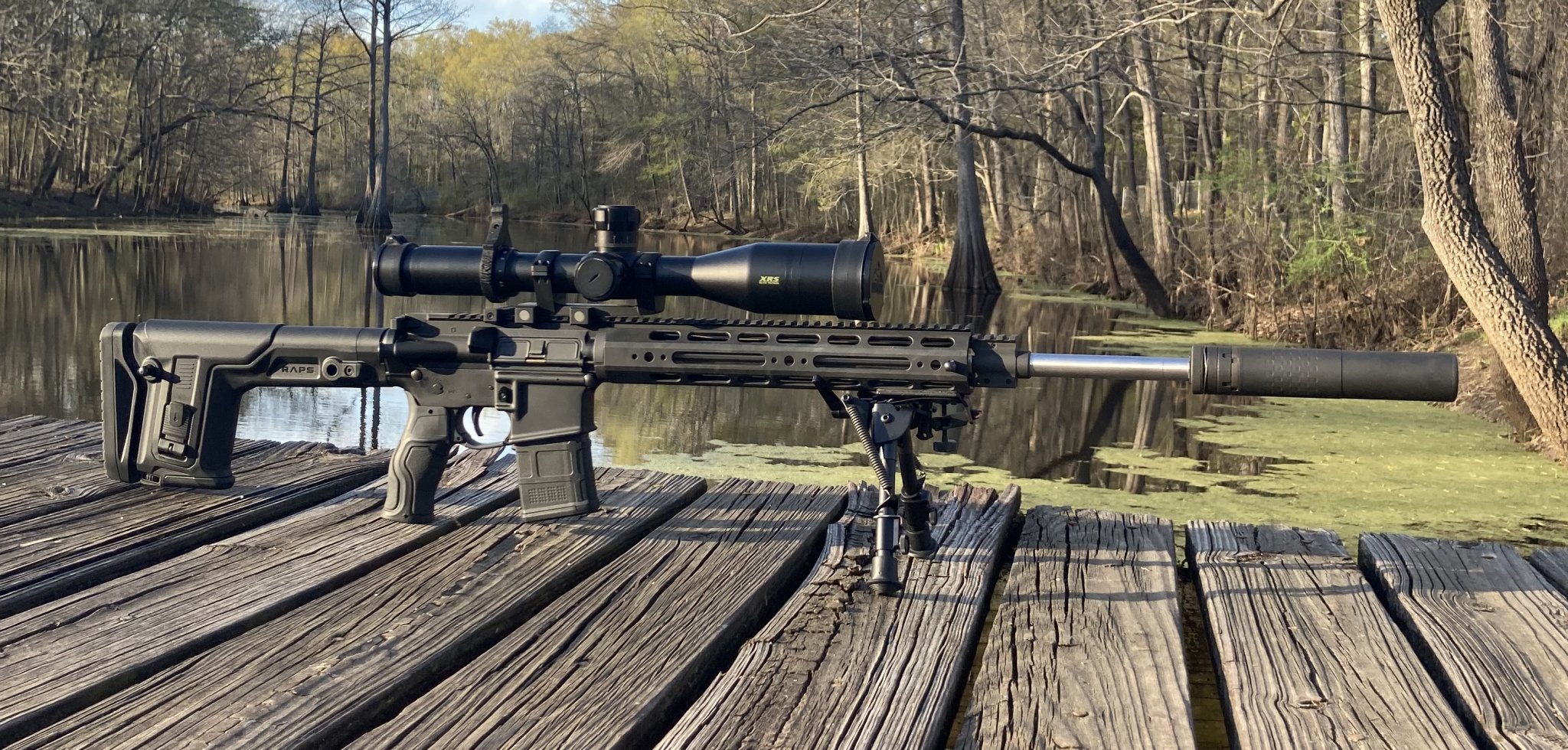

View attachment 8090015

Hows the stock working for you?



[On-the-Bayou]

Hows the stock working for you?

No complaints.



[Friendlyghost0211]

14.5 build



[Bullfrog08]

This whole thread will make you happy! So many nice guns. I’ll add mine in I guess.
Mega MML set 5.56, BCM bcg, Geissele Sd-e, proof stainless barrel, Steiner T6xi. It loves 77 SMK’s.

Whats the zoom factor on your scope?



[Friendlyghost0211]

Whats the zoom factor on your scope?

1-6



[B Man]

Whats the zoom factor on your scope?

2.5-15



[Bullfrog08]

2.5-15

I thought it might be. Opinions?



[B Man]

I thought it might be. Opinions?

It checked every box I wanted in a scope except I’d liked it a few ounces lighter. It’s lived up to what I wanted. Very crisp clear image from bottom to top, good eye box, nice FOV, perfect tracking since setting my zero about 4 months ago and running it out to 700 yards and back many times (as it should be), turrets unlocked are the type you would want even without locks, they have some resistance but not to much, audible but could be more for some folks but definitely easily heard. Also pulls in a lot of light as dusk/dawn and illumination is perfect in low light situations but is not daylight bright unless overcast or shaded areas.



[joe777]

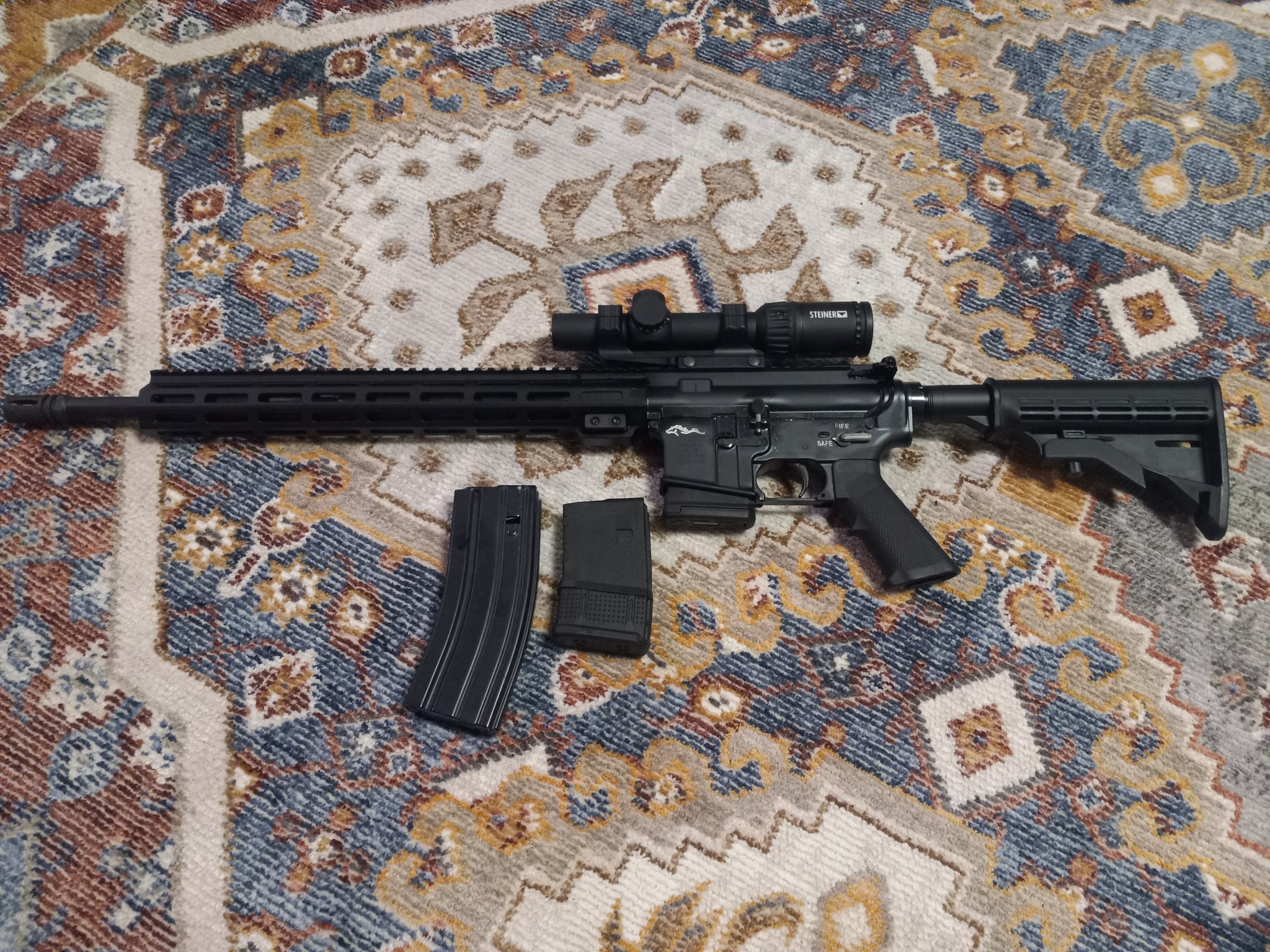

I want to like this 10-rd mag for riding in the truck but its been causing jams on me.



[Arevalosocom]

20" Gas piston



[Necessary 3vil]

20" Gas piston

How’s it run, what caliber, and accuracy? I’ve thought about a 20” piston build with 6ARC…



[Arevalosocom]

Superlative gas piston kit. 556. Fantastic steel plate vibe cheker. Light weight too.



[joe777]

Superlative gas piston kit. 556. Fantastic steel plate vibe cheker. Light weight too.

What scope? Looks lightweight.



[Arevalosocom]

What scope? Looks lightweight.

VCOG 1-8



[TheHorta]

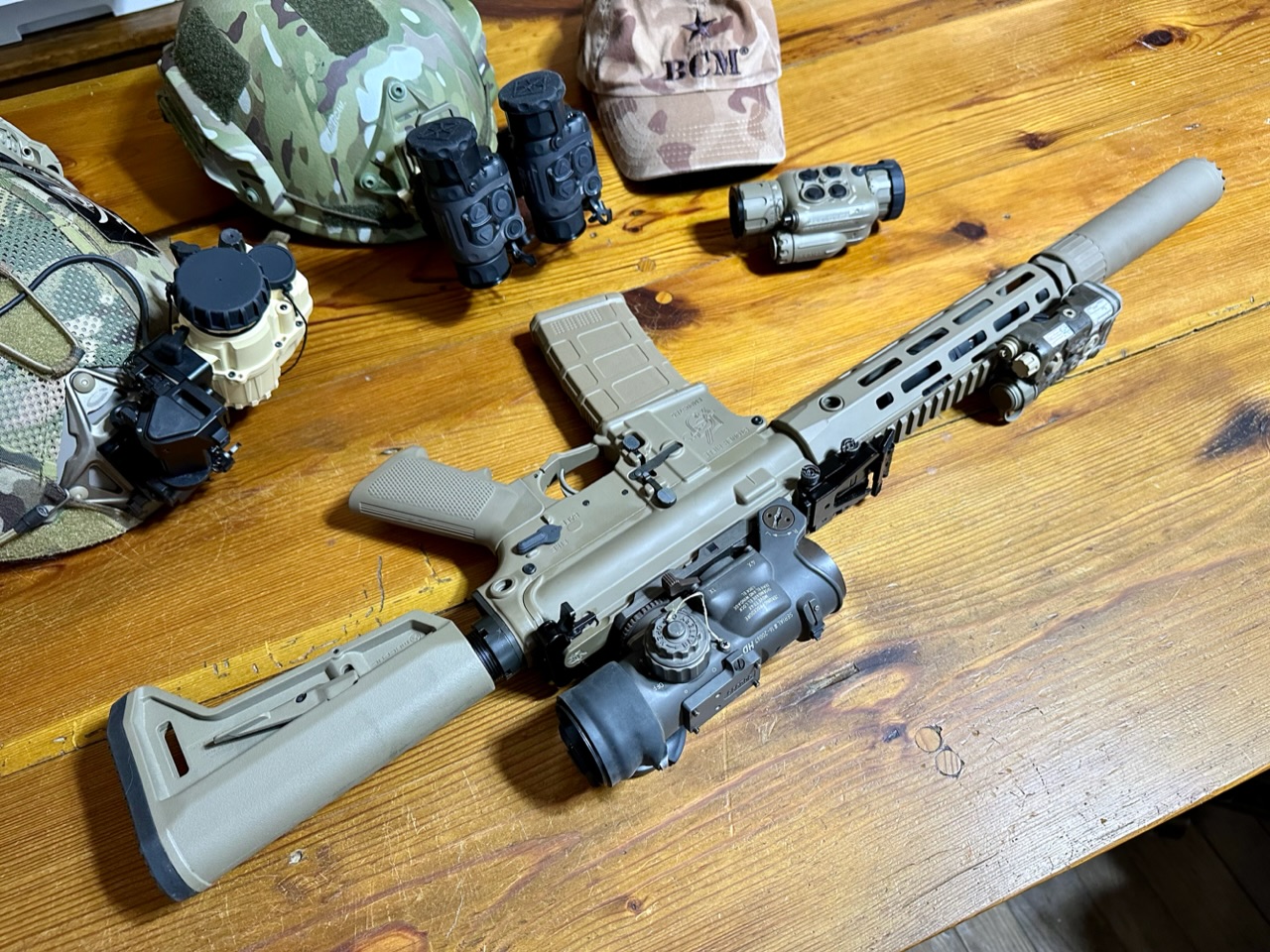

KAC SR-30 9.5” with HUXWRX HX QD 7.62 Ti, Elcan 1/4x, and NGAL with Voodoo-S thermal clipon — .300BO subsonic sweetness!



[GordonFreeman]

Absolute titties^



[B Man]

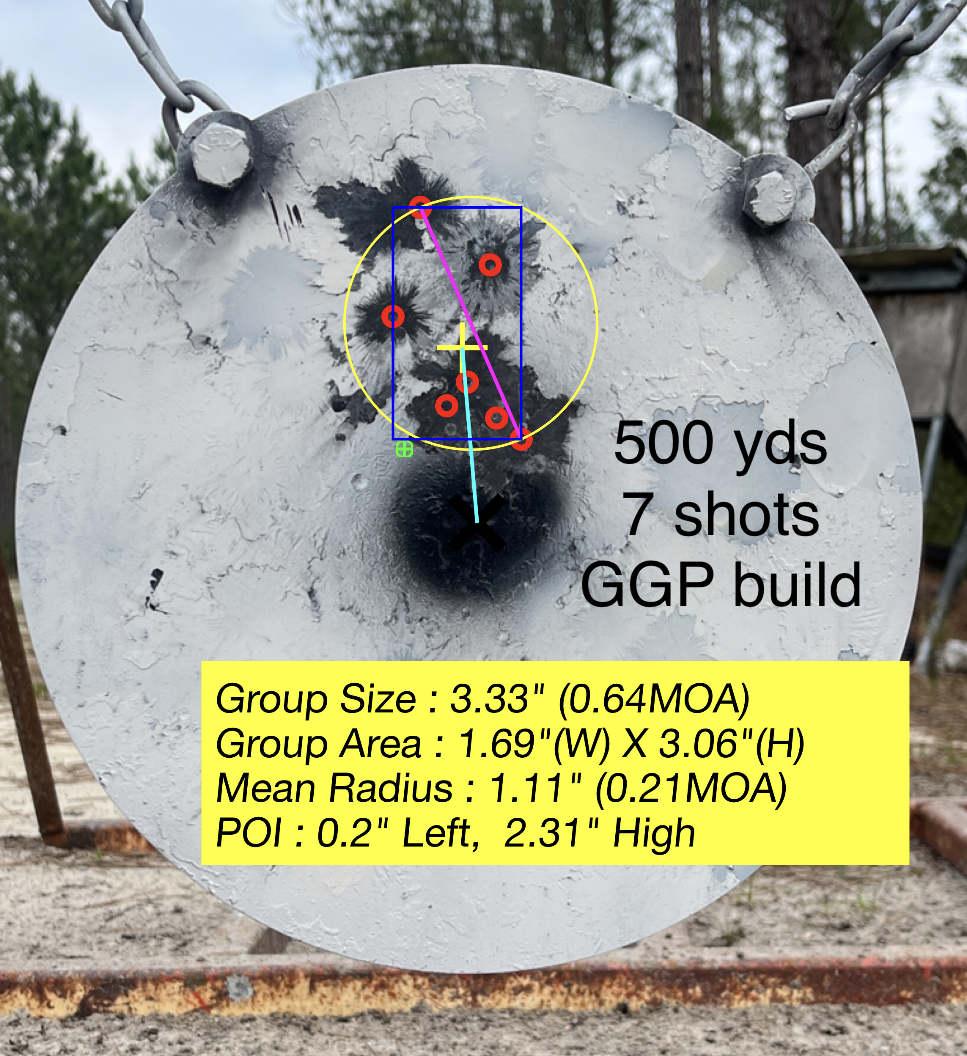

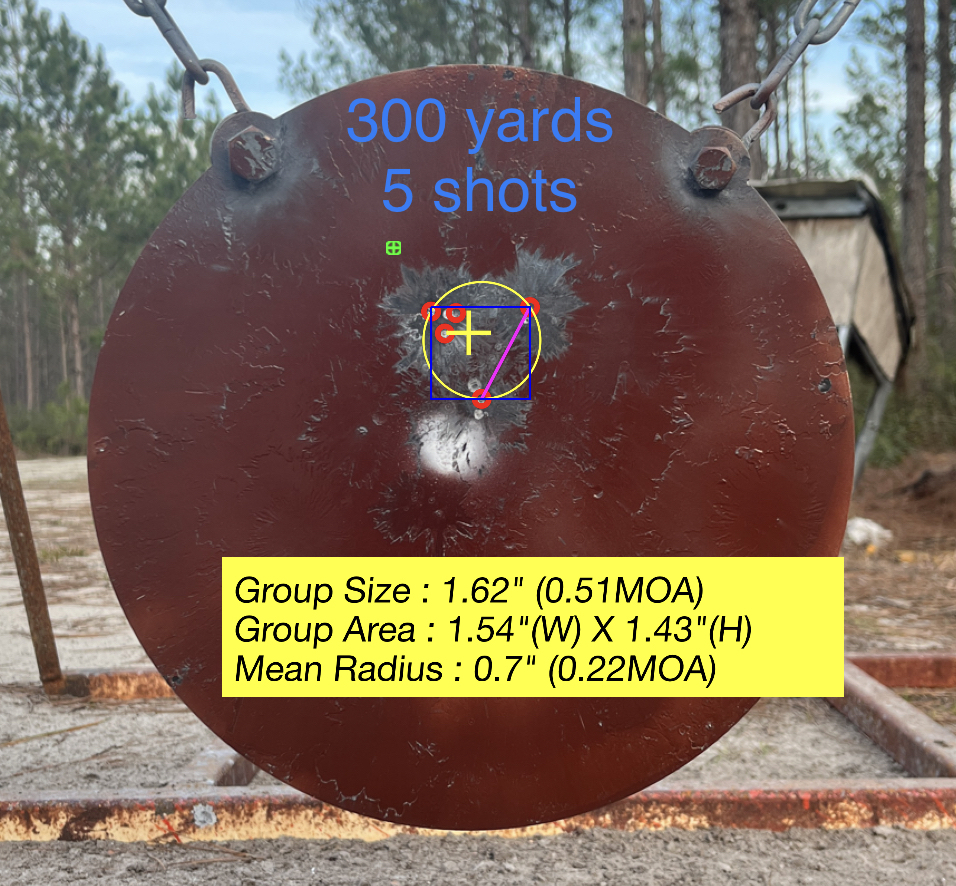

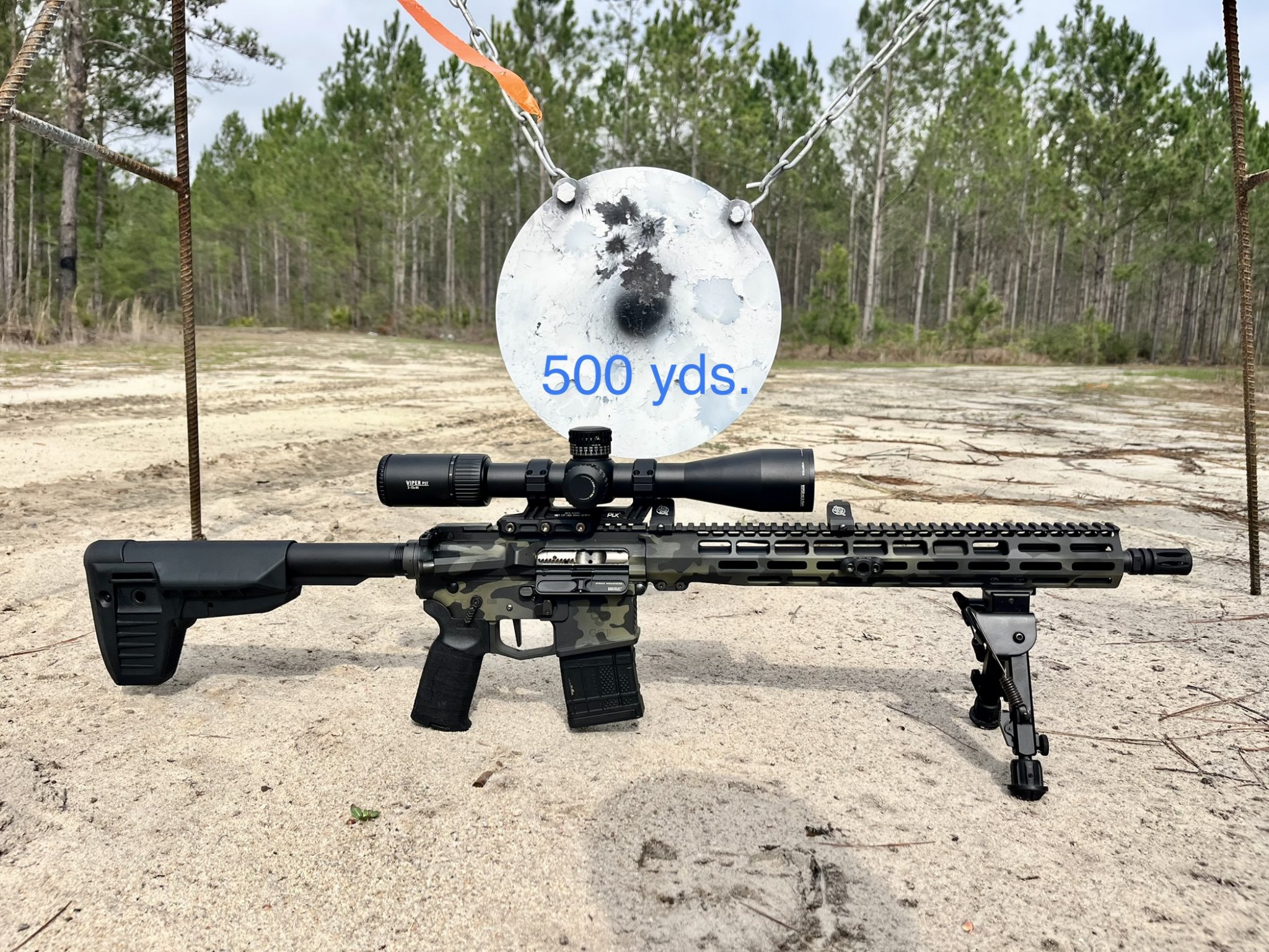

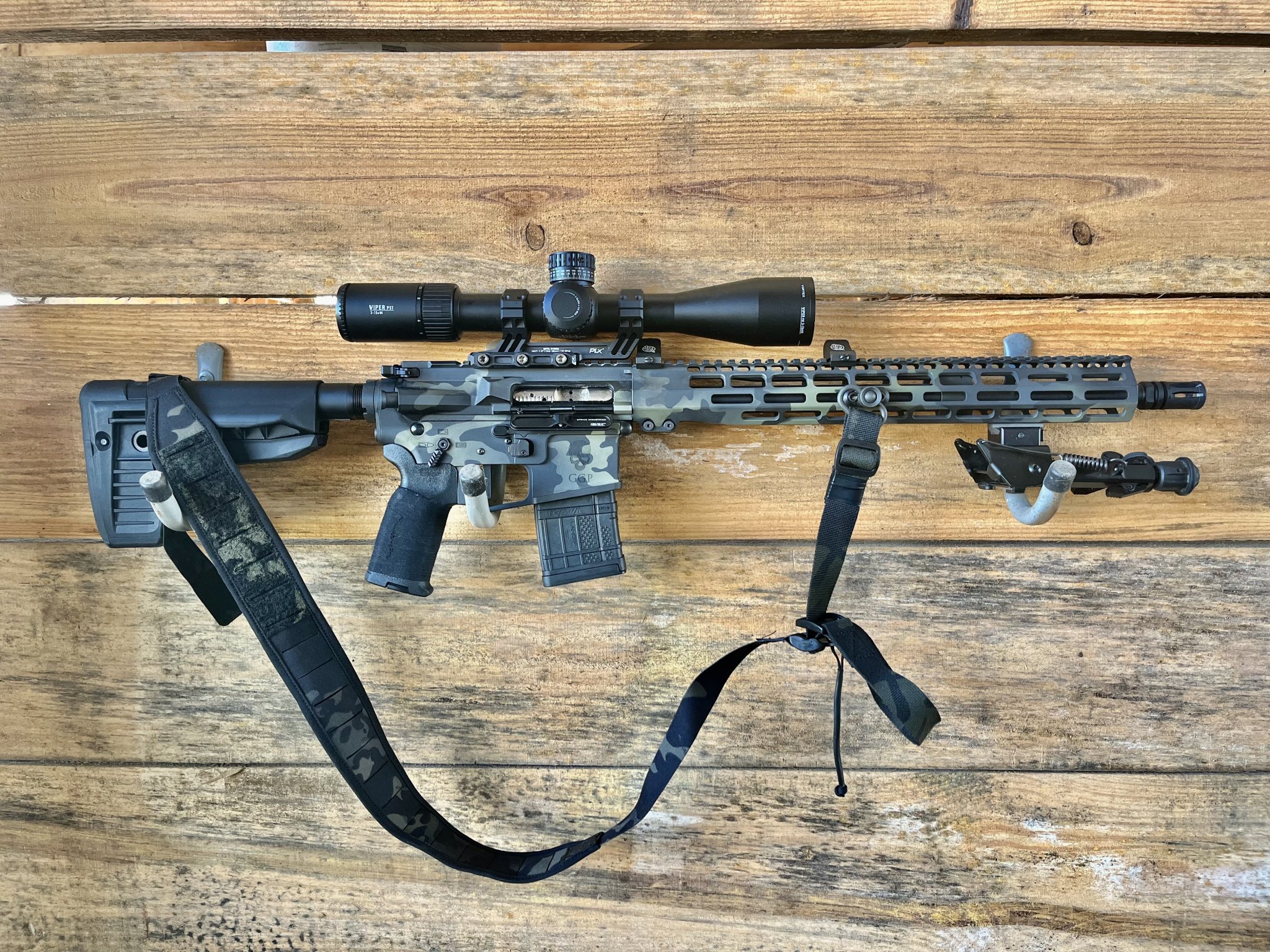

Tested out some loads for my GGP builder kit with a CLE Douglas 16” tactical barrel, Vltor A5 buffer system, Larue mbt2-s trigger(was running a blackout defense 3lbs I pulled), CMMG Zeroed Ambi Lpk.



[Mag44579]

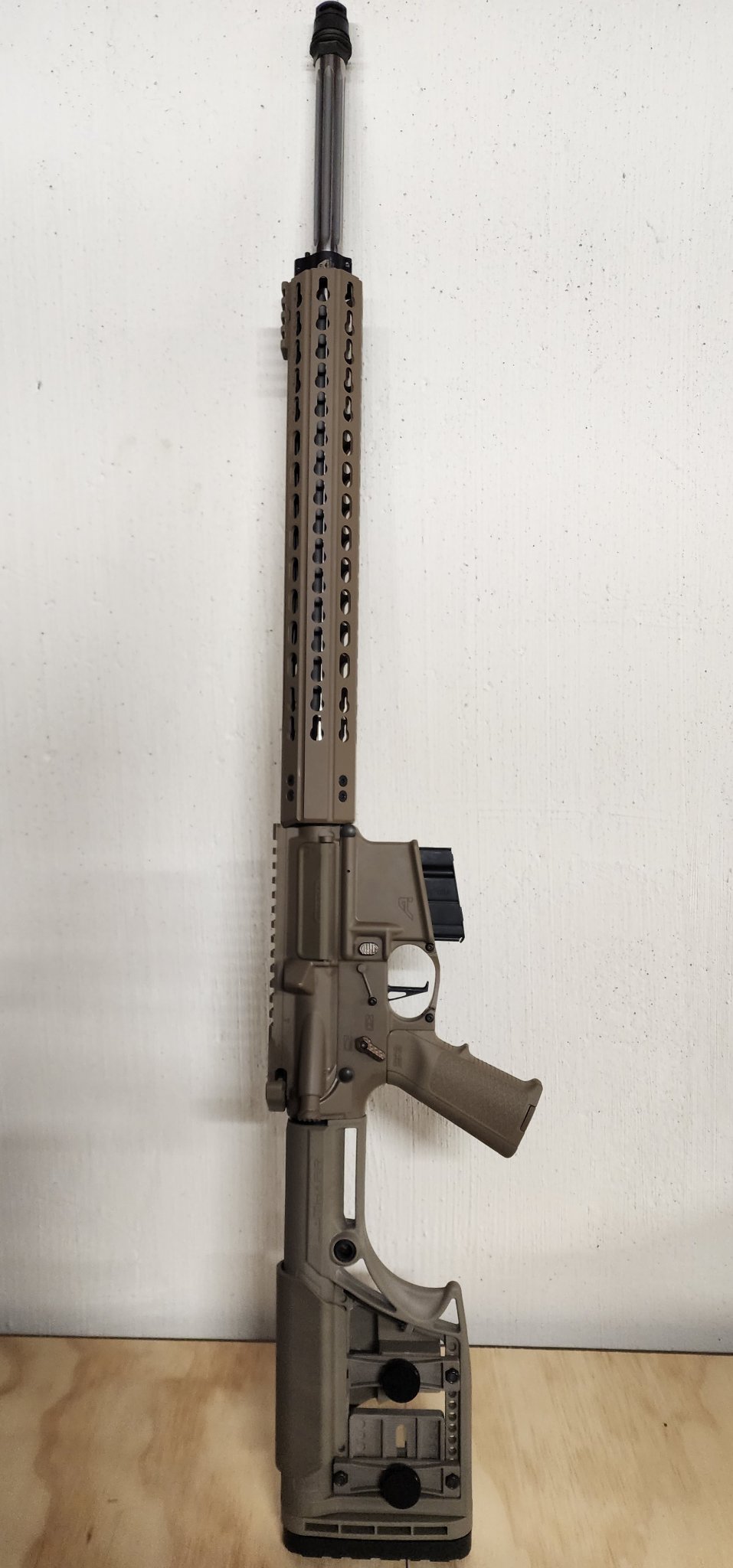

Been in the making for quite some time but it's finally put the 6mm ARC together! Aero Percision upper/lower & handguard, 22" Rainier ultramatch, Luth AR stock, Voodoo LW carrier w/ JP bolt, CMC trigger, and superlative gas block. Now time to slap on an optic and head out to the range.... as soon as it quits being so damn cold. Lol



[B Man]

Been in the making for quite some time but it's finally put the 6mm ARC together! Aero Percision upper/lower & handguard, 22" Rainier ultramatch, Luth AR stock, Voodoo LW carrier w/ JP bolt, CMC trigger, and superlative gas block. Now time to slap on an optic and head out to the range.... as soon as it quits being so damn cold. Lol
View attachment 8100514

Like to know how it shoots when you do get out. I have two Rainier UM barrels in two other calibers, been curious about it in a 6arc. And yes, I’m done with winter myself for the year!



[S197]

Tested out some loads for my GGP builder kit with a CLE Douglas 16” tactical barrel, Vltor A5 buffer system, Larue mbt2-s trigger(was running a blackout defense 3lbs I pulled), CMMG Zeroed Ambi Lpk.

View attachment 8100429View attachment 8100428View attachment 8100430View attachment 8100431

Was that the 16” Douglas that was on sale?



[B Man]

Was that the 16” Douglas that was on sale?

Yes it was. I just had them cerakote it black. Very impressed for the money! Shoots very close to my Proof.



[S197]

Yes it was. I just had them cerakote it black. Very impressed for the money! Shoots very close to my Proof.

Fuc, I knew I should have bought one.



[joe777]

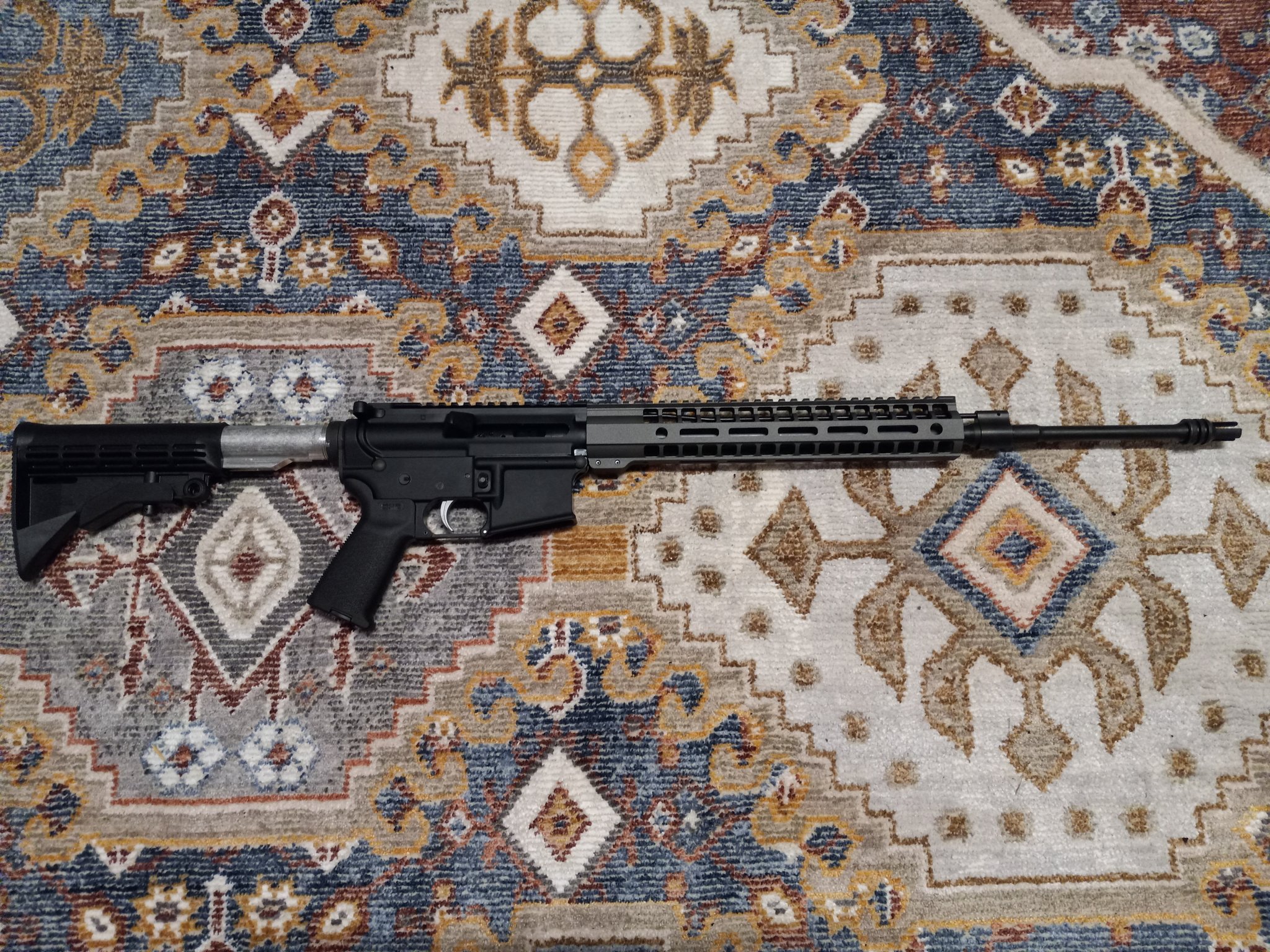

Just finished this 20" experimental bastard child last night.



[BigBabyMoses06]

New scope and mount. Trying out the 1.93 height. Really enjoying larping around with it.

ADM 1.93 mount and the new PA Nova 1-6.



[Shooter McGavin]

New scope and mount. Trying out the 1.93 height. Really enjoying larping around with it.

ADM 1.93 mount and the new PA Nova 1-6.

I have a hard time with scopes that high as I like to shoot in the prone. I don't mind it red dots as I use them on SBRs and more standing while I shoot. I did put a red dot above one of my scopes, still seeing if I like it.



[PBWalsh]

I have a hard time with scopes that high as I like to shoot in the prone. I don't mind it red dots as I use them on SBRs and more standing while I shoot. I did put a red dot above one of my scopes, still seeing if I like it.

Prone ain‘t hard with a 1.93, at least not when I had one. But everyone’s body is different.



[TonyTheTiger]

the new PA Nova 1-6.

How are you liking it? Reviews so far make it sound pretty great for a budget optic.



[BigBabyMoses06]

So far I really dig it. And the 1.93 is super comfortable in all positions for me.

Immediate takeaway is that it's very clear, but eye box is NOT as forgiving as the PST II. Not bad by any means, just not quite as forgiving. Red dot is incredibly bright if you need it.

Pretty incredible it's only a $500 optic/mount combo (on regular sale prices). You could do even better money wise with a cheaper but just as good Warne mount.

Here are better pics.



[PBWalsh]

@BigBabyMoses06

Those are some crispy pictures!



[BigBabyMoses06]

@BigBabyMoses06

Those are some crispy pictures!

Thanks! The first shots of this rifle from earlier I was being super lazy lol. Decided to whip out the strobes and do it right.



[PBWalsh]

@BigBabyMoses06
Strobes? Is that how you it all white in the background or via an editing software?



[BigBabyMoses06]

@BigBabyMoses06
Strobes? Is that how you it all white in the background or via an editing software?

So, for this shot I used a 600w flash bouncing the light off my white loft ceiling to properly lighting the front portion of the rifle. I used a 300w light behind the rifle, to wash out the white wall as best as possible and fill in any shadows caused by the front flash. Minimal editing. Here's the original jpeg out of the camera. I edited the raw photo.

The original picture I took I used a single 100w on camera flash which was not nearly enough to make the wall white enough, and I had to edit the picture heavily with some software and still couldn't get the background white without really mucking up the picture. The white wall works really well for me but I'd love to get some nicer backdrops too.

Inspiration from instagram.com/gregskazphotography and of course instagram.com/stickgunner/



[PBWalsh]

So, for this shot I used a 600w flash bouncing the light off my white loft ceiling to properly lighting the front portion of the rifle. I used a 300w light behind the rifle, to wash out the white wall as best as possible and fill in any shadows caused by the front flash. Minimal editing. Here's the original jpeg out of the camera. I edited the raw photo.

The original picture I took I used a single 100w on camera flash which was not nearly enough to make the wall white enough, and I had to edit the picture heavily with some software and still couldn't get the background white without really mucking up the picture. The white wall works really well for me but I'd love to get some nicer backdrops too.

Inspiration from instagram.com/gregskazphotography and of course instagram.com/stickgunner/

Thanks for the details! I feel fancy and artisty when I find good lighting outside and throw it in Lightroom for editing.
