This is a 4 shot group at 1120 with the 338 ackley improved and fire forming loads, 95 grs of rl33 and 300gr Bergers
This is a 4 shot group at 1120 with the 338 ackley improved and fire forming loads, 95 grs of rl33 and 300gr Bergers
Another Omar Alonzo build that shoots decent.
Yea the 300 Norma shot a lot better than the 338 did past 1600 which was a little bit of a surpise, we had 6 straight hits at 1920 on a man size target, 89grs of rl33 and 230hybrids at 3050
I'm really looking into a 300 Norma. I think its the round for me. Anyone really wish they would have went another route other than this one. Its looks almost too good to be true.
Nope I have a 338 lapua ai and two 300 Norma's and I enjoy shooting the Norma way more, love my lapua but I can't shoot it all day, after about 30 rounds I get bad headaches, but the Norma I can shoot all day
The 230 and RL33 in your 300 norma may be hard to beat with the results you have been getting.
I also have a 338 lapua Ackley and I am in the process of building a 300 Norma. As David said earlier the 338 beats the shit out of your shoulder with recoil and face with the percussion off the muzzle break but the Norma is a gentle beast in comparison. Also when we shot them side by side I actually think the Norma out performed the 338 granted we were shooting fire forming loads in it.
Scotty, do you happen to know the load data on that 300 Norma, and I agree, the 300 Norma is surprising and impressive. Thanks
The load we were shooting in David's 300 Norma (which hammers btw I posted a pic of a 5 shot group a few pages back at 400 yards basically one splatter mark) was 89gr of reloader 33 with the 230gr berger hybrids out of a 30in tube at around 3150fps. He can chime in and correct me if I'm wrong on fps.
Any idea what kind of case fill he's getting? I have a 40° Improved and run H570. Only get ~85% case fill and would like to switch to a bulkier powder.
Hmm no I don't have any idea on case fill. I don't have my 300nm yet do I'm not loading for it. I'm sure he will chime in and can answer your question
I'm not sure on the case fill on my 300norma or my 300 Norma ai but I will find out tomorrow for you if I had to guess around 90% on the Norma, during load development I went all the way up to 93 gr of rl33 and no pressure signs but I started to get a different poi so I went back down to 89 which was in the middle running 3050, with 215 hybrids I'm running 92grs of RL 33 at 3157
What is your coal and barrel length? I am having one built and I'm planning on shooting the 230's and 215 Bergers and am trying to get a feel for the cartridge based on actual results rather than just quickload
Sent from my iPhone using Tapatalk
My coal is 3.6
230's - 89grs RL33 at 3050
215's - 92grs RL33 at 3150
30" barrel
My other Norma has a 26" barrel
3.6 coal
230's 86 grs retumbo at 3020
215's 89 grs retumbo at 3130
230's - 89grs RL33 at 3050
215's - 92grs RL33 at 3150
30" barrel
My other Norma has a 26" barrel
3.6 coal
230's 86 grs retumbo at 3020
215's 89 grs retumbo at 3130
Last edited:
Did you ever figure out a way to do this? Anybody make a bigger bolt face?
If your ever in Houston give me a should and we can go shoot out to as far as you want, well at least to 3650 anyways, the Norma is badass and probably one of the most accurate guns I've ever shot and the most consistent gun I own, you definitely won't regret building one
sorry to interrupt guys...
26" 10.92tw rock bbl
got to do some banging with the 300NM this weekend.
230OTM COL 3.510
H1000 and Retumbo had rough bolt lift on almost ALL charges!
Retumbo
83-2847 hard bolt lift
84-2988 hard bolt lift
85-2974 not as bad?
86-3067 hard bolt lift
H1000
85gr-hard bolt lift-Quit on the H1000
RL33
84-2780fps
85-2797
86-2823 mild bolt snap up
87-2842 good
88-2899-great extract
89-2881
90-2943
91-3063 thats enough, hot
RL33
88gr x 3 -2909,2908,2905 2907AV ES 3.49 SD 2.0
89gr x 3 -2933,2947,2926 2735AV ES20.67 SD10.81
RL33 is clearly the winner through the crony!
settled at 88gr 2907fps ES-3.49 SD-2.0
loaded 25 or so for the range!
26" 10.92tw rock bbl
got to do some banging with the 300NM this weekend.
230OTM COL 3.510
H1000 and Retumbo had rough bolt lift on almost ALL charges!
Retumbo
83-2847 hard bolt lift
84-2988 hard bolt lift
85-2974 not as bad?
86-3067 hard bolt lift
H1000
85gr-hard bolt lift-Quit on the H1000
RL33
84-2780fps
85-2797
86-2823 mild bolt snap up
87-2842 good
88-2899-great extract
89-2881
90-2943
91-3063 thats enough, hot
RL33
88gr x 3 -2909,2908,2905 2907AV ES 3.49 SD 2.0
89gr x 3 -2933,2947,2926 2735AV ES20.67 SD10.81
RL33 is clearly the winner through the crony!
settled at 88gr 2907fps ES-3.49 SD-2.0
loaded 25 or so for the range!
Last edited:
Seems heavy bolt lift at 83gr H1000 seems weird, that's not that much not even yellow zone on QL, let alone anything near 60kpsi or the case max.
Hi all any more updates on anyone loading and shooting 300 Norma Mag since these replies?
Cheers
300 Norma
Cheers
300 Norma
I have been trying some 230 OTMs and H50BMG, Starting load is at 86 grains, FED 215s, .002 neck tension, COAL 3.530, 2800fps with a 25.5" barrel, 3.6 fps max spread velocity for three shots. Here's a couple photos, one is a 3 shot group at 340 yards, and the other was at 1100, 7.5 mill of elevation, nothing special, gives me a starting point.
Attachments
Last edited:
i wish they were? bullets were not jammed. they are setting on(at) a pushed out donought by the sizing button? I have a body die to trim cases and .311-.3115 neck reamer coming today from Wilson. FL sized cases loaded rounds were very easy to insert. Iwas suprised how tough the bolt lift was on Retumbo that i only fired one middle of the road H1000 and it was tough to lift? RL33 was awesome!
6Dasher
hate to ask but can you send QL data for H1000-Retumbo-RL33 PM? i'm outdated maybe i can sort out the "why"?
update post:
got my inside neck reamer and i do believe i found my pressure problem! On a fired case(several firings) i could not push a bullet through the donught, i got that sucker out now with the .3115 reamer, it takes a bit of hand work but it was certainly bullet release. I will FL size and trim and found my old QL CD (3.0 with 3.1 update) where they at now?,and a new laptop so i will see if i can get it working?
data still appreciated...
just tyying to provide new data on a awesome case! maybe H powders will work a bit better next time around?
I got the first run of Forester dies (still new),and Forster corrected that problem.when i sent them 3 fired cases.., i guess i jumped on this case right as 300 stamped brass showed up and fixing old issues now? Had to order reamer for smith. etc...
Last edited:

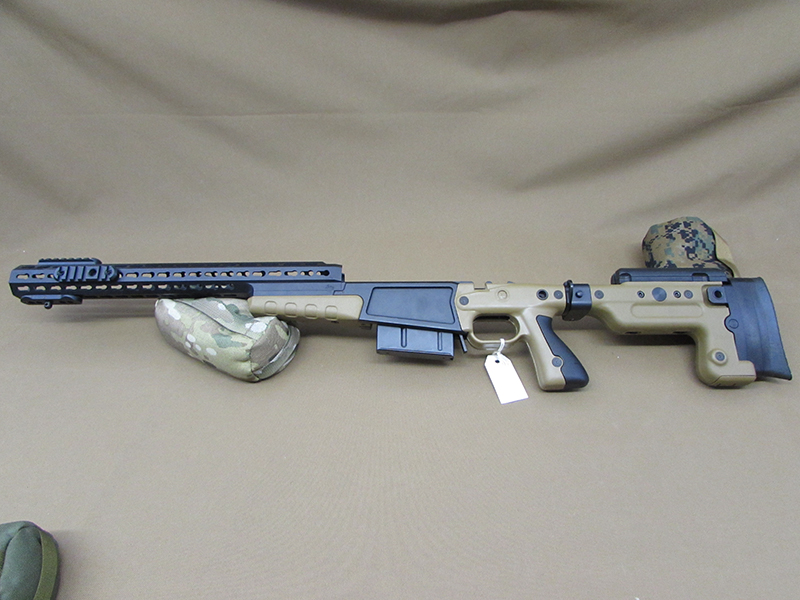

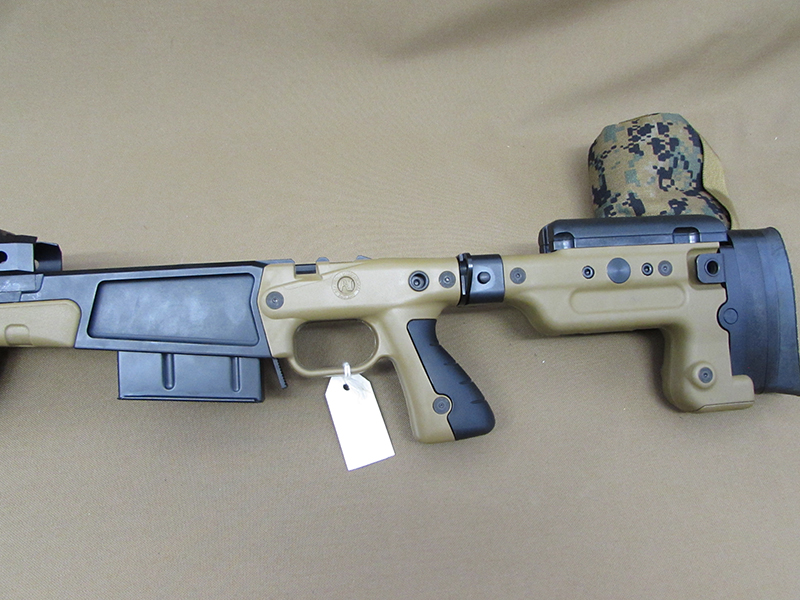

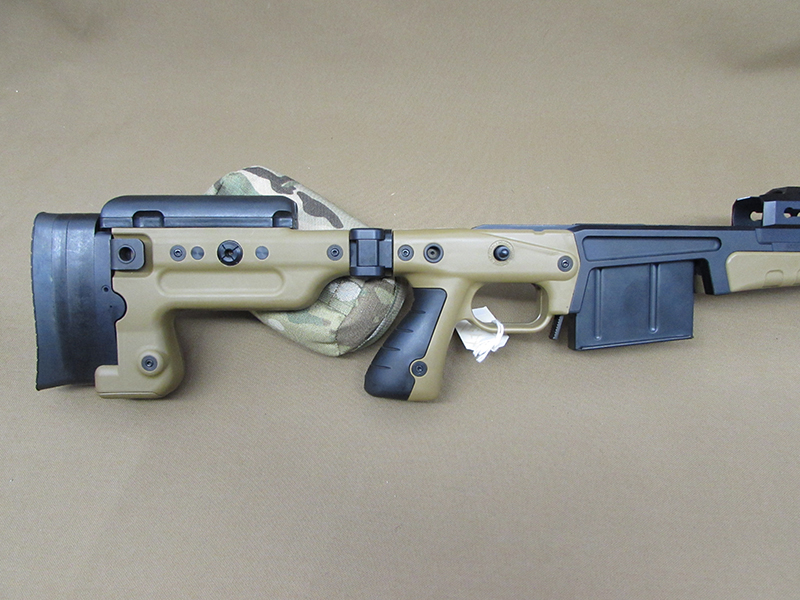

I found a bit of a unicorn (a left-hand long action AX chassis) so I figured now was my chance to build a 300NM and bought it. I'll be driving down to GAP this week to drop it off so they can work their magic. To those who shoot a 300NM, school me on what I need to know. I'm planning to shoot the 215's over RL-33 or H1000 - I've got lots of both. Is Forster the only company that makes dies?
Attachments
I have had the best results with a Redding 300 Norma neck die, body die, and bullet seater die, using a neck neck bushing that puts .002 neck tension.
Took the chassis down to GAP yesterday and got the build moving along. I'm hoping to get 3100fps from the 215 berger with this setup.
Build specs:
AX chassis - multicam dip
Templar V2
28" Bartlein med. contour palma 1-10 twist
Mini FTE brake
Timney trigger
Let the wait begin!
Build specs:
AX chassis - multicam dip
Templar V2
28" Bartlein med. contour palma 1-10 twist
Mini FTE brake
Timney trigger
Let the wait begin!
There are lots of scattered handloading info for the 300NM but I haven't found a dedicated thread so I started one in the reloading thread. Wanted to post this here as well. Loads are organized by bullet weight. Here's what I've found so far:
300 Norma Mag Load Data
Trim brass to: 2.4902 min 2.502 max
208 AMAX
87gr H1000
28” 1-9 Pac-Nor
3140fps
210gr Berger
89.5gr Ramshot magnum
27” 1-10 Rock Creek
210gr Berger
89 g. Retumbo
27" barrel
3130 fps
215gr Berger
92grs RL33
30” barrel
COAL 3.600”
3157 fps (90% case fill)
215gr Berger
89gr Retumbo
26” barrel
COAL 3.600”
3130fps
220gr SMK
92gr H-1000
26” Broughton 1-9
Fed 215GM
COAL 3.463
3003fps
220gr SMK
91gr N-570
30" Bartlein 1-10
Fed 215GM
3200fps
Berger 230gr
H1000 85.5 gr
27” 1-10 Krieger 5R
Velocity ???
Berger 230gr
Retumbo 87gr
27” 1-10 Krieger 5R
Velocity ???
Berger 230gr
H1000 80.7gr
30" 1-10" Lilja
Fed 215M
COAL 3.526"
Velocity ???
230gr Berger
89grs RL33
30” barrel
COAL 3.600”
3050 fps (90% case fill)
230gr Berger
86gr Retumbo
26” barrel
COAL 3.600”
3020fps
230gr Berger
88gr RL33
Barrel ???
COL 3.510
2907fps ES: 3.5
230gr Berger
86gr H50BMG
25.5” barrel
FED 215M
COAL 3.530”
2800fps ES: 3.6
230gr Berger
86gr N570
1-10 barrel
Fed 215M
3001fps
230 Berger
85.3gr Retumbo
26" barrel 1:9.5
WLRM primers
2940fps
240gr SMK
81.7gr H-1000
26” Broughton 1-9
Fed 215GM
COAL 3.436
2875fps
240gr SMK
H1000 81.7gr
Fed 215M
COAL 3.436”
Velocity ???
300 Norma Mag Load Data
Trim brass to: 2.4902 min 2.502 max
208 AMAX
87gr H1000
28” 1-9 Pac-Nor
3140fps
210gr Berger
89.5gr Ramshot magnum
27” 1-10 Rock Creek
210gr Berger
89 g. Retumbo
27" barrel
3130 fps
215gr Berger
92grs RL33
30” barrel
COAL 3.600”
3157 fps (90% case fill)
215gr Berger
89gr Retumbo
26” barrel
COAL 3.600”
3130fps
220gr SMK
92gr H-1000
26” Broughton 1-9
Fed 215GM
COAL 3.463
3003fps
220gr SMK
91gr N-570
30" Bartlein 1-10
Fed 215GM
3200fps
Berger 230gr
H1000 85.5 gr
27” 1-10 Krieger 5R
Velocity ???
Berger 230gr
Retumbo 87gr
27” 1-10 Krieger 5R
Velocity ???
Berger 230gr
H1000 80.7gr
30" 1-10" Lilja
Fed 215M
COAL 3.526"
Velocity ???
230gr Berger
89grs RL33
30” barrel
COAL 3.600”
3050 fps (90% case fill)
230gr Berger
86gr Retumbo
26” barrel
COAL 3.600”
3020fps
230gr Berger
88gr RL33
Barrel ???
COL 3.510
2907fps ES: 3.5
230gr Berger
86gr H50BMG
25.5” barrel
FED 215M
COAL 3.530”
2800fps ES: 3.6
230gr Berger
86gr N570
1-10 barrel
Fed 215M
3001fps
230 Berger
85.3gr Retumbo
26" barrel 1:9.5
WLRM primers
2940fps
240gr SMK
81.7gr H-1000
26” Broughton 1-9
Fed 215GM
COAL 3.436
2875fps
240gr SMK
H1000 81.7gr
Fed 215M
COAL 3.436”
Velocity ???
got to fire some donought free cases today through the crony in the yard
COL tip: 3.520
COL Ojive: 2.820 best i can measure and figure, i am .005 .010 off from touching lands.
RL-33 230 OTM
87-2805
88-2935
89-2940
90-2930
so i split
88.5-2966
89.5-2938 and had powder blow by the primer a small amount?
im thining i should stick with 88gr ,as above post was the lowest ES.
does anybody have QL that can run this and see where i am at in safe or overloaded? as was the primer pocked just a bit loose for powder to get by?
just want to be safe
thx
26"bbl 10.92tw rock creek bbl
COL tip: 3.520
COL Ojive: 2.820 best i can measure and figure, i am .005 .010 off from touching lands.
RL-33 230 OTM
87-2805
88-2935
89-2940
90-2930
so i split
88.5-2966
89.5-2938 and had powder blow by the primer a small amount?
im thining i should stick with 88gr ,as above post was the lowest ES.
does anybody have QL that can run this and see where i am at in safe or overloaded? as was the primer pocked just a bit loose for powder to get by?
just want to be safe
thx
26"bbl 10.92tw rock creek bbl
Last edited:
I ran 88 and 89grs with 230's through my 30-338 Norma Imp today (35* shoulder based on 338 Norma shoulder dimensions) , which was too low of charges, but the 89gr load shot a 3 shot group that was .120". The velocity was only 3000fps. I'll load 90-92 or 93 and see what I get next. 86grs of VV N-570 gave me 3075fps with a 5 shot group in the .4's. I need to fireform more brass so I can keep playing until the long wait for my dies is over. The nice thing about my chamber is I can knock the primers out, stuff new ones in, load it with powder, and seat a bullet. It has enough neck tension without sizing. Once I've shot them a few times then I have to put them aside to wait on my dies since they need FL sized.
300 norma mag here. Defiance action, 28" krieger 10 twist, Jewell trigger, grey bull precision stock, defiance bottom, and muscle break to tone the girl down. Rifle shoots better than I can handle, from 5 shot 100 yard (.3-.4) out to 2100 (67 moa). Problem I'm running into is loose primer pockets on only 3rd load. Wondering if I have a chamber problem or if anyone else is experiencing the same? Load is on mild side, 84.5 retumbo, 230 Berger, .005-.008 jam, fed 215's.
david.how far off land are these 3.60? Im building one using nathan(idahoctd) reamer.
I know this has been asked before in this thread, and answered, but not to my satisfaction
What dies are you guys using. The only die maker that I can find that actually lists 300 Norma dies on their website is Forster - and that is only a seater and Full - no neck die. And there is no Forster dealer here in Iceland - not a deal breaker - but make things more diffucult. Very good Norma dealer - so cases are no problem.
Does anyona have a 3 piece bushing die set for 300 Norma?
What dies are you guys using. The only die maker that I can find that actually lists 300 Norma dies on their website is Forster - and that is only a seater and Full - no neck die. And there is no Forster dealer here in Iceland - not a deal breaker - but make things more diffucult. Very good Norma dealer - so cases are no problem.
Does anyona have a 3 piece bushing die set for 300 Norma?
I know this has been asked before in this thread, and answered, but not to my satisfaction
What dies are you guys using. The only die maker that I can find that actually lists 300 Norma dies on their website is Forster - and that is only a seater and Full - no neck die. And there is no Forster dealer here in Iceland - not a deal breaker - but make things more diffucult. Very good Norma dealer - so cases are no problem.
Does anyona have a 3 piece bushing die set for 300 Norma?
Redding will make up a 3 die set for you, body, neck sizer, and seater, its a bit expensive, they are a custom order. For me it has been worth it. Shot quarter inch, not quarter MOA groups today with the rifle at 350 yards with 230 gr. Berger otm's and h50bmg, .002 neck tension.
Was doing a half ass OCW test on my 300 Norma AI couple weeks ago wasn't able to chrono it due to the fact I broke my magneto strap but here are the groups I got with the different powder loads started with 94grs went up in 1/2 gr increments to 96.5 grs, test was done at 100 yards, I normally due this test at 300 but the range in Corpus Christi only goes to 100
Coal 3.6 ( 20 thou off lands I believe)
215m's
210 berger hunting
26" barrel RV
Coal 3.6 ( 20 thou off lands I believe)
215m's
210 berger hunting
26" barrel RV
Not sure on the velocity but I'm pretty sure I'm not near 3200 I believe I'm around 3130 with 95 grs I'm at 3080
I believe I've heard that before. Read somewhere win, fed, rem, cci, in that order. But I have not tried it, thanks I will give it a shot. I had another rifle doing the same, it turned out the chamber was on the big side.
