Accuracy International AT-X

#4,001
4O6shootist said:
How heavy is that thing? Looks thick with all the weights, barrel/supressor.
Click to expand...

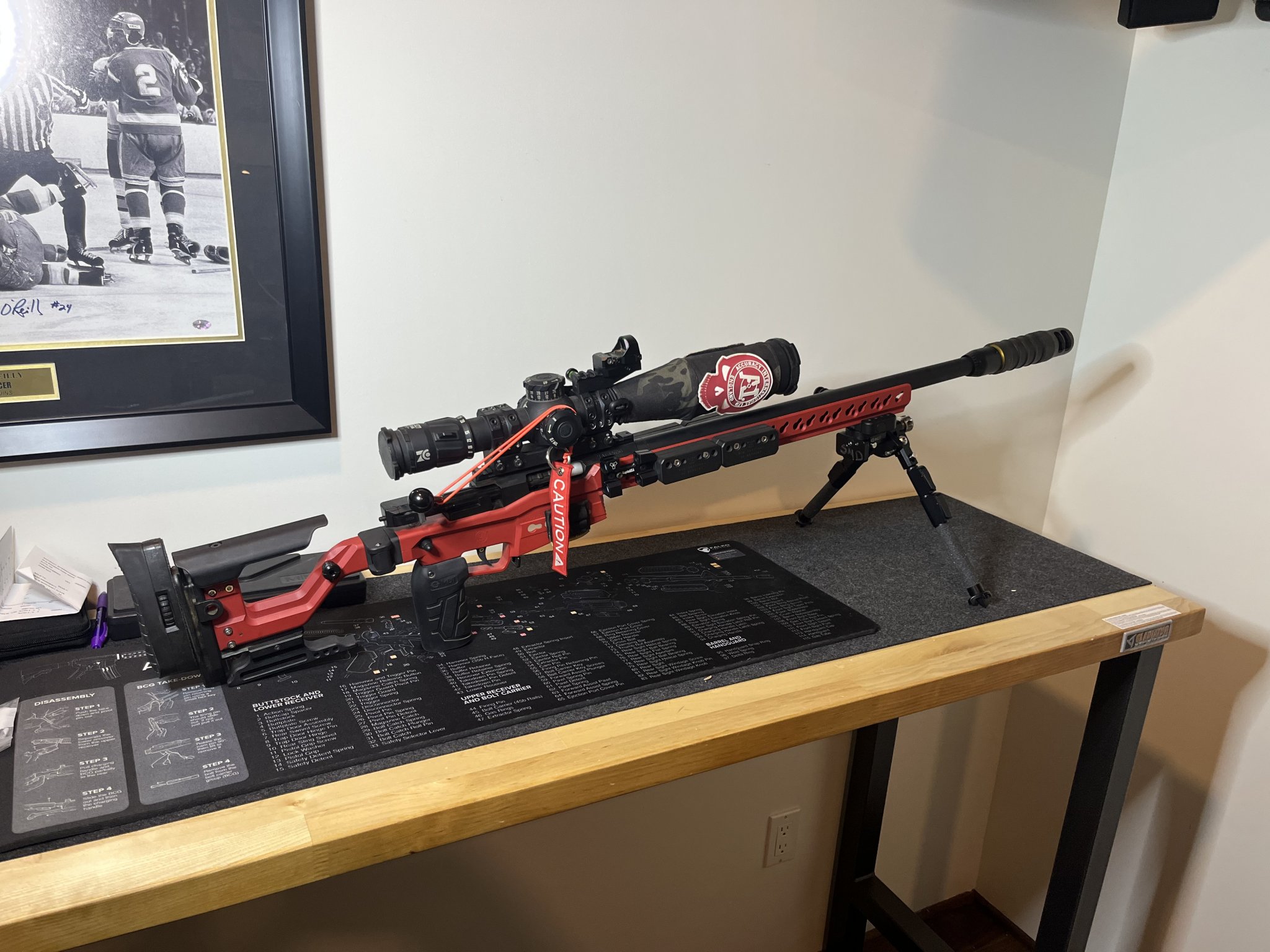

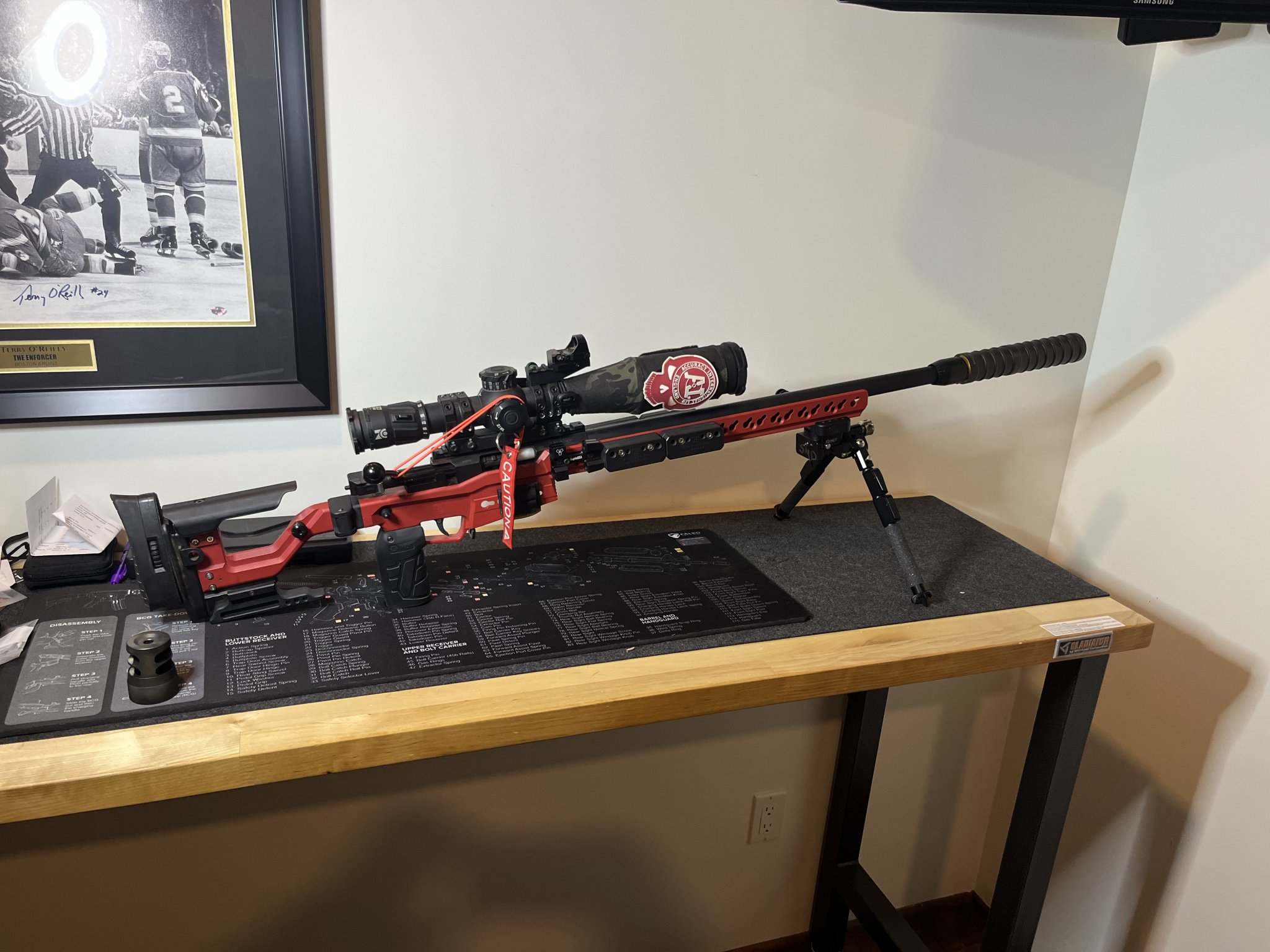

Ohh she thiccc for sure. Around 27lbs. as pictured, and there’s still space for more… not sure that I’ll go any heavier since I have the balance where I like it and moving the weights forward would make it really front heavy.

Not to mention, the recoil is already non-existent so I think I’m to the point of diminishing returns anyway.

The width of the fore end with the weights/Sidebite was important for me as I did not want to increase the HOB while using a plate. Probably a marginal improvement but it’s exceptionally stable and easy to control recoil configured like this.

It’s hilarious/awesome watching trace with this setup between the flatness of the GT and the weight.

  • Like
Reactions: deersniper and 4O6shootist
#4,003
just browsing said:
Ohh she thiccc for sure. Around 27lbs. as pictured, and there’s still space for more… not sure that I’ll go any heavier since I have the balance where I like it and moving the weights forward would make it really front heavy.

Not to mention, the recoil is already non-existent so I think I’m to the point of diminishing returns anyway.

The width of the fore end with the weights/Sidebite was important for me as I did not want to increase the HOB while using a plate. Probably a marginal improvement but it’s exceptionally stable and easy to control recoil configured like this.

It’s hilarious/awesome watching trace with this setup between the flatness of the GT and the weight.
Click to expand...
How’d you place at the match ?

#4,004
How well are the AW mags feeding for everyone. With 6 or 6.5cm?



  • Like
Reactions: TheOtherAndrew, Heffo, Defender3 and 1 other person
#4,007
Maciej said:
Question for ATX owners that have thrown the MDT Elite grip on their rifles, are you ordering the standard chassis rifle option or AR option?
Click to expand...


The Standard Chassis one is the one made for it, although the AR one will more than likely work too as "The AR10/15 compatible Elite grip has a pocket for the detent spring in the top of the grip for a standard AR10/15 safety and is compatible with these rifles"

  • Like
Reactions: Maciej
#4,011
The Durk said:
Dude.....I shot that match. Top Gas gun :ROFLMAO:
Click to expand...
I can’t wait to look and see what your hit percentages were lol like the wolf at 1100 or the 33% ipsc at 938

I finished mid pack , was my first 2 day , my 7th PRs match. Bombed a few stages but real happy about cleaning a few and hitting the aforementioned targets

Addicting is an understatement


#4,012
deersniper said:
I can’t wait to look and see what your hit percentages were lol like the wolf at 1100 or the 33% ipsc at 938

I finished mid pack , was my first 2 day , my 7th PRs match. Bombed a few stages but real happy about cleaning a few and hitting the aforementioned targets

Addicting is an understatement

View attachment 7936582
Click to expand...
That's Mr #104 to you! Still beat a 6.5 gas gun with my little 5.56.

I did get 3/4 impacts on the wolf at that 1100 some yard target on stage 1.

  • Like
  • Love
Reactions: DJL2, Maciej and deersniper
#4,017
I saw in an AI data sheet (issue feb ’22) two barrel option. 24“ & 26“ long with different threads (5/8x24 and M18x1.5).

Do both barrels does have the heavy competition contour? Or is the longer 26“ a standard AI Barrel?

#4,018
sjbryan65 said:
Yea the trigger shoe clamp is tight so much so that when I tried to loosen it to move it I decided to leave it where it was in fear of stripping it. Trigger feels great. The wiggle I am referring to is left to right not front to back. Was just wandering if that is normal?
Click to expand...
@sjbryan65 Ran int same issue with the super tight trigger screw. Talked to MileHigh and all decided just go for it (make sure you have the 2 or 2.5mm allen not an imperial "close" enough); but I think I used a channel lock on allen key while other hand held allen key fully seated and trigger square - it will pop loose you just have to trust.

I read somewhere that ATX had had issues with triggers falling off or moving so Im guessing they decided to torque the piss out of all the new production versions?

#4,019
TheOtherAndrew said:
@sjbryan65 Ran int same issue with the super tight trigger screw. Talked to MileHigh and all decided just go for it (make sure you have the 2 or 2.5mm allen not an imperial "close" enough); but I think I used a channel lock on allen key while other hand held allen key fully seated and trigger square - it will pop loose you just have to trust.

I read somewhere that ATX had had issues with triggers falling off or moving so Im guessing they decided to torque the piss out of all the new production versions?
Click to expand...
Lol. Ok thanks for the info I may give it a try.

#4,035
Devlin said:
Any suggestions on aftermarket bag riders that you guys like? I'm up in Canuckistan to the north so also on the lookout for someone who ships internationally.
Click to expand...

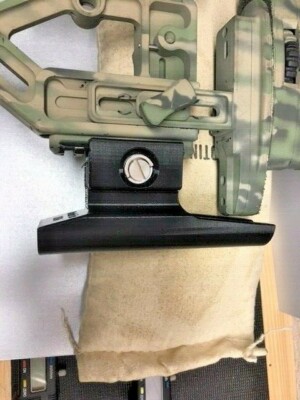

Ebay 3d printed, works slick as hell. Sits very low compared to 90% of chassis bad riders, gets me way up off the ground prone. Kinda thinking bout putting small pic rails on the xlr butt stocks and adding the 3d bag rider to them as well.
www.ebay.com

AX/ATX/AXMC/ASR Bag Rider Rnd Bottom 2" tall for A.I. rifles AX/ATX/AXMC/ASR | eBay

AX/ATX/AXMC/ASR. Rider is 5.2" long. Picatinny rail mount. Only 2" Tall. Round Bottom.
www.ebay.com

  • Like
Reactions: Devlin
#4,036
Devlin said:
Any suggestions on aftermarket bag riders that you guys like? I'm up in Canuckistan to the north so also on the lookout for someone who ships internationally.
Click to expand...

Checkout Sawtooth Rifles MBR. They’ll have a small batch in stock, end of next week. With a larger batch going out for anodizing.
Yes, they ship to Canada.

www.sawtoothrifles.com

Modular Bag Rider from Dependabilt

Visit the post for more.
www.sawtoothrifles.com www.sawtoothrifles.com

  • Like
Reactions: Devlin
#4,040
Part Timer said:
Also, the Gtac bag riders from Sporting Services are good. Faster shipping from the UK to Canada than domestic shipping, shit you not.
Click to expand...
usps priority overnight took 2 weeks for me a couple weeks ago .. awesome way to go, and now the UPS pulled some crap on who can ship firearms today

#4,041
Gotta say I’m super stoked with the AT-X. Have zero complaints….once you open up the magazines, I’ve put through 140 6.5CM rounds and it has been floorless. First comp with it coming up. See how we go but have to say I love it 🥰. As stated above too Gtac bag rider from sporting services UK is solid and looks unreal. Cheers

  • Like
Reactions: Witty and Maciej
#4,045
So Ii ran my unmodified AX and AW mags a few weeks back and the AX with 6GT ammo would fail to feed rounds from the left side of the stack pretty regularly. I cycled 4 mags of each the AW never failed to feed. The AX did a couple of times each mag.

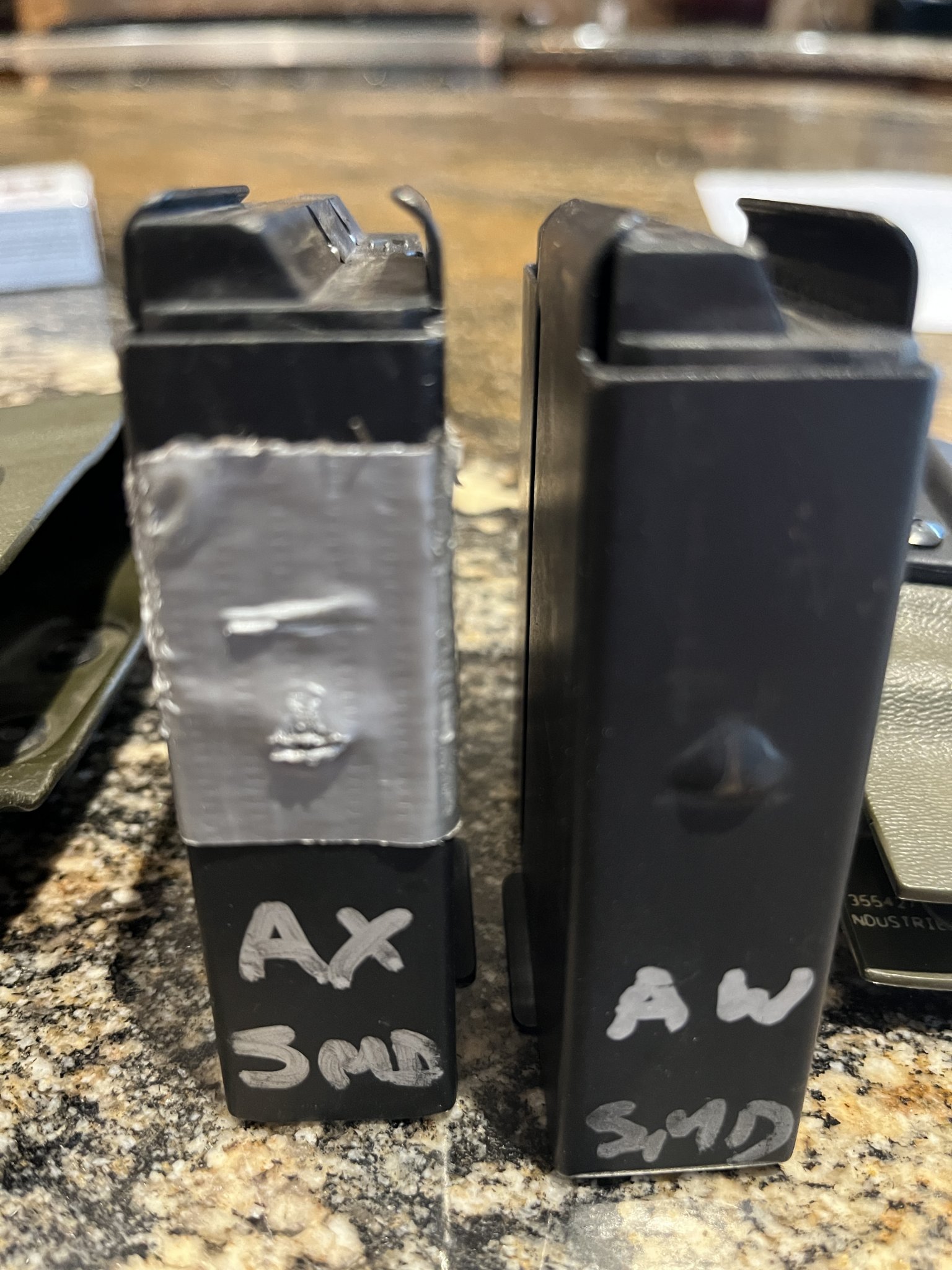

Today I ran a 80 round match with a 2 pieces of tape over the back of the AX mag lifting it up, AW unmodified. Both mags ran flawless at the match. I alternated mags each stage. My theory is the AW without the front lip allows the mag to be more horizontal and inline with the bolt and less likely to have the bolt run over the top. The AW still has play and i expect if a stage put pressure on the mag lifting the front similar failure would occur. Not a fan of duct tape on my gear would be interested in shimming the mag catch.

  • Like
Reactions: Bravo6niner
#4,046
seansmd said:
So Ii ran my unmodified AX and AW mags a few weeks back and the AX with 6GT ammo would fail to feed rounds from the left side of the stack pretty regularly. I cycled 4 mags of each the AW never failed to feed. The AX did a couple of times each mag.

Today I ran a 80 round match with a 2 pieces of tape over the back of the AX mag lifting it up, AW unmodified. Both mags ran flawless at the match. I alternated mags each stage. My theory is the AW without the front lip allows the mag to be more horizontal and inline with the bolt and less likely to have the bolt run over the top. The AW still has play and i expect if a stage put pressure on the mag lifting the front similar failure would occur. Not a fan of duct tape on my gear would be interested in shimming the mag catch.View attachment 7953749
Click to expand...
Have you opened up the top part of the mag to match the measurements of the bottom where the rib is? I think feeding comes down to overall length of rounds too. Maybe HRD would make a good addition if can still fit the 6GT? 🤷🏽‍♂️🤷🏽‍♂️

#4,049
Heffo said:
Have you opened up the top part of the mag to match the measurements of the bottom where the rib is? I think feeding comes down to overall length of rounds too. Maybe HRD would make a good addition if can still fit the 6GT? 🤷🏽‍♂️🤷🏽‍♂️
Click to expand...

The HRD kits will not work without some modification. Basically the spacer is a little to deep for the GT cases to fit inside the front ribs.

You could essentially take some material off the spacer, but then the follower would be too short and leave a little space to potentially bind.

seansmd said:
So Ii ran my unmodified AX and AW mags a few weeks back and the AX with 6GT ammo would fail to feed rounds from the left side of the stack pretty regularly. I cycled 4 mags of each the AW never failed to feed. The AX did a couple of times each mag.

Today I ran a 80 round match with a 2 pieces of tape over the back of the AX mag lifting it up, AW unmodified. Both mags ran flawless at the match. I alternated mags each stage. My theory is the AW without the front lip allows the mag to be more horizontal and inline with the bolt and less likely to have the bolt run over the top. The AW still has play and i expect if a stage put pressure on the mag lifting the front similar failure would occur. Not a fan of duct tape on my gear would be interested in shimming the mag catch.View attachment 7953749
Click to expand...

Yep, same thing for me. The AX mags are just slightly off in their geometry and cause the bolt to run over the rear of the case. Like you said, if you figure out a way to lift the rear of the mag slightly, they feed fine.

If you do end up shimming the latch, post pictures of how you do it and how it’s working. I’ve found that running the cases forward in the mag (as if there were a spacer without actually using a spacer) works about 98% reliably. Still need to mess with it a little bit to see if I can get it perfect.

  • Like
  • Haha
Reactions: Heffo and Huskydriver
#4,050
Heffo said:
Have you opened up the top part of the mag to match the measurements of the bottom where the rib is? I think feeding comes down to overall length of rounds too. Maybe HRD would make a good addition if can still fit the 6GT? 🤷🏽‍♂️🤷🏽‍♂️
Click to expand...

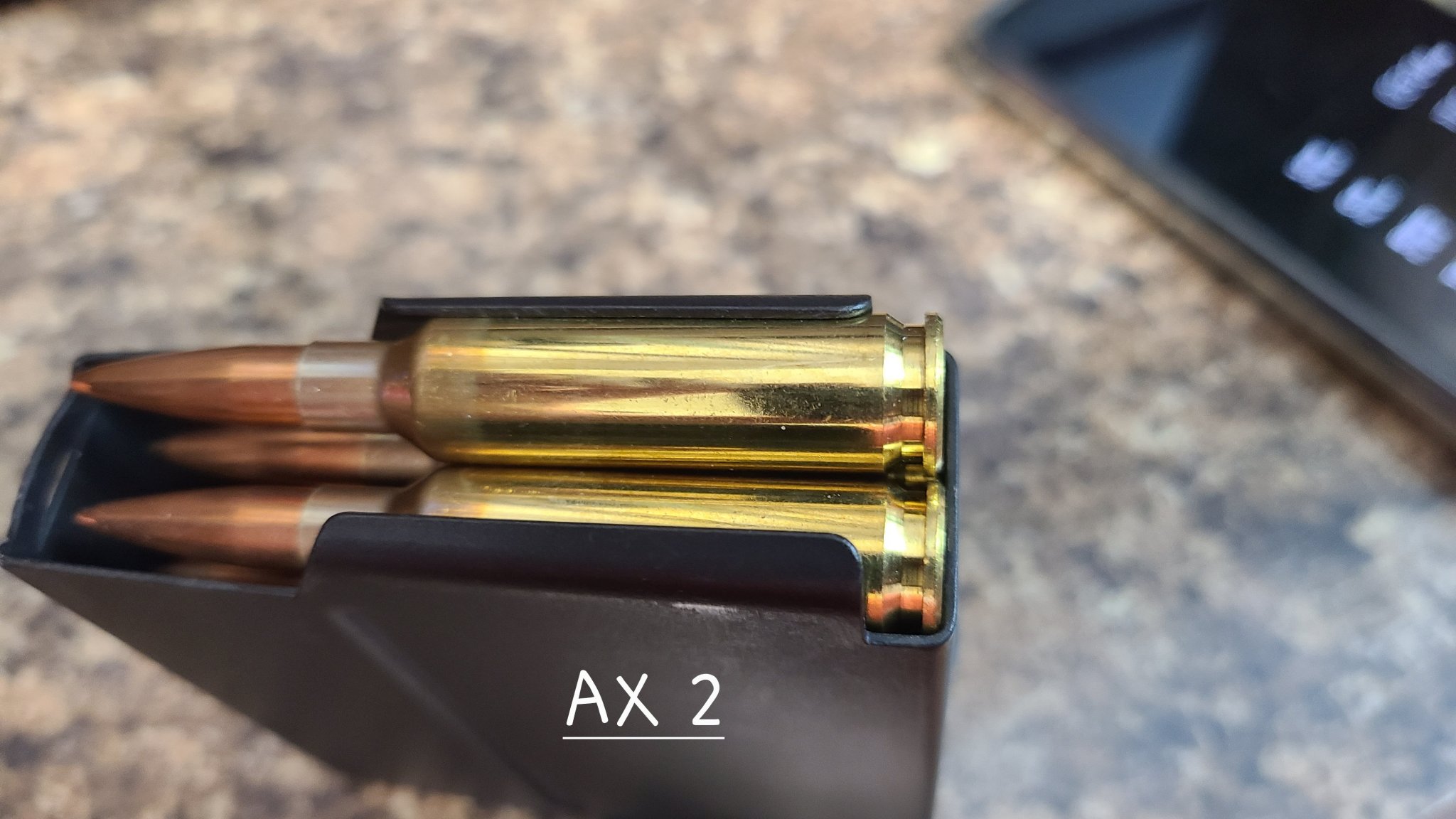

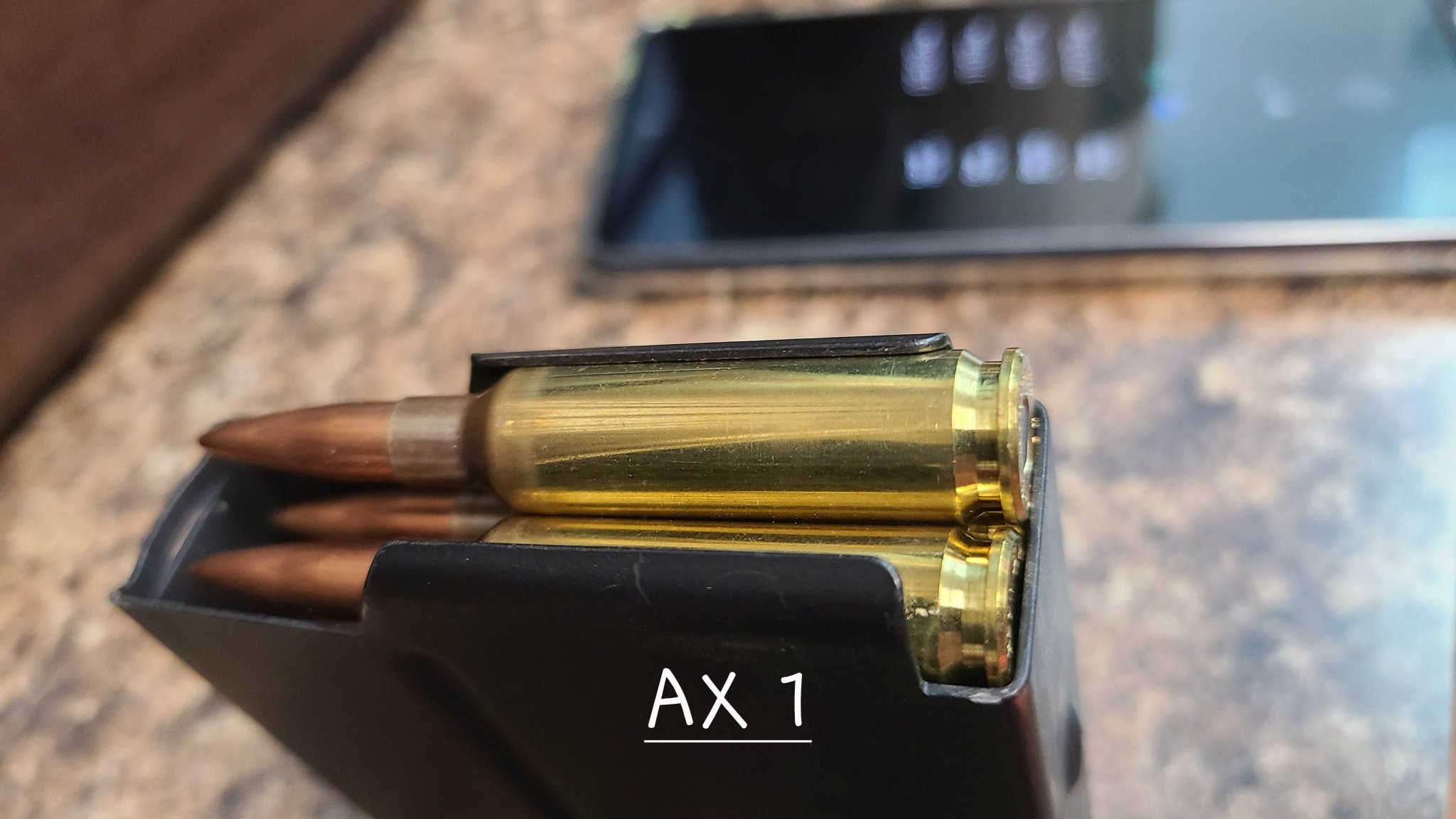

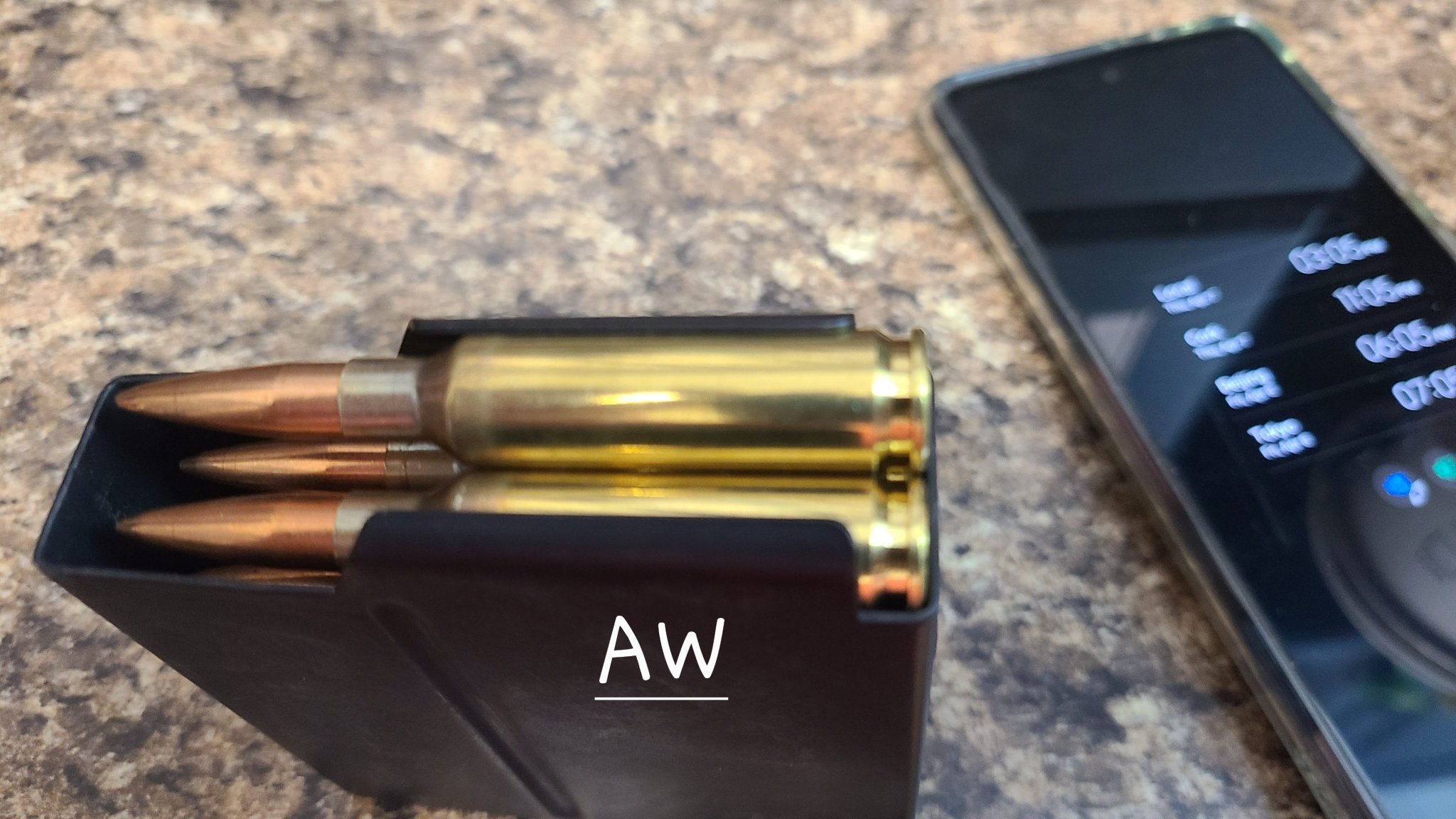

These are 6.5CM Prime Factory, the 6GT Hornady sit the same against the back and along the lips on both sides.

Last edited:
  • Like
Reactions: Heffo
