New to AXMC
What heck is SFP bolt?
Can that bolt focus on second focal plane?
Only a problem if you plan on using small rifle primers.
Follow along with the video below to see how to install our site as a web app on your home screen.
Note: This feature may not be available in some browsers.
New to AXMC
What heck is SFP bolt?
Can that bolt focus on second focal plane?
Only a problem if you plan on using small rifle primers.
You should make one to fit the AE MKiii. Then I won't need to remove my AT from it's chassis. ?
I would be willing to send a donor action and chassis to be the model for this. It's currently stripped down right now anyway.@Tree Anything is possible, the AE might be easier than the AT just looking at pictures.
I've been following the AE in a Manners stock thread and know there is some interest.
If you or anyone else was legitimately interested, I would need an AE in hand for a couple weeks. It'd probably be best to wait until after the AT chassis gets machined so I can vet the design of that prior to committing to the AE. I'd also want some sort of commitment or commission, as the AT chassis is more a labor of love than a profit-making endeavor, and since I shoot LH the AE chassis doesn't have a huge draw for me personally unless I knew some people were on board.
Sam
SFP = Small firing pin
I would be willing to send a donor action and chassis to be the model for this. It's currently stripped down right now anyway.
If you get enough interest and need one let me know.
Not entirely accurate in my opinion. I get pretty good primer flow back into my firing pin hole using factory ammo and extremely mild loads on my 6.5 Creedmoor. If I were to try using a hotter load on my AXMC I'd probably pierce a primer.
@AIAW That makes sense. Though I have to disagree on the short action part not being enjoyable. I really haven't noticed the bolt throw difference up to this point. However I am going to be running a different gun this year for most matches but that has more to do with the overall performance of the AI under the current match rules and formats.
I did end up getting the SFP bolt which should solve my primer flow issue and allow me to switch over to SRP brass in the future.
Does anyone has a pic showing the AXMC magazine adapter for 308 and the mag? Does the adapter fully sits inside the magwell without showing anything?
The reason I am asking is that I got a AXMC in Dark Earth but I can only find adapter in Pale Brown. I am wondering whether any part of the adapter shows outside and does the color miss match looks strange.
Thanks ahead.
@AIAW That makes sense. Though I have to disagree on the short action part not being enjoyable. I really haven't noticed the bolt throw difference up to this point. However I am going to be running a different gun this year for most matches but that has more to do with the overall performance of the AI under the current match rules and formats.
I did end up getting the SFP bolt which should solve my primer flow issue and allow me to switch over to SRP brass in the future.
Yeah, I might have been a little harsh on it actually. I attribute it to my lack of time behind it with SA cartridges honestly.
Ahhh I see, what are you thinking about going to?
I'm kind of racking my brain. I'm going to finish off this season with 6.5 Creed and then make a decision.
Kind of have it narrowed down to 6.5 Creed, 6 Creed or 6GT depending on how things play out this year with it's release.
Only a problem if you plan on using small rifle primers.
You should make one to fit the AE MKiii. Then I won't need to remove my AT from it's chassis. ?
Talked to Mile High today. Sounds like the first batch of 5 SFP bolts went out for the AXMC. I ended up being down further on the list but it is what it is.
Yes I do. I have boxes of 6.5 Lapua brass. But I also has some large primer brass. Does that mean I will need both SFP and LFP to shoot both?
When did they go out and did they mention when the next batch it coming in?
I called Mike and I was in the first batch after all. A little bit of miscommunication but it all got straightened out. Not sure when the next batch arrives.
What is the part number of the SFP?
Does EO also carry it?
I can not found any info with google.
Hmm, black is actually in stock but I need DE. Wonder it might even look better with Black? I have black mag adapter and mag.Accuracy International AXMC SFP Bolt Assembly Complete, .308 Bolt Face, Black 28340BL
FREE SHIPPING on Accuracy International AXMC SFP Bolt Assembly Complete, .308 Bolt Face, Black 28340PBwww.eurooptic.com
"BL" at the end is for black, swap the last two letters for other colors. PB = pale brown, DE = flat dark earth, GR = sage green, ES = elite sand, etc.
Do you know whether this is for short action or long?Accuracy International AXMC SFP Bolt Assembly Complete, .308 Bolt Face, Black 28340BL
FREE SHIPPING on Accuracy International AXMC SFP Bolt Assembly Complete, .308 Bolt Face, Black 28340PBwww.eurooptic.com
"BL" at the end is for black, swap the last two letters for other colors. PB = pale brown, DE = flat dark earth, GR = sage green, ES = elite sand, etc.
What is your firing pin protrusion on your AI’s? I have a 2014 AX with LFP and it seems to crater pretty much everything. I’ve never thought much of it cause it’s never pierced or blown primers but if I can get it close to out that would be great! Lol. I just watched a full disassembly video and realized it’s a pretty easy adjustment. Tomorrow I’ll have to check to see what it’s currently set at and wait to hear back from you!That is easily solved with protrusion adjustment. Ran all sorts of SRP and LRP in AW's (and a pre-2014 AX) for years. Not a single problem. Just takes a little knowing how to solve things.
I've even ran them out of an AXMC. Granted, not SRP, but LRP, yes. No issues.
Personally running SA cartridges in the AXMC is not that enjoyable. I've done it twice in fact, and that was enough. Not a problem with the rifle by any means, it's just by design. It's not designed to run that way. If they had adopted what Sako did and made it where the bolt stop could be reconfigured to provide a short throw I think it would be 90 percent there honestly. I'm a big proponent of "just because you can doesn't mean you should". I am also very fond of the phrase "to each his own".
Yes but the old do not
What is your firing pin protrusion on your AI’s? I have a 2014 AX with LFP and it seems to crater pretty much everything. I’ve never thought much of it cause it’s never pierced or blown primers but if I can get it close to out that would be great! Lol. I just watched a full disassembly video and realized it’s a pretty easy adjustment. Tomorrow I’ll have to check to see what it’s currently set at and wait to hear back from you!
Do you know whether this is for short action or long?
If it's an axmc it's a long if it's a axsa it's a short.
I have that exact part number coming tomorrow for my axmc.
Thank you sir! I’ll give it a look later tonight.Looks like across an AW, AXSA and two AXMC's the protrusion varies. All within spec though.
AW - .055"
AXSA SFP - .046"
AXMC A - .052"
AXMC B - .055"
I have to give @RoterJager credit though as his post above does have a good bit of validity to it. Some people still experience issues after adjusting protrusion, so the SFP does indeed have a place. Obviously getting it too short is a reliability issue.
Helpful hint: Half a turn on the firing pin will adjust the protrusion by .010 - 0.012.
Anyone that just got the AXMC SFP bolts and want to unload the LFP one, shoot me a PM. Thanks.
Think alot of us will be running our lfp bolts on our 338's and big 30's
Yea. But not a 308 bolt... I have 338 and 300 win bolts. So guys switching to SFP bolts are using the 308 bolt. And a LFP 308 bolt is what I need.
Why not just get the SFP bolt.
The wait might be very short. I ordered last one from EO online. For just a bit more $, you get the whole bolt assembly not just the bolt body and it is floated.
The AXSA trigger weight adjustment screw how far out can you go ? Does it have a stop or will the screw fall out.
Trying to lighten the second stage trigger pull.
If it’s the same as AT/AX factory trigger, you take the screw all the way out. The spring is contained inside the trigger.
You will be left with just enough tension to help reset the trigger after firing. It will add a little weight to the pull as well, still.
You can tweak the sear adjustment to get it down a little.
About 2lbs is as low as will go without any tension on spring.
To get to 1.5lb, you’ll have to take that front spring out.
This all could totally screw up your trigger if done wrong.
Also, removing that friend spring will leave your trigger “wobbly” and loose after it’s fired until you open the bolt, as theirs no spring tension to help reset immediately.

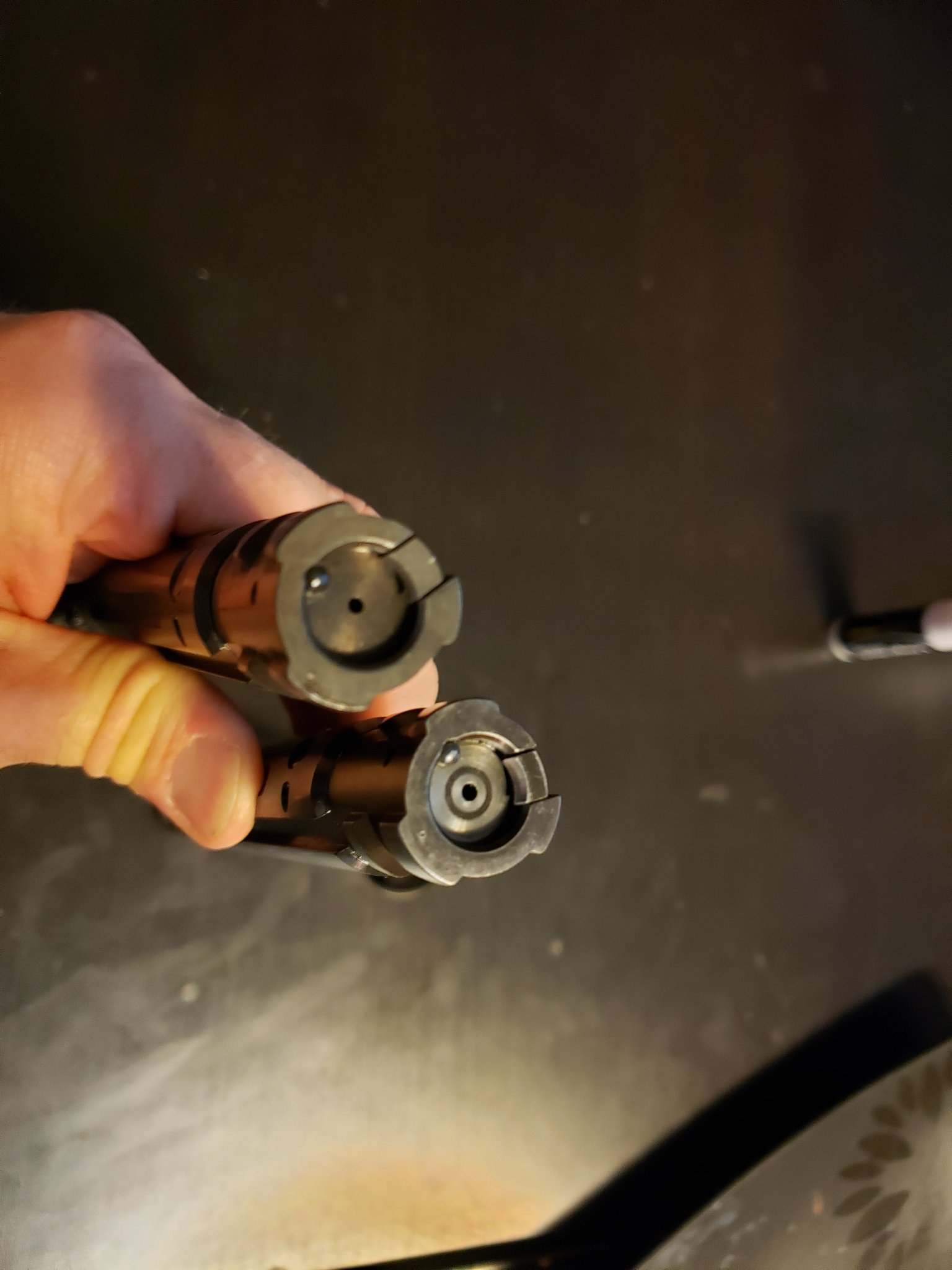

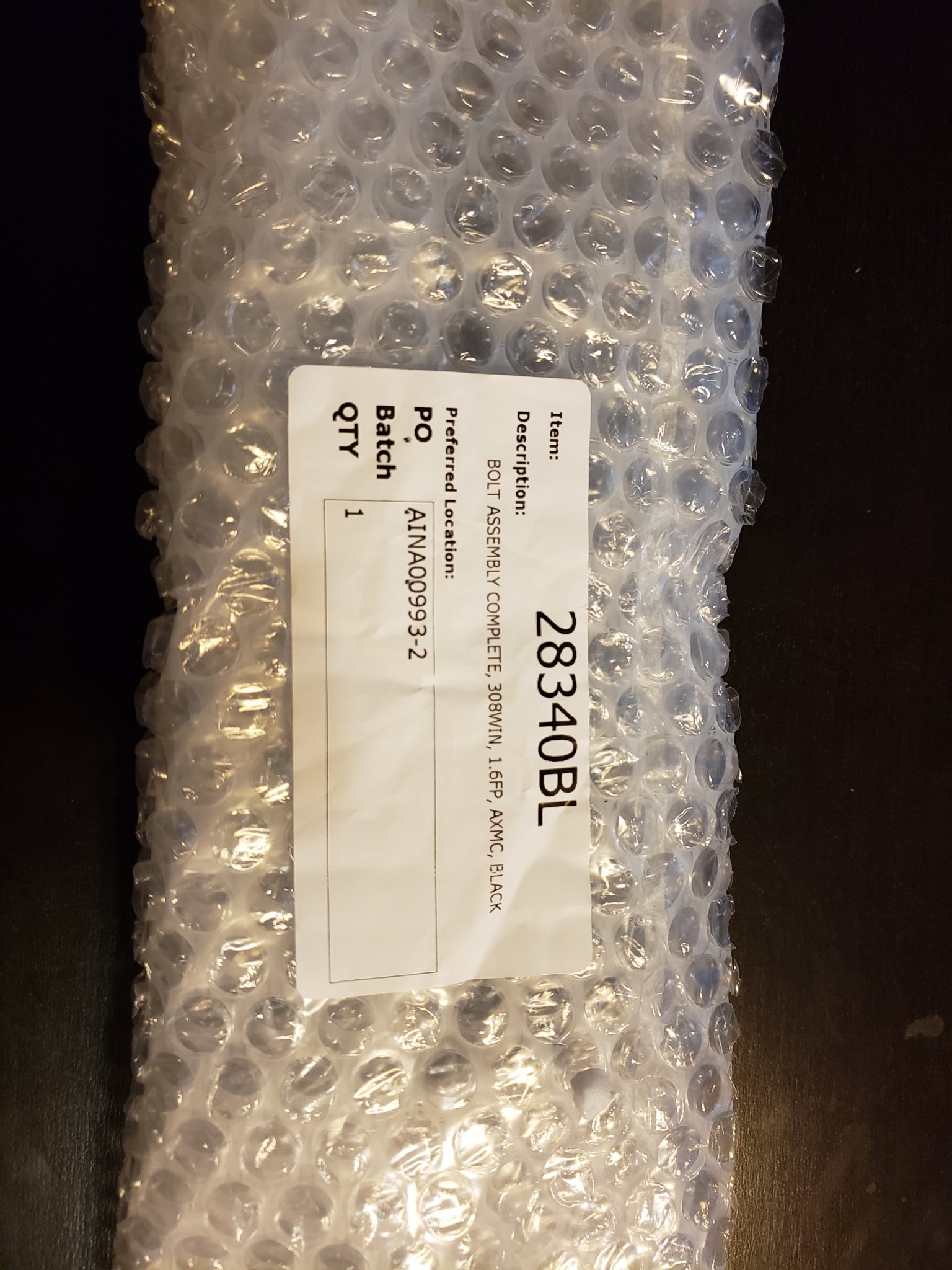

They really exist. Finally have one in my hands. SFP Axmc bolt assemblies from MH.
Nice. I wonder if they still measure about .020 difference between the two pins?
My large measures 1.9mm the new small 1.55.
