American Rifle Company New Archimedes Action, New Xylo Chassis, and major Mausingfield revision

American Rifle Company Archimedes Action, Xylo Chassis, and major Mausingfield revision.

American Rifle Company proudly introduces the Archimedes Bolt Action, the Xylo Chassis, and a major upgrade to the Mausingfield.

The Archimedes embodies the most significant advancement in the design of bolt actions since they were first invented in 19th century. It features a novel pivoting bolt handle that gives you the mechanical advantage to extract even the most stubbornly stuck cases. Your ability to extract cartridges without the use of tools is now limited only by the strength of the case rim. And since bolt rotation is no longer necessary for case extraction, the rotary motion is entirely dedicated to cocking, making cycling the bolt as easy as it gets. We have also captured lessons learned from our experience with the both the Mausingfield and Nucleus actions thus leaving the Archimedes with a peer.

Our new Xylo chassis captures the input and suggestions provided to us by some of the top shooters from all over the country. Keith Sanderson deserves special recognition and thanks for his assistance with the design of the chassis. Highlights include rapid length-of-pull adjustment for transitioning between the prone and any other position and a grip that truly works with your hand to get your finger back on the trigger as consistently as possible. The grip is also designed so that you can place your thumb directly behind or even on top of the receiver tang giving your hand that desirable pivot point for cycling the bolt. We designed the chassis to feel like a target stock and not like an AR-15.

Lastly, our beloved Mausingfield has undergone a major upgrade. Enhancements include an extractor-side locking-lug guide rail that cooperates beautifully with its Mauser extractor to effectively resist bolt binding, a redesigned bolt stop that matches those of the Nucleus and the Archimedes for durability, and a redesigned bayonet style bolt shroud enabling you to easily remove the striker assembly without the use of tools. But perhaps best of all is the reduction of bolt rotation from 90 to 83 degrees that increases the clearance between the scope and your thumb when cycling the bolt. Lastly, the ejection port has been enlarged for better top-loading access through a mag well that can now accommodate AI CS mags as well as BDL style bottom metal, and yes, it can handle long Wyatt mag boxes.

Please visit our website to learn more about our new products and if you’re in Vegas for the Shot Show, come visit us at booth number 20459.

American Rifle Company

The pics below are renderings. The real thing will be at Shot Show, booth 20459. I'll try and make a video or two before then.

Finally, we could not have done any of this without the support our beloved customers. Your business means the world to us and it’s what makes the development of new products possible. Thanks to all of you who have supported us over the years. 2019 will be the year that American Rifle Company commits itself to improving the customer experience and to reducing the wait times of products. So, on behalf of everyone at American Rifle Company, thanks again for your business and for enabling us to do what we love to do, make guns.

Sincerely,

Ted

View attachment 7007105View attachment 7007106View attachment 7007107View attachment 7007108
I sent a request, to ARC, for info a week or so ago needing to clarify if the Mausingfield still had the integral recoil lug. Justin called me, two weeks prior, to make sure I was cool with the changes. I guess the order for a long Left Hand action was not the norm and the order was over two years old, so he wanted to make 100% sure. The Recoil lug was not discussed. He sent the invoice and I made the payment and he said they were sending the actions out for coating. What I can see confuses me. Some pictures show one piece, I think are renderings, some videos from Shot show no lug. This is a big deal to me and I need to know.

Any first hand knowledge would be appreciated.

  • Like
Reactions: SonicBurlap
@Flaming Apple ARC updated their website a few days/weeks ago with a lengthy description of the M7 Mausingfield.
You can read it here: https://www.americanrifle.com/shop/product/mausingfield-bolt-action-2
You can also see Ted's post here: https://www.snipershide.com/shootin...or-mausingfield-revision.6922841/post-7748048

Both places they refer to the integral recoil lug as being "Persistent" between the older design (M5) and the new release (M7).....so regardless of which action you end up with (sounds like M7 based on your comments) the integral recoil lug should still be there.

But at the time of my writing this, it does explicitly state that the Mausingfield still has an integral recoil lug. I can't speak to the action(s) that you refer to from SHOT videos.....

Regards,
Ross

He was talking about making it with a separate recoil lug but people said “please no!!!!!” and now even his new action the Archimedes has a integral recoil lug.

Perhaps @karagias or someone else from ARC can comment as the ARC website does not reflect an integral recoil lug on the Archimedes action. It still shows pictures and text of the keyed lug like on the Nucleus. Maybe it's documented somewhere else, I haven't been following the Archimedes very closely.

Perhaps @karagias or someone else from ARC can comment as the ARC website does not reflect an integral recoil lug on the Archimedes action. It still shows pictures and text of the keyed lug like on the Nucleus. Maybe it's documented somewhere else, I haven't been following the Archimedes very closely.

Page 10 of this thread he stated info about the new M7

Page 8 he talked about the Archimedes.

Forgive me for being a fanboy.
I absolutely love my Nucleus and the ARC rings that are clamped to it.

I haven't, but it seems like a good way to get the best of both worlds. I've tried a few Chassis setups and usually the grip is the gripe. This one looks good.

Does anyone have a photo of the new/updated Mausingfields? I've looked at the ARC website, but the images don't look like actual product photos. I'm trying to get an idea of what these updated actions look like so I can finish planning this build for next year.

I loved the grip when I felt it at SHOT.

It is a chassis with a stock feel in the grip.

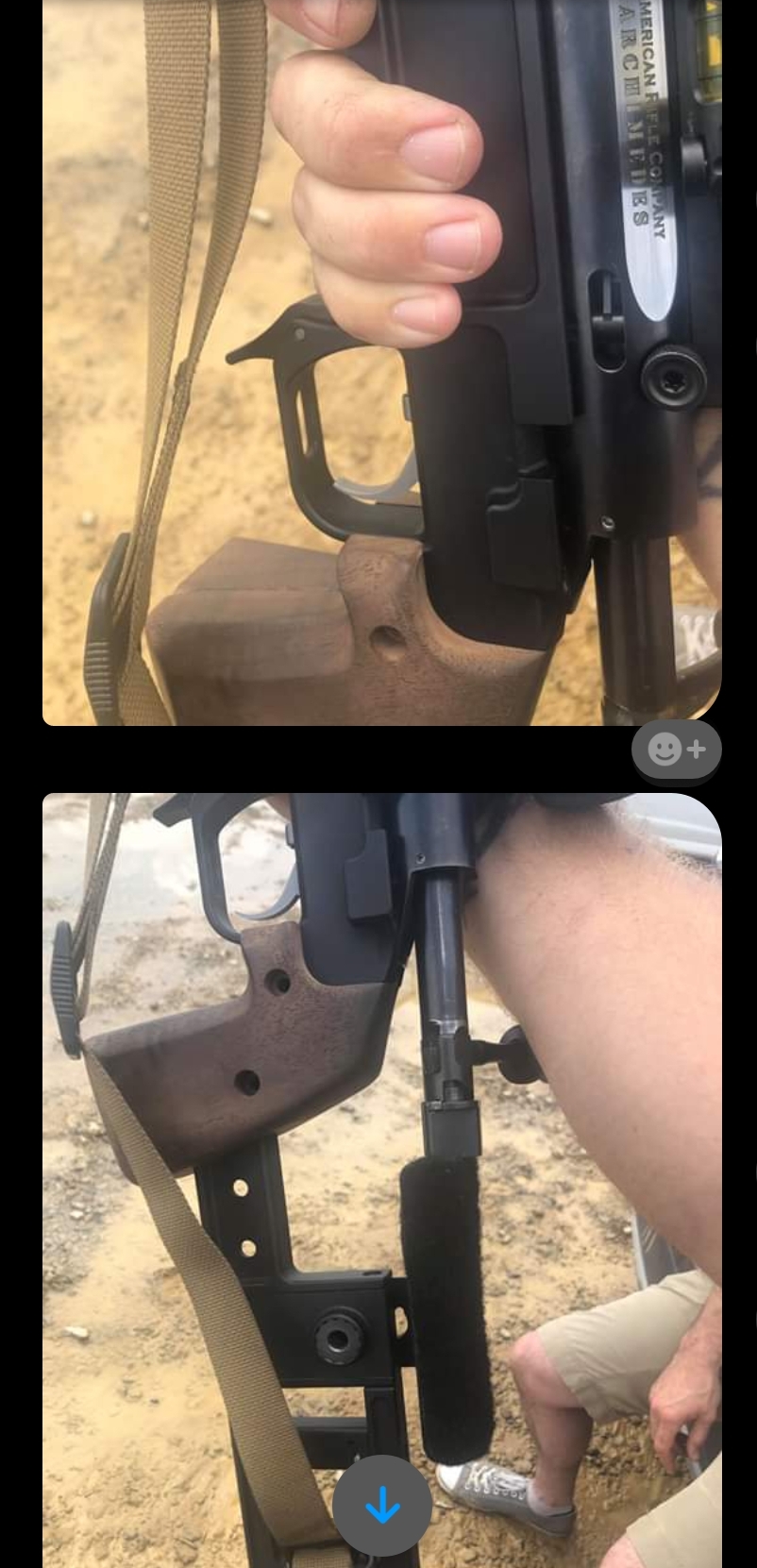

Here is a couple of pics a buddy sent me showing the grip.


Attachments

  • SmartSelect_20190712-200555_Messenger.jpg
    529.9 KB · Views: 301
and remember, the new Mausingfields are at the top of the list and will be shipping before the Archimedes. The Mausingfields havent started shipping yet, so I'm skeptical of seeing the Archimedes for the 2019 season

  • Like
Reactions: SonicBurlap
I spoke with ARC last week and they said they are planning on the Archimedes being done the beginning of August.

I hope so, but still not gonna believe it till I see it, lol. I gotta put my excitement aside or it kills me when they miss a date...

Glad I didn't wait and just built my rifle on the Nuke I have. I should be able to swap barrels if it makes sense.

Hopefully the reason for the delay is because Ted is making so many last minute refinements, such as the integrated recoil lug. Also hope they are doing some serious testing to eliminate Nucleus issues like bump on close and light primer strikes. In my eyes the delay is s worth it if they can roll out a perfect product in the first batch.

Hopefully the reason for the delay is because Ted is making so many last minute refinements, such as the integrated recoil lug. Also hope they are doing some serious testing to eliminate Nucleus issues like bump on close and light primer strikes. In my eyes the delay is s worth it if they can roll out a perfect product in the first batch.

Speaking from automotive industry experience, there’s always something the customer discovers that makes you scratch your head. Partially because of what a bunch of idiots the customer can be sometimes in the eyes of an engineer, partially because what you might discover after a year of testing 200 people will discover within a weekend.

Speaking from automotive industry experience, there’s always something the customer discovers that makes you scratch your head. Partially because of what a bunch of idiots the customer can be sometimes in the eyes of an engineer, partially because what you might discover after a year of testing 200 people will discover within a weekend.

I have high expectations, Ted is an experienced engineer and is obviously taking his time to make sure the Archimedes is done right.

  • Like
Reactions: Steel head
Stoked for this, I have one on order now. Keep up the good work, Ted. There are lots of us who understand that new product development takes time and patience. We know you're working hard to get these out the door.

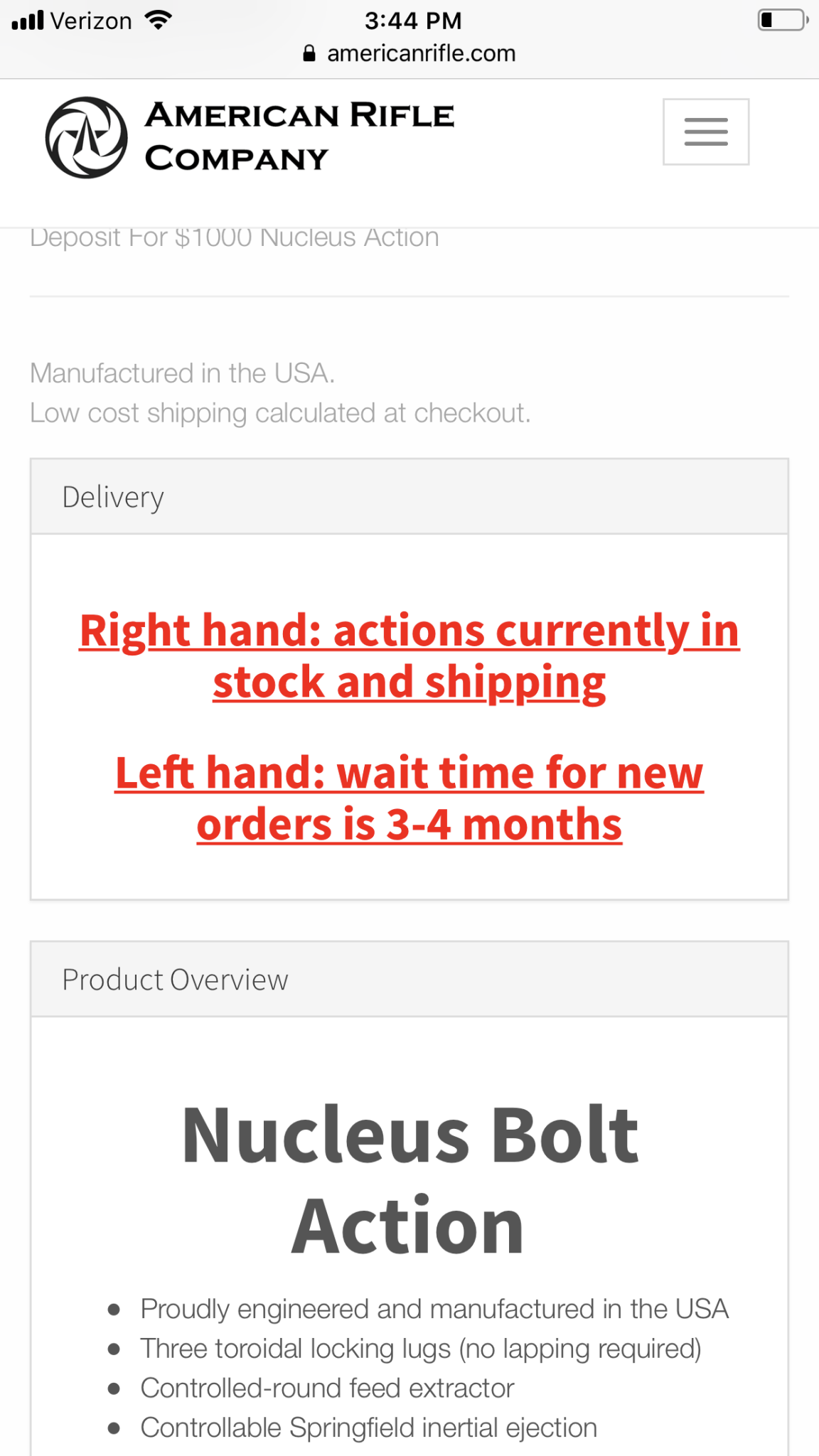

@Steel head Thanks! i saw that, however, was hoping someone who purchased one recently could answer. Not sure how often ARC updates their website.

I got my nuke in March and waited about 3 weeks.
After that they put that notice up.
Last I talked to them they had a nice pile of them.

Call them.

I do know some parts are in stock as I just got a magnum bolt head last week.

  • Like
Reactions: Dooby
Anyone with hands on experience of the new vs original mausingfield? The update looks to be the most complete action for a all out hunting rig. Mahalo.

Aye, a small groove is present but doesn't pass between the lug and receiver, just a surface feature.
They are super smooth great actions but I'd prefer my custom action without those surface features; about as unnecessary as racing stripes, or a muzzle brake painted onto the barrel. I've always wondered what made them do that, after all the integral lug is something we all want, be proud of it!

  • Like
Reactions: konjiki7

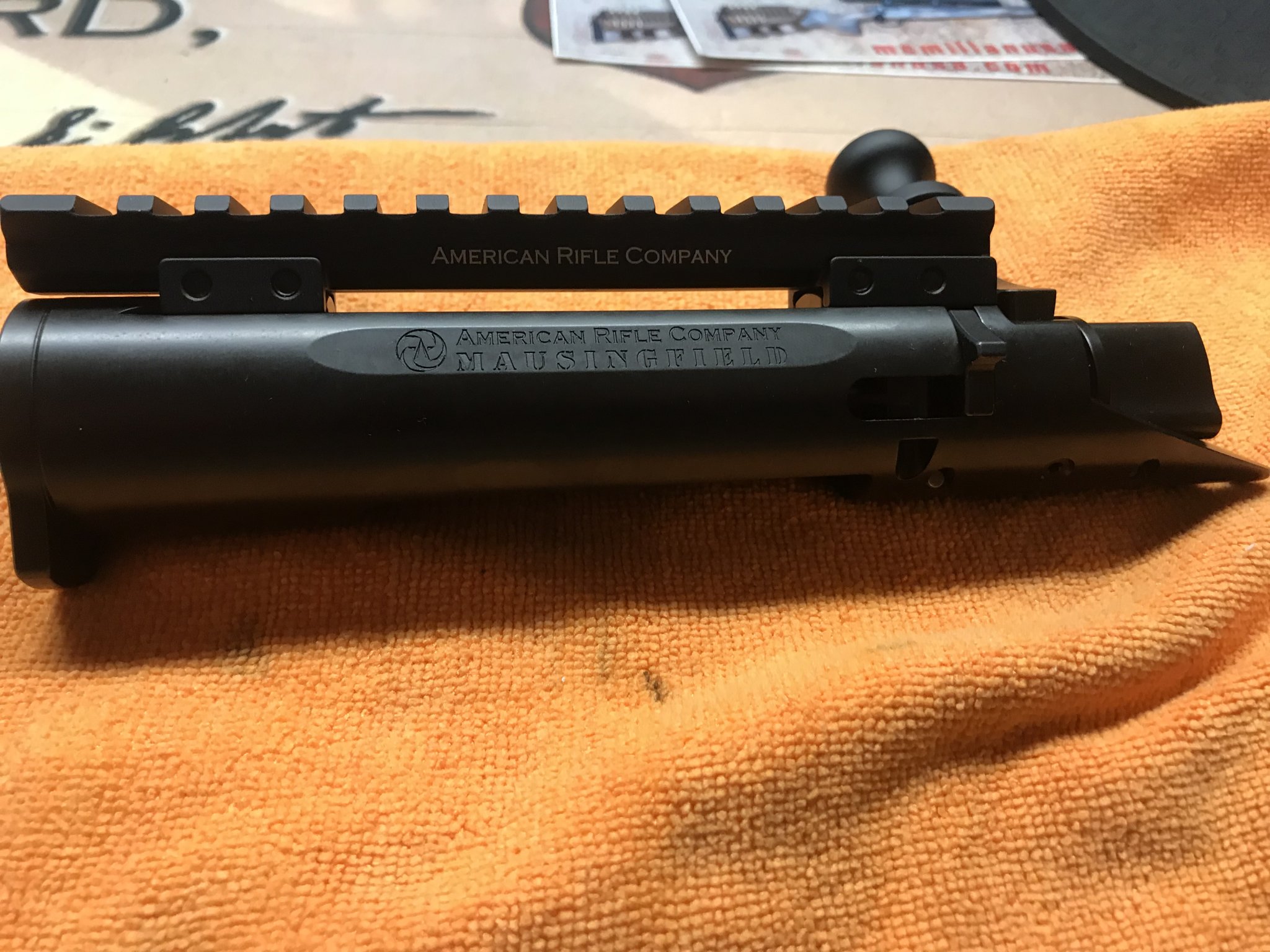

That rail with all its bolts and white writing, looks ridiculous. why not a 2 piece integral split rail like a deviant Hunter has? And why have a bolt release protrude so much on a hunting rifle?

I really hate that the Mausingfied has changed so much, because my gen 1 has been bullet proof. Id have liked to see it stay around as it was and just call this new thing something else.

Last edited:
That rail with all its bolts and white writing, looks ridiculous. why not a 2 piece integral split rail like a deviant Hunter has?

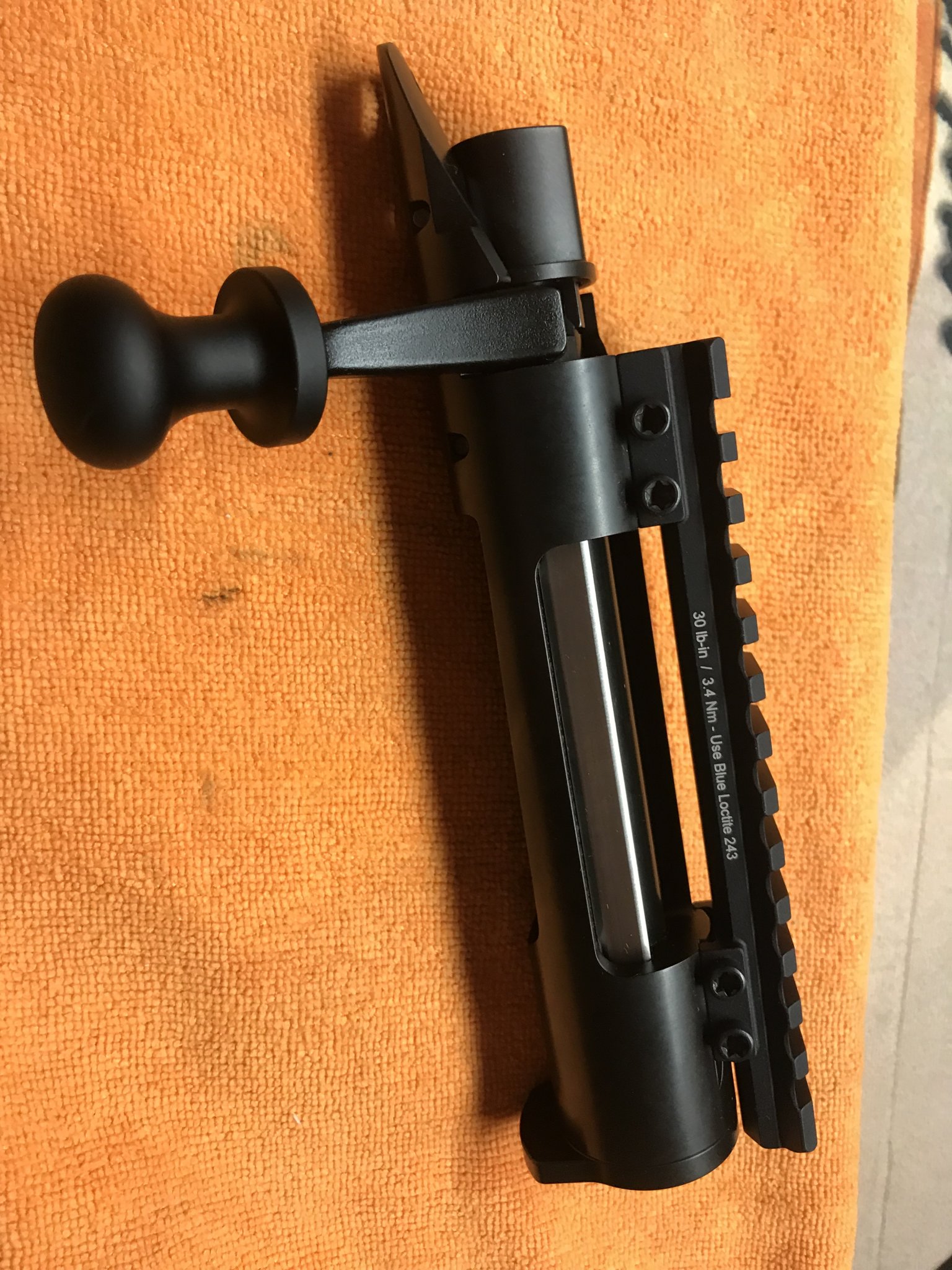

The rail I actually don't mind, the writing serves a purpose with the torque value and reminder to use blue Loctite sort of like Uncle Sam's manuals, and with a non-integral rail (which I prefer in case I ever want to go to a different MOA value) more bolts means more stability unless you disregard the writing. Also I'm not a fan of split rails because I prefer to have the extra slots for an ACI or ADI because I shoot in the mountains, or to be able to use a scope leveler to make sure the reticle is perfectly level besides just using the bubble levels, but everyone has their preferences, it's just that if you manufacture it with a two piece split integral rail everyone else is SOL.

They are super smooth great actions but I'd prefer my custom action without those surface features; about as unnecessary as racing stripes, or a muzzle brake painted onto the barrel. I've always wondered what made them do that, after all the integral lug is something we all want, be proud of it!

Pure speculation, I'd guess it's to reduce stress concentration at the corner and ensure there is no interference with squared off bedding interfaces.
